Galactose oxidase models: insights from 19F NMR spectroscopy†
Fabien Michel,a Sylvain Hamman,a Christian Philouze,a Carlos Perez Del Valle,b Eric Saint-Amana and
Fabrice Thomas*a
Received 29th July 2008, Accepted 2nd October 2008
First published as an Advance Article on the web 28th November 2008
DOI: 10.1039/b813036a
19F labelled tripodal ligands that possess a N3O donor set (one phenol, one tertiary amine and either
two pyridines or one pyridine and one quinoline) have been synthesized. The fluorine is incorporated
either at the phenol O-donor (HLF and HLCF3) or at the quinoline N-donor (HLqOMe and HLqNO2). The
copper(II)–phenol complexes (2H)2+, (1H)2+, (3H)2+ and (4H)2+ as well as the corresponding
copper(II)–phenolate complexes have been characterized. X-Ray diffraction reveals an increase in the
+
˚
oxygen–copper bond distance of more than 0.4 A upon protonation of the phenolate moiety of (4) .
Protonation is accompanied by an axial to equatorial isomerization of the quinoline group. DFT
calculations show that stretching of the Cu–O(phenol) bond, p-stacking interactions and rotation of the
pyridine are key steps in this isomerization process. Protonation, and thus changes in the oxygen–copper
bond distance induce either a decrease ((1H)2+, (2H)2+) or an increase ((3H)2+ and (4H)2+) in the
copper–fluorine distance that could be monitored by 19F NMR. In the former case, a broadening of the
19F NMR signal is observed, whereas a sharpening is observed in the latter case. Temperature
dependent 19F NMR measurements on equimolar mixtures of the phenol and phenolate complexes of
(3)+ and (4)+ reveal rate constants for proton transfer and/or isomerization of 3000 100 s-1 and 2900
100 s-1, respectively, at the coalescence temperature. This temperature was found to be strongly affected
by the phenol para-substituent as it is 226 K and ca. 330 K for (3)+ and (4)+, respectively. A phenoxyl
radical species ((3∑)2+) could be generated and characterized for the first time by 19F NMR spectroscopy.
complex of HLOMe (Fig. 1) has been shown to be a structural
model that reproduces quite well the spectroscopic properties and
reactivity of the enzyme.6
Introduction
Galactose oxidase (GO) is a copper(II) enzyme that catalyses the
oxidation of primary alcohols into the corresponding aldehydes,
with concomitant reduction of dioxygen into hydrogen peroxide.1
The crystal structure of GO was reported in 1991, showing an
active site constituted by a copper ion in a square pyramidal
geometry.2 It is coordinated in the basal plane to two histidine
nitrogen atoms (His496), one tyrosinate oxygen (Tyr272 that is cross-
linked with Cys228), and one exogenous ligand (acetate molecule
from the buffer). The apical position is occupied by one tyrosine
oxygen (Tyr495). The apparent paradox—a two-electron oxidation
performed by a single copper ion—is explained by the involvement
of another redox center, namely a tyrosyl radical from the protein,
during the catalytic cycle. Extensive characterizations have shown
∑
that it is located at Tyr272 and that it is essential for catalysis.1
Several model compounds for the GO active site have been
developed during the last decade, contributing to an enhanced
understanding of the metal–radical interaction.3–10 In this context,
it has been shown that tripodal ligands were good structural, and
sometimes functional, models of GO.3–10 In particular, the copper

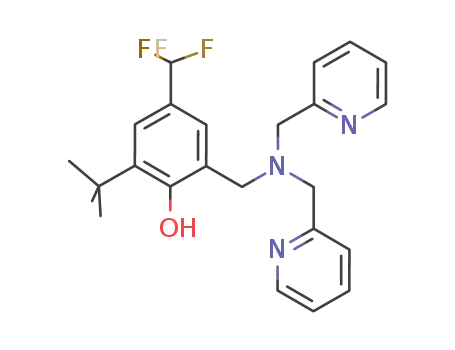

Fig. 1 Formulae of the tripodal ligands.
Techniques that are commonly used in order to characterize
such complexes are UV-vis and EPR spectroscopies, as well as
electrochemical measurements. The development of new tools
to study GO models is of major interest. For example, classical
techniques do not enable the discrimination in the phenol(ate)
position (axial vs. equatorial), and dynamic information is gen-
erally missing. We have recently shown that 19F NMR could be
a very powerful tool when it is combined with judicious ligand
labelling.7 This technique offers unique advantages as a lack of
aDe´partement de Chimie Mole´culaire, Chimie Inorganique Redox
Biomime´tique (CIRE), UMR CNRS 5250, Universite´ J. Fourier, B. P. 53,
38041 Grenoble cedex 9, France. E-mail: Fabrice.Thomas@ujf-grenoble.fr;
Fax: +33 476 514 846; Tel: +33 476 514 373
bDe´partement de Chimie Mole´culaire, Chimie The´orique, UMR CNRS 5250,
Universite´ J. Fourier, B. P. 53, 38041 Grenoble cedex 9, France
† Electronic supplementary information (ESI) available: Additional EPR,
CV and titration curves. CCDC reference numbers 661385 and 661386.
For ESI and crystallographic data in CIF or other electronic format see
DOI: 10.1039/b813036a
832 | Dalton Trans., 2009, 832–842
This journal is
The Royal Society of Chemistry 2009
©

View Article Online
Table 1 Crystal data for (1H)2+ and (3H)2+
interfering background signals, high sensitivity and distribution
of resonances over a wide spectral width. HLqNO2 (Fig. 1) is
derived from HLOMe: The fluorine atom has been incorporated
in the ligand by replacing the pyridine by a fluoroquinoline group,
while the methoxy substituent was replaced by a nitro one (in
order to monitor proton transfers and not radical formation).7
In its copper(II) complexes, we have shown that both the chemical
shift and the line width of the 19F resonance are extremely sensitive
to protonation and phenol positioning.
Is it possible to extrapolate these results to other systems? We
here address this question through the study of a series of 19F-
labelled ligands derived from HLOMe. More specifically, we explore
(i) different kinds of ligand labelling and, as this work deals with
the modelling of the GO active site, (ii) the possibility to directly
detect phenoxyl radicals by 19F NMR.
(1H) (ClO4)2
(3H)2 (ClO4)4·CH3CN
Formula
C26H29Cl2CuF3N4O9 C62H69Cl4Cu2F2N9O20
Mr/g mol-1
Crystal system
Space group
732.98
Monoclinic
P21/c
8.672(3)
40.05(2)
8.855(5)
90
101.2(1)
90
3017(3)
4
1567.18
Triclinic
¯
P1
˚
a/A
12.006(3)
17.558(4)
18.513(2)
67.13(1)
73.91(1)
82.21(2)
3453(1)
2
˚
b/A
˚
c/A
a/◦
b/◦
g /◦
3
˚
V/A
Z
T/K
150
1.614
9.78
Graphite
150
1.507
8.55
Dc/g cm-3
m/cm-1
The ligand HLqOMe (Fig. 1) differs from HLqNO2 by its phenol
para-substituent, a strongly electron-donating methoxy group.
This substituent is known to stabilize phenoxyl radicals very
efficiently.3–6 HLqOMe is thus expected to be the precursor of stable
Monochromator
Graphite
MoKa (0.71073 A)
26 103
˚
˚
l/nm
Reflections collected
MoKa (0.71073 A)
29 657
Independent reflections
Observed reflections
Rint
R1
wR2
7549
4419 [I > 2s(I)]
0.1255
0.0436
0.0396
9241
6328 [I > 2s(I)]
0.1088
0.0719
0.0972
phenoxyl radicals, as does HLOMe
.
HLCF3 and HLF belong to another family of F-labelled tripodal
ligands in which the fluorine atom is introduced on the phenol
moiety and not on a N-donor (Fig. 1). The ligands differ to each
other by the phenolate para-substituent, a trifluoromethyl group
in HLCF3 or a fluorine atom in HLF.
Synthesis of these ligands and their copper(II) complexes is
described, as well as their characterization by electrochemical and
spectroscopic methods (including 19F NMR).
Results and discussion
Preparation of the ligands
HLCF3 was obtained in a one-pot synthesis by mixing bis(2-
pyridylmethyl)amine and 2-tert-butyl-4-trifluoromethanephenol
in the presence of one equivalent of formaldehyde. HLqOMe was
prepared in a similar way to HLqNO2 by using 3-tert-butyl-2-
hydroxy-5-methoxybenzaldehyde. HLF and HLqNO2 have been
previously described.6–7
Crystal structures of the copper complexes
Monomeric complexes were obtained upon mixing stoichiometric
amounts of the N3O ligands and Cu(ClO4)2·6H2O in acetoni-
trile. Under these conditions, the complexes were isolated in
their protonated form in which the phenolic subunit remains
protonated. Single crystals of [CuII(HLCF3)(CH3CN)]2+ (1H)2+,
[CuII(HLF)(CH3CN)]2+ (2H)2+,6 [CuII(HLqOMe)(CH3CN)]2+ (3H)2+
and [CuII(HLqNO2)(CH3CN)]2+ (4H)2+7 were obtained upon slow
diffusion of di-iso-propyl ether into acetonitrile solutions of the
complexes (Table 1). When one equivalent of Cu(ClO4)2·6H2O
and HLqNO2 were mixed in acetonitrile in the presence of NEt3, the
phenolate copper complex (4)+ could be crystallized.7 The ORTEP
plots of these complexes are depicted in Fig. 2 and selected bond
lengths and angles are listed in Table 2.
Fig. 2 ORTEP plot of: (a) (1H)2+ (ClO4-); (b) (2H)2+ (ClO4-);6 (c) (3H)2+
(ClO4-); (d) (4H)2+ (ClO4
)
and (e) (4)+.7 Ellipsoids are drawn at the
-
7
50% probability level and hydrogen atoms (except the phenolic ones) are
omitted for clarity.
In (1H)2+ and (2H)2+, the geometry around the metal center is
octahedral with one phenol oxygen and one perchlorate oxygen
atom that coordinate in axial positions. An exogenous acetonitrile,
two pyridines and the tertiary amine nitrogen atoms occupy the
equatorial positions.
This journal is
The Royal Society of Chemistry 2009
Dalton Trans., 2009, 832–842 | 833
©
