Syntheses and biological evaluations of carbosilane dendrimers uniformly
functionalized with sialyl
a(2?3) lactose moieties as inhibitors for human
influenza viruses q
Hiroyuki Oka a, Tomotsune Onaga a, Tetsuo Koyama a, Chao-Tan Guo b,c,d, Yasuo Suzuki b,c, Yasuaki Esumi e,
Ken Hatano a, Daiyo Terunuma a, Koji Matsuoka a,
*
a Division of Material Science, Graduate School of Science and Engineering, Saitama University, Sakura, Saitama 338-8570, Japan
b Department of Biomedical Sciences, College of Life and Health Sciences, Chubu University, Kasugai, Aichi 487-8501, Japan
c Core Research for Evolutional Science and Technology (CREST), Japan Science and Technology Agency, Kawaguchi, Saitama 332-0012, Japan
d Zhejiang Academy of Medical Science, 182 Tianmushan Road, Hangzhou 310016, China
e The Institute of Physical and Chemical Research (RIKEN), Wako, Saitama 351-0198, Japan
a r t i c l e i n f o
a b s t r a c t
Article history:
A series of carbosilane dendrimers uniformly functionalized with sialyl lactose moieties (Neu5Aca2?3-
Received 5 June 2009
Revised 17 June 2009
Accepted 18 June 2009
Available online 21 June 2009
Galb1?4Glc) was systematically synthesized, and biological evaluations for anti-influenza virus activity
using the glycodendrimers were performed. The results suggested that the glycodendrimers had unique
biological activities depending on the form of their core frame, and Dumbbell(1)6-amide type glycoden-
drimer 7 showed particularly strong inhibitory activities against human influenza viruses [A/PR/8/34
(H1N1) and A/Aichi/2/68 (H3N2)]. The results suggested that the structure–activity relationship (SAR)
on the glycolibrary against various influenza viruses was observed, and dumbbell-shaped dendrimers
as supporting carbohydrate moieties were found to be the most suitable core scaffolds in this study.
Ó 2009 Elsevier Ltd. All rights reserved.
Keywords:
Sialyl lactose
Hemagglutinin
Sialic acid
Influenza virus
Dendrimers
Carbosilanes
Glycoclusters
1. Introduction
Sialyl lactose (Neu5Aca2?3Galb1?4Glc), a sugar chain of gan-
glioside GM3 on the cell surface, is known to a specific receptor of
HAs of influenza A viruses.6 HA has an important role on the basis
of carbohydrate–protein interaction in order to adhere the surface
glycosyl receptor on the host cell. Three HAs aggregate to form a
trimeric structure by hydrophobic interaction on the viral particle,
and HAs therefore have three sugar-binding sites on each unit.6
These three sugar-binding sites locate on a each end of ca. 45 Å tri-
angle.6 Cluster-type carbohydrate derivatives7 are expected to be
effective artificial receptors to the binding sites. Synthetic assem-
bly of sialyl lactose against the trimeric binding sites of HAs was
valuable approach for the prevention from infection of influenza
A viruses. Similar strategies to inhibit receptor-ligand interaction
have recently been reported.8 For example, linear-type polystyrene
bearing sialyl lactose moieties as a polymeric HA receptor has been
synthesized.9 Linear-type polyacylamide as backbone has been
also synthesized.10 Both of them were showed high biological
activities against viral HAs. In order to construct clustered sialyl
lactose moieties, carbosilane dendrimers were conveniently
selected as core scaffolds. The advantages of using carbosilane den-
drimers are easy control of the number of functional groups at ter-
minal ends, easy accessibility to a macromolecule having suitable
Influenza virus is a highly pathogenic virus, and an average of
about 226,000 patients with influenza virus have been hospitalized
every year in the USA.1 Influenza A viruses have two unique glyco-
proteins, hemagglutinin (HA) and neuraminidase (NA), on the
surfaces of viral particles for infection and replication.2 Neuramin-
idase inhibitors, including zanamivir3 and oseltamivir,4 have been
synthesized and widely used worldwide for clinical treatment of
influenza A virus. Although these agents have strong inhibitory
activities against influenza virus, several strains of resistant viruses
were emerged and their crystal structures of neuraminidase mu-
tants have been studied.5 In view of the outbreak of neuramini-
dase-resistant viruses as well as the possibility of appearance of
further mutants related to influenza virus, alternative types of
therapeutic agents are needed. One of the approaches to prevent
first contact of the virus and a host cell has focused on HAs, which
participate in infection of influenza virus to host cells.
q
Glyco-silicon functional materials, Part 12. For Part 11, see Ref. 25b.
* Corresponding author. Tel./fax: +81 48 858 3099.
E-mail address: koji@fms.saitama-u.ac.jp (K. Matsuoka).
0968-0896/$ - see front matter Ó 2009 Elsevier Ltd. All rights reserved.
doi:10.1016/j.bmc.2009.06.035

5466
H. Oka et al. / Bioorg. Med. Chem. 17 (2009) 5465–5475
molecular size, and low toxicity for living organisms.11 In our pre-
vious studies, some functionalized carbosilane dendrimers uni-
formly functionalized with cyclodextrins for host–guest
interactions,12 with globotriaoses for Shiga toxin–carbohydrate
interactions,13 and with lacto-N-neotetraoses for Dengue virus–
carbohydrate interactions,14 were efficiently synthesized and
showed attractive biological activities.
In this paper, we report the systematic synthesis of various car-
bosilane dendrimers having sialyl lactose moieties at each terminal
end on the surface of dendritic structures, as shown in Figure 1,
and the results of biological evaluations of the synthesized glyco-
dendrimers for human influenza viruses.
gar aglycon, such as a butenyl glycoside, was progressed in good
yield.13 Although the acetyl-thio functional group at the end of su-
gar aglycon is readily de-S-acetylated to give the corresponding
thiolate anion, which is a superior nucleophile for SN2 reaction
with alkyl halide, a radical addition of thioacetic acid to the termi-
nal double bond, especially sugar aglycon, had not been reported.
Thus, radical additions of thioacetic acid into allyl glycosides,
either acetate 8 or benzylate 10, were successfully performed to
give corresponding thioacetate 9 (67%) or 11 (56%) and recovered
starting materials 8 (31%) or 10 (23%). In the addition reaction,
0.5 equiv molar use of AIBN for the double bond was required to
achieve the above yields. When a small amount of AIBN was use
for the same reaction, prolonged reaction time was needed. Addi-
tion of more AIBN (1 equiv molar or more) to the reaction mixture
did not improve the reaction yields. However, when pentenyl gly-
cosides, either acetate 12 or benzylate 14, were used for the reac-
tion, addition of 0.5 equiv molar of AIBN gave the corresponding
thioacetate 13 or 15 in quantitative yield. The results suggest that
it is important to choose appropriate chain length for a radical
addition of thioacetic acid to the terminal C@C double bond of su-
gar aglycon.16
Scheme 2 summarizes synthetic assembly of lactose moieties
using dendritic core scaffolds as shown in Figure 2. A one-pot pro-
cedure involving de-S-acetylation of 13 with NaOMe and subse-
quent coupling reaction to a known carbosilane dendrimer 1613a
in MeOH–DMF was carried out, and the reaction proceeded
smoothly to afford 22 in 71% yield. Introduction of lactosyl deriva-
tives 13 into a dumbbell-type carbosilane dendrimer 1813b was
then carried out in the same manner as that described for fan-type
carbosilane dendrimers to provide carbosilane dendrimer 24 hav-
ing six lactose moieties in 62% yield. A disulfide-linked lactoside di-
mer 23 was also obtained as by-product in the reaction.
2. Results and discussion
Sialyl lactose is chemically labile under strong basic conditions
resulting to form intra-molecular lactam.15 In our previous study,
introduction of sugar moieties into carbosilane dendrimers in li-
quid ammonia in the presence of Na metal was reported.12,13 This
method could not be used for introduction of sialyl acid-containing
sugar moieties because of the strong basic conditions. Thus, we
have established an alternative route for the introduction of sialyl
lactose moieties into carbosilane dendrimers using lactose as a
model sugar.16 Application of the methodology for assembly of sia-
looligosaccharide using carbosilane scaffolds was tested to provide
a library of carbosilane dendrimers carrying sialyl lactose moieties
as the epitope for influenza HAs.
2.1. Synthesis of carbosilane dendrimers having lactose
moieties as model introduction for unstable sialyl lactose
moieties
Deprotection of fan-type dendrimer 22 was performed with a
combination of Zemplén’s transesterification and subsequent
saponification reaction to yield the corresponding water-soluble
carbosilane dendrimer 25 having three lactose moieties quantita-
tively. In the course of this reaction, partially deprotected products
Synthetic introduction of a thioacetate moiety into unsaturated

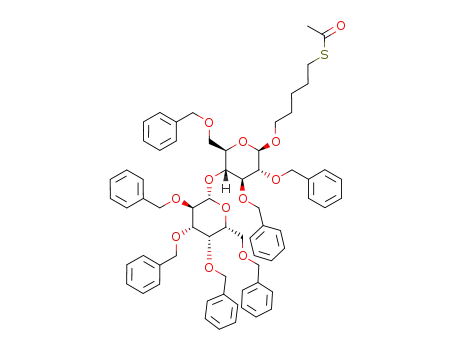

aglycons of lactosides is demonstrated in Scheme 1. A pentenyl lac-
toside 12 was readily synthesized from b-lactose per acetate and 4-
penten-1-ol in the presence of BF3–OEt2 as Lewis acid.13a Radical
addition of alkyl thiol to a C@C double bond at the terminal of su-
