Asymmetric Syntheses of (−)-3-epi-Fagomine,
(2R,3S,4R)‑Dihydroxypipecolic Acid, and Several Polyhydroxylated
Homopipecolic Acids
Kristína Csatayova,† Stephen G. Davies,*,† Ai M. Fletcher,† J. Gair Ford,‡ David J. Klauber,‡
́
Paul M. Roberts,† and James E. Thomson†
†Department of Chemistry, Chemistry Research Laboratory, University of Oxford, Mansfield Road, Oxford OX1 3TA, U.K.
‡AstraZeneca Pharmaceutical Development, Silk Road Business Park, Macclesfield, Cheshire SK10 2NA, U.K.
S
* Supporting Information
ABSTRACT: A range of enantiopure polyhydroxylated piper-
idines, including (2R,3S,4R)-dihydroxypipecolic acid, (−)-3-epi-
fagomine, (2S,3S,4R)-dihydroxyhomopipecolic acid, (2S,3R,4R)-
dihydroxyhomopipecolic acid, and two trihydroxy-substituted
homopipecolic acids, have been prepared using diastereoselective
olefinic oxidations of a range of enantiopure tetrahydropyridines as
the key step. The requisite substrates were readily prepared from
tert-butyl sorbate using our diastereoselective hydroamination or
aminohydroxylation protocols followed by ring-closing metathesis.
After diastereoselective olefinic oxidation of the resultant
enantiopure tetrahydropyridines and deprotection, enantiopure
polyhydroxylated piperidines were isolated as single diaster-
eoisomers (>99:1 dr) in good overall yield.
respectively. Subsequent diastereoselective syn-dihydroxylation
(using either Upjohn9 or Donohoe10 protocols) or anti-
dihydroxylation (using our chemoselective olefinic
oxidation7a,b,d,11 procedure) of these tetrahydropyridine sub-
strates 7 would then give the target compounds after
elaboration/deprotection (Figure 1).
INTRODUCTION
■
Polyhydroxylated piperidines, which are also known as
iminosugars, are produced as secondary metabolites in a vast
array of different organisms, although the majority originate in
plants.1 The structures of (+)-1-deoxynojirimycin 1, (+)-fag-
omine 2, and hydroxy-substituted pipecolic acids such as 3 and
4 are representative of this class of natural products.2,3 Their
structural similarity to monosaccharides means that they can act
as potent substrate mimics for a variety of glycosidases, and this
often potent biological activity has spurred research into both
the synthesis of polyhydroxylated piperidines and their
application as therapeutic agents.4 In addition to displaying
desirable biological activity,5 pipecolic acid and its derivatives
are often substituted for proline in conformational and ligand-
binding studies of biologically active peptides and foldamers.6
As part of our ongoing research program directed toward the
de novo preparation of imino- and aminosugars and their
derivatives,7 we decided to investigate the synthesis of a range
of polyhydroxylated piperidines, including fagomines 8
(Z = CH2), dihydroxypipecolic acids 8 (Z = CO), and their
corresponding homopipecolic acids 9 (Y = H, OH), via the
diastereoselective dihydroxylation of enantiopure tetrahydro-
pyridines 7 (Y = H, OH). It was envisaged that the requisite
tetrahydropyridine substrates 7 (Y = H, OH) could be prepared
using our lithium amide conjugate addition methodology8 for
the hydroamination or aminohydroxylation of a dienyl ester 5
followed by ring-closing metathesis of the resultant β-amino
ester 6 (X = H) or α-hydroxy-β-amino ester 6 (X = OH),
RESULTS AND DISCUSSION
■
Conjugate addition of lithium (R)-N-(but-3-en-1-yl)-N-(α-
methylbenzyl)amide 11 to dienyl ester 10 (which was produced
in 80% yield upon esterification of commercially available
sorbic acid) followed by treatment of the resultant lithium (Z)-
β-amino enolate12 with either saturated aq NH4Cl or
(−)-camphorsulfonyloxaziridine [(−)-CSO] produced the

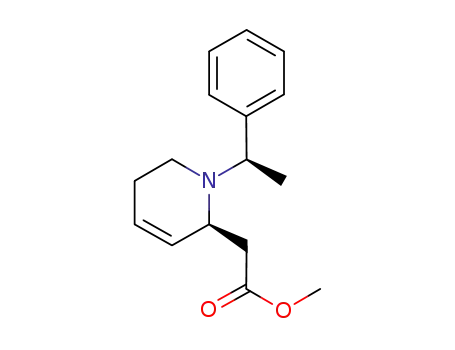

known β-amino ester 1213 in 69% yield (>99:1 dr) or α-
hydroxy-β-amino ester 13 in 64% yield (>99:1 dr), respectively.
The stereochemical outcomes of these reactions were initially
assigned by reference to our transition-state mnemonic14 for
the conjugate addition reaction and by analogy to the well-
established outcomes of these hydroamination and amino-
hydroxylation protocols.8,15 Subsequent ring-closing metathesis
of both 12 and 13 with Grubbs I catalyst gave tetrahydropyr-
idines 1413 and 15 in 74 and 76% yield, respectively, as single
diastereoisomers (>99:1 dr) in each case. Transesterification of
14 and 15 upon treatment with SOCl2 and MeOH gave the
Received: August 22, 2014
Published: October 22, 2014
© 2014 American Chemical Society
10932
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
Scheme 2
Figure 1. Synthesis of polyhydroxylated piperidines 8 and 9 via the
diastereoselective dihydroxylation of enantiopure tetrahydropyridines
7.
corresponding methyl esters 1613 and 17 in 75 and 81% yield,
respectively (Scheme 1).
analysis,17 which also allowed the assigned configurations
within 18−20 to be confirmed.
Under Upjohn9 conditions, syn-dihydroxylation of the
hydroxyl-bearing analogue 15 gave 22 in 64% yield (>99:1
dr), and protection of 1,2-diol 22 as the corresponding
acetonide gave 23 in 74% yield (>99:1 dr) (Scheme 3). The
Scheme 1
Scheme 3
Under Upjohn9 conditions (i.e., OsO4/NMO), syn-dihydrox-
ylation of tetrahydropyridine 14 gave diol 19 (94:6 dr) and,
after chromatographic purification, 19 was isolated in 68% yield
as a single diastereoisomer (>99:1 dr). Similarly, oxidation of
14 under Donohoe10 conditions (i.e., OsO4/TMEDA) gave
single osmate ester−TMEDA complex 18 (>99:1 dr). After
treatment of 18 with P(CH2OH)3, Et3N, and silica gel,16 diol
19 was isolated in 73% yield (from 14, >99:1 dr). Hydro-
genolytic N-deprotection of 19 in the presence of Pearlman’s
catalyst [Pd(OH)2/C] gave 20 in quantitative yield (>99:1 dr),
and hydrolysis of the ester moiety within 20, upon treatment
with 1.0 M aq HCl, gave (2S,3S,4R)-dihydroxyhomopipecolic
acid 21. After purification by ion exchange chromatography on
Dowex 50WX8 resin, 21 was isolated in 77% yield (>99:1 dr)
(Scheme 2). The relative configuration within 21 was initially
relative configuration within 23 was established unambiguously
via single crystal X-ray diffraction analysis,17 and the absolute
(2R,2′S,3′S,4′R,αR)-configuration of 23 was assigned by
reference to the known (R)-configuration of the α-methyl-
benzyl fragment. Furthermore, the determination of a Flack x
parameter18 of 0.07(17) for the structure of 23 confirmed the
assigned absolute configuration of 23, and therefore also that of
22. The addition of a hydroxyl group therefore has little effect
on the diastereoselectivity of the dihydroxylation step.
Subsequent reduction of the ester moiety within 23 upon
treatment with LiAlH4 gave diol 24 in 67% yield (>99:1 dr)
(Scheme 3).
Oxidative cleavage of the 1,2-diol unit within 24 upon
treatment with NaIO4, followed by oxidation of the resultant
aldehyde using a modified literature procedure,19 gave
substituted pipecolic acid 25, which was immediately treated
1
3
established by H NMR J coupling constant analysis (3J2′,3′
=
3
8.9 Hz; J3′,4′ = 2.5 Hz), and this assignment was subsequently
confirmed unambiguously via single crystal X-ray diffraction
10933
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
with 1.0 M aq HCl to remove the acetonide protecting group,
giving 26 in 26% yield (from 24, 60:40 dr). An alternative
protecting group strategy was then employed in an effort to
prevent epimerization from occurring during the oxidation
process. Hydrogenolytic N-deprotection of 24 in the presence
of Boc2O gave N-Boc-substituted piperidine 27 in 48% yield
(>99:1 dr). Subsequent oxidative cleavage of the 1,2-diol unit19
within 27, further oxidation of the resultant aldehyde, and acid-
catalyzed deprotection of the acetonide group gave (2R,3S,4R)-
dihydroxypipecolic acid 28 in 67% yield (>99:1 dr) (Scheme
4).
Scheme 5
Scheme 4
Scheme 6
Diol 24 was also elaborated to (−)-3-epi-fagomine 31 via a
three-step procedure: Oxidative cleavage of the 1,2-diol unit
within 24 upon treatment with NaIO4 and reduction of the
resultant aldehyde with NaBH4 gave 29 in 62% yield (>99:1
dr). Deprotection of 29 was achieved by hydrogenolysis to give
30. Then, acid-catalyzed hydrolysis of the acetonide group
within 30 gave (−)-3-epi-fagomine 31 as a single diaster-
eoisomer (>99:1 dr) in 80% overall yield (Scheme 5). The
spectroscopic data and specific rotation of 31 were in excellent
agreement with literature values: [α]2D0 − 72.2 (c 1.0, H2O);
lit.20e for ent-31, [α]2D6 + 74.4 (c 0.95, H2O); and lit.21 for ent-
31, [α]D + 69 (c 0.5, H2O).
procedure7a,b,d,11 (i.e., treatment of the unsaturated amine with
CCl3CO2H followed by m-CPBA) produced a 34:56:10
mixture of 36, 37, and 38, respectively. Purification of the
crude reaction mixture allowed the isolation of lactone 36 [νmax
:
1773 cm−1 (CO)] in 12% yield (>99:1 dr), diol 37 in 15%
yield (>99:1 dr), and diol 38 in 7% yield (>99:1 dr) (Scheme
7). The relative configuration within 37 was established
unambiguously via single crystal X-ray diffraction analysis,17
and the absolute (2′S,3′R,4′R,αR)-configuration of 37 was
assigned by reference to the known (R)-configuration of the α-
methylbenzyl fragment. The configuration within lactone 36
was next established by chemical correlation upon treatment of
diol 37 with aqueous HBF4 in CH2Cl2, which promoted
complete conversion to lactone 36 as a single diastereoisomer
(>99:1 dr); following chromatographic purification, 36 was
isolated in 41% yield (>99:1 dr). Reaction of diol 38 under the
same conditions gave a 70:30 mixture of lactones 39 and 40,
which were isolated in 70 and 29% yield, respectively, as single
diastereoisomers (>99:1 dr) in each case (Scheme 7). The
structure of lactone 40 was established by 1H−13C NMR
HMBC spectroscopic analysis and from the diagnostic value of
the CO absorbance in the infrared spectrum [νmax: 1785
Under Donohoe10 conditions, syn-dihydroxylation of 15 gave
a single osmate ester−TMEDA complex 32 (>99:1 dr). After
treatment of 32 with P(CH2OH)3, Et3N, and silica gel,16 triol
22 was isolated in 87% yield (from 15, >99:1 dr). Hydrolysis of
the ester moiety within 22 gave carboxylic acid 33 in 60% yield
(>99:1 dr). However, this compound was found to be fairly
insoluble, and hydrogenolytic deprotection of 33 was therefore
not possible. However, hydrogenolysis of 22 proceeded
efficiently to give 34 in quantitative yield (>99:1 dr).
Subsequent hydrolysis of 34 gave polyhydroxy-substituted
homopipecolic acid 35 in 80% yield (>99:1 dr) (Scheme 6).
Attempted anti-dihydroxylation of tetrahydropyridine 14
under our chemo- and diastereoselective olefinic oxidation
10934
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
Scheme 7
Scheme 8
cm−1 (CO)]. The relative configuration within 39 [νmax
:
1739 cm−1 (CO)] was established unambiguously via single
crystal X-ray diffraction analysis,17 and the absolute
(1S,5S,9S,αR)-configuration of 39 was assigned by reference
to the known (R)-configuration of the α-methylbenzyl
fragment. Furthermore, the determination of a Flack x
parameter18 of −0.09(17) for the structure of 39 confirmed
its assigned absolute configuration, and therefore also those of
38 and 40.
formation of lactone 36, which was isolated in 50% yield
(>99:1 dr) after purification of the crude reaction mixture
(Scheme 9). This result is therefore consistent with the
intermediacy of epoxide 44 in the formation of lactone 36 upon
olefinic oxidation of tetrahydropyridine 16.
Scheme 9
Repeating the oxidation reaction with TsOH as the Brønsted
acid reagent produced a 56:44 mixture of lactones 36 and 42,
which were isolated in 23 and 37% yield, respectively (>99:1 dr
for both). The identity of 42 was confirmed unambiguously via
chemical correlation: Treatment of an authentic sample of 36
with TsCl and pyridine gave 42 as the sole reaction product,
which was isolated in 49% yield (>99:1 dr) after chromato-
graphic purification. Employing aqueous HBF4 as the Brønsted
acid reagent produced only lactone 36 upon oxidation of either
tetrahydropyridine 14 (R = tBu) or 16 (R = Me), giving 36 as a
single diastereoisomer (>99:1 dr) in 41 or 32% yield,
respectively (Scheme 8). The formation of tosylate 42 is
consistent with a mechanism whereby epoxidation of
tetrahydropyridine 14 occurs on the 3Si,4Re face22 (i.e., the
upper face as drawn) followed by regioselective ring-opening of
intermediate epoxide 41 with tosylate at the C(4)-position and
lactonization of the resultant alcohol to give lactone 42; lactone
36 can be formed via a similar process in which intermediate
epoxide 41 is attacked at the C(4)-position by H2O.
In support of this mechanistic hypothesis, an authentic
sample of epoxide 44 was prepared from lactone 36 and
independently treated with aqueous HBF4 under conditions
analogous to those employed during the olefinic oxidation of
tetrahydropyridines 14 and 16. Initially, mesylation of the
hydroxyl group within 36 gave mesylate 43 in 77% yield (>99:1
dr), and subsequent treatment of 43 with K2CO3 in MeOH
then effected methanolysis of the lactone and base-induced
epoxide formation to give 44 as a single diastereoisomer (>99:1
dr) in 36% isolated yield. Treatment of this authentic sample of
epoxide 44 with aqueous HBF4 promoted the exclusive
Next, attempts were made to isolate the corresponding
epoxides directly upon oxidation of tetrahydropyridines 14 and
16 with CF3CO3H [prepared in situ from UHP and
(CF3CO)2O]. Oxidation of 16 gave a 63:37 mixture of lactone
36 and epoxide 44, whereas oxidation of 14, after workup, gave
a 29:26:45 mixture of lactone 36, epoxide 41, and diol 37,
respectively. Unfortunately, attempts to correlate the stereo-
chemistries between epoxides 41 and 44 upon transester-
ification of 41 were not successful as only decomposition of 41
was observed; the configuration of 41 was therefore assigned by
analogy to that of 44. This authentic sample of 41 was treated
with aqueous HBF4 under conditions analogous to those
employed during the olefinic oxidation of tetrahydropyridine
14 and was found to give lactone 36 exclusively; after
purification of the crude reaction mixture, 36 was isolated in
48% yield (>99:1 dr). This result is therefore also consistent
with the intermediacy of epoxide 41 in the formation of lactone
36 upon olefinic oxidation of tetrahydropyridine 14 (Scheme
10).
Finally, removal of the N-α-methylbenzyl group within 36 via
hydrogenolytic deprotection in the presence of Pd(OH)2/C
10935
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
Scheme 10
gave quantitative conversion to 45; standing a solution of 45 in
H2O for two days effected hydrolysis to give the zwitterionic β-
amino acid 46. Purification of 46 by ion exchange
chromatography on Dowex 50WX8 resin gave (2S,3R,4R)-
dihydroxyhomopipecolic acid 46 as a single diastereoisomer
(>99:1 dr) in quantitative yield (Scheme 11). The relative
Scheme 12
Scheme 11
gave lactone 47 as the only isolable product in 20% yield
(>99:1 dr). Both 50 and 47 were then converted into
polyhydroxy-substituted homopipecolic acid 51. Hydrogeno-
lytic N-deprotection of 50 in the presence of Pd(OH)2/C gave
51 in quantitative yield after purification via ion exchange
chromatography on Dowex 50WX8 resin. Similarly, hydro-
genolysis of 47 followed by standing a solution of 52 in H2O at
rt for two days gave 51 in quantitative yield (>99:1 dr)
(Scheme 13).
configuration within 46 was confirmed unambiguously via
single crystal X-ray diffraction analysis,17 and the determination
of a Flack x parameter18 of 0.1(2) for the structure of 46
confirmed the assigned absolute (2′S,3′R,4′R)-configuration of
46, and therefore also those of 36 and 45.
Olefinic oxidation of the analogous hydroxy-bearing
tetrahydropyridine 15 in the presence of CCl3CO2H gave an
inseparable 87:13 mixture of lactone 47 and triol 48 (of
undetermined relative configuration), respectively. However,
repetition of the reaction employing TsOH as an alternative
Brønsted acid reagent gave lactone 47 exclusively; the
corresponding tosylate 49 was not observed in this case.
After purification of the crude reaction mixture, we isolated 47
in 23% yield (>99:1 dr) (Scheme 12). The relative
configuration within 47 was then established unambiguously
via single crystal X-ray diffraction analysis,17 and the absolute
(2R,3S,4R,5R,αR)-configuration of 47 was assigned by
reference to the known (R)-configuration of the α-methyl-
benzyl fragment. The addition of a hydroxyl group does not
therefore perturb the high diastereoselectivity observed in the
epoxidation of these tetrahydropyridines.
Following the oxidation of tetrahydropyridine 15 in the
presence of aqueous HBF4, lactone 47 and trihydroxy β-amino
acid 50 were isolated in 47 and 20% yield, respectively (>99:1
dr for each). The identity of 50 was confirmed by chemical
correlation to lactone 47 upon treatment of an aliquot with
CF3CO2H, which promoted quantitative conversion to 47.
Oxidation of tetrahydropyridine 17 under identical conditions
CONCLUSION
■
In conclusion, the asymmetric syntheses of (2R,3S,4R)-
dihydroxypipecolic acid, (−)-3-epi-fagomine, (2S,3S,4R)-dihy-
droxyhomopipecolic acid, (2S,3R,4R)-dihydroxyhomopipecolic
acid, and two trihydroxy-substituted homopipecolic acids have
been achieved in good yield and high diastereoisomeric purity.
Conjugate addition of lithium (R)-N-(but-3-en-1-yl)-N-(α-
methylbenzyl)amide to tert-butyl sorbate followed by treatment
of the resultant lithium (Z)-β-amino enolate with either
saturated aq NH4Cl or (−)-camphorsulfonyloxaziridine gave
the corresponding enantiopure β-amino ester or α-hydroxy-β-
amino ester, respectively. Subsequent ring-closing metathesis
constructed the requisite tetrahydropyridine scaffold. Olefinic
oxidations of these enantiopure tetrahydropyridines proceeded
with extremely high diastereoselectivity to give syn- or anti-diols
(or the corresponding lactones). Following deprotection,
enantiopure polyhydroxylated piperidines were all prepared as
single diastereoisomers (>99:1 dr) in good overall yield.
10936
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
2.24−2.34 (2H, m, C(2)H2), 2.54−2.70 (2H, m, C(1)H2), 3.77 (1H,
q, J = 6.6 Hz, C(α)H), 5.06−5.19 (2H, m, C(4)H2), 5.75−5.91 (1H,
m, C(3)H), 7.22−7.36 (5H, m, Ph).
Scheme 13
tert-Butyl (E,E)-Hexa-2,4-dienoate [tert-Butyl Sorbate] 10.
Condensed isobutene (60 mL) at −78 °C was added to a stirred
solution of sorbic acid (10.0 g, 89.2 mmol) and concd aq H2SO4 (1.0
mL) in CH2Cl2 (200 mL) at 0 °C, and the resultant mixture was
stirred at 0 °C for 1 h. The reaction mixture was then allowed to warm
to rt and stirred for 48 h. The reaction mixture was then washed with
saturated aq NaHCO3 (5 × 100 mL), and the combined aqueous
washings were extracted with CH2Cl2 (2 × 100 mL). The combined
organic extracts were washed with brine (100 mL), dried, and
concentrated in vacuo. Purification via flash column chromatography
(eluent 30−40 °C petrol/Et2O, 50:1) gave 10 as a colorless oil (12.0 g,
80%, >99:1 dr):7c δH (400 MHz, CDCl3) 1.49 (9H, s, CMe3), 1.85
(3H, d, J = 6.2 Hz, C(6)H3), 5.71 (1H, d, J = 15.4 Hz, C(2)H), 6.07−
6.21 (2H, m, C(4)H, C(5)H), 7.14 (1H, dd, J = 15.4, 10.0 Hz,
C(3)H).
tert-Butyl (3S,αR,4E)-3-[N-But-3′-enyl-N-(α-methylbenzyl)-
amino]hex-4-enoate 12. BuLi (2.40 M in hexanes, 11.5 mL, 27.6
mmol) was added dropwise to a stirred solution of (R)-N-(but-3-en-1-
yl)-N-(α-methylbenzyl)amine (5.00 g, 28.6 mmol, >99:1 er) in THF
(20 mL) at −78 °C. After this mixture was stirred for 30 min, a
solution of 10 (3.00 g, 17.8 mmol, >99:1 dr) in THF (5 mL) at −78
°C was added dropwise via a cannula. The reaction mixture was left to
stir at −78 °C for 2 h, and then saturated aq NH4Cl (10 mL) was
added. The resultant mixture was allowed to warm to rt and stirred for
15 min, and then concentrated in vacuo. The residue was partitioned
between CH2Cl2 (200 mL) and H2O (100 mL), and the aqueous layer
was extracted with CH2Cl2 (2 × 200 mL). The combined organic
extracts were washed sequentially with 10% aq citric acid (200 mL)
and saturated aq NaHCO3 (200 mL), and then dried and concentrated
in vacuo. Purification via flash column chromatography (eluent
isohexane/EtOAc, 8:1) gave 12 as a pale yellow oil (4.23 g, 69%,
>99:1 dr):13 [α]D20 − 14.6 (c 1.0, CHCl3), lit.13 [α]2D4 − 11.3 (c 2.5,
CHCl3); δH (400 MHz, CDCl3) 1.37 (3H, d, J = 6.8 Hz, C(α)Me),
1.41 (9H, s, CMe3), 1.71 (3H, d, J = 5.4 Hz, C(6)H3), 1.99−2.09 (2H,
m, C(2′)H2), 2.29 (1H, dd, J = 14.1, 8.4 Hz, C(2)HA), 2.42 (1H, dd, J
= 14.1, 6.6 Hz, C(2)HB), 2.48−2.58 (2H, m, C(1′)H2), 3.77−3.81
(1H, m, C(3)H), 3.94 (1H, q, J = 6.8 Hz, C(α)H), 4.88−4.94 (2H, m,
C(4′)H2), 5.50−5.53 (2H, m, C(4)H, C(5)H), 5.65 (1H, ddt, J = 17.1,
10.3, 6.9 Hz, C(3′)H), 7.19−7.39 (5H, m, Ph).
tert-Butyl (R,R,R,E)-2-Hydroxy-3-[N-but-3′-enyl-N-(α-
methylbenzyl)amino]hex-4-enoate 13. BuLi (2.40 M in hexanes,
11.5 mL, 27.6 mmol) was added dropwise to a stirred solution of (R)-
N-(but-3-en-1-yl)-N-(α-methylbenzyl)amine (5.00 g, 28.6 mmol,
>99:1 er) in THF (20 mL) at −78 °C. After the mixture was stirred
for 30 min, a solution of 10 (3.00 g, 17.8 mmol, >99:1 dr) in THF (5
mL) at −78 °C was added dropwise via a cannula. The reaction
mixture was left to stir at −78 °C for 2 h, and then (−)-CSO (6.95 g,
30.3 mmol) was added. The resultant mixture was allowed to warm to
rt over 12 h and then concentrated in vacuo. The residue was dissolved
in CH2Cl2 (150 mL), and the resultant solution was washed
sequentially with 10% aq citric acid (200 mL) and saturated aq
NaHCO3 (200 mL), and then dried and concentrated in vacuo.
Purification via flash column chromatography (eluent isohexane/
EtOAc, 6:1) gave 13 as a pale yellow oil (4.12 g, 64%, >99:1 dr):
[α]2D3 − 82.7 (c 1.0, CHCl3); νmax (ATR) 3500 (OH), 1724
(CO), 1640 (CC); δH (400 MHz, CDCl3) 1.35 (3H, d, J = 6.8
Hz, C(α)Me), 1.49 (9H, s, CMe3), 1.70 (3H, d, J = 6.1 Hz, C(6)H3),
2.00−2.15 (2H, m, C(2′)H2), 2.59−2.64 (1H, m, C(1′)HA), 2.77 (1H,
ddd, J = 13.9, 9.5, 6.6 Hz, C(1′)HB), 3.49 (1H, dd, J = 9.0, 3.5 Hz,
C(3)H), 4.08 (1H, d, J = 3.5 Hz, C(2)H), 4.19 (1H, q, J = 6.8 Hz,
C(α)H), 4.92−4.97 (2H, m, C(4′)H2), 5.50−5.69 (3H, m, C(4)H,
C(5)H, C(3′)H), 7.22−7.42 (5H, m, Ph); δC (100 MHz, CDCl3) 14.6
(C(α)Me), 18.0 (C(6)), 28.0 (CMe3), 34.9 (C(2′)), 46.7 (C(1′)), 57.2
(C(α)), 64.6 (C(3)), 73.4 (C(2)), 81.7 (CMe3), 115.6 (C(3′)), 126.7
(C(4)), 127.7, 128.0, 128.7 (o,m,p-Ph), 129.8 (C(5)), 136.9 (C(4′)),
144.3 (i-Ph), 172.2 (C(1)); m/z (ESI+) 360 ([M + H]+, 100%);
EXPERIMENTAL SECTION
■
General Experimental Details. All reactions involving organo-
metallic or other moisture-sensitive reagents were carried out under a
nitrogen atmosphere using standard vacuum line techniques and
glassware that was flame-dried and cooled under nitrogen before use.
Solvents were dried according to the procedure outlined by Grubbs
and co-workers.23 BuLi was purchased as a solution in hexanes and
titrated against diphenylacetic acid before use. All other reagents were
used as supplied without prior purification. Organic layers were dried
over Na2SO4. Thin layer chromatography was performed on aluminum
plates coated with 60 F254 silica. Plates were visualized using UV light
(254 nm), 1% aq KMnO4, or Dragendorff′s reagent. Flash column
chromatography was performed on Kieselgel 60 silica. Melting points
are uncorrected. Specific rotations are reported in 10−1 deg cm2 g−1
and concentrations in g/100 mL. IR spectra were recorded using an
ATR module. Selected characteristic peaks are reported in cm−1. NMR
spectra were recorded in the stated deuterated solvent. Spectra were
recorded at rt unless otherwise stated. The field was locked by external
referencing to the relevant deuteron resonance. When the
diastereotopic methyl groups of acetonide functionalities could not
be unambiguously assigned, the descriptor MeCMe was employed.
1
1
1H−1H COSY, H−13C HMQC, and H−13C HMBC analyses were
used to establish atom connectivity. Accurate mass measurements were
run on a TOF spectrometer internally calibrated with polyalanine.
X-ray Crystal Structure Determination.17 Data were collected
using either graphite-monochromated Mo Kα (for 37) or Cu Kα (for
21·H2O, 23, 39, 46, and 47) radiation using standard procedures at
150 K. The structure was solved by direct methods (SIR92); all non-
hydrogen atoms were refined with anisotropic thermal parameters.
Hydrogen atoms were added at idealized positions. The structure was
refined using the CRYSTALS program.24
(R)-N-(But-3-en-1-yl)-N-(α-methylbenzyl)amine. 4-Bromobut-
1-ene (75.0 g, 555 mmol) was added to a stirred mixture of (R)-α-
methylbenzylamine (177 mL, 1.39 mol, >99% ee) and K2CO3 (92.1 g,
666 mmol) at rt, and the resultant mixture was heated at 50 °C for 12
h. The reaction mixture was allowed to cool to rt. H2O (1.5 L) and
Et2O (1.5 L) were added, and the aqueous layer was extracted with
Et2O (2 × 750 mL). The combined organic extracts were then dried
and concentrated in vacuo. Purification via flash column chromatog-
raphy (eluent 30−40 °C petrol/Et2O/NEt3, 30:70:1) gave (R)-N-
(but-3-en-1-yl)-N-(α-methylbenzyl)amine as a yellow oil (65.8 g, 68%,
>99:1 dr):25 [α]D20 + 42.1 (c 1.0, CHCl3), lit.25 [α]2D5 + 41.6 (c 1.0,
CHCl3); δH (400 MHz, CDCl3) 1.36 (3H, d, J = 6.6 Hz, C(α)Me),
10937
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
HRMS (ESI+) C22H33NNaO3+ ([M + Na]+) requires 382.2353, found
382.2346.
resultant mixture was stirred at rt for 1 min. A solution of 15 (800 mg,
2.52 mmol, >99:1 dr) in MeOH (3.0 mL) was added, and the reaction
mixture was stirred at rt for 16 h and then concentrated in vacuo. The
residue was partitioned between saturated aq NaHCO3 (10 mL) and
CH2Cl2 (10 mL), and the aqueous layer was extracted with CH2Cl2 (2
× 10 mL). The combined organic extracts were then dried and
concentrated in vacuo. Purification via flash column chromatography
(eluent isohexane/EtOAc, 4:1) gave 17 as yellow oil (560 mg, 81%,
>99:1 dr): [α]2D0 + 59.4 (c 1.0, CHCl3); νmax (ATR) 3505 (OH),
1739 (CO), 1655 (CC); δH (400 MHz, CDCl3) 1.47 (3H, d, J =
6.6 Hz, C(α)Me), 1.92−1.96 (1H, m, C(5′)HA), 2.01−2.07 (1H, m,
C(5′)HB), 2.36−2.42 (1H, m, C(6′)HA), 2.99 (1H, dt, J = 11.9, 5.8
Hz, C(6′)HB), 3.69−3.70 (1H, m, C(2′)H), 3.77 (3H, s, OMe), 4.04
(1H, q, J = 6.6 Hz, C(α)H), 4.54 (1H, d, J = 4.8 Hz, C(2)H), 5.41
(1H, dd, J = 10.1, 1.5 Hz, C(3′)H), 5.98−6.00 (1H, m, C(4′)H),
7.26−7.37 (5H, m, Ph); δC (100 MHz, CDCl3) 20.5 (C(α)Me), 23.5
(C(5′)), 41.2 (C(6′)), 58.0 (C(α)), 58.3 (C(2′)), 71.1 (C(2)), 123.9
(C(3′)), 127.3, 128.0, 128.3 (o,m,p-Ph), 129.7 (C(4′)), 141.5 (i-Ph),
173.5 (C(1)); m/z (ESI+) 276 ([M + H]+, 100%); HRMS (ESI+)
tert-Butyl (2′S,αR)-2-[N(1′)-(α-Methylbenzyl)-1′,2′,5′,6′-tetra-
hydropyridin-2′-yl]ethanoate 14. Grubbs I catalyst (638 mg, 1.02
mmol) was added to a stirred solution of 12 (3.50 g, 10.2 mmol, >99:1
dr) in anhydrous, degassed CH2Cl2 (400 mL) at rt. The resultant
mixture was stirred at 40 °C for 48 h and then concentrated in vacuo.
The residue was dissolved in CH2Cl2 (150 mL). The resultant solution
26
was stirred at rt, and P(CH2OH)3 (12.6 g, 102 mmol) and Et3N
(2.84 mL, 20.4 mmol) were added sequentially. The resultant mixture
was stirred at rt for 5 min. Then, excess silica gel (∼8 g) was added,
and stirring was continued for 12 h. The reaction mixture was then
concentrated in vacuo. Purification via flash column chromatography
(eluent isohexane/EtOAc, 8:1) gave 14 as a pale yellow oil (2.28 g,
74%, >99:1 dr):13 [α]D20 + 38.1 (c 1.0, CHCl3), lit.13 [α]2D5 + 41.8 (c 1.5,
CHCl3); δH (400 MHz, CDCl3) 1.39 (3H, d, J = 6.6 Hz, C(α)Me),
1.49 (9H, s, CMe3), 1.68−1.75 (1H, m, C(5′)HA), 2.07−2.11 (1H, m,
C(5′)HB), 2.38 (1H, dd, J = 14.2, 6.3 Hz, C(2)HA), 2.45−2.51 (1H,
m, C(6′)HA), 2.61 (1H, dd, J = 14.2, 7.2 Hz, C(2)HB), 2.82−2.89
(1H, m, C(6′)HB), 3.73−3.76 (1H, m, C(2′)H), 3.91 (1H, q, J = 6.6
Hz, C(α)H), 5.66 (1H, dt, J = 10.1, 3.8 Hz, C(3′)H), 5.80−5.84 (1H,
m, C(4′)H), 7.21−7.33 (5H, m, Ph).
+
C16H21NNaO3 ([M + Na]+) requires 298.1414, found 298.1410.
tert-Butyl (2′S,3′S,4′R,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-di-
hydroxypiperidin-2′-yl]ethanoate 19. Method A − Upjohn
Oxidation. OsO4 (13 mg, 49 μmol) was added to a stirred solution
of 14 (150 mg, 0.49 mmol, >99:1 dr) in THF/H2O (4:1, 1.2 mL)
followed by a solution of NMO (233 mg, 1.99 mmol) in H2O (0.1
mL), and the resultant mixture was stirred at rt for 12 h. Saturated aq
Na2SO3 (1 mL) was then added, and the resultant mixture was left to
stir at rt for 1 h. The reaction mixture was then extracted with EtOAc
(3 × 3 mL), and the combined organic extracts were dried and
concentrated in vacuo to give 19 (94:6 dr). Purification via flash
column chromatography (eluent 30−40 °C petrol/EtOAc, 4:1) gave
19 as a yellow oil (114 mg, 68%, >99:1 dr): [α]2D0 + 11.2 (c 0.5,
CHCl3); νmax (film) 3418 (OH), 1726 (CO); δH (400 MHz,
CDCl3) 1.37 (9H, s, CMe3), 1.39 (3H, d, J = 6.6 Hz, C(α)Me), 1.62−
1.73 (1H, m, C(5′)HA), 1.83−1.88 (1H, m, C(5′)HB), 2.25 (1H, dd, J
= 14.4, 9.7 Hz, C(2)HA), 2.37−2.50 (2H, m, C(2)HB, C(6′)HA), 2.79
(1H, d, J = 9.6 Hz, OH), 2.93 (1H, dt, J = 12.4, 2.1 Hz, C(6′)HB),
3.31−3.35 (1H, m, C(2′)H), 3.61−3.66 (1H, m, C(3′)H), 3.70−3.79
(2H, m, C(4′)H, C(α)H), 7.22−7.38 (5H, m, Ph); δC (100 MHz,
CDCl3) 21.4 (C(α)Me), 28.0 (CMe3), 29.7 (C(5′)), 30.3 (C(2)), 40.4
(C(6′)), 58.1 (C(2′)), 59.6 (C(α)), 66.1 (C(4′)), 70.4 (C(3′)), 80.9
(CMe3), 127.0, 127.3, 128.3 (o,m,p-Ph), 144.2 (i-Ph), 170.9 (C(1));
tert-Butyl (R,R,R)-2-Hydroxy-2-[N(1′)-(α-methylbenzyl)-
1′,2′,5′,6′-tetrahydropyridin-2′-yl]ethanoate 15. Grubbs I cata-
lyst (714 mg, 1.14 mmol) was added to a stirred solution of 13 (4.10 g,
11.4 mmol, >99:1 dr) in anhydrous, degassed CH2Cl2 (500 mL) at rt.
The resultant mixture was stirred at 40 °C for 48 h and then
concentrated in vacuo. The residue was dissolved in CH2Cl2 (180
mL). The resultant mixture was stirred at rt, and P(CH2OH)326 (14.2
g, 114 mmol) and Et3N (3.18 mL, 22.8 mmol) were added
sequentially. The resultant mixture was stirred at rt for 5 min. Then,
excess silica gel (∼10 g) was added, and stirring was continued for 12
h. The reaction mixture was then concentrated in vacuo. Purification
via flash column chromatography (eluent isohexane/EtOAc, 4:1) gave
15 as a pale yellow oil (2.74 g, 76%, >99:1 dr): [α]2D3 + 48.7 (c 1.0,
CHCl3); νmax (film) 3500 (OH), 2977 (CH), 1727 (CO),
1654 (CC); δH (400 MHz, CDCl3) 1.47 (3H, obsc d, C(α)Me),
1.49 (9H, s, CMe3), 1.93−2.09 (2H, m, C(5′)H2), 2.36−2.42 (1H, m,
C(6′)HA), 3.06 (1H, ddd, J = 12.0, 6.7, 5.0 Hz, C(6′)HB), 3.62 (1H,
app d, J = 2.2 Hz, C(2′)H), 4.08 (1H, q, J = 6.8 Hz, C(α)H), 4.43
(1H, d, J = 3.9 Hz, C(2)H), 5.41 (1H, ddt, J = 10.0, 3.4, 2.2 Hz,
C(3′)H), 5.98 (1H, dtd, J = 10.0, 3.9, 2.0 Hz, C(4′)H), 7.21−7.33
(5H, m, Ph); δC (100 MHz, CDCl3) 20.5 (C(α)Me), 23.9 (C(5′)),
28.0 (CMe3), 41.1 (C(6′)), 58.0 (C(α)), 58.6 (C(2′)), 71.0 (C(2)),
81.8 (CMe3), 124.0 (C(3′)), 127.2, 128.0, 128.2 (o,m,p-Ph), 129.4
(C(4′)), 141.5 (i-Ph), 172.4 (C(1)); m/z (ESI+) 318 ([M + H]+,
+
m/z (ESI+) 336 ([M + H]+, 100%); HRMS (ESI+) C19H30NO4
([M + H]+) requires 336.2169, found 336.2156.
Method B − Donohoe Oxidation. OsO4 (186 mg, 0.73 mmol) was
added to a stirred solution of 14 (200 mg, 0.66 mmol, >99:1 dr) and
TMEDA (140 μL, 0.93 mmol) in CH2Cl2 (5 mL) at −78 °C. The
resultant mixture was stirred at −78 °C for 1 h, and then allowed to
warm to rt over 15 min before being concentrated in vacuo to give 18
(>99:1 dr). The residue of 18 was dissolved in CH2Cl2 (6 mL); the
+
100%); HRMS (ESI+) C19H27NNaO3 ([M + Na]+) requires
340.1883, found 340.1869.
Methyl (2′S,αR)-2-[N(1′)-(α-Methylbenzyl)-1′,2′,5′,6′-tetra-
hydropyridin-2′-yl]ethanoate 16. SOCl2 (1.35 mL, 18.6 mmol)
was added to MeOH (3.0 mL) at 0 °C, and the resultant mixture was
stirred at rt for 1 min. A solution of 14 (800 mg, 2.65 mmol, >99:1 dr)
in MeOH (3.0 mL) was then added, and the reaction mixture was
stirred at rt for 16 h and then concentrated in vacuo. The residue was
partitioned between saturated aq NaHCO3 (10 mL) and CH2Cl2 (10
mL), and the aqueous layer was extracted with CH2Cl2 (2 × 10 mL).
The combined organic extracts were then dried and concentrated in
vacuo. Purification via flash column chromatography (eluent
isohexane/EtOAc, 4:1) gave 16 as yellow oil (520 mg, 75%, >99:1
dr):13 [α]2D0 + 99.0 (c 1.0, CHCl3), lit.13 [α]D16 + 42.1 (c 1.0, CHCl3);
δH (400 MHz, CDCl3) 1.36 (3H, d, J = 6.6 Hz, C(α)Me), 1.65−1.72
(1H, m, C(5′)HA), 2.08−2.18 (1H, m, C(5′)HB), 2.49 (1H, dd, J =
14.4, 6.3 Hz, C(2)HA), 2.49−2.55 (1H, m, C(6′)HA), 2.69 (1H, dd, J
= 14.4, 7.8 Hz, C(2)HB), 2.84 (1H, ddd, J = 13.6, 10.1, 4.5 Hz,
C(6′)HB), 3.65 (3H, s, OMe), 3.83−3.87 (1H, m, C(2′)H), 3.88 (1H,
q, J = 6.6 Hz, C(α)H), 5.65−5.69 (1H, m, C(3′)H), 5.84−5.88 (1H,
m, C(4′)H), 7.21−7.33 (5H, m, Ph).
26
resultant solution was stirred at rt, and P(CH2OH)3 (7.56 g, 59.5
mmol) and Et3N (1.67 mL, 11.9 mmol) were added sequentially. After
the mixture had been stirred at rt for 5 min, excess silica gel (∼5 g)
was added, and stirring of the reaction mixture was continued at rt for
48 h. The resultant suspension was then concentrated in vacuo.
Purification via flash column chromatography (eluent 30−40 °C
petrol/EtOAc, 1:1) gave 19 as a colorless oil (162 mg, 73% from 14,
>99:1 dr), which displayed characterization data consistent with those
described above.
tert-Butyl (2′S,3′S,4′R)-(3′,4′-Dihydroxypiperidin-2′-yl)-
ethanoate 20. Pd(OH)2/C (50% w/w of substrate, 52 mg) was
added to a stirred solution of 19 (104 mg, 0.31 mmol, >99:1 dr) in
degassed MeOH (3 mL) at rt. The resultant suspension was placed
under H2 (1 atm) and stirred vigorously at rt for 12 h. The reaction
mixture was then filtered through a short plug of Celite (eluent
MeOH) and concentrated in vacuo to give 20 as a yellow oil (72 mg,
quant, >99:1 dr): [α]D20 − 4.0 (c 0.5, CHCl3); νmax (film) 3316
(OH), 1718 (CO); δH (400 MHz, CDCl3) 1.46 (9H, s, CMe3),
1.70−1.79 (1H, m, C(5′)HA), 1.85−1.91 (1H, m, C(5′)HB), 2.35 (1H,
dd, J = 16.4, 8.1 Hz, C(2)HA), 2.71−2.79 (2H, m, C(2)HB, C(6′)HA),
Methyl (R,R,R)-2-Hydroxy-2-[N(1′)-(α-methylbenzyl)-
1′,2′,5′,6′-tetrahydropyridin-2′-yl]ethanoate 17. SOCl2 (1.28
mL, 17.6 mmol) was added to MeOH (3.0 mL) at 0 °C, and the
10938
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
2.99 (1H, td, J = 12.1, 3.0 Hz, C(6′)HB), 3.14 (1H, app dt, J = 8.1, 4.5
Hz, C(2′)H), 3.35 (1H, dd, J = 9.2, 3.9 Hz, C(3′)H), 4.04 (1H, app q,
J = 3.9 Hz, C(4′)H); δC (100 MHz, CDCl3) 28.1 (CMe3), 31.9
(C(2)), 38.8 (C(5′)), 39.5 (C(6′)), 53.3 (C(2′)), 68.0 (C(4′)), 73.2
(C(3′)), 81.2 (CMe3), 172.7 (C(1)); m/z (ESI+) 232 ([M + H]+,
(CO); δH (400 MHz, CDCl3) 1.27 (3H, s, MeCMe), 1.42 (3H, s,
MeCMe), 1.47 (3H, d, J = 6.8 Hz, C(α)Me), 1.49 (9H, s, CMe3),
1.71−1.78 (1H, m, C(5′)HA), 1.81−1.89 (1H, m, C(5′)HB), 2.56 (1H,
ddd, J = 12.1, 9.2, 3.0 Hz, C(6′)HA), 2.75 (1H, ddd, J = 12.1, 6.6, 3.6
Hz, C(6′)HB), 3.50 (1H, m, C(2)H), 4.10 (1H, dd, J = 6.0, 3.0 Hz,
C(2′)H), 4.16 (1H, q, J = 6.8 Hz, C(α)H), 4.21 (1H, m, C(3′)H),
4.27 (1H, app q, J = 5.0 Hz, C(4′)H), 7.21−7.37 (5H, m, Ph); δC (100
MHz, CDCl3) 19.6 (C(α)Me), 25.5, 27.4 (CMe2), 27.7 (C(5′)), 28.0
(CMe3), 40.4 (C(6′)), 59.7 (C(2′)), 59.8 (C(α)), 71.7 (C(4′)), 72.4
(C(2)), 72.7 (C(3′)), 82.7 (CMe3), 107.4 (CMe2), 126.9, 127.9, 128.2
(o,m,p-Ph), 143.0 (i-Ph), 173.1 (C(1)); m/z (ESI+) 392 ([M + H]+,
+
100%); HRMS (ESI+) C11H22NO4 ([M + H]+) requires 232.1543,
found 232.1551.
(2′S,3′S,4′R)-(3′,4′-Dihydroxypiperidin-2′-yl)ethanoic Acid
21. A solution of 20 (40 mg, 0.17 mmol, >99:1 dr) in 1.0 M aq
HCl (2 mL) was stirred at rt for 12 h and then concentrated in vacuo.
Purification via ion exchange chromatography (Dowex 50WX8−200,
eluent 1.0 M aq NH4OH) gave 21 as a white solid (23 mg, 77%, >99:1
dr): mp 137−138 °C; [α]D20 − 72.6 (c 0.5, MeOH); νmax (film) 3284
(OH), 1577 (zwitterionic β-amino acid); δH (500 MHz, D2O)
1.88−1.95 (1H, m, C(5′)HA), 2.00−2.05 (1H, m, C(5′)HB), 2.49 (1H,
dd, J = 17.5, 8.9 Hz, C(2)HA), 2.73 (1H, dd, J = 17.5, 3.8 Hz,
C(2)HB), 3.22 (2H, app dd, J = 8.7, 3.8 Hz, C(6′)H2), 3.55 (1H, td, J
= 8.9, 3.8 Hz, C(2′)H), 3.72 (1H, dd, J = 8.9, 2.5 Hz, C(3′)H), 4.1
(1H, app td, J = 5.1, 2.5 Hz, C(4′)H); δC (125 MHz, D2O) 27.0
(C(5′)), 34.7 (C(2)), 38.1 (C(6′)), 52.9 (C(2′)), 65.3 (C(4′)), 68.7
(C(3′)), 177.5 (C(1)); m/z (FI+) 175 ([M]+, 100%); HRMS (FI+)
+
100%); HRMS (ESI+) C22H33NNaO5 ([M + Na]+) requires
414.2251, found 414.2247.
(2R,2′S,3′S,4′R,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-dihy-
droxy-3′,4′-O-isopropylidenepiperidin-2′-yl]ethane-1,2-diol
24. LiAlH4 (1.0 M in THF, 2.6 mL, 2.55 mmol) was added dropwise
to a stirred solution of 23 (400 mg, 1.02 mmol, >99:1 dr) in THF (8
mL) at −78 °C; the resultant mixture was allowed to warm to rt over
16 h. Aq NaOH (1.0 M, 1 mL) was then added, and the resultant
suspension was heated at reflux for 1 h. The reaction mixture was then
filtered through a short plug of Celite (eluent EtOAc) and
concentrated in vacuo. Purification via flash column chromatography
(eluent PhMe/acetone, 3:1) gave 24 as a colorless oil (220 mg, 67%,
>99:1 dr): [α]2D0 + 39.5 (c 1.0, CHCl3); νmax (film) 3395 (OH),
2932 (CH); δH (500 MHz, CDCl3) 1.33 (3H, s, MeCMe), 1.45
(3H, s, MeCMe), 1.50 (3H, d, J = 6.9 Hz, C(α)Me), 1.66−1.74 (1H,
m, C(5′)HA), 1.78−1.81 (1H, m, C(5′)HB), 2.49−2.54 (1H, m,
C(6′)HA), 2.58−2.61 (1H, m, C(6′)HB), 3.28 (1H, dd, J = 7.1, 3.3 Hz,
C(2′)H), 3.76−3.78 (2H, m, C(1)H2), 3.88−3.92 (1H, m, C(2)H),
4.24 (1H, q, J = 6.9 Hz, C(α)H), 4.29 (1H, app q, J = 5.3 Hz,
C(4′)H), 4.44 (1H, dd, J = 6.1, 3.3 Hz, C(3′)H), 7.24−7.35 (5H, m,
Ph); δC (125 MHz, CDCl3) 20.5 (C(α)Me), 25.4 (C(5′)), 25.8, 27.7
(CMe2), 40.7 (C(6′)), 59.6 (C(2′)), 60.1 (C(α)), 65.7 (C(1)), 69.7
(C(2)), 71.0 (C(4′)), 72.7 (C(3′)), 107.8 (CMe2), 127.3 (p-Ph),
127.6, 128.5 (o,m-Ph), 142.5 (i-Ph); m/z (ESI+) 322 ([M + H]+,
+
C7H13NO4 ([M]+) requires 175.0839, found 175.0849.
tert-Butyl (2R,2′R,3′S,4′R,αR)-2-Hydroxy-2-[N(1′)-(α-methyl-
benzyl)-3′,4′-dihydroxypiperidin-2′-yl]ethanoate 22. Method
A − Upjohn Oxidation. OsO4 (48 mg, 0.19 mmol) was added to a
stirred solution of 15 (600 mg, 1.89 mmol, >99:1 dr) in THF/H2O
(4:1, 7.2 mL) followed by a solution of NMO (886 mg, 7.56 mmol) in
H2O (0.3 mL), and the resultant mixture was stirred at rt for 12 h.
Saturated aq Na2SO3 (5 mL) was then added, and the resultant
mixture was left to stir at rt for 1 h. The reaction mixture was then
extracted with EtOAc (3 × 10 mL), and the combined organic extracts
were dried and concentrated in vacuo. Purification via flash column
chromatography (eluent PhMe/iPrOH, 4:1) gave 22 as a yellow oil
(425 mg, 64%, >99:1 dr): [α]2D0 + 22.6 (c 1.0, CHCl3); νmax (film)
3307 (OH), 1732 (CO); δH (400 MHz, CDCl3) 1.37 (9H, s,
CMe3), 1.47 (3H, d, J = 6.6 Hz, C(α)Me), 1.71−1.78 (1H, m,
C(5′)HA), 1.80−1.86 (1H, m, C(5′)HB), 2.82−2.87 (1H, m,
C(6′)HA), 2.97−3.04 (1H, m, C(6′)HB), 3.28 (1H, t, J = 2.8 Hz,
C(2′)H), 3.63 (1H, br s, C(3′)H), 4.04−4.12 (2H, m, C(4′)H,
C(α)H), 4.56 (1H, d, J = 2.8 Hz, C(2)H), 7.22−7.37 (5H, m, Ph); δC
(100 MHz, CDCl3) 21.4 (C(α)Me), 28.0 (CMe3), 29.3 (C(5′)), 41.5
(C(6′)), 58.9 (C(4′)), 62.9 (C(2′)), 67.5 (C(α)), 69.1 (C(3′)), 69.3
(C(2)), 83.1 (CMe3), 127.1, 127.2, 128.5 (o,m,p-Ph), 143.8 (i-Ph),
173.6 (C(1)); m/z (ESI+) 352 ([M + H]+, 100%); HRMS (ESI+)
+
100%); HRMS (ESI+) C18H27NNaO4 ([M + Na]+) requires
344.1832, found 344.1834.
(2R,3S,4R,αR)-N(1)-(α-Methylbenzyl)-3,4-dihydroxypiperi-
dine-2-carboxylic Acid 26. NaIO4 (166 mg, 0.77 mmol) was added
to a solution of 24 (100 mg, 0.31 mmol, >99:1 dr) in EtOH/H2O
(5:1, 4.4 mL) at rt, and the resultant suspension was stirred at rt for 20
min. The reaction mixture was then filtered through a short plug of
Celite (eluent EtOH) and concentrated in vacuo. The residue was
dissolved in Et2O (10 mL), and the resultant solution was filtered
through a short plug of Celite (eluent Et2O) and concentrated in
vacuo. Cyclohexene (0.32 mL) was added to a solution of the residue
+
C19H30NO5 ([M + H]+) requires 352.2118, found 352.2120.
Method B − Donohoe Oxidation. OsO4 (132 mg, 0.52 mmol) was
added to a stirred solution of 15 (150 mg, 0.47 mmol, >99:1 dr) and
TMEDA (100 μL, 0.66 mmol) in CH2Cl2 (5 mL) at −78 °C. The
reaction mixture was stirred at −78 °C for 1 h, then allowed to warm
to rt over 15 min, and concentrated in vacuo. The residue was
dissolved in CH2Cl2 (6 mL). P(CH2OH)326 (3.94 g, 29.1 mmol) and
Et3N (0.81 mL, 5.81 mmol) were added sequentially, and the resultant
solution was stirred at rt for 5 min. Excess silica gel (∼5 g) was then
added, and stirring of the mixture was continued at rt for 48 h. The
resultant suspension was then concentrated in vacuo. Purification via
flash column chromatography (eluent PhMe/iPrOH, 4:1) gave 22 as a
colorless oil (89 mg, 87%, >99:1 dr), which displayed characterization
data consistent with those described above: [α]2D0 + 23.0 (c 1.0,
CHCl3).
tert-Butyl (2R,2′S,3′S,4′R,αR)-2-Hydroxy-2-[N(1′)-(α-methyl-
benzyl)-3′,4′-dihydroxy-3′,4′-O-isopropylidenepiperidin-2′-
yl]ethanoate 23. TsOH·H2O (162 mg, 0.85 mmol) was added to a
stirred solution of 22 (600 mg, 1.70 mmol) in DMP/acetone (13:1, 8
mL), and the resultant mixture was stirred at 45 °C for 48 h. Saturated
aq NaHCO3 (10 mL) was then added, and the reaction mixture was
extracted with CH2Cl2 (3 × 10 mL). The combined organic extracts
were washed with brine (20 mL), dried, and concentrated in vacuo.
Purification via flash column chromatography (eluent CHCl3/iPrOH,
95:5) gave 23 as a yellow solid (493 mg, 74%, >99:1 dr): mp 82−83
°C; [α]2D0 + 13.0 (c 1.0, CHCl3); νmax (film) 3445 (OH), 1731
t
in BuOH (4.8 mL) at rt. A solution of NaClO2 (31 mg, 0.34 mmol)
and KH2PO4 (47 mg, 0.34 mmol) in H2O (0.8 mL) was then added
dropwise at rt. The resultant mixture was stirred at rt for 1 h and then
concentrated in vacuo. The residue was partitioned between EtOAc (2
mL) and H2O (2 mL), and the aqueous layer was extracted with
EtOAc (2 × 2 mL). The combined organic extracts were then dried
and concentrated in vacuo to give 25. A solution of residue 25 in 1.0
M aq HCl (0.5 mL) was stirred at 40 °C for 12 h. The reaction
mixture was then allowed to cool to rt and concentrated in vacuo.
Purification via ion exchange chromatography (Dowex 50WX8−200,
eluent 1.0 M aq NH4OH) gave 26 as an orange oil (21 mg, 26% from
24, 60:40 dr). Data for mixture: νmax (ATR) 3345 (OH), 1457
(zwitterionic α-amino acid); m/z (ESI+) 266 ([M + H]+, 100%);
HRMS (ESI+) C14H19NNaO4+ ([M + Na]+) requires 288.1206, found
288.1219. Data for major diastereoisomer: δH (500 MHz, D2O) 1.62
(3H, d, J = 6.6 Hz, C(α)Me), 1.79−1.87 (2H, m, C(5)H2), 2.82−2.87
(1H, m, C(6)HA), 3.05−3.10 (1H, m, C(6)HB), 3.31−3.39 (1H, m,
C(2)H), 3.87−3.90 (2H, m, C(3)H, C(4)H), 4.32 (1H, q, J = 6.6 Hz,
C(α)H), 7.40−7.48 (5H, m, Ph); δC (125 MHz, D2O) 18.3
(C(α)Me), 27.0 (C(5)), 43.0 (C(6)), 58.3 (C(α)), 65.6 (C(3)),
70.1 (C(2)), 70.4 (C(4)), 127.5, 129.3, 129.5 (o,m,p-Ph), 136.1 (i-Ph),
177.9 (CO2H). Data for minor diastereoisomer: δH (500 MHz, D2O)
1.61 (3H, d, J = 6.9 Hz, C(α)Me), 1.93−2.02 (2H, m, C(5)H2), 2.88−
2.93 (1H, m, C(6)HA), 2.98−3.03 (1H, m, C(6)HB), 3.15 (1H, d, J =
10939
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
7.6 Hz, C(2)H), 3.96−3.99 (1H, m, C(3)H), 4.02 (1H, app d, J = 3.5
Hz, C(4)H), 4.47 (1H, q, J = 6.9 Hz, C(α)H), 7.40−7.48 (5H, m, Ph);
δC (125 MHz, D2O) 17.2 (C(α)Me), 30.3 (C(5)), 42.8 (C(6)), 58.2
(C(α)), 65.0 (C(2)), 70.2 (C(3)), 75.3 (C(4)), 128.3, 129.2, 129.3
(o,m,p-Ph), 136.1 (i-Ph), 179.9 (CO2H).
m, C(5)HA), 1.77 (1H, dddd, J = 14.2, 8.2, 6.0, 3.4 Hz, C(5)HB),
2.43−2.49 (1H, m, C(6)HA), 2.52−2.58 (1H, m, C(6)HB), 3.34−3.41
(2H, m, C(2)CHAHB, C(2)H), 3.62−3.68 (1H, m, C(2)CHAHB),
3.95−3.97 (1H, m, C(3)H), 4.14−4.21 (2H, m, C(α)H, C(4)H),
7.20−7.32 (5H, m, Ph); δC (100 MHz, CDCl3) 20.7 (C(α)Me), 25.5
(C(5)), 25.6, 27.9 (CMe2), 39.7 (C(6)), 56.3 (C(2)), 59.2 (C(α)),
59.9 (C(2)CH2), 71.3 (C(4)), 73.7 (C(3)), 107.8 (CMe2), 127.1 (p-
Ph), 127.4, 128.3 (o,m-Ph), 143.4 (i-Ph); m/z (ESI+) 292 ([M + H]+,
(2R,2′S,3′S,4′R)-2-[N(1′)-tert-Butoxycarbonyl-3′,4′-dihy-
droxy-3′,4′-O-isopropylidenepiperidin-2′-yl]ethane-1,2-diol
27. Pd(OH)2/C (50% w/w of substrate, 40 mg) was added to a stirred
solution of 24 (80 mg, 0.25 mmol, >99:1 dr) and Boc2O (59 mg, 0.27
mmol) in degassed MeOH (2 mL) at rt. The resultant suspension was
placed under H2 (1 atm) and stirred vigorously at rt for 12 h. The
reaction mixture was then filtered through a short plug of Celite
(eluent MeOH) and concentrated in vacuo to give 27 as a colorless oil
(37 mg, 48%, >99:1 dr): [α]2D0 + 25.2 (c 1.0, CHCl3); νmax (ATR)
3416 (OH), 2979 (CH), 1665 (CO); δH (500 MHz, CDCl3)
1.33 (3H, s, MeCMe), 1.45 (3H, s, MeCMe), 1.46 (9H, s, CMe3),
1.72−1.75 (1H, m, C(5′)HA), 1.81−1.86 (1H, m, C(5′)HB), 3.07 (1H,
br s, OH), 3.21−3.23 (1H, m, C(6′)HA), 3.36−3.42 (2H, m, C(2)H,
C(6′)HB), 3.57−3.61 (2H, m, C(1)H2), 4.04 (1H, dd, J = 10.5, 1.8 Hz,
C(2′)H), 4.29 (1H, br s, OH), 4.41−4.43 (1H, m, C(4′)H), 4.81−
4.82 (1H, m, C(3′)H); δC (125 MHz, CDCl3) 24.2, 26.4 (CMe2), 28.3
(CMe3), 36.8 (C(5′)), 53.9 (C(6′)), 62.0 (C(1)), 68.8 (C(2′)), 71.7
(C(4′)), 72.6 (C(2)), 77.2 (C(3′)), 80.9 (CMe3), 107.6 (CMe2), 157.9
(NCO); m/z (ESI+) 340 ([M + Na]+, 100%); HRMS (ESI+)
+
100%); HRMS (ESI+) C17H26NO3 ([M + H]+) requires 292.1907,
found 292.1897.
(2S,3S,4R)-2-Hydroxymethyl-3,4-dihydroxypiperidine [(−)-3-
epi-Fagomine] 31. Step 1. Pd(OH)2/C (50% w/w of substrate, 21
mg) was added to a stirred solution of 29 (42 mg, 0.15 mmol, >99:1
dr) in MeOH (0.5 mL). The resultant suspension was placed under H2
(1 atm) and stirred vigorously at rt for 12 h. The reaction mixture was
then filtered through a short plug of Celite (eluent MeOH) and
concentrated in vacuo to give 30 as a yellow oil (28 mg, quant, >99:1
dr): δH (400 MHz, CDCl3) 1.33 (3H, s, MeCMe), 1.47 (3H, s,
MeCMe), 1.97−2.02 (1H, m, C(5)HA), 2.08−2.12 (1H, m, C(5)HB),
2.71−2.74 (1H, m, C(2)H), 2.84 (1H, td, J = 12.3, 3.3 Hz, C(6)HA),
2.93−2.98 (1H, m, C(6)HB), 3.56 (1H, dd, J = 11.1, 7.2 Hz,
C(2)CHAHB), 3.81 (1H, dd, J = 9.0, 4.9 Hz, C(3)H), 3.87 (1H, dd, J =
11.1, 3.3 Hz, C(2)CHAHB), 4.11 (2H, br s, NH, OH), 4.28−4.31 (1H,
m, C(4)H); δC (100 MHz, CDCl3) 26.2 (MeCMe), 26.9 (C(5)), 28.3
(MeCMe), 40.2 (C(6)), 59.5 (C(2)), 62.4 (C(2)CH2), 71.7 (C(4)),
72.7 (C(3)), 108.7 (CMe2).
Step 2. A solution of 30 (20 mg, 0.11 mmol, >99:1 dr) in 1.0 M aq
HCl (0.5 mL) was stirred at rt for 12 h and then concentrated in
vacuo. Purification via ion exchange chromatography (Dowex
50WX8−200, eluent 1.0 M aq NH4OH) gave 31 as a white solid
(13 mg, 80%, >99:1 dr):20e,21 mp 141−145 °C, lit.20e mp 220−222
°C; [α]D20 − 72.2 (c 1.0, H2O), lit.20e for ent-31 [α]2D6 + 74.4 (c 0.95,
H2O), lit.21 for ent-31 [α]D + 69 (c 0.5, H2O); δH (500 MHz, D2O)
1.65−1.71 (1H, m, C(5)HA), 1.77−1.82 (1H, m, C(5)HB), 2.73−2.83
(2H, m, C(6)H2), 2.85 (1H, ddd, J = 10.1, 6.6, 3.2 Hz, C(2)H), 3.44
(1H, dd, J = 10.1, 2.8 Hz, C(3)H), 3.58 (1H, dd, J = 11.7, 6.6 Hz,
C(2)CHAHB), 3.77 (1H, dd, J = 11.7, 3.2 Hz, C(2)HAHB), 4.03 (1H,
q, J = 2.8 Hz, C(4)H).
(2R,2′R,3′S,4′R,αR)-2-Hydroxy-2-[N(1′)-(α-methylbenzyl)-
3′,4′-dihydroxypiperidin-2′-yl]ethanoic Acid 33. A solution of
22 (60 mg, 0.17 mmol, >99:1 dr) in 1.0 M aq HCl (1.5 mL) was
stirred at rt for 12 h and then concentrated in vacuo. Purification via
ion exchange chromatography (Dowex 50WX8−200, eluent 1.0 M aq
NH4OH) gave 33 as a colorless oil (30 mg, 60%, >99:1 dr):
[α]2D0 − 5.8 (c 0.5, H2O); νmax (ATR) 3351 (OH), 1611 (CO);
δH (500 MHz, D2O), 1.65 (3H, d, J = 6.6 Hz, C(α)Me), 1.76−1.78
(1H, m, C(5′)HA), 2.06 (1H, app dtd, J = 14.0, 10.4, 3.8 Hz,
C(5′)HB), 2.93−2.95 (1H, m, C(6′)HA), 3.30−3.31 (1H, m,
C(6′)HB), 3.76−3.77 (1H, m, C(2′)H), 4.08−4.19 (2H, m, C(3′)H,
C(4′)H), 4.48 (1H, d, J = 6.9 Hz, C(2)H), 4.92−4.93 (1H, m,
C(α)H), 7.43−7.50 (5H, m, Ph); δC (125 MHz, D2O) 18.4
(C(α)Me), 23.3 (C(5′)), 42.9 (C(6′)), 61.8 (C(α)), 63.0 (C(2′)),
64.7 (C(4′)), 66.9 (C(3′)), 67.0 (C(2)), 127.9, 129.5, 129.9 (o,m,p-
Ph), 136.7 (i-Ph), 177.6 (C(1)); m/z (ESI+) 296 ([M + H]+, 100%);
HRMS (ESI+) C15H21NNaO5+ ([M + Na]+) requires 318.1312, found
318.1307.
tert-Butyl (2R,2′R,3′S,4′R)-2-Hydroxy-2-(3′,4′-dihydroxypi-
peridin-2′-yl)ethanoate 34. Pd(OH)2/C (50% w/w of substrate,
35 mg) was added to a stirred solution of 22 (70 mg, 0.20 mmol,
>99:1 dr) in degassed MeOH (1.5 mL). The resultant suspension was
placed under H2 (1 atm) and stirred vigorously at rt for 12 h. The
reaction mixture was then filtered through a short plug of Celite
(eluent MeOH) and concentrated in vacuo to give 34 as a colorless oil
(49 mg, quant, >99:1 dr): [α]2D0 − 18.2 (c 0.5, MeOH); νmax (ATR)
3346 (OH, NH), 2978 (CH), 1728 (CO); δH (500 MHz,
MeOH-d4) 1.59 (9H, s, CMe3), 1.83−1.89 (1H, m, C(5′)HA), 1.94−
1.97 (1H, m, C(5′)HB), 3.02−3.09 (1H, m, C(6′)HA), 3.25 (1H, app
td, J = 12.8, 3.2 Hz, C(6′)HB), 3.70 (1H, dd, J = 10.2, 1.1 Hz,
C(2′)H), 3.85 (1H, dd, J = 10.2, 2.5 Hz, C(3′)H), 4.02−4.04 (1H, m,
C(4′)H), 4.26−4.27 (1H, m, C(2)H); δC (125 MHz, MeOH-d4) 28.4
+
C15H27NNaO6 ([M + Na]+) requires 340.1731, found 340.1738.
(2R,3S,4R)-3,4-Dihydroxypiperidine-2-carboxylic Acid
[(−)-3,4-Dihydroxypipecolic Acid] 28. NaIO4 (55 mg, 0.23
mmol) was added to a solution of 27 (30 mg, 91 μmol, >99:1 dr)
in EtOH/H2O (5:1, 1.3 mL) at rt, and the resultant suspension was
stirred at rt for 20 min. The reaction mixture was then filtered through
a short plug of Celite (eluent EtOH) and concentrated in vacuo. The
residue was dissolved in Et2O (10 mL), and the resultant solution was
filtered through a short plug of Celite (eluent Et2O) and concentrated
in vacuo. Cyclohexene (0.10 mL) was added to a solution of the
t
residue in BuOH (1.4 mL) at rt. A solution of NaClO2 (85 mg, 0.95
mmol) and KH2PO4 (128 mg, 0.95 mmol) in H2O (0.9 mL) was then
added dropwise at rt. The resultant mixture was stirred at rt for 18 h
and then concentrated in vacuo. The residue was partitioned between
EtOAc (2 mL) and H2O (2 mL), and the aqueous layer was extracted
with EtOAc (2 × 2 mL). The combined organic extracts were then
dried and concentrated in vacuo. A solution of the residue in 2.0 M aq
HCl (0.5 mL) was heated at reflux for 12 h. The reaction mixture was
then allowed to cool to rt and concentrated in vacuo. Purification via
ion exchange chromatography (Dowex 50WX8−200, eluent 1.0 M aq
NH4OH) gave 28 as an orange solid (13 mg, 67%, >99:1 dr): mp
233−238 °C (dec); [α]2D0 − 6.1 (c 1.0, H2O); νmax (ATR) 3345
(OH), 2948 (CH), 1452 (zwitterionic α-amino acid); δH (700
MHz, D2O) 1.83−1.87 (1H, m, C(5)HA), 1.99 (1H, dtd, J = 14.5, 7.4,
4.5 Hz, C(5)HB), 3.17−3.24 (2H, m, C(6)H2), 3.81 (1H, d, J = 7.0
Hz, C(2)H), 3.95−3.97 (1H, m, C(4)H), 4.09 (1H, dd, J = 7.0, 2.4
Hz, C(3)H); δC (175 MHz, D2O) 25.8 (C(5)), 38.9 (C(6)), 59.2
(C(2)), 65.4 (C(4)), 68.4 C(3)), 172.4 (CO2H); m/z (ESI+) 162
+
([M + H]+, 100%); HRMS (ESI+) C6H11NNaO4 ([M + Na]+)
requires 184.0580, found 184.0583.
(2S,3S,4R,αR)-N(1)-(α-Methylbenzyl)-2-hydroxymethyl-3,4-
dihydroxy-3,4-O-isopropylidenepiperidine 29. NaIO4 (219 mg,
1.03 mmol) was added to a stirred solution of 24 (110 mg, 0.34 mmol,
>99:1 dr) in EtOH/H2O (5:1, 3.9 mL) at rt, and the resultant
suspension was stirred at rt for 20 min. The reaction mixture was then
filtered through a short plug of Celite (eluent EtOH), and the filtrate
was concentrated in vacuo to half of its original volume. The residue
was cooled to 0 °C, and NaBH4 (30 mg, 0.79 mmol) was added. The
resultant mixture was allowed to warm to rt and stirred at rt for 12 h
before saturated aq NH4Cl (0.5 mL) was added. The reaction mixture
was then filtered through Celite (eluent CHCl3/MeOH, 3:1) and
concentrated in vacuo. Purification via flash column chromatography
(eluent PhMe/acetone, 2:3) gave 29 as a yellow oil (62 mg, 62%,
>99:1 dr): [α]2D0 + 48.3 (c 1.0, CHCl3); νmax (film) 3442 (OH),
2982 (CH); δH (400 MHz, CDCl3) 1.29 (3H, s, MeCMe), 1.42
(3H, d, J = 6.6 Hz, C(α)Me), 1.44 (3H, s, MeCMe), 1.55−1.63 (1H,
10940
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
(CMe3), 29.9 (C(5′)), 40.2 (C(6′)), 58.4 (C(2′)), 67.6 (C(3′)), 67.9
(C(4′)), 70.4 (C(2)), 83.6 (CMe3), 171.8 (C(1)); m/z (ESI+) 248
Method D (from 41). HBF4 (48% aq, 72 μL, 0.52 mmol) was added
to a stirred solution of 41 (35 mg, 0.11 mmol, >99:1 dr) in CH2Cl2
(0.5 mL) at rt, and the resultant mixture was stirred at rt for 48 h. A
mixture of CHCl3/iPrOH (3:1, 2 mL) was then added, and the organic
layer was washed with saturated aq NaHCO3 (1 mL), dried, and
concentrated in vacuo. Purification via flash column chromatography
(eluent CHCl3/ PrOH, 95:5) gave 36 as a yellow oil (14 mg, 48%,
>99:1 dr), which displayed characterization data consistent with those
described above.
Method E (from 44). HBF4 (48% aq, 47 μL, 0.36 mmol) was added
to a stirred solution of 44 (20 mg, 0.07 mmol, >99:1 dr) in CH2Cl2
(0.2 mL) at rt, and the resultant solution was stirred at rt for 48 h. A
mixture of CHCl3/iPrOH (3:1, 2 mL) was then added, and the organic
layer was washed with saturated aq NaHCO3 (1 mL), dried, and
concentrated in vacuo. Purification via flash column chromatography
(eluent CHCl3/iPrOH, 95:5) gave 36 as a yellow oil (9 mg, 50%,
>99:1 dr), which displayed characterization data consistent with those
described above.
+
([M + H]+, 100%); HRMS (ESI+) C11H22NO5 ([M + H]+) requires
248.1492, found 248.1496.
(2R,2′R,3′S,4′R)-2-Hydroxy-2-(3′,4′-dihydroxypiperidin-2′-
yl)ethanoic Acid 35. A solution of 34 (30 mg, 0.12 mmol, >99:1 dr)
in 1.0 M aq HCl (1.5 mL) was stirred at rt for 12 h and then
concentrated in vacuo. Purification via ion exchange chromatography
(Dowex 50WX8−200, eluent 1.0 M aq NH4OH) gave 35 as a white
solid (19 mg, 80%, >99:1 dr): mp 150−145 °C; [α]2D0 − 46.4 (c 0.5,
H2O); νmax (ATR) 3317 (OH), 2944 (CH), 1415 (zwitterionic
β-amino acid); δH (500 MHz, D2O) 1.87−1.94 (1H, m, C(5′)HA),
1.96−2.02 (1H, m, C(5′)HB), 3.21−3.24 (2H, m, C(6′)H2), 3.67 (1H,
dd, J = 10.1, 2.8 Hz, C(2′)H), 3.95 (1H, dd, J = 10.1, 2.8 Hz, C(3′)H),
4.09−4.11 (1H, m, C(4′)H), 4.19 (1H, d, J = 2.8 Hz, C(2)H); δC (125
MHz, D2O) 26.9 (C(5′)), 38.6 (C(6′)), 57.2 (C(2′)), 65.9 (C(4′)),
66.0 (C(3′)), 69.6 (C(2)), 176.4 (C(1)); m/z (ESI+) 192 ([M + H]+,
i
+
100%); HRMS (ESI+) C7H14NO5 ([M + H]+) requires 192.0866,
tert-Butyl (2′S,3′R,4′R,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-di-
hydroxypiperidin-2′-yl]ethanoate 37 and tert-Butyl
(2′S,3′S,4′S,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-dihydroxypi-
peridin-2′-yl]ethanoate 38. CCl3CO2H (542 mg, 3.32 mmol) was
added to a stirred solution of 14 (200 mg, 0.66 mmol, >99:1 dr) in
CH2Cl2 (2 mL) at rt, and the resultant mixture was stirred at rt for 5
min. m-CPBA (75%, 611 mg, 2.65 mmol) was then added, and the
resultant mixture was stirred at rt for 48 h. A mixture of CHCl3/iPrOH
(3:1, 5 mL) was then added, and the organic layer was washed with
saturated aq Na2SO3 (5 mL) until starch iodide paper indicated no
remaining oxidant. The organic layer was washed with saturated aq
NaHCO3 (5 mL), and the combined aqueous layers were extracted
with CHCl3/iPrOH (3:1, 3 × 10 mL). The combined organic extracts
were then dried and concentrated in vacuo to give a 34:56:10 mixture
of 36, 37, and 38, respectively. Purification via flash column
chromatography (eluent CHCl3/iPrOH, 95:5) gave 36 as a colorless
oil (21 mg, 12%, >99:1 dr). Further elution gave 37 as a yellow solid
(33 mg, 15%, >99:1 dr): mp 96−97 °C; [α]2D0 − 15.3 (c 1.0, CHCl3);
νmax (ATR) 3397 (OH), 1726 (CO); δH (400 MHz, CDCl3) 1.35
(3H, d, J = 6.6 Hz, C(α)Me), 1.41 (9H, s, CMe3), 1.57−1.68 (1H, m,
C(5′)HA), 1.84−1.89 (1H, m, C(5′)HB), 2.42−2.53 (3H, m, C(2)H2,
C(6′)HA), 2.83−2.88 (1H, m, C(6′)HB), 3.54−3.68 (3H, m, C(2′)H,
C(3′)H, C(4′)H), 3.97 (1H, q, J = 6.6 Hz, C(α)H), 7.20−7.30 (5H,
m, Ph); δC (100 MHz, CDCl3) 22.1 (C(α)Me), 28.0 (CMe3), 30.2
(C(2)), 31.1 (C(5′)), 41.0 (C(6′)), 56.2 (C(2′)), 59.4 (C(α)), 70.2
(C(4′)), 74.2 (C(3′)), 80.9 (CMe3), 127.0, 127.9, 128.4 (o,m,p-Ph),
145.4 (i-Ph), 173.4 (C(1)); m/z (ESI+) 336 ([M + H]+, 100%);
found 192.0869.
(3S,4R,5R,αR)-5-Hydroxy-3,7-N-(α-methylbenzyl)imino-4-
heptanolactone 36. Method A (from 14). HBF4 (48% aq, 217 μL,
1.66 mmol) was added to a stirred solution of 14 (100 mg, 0.33 mmol,
>99:1 dr) in CH2Cl2 (1 mL) at rt, and the resultant mixture was
stirred at rt for 5 min. m-CPBA (75%, 305 mg, 1.33 mmol) was then
added, and the resultant mixture was stirred at rt for 48 h. A mixture of
CHCl3/iPrOH (3:1, 10 mL) was then added, and the organic layer was
washed with saturated aq Na2SO3 (5 mL) until starch iodide paper
indicated no remaining oxidant. The organic layer was then washed
with saturated aq NaHCO3 (5 mL), and the combined aqueous
washings were extracted with CHCl3/iPrOH (3:1, 3 × 10 mL). The
combined organic extracts were then dried and concentrated in vacuo.
Purification via flash column chromatography (eluent CHCl3/iPrOH,
95:5) gave 36 as a yellow oil (36 mg, 41%, >99:1 dr): [α]2D0 + 39.9 (c
1.0, CHCl3); νmax (ATR) 3407 (OH), 1773 (CO); δH (400
MHz, CDCl3) 1.41 (3H, d, J = 6.7 Hz, C(α)Me), 1.69 (1H, app dtd, J
= 13.6, 9.7, 4.8 Hz, C(6)HA), 1.99 (1H, app ddd, J = 13.6, 8.3, 5.0 Hz,
C(6)HB), 2.25 (1H, dd, J = 17.0, 7.4 Hz, C(2)HA), 2.47−2.53 (1H, m,
C(7)HA), 2.58 (1H, dd, J = 17.0, 9.6 Hz, C(2)HB), 2.96 (1H, app dd, J
= 12.1, 4.8 Hz, C(7)HB), 3.61 (1H, q, J = 6.7 Hz, C(α)H), 3.69 (1H,
app dt, J = 9.6, 7.4 Hz, C(3)H), 3.77 (1H, ddd, J = 9.7, 7.0, 4.8 Hz,
C(5)H), 4.25 (1H, app t, J = 7.0 Hz, C(4)H), 7.16−7.37 (5H, m, Ph);
δC (100 MHz, CDCl3) 20.8 (C(α)Me), 27.7 (C(2)), 29.6 (C(6)), 39.7
(C(7)), 56.0 (C(3)), 61.2 (C(α)), 69.4 (C(5)), 82.0 (C(4)), 127.1,
127.5, 128.7 (o,m,p-Ph), 142.7 (i-Ph), 175.3 (C(1)); m/z (ESI+) 262
+
([M + H]+, 100%); HRMS (ESI+) C15H19NNaO3 ([M + Na]+)
requires 284.1257, found 284.1249.
+
HRMS (ESI+) C19H30NO4 ([M + H]+) requires 336.2169, found
336.2167. Further elution gave 38 as a colorless oil (16 mg, 7%, >99:1
dr): [α]2D0 + 13.7 (c 0.5, CHCl3); νmax (ATR) 3345 (OH), 1725
(CO); δH (500 MHz, CDCl3) 1.45 (9H, s, CMe3), 1.57 (3H, d, J =
6.9 Hz, C(α)Me), 1.67−1.74 (1H, m, C(5′)HA), 2.02−2.06 (1H, m,
C(5′)HB), 2.21−2.26 (1H, m, C(6′)HA), 2.86−2.88 (1H, m, C(2′)H),
2.95 (2H, app d, J = 5.7 Hz, C(2)H2), 3.04−3.08 (1H, m, C(6′)HB),
3.44−3.48 (1H, m, C(4′)H), 3.65 (1H, t, J = 7.1 Hz, C(3′)H), 4.38
(1H, q, J = 6.9 Hz, C(α)H), 4.80 (2H, br s, 2 × OH), 7.22−7.38 (5H,
m, Ph); δC (125 MHz, CDCl3) 19.6 (C(α)Me), 28.1 (CMe3), 30.4
(C(5′)), 34.2 (C(2)), 41.8 (C(6′)), 56.8 (C(α)), 59.9 (C(2′)), 72.0
(C(4′)), 74.9 (C(3′)), 81.1 (CMe3), 127.1, 127.9, 128.9 (o,m,p-Ph),
140.5 (i-Ph), 172.3 (C(1)); m/z (ESI+) 336 ([M + H]+, 100%);
Method B (from 16). HBF4 (48% aq, 251 μL, 1.93 mmol) was
added to a stirred solution of 16 (100 mg, 0.39 mmol, >99:1 dr) in
CH2Cl2 (1 mL) at rt, and the resultant solution was stirred at rt for 5
min. m-CPBA (75%, 355 mg, 1.54 mmol) was then added, and the
resultant mixture was stirred at rt for 48 h. A mixture of CHCl3/iPrOH
(3:1, 5 mL) was then added, and the organic layer was washed with
saturated aq Na2SO3 (5 mL) until starch iodide paper indicated no
remaining oxidant. The organic layer was then washed with saturated
aq NaHCO3 (5 mL), and the combined aqueous layers were extracted
with CHCl3/iPrOH (3:1, 3 × 10 mL). The combined organic extracts
were then dried and concentrated in vacuo. Purification via flash
column chromatography (eluent CHCl3/iPrOH, 95:5) gave lactone 36
as a yellow oil (32 mg, 32%, >99:1 dr), which displayed
characterization data consistent with those described above.
Method C (from 37). HBF4 (48% aq, 68 μL, 0.52 mmol) was added
to a stirred solution of 37 (35 mg, 0.10 mmol, >99:1 dr) in CH2Cl2
(0.5 mL) at rt, and the resultant mixture was stirred at rt for 48 h. A
mixture of CHCl3/iPrOH (3:1, 5 mL) was then added, and the organic
layer was washed with saturated aq NaHCO3 (1 mL), dried, and
concentrated in vacuo. Purification via flash column chromatography
(eluent CHCl3/iPrOH, 95:5) gave 36 as a yellow oil (11 mg, 41%,
>99:1 dr), which displayed characterization data consistent with those
described above.
+
HRMS (ESI+) C19H30NO4 ([M + H]+) requires 336.2169, found
336.2169.
(3S,4S,5S,αR)-4-Hydroxy-3,7-N-(α-methylbenzyl)imino-5-
heptanolactone 39 and (3S,4S,5S,αR)-5-Hydroxy-3,7-N-(α-
methylbenzyl)imino-4-heptanolactone 40. HBF4 (48% aq, 48
μL, 0.45 mmol) was added to a stirred solution of 38 (30 mg, 0.09
mmol, >99:1 dr) in CH2Cl2 (0.4 mL) at rt, and the resultant mixture
was stirred at rt for 48 h. CHCl3/iPrOH (3:1, 1 mL) was then added,
and the organic layer was washed with saturated aq NaHCO3 (1 mL),
dried, and concentrated in vacuo to give a 70:30 mixture of 39 and 40,
respectively. Purification via flash column chromatography (eluent
CHCl3/iPrOH, 95:5) gave 39 as a white solid (16 mg, 70%, >99:1 dr):
10941
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
mp 97−98 °C; [α]D20 + 59.3 (c 1.0, CHCl3); νmax (ATR) 3505
(OH), 1739 (CO); δH (500 MHz, CDCl3) 1.34 (3H, d, J = 6.6
Hz, C(α)Me), 1.99 (1H, app d, J = 14.8 Hz, C(6)HA), 2.25−2.34 (2H,
m, C(6)HB, C(7)HA), 2.52 (1H, app td, J = 12.8, 3.2 Hz, C(2)HA),
2.84 (1H, d, J = 19.2 Hz, C(7)HB), 3.08−3.13 (2H, m, C(2)HB,
C(4)H), 3.26 (1H, d, J = 9.8 Hz, OH), 3.63 (1H, q, J = 6.6 Hz,
C(α)H), 3.81−3.86 (1H, m, C(3)H), 4.50 (1H, d, J = 2.2 Hz, C(5)H),
7.24−7.51 (5H, m, Ph); δC (125 MHz, CDCl3) 21.4 (C(α)Me), 26.4
(C(6)), 27.6 (C(7)), 38.7 (C(2)), 52.0 (C(4)), 61.1 (C(α)), 63.6
(C(3)), 74.7 (C(5)), 127.0, 127.8, 129.0 (o,m,p-Ph), 143.2 (i-Ph),
169.6 (C(1)); m/z (ESI+) 262 ([M + H]+, 100%); HRMS (ESI+)
C15H20NO3+ ([M + H]+) requires 262.1438, found 262.1440. Further
elution gave 40 as a colorless oil (6 mg, 29%, >99:1 dr): [α]2D0 + 79.8
(c 0.5, CHCl3); νmax (ATR) 3407 (OH), 1785 (CO); δH (500
MHz, CDCl3) 1.48 (3H, d, J = 6.6 Hz, C(α)Me), 1.64−1.71 (1H, m,
C(6)HA), 2.06−2.21 (3H, m, C(6)HB, C(7)HA, OH), 2.34−2.39 (1H,
m, C(3)H), 2.45−2.51 (1H, m, C(2)HA), 2.75 (1H, dd, J = 15.4, 5.7
Hz, C(2)HB), 3.06 (1H, app d, J = 10.1 Hz, C(7)HB), 3.66−3.71 (1H,
m, C(5)H), 3.80−3.87 (2H, m, C(4)H, C(α)H), 7.21−7.40 (5H, m,
Ph); δC (125 MHz, CDCl3) 17.0 (C(α)Me), 31.9 (C(6)), 36.2 (C(2)),
46.2 (C(7)), 60.1 (C(α)), 61.3 (C(3)), 70.1 (C(5)), 87.2 (C(4)),
127.6, 128.0, 128.2 (o,m,p-Ph), 138.6 (i-Ph), 173.7 (C(1)); m/z (ESI+)
2.55−2.64 (2H, m, C(2)HB, C(7)HA), 2.68−2.72 (1H, m, C(7)HB),
3.52 (1H, app q, J = 6.4 Hz, C(3)H), 3.70 (1H, q, J = 6.8 Hz, C(α)H),
4.24 (1H, app t, J = 6.0 Hz, C(4)H), 4.51 (1H, ddd, J = 8.2, 6.0, 4.4
Hz, C(5)H), 7.20−7.77 (9H, m, Ph, Ar); δC (100 MHz, CDCl3) 20.1
(C(α)Me), 21.7 (ArMe), 28.8 (C(6)), 30.0 (C(2)), 38.8 (C(7)), 56.1
(C(3)), 60.0 (C(α)), 77.5 (C(5)), 77.8 (C(4)), 127.4, 127.7, 127.9,
128.6, 129.8 (Ar, o,m,p-Ph), 133.2, 140.9 (Ar, i-Ph), 145.1 (CMe),
174.0 (C(1)); m/z (ESI+) 438 ([M + Na]+, 100%); HRMS (ESI+)
C22H25NNaO5S+ ([M + Na]+) requires 438.1346, found 438.1344.
Further elution gave 36 as yellow oil (20 mg, 23%, >99:1 dr).
Method B (from 36). TsCl (82 mg, 0.43 mmol) was added to a
stirred solution of 36 (70 mg, 0.27 mmol, >99:1 dr) and pyridine (43
μL, 0.54 mmol) in CH2Cl2 (5 mL) at rt, and the resultant mixture was
stirred at rt for 12 h. The reaction mixture was then washed with
saturated aq CuSO4 (5 mL). The aqueous layer was extracted with
CH2Cl2 (3 × 5 mL), and the combined organic extracts were washed
with saturated aq NaHCO3 (15 mL), dried, and concentrated in vacuo.
Purification via flash column chromatography (eluent CHCl3/iPrOH,
95:5) gave 42 as a yellow oil (54 mg, 49%, >99:1 dr), which displayed
characterization data consistent with those described above.
(3S,4R,5R,αR)-5-(Methanesulfonyloxy)-3,7-N-(α-
methylbenzyl)imino-4-heptanolactone 43. MsCl (47 μL, 61
mmol) was added dropwise to a stirred solution of 36 (100 mg, 0.38
mmol, >99:1 dr) and Et3N (107 μL, 0.77 mmol) in CH2Cl2 (1.6 mL)
at 0 °C. The resultant mixture was stirred at rt for 1 h, and then
washed with saturated aq CuSO4 (3 × 2 mL), dried, and concentrated
in vacuo. Purification via flash column chromatography (eluent
CH2Cl2) gave 43 as a yellow oil (99 mg, 77%, >99:1 dr):
[α]2D0 + 55.2 (c 0.5, CHCl3); νmax (ATR) 1784 (CO); δH (500
MHz, CDCl3) 1.41 (3H, d, J = 6.6 Hz, C(α)Me), 1.87−1.94 (1H, m,
C(6)HA), 2.24 (1H, app dtd, J = 13.0, 5.1, 2.5 Hz, C(6)HB), 2.30 (1H,
dd, J = 16.9, 7.1 Hz, C(2)HA), 2.54−2.64 (2H, m, C(2)HB, C(7)HA),
2.97 (1H, app dt, J = 12.3, 4.2 Hz, C(7)HB), 3.08 (3H, s, SO2Me), 3.64
(1H, q, J = 6.6 Hz, C(α)H), 3.72−3.77 (1H, m, C(3)H), 4.39 (1H,
app t, J = 7.1 Hz, C(4)H), 4.59 (1H, ddd, J = 10.7, 7.1, 5.1 Hz,
C(5)H), 7.27−7.41 (5H, m, Ph); δC (125 MHz, CDCl3) 20.8
(C(α)Me), 27.4 (C(2)), 29.9 (C(6)), 38.6 (SO2Me), 39.5 (C(7)), 56.6
(C(3)), 61.1 (C(α)), 78.2 (C(4)), 80.1 (C(5)), 127.0, 128.8, 129.7
(o,m,p-Ph), 142.2 (i-Ph), 174.0 (C(1)); m/z (ESI+) 340 ([M + H]+,
100%); HRMS (ESI+) C16H21NNaO5S+ ([M + Na]+) requires
362.1033, found 362.1041.
+
262 ([M + H]+, 100%); HRMS (ESI+) C15H19NNaO3 ([M + Na]+)
requires 284.1257, found 284.1260.
tert-Butyl (2′S,3′R,4′S,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-
epoxypiperidin-2′-yl]ethanoate 41. (CF3CO)2O (0.18 mL, 1.33
mmol) was added to a stirred solution of UHP (468 mg, 4.97 mmol)
and CH2Cl2 (1.5 mL) at 0 °C, and the resultant mixture was stirred at
0 °C for 30 min. A solution of 14 (100 mg, 0.33 mmol, >99:1 dr) and
CF3CO2H (62 μL, 0.83 mmol) in CH2Cl2 (1.5 mL) was added, and
the resultant mixture was stirred at rt for 16 h. Saturated aq Na2SO3 (2
mL) was then added until starch iodide paper indicated no remaining
oxidant. CH2Cl2 (5 mL) was then added, and the organic layer was
washed with 2.0 M aq NaOH (2 × 5 mL). The combined aqueous
layers were extracted with CH2Cl2 (2 × 10 mL); then, the combined
organic extracts were dried and concentrated in vacuo to give a
29:26:45 mixture of 36, 41, and 37, respectively. Purification via flash
column chromatography (eluent CHCl3/iPrOH, 95:5) gave 37 as a
yellow oil (20 mg, 18%, >99:1 dr). Further elution gave 36 as a yellow
oil (6 mg, 7%, >99:1 dr). Then, further elution gave 41 as a colorless
oil (15 mg, 14%, >99:1 dr): [α]2D0 + 2.8 (c 0.5, CHCl3); νmax (ATR)
2979 (CH), 1718 (CO); δH (500 MHz, CDCl3) 1.36 (3H, d, J =
6.5 Hz, C(α)Me), 1.48 (9H, s, CMe3), 1.55−1.58 (1H, m, C(5′)HA),
1.87−1.94 (1H, m, C(5′)HB), 2.30−2.34 (1H, m, C(6′)HA), 2.51−
2.65 (3H, m, C(2)H2, C(6′)HB), 3.26 (1H, app t, J = 4.4 Hz, C(3′)H),
3.33−3.34 (1H, m, C(4′)H), 3.77−3.84 (2H, m, C(2′)H, C(α)H),
7.21−7.27 (5H, m, Ph); δC (125 MHz, CDCl3) 20.8 (C(5′)), 22.5
(C(α)Me), 28.1 (CMe3), 35.5 (C(6′)), 36.3 (C(2)), 49.6 (C(2′)), 51.9
(C(4′)), 52.5 (C(3′)), 58.2 (C(α)), 80.2 (CMe3), 126.9 (p-Ph), 127.1,
128.3 (o,m-Ph), 144.8 (i-Ph), 171.5 (C(1)); m/z (ESI+) 318
Methyl (2′S,3′R,4′S,αR)-2-[N(1′)-(α-Methylbenzyl)-3′,4′-ep-
oxypiperidin-2′-yl]ethanoate 44. Method A (from 16).
(CF3CO)2O (0.21 mL, 1.54 mmol) was added to a stirred solution
of UHP (543 mg, 5.78 mmol) and CH2Cl2 (1.5 mL) at 0 °C, and the
resultant mixture was stirred at 0 °C for 30 min. A solution of 16 (100
mg, 0.39 mmol, >99:1 dr) and CF3CO2H (72 μL, 0.96 mmol) in
CH2Cl2 (1.5 mL) was then added, and the resultant mixture was
stirred at rt for 16 h. Saturated aq Na2SO3 (2 mL) was then added
until starch iodide paper indicated no remaining oxidant. CH2Cl2 (5
mL) was added, and the organic layer was washed with 2.0 M aq
NaOH (2 × 5 mL). The combined aqueous layers were then extracted
with CH2Cl2 (2 × 10 mL), and the combined organic extracts were
dried and concentrated in vacuo to give a 63:37 mixture of 36 and 44,
respectively. Purification via flash column chromatography (eluent
CHCl3/iPrOH, 95:5) gave 36 as a yellow oil (30 mg, 34%, >99:1 dr).
Further elution gave 44 as a yellow oil (14 mg, 13%, >99:1 dr):
[α]2D0 + 6.5 (c 1.0, CHCl3); νmax (ATR) 2976 (CH), 1734 (CO);
δH (400 MHz, CDCl3) 1.34 (3H, d, J = 6.6 Hz, C(α)Me), 1.56 (1H,
dt, J = 15.0, 1.7 Hz, C(5′)HA), 1.88−1.96 (1H, m, C(5′)HB), 2.31−
2.56 (1H, m, C(6′)HA), 2.52−2.56 (1H, m, C(6′)HB), 2.70 (2H, app
d, J = 7.3 Hz, C(2)H2), 3.26−3.28 (1H, m, C(3′)H), 3.33−3.36 (1H,
m, C(4′)H), 3.71 (3H, s, OMe), 3.79 (1H, q, J = 6.6 Hz, C(α)H), 3.88
(1H, app q, J = 6.1 Hz, C(2′)H), 7.21−7.50 (5H, m, Ph); δC (100
MHz, CDCl3) 20.6 (C(5′)), 22.4 (C(α)Me), 34.3 (C(2)), 36.3
(C(6′)), 49.4 (C(2′)), 51.5 (OMe), 52.0 (C(3′)), 52.3 (C(4′)), 58.4
(C(α)), 127.0, 127.1, 128.4 (o,m,p-Ph), 144.9 (i-Ph), 172.7 (C(1));
+
([M + H]+, 100%); HRMS (ESI+) C19H28NO3 ([M + H]+) requires
318.2064, found 318.2063.
(3S,4R,5R,αR)-5-(p-Toluenesulfonyloxy)-3,7-N-(α-
methylbenzyl)imino-4-heptanolactone 42. Method A (from 14).
TsOH·H2O (315 mg, 1.66 mmol) was added to a stirred solution of
14 (100 mg, 0.33 mmol) in CH2Cl2 (1 mL) at rt, and the resultant
mixture was stirred at rt for 5 min. m-CPBA (75%, 305 mg, 1.33
mmol) was then added, and the reaction mixture was stirred at rt for
48 h. A mixture of CHCl3/iPrOH (3:1, 2 mL) was then added, and the
organic layer was washed with saturated aq Na2SO3 (5 mL) until
starch iodide paper indicated no remaining oxidant. The organic layer
was washed with saturated aq NaHCO3 (5 mL), and the combined
aqueous layers were extracted with CHCl3/iPrOH (3:1, 3 × 10 mL).
The combined organic extracts were then dried and concentrated in
vacuo to give a 56:44 mixture of 36 and 42, respectively. Purification
via flash column chromatography (eluent CHCl3/iPrOH, 95:5) gave
42 as a yellow oil (51 mg, 37%, >99:1 dr): [α]2D0 + 8.3 (c 1.0, CHCl3);
νmax (ATR) 1785 (CO); δH (400 MHz, CDCl3) 1.39 (3H, d, J = 6.8
Hz, C(α)Me), 1.76−1.85 (1H, m, C(6)HA), 2.11−2.19 (1H, m,
C(6)HB), 2.30 (1H, dd, J = 16.9, 6.4 Hz, C(2)HA), 2.45 (3H, s, ArMe),
+
m/z (ESI+) 276 ([M + H]+, 100%); HRMS (ESI+) C16H22NO3
([M + H]+) requires 276.1594, found 276.1592.
10942
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
Method B (from 43). K2CO3 (200 mg, 1.47 mmol) was added to a
stirred solution of 43 (90 mg, 0.29 mmol, >99:1 dr) in MeOH (1 mL).
The resultant mixture was stirred at rt for 16 h and then concentrated
in vacuo. The residue was partitioned between CH2Cl2 (2 mL) and
H2O (2 mL), and the aqueous layer was extracted with CH2Cl2 (3 × 2
mL). The combined organic extracts were then dried and concentrated
in vacuo. Purification via flash column chromatography (eluent
CHCl3/iPrOH, 95:5) gave 44 as a yellow oil (26 mg, 36%, >99:1
dr), which displayed characterization data consistent with those
described above.
Ph), 176.8 (C(1)); m/z (ESI+) 296 ([M + H]+, 100%); HRMS (ESI+)
+
C15H21NNaO5 ([M + Na]+) requires 318.1312, found 318.1317.
Method B (from 15). TsOH·H2O (267 mg, 1.57 mmol) was added
to a stirred solution of 15 (100 mg, 0.32 mmol, >99:1 dr) in CH2Cl2
(1 mL) at rt, and the resultant mixture was stirred at rt for 5 min. m-
CPBA (75%, 290 mg, 1.26 mmol) was then added, and the resultant
mixture was stirred at rt for 48 h. A mixture of CHCl3/iPrOH (3:1, 3
mL) was then added, and the organic layer was washed with saturated
aq Na2SO3 (5 mL) until starch iodide paper indicated no remaining
oxidant. The organic layer was washed with saturated aq NaHCO3 (5
mL), and the combined aqueous layers were extracted with
CHCl3/iPrOH (3:1, 3 × 10 mL). The combined organic extracts
were then dried and concentrated in vacuo. Purification via flash
column chromatography (eluent CHCl3/iPrOH, 95:5) gave 47 as a
white solid (20 mg, 23%, >99:1 dr), which displayed characterization
data consistent with those described above.
Method C (from 17). HBF4 (48% aq, 240 μL, 1.81 mmol) was
added to a stirred solution of 17 (100 mg, 0.36 mmol, >99:1 dr) in
CH2Cl2 (1 mL) at rt, and the resultant mixture was stirred at rt for 5
min. m-CPBA (75%, 334 mg, 1.45 mmol) was then added, and the
resultant mixture was stirred at rt for 48 h. A mixture of CHCl3/iPrOH
(3:1, 2 mL) was then added, and the organic layer was washed with
saturated aq Na2SO3 (5 mL) until starch iodide paper indicated no
remaining oxidant. The organic layer was washed with saturated aq
NaHCO3 (5 mL), and the combined aqueous layers were extracted
with CHCl3/iPrOH (3:1, 3 × 10 mL). The combined organic extracts
were then dried and concentrated in vacuo. Purification via flash
column chromatography (eluent CHCl3/iPrOH, 95:5) gave 47 as a
white solid (20 mg, 20%, >99:1 dr), which displayed characterization
data consistent with those described above.
(2′S,3′R,4′R)-2-(3′,4′-Dihydroxypiperidin-2′-yl)ethanoic Acid
46. Pd(OH)2/C (50% w/w of substrate, 8 mg) was added to a stirred
solution of 36 (15 mg, 54 μmol, >99:1 dr) in degassed EtOAc (0.2
mL). The resultant suspension was placed under H2 (5 atm) and
stirred vigorously at rt for 48 h. The reaction mixture was then filtered
through a short plug of Celite (eluent EtOAc) and concentrated in
vacuo to give 45 as a yellow oil (9 mg, quant, >99:1 dr). The residue
was dissolved in H2O (0.5 mL), and the resultant solution was allowed
to stand at rt for two days before being concentrated in vacuo to give
46 as a white solid (9 mg, quant, >99:1 dr): mp 219−224 °C dec;
[α]2D0 + 3.8 (c 0.5, H2O); νmax (ATR) 3313 (OH), 2943 (CH),
1583 (zwitterionic β-amino acid); δH (500 MHz, D2O) 1.78 (1H, app
dd, J = 15.3, 3.2 Hz, C(5′)HA), 2.13 (1H, dddd, J = 15.3, 12.7, 5.7, 3.0
Hz, C(5′)HB), 2.48−2.59 (2H, m, C(2)H2), 3.20−3.33 (2H, m,
C(6′)H2), 3.71−3.73 (1H, m, C(2′)H), 3.80 (1H, app d, J = 3.9 Hz,
C(3′)H), 4.00 (1H, app q, J = 3.0 Hz, C(4′)H); δC (125 MHz, D2O)
23.5 (C(5′)), 38.4 (C(2)), 39.0 (C(6′)), 52.6 (C(2′)), 65.1 (C(4′)),
67.4 (C(3′)), 177.4 (C(1)); m/z (ESI+) 176 ([M + H]+, 100%);
+
HRMS (ESI+) C7H13NNaO4 ([M + Na]+) requires 198.0737, found
198.0740.
Method D (from 15). CCl3CO2H (129 mg, 0.79 mmol) was added
to a stirred solution of 15 (50 mg, 0.16 mmol, >99:1 dr) in CH2Cl2
(0.5 mL) at rt, and the resultant mixture was stirred at rt for 5 min. m-
CPBA (75%, 145 mg, 0.63 mmol) was then added, and the reaction
mixture was stirred at rt for 48 h. CHCl3/iPrOH (3:1, 5 mL) was then
added, and the organic layer was washed with saturated aq Na2SO3 (5
mL) until starch iodide paper indicated no remaining oxidant. The
organic layer was then washed with saturated aq NaHCO3 (5 mL), and
the combined aqueous washings were extracted with CHCl3/iPrOH
(3:1, 3 × 10 mL). The combined organic extracts were then dried and
concentrated in vacuo. Purification via flash column chromatography
(eluent CHCl3/iPrOH, 95:5) gave an 87:13 mixture of 47 and 48,
respectively, as a colorless oil (13 mg). Data for 48: δH (400 MHz,
CDCl3) [selected peaks] 1.39 (9H, s, CMe3), 1.52 (3H, m, C(α)Me),
1.88−1.91 (1H, m, C(5′)HA), 2.32−2.38 (2H, m, C(6′)H2), 2.91−
2.94 (1H, m, C(5′)HB), 3.58−3.66 (2H, m, C(2′)H, C(3′)H), 4.53
(1H, d, J = 4.1 Hz, C(2)H), 4.60−4.66 (1H, m, C(4′)H), 7.17−7.37
(5H, m, Ph); the characterization data for 47 were consistent with
those described above.
(2R,3S,4R,5R,αR)-2,5-Dihydroxy-3,7-N-(α-methylbenzyl)-
imino-4-heptanolactone 47 and (R,R,R,R,R)-2-Hydroxy-2-
[N(1′)-(α-methylbenzyl)-3′,4′-dihydroxypiperidin-2′-yl]-
ethanoic Acid 50. Method A (from 15). HBF4 (48% aq, 0.32 mL,
2.45 mmol) was added to a stirred solution of 15 (136 mg, 0.49 mmol,
>99:1 dr) in CH2Cl2 (1.4 mL) at rt, and the resultant mixture was
stirred at rt for 5 min. m-CPBA (75%, 451 mg, 1.96 mmol) was then
added, and the resultant mixture was stirred at rt for 48 h. A mixture of
CHCl3/iPrOH (3:1, 5 mL) was then added, and the organic layer was
washed with saturated aq Na2SO3 (5 mL) until starch iodide paper
indicated no remaining oxidant. The organic layer was then washed
with saturated aq NaHCO3 (5 mL), and the combined aqueous
washings were extracted with CHCl3/iPrOH (3:1, 3 × 10 mL). The
combined organic extracts were then dried and concentrated in vacuo.
Purification via flash column chromatography (eluent CHCl3/iPrOH,
95:5) gave 47 as a white solid (56 mg, 47%, >99:1 dr): mp 235−241
°C dec; [α]2D0 + 42.0 (c 1.0, CHCl3); νmax (ATR) 3505 (OH), 1763
(CO); δH (400 MHz, CDCl3) 1.42 (3H, d, J = 6.6 Hz, C(α)Me),
1.58 (1H, app dtd, J = 13.2, 9.4, 3.6 Hz, C(6)HA), 1.88−1.93 (1H, m,
C(6)HB), 2.73 (1H, ddd, J = 11.1, 6.7, 3.6 Hz, C(7)HA), 3.06 (1H,
ddd, J = 11.1, 9.4, 2.8 Hz, C(7)HB), 3.36 (1H, app t, J = 5.5 Hz,
C(3)H), 3.96 (1H, ddd, J = 9.4, 6.7, 4.3 Hz, C(5)H), 4.15 (1H, app t, J
= 6.7 Hz, C(4)H), 4.27 (1H, d, J = 5.5 Hz, C(2)H), 4.40 (1H, q, J =
6.6 Hz, C(α)H), 7.16−7.37 (5H, m, Ph); δC (100 MHz, CDCl3) 21.2
(C(α)Me), 31.6 (C(6)), 42.6 (C(7)), 59.4 (C(3)), 61.1 (C(α)), 69.8
(C(5)), 72.2 (C(2)), 82.8 (C(4)), 128.4, 129.0, 129.5 (o,m,p-Ph),
144.3 (i-Ph), 178.2 (C(1)); m/z (ESI+) 278 ([M + H]+, 100%);
HRMS (ESI+) C15H19NNaO4+ ([M + Na]+) requires 300.1206, found
300.1198. Further elution gave 50 as colorless oil (25 mg, 20%, >99:1
dr): [α]2D0 − 18.9 (c 1.0, CHCl3); νmax (ATR) 3351 (OH), 1611
(CO); δH (400 MHz, MeOH-d4) 1.65 (1H, app dd, J = 14.5, 3.1 Hz,
C(5′)HA), 1.80 (3H, d, J = 6.5 Hz, C(α)Me), 2.31−2.39 (1H, m,
C(5′)HB), 2.82 (1H, app td, J = 12.4, 3.1 Hz, C(6′)HA), 3.38 (1H, app
dt, J = 12.4, 3.7 Hz, C(6′)HB), 3.67 (1H, dd, J = 3.8, 2.2 Hz, C(2′)H),
3.73 (1H, app q, J = 3.7 Hz, C(4′)H), 3.97−3.99 (1H, m, C(3′)H),
4.84 (1H, d, J = 3.8 Hz, C(2)H), 5.14 (1H, q, J = 6.5 Hz, C(α)H),
7.46−7.67 (5H, m, Ph); δC (100 MHz, MeOH-d4) 17.6 (C(α)Me),
26.0 (C(5′)), 43.2 (C(6′)), 61.8 (C(α)), 62.1 (C(2′)), 66.3 (C(4′)),
71.9 (C(3′)), 72.2 (C(2)), 130.4, 130.9, 131.4 (o,m,p-Ph), 134.5 (i-
(R,R,R,R)-2-Hydroxy-2-(3′,4′-dihydroxypiperidin-2′-yl)-
ethanoic Acid 51. Method A (from 50). Pd(OH)2/C (50% w/w of
substrate, 10 mg) was added to a stirred solution of 50 (20 mg, 0.14
mmol, >99:1 dr) in degassed MeOH (0.5 mL). The resultant
suspension was placed under H2 (1 atm) and stirred vigorously at rt
for 12 h. The reaction mixture was then filtered through a short plug of
Celite (eluent MeOH) and concentrated in vacuo to give 51 as a
colorless oil (13 mg, quant, >99:1 dr): [α]2D0 − 19.3 (c 0.4, H2O); νmax
(ATR) 3320 (OH), 2944 (CH), 1448 (zwitterionic β-amino
acid); δH (500 MHz, D2O) 1.77 (1H, dd, J = 15.3, 2.7 Hz, C(5′)HA),
2.14−2.22 (1H, m, C(5′)HB), 3.27−3.29 (2H, m, C(6′)H2), 3.60 (1H,
dd, J = 6.8, 1.4 Hz, C(2′)H), 3.98 (1H, app q, J = 3.4 Hz, C(4′)H),
4.04 (1H, app d, J = 3.4 Hz, C(3′)H), 4.19 (1H, d, J = 6.8 Hz,
C(2)H); δC (125 MHz, D2O) 23.3 (C(5′)), 39.5 (C(6′)), 55.3
(C(2′)), 64.9 (C(4′)), 66.2 (C(3′)), 69.7 (C(2)), 176.8 (C(1)); m/z
+
(ESI+) 192 ([M + H]+, 100%); HRMS (ESI+) C7H14NO5
([M + H]+) requires 192.0866, found 192.0869.
Method B (from 47). Pd(OH)2/C (50% w/w of substrate, 25 mg)
was added to a stirred solution of 47 (50 mg, 0.18 mmol, >99:1 dr) in
degassed MeOH (1 mL). The resultant suspension was placed under
H2 (1 atm) and stirred vigorously at rt for 12 h. The reaction mixture
10943
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944

The Journal of Organic Chemistry
Article
was then filtered through a short plug of Celite (eluent MeOH) and
concentrated in vacuo to give 52 as a colorless oil (31 mg, quant,
>99:1 dr). The residue was dissolved in H2O (0.5 mL), and the
resultant solution was allowed to stand at rt for two days before being
concentrated in vacuo to give 51 as a colorless oil (31 mg, quant,
>99:1 dr): [α]2D0 − 14.2 (c 0.5, H2O).
Roberts, P. M.; Thomson, J. E. Org. Lett. 2013, 15, 2042. (f) Davies, S.
G.; Fletcher, A. M.; Foster, E. M.; Lee, J. A.; Roberts, P. M.; Thomson,
J. E.; Waul, M. A. Tetrahedron 2014, 70, 7106.
(8) For a review of this methodology, see: Davies, S. G.; Fletcher, A.
M.; Roberts, P. M.; Thomson, J. E. Tetrahedron: Asymmetry 2012, 23,
1111.
(9) VanRheenen, V.; Kelly, R. C.; Cha, D. Y. Tetrahedron Lett. 1976,
17, 1973.
ASSOCIATED CONTENT
■
(10) (a) Donohoe, T. J.; Moore, P. R.; Waring, M. J.; Newcombe, N.
J. Tetrahedron Lett. 1997, 38, 5027. (b) Donohoe, T. J.; Blades, K.;
Moore, P. R.; Winter, J. J. G.; Helliwell, M.; Stemp, G. J. Org. Chem.
1999, 64, 2980. (c) Donohoe, T. J. Synlett 2002, 1223. (d) Donohoe,
T. J.; Blades, K.; Moore, P. R.; Waring, M. J.; Winter, J. J. G.; Helliwell,
M.; Newcombe, N. J.; Stemp, G. J. Org. Chem. 2002, 67, 7946.
(11) For a review of this methodology, see: Davies, S. G.; Fletcher, A.
M.; Thomson, J. E. Org. Biomol. Chem. 2014, 12, 4544.
(12) Davies, S. G.; Foster, E. M.; McIntosh, C. R.; Roberts, P. M.;
Rosser, T. E.; Smith, A. D.; Thomson, J. E. Tetrahedron: Asymmetry
2011, 22, 1035 and references therein.
S
* Supporting Information
Copies of 1H and 13C NMR spectra and crystallographic
information files (structures CCDC 1001521−1001526). This
material is available free of charge via the Internet at http://
pubs.acs.org.
AUTHOR INFORMATION
Corresponding Author
*E-mail: steve.davies@chem.ox.ac.uk.
■
Notes
(13) Davies, S. G.; Fletcher, A. M.; Roberts, P. M.; Smith, A. D.
Tetrahedron 2008, 65, 10192.
The authors declare no competing financial interest.
(14) Costello, J. F.; Davies, S. G.; Ichihara, O. Tetrahedron:
Asymmetry 1994, 5, 1999.
(15) Bunnage, M. E.; Chernega, A. N.; Davies, S. G.; Goodwin, C. J.
ACKNOWLEDGMENTS
We thank Astra-Zeneca for a studentship (K.C.).
■
J. Chem. Soc., Perkin Trans. 1 1994, 2373.
(16) Davies, S. G.; Fletcher, A. M.; Foster, E. M.; Lee, J. A.; Roberts,
P. M.; Thomson, J. E. J. Org. Chem. 2013, 78, 2500.
REFERENCES
■
(1) Magalhaes, A. F.; Santos, C. C.; Magalhaes, E. G.; Noguiera, M.
A. Phytochem. Anal. 2002, 13, 215.
(2) Watson, A. A.; Fleet, G. W. J.; Asano, N.; Molyneux, R. J.; Nash,
R. J. Phytochemistry 2001, 56, 265.
(17) Crystallographic data (excluding structure factors) for the
structures of 21·H2O, 23, 37, 39, 46, and 47 have been deposited with
the Cambridge Crystallographic Data Centre as supplementary
publication numbers CCDC 1001521−1001526, respectively.
(18) (a) Flack, H. D. Acta Crystallogr. 1983, A39, 876. (b) Flack, H.
D.; Bernardinelli, G. Acta Crystallogr. 1999, A55, 908. (c) Flack, H. D.;
Bernardinelli, G. J. Appl. Crystallogr. 2000, 33, 1143.
(19) Fleet, G. W. J.; Son, J. C. Tetrahedron 1988, 44, 2637.
(20) For examples of previous syntheses of fagomine and its
stereoisomers, see: (a) Fleet, G. W. J.; Smith, P. W. Tetrahedron Lett.
1985, 26, 1469. (b) Degiorgis, F.; Lombardo, M.; Trombini, C.
(3) Formica, J. V.; Katz, E. J. Biol. Chem. 1973, 248, 2066.
(4) (a) Wall, K. A.; Pierce, J. D.; Elbein, A. D. Proc. Natl. Acad. Sci.
U.S.A. 1988, 85, 5644. (b) Sinot, M. L. Chem. Rev. 1990, 90, 1171.
(c) Winchester, B.; Fleet, G. W. J. Glycobiology 1992, 2, 199. (d) Goss,
P. E.; Reid, C. L.; Bailey, D.; Dennis, J. W. Clin. Cancer Res. 1997, 3,
11077. (e) Bols, M. Acc. Chem. Res. 1998, 31, 1. (f) Heightman, T. D.;
Vasella, A. Angew. Chem., Int. Ed. 1999, 38, 750. (g) Zechel, D. L.;
Withers, S. G. Acc. Chem. Res. 2000, 33, 11. (h) Lopez, M. D.; Cobo, J.;
Nogueras, M. Curr. Org. Chem. 2008, 12, 718. (i) D’Alonzo, D.;
Guaragna, A.; Palumbo, G. Curr. Med. Chem. 2009, 16, 473. (j) Gloster,
T. M.; Davies, G. J. Org. Biomol. Chem. 2010, 8, 305. (k) Aguilar-
́ ́
Synthesis 1997, 1243. (c) Desire, J.; Dransfield, P. J.; Gore, P. M.;
Shipman, M. Synlett 2001, 1329. (d) Banba, Y.; Abe, C.; Nemoto, H.;
Kato, A.; Adachi, I.; Takahata, H. Tetrahedron: Asymmetry 2001, 12,
817. (e) Takahata, H.; Banba, Y.; Ouchi, H.; Nemoto, H.; Kato, A.;
Adachi, I. J. Org. Chem. 2003, 68, 3603. (f) Castillo, J. A.; Calveras, J.;
Casas, J.; Mitjans, M.; Vinardell, M. P.; Parella, T.; Inoue, T.; Sprenger,
Moncayo, M.; García-Moreno, M. I.; Trapero, A.; Egido-Gabas
́
, M.;
Llebaria, A.; Fernandez, J. M. G.; Mellet, C. O. Org. Biomol. Chem.
́
2011, 9, 3698. (l) Horne, G.; Wilson, F. X. Prog. Med. Chem. 2011, 50,
135. (m) Nash, R. J.; Kato, A.; Yu, C. Y.; Fleet, G. W. J. Future Med.
Chem. 2011, 3, 1513. (n) Ayers, B. J.; Ngo, N.; Jenkinson, S. F.;
Martínez, R. F.; Shimada, Y.; Adachi, I.; Weymouth-Wilson, A. C.;
Kato, A.; Fleet, G. W. J. J. Org. Chem. 2012, 77, 7777.
́
G. A.; Joglar, J.; Clapes, P. Org. Lett. 2006, 8, 6067. (g) Sugiyama, M.;
Hong, Z.; Liang, P.-H.; Dean, S. M.; Whalen, L. J.; Greenberg, W. A.;
Wong, C.-H. J. Am. Chem. Soc. 2007, 129, 14811. (h) Yokoyama, H.;
Ejiri, H.; Miyazawa, M.; Yamaguchi, S.; Hirai, Y. Tetrahedron:
Asymmetry 2007, 18, 852. (i) Bartali, L.; Scarpi, D.; Guarna, A.;
Prandi, C.; Occhiato, E. G. Synlett 2009, 913. (j) Bartali, L.; Casini, A.;
Guarana, A.; Occhiato, E. G.; Scarpi, D. Eur. J. Org. Chem. 2010, 5831.
(k) Kim, J.-Y.; Mua, Y.; Jin, X.; Park, S.-H.; Pham, V.-T.; Song, D.-K.;
Lee, K.-Y.; Hama, W.-H. Tetrahedron 2011, 67, 9426. (l) Kundu, P. K.;
Ghosh, S. K. Tetrahedron: Asymmetry 2011, 22, 1090. (m) Babich, L.;
van Hemert, L. J. C.; Bury, A.; Hartog, A. F.; Falcicchio, P.; van der
Oost, J.; van Herk, T.; Wever, R.; Rutjes, F. P. J. T. Green Chem. 2011,
13, 2895.
(5) (a) Okamoto, S.; Hijikata, A.; Kikumoto, R.; Tonomura, S.; Hara,
H.; Ninomiya, K.; Maruyama, A.; Sugano, M.; Tamao, Y. Biochem.
Biophys. Res. Commun. 1981, 101, 440. (b) Ornstein, P. L.; Shaus, J.
M.; Chambers, J. W.; Huser, D. L.; Lueander, J. D.; Wong, D. T.;
Paschal, J. W.; Jones, N. D.; Deeter, J. B. J. Med. Chem. 1989, 32, 827.
(c) Bruce, I.; Fleet, G. W. J.; Cenci di Bello, I.; Winchester, B.
Tetrahedron 1992, 48, 10191.
(6) (a) Copeland, T. D.; Wondrak, E. M.; Toszer, J.; Roberts, M. M.;
Oraszan, S. Biochem. Biophys. Res. Commun. 1990, 169, 310.
(b) McNaughton-Smith, G.; Hanessian, S.; Lombart, H. G.; Lubell,
W. D. Tetrahedron 1997, 53, 12789. (c) Quibell, M.; Benn, A.; Flinn,
N.; Monk, T.; Ramjee, M.; Wang, Y.; Watts, J. Bioorg. Med. Chem.
2004, 12, 5689.
(7) (a) Bagal, S. K.; Davies, S. G.; Lee, J. A.; Roberts, P. M.; Scott, P.
M.; Thomson, J. E. J. Org. Chem. 2010, 75, 8133. (b) Bagal, S. K.;
Davies, S. G.; Fletcher, A. M.; Lee, J. A.; Roberts, P. M.; Scott, P. M.;
Thomson, J. E. Tetrahedron Lett. 2011, 52, 2216. (c) Csatayova,
Davies, S. G.; Lee, J. A.; Roberts, P. M.; Russell, A. J.; Thomson, J. E.;
Wilson, D. L. Org. Lett. 2011, 13, 2606. (d) Csatayova, K.; Davies, S.
(21) Kato, A.; Asano, N.; Kizu, H.; Matsui, K. J. Nat. Prod. 1997, 60,
312.
(22) Hanson, K. R. J. Am. Chem. Soc. 1966, 88, 2731.
(23) Pangborn, A. B.; Giardello, M. A.; Grubbs, R. H.; Rosen, R. K.;
Timmers, F. J. Organometallics 1996, 15, 1518.
(24) Betteridge, P. W.; Carruthers, J. R.; Cooper, R. I.; Prout, C. K.;
Watkin, D. J. J. Appl. Crystallogr. 2003, 36, 1487.
(25) Karoyan, P.; Chassaing, G. Tetrahedron: Asymmetry 1997, 8,
́
K.;
2025.
(26) DuBois, D. L.; Miedaner, A. J. Am. Chem. Soc. 1987, 109, 113.
́
G.; Ford, J. G.; Lee, J. A.; Roberts, P. M.; Thomson, J. E. J. Org. Chem.
2013, 78, 12397. (e) Davies, S. G.; Figuccia, A. L. A.; Fletcher, A. M.;
10944
dx.doi.org/10.1021/jo501952t | J. Org. Chem. 2014, 79, 10932−10944
