Synthesis and characterization of novel five-membered palladacycles
*
Abdel-Sattar S. Hamad Elgazwy
Department of Chemistry, Faculty of Science, Ain Shams University, Abbassia 11566, Cairo, Egypt
a r t i c l e i n f o
a b s t r a c t
Article history:
3-(2-Chloroquinolin-3-yl)-1,5-bis(3,4,5-trimethoxy-phenyl)-pentane-2,4-dione derivatives 3a–b were
conveniently synthesized in excellent yields (82% each) by tandem Knoevenagel condensation reactions
of 2-chloro-3-carbaldehyde-quinoline 1a–b with 3,4,5-trimethoxy acetophenone, followed by a base cat-
alyzed Michael addition, such as DBU (1,8-diazabicyclo[5,4,0]undec-7-ene) with or without solvent. The
reactions of 3a–b with Pd(dba)2 in the presence of PPh3 (1:2) in degassed acetone provided the dinuclear
palladium complexes {Pd(C,N-2-C9H4N–CH–[–CH2CO(3,4,5-(OMe-)3–C6H2-]2–3-R-6)Cl(PPh3)}2 [(R = H
(4a), R = OMe (4b)] in moderate yields (38% and 43%), which in turn reacted with an excess of isonitrile
XyNC (Xy = 2,6-Me2C6H3) to give the corresponding palladacycles 5a–b in moderate yields (45% and 43%).
The palladacycles 5a–b were also obtained in similar yields (32% and 33%) via a one-pot oxidative addi-
tion reaction of 3a-b with isonitrile XyNC:Pd(dba)2 (4:1). The products were characterized by satisfactory
elemental analysis and spectral studies (IR, 1H, and 31P NMR). The crystal structure of 5a was determined
by X-ray crystallography diffraction studies.
Received 21 May 2009
Accepted 18 June 2009
Available online 3 July 2009
Dedicated to Professor Jose Jesus Vicente
Soler on the occasion of his 66th birthday.
Keywords:
Quinolines
Palladacycles
Arylpalladium complexes and isocyanides
Ó 2009 Published by Elsevier Ltd.
1. Introduction
2. Results and discussion
In an earlier paper, we reported on aryl palladium complexes
that are of interest as intermediates in important catalytic organic
syntheses [1–3]. Some of the catalytic reactions involve ortho-func-
tionalized aryl palladium(II) complexes, giving carbo- or heterocy-
cles in which the ortho group is not included. A few examples of
insertion of isocyanides into ortho-functionalized aryl palla-
dium(II) complexes leading to heterocyclic compounds have been
reported [3–14]. Thus we have prepared the dinuclear palla-

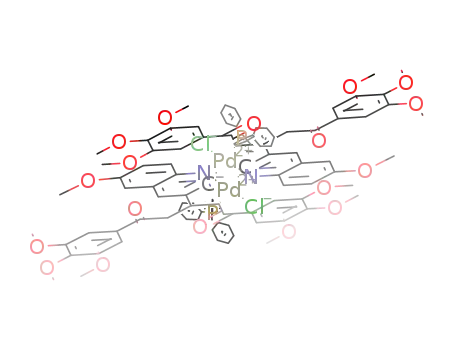

dium(II) complexes {Pd[C9H5–CH–[–CH2CO–C6H2–(OCH3)3]2–
(3,4,5)]Cl(PPh3)}2 4a and {Pd[6-CH3O–C9H4–CH–[–CH2CO–C6H2–
(OCH3)3]2–(3,4,5)]Cl(PPh3)}2 4b by reacting the prepared
compounds 3-(2-chloroquinolin-3-yl)-1,5-bis(3,4,5-trimethoxy-
phenyl)pentane-1,5-dione 3a and 3-(6-methoxy-2-chloroquino-
To investigate the role of the catalyst and the effect of grinding,
first the reaction of 2-chloro-3-carbaldehyde-6-R-quinolines [R = H
(1a), R = OMe (1b)], acetophenone and a catalytic amount of DBU
were ground together in a pestle and mortar at room temperature.
The reaction started immediately, usually with gentle heat produc-
tion, with the reaction mixture turning into a brownish viscous li-
quid, then to a thick brownish mass and finally to a free flowing
powder. Surprisingly, the reaction mixture turned into the desired
product within a short period of time. When DBU was used as a cat-
alyst in ethanol, stirring for 3 h at room temperature, the reaction
proceeded smoothly to afford (2Z)-3-(2-chloroquinolin-3-yl)-1-
(phenyl) prop-2-en-1-one in 65% yield [2]. The same result was ob-
tained without solvent after stirring for 3 h. Other solvents such as
chloroform, dichloromethane and methanol gave (2Z)-3-(2-chloro-
quinolin-3-yl)-1-(phenyl) prop-2-en-1-one with the same yield [2].
On the other hand, indication of softening for some seconds fol-
lowed by immediate hardening were visually observed only in the
syntheses with 2-chloro-3-carbaldehyde-6-methoxy-quinolines
(1b) with 3,4,5-trimethoxy acetophenone. Subsequently, the scope
of the Knoevenagel condensation of aldehydes with various active
methylene compounds catalyzed by DBU in grinding was investi-
gated. We found that the Knoevenagel condensation of aldehydes
with 3,4,5-trimethoxy acetophenones occurred easily in the pres-
ence of grinding to form the corresponding products. Both elec-
tron-rich and electron-deficient aldehydes worked well to give
the corresponding arylidene derivatives (2E)-3-(2-chloro-R-quino-
lin-3-yl)-1-(3,4,5-trimethoxyphenyl) prop-2-en-1-one [R = H (2a),
lin-3-yl)-1,5-bis(3,4,5-trimethoxyphenyl)pentane-1,5-dione
3b
with Pd(dba)2, in the presence of PPh3 (1:2). In this contribution
we present the synthesis and characterization of novel mono-
and dimeric palladacycles as well as their utility as precursors for
the synthesis of valuable organic products as the most outstanding
points. The sequence of the reactions led eventually to compounds
that could potentially possess pharmacological properties [3]. The
preparation of all the complexes were in one solvent (degassed
acetone). The crystal structure of complex 5a shows some interest-
ing features.
* Tel.: +20 22617 3044; fax: +20 24831836.
E-mail address: hamad@asunet.shams.eun.eg
0277-5387/$ - see front matter Ó 2009 Published by Elsevier Ltd.
doi:10.1016/j.poly.2009.06.077

3668
A.-S.S. Hamad Elgazwy / Polyhedron 28 (2009) 3667–3674
R = OMe, (2b)] in excellent yields (72–74%) [2]. Miscibility of DBU
with water makes the workup process quite easy as the catalyst
can be easily removed from product simply by washing the prod-
uct with water.
tion 3), affords the final product alkane–dione 3a–b. This mecha-
nism, as outlined in Scheme 2, is consistent with the mechanism
described as straight forward by Xu and co-workers [22].
Oxidative addition reactions of 3-(6-R-2-chloroquinolin-3-yl)-
1,5-bis(3,4,5-trimethoxyphenyl)pentane-1,5-dione [R = H (3a),
R = OMe (3b)] toward a stoichiometric amount of [Pd(dba)2]
(=[Pd2(dba)3].dba; dba = dibenzylideneacetone) [3,23,24] in the
presence of a neutral ligand such as PPh3 (1:2:1) under nitrogen
in degassed acetone gave the dimeric palladium complexes
Pd[C9H5–CH–[–CH2CO–C6H2–(OCH3)3]2–(3,4,5)]Cl(PPh3)}2 4a and
{Pd[6-CH3O–C9H4–CH–[–CH2CO–C6H2–(OCH3)3]2–(3,4,5)]Cl(PPh3)}2
4b in moderate yields (38% and 43%), through the coordination of
the quinolinyl nitrogen. Subsequently, the insertion reaction of 2,6-
dimethylphenyl isocyanide XyNC (Xy = 2,6-Me2C6H3) into dinucle-
ar complexes in CH2Cl2 at room temperature eventually forms the
mononuclear five-membered palladacycle complexes 5a–b in
moderate yields (32% and 45%). These five-membered palladacy-
cles 5a–b are also obtained in similar yields (33% and 43%) by
the direct oxidative addition of 3-(6-R-2-chloroquinolin-3-yl)-
1,5-bis(3,4,5-trimethoxyphenyl)pentane-1,5-dione [R = H (3a),
R = OMe (3b)] with Pd(dba)2 in the presence of a stoichiometric
amount of isonitrile XyNC in CH2Cl2 at room temperature, as de-
picted in Scheme 3.
The Knoevenagel condensation [15] reactions have been exten-
sively studied as an example of important carbon–carbon bond for-
mation. In this condensation reaction various catalysts are used,
such as (Te(IV)Cl4) [16], (ZnCl2) [17] and (KF-Al2O3) [18]. DBU
(1,8-diazabicyclo[5,4,0]undec-7-ene) has been widely used as a
catalyst in many reactions followed by Michael addition [19–21].
Thus the sequential condensation reactions are achieved in one
pot by the reaction of aldehydes 1a–b with the active methylene
compound 3,4,5-trimethoxy acetophenone in the presence of
DBU as a base catalyst, to afford arylidene derivatives, followed
by Michael addition to give d diketones 3a–b in good yields of
47–75% (Scheme 1).
The possible mechanism that could account for the formation of
d diketones 3a–b in these reactions of excess 3,4,5-trimethoxy ace-
tophenone with aromatic aldehydes 1 is as follows. First 1 is dehy-
drated on heating in the basic reaction medium to furnish the
highly electrophilic intermediate and thus yielding the corre-
sponding air stable
a,b-unsaturated quinoline [B]. The quinoline
intermediate [B] then undergoes competitive Michael addition by
the preformed carbanion [A]. The Michael type addition of the en-
one proceeds in a 1,4-fashion and results in an intermolecular
addition to give [C], which on hydrolysis during the reaction at re-
flux temperature under the action of a trace amount of water in the
reaction mixture, or during workup on a silica gel column (see Sec-
The intermediate species formed in the oxidative addition reac-
tion of 3a–b with Pd(dba)2/PPh3 to give 4a–b follow a very similar
pathway as previously described for related quinoline containing
palladacycles [3,25], and the structure of the dinuclear complex
