bulky hot cells (special chemical fume hoods that are surrounded
by lead to provide radiation shielding).
be absorbed in the chip substrate rather than solvent,
which would significantly reduce the formation of radicals and
radiolysis, in comparison with a macroscale geometry.24
Miniaturization by microfluidic systems is of direct interest
for radiotracer development because of the substantial savings
from both using less lead shielding and reducing use of
expensive reagents. Reaction efficiency can also be improved
with reduced volumes because of increased concentration of
the radioisotope, expedited heat transfer, and quicker mass
transport.3 This is important for radiosynthesis reactions that
sometimes involve low-yields and short half-life isotopes.4
While the small amount of product limits the utility of
microfluidic chemical synthesis in some cases, it is not an
issue for PET imaging, which requires product in only nano-
gram quantities. Several microfluidic systems have been
developed for radiotracer synthesis, including flow-through
systems and elastomer batch-flow reactors.9,10 A commercial
microfluidic reactor, the Advion NanoTek®, has also been
used for radiotracer synthesis. It incorporates distribution
valves, syringe pumps, pressure sensors, and heated vials to
store and deliver reagents, concentrate radioisotopes, and
control reactions.11 The NanoTek® can transfer liquid volumes
as small as 100 μL through a 16 μL capillary reactor and has
been used to synthesize [18F]fluoro-2-deoxy-D-glucose ([18F]FDG)
in 3 minutes with 62% yield.12
A new and promising microfluidic approach of digital
microfluidics13–15 does not require mechanical valves, pumps,
or channels, but instead uses electric potentials to manipulate
liquids through the mechanism of electrowetting-on-dielectric
(EWOD).16 Past reports have demonstrated a range of droplet
functions (i.e., generating, moving, splitting, and merging),17
precise control of droplet volumes,18 on chip liquid composi-
tion measurement,19 and suitability for multiple reagent
chemical synthesis.20 Our group has recently reported the use
of EWOD for the synthesis of the most commonly used PET
radiotracer, [18F]FDG.21
The EWOD-driven digital microfluidics has key advantages for
radiotracer synthesis. Because droplet movement is electronically
controlled without valves, pumps or tubes, liquid pathways can
be defined in software, enabling diverse chemical synthesis pro-
cesses to be carried out with just one type of EWOD chip. Since
the sidewalls of channels are not necessary, an EWOD chip can
be open to air, as first demonstrated by Lee et al.13 The open-to-
air configuration enables rapid drying, evaporation, and solvent
exchange; these are critical steps for no-carrier-added fluorination
reactions, which are water-sensitive but begin with [18F]fluoride
ion obtained in [18O]-enriched water from a cyclotron.4 The low
volumes (2–12 μL) used on the EWOD chip are conducive to sim-
plifying the purification process and increasing specific activity
(radioactivity per mass of tracer) due to the minute amount of
reagents used in a single batch of synthesis.11,22,23
To avoid different chip designs for different tracers, in this
report we explore and confirm a single EWOD chip design that
could produce a variety of radiotracers, completing our prelimi-
nary efforts,22,25 along with significantly improved loading
practices, shorter processing time, increased [18F]fluoride con-
centration, and radiochemical yields. Four exemplary radio-
tracers currently used in clinical and preclinical research are
demonstrated: (1) [18F]FDG (a sugar analogue), (2) 3′-deoxy-
3′[18F]fluorothymidine ([18F]FLT, a DNA nucleoside analogue),
(3) N-succinimidyl 4-[18F]fluorobenzoate ([18F]SFB, a prosthetic

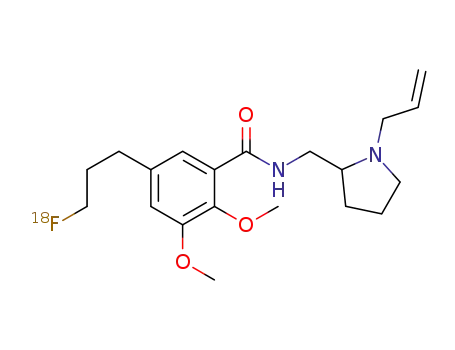

group for protein labelling), and (4) [18F]fallypride (a neuro-
transmitter analogue). The EWOD platform, as an affordable
and flexible synthesizer, has the potential to empower final
users to produce tracers of their choice locally on demand and
eliminate bottlenecks due to centralized production.
Experimental
Device description and fabrication
The EWOD chip has a configuration of two parallel plates
with a gap space, in which droplets are sandwiched to a disk
shape. The electrical ground plate is on top and uses a trans-
parent conductive layer of indium tin oxide (ITO) to maintain
a reference electrical connection for EWOD actuation. The
actuation plate is on the bottom and has defined electrodes
(also transparent ITO) for six droplet pathways that meet at
a circular heating site (Fig. 1). The heating site consists
of 4 concentric multifunctional electrodes,26 each a resistive
element that can be used either for EWOD actuation of drop-
lets (when voltage but no current is applied) or for feedback-
controlled heating (when both voltage and current are
applied). The multi-element heating site can center the drop-
let on the heater and maintain temperature more uniformly
than a single-element heater26,27 as the droplet shrinks
during evaporations.
Both EWOD actuation plates and electrical ground plates were
diced from 700 μm thick glass wafers coated with 140 nm ITO
(Semiconductor Solutions). Chrome (20 nm) and gold (200 nm)
were evaporated onto the wafers. The gold, chrome, and ITO
layers were patterned to form EWOD electrodes, heaters, connec-
tion lines, and contact pads by photolithography and wet etching.
The silicon nitride dielectric was deposited by plasma-enhanced
chemical vapor deposition at a thickness of 2 μm on the actua-
tion plate and a thinner 100 nm on the electrical ground plate.
Teflon® (250 nm) was spin-coated and annealed at 340 °C
under vacuum to make the surfaces hydrophobic. A 140 μm
gap between the assembled actuation plate and electrical
ground plate was maintained by two layers of double-sided
tape (3M Inc.).
Another potential advantage yet to be confirmed experimen-
tally, is reduced radiolysis, which is damage to the reagents
due to formation of radicals by energy that is mainly deposited
from positron emission. Because the EWOD droplets are
squeezed within a gap that is smaller than the positron range,
it is expected that a significant portion of positrons will
The hydrophobic coating consisted of Cytop® (glass
transition temperature Tg = 108 °C) in early devices,21,26 but
was switched to Teflon® AF 2400 (Tg = 240 °C) in the current
devices for its higher thermal stability. Teflon® AF 2400 was
