HETEROCYCLES, Vol. 81, No. 1, 2010
163
HETEROCYCLES, Vol. 81, No. 1, 2010, pp. 163 - 169. © The Japan Institute of Heterocyclic Chemistry
Received, 24th September, 2009, Accepted, 26th October, 2009, Published online, 27th October, 2009
DOI: 10.3987/COM-09-11837
NEW, FACILE SYNTHESIS OF 3,3-DISUBSTITUTED PHTHALIDES
BASED ON THE REACTION OF ꢀ-SUBSTITUTED 2-LITHIOSTYRENES
WITH CARBON DIOXIDE
Kazuhiro Kobayashi,* Taketoshi Kozuki, Shuhei Fukamachi, and Hisatoshi
Konishi
Division of Applied Chemistry, Department of Chemistry and Biotechnology,
Graduate School of Engineering, Tottori University, 4-101 Koyama-minami,
Tottori 680-8552, Japan; E-mail: kkoba@chem.tottori-u.ac.jp
Abstract
–
A
new method to prepare 3,3-disubstituted phthalides
[isobenzofuran-1(3H)-ones] from ꢀ-substituted 2-bromostyrenes has been
developed. The reaction of ꢀ-substituted 2-lithiostyrenes, generated in situ by
bromine-lithium exchange between ꢀ-substituted 2-bromostyrenes and
butyllithium, with carbon dioxide gave the corresponding lithium
2-vinylbenzoates, which upon treatment with concentrated hydrochloric acid
afforded the desired products in one pot.
We have recently reported that a number of heterocyclic compounds, such as isoindolin-1-ones,1a
1-iminoisothiochromenes,1b (1,3-dihydroisobenzofurans),1c
phthalanes 1(3H)-iminobenzo[c]thio-
phenes,1d isothiochromene-1-thiones,1e and isothiochroman-1-thiones,1f can be obtained by simply
utilizing reactions of 2-lithiostyrene derivatives with various electrophiles, such as isocyanates,1a
isothiocyanates,1b,d ketones,1c and carbon disulfide.1e,f As an extension of these studies, we have examined
the reaction of 2-lithiostyrene derivatives with carbon dioxide, and have found that it provides an efficient
method for the preparation of phthalides. Compounds having this skeleton are of particular interest since
some display biological activity2 and some have proven to occur in nature.3 Moreover, they have been
used as precursor to more complex compounds;4 for example a method for the conversion of phthalides
into 1,4-dihydro-4H-3,1-benzoxazin-3-ones has recently been reported.4a Therefore, a number of methods
have been developed to prepare phthalides,particularly 3-monosubstituted derivatives including optically
active compounds.5 On the other hand, there have been quite few reports on the general synthesis of
3,3-disubstituted phthalides,6 though Tanaka et al. have demonstrated an efficient method using
rhodium-catalyzed transesterification and [2 + 2 + 2] cyclization.6b A 3,3-substituted phthalides has been
isolated as a naturally occurring compound.7 In this manuscript, we wish to describe a new and
convenient method to prepare 3,3-disubstituted phthalides.

164
HETEROCYCLES, Vol. 81, No. 1, 2010
Our one-pot procedure for the synthesis of 3,3-disubstituted phthalides (5) from ꢀ-substituted
2-bromostyrenes (1) was conducted as illustrated in Scheme 1. Thus, 2-bromostyrenes (1) were treated
with butyllithium in diethyl ether at 0 ˚C to generate 2-lithiostyrenes (2), which were then exposed to
carbon dioxide at the same temperature to afford lithium 2-vinylbenzoate intermediates (3). Conversion
of these intermediates into phthalides (5) was successfully achieved through protonation followed by
lactonization on treatment with concentrated hydrochloric acid at room temperature or reflux temperature.
After usual aqueous workup and subsequent purification of the crude products by preparative TLC on
silica gel, the desired products were obtained.
R2
R2
R2
R1
R3
R1
R3
n-BuLi, Et2O, 0 ˚C
R1
R3
CO2, 0 ˚C
Br
CO2Li
Li
3
2
1
CH2R3
R2
CH2R3
R2
R1
R1
– H+
conc. HCl, rt or reflux
O
CO2H
O
4
5
Scheme 1
Table 1. Preparation of 3,3-Disubstituted Phthalides (5)
R1
H
H
H
H
H
OMe
OMe
OMe
OMe
OMe
R2
Me
R3
H
H
H
H
Me
H
Temp
rt
rt
reflux
rt
reflux
rt
rt
rt
reflux
rt
Time/h
1
5 (Yield/%)a
5a (68)
5b (62)
5c (36)
5d (81)
5e (75)
5f (70)
Entry
1
2
3
4
5
1
1
2
1
1
1
1
1
1
1
1a
1b
1c
1d
1e
1f
Ph
4-ClC6H4
4-MeOC6H4
4-MeOC6H4
Me
6
7
8
9
10
Et
Ph
H
H
H
H
1g
1h
1i
5g (56)
5h (77)
5i (37)
4-ClC6H4
4-MeOC6H4
1j
5j (78)
a Isolated yields.
The conditions of the reactions and the yields of the products (5) are summarized in Table 1. The
2-vinylbenzoic acid derivatives easily cyclized on treatment with concentrated hydrochloric acid at room
temperature resulting in the formation of the desired phthalides (5) in fair-to-good yields, in general.
However, when the substrates carrying 4-chlorophenyl group at the ꢀ-position (1c and 1i) or methyl

HETEROCYCLES, Vol. 81, No. 1, 2010
165
group at the ꢀ-position (1e) of the styrene moiety were used, cyclization of the corresponding
2-vinylbenzoic acid derivatives proved to be very sluggish under the above conditions. Cyclization in
these cases could be achieved by heating the reaction mixtures at reflux temperature to give the
corresponding phthalides (5c, 5i, or 5e), respectively. Although the yield of 5e was comparable to those of
the others (Entry 5), the yields of 5c and 5i were rather lower compared to the other examples, as can be
seen from Entries 3 and 9. The lower reactivity of these derivatives may be attributed to the instability of
the benzylic cation intermediates (4) generated during cyclization, compared to those of the others.
In conclusion, an efficient procedure has been developed for preparing 3,3-disubstitued phthalides, which
are hard to prepare by conventional methods. It may be of value, because the starting materials are readily
available and manipulations are very simple.
EXPERIMENTAL
All melting points were obtained on a Laboratory Devices MEL-TEMP II melting apparatus and are
1
uncorrected. IR spectra were determined with a Shimadzu FTIR-8300 spectrophotometer. The H NMR
spectra were determined in CDCl3 using TMS as an internal reference with a JEOL ECP500 FT NMR
13
spectrometer operating at 500 MHz. The C NMR spectra were determined in CDCl3 using TMS as an
internal reference with a JEOL ECP500 FT NMR spectrometer operating at 125 MHz. Low-resolution
MS spectra (EI, 70 eV) were measured by a JEOL JMS AX505 HA spectrometer. TLC was carried out on
a Merck Kieselgel 60 PF254. Column chromatography was performed using Merck Kieselgel 60
(0.063–0.200 mm). All of the organic solvents used in this study were dried over appropriate drying
agents and distilled prior to use.
Starting Materials. (2-Bromophenyl)(4-methoxyphenyl)methanone,8 1-(2-bromo-5-methoxyphenyl)-1-
propanone,9 1-bromo-2-(1-methlethenyl)benzene (1a),9 1-bromo-2-(1-phenylethenyl)benzene (1b),10
1-bromo-2-[1-(4-chlorophenyl)ethenyl]benzene (1c),1b 1-bromo-4-methoxy-2-(1-methylethenyl)benzene
(1f),11 1-bromo-4-methoxy-2-(1-phenylethenyl)benzene (1h),1b 1-bromo-2-[1-(4-chlorophenyl)ethenyl]-
4-methoxybenzene (1i),1e and 1-bromo-4-methoxy-2-[1-(4-methoxyphenyl)ethenyl]benzene (1j)1e were
prepared by the appropriate previously reported procedures. All other chemical used in this study were
commercially available.

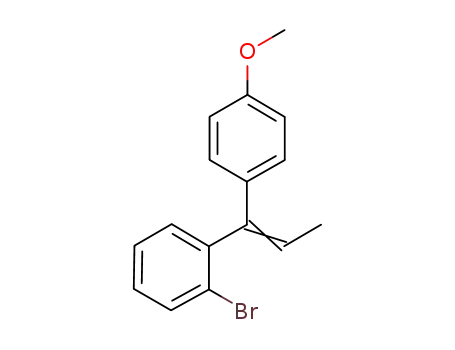

1-Bromo-2-[1-(4-methoxyphenyl)ethenyl]benzene (1d). This compound was prepared by treating
(2-bromophenyl)(4-methoxyphenyl)methanone8 with methylenetriphenylphosphorane in THF at 0 ˚C in
1
82% yield; a pale-yellow oil; Rf 0.44 (1:10 THF–hexane); IR (neat) 1605 cm–1; H NMR ꢁ 3.80 (3H, s),
5.15 (1H, s), 5.74 (1H, d, J = 0.9 Hz), 6.83 (2H, d, J = 9.2 Hz), 7.18–7.22 (3H, m), 7.30 (1H, dd, J = 7.8,
1.8 Hz), 7.34 (1H, dd, J = 8.2, 7.3 Hz), 7.59 (1H, dd, J = 8.2 Hz). Anal. Calcd for C15H13BrO: C, 62.30; H,
4.53; Found: C, 62.37; H, 4.48.
1-Bromo-2-[1-(4-methoxyphenyl)prop-1-enyl]benzene (1e). This compound was prepared by treating

166
HETEROCYCLES, Vol. 81, No. 1, 2010
(2-bromophenyl)(4-methoxyphenyl)methanone8 with ethylenetriphenylphosphorane in THF at 0 ˚C in
1
61% yield; a mixture of stereoisomers (E:Z = 3:7); Rf 0.51 (1:10 THF–hexane); IR (neat) 1607 cm–1; H
NMR ꢀ 1.59 (2.1H, d, J = 6.9 Hz), 1.92 (0.9H, d, J = 6.9 Hz), 3.78 (2.1H, s), 3.80 (0.9H, s), 5.77 (0.3H, q,
J = 6.9 Hz), 6.22 (0.7H, q, J = 6.9 Hz), 6.80 (1.4H, d, J = 9.1 Hz), 6.85 (0.6H, d, J = 8.7 Hz), 7.10–7.14
(2.3H, m), 7.16–7.21 (m, 1H), 7.27 (0.7H, d, J = 7.3 Hz), 7.33–7.36 (1H, m), 7.52 (0.3H, d, J = 7.8 Hz),
7.64 (0.7H, dd, J = 7.8, 0.9 Hz). Anal. Calcd for C16H15BrO: C, 63.38; H, 4.99. Found: C, 63.45; H, 5.18.
1-Bromo-2-(1-ethylethenyl)-4-methoxybenzene (1g). This compound was prepared by treating
1-(2-bromo-5-methoxyphenyl)-1-propanone9 with methylenetriphenylphosphorane in THF at 0 ˚C in 58%
1
yield; a pale-yellow liquid; Rf 0.63 (1:10 THF–hexane); IR (neat) 1639 cm–1; H NMR ꢀ 1.05 (3H, t, J =
7.3 Hz), 2.41 (2H, q, J = 7.3 Hz), 3.79 (3H, s), 4.94 (1H, s), 5.20 (1H, d, J = 0.9 Hz), 6.68 (1H, d, J = 3.2
Hz), 6.70 (1H, dd, J = 8.7, 3.2 Hz), 7.42 (1H, d, J = 8.7 Hz). Anal. Calcd for C11H13BrO: C, 54.79; H, 5.43.
Found: C, 54.93; H, 5.49.
Typical
Procedure
for
the
Preparation
of
Isobenzofuran-1(3H)-ones
(5).
3,3-
Dimethylisobenzofuran-1(3H)-one (5a). To a stirred solution of 1a (0.20 g, 1.0 mmol) in Et2O (3 mL) at
0 ˚C was added butyllithium (1.6 M in hexane, 1.0 mmol) dropwise. After 1 h, CO2 was slowly bubbled
via a glass capillary that was drawn from a Pasteur pipette for 30 min. Two mL of concentrated HCl was
added, and the resulting mixture was vigorously stirred for an additional 1 h. Five mL each of Et2O and
water were added, and the layers were separated. The aqueous layer was extracted with Et2O twice (5 mL
each), and the combined extracts were washed with brine, dried over anhydrous Na2SO4, and evaporated.
The residue was purified by column chromatography on silica gel (1:2 Et2O–hexane) to afford 5a (0.11 g,
1
68%); a white solid; mp 63–65 ˚C (hexane–Et2O). The IR and H NMR data for this product were
identical to those reported previously.12
3-Methyl-3-phenylisobenzofuran-1(3H)-one (5b):13 mp 76–77 ˚C (hexane–Et2O) (lit.,13a mp 77–78 ˚C);
IR (KBr) 1771 m–1; 1H NMR ꢀ 2.05 (3H, s), 7.31 (1H, tt, J = 7.3, 1.4 Hz), 7.36 (2H, dd, J = 7.8, 7.3 Hz),
7.45 (2H, d, J = 7.8 Hz), 7.47 (1H, d, J = 7.3 Hz), 7.52 (1H, ddd, J = 7.8, 7.3, 0.9 Hz), 7.66 (1H, td, J =
7.3, 0.9 Hz), 7.91 (1H, d, J = 7.8 Hz).
3-(4-Chlorophenyl)-3-methylisobenzofuran-1(3H)-one (5c): a pale-yellow oil; Rf 0.35 (1:5
1
THF–hexane); IR (neat) 1767 cm–1; H NMR ꢀ 2.02 (3H, s), 7.32 (2H, d, J = 8.7 Hz), 7.38 (2H, d, J =
8.7), 7.44 (1H, d, J = 7.8 Hz), 7.54 (1H, dd, J = 7.8, 7.3 Hz), 7.67 (1H, dd, J = 7.8, 7.3 Hz), 7.92 (1H, d, J
= 7.8 Hz); MS m/z 258 (M+, 15), 243 (100). Anal. Calcd for C15H11ClO2: C, 69.64; H, 4.29. Found: C,
69.61; H, 4.20.
3-(4-Methoxyphenyl)-3-methylisobenzofuran-1(3H)-one (5d): a pale-yellow solid; mp 140–141 ˚C
(lit.,14 140 ˚C); IR (KBr) 1771, 1614 cm–1; 1H NMR ꢀ 2.03 (3H, s), 3.79 (3H, s), 6.87 (2H, d, J = 9.2 Hz),
7.34 (2H, d, J = 9.2 Hz), 7.42 (1H, d, J = 7.8 Hz), 7.52 (1H, dd, J = 7.8, 7.3 Hz), 7.66 (1H, td, J = 7.3, 1.4
Hz), 7.91 (1H, d, J = 7.3 Hz).

HETEROCYCLES, Vol. 81, No. 1, 2010
167
3-Ethyl-3-(4-methoxyphenyl)isobenzofuran-1(3H)-one (5e): a pale-yellow oil; Rf 0.23 (1:5
THF–hexane); IR (neat) 1771, 1614 cm–1; 1H NMR ꢀ 0.80 (3H, t, J = 7.3 Hz), 2.25 (1H, dq, J = 14.6, 7.3
Hz), 2.48 (1H, dq, J = 14.6, 7.3 Hz), 3.79 (3H, s), 6.88 (2H, d, J = 9.2 Hz), 7.40 (2H, d, J = 9.2 Hz), 7.48
(1H, d, J = 7.8 Hz), 7.51 (1H, ddd, J = 7.8, 7.3, 1.4 Hz), 7.66 (1H, ddd, J = 7.8, 7.3, 1.4 Hz), 7.89 (1H, d,
13
J = 7.8 Hz); C NMR ꢀ 8.05, 33.07, 55.26, 90.44, 113.96, 122.12, 125.76, 125.81, 126.48, 128.97,
132.27, 134.13, 152.83, 159.33, 170.21; MS m/z 268 (M+, 12), 239 (100). Anal. Calcd for C17H16O3: C,
76.10; H, 6.01. Found: C, 75.85; H, 6.03.
5-Methoxy-3,3-dimethylisobenzofuran-1(3H)-one (5f): a white solid; mp 66–67 ˚C (hexane–Et2O); IR
(KBr) 1747, 1607 cm–1; 1H NMR ꢀ 1.64 (6H, s), 3.91 (3H, s), 6.80 (1H, d, J = 2.3 Hz), 7.01 (1H, dd, J =
8.3, 2.3 Hz), 7.77 (1H, d, J = 8.3 Hz); MS m/z 192 (M+, 20), 177 (100). Anal. Calcd for C11H12O3: C,
68.74; H, 6.29. Found: C, 68.49; H, 6.30.
3-Ethyl-5-methoxy-3-methylisobenzofuran-1(3H)-one (5g): a yellow liquid; Rf 0.31 (1:1 Et2O–hexane);
1
IR (neat) 1755, 1607 cm–1; H NMR ꢀ 0.77 (3H, t, J = 7.3 Hz), 1.62 (3H, s), 1.88 (1H, dq, J = 14.6, 7.3
Hz), 2.05 (1H, dq, J = 14.6, 7.3 Hz), 3.91 (3H, s), 6.76 (1H, d, J = 2.3 Hz), 7.00 (1H, dd, J = 8.7, 2.3 Hz),
13
7.78 (1H, d, J = 8.7 Hz); C NMR ꢀ 7.76, 25.69, 32.81, 55.79, 87.09, 105.16, 115.76, 118.53, 127.20,
156.32, 164.67, 169.83; MS m/z 206 (M+, 90), 191 (100). Anal. Calcd for C12H14O3: C, 69.88; H, 6.84.
Found: C, 69.82; H, 7.02.
5-Methoxy-3-methyl-3-phenylisobenzofuran-1(3H)-one (5h): colorless needles; mp 77–80 ˚C
(hexane–Et2O); IR (KBr) 1757, 1607 cm–1; 1H NMR ꢀ 2.03 (3H, s), 3.87 (3H, s), 6.83 (1H, d, J = 2.3 Hz),
7.01 (1H, dd, J = 8.3, 2.3 Hz), 7.31 (1H, tt, J = 7.3, 1.4 Hz), 7.36 (2H, dd, J = 7.8, 7.3 Hz), 7.44 (2H, d, J
= 7.8 Hz), 7.82 (1H, d, J = 8.3 Hz); MS m/z 254 (M+, 89), 239 (100). Anal. Calcd for C16H14O3: C, 75.57;
H, 5.55. Found: C, 75.28; H, 5.68.
3-(4-Chlorophenyl)-5-methoxy-3-methylisobenzofuran-1(3H)-one (5i): a pale-yellow oil; Rf 0.25
(benzene); IR (neat) 1755, 1607 cm–1; 1H NMR ꢀ 2.00 (3H, s), 3.88 (3H, s), 6.80 (1H, d, J = 2.3 Hz), 7.03
(1H, dd, J = 8.3, 2.3 Hz), 7.33 (2H, d, J = 8.7 Hz), 7.37 (2H, d, J = 8.7 Hz), 7.82 (1H, d, J = 8.3 Hz); MS
m/z 288 (M+, 22), 273 (100). Anal. Calcd for C16H13ClO3: C, 66.56; H, 4.54. Found: C, 66.32; H, 4.81.
5-Methoxy-3-(4-methoxyphenyl)-3-methylisobenzofuran-1(3H)-one (5j): a pale-yellow oil; Rf 0.24
1
(1:1 hexane–Et2O); IR (neat) 1755, 1607 cm–1; H NMR ꢀ 2.00 (3H, s), 3.79 (3H, s), 3.87 (3H, s), 6.79
(1H, d, J = 2.3 Hz), 6.87 (2H, d, J = 8.7 Hz), 7.01 (1H, dd, J = 8.3, 2.3 Hz), 7.33 (2H, d, J = 8.7 Hz), 7.81
13
(1H, d, J = 8.3 Hz); C NMR ꢀ 26.87, 55.26, 55.81, 86.64, 106.22, 113.91, 116.07, 117.45, 126.66,
127.32, 132.57, 157.15, 159.49, 164.78, 169.68; MS m/z 284 (M+, 27), 269 (100). Anal. Calcd for
C17H16O4: C, 71.82; H, 5.67. Found: C, 71.99; H, 5.80.

168
HETEROCYCLES, Vol. 81, No. 1, 2010
ACKNOWLEDGEMENTS
The authors are grateful to Mrs. Miyuki Tanmatsu of this university for determining mass spectra and
performing combustion analyses.
REFERENCES
1. (a) K. Kobayashi, M. Hase, K. Hashimoto, S. Fujita, M. Tanmatsu, O. Morikawa, and H. Konishi,
Synthesis, 2006, 2493; (b) K. Kobayashi, S. Fujita, M. Hase, O. Morikawa, and H. Konishi, Bull.
Chem. Soc. Jpn., 2007, 80, 763; (c) K. Kobayashi, K. Shikata, S. Fukamachi, O. Morikawa, and H.
Konishi, Heterocycles, 2008, 75, 599; (d) K. Kobayashi, S. Fujita, and H. Konishi, Heterocycles,
2008, 75, 2555; (e) S. Fukamachi, H. Konishi, and K. Kobayashi, Heterocycles, 2009, 78, 169; (f) S.
Fukamachi, H. Konishi, and K. Kobayashi, Heterocycles, 2009, 78, 2077.
2. For recent reports, see (a) T.-F. Lee, Y.-L. Lin, and Y.-T. Huang, Planta Med., 2007, 73, 527; (b) H.
Yang, G.-Y. Hu, J. Chen, Y. Wang, and Z.-H. Wang, Bioorg. Med. Chem. Lett., 2007, 17, 5210; (c)
F. J. Radcliff, J. D. Fraser, Z. E. Wilson, A. M. Heapy, J. E. Robinson, C. J. Bryant, C. L. Flowers,
and M. A. Brimble, Bioorg. Med. Chem., 2008, 16, 6179.
3. For a recent review: (a) J. J. Beck and S.-C. Chou, J. Nat. Prod., 2007, 70, 891; See also (b) H.
Tesso, K.-H. Kubeczka, and W. A. Koenig, Flavour Fragr. J., 2006, 21, 622; (c) V.
Prachyawarakorn, C. Mahidol, S. Suereram, S. Sangpetsiripan, S. Wiyakrutta, S. Ruchirawat, and P.
Kittakoop, Planta Med., 2008, 74, 69; (d) T.-H. Chou, I.-S. Chen, T.-L. Hwang, T.-C. Wang, T.-H.
Lee, L.-Y. Cheng, Y.-C. Chang, J. Y. Cho, and J.-I. Chen, J. Nat. Prod., 2008, 71, 1692; (e) N.
Katoh, T. Nakahata, and S. Kuwahara, Tetrahedron, 2008, 64, 9073.
4. For recent reports, see (a) E. Hernández, J. M. Vélez, and C. P. Vlaar, Tetrahedron Lett., 2007, 48,
8972; (b) E. Couché, A. Fkyerat, and R. Tabacchi, Helv. Chim. Acta, 2009, 92, 903.
5. For recent reports, see (a) L.-L. Huang, M.-H. Xu, and G.-Q. Lin, J. Am. Chem. Soc., 2006, 128,
5624; (b) R. Pedrosa, S. Sayalero, and M. Vicente, Tetrahedron, 2006, 62, 10400; (c) H.-T. Chang,
M. Jeganmohan, and C.-H. Cheng, Chem. Eur. J., 2007, 13, 4356; (d) B. T. S. Thirumamagal and S.
Narayanasmy, Tetrahedron Lett., 2008, 49, 512; (e) S. M. Landge, M. Berrymann, and B. Török,
Tetrahedron Lett., 2008, 49, 4505; (f) H. Lin and X.-W. Sun, Tetrahedron Lett., 2008, 49, 5343; (g)
A. V. Karnik and S. S. Kamath, Synthesis, 2008, 1832.
6. (a) D. Villemin, N. Cheikh, B. Mostefa-Kara, N. Bar, N. Choukchou-Braham, and M. A. Didi,
Tetrahedron Lett., 2006, 47, 5519; (b) K. Tanaka, T. Osaka, K. Noguchi, and M. Hirano, Org. Lett.
2007, 9, 1307.
7. N. Kawahara, S. Nakajima, Y. Satoh, M. Yamazaki, and K. Kawai, Chem. Pharm. Bull., 1988, 36,
1970.
8. M. Treu and U. Jordis, Molecules, 2002, 7, 18.

HETEROCYCLES, Vol. 81, No. 1, 2010
169
9. I. Fleming and M. Woolias, J. Chem. Soc., Perkin Trans. 1, 1979, 829.
10. M. E. Jason, Tetrahedron Lett., 1982, 23, 1635.
11. G. W. Morrow, T. M. Marks, and D. L. Sear, Tetrahedron, 1995, 51, 10115.
12. M. Yus, F. Foubelo, and J. V. Ferrández, Tetrahedron, 2003, 59, 2083.
13. (a) F. N. Jones and C. R. Hauser, J. Org. Chem., 1962, 27, 3364; (b) Y. Kondo, M. Asai, T. Miura,
M. Uchiyama, and T. Sakamoto, Org. Lett., 2001, 3, 13.
14. J. C. Canevet and O. Guilloton, Bull. Soc. Chim. Fr., 1981, 96.
