J-aggregate structure in a chloroform solvate of a 2,3-dicyanopyrazine dye e
Separation of two-dimensional stacking dye layers by solvate formation
,
b
a
a
c
Shinya Matsumoto a , Emi Horiguchi-Babamoto , Ryohei Eto , Saori Sato , Takashi Kobayashi ,
*
Hiroyoshi Naito c, Motoo Shiro d, Hiromi Takahashi e
a Department of Environmental Sciences, Graduate School of Environment and Information Sciences, Yokohama National University, 79-2 Tokiwadai, Hodogaya-ku,
Yokohama 240-8501, Japan
b Department of Pharmaceutical Sciences, Faculty of Pharmaceutics, Musashino University, 1-1-20 Shinmachi, Nishitokyo-shi, Tokyo 202-8585, Japan
c Department of Physics and Electronics, Graduate School of Engineering, Osaka Prefecture University, 1-1 Gakuen-cho, Nakaku, Sakai, Osaka 599-8531, Japan
d X-ray Research Laboratory, Rigaku Corporation, 3-9-12, Matsubaracho, Akishima-shi, Tokyo 196-8666, Japan
e System Instruments Co., Ltd., 776-2 Komiyamachi, Hachioji-shi, Tokyo 192-0031, Japan
a r t i c l e i n f o
a b s t r a c t
Article history:
Here, we report the J-aggregate structure of a chloroform solvate of 5-t-butyl-2,3-dicyano-6-[4-(dime-
thylamino)styryl]-pyrazine with a strong intramolecular charge transfer system. The dye was found to
form a two-dimensional brick-wall structure separated by chloroform molecules in the solvated crystals,
which exhibited intense red fluorescence. The absorption maximum of the solvate was also found to
show a bathochromic spectral shift. These observed optical characteristics were interpreted in terms of
excitonic intermolecular interaction based on two-dimensional brick-wall structure which is one of the
proposed structures for J-aggregates.
Received 21 March 2012
Received in revised form
24 April 2012
Accepted 25 April 2012
Available online 3 May 2012
Keywords:
J-aggregates
Ó 2012 Elsevier Ltd. All rights reserved.
Pyrazine dye
Chloroform solvate
Red fluorescence
Exciton interaction
Crystal engineering
1. Introduction
considered on the basis of theoretical treatments [2]. There are also
several reports on photographic images of J-aggregates using
J-aggregates are one of the well-known supramolecular systems
of organic dyes [1]. They exhibit an intense, sharp absorption band
with resonance fluorescence in the longer wavelength region
compared with those of a component dye monomer. These
particular spectral features may be ascribed to a resonance
quantum effect known as exciton interaction within the aggregates
[2]. A representative example of their practical applications is as
a photosensitizer for colour photographic films [1]. This industrial
opportunity stimulated research into J-aggregates. One of the main
research interests in J-aggregates is the structure. The structure of J-
aggregates was first proposed with respect to the surface adsorp-
tion of J-aggregates on ionic substrates [3]. With much experi-
mental evidence of the formation of J-aggregates on the surface of
ionic substrates [1], the structure of J-aggregates was further
microscopic techniques [4]. Comprehensive analyses of the crystal
structure of cyanine dyes showed that many cyanine dyes crystal-
lize in a
pep stacking structure and the proposed one- or two-
dimensional molecular arrangement of J-aggregates is recognized
as a part of their three-dimensional crystal structures [5]. However,
the detailed structure and dimensionality of J-aggregates are still
unknown except for the X-ray structure of a J-aggregate LB-film of
a merocyanine dye reported by Kato et al. [6] The size of J-aggre-
gates is also controversial: a range of some molecules to some
thousands molecules have been reported as the number of
component molecules within one J-aggregate [1e,7]. An alternate
opinion is that J-aggregates are a macroscopic molecular assembly
composed of meso-scale molecular assemblies [8]. The reported
analysis of the J-aggregated LB-film [6] demonstrated that a two-
dimensional infinite dye network is also a form of J-aggregates,
whilst that film may possess structural defects like mosaicity in
single crystals.
* Corresponding author. Tel.: þ81 45 339 3366; fax: þ81 45 339 3345.
E-mail address: smatsu@edhs.ynu.ac.jp (S. Matsumoto).
0143-7208/$ e see front matter Ó 2012 Elsevier Ltd. All rights reserved.
doi:10.1016/j.dyepig.2012.04.014

432
S. Matsumoto et al. / Dyes and Pigments 95 (2012) 431e435
In spite of the lack of clarity of the structure of J-aggregates, their
2.2. Synthesis of 5-t-butyl-2,3-dicyano-6-[4-(dialkylamino)styryl]
pyrazine
spectral features have attracted much attention in state-of-the-art
applications of organic dyes such as optical materials [7c,7d,9],
organic solar cells [10], and organic light-emitting devices [4e,11].
Stable J-aggregates in solid films [12] or in powdered form are
required for these applications. It is also very important that these
bulk J-aggregates can be prepared through a conventional method.
To achieve these demands, J-aggregate formation in a stable crys-
talline state [13] is a promising solution even though there is
currently no design strategy for obtaining J-aggregate crystals.
Here, we report the crystal structure and solid-state optical prop-
erties of a chloroform solvate of a 2,3-dicyanopyrazine dye as an
example of a potential crystal structure towards the design of
J-aggregate crystals.
To a solution of 5-t-butyl-2,3-dicyano-6-methylpyrazine (2.00 g,
10 mmol) in benzene (50 mL) was added piperidine (0.3 mL,
3 mmol) and 4-(dimethylamino)benzaldehyde (1.49 g, 10 mmol).
The mixture was refluxed for 37 h. The reaction mixture was cooled
to room temperature and then poured into a 2% HCl solution. The
precipitate was filtered off and the filtrate was extracted with EtOAc
three times. The combined organic layers were washed with brine
and dried over Na2SO4. After removing the solvent, the residue was
isolated by silica gel column chromatography (benzene) to give
a solid product. This solid and the precipitate obtained by filtration
were mixed and further purified by recrystallization from chloro-
form to obtain the target compound (1.56 g, 31%) as reddish brown
crystals. Yield 31%; mp 263e264 ꢀC; Anal. Calcd. for C20H21N5: C,
72.48; H, 6.39; N, 21.13%. Found: C, 71.92; H, 6.28; N, 20.97%; IR
2. Experimental section
(KBr)/cmꢁ1 2225 (CN); 1H NMR (CDCl3)
d 1.54 (s, 9H), 3.10 (s, 6H),
6.74 (d, J ¼ 8.0 Hz, 2H), 7.29 (d, J ¼ 16.0 Hz, 1H), 7.55 (d, J ¼ 8.0 Hz,
2.1. Materials and equipments
2H), 8.03 (d, J ¼ 16.0 Hz, 1H); 13C NMR (CDCl3)
d 29.4, 39.3, 40.2,
112.1, 113.8, 114.3, 116.3, 123.4, 126.0, 130.1, 130.3, 143.0, 152.1, 152.9,
4-(Dimethylamino)benzaldehyde was purchased from Hayashi
Pure Chemical Industries Ltd. 5-t-Butyl-2,3-dicyano-6-methyl-
pyrazine [14] was prepared as described in the literature.
162.8; MS (EI) m/z 331 (Mþ).
Melting points were measured using
a
Yanaco MP-500P
2.3. X-ray structural analysis
micro-melting-point apparatus. NMR spectra were obtained by
a Jeol JNM-ECX-400 spectrometer. EIMS spectra were recorded
on a Jeol JMS-GC mateII spectrometer. IR spectra were recorded
on a Jasco FT-IR-4100 system for samples in a KBr pellet form.
The elemental analysis was performed with an Elementar Vario
EL III elemental analyzer. UVevis absorption and fluorescence
spectra in solution were taken on a Shimadzu UV3100PC UV/vis
spectrometer and a Shimadzu RF5301PC fluorescence spectrom-
eter, respectively. Solid-state absorption spectra were measured
using a System Instruments SIS-50 surface and interface spec-
trometer based on optical waveguide spectrometry. Fluorescence
quantum efficiency in the solid-state is determined using a blue
diode laser (CrystaLaser), an integrating sphere (Labsphere), and
photo-multichannel analyzer (Hamamatsu, PMA-11). After
measured a reflected laser beam from a quarts substrate, we
measured a reflected laser beam and fluorescence from the
crystals placed on the substrate. Then, we calculated photon
numbers of the fluorescence and the adsorbed laser beam.
Fluorescence quantum efficiency was obtained as a ratio between
the two-photon numbers [15]. Electronic states of this dye in the
solvate were estimated by a semi-empirical molecular orbital
calculation. The ground state dipole moment and the transition
dipole moment were calculated by using the AM1 and the INDO/
S Hamiltonians, respectively, on the basis of the crystal structure.
These calculations were performed with a CAChe 5.2 program
package [16].
Data collection of the solvate crystal was performed by a Rigaku
RAXIS RAPID imaging plate diffractometer with graphite mono-
chromated CueKa radiation. The structure was solved by direct
method (SIR 2002 [17]) and refined by full-matrix least-squares
calculations. The non-hydrogen atoms were refined anisotropically.
All hydrogen atoms were simply located at the calculated positions
and their parameters were constrained. All calculations were per-
formed using the Crystal Structure 3.8 crystallographic software
package [18]. Crystal data: C20H21N5ꢂCHCl3, M ¼ 450.80, ortho-
rhombic, a ¼ 6.7574(5) Å, b ¼ 11.1520(6) Å, c ¼ 14.9279(9) Å,
V ¼ 1124.9 (1) Å3, T ¼ 223.1 K, space group Pmn21, Z ¼ 2, 11891
reflections measured, 2202 independent reflections (Rint ¼ 0.101).
The final R1 value (I > 2s
(I)), the final wR(F2) value (all data), and the
GOF was 0.075, 0.2163 and 0.900, respectively. The Flack parameter
was ꢁ0.05(4). The CCDC deposition number is CCDC834637.
3. Results and discussion
Dye 1, 5-t-butyl-2,3-dicyano-6-[4-(dimethylamino)styryl]-pyr-
azine, shown in Fig. 1 was synthesized as one of a series of
compounds to study the effect of the amino substituent on thin film
growth by vacuum deposition [19]. This dye system is also known
to exhibit good fluorescence properties in the crystalline state
[14,20]. We carried out single crystal growth of
1 using
liquideliquid diffusion from chloroform and c-hexane. Lustrous red
a
b
NMe
2
NC
NC
N
N
t-Bu

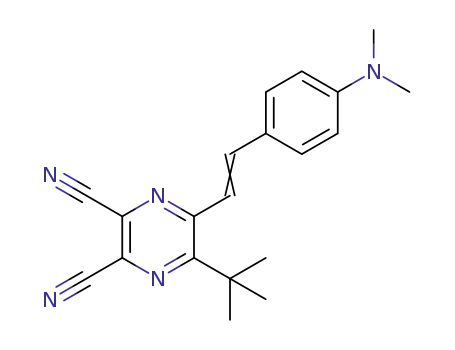

Fig. 1. (a) Chemical structure of 1 and (b) molecular structure of its chloroform solvate (30% probability level ellipsoids).

S. Matsumoto et al. / Dyes and Pigments 95 (2012) 431e435
433
Fig. 2. Photographs of dye 1 under (a) a room light and (b) a UV light.
platelets were observed in the glass tube within a few days, and,
after that, the red crystals transitioned into black block crystals and/
or reddish-purple flakes in the next several days. The red crystals
were found to emit brightly under a UV lamp (Fig. 2). They are
stable at about 263 K without any colour change.
We initially thought that 1 had three crystal polymorphs;
however, the red one was proved to be a chloroform solvate.
Thermogravimetric (TG) analysis revealed that the red crystals
include one chloroform molecule per dye (Fig. 3). The other two
crystals were identified as polymorphic forms without any solvent
molecules and their structures and optical properties will be
reported elsewhere.
X-ray structural analysis of the solvated crystals was carried out
at 223 K. The analytical data indicated that the structural unit is
composed of one dye molecule and one chloroform molecule,
which confirms the results of the TG analysis. The molecules are
oriented on a mirror plane parallel to the bc plane. This indicates
that the molecules have a planar conformation. Fig. 4 illustrates the
crystal structure of the solvate. The crystal structure is character-
ized by a two-dimensional stacking dye layer and a layer composed
of chloroform molecules. These two layers alternate along the b-
axis to form the three-dimensional crystal structure. Fig. 4 also
shows a portion of the two-dimensional dye layer viewed from
both the a-axis and the b-axis. The dye molecules are stacked along
the a-axis in a brick-wall fashion [2c] with a slip angle of ca. 24ꢀ.
This dye chromophore has an unsymmetrical intramolecular
charge transfer (CT) system. Therefore, 1 has a large dipole moment
in the ground state along the CT direction of the molecular plane. It
should be noted that the polar molecules are aligned in the same
direction in all the stacking layers. This is intriguing because
molecules with a large ground state dipole moment generally align
themselves to minimize electrostatic repulsion resulting in a non-
polar or less-polar crystal structure [21]. The transition dipole
moment of the visible absorption was estimated to be aligned in the
same direction as the ground state dipole moment. Therefore, this
two-dimensional layer can be regarded as a model structure for J-
aggregates, specifically the two-dimensional brick-wall structure.
The effect of the exciton interactions in this J-aggregate struc-
ture was estimated by using the extended dipole model [1d,2d,6]
on the basis of a nearest neighbour approximation. The interac-
tion from six neighbouring dye molecules in the same layer
induced a bathochromic energy shift of 991 cmꢁ1. The contribution
from two neighbouring dye molecules in the neighbouring layers
was a hypsochromic energy shift of 155 cmꢁ1. Therefore, the total
from eight neighbouring molecules resulted in a bathochromic
energy shift of 836 cmꢁ1. This suggests that this solvate has an
excitonic electronic nature resembling that of J-aggregates and this
was imparted by the two-dimensional brick-wall structure, even
though the transition dipole moments in the stacking layer are
aligned with a small declination, which may result in negligible
breaking of the symmetry limitation for light absorption based on
exciton interactions [2].
We then measured the optical properties of this solvate. The
powder samples were characterized by the crystal structure of the
solvate using powder X-ray diffraction. The absorption and fluo-
rescence spectra of 1 (in toluene) and the solvate are illustrated in
Fig. 5. Generally it is not easy to obtain an absorption spectrum of
dye crystals because dye solids have a strong extinction over the
visible region. The measurements were then performed using
optical waveguide spectroscopy [22]. Dye 1 exhibits an absorption
maximum around 480 nm in toluene with a molar extinction
coefficient of ca. 2.5 ꢃ 104. Its fluorescence in toluene was recog-
nized around 556 nm with 21% quantum efficiency, which was
measured using quinine sulphate as a reference. The Stoke’s shift is
2848 cmꢁ1. The absorption spectrum of the solvate was found to
2
1
30
20
10
0
shift drastically towards the bathochromic region. Its
l max was
around 559 nm with a broad shoulder around 460 nm. The bath-
ochromic shift of the absorption maximum from a toluene solution
to the solvate was estimated to be 2944 cmꢁ1. This spectral shift is
qualitatively in agreement with the calculated bathochromic shift
(836 cmꢁ1) based on exciton interactions. Fluorescence of the
solvate was measured by using a homemade set-up with excitation
at 375 nm. Its quantum efficiency was estimated in comparison
with purified anthracene crystals. The fluorescence spectrum
comprised a sharp fluorescence band around 619 nm and a broad
component in the longer wavelength region. Its quantum efficiency
is ca. 10%. This sharp peak was found to decrease gradually during
the measurements with a simultaneous increase of the longer
wavelength component. The longer fluorescence component was
0
-1
-2
-3
-4
-10
-20
-30
30
80
130
180
230
Temperature / oC
Fig. 3. The TG/DTA data for the solvate.

434
S. Matsumoto et al. / Dyes and Pigments 95 (2012) 431e435
Fig. 4. Crystal structure of the solvate.
We also thank Dr Shinji Ishihara at Yokohama National University
for the elemental analysis.
Toluene soln
Solvate
References
[1] (a) Bird GR, Norland KS, Rosenoff AE, Michaud HB. Photosensitization of silver
bromide. V. Spectra and structure of sensitizing dye aggregates. Photo Sci Eng
1968;12:196e206;
(b) James TH, editor. The theory of the photographic processes. 4th ed.
New York: Macmillan Publishing; 1977;
(c) Möbius D. Scheibe aggregates. Adv Mat 1995;7:437e44;
(d) Kobayashi T, editor. J-aggregates. Singapore: World Scientific Publishing;
1996;
(e) Misawa K. Self-assembled nanostructure of organic dyes -J-aggregates-.
Oyo-butsuri 2000;69:1401e11 [in Japanese];
(f) Würthner F, Kaiser TE, Saha-Möller CR. J-aggregates: from serendipitous
discovery to supramolecular engineering of functional dye materials. Angew
Chem Int Ed 2011;50:3376e410.
350
400
450
500
550
600
650
700
Wavelength / nm
[2] (a) McRae EG, Kasha M. Enhancement of phosphorescence ability upon
aggregation of dye molecules. J Chem Phys 1958;28:721e2;
(b) Kasha M. Energy transfer mechanisms and the molecular exciton model
for molecular aggregates. Radiat Res 1963;20:55e70;
Fig. 5. UVevis absorption (the dotted line) and fluorescence (the solid line) spectra of
1 (in toluene) and the solvate measured in an ambient condition.
also observed from the black and reddish-purple phases and thus
this spectral change should be caused by the local phase transition
from the solvate to these phases. This sharp fluorescence peak can
be considered to reflect the excitonic band formation.
(c) Czikkely V, Försterling HD, Kuhn H. Light absorption and structure of
aggregates of dye molecules. Chem Phys Lett 1970;6:11e4;
(d) Czikkely V, Försterling HD, Kuhn H. Extended dipole model for aggregates
of dye molecules. Chem Phys Lett 1970;6:207e10;
(e) Egorov VV. Theory of the J-band: from the Frenkel exciton to charge
transfer. Phys Procedia 2009;2:223e326;
These separated two-dimensional stacking dye layers by solvent
molecules are regarded as a possible structure for realizing quasi-
low dimensional electronic states in a three-dimensional crystal-
line state, i.e. crystals exhibit the aggregate properties. To make the
distance between the adjacent brick-wall layers being larger than
an effective exciton coherent length may adjust the optical prop-
erties of the solvate to those of typical J-aggregates such as sharp
line-like absorption and resonance fluorescence. The stability of the
solvates is also an important parameter in their practical
applications.
(f) Spano FC. The spectral signatures of Frenkel polarons in H- and J-aggre-
gates. Acc Chem Res 2010;43:429e39.
[3] Scheibe G. Die Stereoisomerie organischer Farbstoffe und ihr Zusammenhang
mit Konstitution und Eigenschaften reversibel polymerer Farbstoffe. Angew
Chem 1939;42:631e7.
[4] (a) Emerson ES, Conlin MA, Rosenoff AE, Norlamd KS, Rodriguez H, Chin D,
et al. The geometrical structure and absorption spectrum of a cyanine dye
aggregate. J Phys Chem 1967;71:2396e403;
(b) Wolthaus L, Schaper A, Möbius D. Brickstone arrangement in J-aggregates
on an amphiphilic merocyanine dye. Chem Phys Lett 1994;225:322e6;
(c) Higgins DA, Barbara PF. Excitonic transitions in J-aggregates probed by
near-field scanning optical microscopy. J Phys Chem 1995;99:3e7;
(d) Higgins DA, Reid PJ, Barbara PF. Structure and exciton dynamics in J-
aggregates studied by polarization-dependent near-field scanning optical
microscopy. J Phys Chem 1996;100:1174e80;
4. Conclusions
(e) Mal’tsev EI, Lypenko DA, Perelygina OM, Ivanov VI, Gribkova OL,
Brusentseva MA, et al. Molecular nanocrystals in polyaniline-based light-
emitting diode structures. Prot Metals 2008;44:443e6.
A 2,3-dicyanopyrazine dye, 5-t-butyl-2,3-dicyano-6-[4-(dime-
thylamino)styryl]-pyrazine, was found to form a chloroform solvate
which emit intense red fluorescence. Its optical property was
interpreted in terms of intermolecular interactions based on two-
dimensional brick-wall structure, one of the proposed structure
for J-aggregates, in the crystal. The present result suggests an
interesting idea for achieving J-aggregates in a three-dimensional
crystalline state based on a solvate structure, although crystal
engineering of such a small organic molecule is still a tough task.
[5] (a) Smith DL. Structure of dyes and dye aggregates. Evidence from crystal
structure analyses. Photogr Sci Eng 1974;18:309e22;
(b) Nakatsu K, Yoshioka H, Nishigaki S. Structural models for low-dimensional
photographic dye aggregates as revealed by X-ray crystallographic studies.
Nihon Shashin Gkkai-shi (in Japanese) 1983;46:89e98;
(c) Tyutyulkov N, Fabian J, Mehlhorn A, Dietsand F, Tadjer A. Polymethine
dyes. Sophia: St Kliment Ohridski University Press; 1991.
[6] Kato N, Yuasa K, Araki T, Hirosawa I, Sato M, Ikeda N, et al. Determination of
a merocyanine J-aggregate structure and the significant contribution of the
Electric dipole interaction to the exciton band wavelength. Phys Rev Lett
2005;94:136404.1e4.
[7] (a) Kopainsky B, Kaiser W. Ultrafast transient processes of monomers, dimers,
and aggregates of pseudoisocyanine chloride (PIC). Chem Phys Lett 1982;88:
357e61;
Acknowledgements
We thank Dr. Eiko Yasui and Prof. Dr. Norio Takamura at
Musashino University for their kind support in the dye synthesis.
(b) Sandström V, Gillbro T, Gadonas RA, Piskarskas A. Annihilation of singlet
excitons in
J aggregates of pseudoisocyanine (PIC) studied by pico- and

S. Matsumoto et al. / Dyes and Pigments 95 (2012) 431e435
435
subpicosecond spectroscopy. J Chem Phys 1988;89:2754e62;
(c) Wang Y. Resonant third-order optical nonlinearity of molecular aggregates
with low-dimensional excitons. J Opt Soc Am B 1991;8:981e5;
(d) Minoshima K, Taiji M, Misawa K, Kobayashi T. Femtosecond nonlinear
optical dynamics of excitons in J-aggregates. Chem Phys Lett 1994;218:
67e72.
emission of 2,2’-biindenyl-based fluorophores. Angew Chem Int Ed 2011;
50:11654e7.
[12] (a) Matsumoto S, Kobayashi T, Aoyama T, Wada T. J-Aggregates in vapor
deposited films of a bisazomethine dye. Chem Comm 2003;15:1910e1;
(b) Kim B-S, Kashibuchi D, Son Y-A, Kim S-H, Matsumoto S. Effect of phenyl
ring substitution on J-aggregate formation ability of novel bisazomethine dyes
in vapour-deposited films. Dyes Pigm 2011;90:56e64.
[13] Kim B-S, Jindo T, Eto R, Shinohara Y, Son Y-A, Kim S-H, et al. Effects of alkoxy
substitution on the crystal structure of 2,3-bis[(E)-4-(diethylamino)-2-
alkoxybenzylideneamino]fumaro- nitrile derivatives. CrystEngComm 2011;
13:5374e83.
[14] Horiguchi E, Matsumoto S, Funabiki K, Matsui M. Substituent effect of 2,3-
dicyanopyrazine dyes on solid-state fluorescence. Bull Chem Soc Jpn 2006;
79:799e805.
[15] Kawamura Y, Sasabe H, Adachi C. Simple Accurate system for measuring
absolute photoluminescence quantum efficiency in organic solid-state thin
films. Jpn J Appl Phys 2004;43(11A):7729e30.
[16] Fujitu Limited. Computer aided chemical modeling package; 2001. Tokyo,
Japan.
[17] Burla MC, Camalli M, Carrozzini B, Cascarano GL, Giacovazzo C, Polidori G,
et al. SIR 2002: the program. J Appl Cryst 2003;36:1103.
[18] Crystal structure analysis package. The Woodlands, TX, USA: Rigaku and
Rigaku/MSC; 1998.
[19] Matsumoto S, Yano T, Horiguchi-Babamoto E, Matsui M. Electronic states of
a 2,3-dicyanopyrazine dye in vacuum-deposited films. Mol Cryst Liq Cryst
2007;472(1):105/[495]e112/[502].
[20] Matsuoka M. In: Freeman HS, Peters AT, editors. Colorants for non-textile
applications. Elsevier; 2000. p. 339e81.
[8] (a) Misawa K, Ono H, Minoshima K, Kobayashi T. New model of excitonic
bands and molecular arrangement of highly oriented J-aggregates in polymer
films prepared by a novel method. J Lumin 1994;60&61:812e5;
(b) Misawa K, Machida S, Horie K, Kobayashi T. Wavelength and polarization
dependence of spectral hole-burning efficiency in highly oriented J-aggre-
gates. Chem Phys Lett 1995;240:210e5.
[9] (a) Malyshev VA, Glaeske H, Feller KH. Intrinsic optical bistablility of an
ultrathin film consisting of oriented linear aggregates. J Chem Phys 2000;113:
1170e6;
(b) Tatsuura S, Tian M, Furuki M, Sato Y, Pu LS, Wada O. Spin-coated films of
squarylium dye J-aggregates exhibiting ultrafast optical responses. Jpn J Appl
Phys 2000;39:4782e5;
(c) Murakami H, Morita R, Watanabe T, Asai K, Honma I, Zhou H, et al.
Determination of third-order optical nonlinearity dispersion of 1-methyl-1’-
octadecyl-2,2’-cyanine perchlorate Langmuir-Blodgett films using electro-
absorption spectroscopy. Jpn J Appl Phys 2000;39:5838e41;
(d) Plekhanov AI, Gorkovenko AI, Orlova NA, Simanchuk AE, Shelkovnikov VV.
A comparative study of the nonlinear optical properties of molecular J- and H-
aggregates in thin films. High Energy Chem 2009;43:607e10.
[10] (a) Saito K. Sensitization of the photocurrent in C60/merocyanine J-aggregate
heterojunction photovoltaic cells. Jpn J Appl Phys 1999;38:L1140e2;
(b) Hosokai T, Aoyama T, Kobayashi T, Nakao, Matsumoto S. Photovoltaic
properties of bisazomethine dye thin films. Chem Phys Lett 2010;487:77e80.
[11] (a) Era M, Adachi C, Tsutsui T, Saito S. Double-heterostructure electrolumi-
nescent device with cyanine-dye bimolecular layer as an emitter. Chem Phys
Lett 1991;178:488e90;
[21] (a) Kitaigorodsky AI. Molecular crystals and molecules. New York and London:
Academic Press; 1973;
(b) Gavezzotti A. Molecular aggregation. Oxford: Oxford University Press;
2007;
(b) Era M, Adachi C, Tsutsui T, Saito S. Organic electroluminescent device with
cyanine dye Langmuir-Blodgett film as an emitter. Thin Solid Films 1992;210/
211:468e70;
(c) Mal’tsev EI, Lypenko DA, Shapiro BI, Brusentseva MA, Berendyaev VI,
Kotov BV, et al. J-aggregate electroluminescence in dye doped polymer layers.
Appl Phys Lett 1998;73:3641e3;
(d) Mal’tsev EI, Lypenko DA, Shapiro BI, Brusentseva MA, Milburn GHW,
Wright J, et al. Electroluminescence of polymer/J-aggregate composites. Appl
Phys Lett 1999;75:1896e8;
(c) . In: Chemla DS, Zyss J, editors. Nonlinear optical properties of organic
molecules and crystals, vol. 1. New York: Academic Press; 1987;
(d) Curtin DY, Paul IC. Chemical consequences of the polar axis in organic
solid-state chemistry. Chem Rev 1981;81:525e41.
[22] (a) Ogawa K, Harada J, Fujiwara T, Takahashi H. UVevis absorption spectra of
powdered materials: direct measurements by optical waveguide spectros-
copy. Chem Lett 2004;33:1446e7;
(b) Takahashi H, Fujita K, Ohno H. Direct visible spectral analysis of solid
samples by optical waveguide spectroscopy due to adsorbed sample mole-
cules after sublimation. Chem Lett 2007;36:116e7.
(e) Zhang Z, Xu B, Su J, Shen L, Xie Y, Tian H. Color-tunable solid-state
