Highly Cis-1,4-Selective Living Polymerization of 1,3-Conjugated Dienes
and Copolymerization with ε-Caprolactone by Bis(phosphino)carbazolide
Rare-Earth-Metal Complexes
Lingfang Wang,† Dongmei Cui,*,† Zhaomin Hou,*,‡ Wei Li,§ and Yang Li§
†State Key Laboratory of Polymer Physics and Chemistry, Changchun Institute of Applied Chemistry,
Chinese Academy of Sciences, Changchun 130022, People’s Republic of China,
‡Organometallic Chemistry Laboratory, RIKEN Advanced Science Institute, 2-1 Hirosawa, Wako,
Saitama 351-0198, Japan, and §College of Chemical Engineering, Dalian University of Technology,
People’s Republic of China
Received September 30, 2010
Bis(phosphino)carbazole, HL (HL = 3,6-(tBu)2-1,8-(PPh2)2-carbazole), reacted with rare-earth-
metal tris(aminobenzyl) complexes (Ln(CH2C6H4N(Me)2-o)3) to afford the first PNP-carbazolide
rare-earth-metal bis(alkyl) complexes, LLn(C6H4CH2N(Me)2)2 (Ln=Y (1), Sc (2), Er (3)). The

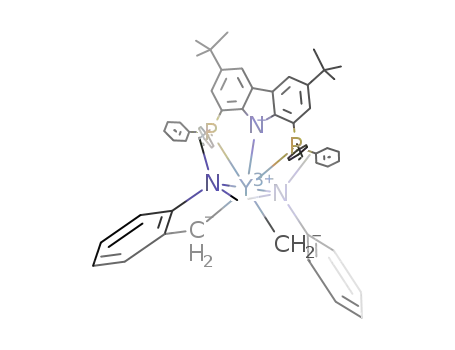

yttrium complex 1 was characterized by X-ray diffraction analysis as a solvent-free monomer, in
which the carbazolide ligand coordinates to the Y3þ ion in a κP:κN:κP0-tridentate mode and the two
aminobenzyl groups coordinate to the Y3þ ion in η1C:κN-bidentate modes. Complexes 1-3
combined with [Ph3C][B(C6F5)4] gave cationic catalyst systems that initiated cis-1,4-polymeriza-
tions of 1,3-conjugated dienes with high activities. Especially, the system 1/[Ph3C][B(C6F5)4]
displayed excellent cis-1,4-selectivity (>99%) and living mode at a broad range of polymerization
temperatures (0-80 °C). Remarkably, the living yttrium-polydiene active species could further
initiate the ring-opening polymerization of ε-caprolactone to give selectively poly(cis-1,4-diene)-
b-polycaprolactone block copolymer with controllable molecular weight (Mn = (10-70) ꢀ 104)
and narrow polydispersity (PDI = 1.15-1.47).
Introduction
molecular weight distribution.3 Lanthanidocene-mediated
catalysts4 and some modified titanium catalysts5 exhibit
excellent living mode together with high cis-1,4-selectivity,
albeit at low polymerization temperatures. The cationic rare-
earth-metal catalysts have been reported recently to show
considerably high cis-1,4-selectivity, even at elevated temper-
atures.6 However, to date catalyst systems that show both high
cis-1,4-selectivity and living character are still scarce.
Cis-1,4-regulated polydienes are one of the most impor-
tant rubbers, whose rheological and mechanical properties
are significantly influenced by their microstructures such as
molecular weight, molecular weight distribution, and espe-
cially cis-1,4-regularity. A direct consequence of a minor
increase in cis-1,4-regularity is strain-induced crystallization
of raw rubbers and vulcanizates, which significantly influ-
ences mechanical properties: e.g. tensile strength, resistance
to abrasion and fatigue, etc.1 Therefore, for half a century the
investigation of homogeneous catalyst systems that provide
over 98% cis-1,4-selectivity and living mode has been one of
the most fascinating and challenging subjects in both aca-
demic and industrial fields. The conventional Ziegler-Natta
type catalysts created in the 1960s are easy to prepare, are
cheap, and have been applied in industry but produce
polydienes with relatively low cis-1,4-regularity (<97%)
and poorly controlled molecular weight due to multisited
initiation centers.2 Modified Ziegler-Natta catalysts based
on heterometallic lanthanide methylaluminates display an
obvious improvement in selectivity and control of the
