4840 Organometallics, Vol. 29, No. 21, 2010
Jana et al.
Table 1. Summary of Crystal Data and Refinement
Results for Compounds 8 and 10
material 1 and LSnCl were prepared using literature procedures.
8a,12 Other chemicals were purchased and used as received. 1H,
19F, and 119Sn NMR spectra were recorded on a Bruker Avance
DRX 500 MHz instrument and referenced to the deuterated
solvent in the case of the 1H NMR; CFCl3 and SnMe4 were used
as references for the 19F and 119Sn NMR spectra, respectively.
Elemental analyses were performed by the Analytisches Labor
8
10
empirical formula
CCDC no.
T (K)
C36H43F5N2OSn
745457
133(2)
C35H41F5N2Sn
759435
133(2)
€
€
€
des Instituts fur Anorganische Chemie der Universitat Gottingen.
Infrared spectral data were recorded on a Perkin-Elmer PE-1430
instrument. EI-MS were measured on a Finnigan Mat 8230 or a
Varian MAT CH5 instrument. Melting points were measured in
cryst syst
space group
triclinic
P1
monoclinic
P21/n
13.351(3)
18.698(4)
13.566(3)
90
102.84(3)
90
3301.8(11)
4
1.415
˚
a (A)
12.074(2)
12.398(3)
12.821(3)
82.25(3)
72.91(3)
71.68(3)
1739.6(7)
2
˚
b (A)
˚
c (A)
€
sealed glass tubes with a Buchi B 540 melting point instrument.
R (deg)
β (deg)
γ (deg)
Synthesis of LSnOCHPh(C6F5) (3; L= HC{(CMe)(2,6-iPr2-
C6H3N)}2) and PhCO(4-C6F4H) (5). In a NMR tube loaded with
PhCOC6F5 (0.136 g, 0.50 mmol) and LSnH (1; 0.270 g, 0.50
mmol) was added 1 mL of C6D6 at room temperature. After
24 h, the NMR spectrum was measured, showing the formation
of compounds 3 and 5 in a ratio of 0.6:1.0. Data for 3: 1H NMR
(200 MHz, C6D6) δ 6.85-7.65 (m, 6H, Ar-H), 6.41 (s, 1H, CH),
4.78 (s, 1H, γ-CH), 3.56 (sept, 2H, CH(CH3)2), 3.13 (sept, 2H,
CH(CH3)2), 1.53 (s, 6H, CH3), 1.44 (d, 6H, CH(CH3)2), 1.23
(d, 6H, CH(CH3)2), 1.11 (d, 6H, CH(CH3)2), 0.90 (d, 6H,
CH(CH3)2); 119Sn{1H} NMR (186.46 MHz) δ -217 ppm. Data
for 5: 1H NMR (200 MHz, C6D6) δ 6.18 (tt, 3J(F-H)=9.65 Hz,
4J(F-H) =7.30 Hz, 1H, 4-H) ppm.
Synthesis of LSnOCH(C6F5)2 (4; L=HC{(CMe)(2,6-iPr2C6-
H3N)}2) and C6F5CO(4- C6F4H) (6). A solution of C6F5COC6F5
in toluene (0.360 g, 1.00 mmol, 10 mL of toluene) was added by
cannula to a solution of LSnH (1) in toluene (0.54 g, 1.00 mmol
in 20 mL of toluene) at room temperature. After 24 h, all
volatiles were removed in vacuo, and the remaining residue
was extracted with n-hexane (25 mL). The 1H NMR spectrum
showed the formation of compounds 4 and 6 in a ratio of 0.8:1.0.
Data for 4: 1H NMR (500 MHz, C6D6) δ 6.99-7.13 (m, 15H,
Ar-H), 6.72 (s, 1H, CH), 4.77 (s, 1H, γ-CH), 3.46 (sept, 2H,
CH(CH3)2), 3.02 (sept, 2H, CH(CH3)2), 1.48 (s, 6H, CH3), 1.17
(d, 6H, CH(CH3)2), 1.14 (d, 6H, CH(CH3)2), 1.08 (d, 6H,
CH(CH3)2), 1.06 (d, 6H, CH(CH3)2); 119Sn{1H} NMR (186.46
MHz) δ -252 ppm; EI-MS (70 eV) m/z (%) 900 (100) [Mþ].
Data for 6: 1H NMR (500 MHz, C6D6) δ 6.08 (tt, 3J(F-H) =
9.56 Hz, 4J(F-H)= 7.45 Hz, 1H, 4-H) ppm.
3
˚
V (A )
Z
Dcalcd (g cm-3
)
1.400
0.791
μ (mm-1
)
0.828
2H, CH2), 3.57 (sept, 2H, CH(CH3)2), 3.13 (sept, 2H, CH(CH3)2),
1.58 (s, 6H, CH3), 1.31 (d, 6H, CH(CH3)2), 1.24 (d, 6H, CH-
(CH3)2), 1.20 (d, 6H, CH(CH3)2), 1.09 (d, 6H, CH(CH3)2). 19
F
NMR (188.29 MHz, C6D6): δ -143.9 (dd, 2F, o-F), -158.95 (t,
F, p-F), -163.95 (td, 2F, m-F). 119Sn{1H} NMR (186.46 MHz):
δ -262 ppm. EI-MS (70 eV): m/z (%) 537 (100) [Mþ - OCH2-
C6F5]. Anal. Calcd for C36H43F5N2OSn (734.23): C, 58.95; H,
5.91; N, 3.82. Found: C, 58.24; H, 5.90; N, 3.72.
Reaction of C6F6 and LSnH (1) with the Formation of LSnF
(2), C6F5H (9), LSnC6F5 (10), and LH. In a NMR tube C6F6
(0.095 g 0.50 mmol) and LSnH (1; 0.270 g, 0.50 mmol) were
loaded, and 1 mL of C6D6 was added at room temperature.
After 24 h the 1H NMR spectrum was recorded and showed the
formation of compounds 2, 9, LH, and 10. Data for 2: yield 0.13
g (50%), with respect to LSnH; 119Sn{1H} NMR (186.46 MHz)
δ -371.5 ppm. Data for 9: yield 0.04 g (46%), with respect to
LSnH; 1H NMR (200 MHz, C6D6) δ 5.95 (m, 1H, Ar-H) ppm;
19F NMR (188.29 MHz, C6D6) δ -139.4 (m, 2F, o-F),
-154.0 (t, 1F, p-F), -162.7 (m, 2F, m-F). Data for 10: yield
0.056 g (17%), with respect to LSnH; 119Sn{1H} NMR (186.46
MHz) δ -176.42 ppm. Data for LH: yield 0.071 g (34%), with
1
respect to LSnH; H NMR (200 MHz, C6D6) δ 12.45 (s, 1H,
N-H) ppm.
Synthesis of LSnOCHPh(4-C6H4F) (7; L = HC{(CMe)(2,6-
iPr2C6H3N)}2). A solution of PhCO(4-C6H4F) (0.200 g, 1.00
mmol; 10 mL of toluene) was added by cannula to a solution of
LSnH (1) in toluene (0.54 g, 1.00 mmol in 20 mL of toluene) at
room temperature. After 24 h, all volatiles were removed in
vacuo, and the remaining residue was extracted with n-hexane
(25 mL). Compound 7 was obtained after evaporation of the
solvent. Yield: 0.605 g (82%). Mp: 130 °C. 1H NMR (300 MHz,
C6D6): δ 6.65-7.63 (m, 15H, Ar-H), 5.88 (s, 1H, CH), 4.75 (s,
1H, γ-CH), 3.63 (sept, 2H, CH(CH3)2), 3.11 (sept, 2H, CH-
(CH3)2), 1.55 (s, 6H, CH3), 1.20 (d, 3H, CH(CH3)2), 1.18 (d, 3H,
CH(CH3)2), 1.13 (d, 3H, CH(CH3)2), 1.12 (d, 3H, CH(CH3)2),
1.11 (d, 3H, CH(CH3)2), 1.10 (d, 3H, CH(CH3)2), 1.08 (d,
3H, CH(CH3)2), 1.07 (d, 3H, CH(CH3)2). 19F NMR (188.29
MHz, C6D6): δ -112.3 (m, 1F, p-F). 119Sn{1H} NMR (186.46
MHz): δ -212 ppm. EI-MS (70 eV): m/z (%) 737 (90) [M]þ,
652 (100) [Mþ - C6H4F]. Anal. Calcd for C42H51FN2OSn
(738.30): C, 68.39; H, 6.97; N, 3.80. Found: C, 68.75; H, 7.16;
N, 3.62.

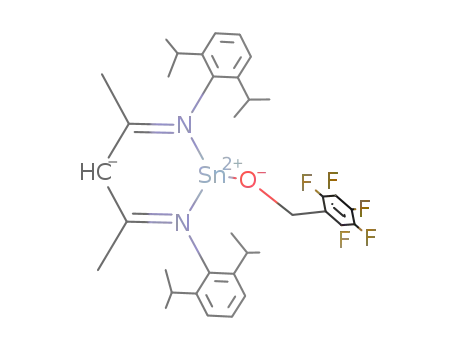

Synthesis of LSnOCH2C6F5 (8; L = HC{(CMe)(2,6-iPr2C6-
H3N)}2). A solution of C6F5CHO in toluene (0.196 g, 1.00 mmol
in 5 mL of toluene) was added by cannula to a solution of LSnH
(1) in toluene (0.54 g, 1.00 mmol in 20 mL of toluene) at room
temperature. After 24 h all volatiles were removed in vacuo, the
remaining residue was extracted with n-hexane (25 mL), and the
extract was concentrated to about 15 mL and stored in a -30 °C
freezer. After 4 days yellow crystals of 8 were formed. Yield:
0.600 g (82%). Mp: 138 °C. 1H NMR (300 MHz, C6D6): δ 6.95-
7.13 (m, 6H, Ar-H), 4.80 (s, 1H, γ-CH),4.67(t,4J(F-H)=4.18 Hz,
Synthesis of LSnC6F5 (10; L = HC{(CMe)(2,6-iPr2C6H3N)}2).
To a stirred solution of C6F5I (0.795 g, 2.70 mmol) in diethyl
ether (30 mL) was added dropwise 1.70 mL of nBuLi (1.6 M, in
n-hexane, 2.70 mmol) at -78 °C. The reaction mixture was
stirred for an additional 1 h at this temperature. This mixture
was transferred directly to the solution of LSnCl (1.54 g, 2.70
mmol) in diethyl ether (30 mL) at -78 °C. The resulting reaction
mixture was then warmed to room temperature. After 6 h all
volatiles were removed in vacuo, and the remaining residue was
extracted with n-hexane (35 mL) and the extract was concen-
trated to about 15 mL and stored in a -30 °C freezer. After
2 days, pale yellow block-shaped crystals of 10 were formed.
Yield: 1.15 g (60%). Mp: 173 °C. 1H NMR (300 MHz, C6D6):
δ 6.89-7.15 (m, 6H, Ar-H), 5.08 (s, 1H, γ-CH), 3.22 (sept, 2H,
CH(CH3)2), 2.89 (sept, 2H, CH(CH3)2), 1.55 (s, 6H, CH3), 1.27
(d, 6H, CH(CH3)2), 1.11 (d, 6H, CH(CH3)2), 0.96 (d, 6H,
CH(CH3)2), 0.52 (d, 6H, CH(CH3)2). 19F NMR (188.29 MHz,
C6D6): δ -117 (br, 2F, o-F), -155.0 (t, 1F, p-F), -161 (m, 2F,
m-F). 119Sn{1H} NMR (186.46 MHz): δ -176.42 ppm. EI-MS
(70 eV): m/z (%) 704 (100) [M]þ. Anal. Calcd for C35H41F5N2Sn
(704.22): C, 59.76; H, 5.87; N, 3.98. Found: C, 59.73; H, 6.11;
N, 3.97.
Crystallographic Details for Compounds 8 and 10. Suitable
crystals of 8 and 10 were mounted on a glass fiber, and data
were collected on an IPDS II Stoe image-plate diffractometer
˚
(graphite-monochromated Mo KR radiation, λ=0.710 73 A) at
133(2) K. The data were integrated with X-area. The structures
were solved by direct methods (SHELXS-97)14 and refined by
