REACTIONS OF AZOMETHINE YLIDES
7
protons of the ester was observed. The experiment was performed using the products dis-
cussed above and the corresponding racemic mixtures. A typical example, Fig. 2, shows the
separation of the COOMe signals for the racemic 4a (Fig. 2a) and the same product obtained
with 49 % e.e. (Fig. 2b).
General procedure for the preparation of imines
A mixture of aldehyde (0.010 mol), amino ester hydrochloride (0.012 mol), triethylamine
(0.018 mol) and anhydrous MgSO4 (3–4 g) in dichloromethane (30 mL) was stirred for 12 h.
The obtained solid was separated by filtration and the filtrate washed with water (2×20 mL).
The organic layer was then dried (MgSO4) and the solvent evaporated under reduced pressure.
When possible, the imines were further purified by distillation or crystallisation. The imines
2f and 5, obtained as colourless oils, were used without further purification.
1
Methyl N-[2-(methylthio)benzylidene]alaninate (2f). H-NMR (CDCl3, δ / ppm): 1.58
(3H, d, J = 7.9 Hz, CCH3), 2.47 (3H, s, SCH3), 3.77 (3H, s, COOCH3), 4.22 (1H, q, J = 7.8
Hz, CH), 7.20–7.42 (3H, m, ArH), 7.98 (1H, d, ArH), 8.82 (1H, s, N=CH). MS (EI) (m/z (%)):
236, M+–1 (1), 205 (8), 182 (26), 167 (33), 141 (11), 128 (22), 119 (28), 98 (59), 85 (63), 72
(33), 55 (79), 43 (100).
t-Butyl N-(2-naphthalenylmethylene)glycinate (5). 1H-NMR (CDCl3, δ / ppm): 1.52 (9H,
s, t-Bu), 4.38 (2H, s, CH2), 7.51 (2H, m, ArH), 7.83 (3H, m, ArH), 8.25 (2H, m, ArH) 8.40
(1H, s, N=CH). MS (EI) (m/z (%)): 269, M+ (8), 212 (28), 168 (100), 154 (21), 141 (83), 127
(22), 115 (19), 84 (6), 57 (71), 41 (56).
General procedure for the cyclo-addition reactions in the presence of AgOTf/phosphine 1
AgOTf (0.10 mmol) was added to a stirred solution of phosphine 1 (0.10 mmol) and
imine (0.10 mmol) in dry CH2Cl2 (5.0 mL). The reaction mixture was stirred at room
temperature for 20 min. Methyl acrylate (0.2–0.3 mmol) was then added followed by base
(0.15–0.2 mmol) and the mixture was stirred at room temperature until thin layer
chromatography indicated the absence of the starting material. The reaction mixture was then
filtered through celite, the filtrate washed with water (2×), dried (MgSO4) and the solvent
evaporated under reduced pressure. The residue was purified by flash chromatography (SiO2,
petroleum ether/ /diethyl ether) to afford the product. The enantiomeric excess was
determined by 1H-NMR spectroscopy using tris[3-(heptafluoropropylhydroxymethylene)-(+)-
camphorato]europium (III) as the chiral shift reagent.

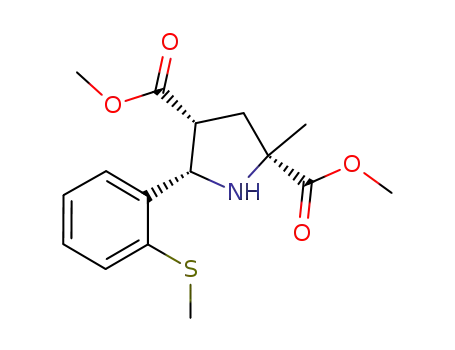

Dimethyl 2-methyl-5-[2-(methylthio)phenyl]pyrrolidine-2,4-dicarboxylate (4f). Flash chro-
matography (SiO2, 1:1 v/v petroleum ether–diethyl ether) afforded the product in 74 % yield
as a pale yellow oil, which solidified upon standing; m.p. 76–80 °C. Anal. Calcd. for
1
C16H21NO4S: C, 59.45; H, 6.50; N, 4.35 %. Found: C, 59.65; H, 6.60; N, 4.2 %. H-NMR
(CDCl3, δ / ppm): 1.58 (3H, s, SCH3), 2.10 (1H, dd, J = 13.8 and 7.5 Hz, 3-H), 2.49 (3H, s,
CH3C), 2.77 (1H, dd, J = 13.7 and 3.0 Hz, 3-H), 3.12 (3H, s, COOCH3), 3.51 (1H, m, 4-H), 3.83
(3H, s, COOCH3), 5.01 (1H, d, J = 7.8 Hz, 5-H), 7.20 (3H, m, ArH), 7.41 (1H, d, J = 7.6 Hz,
ArH). MS (EI) (m/z (%)): 323, M+ (5), 264 (100), 237 (24), 223 (18), 204 (22), 188 (11), 162
(53), 150 (15), 121 (10), 91 (7), 77 (8).
t-Butyl 4-methoxycarbonyl-5-(2-naphthyl)pyrrolidine-2-carboxylate (7a). Flash chroma-
tography (SiO2, 1:1 v/v petroleum ether–diethyl ether) afforded the product in 91 % yield as a
colourless oil which solidified upon standing; m.p. 67–69 °C. Anal. Calcd. for C21H25NO4: C,
70.95; H, 7.05; N, 3.95 %. Found: C, 70.65; H, 7.15; N, 3.70 %. 1H-NMR (CDCl3, δ / ppm):
1.77 (9H, s, t-Bu), 2.45 (2H, m, 3-H), 2.67 (1H, br s, NH), 3.15 (3H, s, COOCH3), 3.42 (1H,
q, J = 7.5 Hz, 4-H), 3.93 (1H, t, J = 7.6 Hz, 2-H), 4.67 (1H, d, J = 7.6 Hz, 5-H), 7.45 (3H, m,
