Synthesis, solid state and DFT structure and olefin polymerization capability of a unique base-free dimeric methyl titanium dication

Article abstract of DOI:10.1039/b925781k

Reaction of Cp*Ti{NC(ArF₂)NⁱPr ₂}Me₂ (1, ArF₂ = 2,6-C₆H ₃F₂) with [Ph₃C][B(C₆F ₅)₄] gave the base-free structurally authenticated dication [Cp*₂Ti₂{NC(ArF₂)N ⁱPr₂}₂(μ-Me)₂][B(C ₆F₅)₄]₂ (3-[BF₂₀] ₂) containing two doubly α-agostic bridging methyl groups. 3-[BF₂₀]₂ is a highly effective ethylene-propylene polymerization catalyst at 90 °C, and its performance is identical to the catalyst generated in situ from 1 and [Ph₃C][B(C₆F ₅)₄].

Full text of DOI:10.1039/b925781k

View Online / Journal Homepage / Table of Contents for this issue
COMMUNICATION
www.rsc.org/chemcomm | ChemComm
Synthesis, solid state and DFT structure and olefin polymerization
capability of a unique base-free dimeric methyl titanium dicationw
Edwin G. Ijpeij,a Betty Coussens,a Martin A. Zuideveld,a Gerard H. J. van Doremaele,*a
Philip Mountford,b Martin Lutzc and Anthony L. Spekc
Received 11th December 2009, Accepted 19th March 2010
First published as an Advance Article on the web 7th April 2010
DOI: 10.1039/b925781k
Reaction of Cp*Ti{NC(ArF2)NiPr2}Me2 (1, ArF2 = 2,6-C6H3F2)
with [Ph3C][B(C6F5)4] gave the base-free structurally authenti-
cated dication [Cp*2Ti2{NC(ArF2)NiPr2}2(m-Me)2][B(C6F5)4]2
(3-[BF20]2) containing two doubly a-agostic bridging methyl
groups. 3-[BF20]2 is a highly effective ethylene–propylene poly-
merization catalyst at 90 1C, and its performance is identical to
the catalyst generated in situ from 1 and [Ph3C][B(C6F5)4].
Following the spectacular success of Group 4 metallocenes
as single-site olefin polymerization catalysts,1–4 numerous
half-sandwich and non-cyclopentadienyl systems have been
developed by replacing one or both cyclopentadienyl ligands
by heteroatom donor moieties.4–11 An essential feature of
Group 4 (and most other) metal catalysts is a highly electron-
deficient alkyl cation [(L)M–R]+ (R = initiating group or
polymeryl chain) which is the initiating or active species. The
Scheme 1 Synthesis of the new titaniuꢀm methyl cations derived from
nature of these cations and other species which may be formed
i
Cp*Ti{NC(ArF )N Pr2}Me2 (1). [BF20
] anions omitted.
2
prior to or during the polymerization process continues to be a
topic of considerable interest and importance.4,12–16
spectroscopic data and combustion analysis.w The NMR data
are fully consistent with the presence of the base-stabilized
titanium methyl monocation 2+ (depicted in Scheme 1) and a
separated [BF20]ꢀ anion. A number of half-sandwich, base-
stabilized Group 4 alkyl cations have been reported previously.4
Reaction of 1 with TBF20 in C6H5F in the absence of added
Lewis base, followed by cooling to ꢀ20 1C, gave red crystals of
[Cp*2Ti2{NC(ArF2)NiPr2}2(m-Me)2][BF20]2 (3-[BF20]2) in 53%
isolated yield.w Compound 3-[BF20]2 contains a dinuclear
methyl-bridged dication and two separated [BF20]ꢀ anions
according to X-ray crystallography (see below).z When followed
by 1H and 19F NMR in situ in C6D5Cl, 3-[BF20]2 forms
quantitatively from 1 and TBF20. As expected, addition of
POPh3 to either isolated or in situ generated 3-[BF20]2 in
Half-sandwich Group 4 complexes have proven to be highly
efficient co-polymerization catalysts.5–8 DSM recently introduced
(as Keltan ACEt)17 a new class of half-sandwich k1-amidinate
titanium complexes of the type (Z-C5R5)Ti{NC(Ar)NR0 }X2
2
(X = Me or Cl), which are extremely active pre-catalysts for
the commercial homo- and co-polymerization of olefins.18,19
i
One example is Cp*Ti{NC(ArF )N Pr2}Me2 (1, ArF = 2,6-
C6H3F2; Cp* = Z-C5Me5, Scheme 1). While investigating the
underlying chemistry of this compound we prepared the first
base-free, isolable and highly stable Group 4 m-methyl dication
dimer that is as active a pre-catalyst for olefin polymerization
as the system obtained by in situ activation of the corresponding
2
2
dimethyl pre-catalyst. We describe here our preliminary results.
Reaction of Cp*Ti{NC(ArF )N Pr2}Me2 (1) with [Ph3C]-
i
2
C6D5Cl formed 2-BF20 in quantitative yield.
i
Addition of Cp*Ti{NC(ArF )N Pr2}Me2 (1, 2 equiv.) to
2
[B(C6F5)4] (TBF20) in fluorobenzene in the presence of POPh3

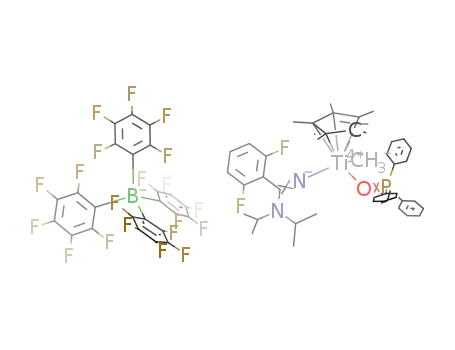

resulted in good yields of [Cp*Ti{NC(ArF2)NiPr2}Me(OPPh3)]-
[BF20] (2-BF20), which was characterised on the basis of
3-[BF20]2 in C6D5Cl formed [Cp*2Ti2{NC(ArF2)NiPr2}2–
Me2(m-Me)][BF20] (4-BF20, Scheme 1) in quantitative yield.
This compound contains a dimeric monocation (4+) with one
bridging methyl group and terminal methyl groups. No evidence
for separated 1 and 32+ was found in the NMR spectra of
a DSM Research B.V., P.O. Box 18, 6160MD Geleen, the
Netherlands. E-mail: Gerard.Doremaele-van@dsm.com
b Chemistry Research Laboratory, Department of Chemistry,
University of Oxford, Mansfield Road, Oxford OX1 3TA, UK.
E-mail: philip.mountford@chem.ox.ac.uk
1
4-BF20. According to H and 19F NMR spectroscopy, cation
4+ exists as a mixture of diastereoisomers (arising from
different orientations of the amidinate NiPr2 and ArF substi-
2
c Bijvoet Centre for Biomolecular Research, Crystal and Structural
Chemistry, Utrecht University, Padualaan 8, 3584 CH Utrecht, the
Netherlands
w Electronic supplementary information (ESI) available: Experimen-
tal, crystallographic and computational details. CCDC 758120. For
ESI and crystallographic data in CIF or other electronic format see
DOI: 10.1039/b925781k
tuents) in a ca. 2 : 3 ratio. Nonetheless, addition of 1 equiv.
POPh3 quantitatively formed 1 and 2-BF20. As has been
found for several compounds of the type [(L)2M2Me2(m-Me)]+
(M = Group 4 metal),14a,15c,20 4-BF20 can also be made on the
preparative scale by the addition of 0.5 equiv. TBF20 to 1.
ꢁc
This journal is The Royal Society of Chemistry 2010
Chem. Commun., 2010, 46, 3339–3341 | 3339

View Online
Fig.
(62+) emphasising the unusual m-methyl group geometry.23
2
The structure of [Cp*2Zr2{MeC(NtBu)(NEt)}2(m-Me)2]2+
the reported data finds the Hꢂ ꢂ ꢂH separation between the
agostic hydrogens to be only 1.32 A (sum of the van der Waals
radii = 2.40 A).
Fig. 1 Displacement ellipsoid plot (50% probability level) of 32+
.
Hydrogen atoms, others than those of the m-Me groups omitted.
Selected distances (A) and angles (1): Ti1–N1 1.7913(13), Ti1–Cg1
2.042(1), Ti1–C24 2.2575(15), Ti1–C24i 2.2838(15), Ti1–H24A 2.14(2),
Ti1–H24Bi 2.27(2), Ti1–N1–C1 170.97(12), Cg1–Ti1–C24 118.83(5),
Cg1–Ti1–C24i 114.49(5), C24–Ti1–C24i 94.83(5), Ti1–C24–Ti1i
85.18(5). Cg1 represents the computed Cp* centroid. Symmetry
operation i = ꢀx, ꢀy, ꢀz.
Because the arrangement of the m-methyl group hydrogens
in 62+ is very much at odds with those in 32+ and 5+ (and
neutral analogues [(L)M(m-Me)2M(L)]), we sought to gain
further information on these systems by carrying out DFT
calculations on both 32+ and 62+.w The minimum energy
structure for the titanium dication showed excellent agreement
with experiment (e.g., Ti–N: calcd 1.794, found 1.7913(13) A;
avg. Ti–Me: calcd 2.272, found 2.2575(15) and 2.2838(15) A;
avg. Ti–Hagostic: calcd 2.20, found 2.14(2) and 2.27(2) A). On
the other hand, regardless of the starting m-CH3 group geo-
metry, the DFT structure of 62+ minimized to be analogous to
the m-CH3 geometry in 32+ and 5+. Note that apart from the
differing arrangements of these H atoms, the computed and
experimental parameters for 62+ were in excellent agreement
(e.g., avg. Zr–Me: calcd 2.432, found 2.447 A). On the basis
of the structures of 32+ and 5+ and the DFT calculations
the m-Me geometries of 32+ are without doubt ‘‘normal’’ with
regard to other compounds of the type (L)M(m-Me)2M(L).
The unusual geometry reported for 62+ is inconsistent with
these other results.
Unfortunately, 4-BF20 forms as a waxy solid when isolated
and its solid state structure could not be determined.
The remarkable solid state structure of the centrosymmetric
dication [Cp*2Ti2{NC(ArF2)NiPr2}2(m-Me)2]2+ (32+) is shown
in Fig. 1. 32+ contains pseudo-tetrahedral titanium centres,
each bound to an amidinate and Cp* ligand and two approxi-
mately symmetrically bridging methyl groups. The H atoms of
the latter were located from a Fourier map and positionally
refined. Each m-methyl group in 32+ forms two a-agostic
contacts, one to each Ti. The Ti–Me distances in 32+
(2.2575(15) and 2.2838(15) A) are much longer than in 1
(avg. 2.119 A). This is expected since the Ti–Me–Ti bonding
in 32+ is based only on 3-centre, 2-electron interactions, and
there is also substantial coulombic repulsion between the two
cationic centres.
Although it was speculated previously23 that 62+ could have
relevance to catalysis, this was not demonstrated, the precursor
solutions decomposing at ambient temperature. The solution
stability of [Cp*2Ti2{NC(ArF2)NiPr2}2(m-Me)2][BF20]2 (3-[BF20]2)
offered a unique opportunity to assess the polymerization
initiating capability of a non-stabilized dialkyl-dication for
the first time.
As mentioned, the nature of the species present in Ziegler–
Natta polymerization catalysis is a topic of considerable
interest.4,12–16 Although neutral homobimetallic complexes of the
type (L)M(m-Me)2M(L) have been structurally authenticated,21
none has been reported for Group 4. The only structurally
authenticated Lewis base- or coordinated anion-free titanium
analogue of 32+ is the very recently reported AlMe3-stabilized
heterobimetallic monocation [Ti(Me3[9]aneN3)(NtBu)(m-Me)2-
AlMe2]+ (5+).16 Like 32+, this has two square based pyramidal
m-methyl groups, each forming an a-agostic contact to Ti
(H atoms positionally refined). The DFT computed structure
of 5+ confirmed the one determined crystallographically. Coordi-
nation of AlMe3 to [Ti(Me3[9]aneN3)(NtBu)Me]+ significantly
inhibits polymerization activity.22
Table 1 compares the ethylene–propylene co-polymerization
capability at 90 1C of in situ activated Cp*Ti{NC(ArF2)NiPr2}Me2
(1) (using TBF20) and that of isolated [Cp*2Ti2{NC(ArF2)-
NiPr2}2(m-Me)2][BF20]2 (3-[BF20]2) and [Cp*2Ti2{NC(ArF2)-
NiPr2}2Me2(m-Me)][BF20] (4-BF20). All three have overall
comparable productivities, and key polymer characteristics such
as molecular weight, molecular weight distribution and compo-
sition (ethylene and propylene content) are indistinguishable
within experimental error. It is evident that both the in situ 1 +
TBF20 and isolated 3-[BF20]2 catalyst systems give rise to the
same equilibrium level amounts of the same monomeric active
species [Cp*Ti{NC(ArF2)NiPr2}R]+ (R = polymeryl chain), in
the same way that [Cp*Ti{NC(ArF2)NiPr2}Me(OPPh3)][BF20]
(2-BF20) can be formed from all three systems 1 + TBF20,
3-[BF20]2 and 4-[BF20] (Scheme 1).
Despite the aforementioned intense international efforts around
the chemistry of alkyl cations over the last two decades, only one
dicationic analogue of 32+ has been reported, namely Sita’s
dizirconium dication [Cp*2Zr2{MeC(NtBu)(NEt)}2(m-Me)2]2+
(62+, Fig. 2).23 The structure of 62+ has attracted much
attention owing to postulated implications for Ziegler–Natta
catalysis, and also the very unusual reported arrangement of
the Zr2(m-Me)2 hydrogens. Each m-methyl group was described
as having a trigonal bipyramidal geometry and an unprecedented
doubly-bridging agostic C–H bond (Fig. 2; none of the H atoms
were positionally refined). Remarkably, close examination of
In conclusion, we have reported a base-free single site Ziegler–
Natta catalyst system of commercial relevance that can be
isolated and stabilized in the solid state. The solid state m-methyl
group geometry of [Cp*2Ti2{NC(ArF2)NiPr2}2(m-Me)2]2+ (3-[BF20]2)
ꢁc
This journal is The Royal Society of Chemistry 2010
3340 | Chem. Commun., 2010, 46, 3339–3341

View Online
i
F2
i
Table 1 Ethylene–propylene co-polymerization data using compounds Cp*Ti{NC(ArF )N Pr2}Me2 (1), [Cp*2Ti2{NC(Ar )N Pr2}2(m-Me)2][BF20 2
]
2
i
a
(3-[BF20]2) and [Cp*2Ti2{NC(ArF )N Pr2}2Me2(m-Me)][BF20] (4-BF20
)
2
Polymer compositionb
(wt%)
Molar mass distribution (GPC, g molꢀ1
)
C
C3
Mn
Mw/Mn
Entry Compound Co-catalyst Catalyst dosing (mmol Ti) Polymer yield/g
2
1
2
3
1
3-[BF20 2
4-BF20
TBF20
None
None
0.20
0.20
0.40
10.7c
12.5d
8.95e
48
47
50
52
53
50
215 000
210 000
213 000
2.0
2.0
2.3
]
a
Experimental conditions: total pressure 8 bar, T = 90 1C, reaction time 10 min, solvent pentamethylheptane (1 L). AliBu3 scavenger (Al : Ti
ratio = 2250 modified by 4-methyl-2,6-di-tert-butylphenol (1 : 1 molar ratio). The ethylene : propylene molar ratio in the head space was kept at
1 : 2 by continuously feeding the gas to the reactor equipped with a purge to prevent polymer composition drift. After polymerization 500 ppm of
b
Irganox 1076 stabilizer was added to the solution. Volatiles were removed under reduced pressure at 100 1C. C2 = ethylene content, C3
=
.
c
propylene content, as determined by FT-IR spectroscopy. Equivalent to 4.01 ꢃ 104 kg (polymer) mol(Ti)ꢀ1 hꢀ1 (total pressure/bar)ꢀ1
d
e
Equivalent to 4.69 ꢃ 104 kg (polymer) mol(Ti)ꢀ1 hꢀ1 (total pressure/bar)ꢀ1
.
Equivalent to 3.36 ꢃ 104 kg (polymer) mol(Ti)ꢀ1 hꢀ1 (total
pressure/bar)ꢀ1
.
(supported by DFT calculations for 32+) suggests that the
unusual structure reported for the dizirconium system 62+
may warrant further investigation.
10 M. Mitani, J. Saito, S. Ishii, Y. Nakayama, H. Makio,
N. Matsukawa, S. Matsui, J. Mohri, R. Furuyama, H. Terao,
H. Bando, H. Tanaka and T. Fujita, Chem. Rec., 2004, 4, 137.
11 P. D. Bolton and P. Mountford, Adv. Synth. Catal., 2005, 347, 355.
12 E. Y.-X. Chen and T. J. Marks, Chem. Rev., 2000, 100, 1391.
13 (a) R. F. Jordan, Adv. Organomet. Chem., 1991, 32, 325;
(b) M. Bochmann, J. Chem. Soc., Dalton Trans., 1996, 255.
14 (a) M. Bochmann and S. J. Lancaster, Angew. Chem., Int. Ed.
Engl., 1994, 33, 1634; (b) R. Vollmerhaus, M. Rahim,
R. Tomaszewski, S. Xin, N. J. Taylor and S. Collins, Organo-
metallics, 2000, 19, 2161.
15 (a) C. L. Beswick and T. J. Marks, J. Am. Chem. Soc., 2000, 122,
10358; (b) F. Song, S. J. Lancaster, R. D. Cannon, M. Schormann,
S. M. Humphrey, C. Zuccaccia, A. Macchioni and M. Bochmann,
Organometallics, 2005, 24, 1315; (c) P. D. Bolton, E. Clot,
N. Adams, S. R. Dubberley, A. R. Cowley and P. Mountford,
Organometallics, 2006, 25, 2806.
Notes and references
z Crystal data for 4: [C48H70F4N4Ti2](C24BF20)2 + disordered solvent,
ꢀ
Fw = 2232.98 [*], triclinic, P1, a = 13.1212(4), b = 13.2408(3), c =
18.5640(3) A, a = 105.738(1)1, b = 105.857(2)1, g = 96.491(2)1, V =
2924.53(13) A3, T = 150(2) K, 53 377/12 979 measured/unique refl.,
Rint = 0.021, Z = 1, Dx = 1.268 g cmꢀ3 [*], m = 0.25 mmꢀ1 [*].
R1/wR2 [I > 2s(I)]: 0.0415/0.1335. R/wR2 [all refl.]: 0.0465/0.1388.
S = 1.074. [*] derived values do not contain the contribution of the
disordered solvent treated using the SQUEEZE routine of
PLATON.24
1 H. H. Brintzinger, D. Fischer, R. Mulhaupt, B. Rieger and
¨
16 P. D. Bolton, E. Clot, A. R. Cowley and P. Mountford, J. Am.
Chem. Soc., 2006, 128, 15005.
17 http://www.dsm.com/en_US/html/keltan/home_keltan.htm.
18 E. G. Ijpeij, M. A. Zuideveld, H. J. Arts, F. van der Burgt and
G. H. J. van Doremaele, WO, 2007031295, 2007.
R. M. Waymouth, Angew. Chem., Int. Ed. Engl., 1995, 34, 1143.
2 L. Resconi, L. Cavallo, A. Fait and F. Piemontesi, Chem. Rev.,
2000, 100, 1253.
3 Special issue on metallocene complexes for olefin polymerisation,
Coord. Chem. Rev., 2006, 250, pp. 1–272.
19 E. G. Ijpeij, P. J. H. Windmuller, H. J. Arts, F. van der Burgt,
G. H. J. van Doremaele and M. A. Zuideveld, WO, 2005090418, 2005.
20 S. Zhang and W. E. Piers, Organometallics, 2001, 20, 2088.
21 D. A. Fletcher, R. F. McMeeking and D. Parkin, J. Chem. Inf.
Comput. Sci., 1996, 36, 746 (The United Kingdom Chemical
Database Service).
4 (a) L. Resconi, J. C. Chadwick and L. Cavallo, in Comprehensive
Organometallic Chemistry III, ed. R. H. Crabtree and D. M. P.
Mingos, Elsevier, Oxford, 2006, vol. 4, ch. 9; (b) T. Fujita and
H. Makio, in Comprehensive Organometallic Chemistry III,
ed. R. H. Crabtree and D. M. P. Mingos, Elsevier, Oxford, 2006,
vol. 11, ch. 20.
22 N. Adams, H. J. Arts, P. D. Bolton, D. Cowell, S. R. Dubberley,
N. Friederichs, C. M. Grant, M. Kranenburg, A. J. Sealey,
B. Wang, P. J. Wilson, M. A. Zuideveld, A. J. Blake,
5 A. L. McKnight and R. M. Waymouth, Chem. Rev., 1998, 98,
2587.
6 D. W. Stephan, Organometallics, 2005, 24, 2548.
7 H. Braunschweig and F. M. Breitling, Coord. Chem. Rev., 2006,
250, 2691.
M. Schroder and P. Mountford, Organometallics, 2006, 25, 3888.
¨
23 R. J. Keaton, K. C. Jayaratne, J. C. Fettinger and L. R. Sita,
J. Am. Chem. Soc., 2000, 122, 12909.
24 A. L. Spek, Acta Crystallogr., Sect. D, 2009, 65, 148.
8 K. Nomura, Dalton Trans., 2009, 8811.
9 V. C. Gibson and S. K. Spitzmesser, Chem. Rev., 2003, 103, 283.
ꢁc
This journal is The Royal Society of Chemistry 2010
Chem. Commun., 2010, 46, 3339–3341 | 3341
