Functionalized 4-aminoquinolines by rearrangement of pyrazole N-heterocyclic carbenes

Article abstract of DOI:10.1002/anie.200905436

(Figure Presented) Thermal decarboxylation of 1-phenyl pyrazolium-3- carboxylates from the mesomeric betaine class of substances leads to pyrazole-N-heterocyclic carbenes, which immediately rearrange to multiply substituted 4-aminoquinolines (see scheme). These species are of interest for the synthesis of heterocycles and pharmacologically active compounds.

Full text of DOI:10.1002/anie.200905436

Communications
DOI: 10.1002/anie.200905436
N-Heterocyclic Carbenes
Functionalized 4-Aminoquinolines by Rearrangement of Pyrazole
N-Heterocyclic Carbenes**
Andreas Schmidt,* Niels Mꢀnster, and Andrij Dreger
The quinoline[1] and pyrazole[2] class of substances feature
diverse biological activities and other interesting properties.
From the viewpoint of the chemistry of pharmacologically
active compounds, considerable attention is being paid to 4-
aminoquinolines, especially because after decades of use
Plasmodium falciparum genotypes resistant to the active anti-
malarial compound chloroquine[3] have spread to almost all
tropical regions of the world.[4] As the use of alternative active
compounds is similarly restricted because of adverse effects
or resistance,[5] variation of the substitution of 4-aminoquino-
lines still remains highly promising despite of the decoding of
the genome of the pathogen in the meantime.[6] Herein we
present a useful thermal rearrangement to new substituted 4-
aminoquinolines starting from pyrazolium-3-carboxylates
that proceeds by an N-heterocyclic carbene (NHC) of
pyrazole. Carbenes of pyrazole and its relative, indazole,[7]
have so far stood in the shadow of other NHCs.[8] In 1997,
Herrmann’s group described the rhodium complex 2 of
pyrazol-3-ylidene 1;[9] there have also been reports on the
catalytic activities of iridium,[10] ruthenium,[11] and palladium
complexes[12] of 1.
The isomeric pyrazol-4-ylidene 3 can be construed as an
rNHC (“remote N-heterocyclic carbene”[13]). The corre-
sponding palladium complex 4 has been investigated regard-
ing its activity in the Suzuki–Miyaura and Mizoroki–Heck
reactions.[14] Whether the cyclic allene 5[15] is more appropri-
ately formulated as the mesomeric resonance structure 5’ and
regarded as aromatic zwitterion[16] has recently been under
discussion.[17]
Pseudo-cross-conjugated
mesomeric
betaines
(PCCMB),[18] which contain the structural element I, readily
cleave heterocumulenes on warming with formation of N-
heterocyclic carbenes II. For example, NHCs of quinoline,[19]
pyridine,[20] or imidazole[21] can be formed in situ by decar-
boxylation of the corresponding hetarenium-2-carboxylates;
metal complexes may also be obtained in this way.[22]
Conversely, trapping reactions of these carbenes with hetero-
cumulenes to form 1:1-adducts has meanwhile become a
classic reaction.[23]
Pyrazolium-3-carboxylates 7a–o are also interesting pre-
cursors of pyrazol-3-ylidenes.[24] The alkylation of the 1-aryl-
pyrazole-3-carboxylic esters 6a–o to pyrazolium salts takes
place in high yields with dimethylsulfate or diethylsulfate as
an advantageous one-pot reaction in combination with
subsequent hydrolysis to betaines 7a–o (Scheme 1).[25] All of
the betaines 7 are stable solids that lose water of crystalliza-
tion at 1008C (TGA and DSC measurements) and decarbox-
ylate exothermally upon further heating (7a: at 115–1208C)
and then decompose. In toluene, however, even mild heating
of 7a at 348C leads to decarboxylation within a few hours and
within 30 minutes under reflux with subsequent rearrange-
ment to 4-aminoquinoline 8a, which immediately precipitates
in analytically pure form (Table 1, No. 1). Identical results
were obtained in the aprotic solvents benzene and chloro-
benzene, which also remove the stabilizing water of crystal-
lization of the betaines as an azeotrope. The betaines are
correspondingly stable in boiling 1-propanol or water.
[*] Prof. Dr. A. Schmidt, N. Mꢀnster, Dipl.-Chem. A. Dreger
Technische Universitꢁt Clausthal, Institut fꢀr Organische Chemie
Leibnizstrasse 6, 38678 Clausthal-Zellerfeld (Germany)
Fax: (+49)5323-72-2858
E-mail: schmidt@ioc.tu-clausthal.de
Homepage: http://www.ioc.tu-clausthal.de
As shown in Table 1, di- (8a,b), tri- (8c–i), tetra- (8k,l),
and pentasubstituted quinolines (8m–o) can be obtained from
the betaines 7a–o by this rearrangement; of these compounds,
only 8a is known.[26] The substitution patterns realizable in
[**] This work was supported by the Deutsche Forschungsgemeinschaft
(DFG).
Supporting information for this article is available on the WWW
under http://dx.doi.org/10.1002/ange.200905436.
2790
ꢀ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2010, 49, 2790 –2793

Angewandte
Chemie
Scheme 1. Synthesis of the pyrazolium-3-carboxylates 7 as starting
compounds for the rearrangement to quinolines 8.
Scheme 2. Suggested mechanism for the rearrangement.
8 f,g,i,l are very rare, and the C2,N4,C5,Cl6,O8- (8m) and
C2,N4,O5,O6,O7 substitution patterns (8n,o) have not been
reported before. Substitution of only one m-position of the
phenyl ring of pyrazolium-3-carboxylate leads to a mixture of
products, as expected: 8h is thus obtained as an isomeric
mixture in a 3:1 ratio. In agreement with the observed solvent
effects, the acid function in the betaine 7j prevents decar-
boxylation.
the presence of sulfur produced the thione 10 in 72% yield in
a carbene trapping reaction (Scheme 3).
Attempts to trap the carbene formed from 7a with 3,5-
dichlorophenylisocyanate gave no pyrazolium-3-amidate, but
The reaction clearly proceeds by ring opening of the
pyrazole-3-ylidene A formed by decarboxylation to the
zwitterionic intermediate B, the non-polar mesomeric reso-
nance structure of which is the keteneimine C (Schema 2).
The subsequent ring closure to D can be seen as electrophilic
aromatic substitution (of B) or 6p electrocyclization (of C).
Tautomerization of D leads to the 4-aminoquinoline.
Along with signals for the pyrazolium ions 9, [A + Na]+
peaks for N-heterocyclic carbenes, such as A, were also
detected by ESI mass spectrometry. Decarboxylation of 7a in
Scheme 3. Trapping reactions of the carbene to give 9 and 10.
Table 1: Substitution pattern and yields in the sequence 6!7!8 (Scheme 1).
No.
R1
R2
R3
R4
R5
R6
R7
7
Yield [%]
8
Yield [%]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
OMe
H
H
H
Cl
H
OMe
OMe
H
H
H
H
Me
Cl
Br
H
H
H
Cl
H
Cl
OMe
OMe
H
H
H
H
H
H
H
H
H
H
H
Cl
Me
OMe
OMe
Me
Me
Et
Me
2-thienyl
Ph
Ph
Me
Me
Me
Me
Me
Me
Me
Me
Me
Me
2-thienyl
H
H
Et
Et
H
H
H
H
H
H
H
H
H
H
H
7a
7b
7c
7d
7e
7 f
7g
7h
7i
7j
7k
7l
7m
7n
7o
89
66
55
81
42
93
54
94
94
92
96
49
51
97
39
8a
79
89
99
95
65
59
94
54
30
0
81
54
37
87
58
8b
8c
8d
8e
8 f
8g
8h[a]
8i
8j
8k
8l
8m
8n
8o
Me
Me
Me
Me
Me
Me
Me
Me
Me
Me
Me
Me
F
COOH
Me
H
OMe
H
H
[a] As mixture with its isomers.
Angew. Chem. Int. Ed. 2010, 49, 2790 –2793
ꢀ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.angewandte.org
2791

Communications
J = 8.3 Hz), 7.33 (dd, 1H, 6-H, J = 8.3 Hz, 6.9 Hz), 7.16 (q, 1H, HN,
J = 4.8 Hz), 6.27 (s, 1H, 3-H), 2.87 (d, 3H, H3CN, J = 4.8 Hz),
2.47 ppm (s, 3H, 2-CH3); 13C NMR ([D6]DMSO, 100 MHz): d =
159.2, 151.3, 148.3, 129.0, 128.8, 123.5, 121.7, 118.0, 98.2, 29.7,
25.7 ppm; ESI-MS: 173.1 (M+H+, 100%); IR (KBr): n˜ = 3225,
1594, 1561, 1443 cmꢀ1. HR-ESI-MS: calcd for C11H13N2: 173.1079;
found: 173.1076.
quinoline 8a instead (Scheme 4). As the amidate contained
the structure element I mentioned above, thermal cleavage of
heterocumulenes occurs with regeneration of the carbene,
Received: September 28, 2009
Published online: March 12, 2010
Keywords: carbenes · heterocycles · rearrangements ·
.
synthetic methods · zwitterions
[1] R. D. Larsen, D. Cai, Science of Synthesis, Vol. 15, Thieme,
Stuttgart, 2004, p. 389 – 496.
Scheme 4. The trapping reaction of the carbene to give amidate 11 if
both ortho positions on Ar1 are substituted.
[2] B. Stanovnik, J. Svete, Science of Synthesis, Vol. 12, Thieme,
Stuttgart, 2002, p. 15 – 205.
[3] G. M. Findlay, Recent Advances in Chemotherapy, 3rd ed.,
Churchill, London, 1951.
which then rearranges immediately to the quinoline. The
amidate is only then the main product when both o-positions
of the aryl moiety on the pyrazolium-3-carboxylate are
occupied: 11 was therefore obtained as stable adduct in
high yield from the corresponding pyrazolium-3-carboxylate
7p and 3,5-dichlorophenylisocyanate.

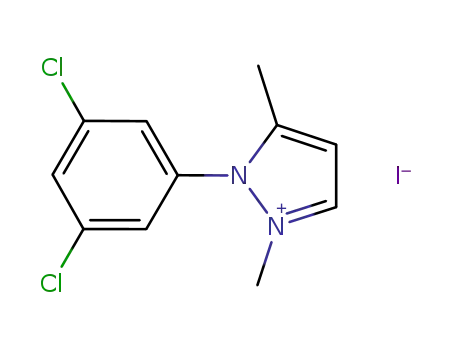

Control experiments showed that the pyrazolium salts 12–
15 also rearrange to 4-aminoquinolines after treatment with
base, although in lower yields (Scheme 5). The results of
Schemes 3–5 allow us to favor the mechanism shown in
Scheme 2 over an equally feasible Grob fragmentation of the
betaines 7 to 8 without an intermediate carbene.
[4] a) D. C. Warhurst, Curr. Sci. 2007, 92, 1556 – 1560; b) E. A.
Winzeler, Nature 2008, 455, 751 – 756; c) W. Peters, Chemo-
therapy and Drug Resistance in Malaria, Academic Press,
London, 1987; d) D. Payne, Parasitol. Today 1987, 3, 241 – 246;
e) B. Greenwood, T. Mutabingwa, Nature 2002, 415, 670 – 672.
[5] a) K. Sanderson, Nature 2009, DOI: 10.1038/news.2009.750;
b) O. V. Miroshnikova, T. H. Hudson, L. Gerena, D. E. Kyle,
A. J. Lin, J. Med. Chem. 2007, 50, 889 – 896.
[6] E. Paunescu, S. Susplugas, E. Boll, R. Varga, E. Mouray, I.
Grosu, P. Grellier, P. Melnyk, ChemMedChem 2009, 4, 549 – 561.
[7] a) S. Scherbakow, J. C. Namyslo, M. Gjikaj, A. Schmidt, Synlett
2009, 1964 – 1968; b) A. Schmidt, B. Snovydovych, Synthesis
2008, 2798 – 2804; c) A. Schmidt, B. Snovydovych, S. Hemmen,
Eur. J. Org. Chem. 2008, 4313 – 4320; d) A. Schmidt, B.
Snovydovych, T. Habeck, P. Drꢀttboom, M. Gjikaj, A. Adam,
Eur. J. Org. Chem. 2007, 4909 – 4916; e) A. Schmidt, T. Habeck,
B. Snovydovych, W. Eisfeld, Org. Lett. 2007, 9, 3515 – 3518.
[8] a) F. E. Hahn, M. C. Jahnke, Angew. Chem. 2008, 120, 3166 –
3216; Angew. Chem. Int. Ed. 2008, 47, 3122 – 3172; b) N-
Heterocyclic Carbenes in Synthesis (Ed: S. P. Nolan), Wiley-
VCH, Weinheim, 2006; c) F. A. Glorius, Top. Organomet. Chem.
2007, 21, 1 – 29; d) C. M. Crudden, D. P. Allen, Coord. Chem.
Rev. 2004, 248, 2247 – 2273; e) W. A. Herrmann, Angew. Chem.
2002, 114, 1342 – 1363; Angew. Chem. Int. Ed. 2002, 41, 1290 –
1309; f) T. Weskamp, V. P. W. Bꢀhm, W. A. Herrmann, J.
Organomet. Chem. 2000, 600, 12 – 22; g) D. Bourissou, O.
Guerret, F. Gabbaꢁ, G. Bertrand, Chem. Rev. 2000, 100, 39 – 92.
[9] a) C. Kꢀcher, W. A. Herrmann, J. Organomet. Chem. 1997, 532,
261 – 265; b) W. A. Herrmann, J. Schꢂtz, G. D. Frey, E. Herdt-
weck, Organometallics 2006, 25, 2437 – 2448.
Scheme 5. Rearrangement starting from pyrazolium salts.
[10] A. Prades, R. Corberꢃn, M. Poyatos, E. Peris, Chem. Eur. J. 2008,
14, 11474 – 11479.
[11] A. Prades, M. Viciano, M. Sanaffl, E. Peris, Organometallics 2008,
27, 4254 – 4259.
[12] J. Schꢂtz, E. Herdtweck, W. A. Herrmann, Organometallics
2004, 23, 6084 – 6086.
In summary, we present a new rearrangement of pyrazol-
3-ylidenes produced in situ by decarboxylation of pseudo
cross-conjugated mesomeric betaines to 4-aminoquinolines;
the mechanism should generate interest from the viewpoint of
heterocyclic and pharmaceutical chemistry.
[13] S. K. Schneider, P. Roembke, G. R. Julius, C. Loschen, H. G.
Raubenheimer, G. Frenking, W. A. Herrmann, Eur. J. Inorg.
Chem. 2005, 2973 – 2977.
Experimental Section
[14] a) Y. Han, L. J. Lee, H. V. Huynh, Organometallics 2009, 28,
2778 – 2786; b) Y. Han, H. V. Huynh, G. K. Tan, Organometallics
2007, 26, 6581 – 6585.
[15] V. Lavallo, C. A. Dyker, B. Donnadieu, G. Bertrand, Angew.
Chem. 2008, 120, 5491 – 5494; Angew. Chem. Int. Ed. 2008, 47,
5411 – 5414.
8a: Betaine 7a (108 mg, 0.5 mmol) was suspended in toluene (4 mL)
and heated to reflux for 30 minutes. The precipitate that formed was
separated by filtration and washed with toluene. Yield: 79%, m.p.
1
2348C. H NMR ([D6]DMSO, 400 MHz): d = 8.07 (d, 1H, 5-H, J =
8.3 Hz), 7.69 (d, 1H, 8-H, J = 8.3 Hz), 7.54 (dd, 1H, 7-H, J = 6.9 Hz,
2792 www.angewandte.org
ꢀ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2010, 49, 2790 –2793

Angewandte
Chemie
[16] M. Christl, B. Engels, Angew. Chem. 2009, 121, 1566 – 1567;
Angew. Chem. Int. Ed. 2009, 48, 1538 – 1539.
[21] a) A. Schmidt, A. Beutler, M. Albrecht, B. Snovydovych, F. J.
Ramírez, Org. Biomol. Chem. 2008, 6, 287 – 295; b) I. Tommasi,
F. Sorrentino, Tetrahedron Lett. 2005, 46, 2141 – 2145.
[22] a) A. M. Voutchkova, L. N. Appelhans, A. R. Chianese, R. H.
Crabtree, J. Am. Chem. Soc. 2005, 127, 17624 – 17625; b) A.
Tudose, L. Delaude, B. AndrØ, A. Demonceau, Tetrahedron Lett.
2006, 47, 8529 – 8533.
[17] a) V. Lavallo, C. A. Dyker, B. Donnadieu, G. Bertrand, Angew.
Chem. 2009, 121, 1568 – 1570; Angew. Chem. Int. Ed. 2009, 48,
1540 – 1542; b) I. Fernꢃndez, C. A. Dyker, A. DeHope, B.
Donnadieu, G. Frenking, G. Bertrand, J. Am. Chem. Soc. 2009,
131, 11875 – 11881.
[18] a) W. D. Ollis, C. A. Ramsden and S. P. Stanforth, Tetrahedron
1985, 41, 2239 – 2329; b) A. Schmidt, Curr. Org. Chem. 2004, 8,
653 – 670; c) A. Schmidt, Adv. Heterocycl. Chem. 2003, 85, 67 –
171; d) A. Schmidt, T. Habeck, A. S. Lindner, B. Snovydovych,
J. C. Namyslo, A. Adam, M. Gjikaj, J. Org. Chem. 2007, 72,
2236 – 2239.
[19] a) H. Quast, E. Schmitt, Justus Liebigs Ann. Chem. 1970, 732,
43 – 63; b) H. Quast, E. Schmitt, Justus Liebigs Ann. Chem. 1970,
732, 64 – 69.
[23] a) L. Delaude, Eur. J. Inorg. Chem. 2009, 1681 – 1699; b) N.
Kuhn, M. Steinmann, G. Weyers, Z. Naturforsch. B 1998, 54,
427 – 433; c) N. Kuhn, E. Niquet, M. Steimann, I. Walker, Z.
Naturforsch. B 1999, 54, 1181 – 1187.
[24] A. Schmidt, T. Habeck, Lett. Org. Chem. 2005, 2, 297 – 307.
[25] A. Schmidt, T. Habeck, M. K. Kindermann, M. Nieger, J. Org.
Chem. 2003, 68, 5977 – 5982.
[26] T. J. Egan, R. Hunter, C. H. Kaschula, H. M. Marques, A.
Misplon, J. Walden, J. Med. Chem. 2000, 43, 283 – 291 and
references therein.
[20] a) A. R. Katritzky, R. Awartani, R. C. Patel, J. Org. Chem. 1982,
47, 498; b) A. R. Katritzky, H. M. Faid-Allah, Synthesis 1983,
149 – 150.
Angew. Chem. Int. Ed. 2010, 49, 2790 –2793
ꢀ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.angewandte.org
2793
