REACTION OF γ-DICARBOXYLIC ACIDS AMIDES AND IMIDES
1649
602. 1H NMR spectrum (DMSO-d6), δ, ppm: 2.28 t (2H,
CH2COOH, J 6.6 Hz), 2.39 t (2H, CH2CONH2,
J 6.6 Hz), 6.76 s (1H, CONHA), 7.29 s (1H, CONHB),
12.05 br.s (1H, OH). 13C NMR spectrum (DMSO-d6),
δ, ppm: 29.00 (CH2COOH), 29.70 (CH2CONH2), 173.10
(CONH2), 173.93 (COOH). Found, %: C 40.90; H 6.01;
N 11.32. C4H7NO3..Calculated, %: C 41.03; H 6.03;
N 11.96.
5 h at room temperature and 5 h more at 60°C, DMF
was distilled off in a vacuum, the liquid residue was mixed
with 2-propanol, and on cooling from the mixture separated
dark-red precipitate. After double recrystallization from
2-propanol yield 0.83 g (15%), mp 166–168°C. 1H NMR
spectrum (DMSO-d6), δ, ppm: 2.68 s (8H, CH2CH2),
5.20 s (4H, NCH2N). 13C NMR spectrum (DMSO-d6),
δ, ppm: 27.95 s (CH2CH2), 52.99 (NCN), 118.98 q (CF3,
J 323.6 Hz), 176.94 s (CO). 19F NMR spectrum (DMSO-
d6), δ, ppm: –75.14. Found, %: C 35.55; H 3.38; F 16.39;
N 11.03; S 8.97. C11H12F3N4O6S.. Calculated, %: C 35.58;
H 3.26; F 15.35; N 11.32; S 8.64.

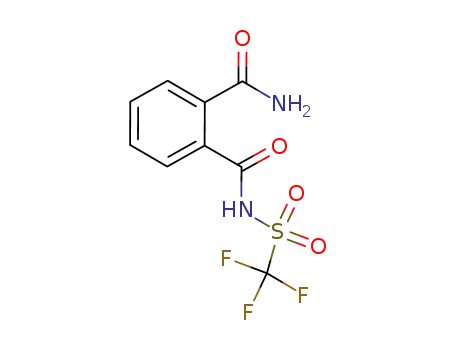

N-(Trifluoromethylsulfonyl)phthalamide (VIIIb).
To a dispersion of 0.5 g (3 mmol) of phthalimide in a mix-
ture of 10 ml of 2-propanol and 2 ml of MeOH was added
by small portions 1.4 g (8 mmol) of triflamide sodium
salt. The reaction mixture was heated for 16 h at 75°C,
then 5 ml of 5% HCl was added, the mixture was
thoroughly stirred, the solvents were evaporated at a
reduced pressure. In the residue (1.7 g, mp 177°C)
N,N-Bis(phthalimidomethyl)trifluoromethane-
sulfonamide (VIIb). N-Hydroxymethylphthalimide,
obtained by reacting the phthalimide with water solution
of formaldehyde in the presence of potassium carbonate
[8], was converted into N-chloromethylphthalimide (Vb)
by the reaction with PCl5 in chloroform by procedure
[9]. To a solution of 0.96 g (5.6 mmol) of CF3SO2NHNa
(VI) in 4 ml of DMF was added by small portions 1 g
(5.1 mmol) of N-chloromethylenephthalimide, the mixture
was stirred for 2 h at room temperature, 4 h at 80°C, 5 h
at 110°C, and 5 h at 140°C, then it was poured on ice
with NaCl, the separated precipitate was filtered off and
recrystallized from acetone. Yield 0.9 g (38%), mp 197–
1
according to H NMR data, ~40% phthalimide was
present. 1H NMR spectrum (DMSO-d6), δ, ppm
(phthalimide signals are omitted): 7.17 s (1H, CONHA),
7.28 t (1H, Hβ, J 7.1 Hz), 7.35 t (1H, H'β J 7.2 Hz),
7.48 d (1H, Hα, J 7.5 Hz), 7.60 d (1H, H'α , J 7.7 Hz),
9.14 s (1H, NHSO2). The signal of proton CONHB
overlapped with triplet signals of protons Hβ and H'β as
showed the integral intensity of this spectral region
overestimated by one proton. 13C NMR spectrum
(DMSO-d6), δ, ppm: 124.06, 126.14, 127.41, 128.89,
129.82, 139.06, 171.04, 173.62. We failed to accumulate
the signal of CF3 group. In the 19F NMR spectrum of
samples obtained after removal of solvent from the
reaction mixture and recrystallization of the residue from
2-propanol only the signal of trifluoromethanesulfonamide
was present.
1
199°C. H NMR spectrum (DMSO-d6), δ, ppm: 5.50 s
(4H, CH2), 7.92 m (8H, Harom). 13C NMR spectrum
(DMSO-d6), δ, ppm: 52.89 (CH2), 119.11 q (CF3,
J 323.8 Hz), 123.70 (C4,7), 131.25 (C8,9), 135.12 (CH5,6),
166.96 (CO). 19F NMR spectrum (DMSO-d6), δ, ppm:
–75.47. Found, %: C 48.83; H 2.89; F 12.19; N 8.99;
S 6.80. C19H12F3N3O6S. Calculated, %: C 48.62; H 3.01;
F 12.14; N 8.95; S 6.84.
The attempts to purify the reaction product by
recrystallization from 2-propanol or benzene resulted in
its reverse cyclization into phthalimide with the triflamide
elimination (see the text).
4-Amino-4-oxobutanoic acid (VIIIa). To a solution
of 0.5 g (5 mmol) of succinimide in 7 ml of water was
added by small portions 1.88 g (11 mmol) of triflamide
sodium salt. The reaction mixture was heated for 6 h at
90°C, water was evaporated on a rotary evaporator at
a reduced pressure. The obtained glassy residue (2 g)
was treated with ethyl acetate removing the soluble in
this solvent unreacted triflamide sodium salt. Insoluble
dark-red precipitate (1.1 g) was treated with 5 ml of 5%
HCl, thoroughly stirred, evaporated at a reduced pressure,
the residue was recrystallized from 2-propanol. Yield
0.55 g (44% ), mp 158–160°C (mp 157°C [10]). IR
spectrum, ν, cm–1: 3364, 3203 (N–H), 2933 (C–H), 2770–
2470 (OH), 1726, 1704 (COOH), 1644 (CONH2), 1581,
1414, 1359, 1269, 1201, 1170, 1125, 966, 923, 797, 660,
The study was carried out under a financial support
of the Russian Foundation for Basic Research (grant no.
07-03-00425).
REFERENCES
1. Meshcheryakov, V.I., Albanov, A.I., and Shainyan, B.A.,
Zh. Org.Khim., 2005, vol. 41, p. 1409.
2. Meshcheryakov, V.I., Moskalik, M.Yu., Kelling, A.,
Schilde, U., Ushakov, I.A., and Shainyan, B.A., Zh.
Org.Khim., 2008, vol. 44, p. 313.
3. Meshcheryakov, V.I., Danilevich, Yu.S., Moskalik, M.Yu.,
RUSSIAN JOURNAL OF ORGANIC CHEMISTRY Vol. 45 No. 11 2009
