Polar Ketone-Functionalized Metal−Organic Framework Showing a
High CO2 Adsorption Performance
Genfeng Feng,† Yuxin Peng,† Wei Liu,‡ Feifan Chang,† Yafei Dai,‡ and Wei Huang*,†
†State Key Laboratory of Coordination Chemistry, Nanjing National Laboratory of Microstructures, School of Chemistry and
Chemical Engineering, Nanjing University, Nanjing, Jiangsu Province 210093, P. R. China
‡School of Physics Science & Technology and Jiangsu Key Laboratory for NSLSCS, Nanjing Normal University, Nanjing, Jiangsu
Province 210023, P. R. China
S
* Supporting Information
amine, hydroxyl, acylamide, nitryl, cyano, halide, and sulfo
groups.1b,10
ABSTRACT: The incorporation of various functionalities
into porous metal−organic frameworks (MOFs) repre-
In one of our previous reports, polar PO bonds were
sents an efficacious strategy to improving their gas
adsorption properties. In this work, a carbonylated
tetracarboxylic acid ligand (5,5′-carbonyldiisophthalic
acid) was synthesized, and a ketone-functionalized MOF
with exposed metal sites based on this ligand was formed
successfully. Structural analysis reveals that the new MOF
possesses channels decorated by the carbonyl groups and
rhombicuboctahedral cages, with open CuII sites pointing
toward the cage center. The framework exhibits excep-
tionally high CO2 (46.7 wt % at 273 K and 1 bar) and H2
(2.8 wt % at 77 K and 1 bar) uptake. Furthermore, it
displays high selectivities of CO2 adsorption over N2 and
CH4 at 298 K.
successfully inserted into a [2 + 3] organic molecular cage
displaying selective CO2 capture.11 As a part of the acylamide
group, the polar carbonyl group (CO), however, is paid less

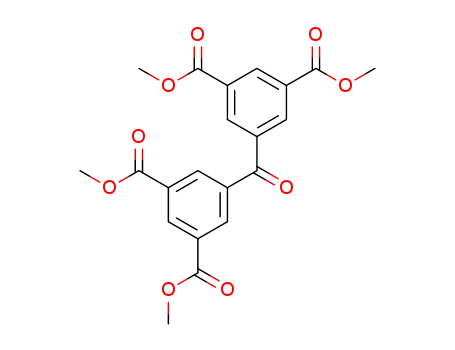

attention.12 In this work, a rigid tetracarboxylic acid ligand, 5,5′-
carbonyldiisophthalic acid with an inserted polar CO unit
(H4cdip in Scheme 1), is selected to fabricate the corresponding
Scheme 1. Strategy of Polar Ketone Incorporation
MOFs, where the polarity and rigidity of the H4mdip ligand13 is
increased by replacing the sp3 methylene moiety with a polar sp2
CO group. As a result, a three-dimensional (3D) ketone-
functionalized Cu-MOF 1 is obtained with open Cu2(COO)4
sites, and it shows anticipated high CO2 (46.7 wt % at 273 K and
1 bar) and H2 (2.8 wt % at 77 K and 1 bar) uptake as well as high
selectivities for CO2 over N2 and CH4 at room temperature. The
presence of channels decorated by the carbonyl groups and
rhombicuboctahedral cages, with open CuII sites pointing toward
the cage center, is believed to play important roles in
exceptionally high CO2 and H2 adsorption.
Crystallographic analysis reveals that the Cu-MOF 1 exhibits a
3D framework constructed by dinuclear paddle-wheel
Cu2(COO)4 secondary building units (SBUs) and organic
cdip4− linkers. In every dinuclear SBU (Figure 1a), the
coordination geometry for each CuII ion is described as a five-
coordinate pyramid with the same τ value of zero.14 The apical
Cu−O bond length [2.115(9)−2.148(8) Å] is significantly
longer than the other four Cu−O bond lengths in the basal plane
[1.951(3)−1.956(4) Å], exhibiting a typical Jahn−Teller
distortion. The organic cdip4− linkers are found to adopt two
types of configurations with different ketone-related C−C−C
bond angles [115.1(5) and 101.4(5)°] and dihedral angles
[62.1(5) and 76.0(5)°] between two phenyl rings (Figures S6
he combustion of fossil fuels has caused serious environ-
T
mental problems because CO2 is one of the major
greenhouse gases and anthropogenic CO2 emissions are
accelerating the greenhouse effect. Metal−organic frameworks
(MOFs) could serve as promising candidates for CO2 adsorption
and separation.1 MOFs as porous materials have experienced
rapid growth in chemistry and materials science during the past 2
decades for promising applications in gas storage,2 separation,3
heterogeneous catalysis,4 sensoring,5 and drug delivery.6
Structure−function relationships have been well-established in
the design process of MOFs.7 The synthesis of crystalline MOFs
with remarkable structural tunability is achieved by altering either
inorganic metal ions/clusters or organic linkers. In the gas
adsorption and separation fields of MOFs, great attention has
been paid toward improving the CO2 adsorption capacity of
elaborately designed MOFs. To date, several strategies have been
developed to tune the size, shape, and polarity of the pores within
a MOF because these factors play significant roles in the CO2
adsorption performance.8 Among them, creating open metal
sites is used as an effective approach to constructing MOFs with
improved CO2 adsorption properties because exposed metal
cations as strong Lewis acids are highly polarizing and have
strong interactions with guest CO2 molecules.1b,9 On the other
hand, the introduction of polar functional groups provides
enhanced affinity to CO2 molecules, and hence this strategy has
been widely adopted in the building of versatile MOFs, including
Received: November 5, 2016
© XXXX American Chemical Society
A
DOI: 10.1021/acs.inorgchem.6b02660
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication
Figure 1. (a) SBU in the Cu-MOF 1 with the removal of axial H2O
molecules. (b) Rhombicuboctahedral cage, with the CuII ions pointing
toward the center in the Cu-MOF 1. (c) Perspective view of the cages
and channels formed in the 3D framework.
Figure 2. (a) N2 sorption isotherms at 77 K for the Cu-MOF 1 (inset:
pore-size distributions). (b) H2 sorption isotherms at 77 K for the Cu-
MOF 1. CO2 (red), CH4 (blue), and N2 (black) sorption isotherms for
the Cu-MOF 1 at 273 (c) and 298 K (d) (filled symbols, adsorption;
open symbols, desorption).
and S7). Overall, the structural porosity of the Cu-MOF 1 is
mainly attributed to the formation of rhombicuboctahedral cages
and peripheral channels among those cages (Figures 1c and S8).
Isophthalate moieties as 24 corners constitute a rhombicubocta-
hedral cage with a 6.0 Å radius taking into account the van der
Waals radii of the atoms (Figures 1b and S9). On the other hand,
dinuclear paddle-wheel Cu2(COO)4 SBUs occupy 12 quad-
rangular faces, and the CuII ions point straight toward the cage
center after removal of the axial aqua ligands. As a result, two
kinds of windows are found in every rhombicuboctahedral cage
involving 6 quadrangular and 8 triangular faces. The former has a
radius of 3.8 Å, while the latter has a 2.0 Å radius, omitting the van
der Waals radii of the atoms (Figure S10). As for the peripheral
channels, they are decorated by the uncoordinated polar
carbonyl groups with a radius of ∼2.5 Å (Figure S13). It is
suggested that such porosity could afford beneficial circum-
stances for more favorable gas access. The total solvent-accessible
volume of the Cu-MOF 1 is calculated to be 14083 Å3 using the
SOLV function of PLATON, which occupies approximately
65.3% of the volume of the whole structure.
Å (inset of Figure 2a), which is close to that observed in the
single-crystal structure. Such a feature clearly manifests the
microporous nature of the Cu-MOF 1.
The unique ketone-functionalized framework with open metal
sites encouraged us to further evaluate its absorbent potential.
The volumetric H2 sorption isotherms for the Cu-MOF 1 were
recorded up to 1 bar at 77 K (Figure 2b), which exhibit good
reversibility with a high uptake capacity of 2.8 wt % (315.2 cm3
g−1). The H2 uptake of the Cu-MOF 1 is lower than that of PCN-
12 (3.05 wt %)13 but is comparable and even significantly higher
than that of many well-known MOFs under the same conditions,
such as SNU-5 (2.87 wt %),15 PCN-14 (2.7 wt %),16 IRMOF-1
(1.32 wt %)17 and ZIF-8 (1.27 wt %)18 (Table S2). Our results
herein demonstrate good potential storage applications for the
attractive hydrogen energy.
The phase purity of the Cu-MOF 1 was confirmed by powder
X-ray diffraction (PXRD) studies, where the PXRD pattern of
the solvated sample is identical with the simulated one (Figure
S14). Thermogravimetric analysis of the freshly prepared Cu-
MOF 1 reveals a weight loss of about 33.85% from 20 to 320 °C,
corresponding to the loss of guest solvent molecules (Figure
S16). Further variable-temperature PXRD patterns suggest that
the Cu-MOF 1 can remain unchangeable as high as 300 °C
(Figure S15), indicative of the high thermal stability of this
sample. In addition, desolvation of the Cu-MOF 1 was
performed by soaking the sample in methanol for solvent
exchange, followed by heating at 110 °C and 10−10 bar for 24 h,
and the PXRD analysis for a fully desolvated framework indicates
that the porous material still retains its crystallinity (Figure S14).
The permanent porosity of the activated Cu-MOF 1 was
confirmed by gas adsorption measurements. As shown in Figure
2a, the Cu-MOF 1 displays representative type I sorption
behavior with a saturated uptake of 522.1 cm3 g−1 for N2 at 77 K
and 1 bar. The Langmuir and Brunauer−Emmett−Teller surface
areas are calculated to be 2259 and 1539 m2 g−1 based on N2
adsorption at 77 K, respectively. The pore volume of the Cu-
MOF 1 is 0.81 cm3 g−1. The pore-size distribution analysis based
on the N2 isotherms at 77 K by using the Horvath−Kawazoe
method reveals that the pore size of the Cu-MOF 1 is ca. 5.0−6.0
The successful construction of special dual-functional sites in
the Cu-MOF 1 also prompts us to explore its potential gas
sorption properties. Low-pressure adsorption isotherms of CO2,
CH4, and N2 were carried out at 273 and 298 K up to 1 bar,
respectively. Our results imply that none of them displays
hysteresis upon adsorption and desorption. As illustrated in
Figure 2c,d, the Cu-MOF 1 has high CO2 uptake capacities of
238.1 cm3 g−1 (46.7 wt %) at 273 K and 111.3 cm3 g−1 (21.8 wt
%) at 298 K. The former value at 273 K is among the highest
reported valuess with excellent performance under the same
experimental conditions (Table S3), such as Mg-MOF-74 (44.8
wt %),19 Cu-TDPAT (44.5 wt %),20 and Cu-TPBTM (42.6 wt
%).21 The latter value at 298 K is also impressive because there
are few MOFs exhibiting CO2 uptake of more than 20.0 wt %
under ambient conditions.22 More interestingly, only small
amounts of CH4 and N2 uptake can be observed at 273 and 298 K
and 1 bar compared with the high mass of CO2 uptake, indicating
that the Cu-MOF 1 could selectively adsorb CO2 over CH4 and
N2. To further confirm the separation ability of the Cu-MOF 1,
ideal adsorbed solution theory was applied to calculate the CO2/
N2 and CO2/CH4 selectivities at room temperature with 15:85
and 50:50 molar ratios. As shown in Figure S19, the selectivities
for CO2 over CH4 and N2 are in the ranges of 4.9−5.4 and 14.7−
19.7, respectively, and the calculated values are comparable with
B
DOI: 10.1021/acs.inorgchem.6b02660
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication
ORCID
some MOFs modified by other polar groups including NOTT-
125 with oxamide, ZJNU-40 with benzothiadiazole, and ZJU-8a
with amino.23
Wei Huang: 0000-0002-1071-1055
Notes
Isosteric heat of adsorption (Qst) was calculated to reveal the
CO2 adsorption strength with the Cu-MOF 1 by analyzing the
isotherms at 273 and 298 K. An initial Qst value of 31.3 kJ mol−1
was obtained, and then it decreases slowly to 29.7 kJ mol−1 at 111
cm3 g−1 coverage (Figure S20). Qst of the Cu-MOF 1 at zero
coverage is moderately high, reflecting strong interactions
between the porous material and CO2, and it is comparable
with MOFs functionalized by some other polar groups, such as
Cu-TPBTM (26.3 kJ mol−1)21 with acylamide, NOTT-125 (25.4
kJ mol−1)23a with oxamide, and IRMOF-3 (19 kJ mol−1)24 with
amine. It is suggested that the strong interactions between CO2
and the Cu-MOF 1 are ascribed to the presence of open metal
sites and coordination-free ketone moieties within the frame-
work. In the rhombicuboctahedral cage of the Cu-MOF 1, the
open CuII sites are found to point toward the center of the cage
cavity, which is believed to be more favorable for selective CO2
adsorption.9,13 On the other hand, the channels with accessible
space decorated by the carbonyl groups are regarded as an
additional beneficial factor for CO2 adsorption. Some support
from first-principles calculations has been found to elucidate
these speculations (Figure S21). The binding energy of CO2
adsorbed around the ketone group is −9.34 kJ mol−1, which is
very comparable with that of an open CuII metal site (−9.99 kJ
mol−1). In contrast, if the ketone group is removed, the CO2
binding energy is calculated to be only −1.27 kJ mol−1. These
comparisons imply that both open CuII metal sites and ketone
groups can act as important roles in CO2 adsorption of the Cu-
MOF 1.
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
This work was financially supported by the Major State Basic
Research Development Programs (Grant 2013CB922101), the
National Natural Science Foundation of China (Grant
21171088), the Project of Scientific and Technological Support
Program in Jiangsu Province (Grant BE2014147-2), and
Program B for Outstanding Ph.D. Candidate of Nanjing
University.
REFERENCES
■
(1) (a) Li, J. R.; Ma, Y.; McCarthy, M. C.; Sculley, J.; Yu, J.; Jeong, H.
K.; Balbuena, P. B.; Zhou, H.-C. Carbon dioxide capture-related gas
adsorption and separation in metal-organic frameworks. Coord. Chem.
Rev. 2011, 255, 1791−1823. (b) Sumida, K.; Rogow, D. L.; Mason, J. A.;
McDonald, T. M.; Bloch, E. D.; Herm, Z. R.; Bae, T. H.; Long, J. R.
Carbon dioxide capture in metal-organic frameworks. Chem. Rev. 2012,
112, 724−781. (c) Liu, J.; Thallapally, P. K.; McGrail, B. P.; Brown, D.
R.; Liu, J. Progress in adsorption-based CO2 capture by metal-organic
frameworks. Chem. Soc. Rev. 2012, 41, 2308−2322. (d) Zhang, Z.; Yao,
Z.-Z.; Xiang, S.; Chen, B. Perspective of microporous metal-organic
frameworks for CO2 capture and separation. Energy Environ. Sci. 2014, 7,
2868−2899.
(2) (a) Makal, T. A.; Li, J. R.; Lu, W.; Zhou, H.-C. Methane storage in
advanced porous materials. Chem. Soc. Rev. 2012, 41, 7761−7779.
(b) He, Y.; Zhou, W.; Qian, G.; Chen, B. Methane storage in metal-
organic frameworks. Chem. Soc. Rev. 2014, 43, 5657−5678.
In summary, we have designed and synthesized a polar ketone-
functionalized Cu-MOF 1. Rhombicuboctahedral cages are
formed in the title compound possessing the open CuII sites
toward the cage center and the channels decorated by
uncoordinated carbonyl groups. The activated Cu-MOF 1
shows the large surface area of 1539 m2 g−1 and good thermal
stability. More importantly, the Cu-MOF 1 displays high H2
uptake (2.8 wt % at 77 K and 1 bar) and exceptionally high CO2
loading (46.7 wt % at 273 K and 1 bar) as well as high selectivities
for CO2 over N2 and CH4 at room temperature. It is concluded
that the successful introduction of polar ketone groups in the Cu-
MOF 1 is responsible for the high gas adsorption performance in
addition to the formation of open CuII sites toward the cage
center. Our synthetic strategy for implanting the polar ketone
group into a multidentate ligand could throw certain light on
designing and preparing novel MOFs with high performance in
the research of gas adsorption.
(3) (a) Li, J.-R.; Kuppler, R. J.; Zhou, H.-C. Selective gas adsorption
and separation in metal-organic frameworks. Chem. Soc. Rev. 2009, 38,
1477−1504. (b) Li, J.-R.; Sculley, J.; Zhou, H.-C. Metal-organic
frameworks for separations. Chem. Rev. 2012, 112, 869−932. (c) Bao, Z.;
Chang, G.; Xing, H.; Krishna, R.; Ren, Q.; Chen, B. Potential of
microporous metal-organic frameworks for separation of hydrocarbon
mixtures. Energy Environ. Sci. 2016, 9, 3612−3641.
(4) (a) Ma, L. Q.; Abney, C.; Lin, W. B. Enantioselective catalysis with
homochiral metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1248−
1256. (b) Lee, J.; Farha, O. K.; Roberts, J.; Scheidt, K. A.; Nguyen, S. T.;
Hupp, J. T. Metal-organic framework materials as catalysts. Chem. Soc.
Rev. 2009, 38, 1450−1459. (c) Liu, J.; Chen, L.; Cui, H.; Zhang, J.;
Zhang, L.; Su, C.-Y. Applications of metal-organic frameworks in
heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43,
6011−6061.
(5) (a) Cui, Y. J.; Yue, Y. F.; Qian, G. D.; Chen, B. Luminescent
functional metal-organic frameworks. Chem. Rev. 2012, 112, 1126−
1162. (b) Hu, Z.; Deibert, B. J.; Li, J. Luminescent metal-organic
frameworks for chemical sensing and explosive detection. Chem. Soc.
Rev. 2014, 43, 5815−5840.
(6) (a) Della Rocca, J.; Liu, D.; Lin, W. Nanoscale metal-organic
frameworks for biomedical imaging and drug delivery. Acc. Chem. Res.
2011, 44, 957−968. (b) Horcajada, P.; Gref, R.; Baati, T.; Allan, P. K.;
Maurin, G.; Couvreur, P.; Ferey, G.; Morris, R. E.; Serre, C. Metal-
organic frameworks in biomedicine. Chem. Rev. 2012, 112, 1232−1268.
(7) Allendorf, M. D.; Stavila, V. Crystal engineering, structure-function
relationships, and the future of metal-organic frameworks. CrystEng-
Comm 2015, 17, 229−246.
ASSOCIATED CONTENT
■
S
* Supporting Information
The Supporting Information is available free of charge on the
ACS Publications website at DOI: 10.1021/acs.inorg-
chem.6b02660.
Synthetic details and characterization data (PDF)
X-ray crystallographic data in CIF format for CCDC
1514521 CIF)
(8) (a) Bae, Y. S.; Snurr, R. Q. Development and evaluation of porous
materials for carbon dioxide separation and capture. Angew. Chem., Int.
Ed. 2011, 50, 11586−11596. (b) Wang, Q.; Bai, J.; Lu, Z.; Pan, Y.; You,
X. Finely tuning MOFs towards high-performance post-combustion
CO2 capture materials. Chem. Commun. 2016, 52, 443−452. (c) Zhang,
Z.; Zhao, Y.; Gong, Q.; Li, Z.; Li, J. MOFs for CO2 capture and
separation from flue gas mixtures: the effect of multifunctional sites on
AUTHOR INFORMATION
■
Corresponding Author
*E-mail: whuang@nju.edu.cn.
C
DOI: 10.1021/acs.inorgchem.6b02660
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication
their adsorption capacity and selectivity. Chem. Commun. 2013, 49,
653−661.
(20) Li, B.; Zhang, Z.; Li, Y.; Yao, K.; Zhu, Y.; Deng, Z.; Yang, F.; Zhou,
X.; Li, G.; Wu, H.; Nijem, N.; Chabal, Y. J.; Lai, Z.; Han, Y.; Shi, Z.; Feng,
S.; Li, J. Enhanced binding affinity, remarkable selectivity, and high
capacity of CO2 by dual functionalization of a rht-type metal-organic
framework. Angew. Chem., Int. Ed. 2012, 51, 1412−1415.
(9) (a) Dietzel, P. D. C.; Besikiotis, V.; Blom, R. Application of metal-
organic frameworks with coordinatively unsaturated metal sites in
storage and separation of methane and carbon dioxide. J. Mater. Chem.
2009, 19, 7362−7370. (b) Kong, X.; Scott, E.; Ding, W.; Mason, J. A.;
Long, J. R.; Reimer, J. A. CO2 dynamics in a metal-organic framework
with open metal sites. J. Am. Chem. Soc. 2012, 134, 14341−14344.
(c) Lin, L. C.; Kim, J.; Kong, X.; Scott, E.; McDonald, T. M.; Long, J. R.;
Reimer, J. A.; Smit, B. Understanding CO2 dynamics in metal-organic
frameworks with open metal sites. Angew. Chem., Int. Ed. 2013, 52,
4410−4413.
(21) Zheng, B.; Bai, J.; Duan, J.; Wojtas, L.; Zaworotko, M. J. Enhanced
CO2 binding affinity of a high-uptake rht-type metal-organic framework
decorated with acylamide groups. J. Am. Chem. Soc. 2011, 133, 748−751.
(22) Gao, C.; Tian, H.; Ai, J.; Li, L.; Dang, S.; Lan, Y.; Sun, Z. A
microporous Cu-MOF with optimized open metal sites and pore spaces
for high gas storage and active chemical fixation of CO2. Chem. Commun.
2016, 52, 11147−11150.
(23) (a) Alsmail, N. H.; Suyetin, M.; Yan, Y.; Cabot, R.; Krap, C. P.; Lu,
̈
(10) (a) Millward, A. R.; Yaghi, O. M. Metal-organic frameworks with
exceptionally high capacity for storage of carbon dioxide at room
temperature. J. Am. Chem. Soc. 2005, 127, 17998−17999. (b) Torrisi, A.;
Bell, R. G.; Mellot-Draznieks, C. Functionalized MOFs for enhanced
CO2 capture. Cryst. Growth Des. 2010, 10, 2839−2841. (c) Yang, Q.;
Wiersum, A. D.; Llewellyn, P. L.; Guillerm, V.; Serre, C.; Maurin, G.
Functionalizing porous zirconium terephthalate UiO-66(Zr) for natural
gas upgrading: a computational exploration. Chem. Commun. 2011, 47,
9603−9605. (d) Garibay, S. J.; Cohen, S. M. Isoreticular synthesis and
modification of frameworks with the UiO-66 topology. Chem. Commun.
2010, 46, 7700−7702. (e) Liu, H.; Zhao, Y.; Zhang, Z.; Nijem, N.;
Chabal, Y. J.; Zeng, H.; Li, J. The Effect of methyl functionalization on
microporous metal-organic frameworks’ capacity and binding energy for
carbon dioxide adsorption. Adv. Funct. Mater. 2011, 21, 4754−4762.
(11) Feng, G.; Liu, W.; Peng, Y.; Zhao, B.; Huang, W.; Dai, Y. Cavity
partition and functionalization of a [2 + 3] organic molecular cage by
inserting polar PO bonds. Chem. Commun. 2016, 52, 9267−9270.
(12) (a) Yue, Q.; Yan, L.; Zhang, J. Y.; Gao, E. Q. Novel functionalized
metal-organic framework based on unique hexagonal prismatic clusters.
Inorg. Chem. 2010, 49, 8647−8649. (b) Guo, Z.; Song, X.; Lei, H.; Wang,
H.; Su, S.; Xu, H.; Qian, G.; Zhang, H.; Chen, B. A ketone functionalized
luminescent terbium metal-organic framework for sensing of small
molecules. Chem. Commun. 2015, 51, 376−379. (c) Wang, B.; Huang,
H.; Lv, X.-L.; Xie, Y.; Li, M.; Li, J.-R. Tuning CO2 selective adsorption
over N2 and CH4 in UiO-67 analogues through ligand functionalization.
Inorg. Chem. 2014, 53, 9254−9259.
J.; Easun, T. L.; Bichoutskaia, E.; Lewis, W.; Blake, A. J.; Schroder, M.
̈
Analysis of high and selective uptake of CO2 in an oxamide-containing
{Cu2(OOCR)4}-based metal-organic framework. Chem. - Eur. J. 2014,
20, 7317−7324. (b) Song, C.; He, Y.; Li, B.; Ling, Y.; Wang, H.; Feng, Y.;
Krishna, R.; Chen, B. Enhanced CO2 sorption and selectivity by
functionalization of a NbO-type metal-organic framework with
polarized benzothiadiazole moieties. Chem. Commun. 2014, 50,
12105−12108. (c) Cai, J.; Wang, H.; Wang, H.; Duan, X.; Wang, Z.;
Cui, Y.; Yang, Y.; Chen, B.; Qian, G. An amino-decorated NbO-type
metal-organic framework for high C2H2 storage and selective CO2
capture. RSC Adv. 2015, 5, 77417−77422.
(24) Farrusseng, D.; Daniel, C.; Gaudillere, C.; Ravon, U.; Schuurman,
Y.; Mirodatos, C.; Dubbeldam, D.; Frost, H.; Snurr, R. Q. Heats of
adsorption for seven gases in three metal-organic frameworks:
systematic comparison of experiment and simulation. Langmuir 2009,
25, 7383−7388.
(13) Wang, X.-S.; Ma, S.; Forster, P. M.; Yuan, D.; Eckert, J.; Lopez, J.
L.; Murphy, B. J.; Parise, J. B.; Zhou, H.-C. Enhancing H2 uptake by
“close-packing” alignment of open copper sites in metal-organic
frameworks. Angew. Chem., Int. Ed. 2008, 47, 7263−7266.
(14) Addison, A. W.; Rao, T. N.; Reedijk, J.; van Rijn, J.; Verschoor, G.
C. Synthesis, structure, and spectroscopic properties of copper(II)
compounds containing nitrogen-sulphur donor ligands; the crystal and
molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-
dithiaheptane]copper(II) perchlorate. J. Chem. Soc., Dalton Trans. 1984,
1349−1356.
(15) Lee, Y.-G.; Moon, H. R.; Cheon, Y. E.; Suh, M. P. A comparison of
the H2 sorption capacities of isostructural metal-organic frameworks
with and without accessible metal sites: [{Zn2(abtc) (dmf)2}3] and
[{Cu2(abtc) (dmf)2}3] versus [{Cu2(abtc)}3]. Angew. Chem., Int. Ed.
2008, 47, 7741−7745.
(16) Ma, S.; Simmons, J. M.; Sun, D.; Yuan, D.; Zhou, H.-C. Porous
metal-organic frameworks based on an anthracene derivative: syntheses,
structure analysis, and hydrogen sorption studies. Inorg. Chem. 2009, 48,
5263−5268.
(17) Rowsell, J. L. C.; Millward, A. R.; Park, K. S.; Yaghi, O. M.
Hydrogen sorption in functionalized metal-organic frameworks. J. Am.
Chem. Soc. 2004, 126, 5666−5667.
(18) Park, K. S.; Ni, Z.; Cote, A. P.; Choi, J. Y.; Huang, R.; Uribe-Romo,
F. J.; Chae, H. K.; O’Keeffe, M.; Yaghi, O. M. Exceptional chemical and
thermal stability of zeolitic imidazolate frameworks. Proc. Natl. Acad. Sci.
U. S. A. 2006, 103, 10186−10191.
(19) Sung Cho, H.; Deng, H.; Miyasaka, K.; Dong, Z.; Cho, M.;
Neimark, A. V.; Ku Kang, J.; Yaghi, O. M.; Terasaki, O. Extra adsorption
and adsorbate superlattice formation in metal-organic frameworks.
Nature 2015, 527, 503−507.
D
DOI: 10.1021/acs.inorgchem.6b02660
Inorg. Chem. XXXX, XXX, XXX−XXX
