Journal of Natural Products
NOTE
1
UV detection at 214 and 254 nm. H and 13C NMR spectra were
recorded on a Bruker Avance AV-300 spectrometer. Solid-phase synthe-
sis was carried out using Bohdan MiniBlock (Mettler-Toledo). Unless
otherwise stated, reactions were carried out at room temperature, all
washings were performed with 3 ꢀ 4 mL of solvent, and resins were
dried in vacuo after washings.
2-(Trimethylsilyl)ethyl 5-aminopentylcarbamate:. yield 77%;
1H NMR (300 MHz, CDCl3) δ 4.64 (bs, 1H), 4.16 (t, J = 8.3 Hz, 2H), 3.19
(q, J = 6.3 Hz, 2H), 2.71 (t, J = 6.6 Hz, 2H), 1.33-1.60 (m, 6H), 1.28 (bs,
2H), 1.00 (t, J = 8.3 Hz, 2H), 0.06 (s, 9H); EIMS m/z 247.1 [M þ H]þ;
purity (ELSD), 91%.

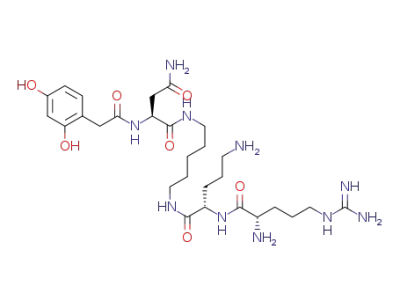

(S)-N1-(5-((S)-5-Amino-2-((S)-2-amino-5-guanidinopentana-
mido)pentanamido)pentyl)-2-(2-(2,4-dihydroxyphenyl)aceta-
mido)succinamide (JSTX-4, 1). DFPE resin (0.15 mmol) was swelled
in DMF (4 mL) for 1 h. The resin was drained and treated with a solution
of 2-(trimethylsilyl)ethyl-5-aminopentylcarbamate (1.50 mmol) in dry
DMF/acetic acid (9:1, 4 mL), and after 2 min NaBH(OAc)3 (1.50 mmol)
was added. The mixture was agitated overnight, the solvents were drained,
and the resin was washed successively with DMF, DIPEA (10% in DMF),
DMF, CH2Cl2, CH3OH, and CH2Cl2. A solution of Fmoc-L-Asn(Trt)-OH
(0.75 mmol) and N-[(dimethylamino)-1H-1,2,3-triazol[4,5-b]pyridin-1-
ylmethylene]-N-methylmethanaminium hexafluorophosphate N-oxide
(HATU, 0.75 mmol) in dry CH2Cl2/DMF (9:1, 4 mL) was added to the
resin followed by addition of N,N-diisopropylethylamine (DIPEA, 1.50
mmol). The mixture was agitated overnight, and the resin was subsequently
washed with DMF, CH2Cl2, CH3OH, and CH2Cl2. The resulting resin was
treated with 20% piperidine in dry DMF (v/v, 4 mL) for 2 and 20 min and
washed with DMF in between. The resin was washed with DMF, CH2Cl2,
CH3OH, and CH2Cl2, drained, and treated with a solution of 2-(2,4-
bis(benzyloxy)phenyl)acetic acid (0.75 mmol) and HATU (0.75 mmol) in
dry CH2Cl2/DMF (9:1, 4 mL), followed by treatment with DIPEA (1.50
mmol). The mixture was agitated for 2 h and washed with DMF, CH2Cl2,
CH3OH, and CH2Cl2 and subsequently suspended in THF (4 mL) for 30
min. Then it was heated to 55 °C before a solution of TBAF (1 M in THF,
0.60 mmol) was added slowly, and the mixture was agitated at 55 °C for
30 min. The resin was drained, washed with DMF, CH2Cl2, CH3OH, and
CH2Cl2, and treated with a solution of Fmoc-L-Orn(Boc)-OH (0.75
mmol) and HATU (0.75 mmol) in dry CH2Cl2/DMF (9:1, 4 mL),
followed by DIPEA (1.50 mmol). The mixture was agitated for 2 h, washed
with DMF, CH2Cl2, CH3OH, and CH2Cl2, then treated with 20%
piperidine in dry DMF (v/v, 4 mL) for 2 and 20 min, and washed with
DMF in between. The resin was then washed with DMF, CH2Cl2,
CH3OH, and CH2Cl2, treated with a solution of Boc-L-Arg(Pbf)-OH
(0.75 mmol) and HATU (0.75 mmol) in dry CH2Cl2/DMF (9:1, 4 mL),
followed by DIPEA (1.50 mmol), agitated for 2 h, and washed with DMF,
CH2Cl2, CH3OH, and CH2Cl2. Finally, the resin was treated with a mixture
of TFA/CH2Cl2/TIPS/H2O (75:20:2.5:2.5 v/v, 4 mL) for 2 h, drained,
and washed with CH3OH (2 mL) and CH2Cl2 (2 mL). The combined
solvents were evaporated to give a sticky yellow solid (2,4-Di-O-Bn-JSTX-
4), which was purified by preparative HPLC. The purified 2,4-Di-O-Bn-
JSTX-4 was dissolved in glacial acetic acid (4 mL) and transferred to a screw
cap vial, and Pd(OH)2/C (10% w/w) was added. Hydrogen was bubbled
through the solution for 1 min, and the mixture was stirred under an
atmosphere of hydrogen until the reaction was completed. The reaction
mixture was filtered and washed with CH3OH, and water (10 mL) was
added. The combined washings were removed by freeze-drying to give a
colorless solid, which was purified by preparative HPLC to give the product
as a colorless solid (56.9 mg, 39%): 1H NMR (300 MHz, CD3OD) δ 6.89
(d, J = 8.3 Hz, 1H), 6.31 (d, J = 2.2 Hz, 1H), 6.23 (dd, J = 8.0, 2.2, Hz, 1H),
4.64 (t, J = 6.3 Hz, 1H), 4.33 (t, J = 6.3 Hz, 1H), 3.95 (t, J = 6.1 Hz, 1H),
3.46 (d, J = 14.9 Hz, 1H), 3.38 (d, J = 15.1 Hz, 1H), 3.01-3.21 (m, 6H),
2.85-2.98 (m, 2H), 2.66 (d, J = 6.3 Hz, 2H), 1.83-1.96 (m, 2H),
1.51-1.83 (m, 6H), 1.33-1.51 (m, 4H), 1.15-1.33 (m, 2H); 13C NMR
(75 MHz, CD3OD) δ 175.2, 175.0, 173.2, 173.1, 169.9, 159.0, 158.6, 157.3,
Figure 2. Biological evaluation of JSTX-4. (A) Representative current
trace obtained from electrophysiological recording of the membrane
current from a Xenopus oocyte expressing GluA1 receptors held at a
membrane potential of -60 mV. The agonist-evoked response (Glu;
100 μM) is observed as a downward deflection of the membrane current.
Co-application of increasing concentrations of JSTX-4 is indicated by
gray bars. (B) Summary of the effect of various concentrations of JSTX at
GluN1/2A (black) and GluA1 (gray) receptors. Data represent mean
((SEM) from experiments at 9 to 12 oocytes normalized to the agonist-
evoked current response in the absence of JSTX-4.
’ EXPERIMENTAL SECTION
General Experimental Procedures. Unless otherwise stated,
starting materials were obtained from commercial suppliers and were
used without further purification. The BAL-resin used was 2-(3,5-
dimethoxy-4-formylphenoxy)ethyl (DFPE) polystyrene with a loading
of 0.5-1.0 mmol/g and was purchased from Novabiochem. 2-(2,4-
Bis(benzyloxy)phenyl)acetic acid was prepared according to a published
procedure,15 and 2-(trimethylsilyl)ethyl 5-aminopentylcarbamate was
prepared following procedures for related aliphatic diamines.16 Tetra-
hydrofuran (THF) was distilled under N2 from sodium/benzophenone
immediately before use. N,N-Dimethylformamide (DMF) and dichlor-
omethane were dried using AldraAmine trapping packets.
LC-MS analysis was performed on an Agilent 6410 Triple Quadru-
pole mass spectrometer with electron spray coupled to an Agilent 1200
HPLC system (ESI-LC/MS) with autosampler and diode-array detector
using a linear gradient of the binary solvent system of water/acetonitrile/
formic acid (A: 95/5/0.1 and B: 5/95/0.086) with a flow rate of 1 mL/min.
During ESI-LC/MS analysis evaporative light scattering (ELS) traces
were obtained with a Sedere Sedex 85 light scattering detector, which
were used for estimation of the purity of the final products. Preparative
HPLC was performed on a Agilent 1100 system using a C18 reversed-
phase column (Zorbax 300 SB-C18, 21.2 ꢀ 250 mm) with a linear
gradient of the binary solvent system of water/acetonitrile/TFA (A: 95/
5/0.086 and B: 5/95/0.086) with a flow rate of 20 mL/min and
485
dx.doi.org/10.1021/np100746w |J. Nat. Prod. 2011, 74, 483–486
