Synthesis and spectroscopic characterization study of some cyclic-azodioxides

Article abstract of DOI:10.3987/COM-10-12065

New compounds of cyclic-azodioxides have been prepared by oxidation of the corresponding diamines with sodium tungstate and hydrogen peroxide in a mixed ethanol/water solvent. Spectroscopic techniques, including IR, UV, ¹H NMR, and ¹³C NMR, and CHN analysis were used to identify the products. In solution, the azodioxides were found to be in equilibrium with the corresponding dinitroso compounds. The IR values of the synthesised compounds are in agreement with the theoretical IR spectra. The Japan Institute of Heterocyclic Chemistry.

Full text of DOI:10.3987/COM-10-12065

HETEROCYCLES, Vol. 81, No. 12, 2010
2807
HETEROCYCLES, Vol. 81, No. 12, 2010, pp. 2807 - 2815. © The Japan Institute of Heterocyclic Chemistry
Received, 9th September, 2010, Accepted, 25th October, 2010, Published online, 4th November, 2010
DOI: 10.3987/COM-10-12065
SYNTHESIS AND SPECTROSCOPIC CHARACTERIZATION STUDY
OF SOME CYCLIC-AZODIOXIDES
Mohammad A. Naser Al-Magmoy,* Zeki A. Nasir Al-Shamkhani, and Ali
Hashem Essa
*Department of Chemistry, College of Science, University of Basrah, Basrah,
Iraq. Email: almagmoy@gmail.com
Abstract – New compounds of cyclic-azodioxides have been prepared by
oxidation of the corresponding diamines with sodium tungstate and hydrogen
peroxide in a mixed ethanol/water solvent. Spectroscopic techniques, including
1
13
IR, UV, H NMR, and C NMR, and CHN analysis were used to identify the
products. In solution, the azodioxides were found to be in equilibrium with the
corresponding dinitroso compounds. The IR values of the synthesised compounds
are in agreement with the theoretical IR spectra.
INTRODUCTION
In the past several years, although much attention has been paid to the development of methods for
preparation of organic azodioxide due to their broad utility, as units for many biologically active
compounds and as important chiral ligands or chiral auxiliaries for asymmetric synthesis. 1,3-dipolar
cycloaddition reactions were used to synthesize compounds having interesting pharmacological activities
and for the preparation of many stereochemically defined five-membered heterocycles.1–12 Due to their
importance, we report herein the preparation of new nitroso dimers by using sodium tungstate - hydrogen
peroxide. This method has the advantage of facilitating the oxidation of the nitroso compounds in one
step.
Many organic nitroso compounds (R-NO) in organic solvent, where the NO group is bonded to a carbon
atom (C-nitroso compound), display blue or blue green colors, due to a weak absorption band in the
visible region (λ =700 nm) in the crystalline state. However, most of these compounds are colorless or at
most pale yellow. The color intensity of a solution of C-nitroso compounds depends on the nature of the

2808
HETEROCYCLES, Vol. 81, No. 12, 2010
organic group (R), temperature and concentration. The reason of this phenomenon is based on cryoscopic
molecular weight measurements. Faintly colored (R-NO) solution contains significant proportion of
dimeric molecules in equilibrium with monomers. 1
It is well known that C-nitroso compounds can exist in three different molecular forms: the monomer R-N
= O, the trans-dimer (A) and the cis-dimer (B). The relative stabilities of these forms are function of the
state, the properties of solvents in which they are dissolved, and the molecular environment within which
the nitroso function are located. Examples of their functions are demonstrated by nitroso butane which is
in solid state in the cis dimer,1,2 whereas in the solution or gas phase, it is 100% monomer, i.e., the
monomers are green – blue in color and the dimers are colorless. Some dimers (azodioxides) exist in
cyclic configuration especially the cis-dimers such as 1,4-dichloro-2,3-diazabicyclo [2.2.2]-oct-2-ene
2,3-dioxide (C) and benzo[c]cinnoline-5,6-dioxide (D), which are limited for steric reason to internal
dimerization of the nitroso groups in the cis configuration.3, 4
R
O
R
O
R
O
O
R
N+ N+
N+ N+
cis-1,2-dialkyldiazene 1,2-dioxide
trans-1,2-dialkyldiazene 1,2-dioxide
(A)
(B)
Cl
Cl
N+ N+
N+
O
N+
O
O
O
1,4-dichloro-2,3-diazabicyclo[2.2.2]oct-2-ene
2,3-dioxide
benzo[c]cinnoline 5,6-dioxide
(C)
(D)
Various methods have been reported regarding the synthesis of aliphatic and aromatic C-Nitroso
compounds. Some of these compounds were prepared by oxidation of the corresponding amines but most
of these compounds are obtained by oxidation of corresponding hydroxyl amine or imine,5 by pyrolysis of
the corresponding aryl nitrite or by action of the nitric oxide and chlorine hydrocarbons under UV light.

HETEROCYCLES, Vol. 81, No. 12, 2010
2809
RESULTS AND DISCUSSION
Schemes 1, 2, and 3 illustrated the diagram of synthesis of three new dioxides (compounds 1-3
respectively).
Na2WO4-H2O2
Sn/HCl
N+ N+
NH2 H2N
NO2 O2N
O
O-
2,2'-(ethane-1,2-diyl)dianiline
1,2-bis(2-nitrophenyl)ethane
11,12-dihydrodibenzo[c,g][1,2]diazocine
5,6-dioxide
(1)
Scheme 1
CH2Cl
CH2OH
O
Ag2O
NO2
NO2O2N
NO2
2,2'-(oxybis(methylene))bis(nitrobenzene)
1-(chloromethyl)-2-nitrobenzene
(2-nitrophenyl)methanol
Sn/HCl
Na2WO4-H2O2
O
O
N+ N+
NH2H2N
O
O-
2,2'-(oxybis(methylene))dianiline
(Z)-11,13-dihydrodibenzo[c,g][1,5,6]oxadiazonine 5,6-dioxide
(2)
Scheme 2
CHO
CH2NH2
N
benzene
NO2
NO2O2N
NO2
2-nitrobenzaldehyde
(E)-N-(2-nitrobenzylidene)-1-(2-
(2-nitrophenyl)methanamine
nitrophenyl)methanamine
Sn/HCl
Na2WO4-H2O2
N
N
N+ N+
NH2H2N
O
O

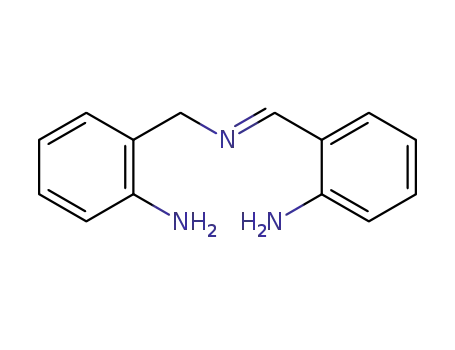

(E)-2-((2-aminobenzylideneamino)
(5Z,12E)-11H-dibenzo[c,h][1,2,6]triazonine
methyl)aniline
5,6-dioxide
Scheme 3
These dimers are white crystalline solids that dissolve in organic solvents to give nearly colorless solution
developing to a blue color, which is temperature dependent, and on cooling, the solution losses its color.

2810
HETEROCYCLES, Vol. 81, No. 12, 2010
This indicates that these solids are dimers in solution and dissociate to their monomer forms by heating as
shown in Scheme 4.
heating
N+ N+
N
N
cooling
O
O
O
O
Scheme 4
These compounds were not isomerisd13 neither by aqueous sodium hydroxide (1N) nor by hydrochloric
acid (1N).
In this research were described the method of synthesis of aryl amine C-nitroso dimers by the direct
oxidation of the primary amines with sodium tungstate – hydrogen peroxide. When recrystallization was
carried out, the yield was reduced to 20% whether the reaction was carried out in a small or a large scale.
The existence of compounds (1-3) in monomer or dimer forms was proved by studying its electronic and
infrared spectra. The electronic absorption spectra recorded in chloroform at room temperature showed
two (-*) transition bands. The transition bands at about 290 nm was ascribed to the dimer grouping
(N2O2), and the other transition around 250 nm is ascribable to the double bond of the aryl residual. There
is no trace of monomeric (n-*) band. A comparison between the electronic configuration of the
monomers and that of dimers suggests that dimerization process requires redistribution of electrons in the
R-NO subunit. Experimental evidence, indicating that this indeed happens. The color of monomers in
solution might be due to a weak (n-*) transition which involves the electron lone pair predominantly
localized on the oxygen atom. This (n-*) transition disappears on dimerization because the nitrogen lone
pair in the monomer is used to form the (N-O) bond, as in compounds (1-3) for example.
Considering the infrared spectra which were recorded at room temperature, many workers,14, 15 assigned
(N-O) stretching frequency in trans and cis-nitroso compounds. In cis- form this was reported to be a
strong double band absorption in the 1180-1320 cm-1 range, whilst trans form exhibit a single strong
stretching absorption in the same range. The assignment of IR spectra of the cis and trans CN(O)N(O)C
grouping can be made according to the group theory.
All IR spectra indicate that the five strong bands between 900-3010 cm-1 in these compounds are
correspond to five vibrations characteristic of the skeleton, though it is possible that some features of the
aryl group have been included. The basic skeleton of the cis CN(O)N(O)C has C2v symmetry; the A1
class includes the (N-O), (C-N) and the (N-N) stretching modes. Also the B1 class with the symmetric
(N-O) and (C-N) stretching contain infrared active vibration. The trans dimer skeleton has essentially C2h

HETEROCYCLES, Vol. 81, No. 12, 2010
2811
symmetry with two strong B2 class frequencies at about 900 cm-1. These may be considered as essentially
antisymmetric (N-O) and (C-N) stretching vibrations.
Table 3. Band assignment (cm-1) for the calculated structures.
Molecules
Vibration
1
2
3
-C = CH Exp.
Theo. 3050 (s)
Exp. 1440, 1410 (s)
3010 (m)
3010 (s)
3040 (m)
1428 (s)
1450 (m)
1109 (m)
1100 (m)
3010 (m)
3100 (m)
1409, 1343 (s)
1400 (w)
C = C
C - O
CH2
Theo. 1450 (m)
Exp.
Theo.
Exp.
2995-2980, 770 (s)
Theo. 2950-3000 (m)
N - O
C = N
C - N
N = N
Exp.
1185 (s), 1110 (s)
1180 (s), 1040 (m)
1180 (s), 1105 (m)
1100 (w)
1610 (s)
1650 (s)
1273 (s)
1200 (w)
1215 (s), 762 (s)
1250 (w)
Theo. 1180 (m), 1100 (m) 1250 (m)
Exp.
Theo.
Exp.
Theo. 1220 (m)
Exp.
Theo
1200 (m)
1290 (s)
1320 (m)
1212 (m), 765 (m)
1200 (s), 1175 (s)
1150 (m), 1100 (m) 1200 (w)
s: strong, m: medium, w: weak
The (N-O) bonds may have partial double bond character and are strongly polar. The IR values of the
synthesised compounds are in agreement with the theoretical IR spectra as shown in Table 1. Theoretical
IR spectra of the studied molecules calculated by semi-empirical PM3 method, are presented in Figure 1.
1
The small, but easily distinguishable difference of H NMR and 13C NMR spectra of cis and trans
dimers16, 17 arises from the same symmetry arguments as above.
The conformation of compounds (1, 2, 3) was determined by analysis of the proton resonance signals.
Spin-spin coupling constant of the protons attached to C atoms close to the nitroso group are used for
determination of this group’s conformation. In particular, those attach to the carbon atoms close to the
nitroso groups. The small spin-spin coupling constant of 5.3 Hz indicates that the nitroso groups adopts
cis arrangement.
13C NMR spectra of compound 3 showed eight lines while seven lines were recorded for compounds (1
and 2), in addition to the lines of the solvents. This spectroscopy has yielded interesting structural
information for C-Nitroso compound, and the large difference ( >20ppm) between the resonance for

2812
HETEROCYCLES, Vol. 81, No. 12, 2010
C-NO monomer and C-N2O2-C dimmer clearly permits an estimate to be made for any participation of
monomeric NO end groups in the solid.13
Figure 1. Calculated infrared spectra of compounds 1-3.(semi-empirical PM3 calculation)
CONCLUSIONS
The method of synthesis of aryl amine C-nitroso dimers by the direct oxidation of primary amines with
sodium tungstate – hydrogen peroxide has been described in this research. New compounds of

HETEROCYCLES, Vol. 81, No. 12, 2010
2813
cyclic-azodioxides have been prepared according to this method but when recrystallization was carried
out, the yield was reduced to 20%. The IR values of the synthesized compounds are in agreement with the
theoretical spectra.
EXPERIMENTAL
1) general preparation of (E)-11,12-dihydrodibenzo[c,g][1,2]diazocine-5,6-dioxide (1)
2,2'-(Ethane-1,2-diyl)dianiline was prepared by catalytic reduction of the dinitro compound18 mp
65-66 °C (lit., mp 66-67 °C). E-11,12-Dihydrodibenzo[c,g][1,2]diazocine-5,6-dioxide) was prepared in the
dark from cooled solution of 2,2'-(ethane-1,2-diyl)dianiline (1 g, 0.0047 mol) and sodium tungstate
dehydrate (0.2 g) in (20 mL) of 85% EtOH/water containing hydrogen peroxide (2 g, 60%). The mixture
was stirred for 24 h and then 25 mL of saturated aqueous NaCl along with equivalent volume of CH2Cl2
was added. The aqueous layer was extracted with a small portion of CH2Cl2, and the resulting oil was
o
taken up in a acetone and cooled to give (0.1 g, 19%); the diazocine dioxide; mp 155 C (decomp). Rf =
0.73. Anal. Calcd for C14H12N2O2: C, 69.98; H, 5.04; N, 11.66. Found :C,70.01; H,4.97; N, 11.3. UV
(CHCl3) λmax, 292 (ε = 9800) and 250 nm (ε = 7870); IR υ (KBr), 3010, 2995, 2980, 1440, 1410, 1385,
1305, 1200, 1175, 1110, 950, 770 cm-1. 1H NMR (400 MHz) δH (ppm) (benzene-d6), 7.1-7.5 m (4H);
13
2.9-3.2 s (2H). C NMR (100 MHz) δC (ppm) ( benzene-d6), 142.6; 125.9; 138.9; 130.0; 128.3; 119.7;
98.3.
2-general preparation of (Z)-11,13-dihydrodibenzo[c,g][1,5,6]oxadiazonine 5,6-dioxide) (2)
2-1 Preparation of 2,2'-oxybis(methylene)bis(nitrobenzene)
The mixture of (2-nitrophenyl)methanol19 (2 g, 0.013 mol), 1-(chloromethyl)-2-nitrobenzene) (4 g, 0.023
mol) and silver oxide (3.5 g) was added to a mixture of 50 mL of dry DMF and DMSO (50 mL). The
solution was heated on a steam bath, filtered and recrystallized from CHCl3 to yield white crystals (2.5 g)
°
mp 160-1661 C. Anal. Calcd for C14H12N2O5: C, 58.33; H, 4.20; N, 9.72. Found C, 57.98; H, 4.84; N,
10.01. IR υ (KBr), 3020, 2930, 2880, 1535, 1515, 1370, 1360, 1212, 870, 790, 725 cm-1.
2-2 Preparation of 2,2'-oxybis(methylene)dianiline
A solution of 2,2'-oxybis(methylene)bis(nitrobenzene) (2 g, 0.007 mol) and tin metal (1 g) with 10%
hydrochloric acid in EtOH (100 mL) was stirred. Hydrazine hydrate (2 g) was added to the solution and
stirred for 15 min at rt and then reflex for 1h. The cooled solution was filtered and the resultant yellow oil
was taken up in Et2O and extracted with salted water. The ether was evaporated, and the collected product
°
was recrystallized from CHCl3 to yield the product (1.7 g, 85%) mp 67-69 C. Anal. Calcd for
C14H16N2O: C, 73.68; H, 7.01; N, 12.28. Found C, 73.08; H, 7.35; N, 12.83. IR, υ (KBr), 3460, 3380,

2814
HETEROCYCLES, Vol. 81, No. 12, 2010
3010, 1493, 1036 cm-1.
2-3 Preparation of (Z)-11,13-dihydrodibenzo[c,g][1,5,6]oxadiazonine 5,6-dioxide (2)
A suspension of 2,2'-oxybis(methylene)bis(nitrobenzene) (1 g, 0.005 mol) and sodium tungstate dihydrate
(0.2 g) in 19 mL of 85% EtOH/water was added to hydrogen peroxide (3 g, 60%) dropwise. The mixture
was stirred for (24 h) at rt and poured into 5% HCl and extracted with three portions of CHCl3. The
extract was evaporated, the resulting residue treated briefly in 20 mL of acetone and allowed to cool to
yield oxadiazonine 5,6-dioxide (0.25 g, 25%), mp 123 °C. Anal. Calcd for C14H12N2O3: C, 65.61; H, 4.72;
N, 10.13. Found C, 65.01; H, 4.5; N, 10.38. UV absorption in CHCl3 λmax 285 (ε = 8980) and 248 nm (ε
=7810). IR υ (KBr), 3010, 1428, 1380, 1290, 1212, 1109, 1040, 765 cm-1. 1H NMR (400 MHz) δH (ppm)
13
(DMSO d6), 7.38-7.70 m (4H); 4.52-4.72 s (2H). C NMR (100 MHz) δC (ppm) (Me2SO d6), 148.3;
126.7; 135.4; 128.2; 126.5; 115.3; 100.1.
3-general preparation of (5Z,12E)-11H-dibenzo[c,h][1,2,6]triazonine 5,6-dioxide (3)
3-1 Preparation of (E)-N-(2-nitrobenzylidene)-1-(2-nitrophenyl)methanamine
A solution of benzene (100 mL) containing of the 2-nitrophenyl)methanamine20 (2 g, 0.013mol.) and
2-nitrobenzaldehyde (2 g, 0.013 mol.) was refluxed in Dean-Stark apparatus for 2 h. After evaporation of
solvent, the solid products was collected and recrystallized from EtOH to give 3 (3.5 g, 89%), mp
154-155 °C. Anal. Calcd for C14H11N3O4:- C, 58.94; H, 3.86; N, 14.73. Found C, 59.13; H, 3.33; N, 14.18.
IR: - υ (KBr), 1640, 1610, 1574, 1513, 1382, 1345, 1325, 849, 793, 732 cm-1.
3-2 Preparation of (E)-2-((2-aminobenzylideneamino)methyl)aniline
Dry
hydrogen
chloride
gas
was
bubbled
into
a
solution
of
(E)-N-(2-nitrobenzylidene)-1-(2-nitrophenyl)methanamine (3 g, 0.01 mol.) in 100 mL of THF. The
product was cooled to rt and stirred for 30 min with dry MeOH. The solvent was removed under vacuum.
CH2Cl2 was add to the residue and extracted with aqueous NaOH (150 mL, 0.1 N), the organic fraction
was dried by using (MgSO4), concentrated and recrystallized from EtOH to give the diamine (2.7 g, 92%),
mp 98-100 °C. Anal. Calcd. for C14H15N3, C,74.66; H,6.66; N, 18.66. Found C, 73.97; H, 6.21; N, 19.02.
IR :- υ (KBr), 3380, 3290, 1612, 1575, 1515, 1346, 1867, 792 cm-1.
3-3 Preparation of (5Z,12E)-11H-dibenzo[c,h][1,2,6]triazonine 5,6-dioxide (3)
Oxidation of the diamine by the tungstenate–peroxide (procedure 2-2-1), afford azodioxide in 21% yield
after recrystallization from acetone, white crystals mp 144-145 °C. Anal. Calcd for C14H11N3O2, C, 66.41;
H, 4.37; N, 16.59. Found C, 65.04; H, 3.92; N, 13.42. UV absorption in CHCl3 λmax 290 (ε = 9100) and

HETEROCYCLES, Vol. 81, No. 12, 2010
2815
251 nm (ε = 7850). IR : υ (KBr), 3010, 1620, 1409, 1393, 1308, 1273, 1215, 1105, 762 cm-1. 1H NMR δH
(ppm) (400 MHz, CDCl3), 7.01-7.33 m (4H); 3.97-4.09 s (2H); 1.8 s (1H). 13C NMR δC (ppm) (100 MHz,
CDCl3), 144.0; 123.5; 133.3; 126.6; 123.3; 116.5;97.8; 132.3 (C=N).
ACKNOWLEDGEMENTS
We wish to express thanks to Professor B. G. Gowenlok, School of Chemistry, the University of Exeter
for carrying out NMR analysis.
REFERENCES
1. B. G. Gewenlock and W. Q. Luttke, Rev. Chem. Soc., 1958, 12, 321.
2. D. A. Dictarich, I. C. Poul, and D. Incurs, J. Am. Chem. Soc., 1974, 96, 6372.
3. L. Anderson, M. Cameron, B. G. Gewnlock, and I. J. McEwen, J. Chem. Soc., Perkin Trans. 1, 1992,
243.
4. B. G. Gowenlock, H. Speeding, T. Trotman, and B. A. Whiffin, J. Chem. Soc., Perkin Trans. 1, 1957,
3927.
5. J. C. Stowell, J. Org. Chem., 1971, 36, 3055.
6. Z. A. N. Al-Shamkhani and A. H. Essa, Tetrahedron Lett., 2007, 48, 5547.
7. F. Bosch and J. Kochi, J. Org. Chem., 1994, 59, 5573.
8. A. K. Parhi and R. W. Franck, Org. Lett., 2004, 6, 3063.
9. F. Stappers, R. Broeckx, S. Leurs, L. Van Den Bergh, J. Agten, A. Lambrechts, D. Van den Heuvel,
and D. De Smaele, Org. Process Res. Dev., 2002, 6, 911.
10. T. K. M. Shing, W. F. Wong, T. Ikeno, and T. Yamada, Org. Lett. 2007, 9, 207.
11. D. Topic´, P. Aschwanden, R. Fässler, and E. M. Carreira, Org. Lett., 2005, 7, 5329.
12. S. Kanemasa, Y. Oderaotoshi, J. Tanaka, and E. Wada, J. Am. Chem. Soc., 1998, 120, 12355.
13. B. G. Gowenlock and L. Batt, J. Molecular Structure (Theochem.), 1998, 454, 103.
14. Z. A. Nasir, M.Sc. Thesis, Basrah University, 2000.
15. M. A. Al-Naimi, A. Al-Mowali, and N. N. Mejeed, Basrah J. Science, 1998, 16, 1.
16. K. G. Orrell, V. Sik, and D. Stephenson, Mag. Reso. Chem., 1987, 25, 1007.
17. K. G. Orrell, D. Stephenson, and T. Rault, Mag. Reso. Chem., 1989, 27, 368.
18. R. B. Kaplan and H. Shechter, J. Am. Chem. Soc., 1961, 83, 3535.
19. C. F. Lane, Aldrichimica Acta, 1974, 713.
20. P. L. Southwick and J. Casanova, J. Am. Chem. Soc., 1958, 80, 1168.
