One-Pot Synthesis of Symmetric and Asymmetric p-Quinone Ligands
and Unprecedented Substituent Induced Reactivity in Their Dinuclear
Ruthenium Complexes
David Schweinfurth, Hari Sankar Das, Fritz Weisser, Denis Bubrin, and Biprajit Sarkar*
€
Institut fu€r Anorganische Chemie, Universitat Stuttgart, Pfaffenwaldring 55, D-70550 Stuttgart, Germany
Received September 27, 2010
The compounds 2-[2-(trifluoromethyl)-anilino]-5-hydroxy-1,4-benzoquinone (L1), 2,5-di-[2-(trifluoromethyl)-anilino]-
1,4-benzoquinone (L2), 2-[2-(methylthio)-anilino]-5-hydroxy-1,4-benzoquinone (L3), and 2,5-di-[2-(methylthio)-
anilino]-1,4-benzoquinone (L4) were prepared in high yields by reacting 2,5-dihydroxy-1,4-benzoquinone with the
corresponding amines in a one-pot synthesis in refluxing acetic acid. This straightforward and “green” synthesis
delivers biologically relevant asymmetric p-quinones such as L1 and L3 in a rare, simple, one-step process. The
proposed synthetic route is general and can be applied to generate a variety of such molecules with different
substituents on the nitrogen atoms. Structural characterization of L2 and L4 shows electron delocalization across the
“upper” and “lower” parts of the molecule, thus showing the importance of charge separated species in the proper
description of such molecules. Reactions of these ligands with [Cl(η6-Cym)Ru(μ-Cl)2Ru(η6-Cym)Cl] (Cym =
p-Cymene = 1-isopropyl-4-methyl-benzene) in the presence of a base result in the formation of complexes
[{Cl(η6-Cym)Ru}2(μ-L-2H1)] (1), [{Cl(η6-Cym)Ru}2(μ-L-2H2)] (2), [{Cl(η6-Cym)Ru}2(μ-L-2H3)] (3), and
[{Cl(η6-Cym)Ru}2(μ-L-2H4)] (4). Structural characterization of 2 and 4 shows a rare syn-coordination of the chloride
atoms. The SMe groups in 3 and 4 are not coordinated to the ruthenium center, and the bridging ligands thus function in
a bis-bidentate form. Abstraction of the chloride atoms in these complexes with AgClO4 in CH3CN results in the
expected formation of solvent substituted complexes [{(CH3CN)(η6-Cym)Ru}2(μ-L-2H1)][ClO4]2 (5[ClO4]2) and
[{(CH3CN)(η6-Cym)Ru}2(μ-L-2H2)][ClO4]2 (6[ClO4]2) with the ligands where there are no additional donor atoms on
the nitrogen substituents. The same chloride abstraction reaction in the cases of 3 and 4 leads to an unprecedented
substituent induced release of the Cym ligand, resulting in complexes of the form [(CH3CN)(η6-Cym)Ru(μ-
L-2H3)Ru(CH3CN)3][ClO4]2 (7[ClO4]2) and [{(CH3CN)3Ru}2(μ-L-2H4)][ClO4]2 (8[ClO4]2), where the SMe groups
are now coordinated to the metal center. In the case of complex 3, which contains an asymmetric bridging ligand, Cym
release is observed only at the side that contains an additional SMe donor, thus proving the necessity of such donor
substituents for the observed reactivity. The increase in Lewis acidity at the ruthenium center on chloride abstraction is
made responsible for SMe coordination and the rigidity of the ligand systems, and their concomitant failure to
coordinate in a “fac” manner as is required for a piano stool configuration results in the eventual Cym release. The
bridging ligand which then coordinates in a bis-meridional fashion in 8[ClO4]2 results in a bis-pincer type of
coordination. These observations were validated by a structural analysis of 8[ClO4]2. The results show the potential
hemilabile character of ligands such as L3 and L4. Electrochemical and spectroscopic investigations are reported on
8[ClO4]2, and substitution reactions of the CH3CN molecules are presented to show the use of 8[ClO4]2 as a versatile
precursor for other reactions.
Introduction
photosynthesis.1-3 Owing to their facile electron transfer
properties, they are often found in combination with transi-
tion metal centers in biological systems.3,4 They are also
usually found in the paradoxical role of mutagenic agents as
well as effective antitumor agents.5 The biological activity of
quinone molecules is often related to the presence of acidic
Quinones are ubiquitous in biological systems, being
part of vital processes such as cellular respiration and
*Email: sarkar@iac.uni-stuttgart.de.
(1) Morton, R. A. The Biochemistry of Quinones; Academic Press:
New York: 1965.
(2) Patai, S.; Rappoport, Z. The Chemistry of Quinonoid Compounds;
Wiley and Sons: New York, 1988; Vols. 1 and 2.
(3) Nohl, H.; Jordan, W.; Youngman, R. J. Adv. Free Radical Biol. Med.
1986, 2, 211.
(4) Thompson, S. D. Naturally Occuring Quinones IV; Springer: The
Netherlands, 1996.
(5) Lin, A. J.; Cosby, L. A.; Sartorelli, A. C. Cancer Chemother. Rep. Part
2 1974, 4, 23.
r
pubs.acs.org/IC
Published on Web 01/07/2011
2011 American Chemical Society

Article
Inorganic Chemistry, Vol. 50, No. 3, 2011 1151
Scheme 1
Figure 1. Quinone containing -OH substituent.
protons in these molecules.6-8 Quinones of the form L
(Figure 1) containing an OH substituent play an important
role as inhibitors of tumors9 and of hydroxyphenyl pyruvate
dioxygenase.10 Despite intensive research efforts in that
direction, straightforward one-pot and green synthetic routes
for access to such molecules are, to the best of our knowledge,
nonexistent in the literature, with the existing procedures
requiring multistep synthesis, extraction from natural pro-
ducts, or involved purification steps.9-17
Coordination compounds with quinone ligands have been
studied for a variety of reasons, such as their interesting
electron transfer properties,18-22 magnetic behavior,23,24 use
in supramolecular chemistry,25,26 as well as homogeneous
catalysis.27,28 Ligand noninnocence is a well-known phenom-
enon in metal complexes of quinones,29-32 and recently
valence ambiguities arising out of such a process have been
extensively studied for diruthenium complexes containing
potentially bridging quinone ligands.20,33-35 Valence ambi-
guity as well as mixed valency are widely researched fields for
di- and multiruthenium complexes with a variety of ligands.36-43
Hemilability of ligands is an important phenomenon in
catalysis.44 Efforts at synthesizing potentially bridging qui-
none ligands with additional donor atoms capable of show-
ing hemilability have been rare until now.28 In view of our
interest in developing easy, straightforward, and green routes
for synthesizing various quinone ligands and exploring
their use in coordination and organometallic chemistry, we
ventured onto this present project.45-49 We present here a one-

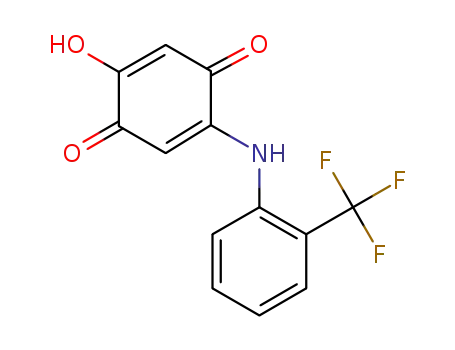

pot synthesis of the ligands 2-[2-(trifluoromethyl)-anilino]-5-
