Synthesis and Luminescence Properties of Iridium(III) Azide-
and Triazole-Bisterpyridine Complexes
Daniel C. Goldstein 1, Joshua R. Peterson 1, Yuen Yap Cheng 2, Raphael G. C. Clady 2,
Timothy W. Schmidt 2 and Pall Thordarson 1,*
1
School of Chemistry, The University of New South Wales, NSW 2052, Australia;
E-Mails: danielcgoldstein@gmail.com (D.C.G.); joshinoz2004@yahoo.com (J.R.P.)
2
School of Chemistry, The University of Sydney, NSW 2006, Australia;
E-Mails: cheng_y@chem.usyd.edu.au (Y.Y.C.), clady@lp3.univ-mrs.fr (R.G.C.C.);
timothy.schmidt@sydney.edu.au (T.W.S.)
* Author to whom correspondence should be addressed; E-Mail: p.thordarson@unsw.edu.au;
Tel.: +61-2-9385-54478; Fax: +61-2-9385-6141.
Received: 5 July 2013; in revised form: 24 July 2013 / Accepted: 24 July 2013 /
Published: 26 July 2013
Abstract: We describe here the synthesis of azide-functionalised iridium(III) bisterpyridines
using the “chemistry on the complex” strategy. The resulting azide-complexes are then
used in the copper(I)-catalysed azide-alkyne Huisgen 1,3-dipolar cycloaddition “click
chemistry” reaction to from the corresponding triazole-functionalised iridium(III)
bisterpyridines. The photophysical characteristics, including lifetimes, of these compounds
were also investigated. Interestingly, oxygen appears to have very little effect on the
lifetime of these complexes in aqueous solutions. Unexpectedly, sodium ascorbate acid
appears to quench the luminescence of triazole-functionalised iridium(III) bisterpyridines,
but this effect can be reversed by the addition of copper(II) sulfate, which is known to
oxidize ascorbate under aerobic conditions. The results demonstrate that iridium(III)
bisterpyridines can be functionalized for use in “click chemistry” facilitating the use of
these photophysically interesting complexes in the modification of polymers or surfaces, to
highlight just two possible applications.
Keywords: iridium(III); terpyridine; azide; click chemistry; lifetime measurements;
ascorbate quenching

Molecules 2013, 18
8960
1. Introduction
Iridium complexes have attracted much interest over the past several years due to their attractive
luminescent properties [1,2]. Cyclometallated complexes of iridium that display high intensity
luminescence are of special interest in the area of efficient organic light-emitting diodes (OLEDs) [3,4].
However, these complexes generally possess shorter lifetimes and higher oxygen sensitivity than
iridium(III) bis-2,2':6',2"-terpyridine complexes which display outstanding luminescence properties
with microsecond lifetimes and remarkable oxygen insensitivity for bioimaging [5].
These favourable properties result from the characteristic metal to ligand charge transfer (MLCT)
state for Ir(III) bisterpyridine, which is at a high enough energy that it does not interfere with the
emission properties. This is in stark contrast to other metal bisterpyridine complexes, for example
ruthenium(II) terpyridines, which possess short excited-state lifetimes (0.25 ns) and negligible
luminescence at room temperature [6] due to the presence of a MLCT state that is accessible via
thermal pathways [7]. The high energy of the Ir(III) bisterpyridine excited state and long excited states
lifetime have led to interest in using Ir(III) complexes in applications such as luminescent sensors and
photovoltaics [5,8] This also makes the bisterpyridine complexes more suited to sensing applications
where oxygen may be present, as well as for time-resolved and lifetime-based sensing methods [9–11].
Terpyridines are known to form complexes with a wide range of transition elements including first
[Mn(II), Fe(II), Co(II), Ni(II), Cu(I), Zn(II)] [12], second [Mo, Ru(II), Rh(III), Pd(II), Cd(II)] and third
[Re(II), Os(II), Ir(III), Pt(II), Au(III)] row d-block elements [13], group III [In(III)] as well as f-block
elements [La, Pr, Nd, Sm, Eu(III), Gd, Tb, Dy, Ho, Er, Tm, Yb] [14]. Terpyridine complexes of the
second and third row d-block elements, are much more kinetically stable than those of the first row
d-block elements due to increased charge transfer between the ligand and metal [15]. It was only
relatively recently that an efficient synthesis method for iridium terpyridine was developed [16].
We have adapted these methods for the synthesis of a series of novel complexes functionalised at the
4′-position and have reported previously on iridium(III) bisterpyridine complexes with aniline
modifications at the 4′-position of the terpyridine [17]. These aniline complexes were of interest for
sensing applications as the emission maximum shifts with solvent environment.
Carrying on from our previous results, we have explored the synthesis and photophysical properties
of iridium(III) bisterpyridine complexes with benzyl azide modifications at the 4′-position of the
terpyridine. The azide functionality is of particular interest in conjunction with “click” chemistry
which has become a popular method for organic synthesis, particularly where benign conditions are
required [18,19]. The most famous example, the copper(I)-catalysed azide-alkyne Huisgen 1,3-dipolar
cycloaddition [19,20], is particularly attractive as it can be carried out in aqueous solutions with only
catalytic copper(I) required and common functional groups (e.g., amines, carboxylic acids, thiols) do
not interfere with the selective reaction. However, due the relatively harsh conditions required to
synthesise iridium(III) bisterpyridines, azide- or alkyne-functionalised Ir(III) bisterpyridines have not
been reported in the literature and subsequently they not found use in click chemistry.
Herein, we describe the synthesis of azide functionalized iridium(III) bisterpyridine complexes
utilising the “chemistry on the complex approach” [21], the cycloaddition reaction with an alkyne
compound of interest, and the photophysical properties of the resulting complexes. It is of interest to

Molecules 2013, 18
8961
note that the triazol products of the cycloaddition reaction emit more strongly than the azide starting
materials making them potentially useful in luminescent sensing applications.
2. Results and Discussion
2.1. Synthesis of Iridium(III) Bisterpyridine Azide Complexes 5 and 6
To synthesise the desired azide-functionalised iridium(III) bisterpyridine, the order of reactions,
particularly the azide formation versus the crucial formation of the iridium(III) complex, needs to be
carefully considered. Although iridium trichloride is the most obvious precursor for this complex
formation, it is particularly inert. Ayala et al. reported the first iridium(III) bisterpyridine synthesis in
1990 based on melting the precursors together at elevated temperatures with arduous work-up [22].
Collin et al. then found that by refluxing iridium trichloride with the terpyridine precursors in ethylene
glycol, yielded iridium(III) bisterpyridine in good yields with relative ease [16].
Previously reported attempts to prepare an azide-functionalised ruthenium complex by refluxing
ruthenium(II) chloride and 4′-(4-azidomethyl)phenyl-2,2′:6′,2′′-terpyridine in ethanol have been
unsuccessful, possibly due to the formation of side products as a result of azide coordination with
ruthenium [23]. Since the conditions for iridium(III) complexation are even harsher, the direct
introduction of an azide terpyridine was not attempted. The most common route for introducing an
azide is by substitution of a suitable leaving group (bromine, tosyl) using sodium azide. However,
attempts to form iridium(III) complexes using 4′-(4-bromomethylphenyl)-terpyridine were unsuccessful
and lead to the reaction between the brominated terpyridine and the ethylene glycol solvent to result in
an iridium(III) terpyridine complex functionalized instead with glycol groups. The successful synthesis
of the ruthenium(II) 4′-(4-bromomethylphenyl)-terpyridine has been reported [24], but the yield for
this reaction was only 5%, due to a similar side-reaction with ethanol at reflux. This illustrates the
difficulty of introducing sensitive functional groups at the temperatures required for iridium(III)
complexation. The iridium(III) terpyridine complexes described in this paper were therefore
synthesised using the step-wise “chemistry on the complex” [21] strategy based on direct diphenyl
phosphoryl azide activation of a 4-hydroxylmethylphenyl derivative as shown in Scheme 1 below.

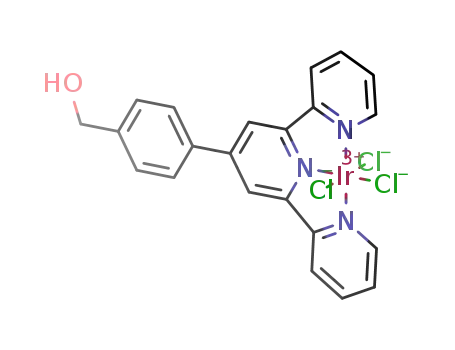

The mono-complexes of Ir(III) 1, 2 were synthesised by mixing iridium(III) chloride with the
corresponding ligand and heating in degassed ethylene glycol at 160 °C for 15 min. After the reaction
mixture had cooled, the resulting precipitate was filtered and washed with water, ethanol, and diethyl
ether to give the mono-terpyridine complexes 1 and 2 in modest yields (39% and 47%, respectively).
The resulting complexes are only soluble in dimethylsulfoxide and N,N-dimethylformamide. The structure
and purity of the complexes were confirmed by HR-MS and 1H- and 13C-NMR. Further reaction of the
mono-terpyridine complexes with the appropriate ligand in ethylene glycol at 160–180 °C for 20 min
resulted in the bisterpyridine complexes 3 and 4 in reasonable yields (88% and 58%).
Thompson et al. have reported a direct conversion of activated alcohols to azides as a simple
alternative to Mitsunobu conditions [25]. Following this procedure, an Ir(III) hydroxyl complex
(3 or 4) was dissolved in a small amount of N,N-dimethylformamide to which was added 10 molar
equivalents of diphenyl phosphoryl azide (Scheme 1). This mixture was cooled on ice before excess
1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) was added dropwise to the stirring solution, and the

Molecules 2013, 18
8962
reaction mixture was allowed to warm to room temperature and stir for several days. Addition of
aqueous ammonium hexafluorophosphate resulted in orange to red precipitates that were filtered,
washed with water, cold ethanol and diethyl ether. The reaction proceeds cleanly, with the only
by-product being the water soluble DBU salt of diphenyl phosphate which remains in the aqueous
solution or is washed off the precipated hexafluorophosphate salt of the complex. After recrystallisation
from acetonitrile diethyl ether, pure azides 5 and 6 were obtained in yields up to 96%. The successful
1
substitution of the alcohol with azide was then confirmed by the H-NMR shift of the methyl proton
13
peak (0.2 ppm shift upfield), C-NMR, HR-MS and infrared spectra of the complexes showed a new
peak corresponding to the characteristic azide stretch at 2100 cm−1.
Scheme 1. Step-wise synthesis of azide and triazole funtionalised Ir(III) terpyridine complexes.
Reagents and Conditions: (a) ethylene glycol, 160 °C, 15 min; (b) ethylene glycol, 160–180 °C, 20 min;
(c) (C6H5)2P(O)N3 (diphenyl phosphorylazide), 1,8-diazabicyclo[5.4.0]undec-7-ene, N,N-dimethylformamide,
room temperature, 3 days; (d) N,N-dimethylformamide, copper sulphate (aq), sodium ascorbate, 3 days.
2.2. Synthesis of 1-(Prop-2-ynyl)-1H-pyrrole-2,5-dione (9)
To assess the functionality of the azide group and its effect on the photophysical properties of the
iridium complexes, an alkyne compound, 1-(prop-2-ynyl)-1H-pyrrole-2,5-dione [26] (9, Scheme 1),
was synthesized for use in the “click” reaction. This compound was prepared for these and future

Molecules 2013, 18
8963
studies due to its additional maleimide functionality, which can be used to selectively couple with thiol
compounds through Michael addition [27]. The resulting alkyne-maleimide linker, is a key reagent that
could be used to incorporate an alkyne group onto proteins containing cysteine residues, such as
cytochrome c [28–30], or onto thiol-functionalized surfaces.
There are a number of reported routes for the synthesis of dione 9, including the alkylation of a
furan-protected maleimide with an alkyl halide under basic conditions [31], and the Mitsunobu
reaction of the parent maleimide with an alcohol [32]. However, the classic method for dione synthesis
is the condensation of maleic anhydride with a substituted amine, followed by ring closure in acidic
conditions [33], and this was the route chosen for the synthesis of the previously reported dione 9 [26].
2.3. Click Chemistry Reaction
The azide complexes were subsequently reacted with alkyne-maleimide 9 using Cu(I) catalysed
azide-alkyne cycloaddition. Azide complex 5 or 6 was combined with alkyne-maleimide 9 in
N,N-dimethylformamide (1–2 mL) to which was added a small volume (0.2–1.0 mL) of a freshly
prepared aqueous solution containing an excess of copper sulphate and sodium ascorbate (Scheme 1).
After stirring for three days, excess aqueous ammonium hexafluorophosphate (30–40 mL) was added,
precipitating yellow/orange solids which were recrystallised from acetonitrile/diethyl ether to give the
products 7 and 8 in yields of 84% and 24%, respectively.
Formation of the products was confirmed by 1H- and 13C-NMR, HR-MS and infrared spectroscopy
with the latter no longer shows the azide stretch at 2100 cm−1. The singlets in the deuterated
1
acetonitrile H-NMR spectrum corresponding to the triazole (8.04 ppm), pyrolle (6.82 and 6.94 ppm)
and methyl (adjacent to pyrolle) (5.73 and 5.83 ppm) integrate with the terpyridine protons in the
correct ratios, but only if the delay time for the NMR acquisition is set to a suitably long enough value
(T1 = 20 s). This allows for differences in relaxation time between protons in the flexible triazole chain
and on the terpyridine scaffold to be taken into account.
2.4. Steady-State Photophysical Characterization
The absorption spectra of azido complexes 5 and 6 and triazoyl complexes 7 and 8 are shown in
Figure 1. These complexes possess absorption properties typical of iridium bisterpyridine complexes,
with a series of peaks appearing below 400 nm assigned to ligand centred transitions. The molar
absorption coefficients are in the range of 104 and 105 M−1 cm−1 (Table 1), in agreement with previously
reported values of related complexes.
All four complexes possess absorption tails extending into the visible region, and are more
pronounced for triazoyls 7 and 8. This extended absorption is evidence of ILCT processes similar to
processes described previously for the related aniline complexes in which the functional group acts as
an electron donor while the terpyridine acts as an acceptor [17]. This is also supported by the emission
properties described below.

Molecules 2013, 18
Figure 1. Room-temperature absorption spectra of acetonitrile solutions of 5–8.
8964
Table 1. Ground State Absorption Maxima and Intensities.
λmax/nm (ε/M−1cm−1) a
5
6
7
8
252 (47,900); 278 (39,000); 299 (32,100); 320 (29,500); 335 (24,200); 366 (10,900)
252 (61,000); 298 (54,600); 320 (44,600); 341 (37,800); 370 (23,400)
250 (42,200); 298 (34,800); 320 (23,200); 365 (11,400); 371 (26,300)
251 (55,100); 286 (45,000); 320 (33,800); 341 (29,000); 370 (18,600)
a CH3CN solvent.
Although there is little difference in the absorption spectra of these complexes, the emission
obtained with the azide complexes 5 and 6 is much weaker than that of the triazole complexes 7 and 8,
and also weaker than the emission of related complexes possessing hydroxyl groups [17]. Furthermore,
the bis-azide complex 6 produces the weakest emission, suggesting that the azide group provides the
most efficient deactivation pathway (Figure 2). The substantial increase in emission intensity upon
triazole formation suggests that the azide complexes 5 and 6 could be useful for the detection of
alkyne-tagged proteins, as the increase in emission intensity would improve signal to noise against a
background of “unbound” azide complexes. The increase in emission intensity could also be used to
optimise the efficiency of copper catalysed cycloaddition reactions with organic alkynes.
2.5. The Effect of Ascorbate on Using Luminescence to Monitor the “Click” Reaction
The optimisation of cycloaddition reactions is often carried out by monitoring reactions using azide
dyes that improve in fluorescence or luminescence upon triazole formation [34], and the most
frequently used catalysts for click reactions involve ascorbate reduction of copper(II) to copper(I)
in situ. Monitoring the change in the luminescence of going from the Ir(III) bisterpyridine azide complex 5
to the corresponding triazole complex 7 under these conditions was complicated by the discovery that
ascorbate is an efficient luminescent quencher of 7 under these conditions (Figure 3). Ascorbate is a

Molecules 2013, 18
8965
biological antioxidant that quenches singlet oxygen [35], and is a well-known fluorescent quencher of
other chromophores such as chlorophyll (triplet state) [36] and tryptophan [37,38].
Figure 2. Room-temperature luminescence spectra of air-equilibrated iso-absorbing
acetonitrile solutions of 5–8. Excitation was at 350 nm. The arrows indicate the increase in
emission intensity upon triazole formation.
Figure 3. (a) Luminescent quenching of 7 upon the addition of ascorbate under aerated
aqueous conditions at room temperature. Conditions, 7 (10 µM), HEPES buffer (20 mM)
pH 7.0. (b) Decrease in λmax (498 nm) for 7 (10 µM), HEPES buffer (20 mM) pH 7.0, as a
function of added ascorbic acid (from 0 to 20 µM).
The nonlinear behaviour observed in the Stern-Volmer plot (Figure 3B) suggests that quenching
may be due to a combination of static and dynamic binding. This may be accounted for by electrostatic
interactions between the negatively charged ascorbate and the tripositive Ir(III) complex.

Molecules 2013, 18
8966
The effect of copper(II) sulphate addition to a mixture of Ir(III) complex 7 and ascorbate was also
investigated, and resulted in a gradual increase in the emission intensity (Figure 4). This may be due to
the consumption of oxygen in solution due to the oxidation of ascorbate in the presence of copper(II).
In fact, such copper sulphate/ascorbate systems have previously been reported in relation to
luminescent probes for oxygen intake in biological systems using the more oxygen-sensitive ruthenium
bipyridine [39]. These two factors (ascorbate quenching and oxygen consumption) make monitoring
the efficiency of the reaction under these conditions a difficult task and likely difficult to quantify.
Figure 4. (a) Luminescence of 7 (10 μM), HEPES buffer (20 mM) pH 7.0 with ascorbate
(40 μM) solution from t = 0 min to t = 60 min after the addition of copper(II)sulphate
(40 µM). (b) Increase in λmax (498 nm) for 7 (10 µM), HEPES buffer (20 mM) pH 7.0, as a
function of time upon the addition of copper(II)sulphate (40 µM).
2.6. Luminescent Lifetimes of the Iridium(III) Azide and Triazole Bisterpyridine Complexes
Generally, it has been found that the emission properties of iridium(III) bisterpyridine complexes
are significantly worse in acetonitrile than in water. Reduced quantum yields (calculated from
integration of the emission spectra on an energy scale) and shortened luminescent lifetime in
acetonitrile are believed to be due to increased rates of non-radiative deactivation [5]. This makes the
iridium(III) bisterpyridines more suited to aqueous conditions for application purposes.
The emission lifetimes of the azide and triazole complexes are substantially different from Ir(III)
complexes described previously, especially with regards to lifetime in acetonitrile as compared to
water (Table 2). Degassing aqueous solutions of the azide and triazole complexes has almost no effect
on the emission lifetimes, and surprisingly long lifetimes are obtained in degassed acetonitrile. The
reduction in quantum yield, the shorter lifetimes in degassed water and the longer lifetimes in degassed
acetonitrile are indicative of emission from charge transfer bands similar to those described for the
previously described aniline complexes [17]. In those cases, the lifetimes were typically 2 to 3 times
(and up to 5 times) longer in degassed water than the lifetimes in degassed acetonitrile. However, for
azide and triazole complexes 5, 6 and 8, the reverse is true with lifetimes in degassed acetonitrile being
longer than the lifetimes in degassed water.

Molecules 2013, 18
8967
a
c
Table 2. Band maximum for the highest energy peak, uncorrected spectra. Quantum
yields obtained from corrected spectra.
H2O
λa (nm) τb (μs)
497
497
494
493
CH3CN
λa (nm)
498
τb (μs)
102 x Φec
102 × Φec
5
6
7
8
1.5 (5.7) 0.7
1.3 (8.9) 0.5
1.3 (2.9) 1.4
2.3 (5.2) 2.1
3.8 (3.9) 0.9
498
4.0 (4.0) 0.3
493
3.6 (4.5) 2.5
2.3 (2.7) 2.2
495
a Emission band maximum for the highest energy peak. b Emission lifetimes (λex = 360 nm) obtained with
c
air-equilibrated samples, values in parenthesis for degassed solvent, 293 K. Quantum yields (λex = 350 nm)
obtained from corrected spectra using bis(4-tolyl-2,2′:6′:2′′-terpyridine)iridium(III)tris(hexafluorophosphate)
at 293 K as 0.029 in acetonitrile as a reference [16]. Quantum yields in water are adjusted for refractive index [36].
3. Experimental
3.1. Chemicals
Chemicals were purchased from Sigma Aldrich (St. Louis, MO, USA) with the exceptions of
ammonium acetate, sodium dihydrogen phosphate, sodium carbonate, sodium hydroxide, anhydrous
sodium sulphate which were purchased from Ajax Finechem Pty. Ltd. (Sydney, Australia) 4-
nitrobenzaldehyde (BDH, Poole Dorset, UK) and ammonium hexafluorophosphate (Acros Organics,
Geel, Belgium). Neutral alumina oxide (alumina Oxide 90 neutral, 20–230 mesh) was purchased from
Merck (city, country) and silica (Davisil 40–63 µM) was purchased from Grace (Deerfield, IL,
U.S.A.). Dichloromethane and methanol were distilled before use. Dry solvents such as acetonitrile,
dichloromethane, diethyl ether, and tetrahydrofuran were obtained from a Pure Solv dry solvent
system (Innovative Technology, Inc. model #PS-MD-7, Amesbury, MA, USA). Dry N,N-
dimethylformamide and dimethylsulfoxide were purchased from Sigma Aldrich and used directly from
the bottle. Deuterated solvents for NMR were obtained from Cambridge Isotope Laboratories
(Tewksbury, MA, USA).
3.2. Spectroscopy
1H-NMR spectra were recorded in the designated solvents using a Bruker Avance (200 MHz) or a
Bruker Avance DPX (300 MHz) spectrophotometer. Multiplicities are assigned as singlet (s), doublet
(d), triplet (t), quartet (q), multiplet (m) and denoted as broad (br) where appropriate. Chemical shifts
are measured in parts per million (ppm), internally referenced relative to tetramethylsilane (SiMe4, 1H
and 13C = 0 ppm) or residual solvent peaks (CD3CN: 1H = 1.94 and 13C = 1.32; DMSO-d3: 1H = 2.50,
13C = 39.52). UV-Vis spectra were recorded using a Varian Cary 5E UV-Vis-NIR spectrophotometer
as solutions in spectroscopy-grade acetonitrile, distilled water, or buffer solution, as indicated in the
text. Uncorrected data is reported as wavelength (λ) in nm and absorption coefficient (ε) in cm−1 M−1.
Infrared spectra were recorded either on a Perkin-Elmer 580B or a Spotlight 400 FT-IR with an ATR
module, and refer to solid sample by ATR or KBR disk, or as liquid sample in acetonitrile using a
liquid IR cell as indicated in the text. MS (ESI) was carried out either on a Finnigan Mat SpectaSystem

Molecules 2013, 18
8968
HPLC with a Finnigan LCQ-DECA electrospray mass spectrometry unit or a Waters Micromass ZQ
2000 ESCi Multi-mode Ionisation Source mass spectrometer. High resolution ESI mass spectra were
recorded on a Thermo Scientific Linear Quadropole Ion Trap with Orbit Mass Analyser (LTQ
ORBITRAP XL) mass spectrometer.
3.3. Steady-State and Lifetime Fluorescence
Room temperature fluorescence measurements were acquired using a Varian Cary Eclipse
fluorescence spectrophotometer with either air-equilibrated or degassed samples as indicated.
Degassing was performed by freeze-thawing (three cycles) in a degassing cuvette until pressure was
less than 10−2 mmHg. Uncorrected luminescence band maxima are reported throughout the text.
Luminescence quantum yields were obtained from corrected spectra using bis(4-tolyl-2,2′:6′:2′′-
terpyridine)iridium(III)tris(hexafluorophosphate) at 293 K in acetonitrile as a reference (λex = 350 nm,
Φe(ref) = 0.029) [16]. Quantum yields in water were adjusted for refractive index (according to
equation: Φe = Φe(ref) × (Ar × n2 × I)/(A × nref) × Ir) where A is absorbance (~0.07 AU) and n is
2
refractive index of the solvent) [40]. The quantum yields are based on the area under the emission
curve plotted on an energy rather than wavelength scale. Luminescence lifetimes were obtained using
a femtosecond Clark MXR CPA 2210 laser source equipped with a Topaz (-c) light converter to obtain
excitation light at 380 nm. The emission was recorded by a Spectrapro 2300i monochromator
(Princeton Instruments, Trenton, NJ, USA) with attached iCCD camera. The uncertainty of the
evaluated lifetimes is 20%.
3.4. Syntheses
3.4.1. General Method A: Preparation of Ir(terpy-R)Cl3
Iridium(III) trichloride hydrate salt (73–205 mg, 0.244–0.948 mmol) and the desired terpyridine
(64–224 mg, 0.274–0.691 mmol, 1.1 mol. eq.) were crushed together with a glass rod. Ethylene glycol
(5–15 mL) was added and the mixture degassed with three vacuum/nitrogen cycles before being heated
to 160 °C in the dark and under nitrogen atmosphere for 15 min. The reaction mixture was allowed to
cool to room temperature and the resulting precipitate was collected by filtration and washed with
water, ethanol, and diethyl ether.
3.4.2. General Method B: Preparation of [Ir(terpy-R1)(terpy-R2)](PF6)3
Iridium(III) trichloride hydrate (20–147 mg, 0.041–0.236 mmol) salt and the corresponding
terpyridine (22–150 mg, 0.041–0.669 mmol, 1.1 mol. eq.) were crushed together with a glass rod.
Ethylene glycol (5–15 mL) was added and the mixture degassed with three vacuum/nitrogen cycles
before being heated to 160–180 °C in the dark and under nitrogen for 20 min. The reaction mixture
was allowed to cool to room temperature before an aqueous solution of excess ammonium
hexafluorophosphate (40–100 mL) was added. The resulting precipitate was collected by filtration and
washed with water, ethanol, and diethyl ether, followed by recrystallisation from acetonitrile/diethyl
ether. If necessary, this was then purified by column chromatography followed by precipitation using

Molecules 2013, 18
8969
aqueous ammonium hexafluorophosphate, filtered, and recrystallised from acetonitrile/diethyl ether to
give the final product.
3.4.3. General Method C: Direct Conversion of Alcohols to Azides Using Diphenyl Phosphorazidate (SN2)
A solution of metal terpyridine complex [possessing one or two 4′-(4-hydroxymethylphenyl)-
2,2′:6′2′′-terpyridine ligands: M(terpy-Φ-CH2OH)n(terpy)(2-n) (where n = 1,2, M = Ir, Ru)] and
diphenyl phosphoryl azide (DPPA, 10 mol. eq.) in dry dimethylformamide (1–2 mL) was cooled to
0 °C for 10 min before 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU, 12 mol. eq.) was added dropwise
and the reaction mixture allowed to warm to room temperature. The reaction was left stirring in the
dark and under nitrogen for 3 days before an aqueous solution of ammonium hexafluorophosphate
(30–40 mL) was added to precipitate a solid that was collected by filtration and recrystallised from
acetone/diethyl ether to yield the product.
3.4.4. General Method D: Copper Catalysed Huisgen 1,3-Dipolar Cycloaddition
To a solution of metal terpyridine complex [possessing either one or two 4′-(4-azidomethylphenyl)-
2,2′:6′2′′-terpyridine ligands: M(terpy-Φ-CH2N3)n(terpy)(2-n) (where n = 1,2, M = Ir, Ru)] and
1-(2-propynyl)-1H-pyrrole-2,5-dione 9 in N,N-dimethylformamide (1–2 mL), an aqueous solution
(200–1,000 μL) of copper sulphate (3–10 mol. eq.) and sodium ascorbate (3–10 mol. eq.) was added
and the solution stirred for 3 days in the dark and under nitrogen. Aqueous ammonium
hexafluorophosphate (30–40 mL) was then added and the resulting precipitate collected by filtration
and recrystallised from acetonitrile:diethyl ether to give the final product.
Synthesis of 4′-(4-Hydroxymethylphenyl)-2,2′:6′2′′-terpyridine starting material [41]. To a mixture of
crushed sodium hydroxide (1.00 g, 25.0 mmol) and poly(ethylene glycol) (PEG-400) (15 mL) at 0 °C
was added 2-acetylpyridine (3.78 g, 31.0 mmol). After 5 min, 4-(hydroxymethyl)benzaldehyde (2,
1.80 g, 13.0 mmol) was added and stirred at 0 °C for 2 h. Aqueous ammonia (15 mL, 25%) was then
added and was heated to 100 °C for an additional 2 h. The resulting precipitate was collected by
filtration and washed with water and cold ethanol. Recrystallisation from ethanol gave the terpyridine
4′-(4-Hydroxymethylphenyl)-2,2′:6′2′′-terpyridine as an off-white solid (1.50 g, 34%): mp 203–204
°C; 1H-NMR (200 MHz, CDCl3): δ 8.74–8.66 (m, 6H, H3′, H6, H3), 7.93–7.84 (m, 4H, H4, H5), 7.51 (d,
2H, J = 8.5 Hz, Hb), 7.35 (ddd, 2H, J = 7.2, 5.5, 1.7 Hz, Ha), 4.80 (d, 2H, J = 5.4 Hz, -CH2OH), 1.84
(br s, 1H, -OH). MS (ESI): m/z 340.18 ([M+H]+, C22H18N3O+ requires 340.15). This data is in
agreement with reported literature [41].
Synthesis of trichloro(2,2′:6′:2′′-terpyridine)iridium(III) (1) [16]. Using general method A, iridium(III)
trichloride hydrate (106 mg, 0.274 mmol) salt and 2,2′:6′2′′-terpyridine (64 mg, 0.274 mmol) yielded
complex 1 as a red solid (58 mg, 39%): mp >300 °C; 1H-NMR (200 MHz, DMSO-d6): δ 9.21 (d, 2H,
J = 4.5 Hz, H6), 8.77–8.69 (m, 4H, H3′, H3), 8.31–8.18 (m, 3H, H4′, H4), 7.99–7.93 (dd, 2H, J = 6.6 Hz,
+
H5). MS (ESI): m/z ([M−Cl]+, C15H11IrN3Cl2 requires 496.0). FT-IR (ATR): υ/cm−1 3443br, 3063w,
2923w, 2853w, 1602s, 1546w, 1473m, 1434m, 1393m, 1237m, 1159w, 1104m, 1049m, 819m, 782s.
This data is in agreement with reported literature [16].

Molecules 2013, 18
8970
Synthesis of trichloro(4′-(4-hydroxymethylphenyl)-2,2′:6′2′′-terpyridine)iridium(III) (2). Using general
method A, iridium(III) trichloride hydrate (100 mg, 0.335 mmol) salt and 4′-(4-hydroxymethylphenyl)-
2,2′:6′2′′-terpyridine (115 mg, 0.339 mmol) yielded complex 2 as a red solid (100 mg, 47%): mp > 300 °C;
1H-NMR (300 MHz, DMSO-d6): δ 9.22 (dd, 2H, J = 5.6, 1.0 Hz, H6), 9.09 (s, 2H, H3′), 8.90 (d, 2H,
J = 9.0 Hz, H3), 8.29 (ddd, 2H, J = 7.9, 7.9, 1.5 Hz, H4), 8.19 (d, 2H, J = 8.34 Hz, Ha), 7.97 (ddd, 2H,
J = 6.9, 5.7, 1.3 Hz, H5), 7.61 (d, 2H, J = 8.4 Hz, Hb), 5.38 (t, 1H, J = 5.6 Hz, -OH), 4.67 (s, 2H,
13
-CH2OH). C (75 MHz, DMSO-d6): δ 159.2, 157.3, 153.0, 150.9, 145.9, 140.3, 133.3, 128.4, 128.0,
127.0, 125.4, 120.7, 62.8, 62.4. HRMS (ESI): m/z 659.9913 ([M+Na]+ C22H17N3ONaCl3Ir+ requires
659.9964). MS (ESI): m/z 660.2 ([M+Na]+ C22H17N3ONaCl3Ir+ requires 660.0). FT-IR (ATR): υ/cm−1
3509w, 3067w, 2857w, 1697w, 1605s, 1545m, 1471m, 1427m, 1405s, 1300w, 1236w, 1155w, 1051m,
1011w, 977w, 885w, 811w, 786s.
Synthesis of (4′-(4-hydroxymethylphenyl)-2,2′:6′2′′-terpyridine)(2,2′:6′:2′′-terpyridine)iridium(III)tris
(hexafluorophosphate) (3). Using general method B, trichloro(2,2′:6′:2′′-terpyridine)iridium(III) 1
(100 mg, 0.183 mmol) and 4′-(4-hydroxymethylphenyl)-2,2′:6′2′′-terpyridine (67 mg, 0.198 mmol),
after purification by column chromatography (silica, acetonitrile/water/aqueous potassium nitrate
1
(saturated), 70:29:1, v/v/v), yielded complex 3 (195 mg, 88%): mp >300 °C; H-NMR (300 MHz,
CD3CN): δ 9.07 (s, 2H, H3′ of 3), 8.85 (d, 2H, J = 8.8 Hz, H3′ of 1), 8.80–8.70 (m, 3H, H3 of 3, H4′ of
1), 8.59 (dd, 4H, J = 7.5, 0.7 Hz, H3 of 1), 8.26–8.18 (m, 6H, H4, Hb of 3, H4 of 1), 7.77 (d, 2H, J = 7.7 Hz,
Ha of 3), 7.69 (dd, 2H, J = 5.7, 0.8 Hz, H6 of 3), 7.58 (dd, 2H, J = 4.3, 0.5 Hz, H6 of 1), 7.52–7.45 (m,
13
4H, H5 of both terpys), 4.82 (s, 2H, -CH2-). C (75 MHz, CD3CN): δ 159.0, 157.0, 155.7, 155.5,
154.4, 154.3, 144.7, 143.9, 134.8, 130.8, 129.4, 128.7, 128.5, 127.6, 125.1, 64.0. HRMS (ESI): m/z
1055.1226 ([M−PF6]+, C37H28F12IrN6OP2 requires 1055.1237). MS (ESI): m/z 1055.21 ([M−PF6]+,
C37H28F12IrN6OP2 requires 1055.12). FT-IR (ATR): υ/cm−1 3418br, 3063w, 2939w, 2865w, 1606s,
1548m, 1474m, 1403m, 1241m, 1105m, 1052m, 836s (PF6).
Synthesis of bis(4′-(4-hydroxymethylphenyl)-2,2′:6′:2′′-terpyridine)iridium(III) tris(hexafluorophosphate)
(4). Using general method B, trichloro(4′-(4-hydroxymethylphenyl)-2,2′:6′2′′-terpyridine)iridium(III) 2
(100 mg, 0.157 mmol) and 4′-(4-hydroxymethylphenyl)-2,2′:6′2′′-terpyridine (58 mg, 0.171 mmol)
1
yielded complex 4 as an orange-yellow solid (120 mg, 58%): mp >300 °C; H-NMR (300 MHz,
CD3CN): δ 9.09 (s, 4H, H3′), 8.73 (d, 4H, J = 7.9 Hz, H3), 8.27–8.19 (m, 8H, H4, Hb), 7.77 (d, 4H,
J = 8.31 Hz, Ha), 7.70 (d, 4H, J = 4.5 Hz, H6), 7.50 (dd, 4H, H5, coupling constants too close to allow
13
exact values), 4.83 (s, 4H, -CH2OH), 3.50 (br s, 2H, OH). C-NMR (75 MHz, CD3CN): δ 159.0,
156.9, 155.4, 154.2, 147.6, 143.7, 134.7, 130.6, 129.3, 128.6, 128.2, 125.0, 63.9. HRMS (ESI): m/z
+
1161.1665 ([M−PF6]+, C44H34F12IrN6O2P2 requires 1161.1655). MS (ESI): m/z 1161.1 ([M−PF6]+
requires 1161.2). IR (KBr) υ/cm−1: 3675m, 3110m, 2950w, 2875w, 2360m, 2339m, 1700s, 1653m,
1558m, 1479m, 1250m, 838s (PF6).
Synthesis of (4′-(4-azidomethylphenyl)-2,2′:6′,2′′-terpyridine) (2,2′:6′,2′′-terpyridine)iridium(III)tris
(hexafluorophosphate) (5). Using general method C, (4′-(4-hydroxymethylphenyl)-2,2′:6′:2′′-
terpyridine) (2,2′:6′,2′′-terpyridine)iridium(III)tris(hexafluorophosphate) 3 (190 mg, 0.156 mmol),
diphenylphosphorylazide (DPPA) (444 mg, 0.366 mmol), and 1,8-diazabicyclo[5.4.0]undec-7-ene

Molecules 2013, 18
8971
1
(DBU) (234 mg, 1.54 mmol) yielded complex 5 as a dark red solid (184 mg, 96%). H-NMR (300
MHz, CD3CN): δ 9.08 (s, 2H, H3′ of terpy-N3), 8.86 (d, 2H, J = 8.0 Hz, H3′ of 1), 8.80–8.69 (m, 3H, H3
of terpy-N3, H4′ of 1), 8.59 (d, 4H, J = 8.0 Hz, H3 of 1), 8.25–8.18 (m, 6H, H4 and Hb of terpy-N3, H4
of 1), 7.78 (d, 2H, J = 8.1 Hz, Ha of terpy-N3), 7.68 (d, 2H, J = 5.3 Hz, H6 of terpy-N3), 7.59 (d, 2H,
J = 5.2 Hz, H6 of 1), 7.51–7.49 (m, 4H, H5 of 1 and H5 of terpy-N3), 4.65 (s, 2H, -CH2-). 13C (75 MHz,
CD3CN): δ 158.9, 155.7, 155.6, 154.5, 154.3, 144.7, 143.8, 134.8, 130.8, 130.6, 129.9, 128.4, 127.6,
+
125.3, 54.6. HRMS (ESI): m/z 1080.1305 ([M−PF6]+, C37H27F12IrN9P2 requires 1080.1302). FT-IR
(ATR): υ/cm−1 3647w, 3092w, 2102m (N3), 1609m, 1480m, 1456m, 1405w, 1250m, 1034m, 825s (PF6).
Synthesis of bis(4′-(4-azidomethylphenyl)-2,2′:6′,2′′-terpyridine)iridium(III)tris(hexafluorophosphate)
(6). Using general method C, bis(4′-(4-hydroxymethylphenyl)-2,2′:6′:2′′-terpyridine)iridium(III)tris
(hexafluorophosphate) 4 (75 mg, 0.055 mmol), diphenylphosphorylazide (DPPA) (125 µL, 0.580 mmol),
and 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) (100 µL, 0.670 mmol) yielded complex 6 as red
1
crystals (55 mg, 70%). H-NMR (300 MHz, acetone-d6): δ 9.10 (s, 4H, H3′), 8.72 (d, 4H, J = 7.8 Hz,
H3), 8.26–8.21 (m, 8H, H4 and Hb), 7.80 (d, 4H, J = 8.4 Hz, Ha), 7.70 (d, 4H, J = 5.2 Hz, H6), 7.61 (dd,
4H, H5, coupling constants too close to allow determination of their exact values), 4.65 (s, 4H,
-CH2N3). 13C-NMR (75 MHz, CD3CN): δ 159.0, 156.5, 155.6, 154.4, 143.8, 141.1, 136.3, 130.6,
+
129.9, 128.4, 125.3, 54.6. HRMS (ESI): m/z 1211.1806 ([M−PF6]+, C44H32F12IrN12P2 requires
+
1211.1786). MS (ESI): m/z 1211.28 ([M−PF6]+, C44H32F12IrN12P2 requires 1211.18). IR (KBr) υ/cm−1:
3629w, 3110w, 2361w, 2336w, 2097m (s, N3), 1684m, 1653m, 1558m, 1506m, 1479m, 1437m, 1254m,
1033m, 1016m, 838s (PF6).
Synthesis of (1-((1-(4-(2,2':6',2"-terpyridine)benzyl)-1H-1,2,3-triazol-4-yl)methyl)-1H-pyrrole-2,5-
dione)(2,2':6',2''-terpyridine)iridium(III)tris(hexafluorophosphate) (7). Using general method D,
(2,2':6',2''-terpyridine)(4'-(4-azidomethylphenyl)-2,2':6',2''-terpyridine)iridium(III)tris(hexafluorophosphate)
5 (30 mg, 0.0245 mmol), 1-(2-propynyl)-1H-pyrrole-2,5-dione 9 (3.5 mg, 0.026 mmol), copper
sulphate (30 mg, 0.044 mmol) and ascorbic acid (22 mg, 0.057 mmol) gave complex 7 as a yellow
powder (28 mg, 84%): mp > 300 °C; 1H-NMR (300 MHz, CD3CN): δ 9.05 (s, 2H, H3′ of terpy-triazole),
8.86 (dd, 2H, J = 8.2, 1.9 Hz, H3′ of terpy), 8.77 (dd, 1H, J = 8.1, 2.6 Hz, H4′ of terpy), 8.68 (dd, 2H,
J = 7.8, 0.6 Hz, H6 of terpy-triazole), 8.58 (dd, 4H, J = 8.1, 0.7 Hz, H6 of terpy), 8.25–8.17 (m, 6H, H5,
Ha of 3-Az, H4 of terpy), 7.69–7.66 (m, 4H, Hb, H3 of terpy-triazole), 7.58 (dd, 2H, J = 5.7, 1.0 Hz, H3
of terpy), 7.50–7.45 (m, 4H, H5 of terpy and H4 of terpy-triazole), 6.82 (s, 2H, 2CH pyrrole), 5.73 (s,
13
2H, -CH2-), 4.75 (s, 2H, -CH2-). C (75 MHz, CD3CN): δ 158.90, 155.70, 155.56, 154.46, 154.28,
144.69, 143.84, 134.79, 130.78, 130.59, 129.88, 128.38, 127.59, 125.32, 54.58, 33.65. HRMS (ESI):
+
m/z 1215.1636 ([M−PF6]+, C44H32F12IrN10O2P2 requires 1215.1623). FT-IR (ATR): υ/cm−1 3542br,
3091w, 2262s, 1715w, 1632w, 1483w, 1437w, 1193w, 1036m, 846s (PF6).
Synthesis of bis(1-((1-(4-(2,2':6',2"-terpyridine)benzyl)-1H-1,2,3-triazol-4-yl)methyl)-1H-pyrrole-2,5-
dione)iridium(III)tris(hexafluorophosphate) (8). Using general method D, bis(4′-(4-azidomethylphenyl)-
2,2':6',2''-terpyridine)iridium(III)tris(hexafluorophosphate) 6 (20 mg, 0.015 mmol), 1-(2-propynyl)-
1H-pyrrole-2,5-dione 9 (10 mg, 0.074 mmol), copper sulphate (4.3 mg, 0.17 mmol) and ascorbic acid
1
(2.5 mg, 0.142 mmol) gave complex 8 as a yellow solid (6 mg, 24%). m.p. >300 °C. H-NMR

Molecules 2013, 18
8972
(300 MHz, acetone-d6): δ 9.56 (s, 4H, H3′), 9.16 (d, 4H, J = 7.9, H6), 8.42 (dd, 4H, H5, coupling
constants too close to allow determination of their exact values), 8.29 (d, 4H, J = 8.2 Hz, Ha), 8.22 (d,
4H, J = 4.5 Hz, H3), 8.04 (s, 2H, -NCHC- of triazole), 7.72 (d, 4H, J = 8.6 Hz, Hb), 7.64 (dd, 4H, H4,
coupling constants too close to allow determination of their exact values), 6.94 (s, 4H, 2CH pyrrole),
13
5.83 (s, 4H, C6H4-CH2-N-), 4.79 (s, 4H, C-CH2-N-). C-NMR (75 MHz, CD3CN): 207.81, 171.58,
158.99, 156.37, 155.60, 154.33, 143.76, 140.72, 136.35, 135.54, 130.77, 130.22, 128.33, 125.39,
124.35, 53.96, 33.65. HRMS (ESI): m/z 1481.2440 ([M−PF6]+, C58H42F12IrN14O4P2+ requires 1481.2426).
+
MS (ESI): m/z 1480.8 ([M−PF6]+, C58H42F12IrN14O4P2 requires 1481.2). FT-IR (ATR): υ/cm−1 3636w,
3457br, 2263m, 1710m, 1611m, 1436m, 1409m, 1333m, 1145m, 1053m, 1034m, 832s (PF6).
Synthesis of 1-(2-propynyl)-1H-pyrrole-2,5-dione (9) [26,42]. Following a two-step process, propargylamine
(0.56 g, 10.2 mmol) was added drop-wise to a solution of maleic anhydride (1.00 g, 10.2 mmol) in
glacial acetic acid (20 mL), and the mixture was stirred overnight at room temperature in the dark. The
solution was concentrated in vacuo to give a brown residue that was recrystallised from isopropyl
alcohol/water (80:20, v/v) to give 4-oxo-4-(2-propyn-1-ylamino)-2-butenoic acid as long white crystals
1
(354 mg, 23%). H-NMR (200 MHz, DMSO-d6): δ 9.17 (br s, 1H, -NH-), 6.28 (d, 2H, J = 6.0 Hz,
CH=CH), 3.98 (dd, 2H, J = 4.4, 3.7 Hz, -CH2-), 3.19 (s, 1H, ≡CH). Then a mixture of 4-oxo-4-(2-
propyn-1-ylamino)-2-butenoic acid (350 mg, 2.30 mmol) and sodium acetate (0.103 g, 1.25 mmol) in
acetic anhydride (5 mL) was heated to 65 °C for 2 h in the dark. After cooling, the suspension was
poured into ice cold water (30 mL) and extracted with diethyl ether (3 × 30 mL). The organic phase
was dried over anhydrous sodium sulphate, filtered, and concentrated in vacuo to give a crude solid
which was purified by column chromatography (silica, hexane/ethyl acetate, 50:50 v/v) to give
1-(2-propynyl)-1H-pyrrole-2,5-dione 9 as a pale yellow solid (70 mg, 22%). 1H-NMR (200 MHz, CDCl3):
δ 6.77 (s, 2H, -CH=CH-), 4.30 (d, 2H, J = 2.5 Hz, -CH2-), 2.21 (t, 1H, J = 2.5 Hz, ≡CH). MS (EI): m/z
+
136.04 ([M+H]+, C7H6NO2 requires 136.16). This data is in agreement with reported literature [26,42].
4. Conclusions
Azide functionalized iridium(III)bisterpyridine complexes were synthesized via a “chemistry on the
complex” approach, and click chemistry was used form triazoyl maleimide complexes which could be
used for the selective modification of thiols. The photophysical study of the azide and triazoyl
complexes has illustrated the effects of introducing different substituents at the 4′-position of the
terpyridine, which results in unusual emission properties due to an intraligand charge transfer process.
In particular, the long excited state lifetime in degassed acetonitrile as compared to water is not
typically seen for iridium terpyridine complexes. Additionally, the significant increase in emission
upon triazoyl formation makes these complexes of interest for applications in luminescent sensing, e.g.
for the functionalization of polymers or surfaces.
Acknowledgments
We thank the Mark Wainwright Analytical Centre (The University of New South Wales) for
providing access to instruments. This work was supported by the Australian Research Council

Molecules 2013, 18
8973
Discovery Project Grants (DP0666325 and DP120101604) and a Future Fellowship to PT
(FT120100101).
Conflict of Interest
The authors declare no conflict of interest.
References
1. Flamigni, L.; Barbieri, A.; Sabatini, C.; Ventura, B.; Barigelletti, F. Photochemistry and
photophysics of coordination compounds: Iridium. Top. Curr. Chem. 2007, 281, 143–203.
2. Williams, J.A.G.; Wilkinson, A.J.; Whittle, V.L. Light-emitting iridium complexes with tridentate
ligands. Dalton Trans. 2008, 2081–2099.
3. Chi, Y.; Chou, P.-T. Transition-metal phosphors with cyclometalating ligands: Fundamentals and
applications. Chem. Soc. Rev. 2010, 39, 638–655.
4. You, Y.; Park, S.Y. Phosphorescent iridium(iii) complexes: Toward high phosphorescence
quantum efficiency through ligand control. Dalton Trans. 2009, 1267–1282.
5. Zhao, Q,; Huang, C.; Li, F. Phosphorescent heavy-metal complexes for bioimaging. Chem. Soc. Rev.
2011, 40, 2508–2524.
6. Sauvage, J.P.; Collin, J.P.; Chambron, J.C.; Guillerez, S.; Coudret, C.; Balzani, V.; Barigelletti,
F.; De Cola, L.; Flamigni, L. Ruthenium(ii) and osmium(ii) bis(terpyridine) complexes in
covalently-linked multicomponent systems: Synthesis, electrochemical behavior, absorption
spectra, and photochemical and photophysical properties. Chem. Rev. 1994, 94, 993–1019.
7. Medlycott, E.A.; Hanan, G.S. Synthesis and properties of mono- and oligo-nuclear ru(ii)
complexes of tridentate ligands: The quest for long-lived excited states at room temperature.
Coord. Chem. Rev. 2006, 250, 1763–1782.
8. Flamigni, L.; Collin, J.P.; Sauvage, J.P. Iridium terpyridine complexes as functional assembling
units in arrays for the conversion of light energy. Acc. Chem. Res. 2008, 41, 857–871.
9. Sánchez-Barragán, I.; Costa-Fernández, J.M.; Sanz-Medel, A.; Valledor, M.; Campo, J.C.
Room-temperature phosphorescence (RTP) for optical sensing. Trends Anal. Chem. 2006, 25,
958–967.
10. Lakowicz, J.R. Principles of Fluorescence Spectroscopy, 2nd ed.; Kluwer Academic/Plenum
Press: New York, NY, USA, 1999.
11. Lo, K.K.-W.; Chung, C.-K.; Ng, D.C.-M.; Zhu, N. Syntheses, characterisation and photophysical
studies of novel biological labelling reagents derived from luminescent iridium (iii) terpyridine
complexes. New J. Chem. 2002, 26, 81–88.
12. Aihara, M.; Kishita, H.; Misumi, S. Polargraphic studies of bis(2,2',2"-terpyridine) complexes of
manganese(ii), cobalt(ii), nickel(ii) and europium(iii) in acetonitrile. Bull. Chem. Soc. Jpn. 1975,
48, 680–683.
13. Eryazici, I.; Moorefield, C.N.; Newkome, G.R. Square-planar Pd(ii), Pt(ii), and Au(iii) terpyridine
complexes: Their syntheses, physical properties, supramolecular constructs, and biomedical
activities. Chem. Rev. 2008, 108, 1834–1895.

Molecules 2013, 18
8974
14. Cotton, S.A.; Noy, O.E.; Liesener, F.; Raithby, P.R. Unequivocal characterisation of a
[Ln(terpy)(NO3)3·(H2O)] complex.: The synthesis and structure of [M(terpy)(NO3)3·(H2O)]
(M=Eu, Tb); a comparison with the structure of [Eu(bipy)2(NO3)3] and with other europium
nitrate complexes {terpy=2,2':6',2''-terpyridyl; bipy=2,2'-bipyridyl}. Inorg. Chim. Acta 2003, 344,
37–42.
15. Morari, C. Bond energy and electronic structure in M-bis-terpyridine complexes (M=Os, Co and
Ru). Phys. Lett. A 2008, 372, 1885–1889.
16. Collin, J.-P.; Dixon, I.M.; Sauvage, J.-P.; Williams, J.A.G.; Barigelletti, F.; Flamigni, L.
Synthesis and photophysical properties of iridium(iii) bisterpyridine and its homologues: A family
of complexes with a long-lived excited state. J. Am. Chem. Soc 1999, 121, 5009–5016.
17. Goldstein, D.C.; Cheng, Y.Y.; Schmidt, T.W.; Bhadbhade, M.; Thordarson, P. Photophysical
properties of a new series of water soluble iridium bisterpyridine complexes functionalised at the
4[prime or minute] position. Dalton Trans. 2011, 40, 2053–2061.
18. Kolb, H.C.; Finn, M.G.; Sharpless, K.B. Click chemistry: Diverse chemical function from a few
good reactions. Angew. Chem. Int. Ed. 2001, 40, 2004–2021.
19. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A stepwise huisgen cycloaddition
process: Copper(i)-catalyzed regioselective “ligation” of azides and terminal alkynes. Angew.
Chem. Int. Ed. 2002, 41, 2596–2599.
20. Huisgen, R. Centenary Lecture – 1,3-Dipolar Cycloadditions. Proc. Chem. Soc. 1961, 357–396.
21. Baranoff, E.; Dixon, I.M.; Collin, J.-P.; Sauvage, J.-P.; Ventura, B.; Flamigni, L. Dyads containing
iridium(iii) bis-terpyridine as photoactive center: Synthesis and electron transfer study. Inorg. Chem.
2004, 43, 3057–3066.
22. Ayala, N.P.; Flynn, C.M.; Sacksteder, L.; Demas, J.N.; DeGraff, B.A. Synthesis, luminescence,
and excited-state complexes of the tris(1,10-phenanthroline)- and bis(terpyridine)iridium(iii)
cations. J. Am. Chem. Soc. 1990, 112, 3837–3844.
23. Seok, W.K.; Yim, S.B.; Klapötke, T.M.; White, P.S. Synthesis, structural characterization
and semiempirical calculations of the ruthenium azide complex [Ru(tpy)(PPh3)2(N3)][ClO4].
J. Organomet. Chem. 1998, 559, 165–171.
24. Hofmeier, H.; Andres, P.R.; Hoogenboom, R.; Herdtweck, E.; Schubert, U.S. Terpyridine-
ruthenium complexes as building blocks for new metallo-supramolecular architectures. Aust. J.
Chem. 2004, 57, 419–426.
25. Thompson, A.S.; Humphrey, G.R.; DeMarco, A.M.; Mathre, D.J.; Grabowski, E.J.J. Direct
conversion of activated alcohols to azides using diphenyl phosporazidate. A practical alternative
to mitsunobu conditions. J. Org. Chem. 1993, 58, 5886–5888.
26. Beusker, P.H.; Groot, F.H.D. Triazole-containing releasable linkers, conjugates thereof, and
methods of preparation. WO2007018431, 15 February 2007.
27. Thordarson, P.; Droumaguet, B.L.; Velonia, K. Well-defined protein–polymer conjugates—
Synthesis and potential applications. Appl. Microbiol. Biotechnol. 2006, 73, 243–254.
28. Peterson, J.R.; Smith, T.A.; Thordarson, P. Photoinduced reduction of catalytically and
biologically active Ru(ii)bisterpyridine-cytochrome c bioconjugates. Chem. Commun. 2007, 2007,
1899–1901.

Molecules 2013, 18
8975
29. Peterson, J.R.; Smith, T.A.; Thordarson, P. Synthesis and room temperature photo-induced
electron transfer in biologically active bis(terpyridine)ruthenium(ii)-cytochrome c bioconjugates
and the effect of solvents on the bioconjugation of cytochrome c. Org. Biomol. Chem. 2010, 8,
151–162.
30. Hvasanov, D.; Mason, A.F.; Goldstein, D.C.; Bhadbhade, B.; Thordarson, P., Optimising the
synthesis, polymer membrane encapsulation and photoreduction performance of Ru(ii)- and Ir(iii)
bis(terpyridine) cytochrome c bioconjugates. Org. Biomol. Chem. 2013, 11, 4602–4612.
31. Clevenger, R.C.; Turnbull, K.D. Synthesis on n-alkylated maleimides. Synth. Commun. 2000, 30,
1379–1388.
32. Walker, M.A. A high yielding synthesis of n-alkyl maleimides using a novel modification of the
mitsunobu reaction. J. Org. Chem. 1995, 60, 5352–5355.
33. Mehta, N.B.; Phillips, A.P.; Lui, F.F.; Brooks, R.E. Maleamic and citraconamic acids, methyl
esters, and imides. J. Org. Chem. 1960, 25, 1012–1015.
34. Dirks, A.J.; Cornelissen, J.J.L.M.; Nolte, R.J.M. Monitoring protein-polymer conjugation by a
fluorogenic Cu(i)-catalyzed azide-alkyne 1,3-dipolar cycloaddition. Bioconjugate Chem. 2009,
20, 1129–1138.
35. Bisby, R.H.; Morgan, C.G.; Hamblett, I.; Gorman, A.A. Quenching of singlet oxygen by trolox c,
ascorbate, and amino acids: Effects of Ph and temperature. J. Phys. Chem. A 1999, 103, 7454–7459.
36. Yoshikawa, N.; Yamabe, S.; Kanehisa, N.; Kai, Y.; Takashima, H.; Tsukahara, K. Synthesis,
characterization, and dft investigation of iriii tolylterpyridine complexes. Eur. J. Inorg. Chem.
2007, 2007, 1911–1919.
37. Holmes, D.T. Quenching of the triplet state of chlorophyll a by ascorbic acid and ascorbate in
ethanolic solution. Photochem. Photobiol. 1965, 4, 631–632.
38. Meucci, E.; Mordente, A.; Donato Miggiano, G.A.; Martorana, G.E. Fluorescence studies of
ascorbate-melittin interaction. Biochim. Biophys. Acta 1989, 999, 58–63.
39. Sasso, M.G.; Quina, F.H.; Bechara, E.J.H. Ruthenium(ii) tris(bipyridyl) ion as a luminescent
probe for oxygen uptake. Anal. Biochem. 1986, 156, 239–243.
40. Crosby, G.A.; Demas, J.N. Measurement of photoluminescence quantum yields. Review. J. Phys.
Chem. 1971, 75, 991–1024.
41. Winter, A.; Ulbricht, C.; Holder, E.; Risch, N.; Schubert, U.S.,Unusual terpyridines as ligands for
novel light-emitting iridium(iii) complexes: Synthesis and characterization. Aust. J. Chem. 2006,
59, 773–782.
42. Dirks, A.J.; van Berkel, S.S.; Hatzakis, N.S.; Opsteen, J.A.; van Delft, F.L.; Cornelissen, J.J.L.M.;
Rowan, A.E.; van Hest, J.C.M.; Rutjes, F.P.J.T.; Nolte, R.J.M. Preparation of biohybrid
amphiphiles via the copper catalysed huisgen [3+2] dipolar cycloaddition reaction. Chem.
Commun. 2005, 2005, 4172–4174.
Sample Availability: Not available.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
