N-Methylative aziridine ring opening and asymmetric synthesis of MeBmt

Article abstract of DOI:10.1016/j.tetlet.2011.08.048

Asymmetric synthesis of MeBmt, an unusual amino acid constituent of cyclosporine A, was achieved from aziridine-(2R)-carboxaldehyde through the highly stereoselective addition of (E)-crotylboronate and the subsequent N-methylative aziridine ring opening as key steps.

Full text of DOI:10.1016/j.tetlet.2011.08.048

Tetrahedron Letters 52 (2011) 5918–5920
Contents lists available at SciVerse ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
N-Methylative aziridine ring opening and asymmetric synthesis of MeBmt
Yongeun Kim a, Doo-Ha Yoon a, Hyun-Joon Ha a, , Kyung Yeon Kang b, Won Koo Lee b,
⇑
⇑
a Department of Chemistry and Protein Research Center for Bio-Industry, Hankuk University of Foreign Studies, Yongin, Kyunggi-Do 449-719, Republic of Korea
b Department of Chemistry, Sogang University, Seoul 121-742, Republic of Korea
a r t i c l e i n f o
a b s t r a c t
Article history:
Received 5 July 2011
Revised 4 August 2011
Accepted 8 August 2011
Available online 7 September 2011
Asymmetric synthesis of MeBmt, an unusual amino acid constituent of cyclosporine A, was achieved from
aziridine-(2R)-carboxaldehyde through highly stereoselective addition of (E)-crotylboronate and the sub-
sequent N-methylative aziridine ring opening as key steps.
Ó 2011 Elsevier Ltd. All rights reserved.
Keywords:
MeBmt
Asymmetric synthesis
Aziridine
Ring opening
Crotylation
MeBmt (1) was isolated from the fungus Tolypocladium inflatium
with a cyclic undecapeptide cyclosporine possessing immunosup-
pressive activity.1 The structure of MeBmt as a nonproteogenic
Garner’s aldehyde.7 Thereby chiral aziridine-2-carboxaldehyde,5
readily available from commercial source, was used as a starting
substrate. Addition of (E)-crotylboronate was planned to put three
more carbons to the aziridine-2-carboxaldehyde with the hydroxyl
group and the methyl branch formed at C3 and C4 in MeBmt with
the expectation of high stereoselectivity. Another key reaction, N-
methylative aziridine ring opening, from 3 to 4 at a certain stage
may generate N-methyl amino alcohol which are essential func-
tional groups toward the target molecule.4 The synthetic plan
including those two key reactions would afford us a facile route
for the preparation of MeBmt not only as in its naked but as in
its orthogonally protected form.
unusual amino acid features
c-alkyl-b-hydroxy-a-methylamino
acid with three contiguous stereocenters and a
e
,f- trans double
bond. Though MeBmt itself does not have biological activity, struc-
tural modification of MeBmt in cyclosporine affects its immuno-
suppressant activity to a great extend.2 There is rich literature
detailing the synthesis of MeBmt based on asymmetric reactions
and chiral building blocks including sugars and amino acid.3 How-
ever all synthetic methods except one3b required monomethyla-
tion of amine at a certain stage. Recently we have developed the
N-methylative aziridine ring opening reaction with various nucle-
ophiles to afford N-methylated a
- or b-amino compounds.4 Apply-
ing this methodology allows us to give an easy access for the
asymmetric synthesis of MeBmt including orthogonally protected
MeBmt as a synthetic intermediate which is valuable for the fur-
ther biological studies.
Our synthetic plan stems from two key reactions (Scheme 1);
the addition of crotylboronate of aziridine-2-carboxaldehyde to
OP
OH
HO2C
AcO
Me
Me
N
Me
Me
NH Me
Me
Ph
1
4
give rise to the methyl groups at c-position with the extension of
the backbone and the subsequent N-methylative aziridine ring
opening reaction. Aziridine-2-carboxaldehyde5 (2) considered as
a synthetic surrogate of aminoaldehyde shows better stereoselec-
tivity in most of nucleophilic carbonyl addition reactions with bet-
ter stability under strong base compared to the most of other
aminoaldehydes and their synthetic surrogates6 including the
Me
Me
O
OP
Ph
N
Ph
N
H
H
H
Me
2
3
⇑
Corresponding authors. Tel.: +82 31 330 4369 (H.-J.H.); +82 2 705 8449 (W.K.L.).
E-mail addresses: hjha@hufs.ac.kr (H.-J. Ha), wonkoo@sogang.ac.kr (W.K. Lee).
Scheme 1.
0040-4039/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2011.08.048

Y. Kim et al. / Tetrahedron Letters 52 (2011) 5918–5920
5919
CO2i-Pr
Me
Me
O
B
OH
O
CO2i-Pr
Ph
N
Ph
N
O
H
H
Me
H
3
2
OAc Me
OBn
Me
OBn
AcO
Me
a
b
Ph
N
Me
N
OBn
Me
N
Me
Me
H
Me
Ph
Ph
6
4
5
OBn
OBn
c
e
HO
Me
Me
AcO
Me
R
f
1
N
Me
Me
N
Me
Me
Ph
Ph
7
R = CH2OH
9
d
8 R = CHO
Scheme 2. Reagents and conditions: (a) NaH, BnBr, THF, 0 °C (0.5 h) then rt (3 h) 88%; (b) MeOTf, CsOAc, CH3CN, rt, 69% (87:13); (c) (Ph3P)3RhCl, catecholborane, THF, rt then
NaOH (2 M), H2O2 (30%), 78%; (d) DMSO, (ClCO)2, CH2Cl2. 90% (e) 5-(ethylsulfonyl)-1-phenyl-1H-tetrazole, KHMDS, THF, 89%; (f) PDC, DMF, rt then Na in liq. NH3 À78 °C, 61%.
This synthesis was initiated from the addition reaction of cro-
tylboronate to aziridine-2-carboxaldehyde (2). The reaction of
(S,S)-diisopropyl tartrate (E)-crotylboronate8 with (2R)-aziridine-
2-carboxaldehyde (2) provided anti-favored crotylation product,
(1R,2R)-2-methyl-1-{(R)-1-[(R)-1-phenylethyl]aziridin-2-yl}but-3-
en-1-ol (3), without detection of any other isomers in 87% yield
(Scheme 2).
The secondary alcohol in 3 was protected with benzylbromide
and sodium hydride to provide 1-benzyloxy-2-methyl-3-buteny-
laziridine (4) in 88% yield. The next key step is the N-methylative
aziridine ring opening with an acetate nucleophile to get the
90% yield. The reaction of aldehyde 8 with 5-(ethylsulfonyl)-1-
phenyl-1H-tetrazole10 in the presence KHMDS in THF provided
the (E)-olefin 9 with the removal of acetate in 89% yield. The
enantiomerically pure amino acid protected by two benzyl groups
at the nitrogen and oxygen was prepared from the primary alcohol
9 through oxidation with pyridinium dichromate (PDC) in dimeth-
ylformamide (DMF). Subsequent removal of two benzyl groups was
accomplished in the presence of sodium and liquid ammonia in THF
to afford the target molecule MeBmt (1) in 61% yield (Scheme 2).
In conclusion an asymmetric synthesis of MeBmt, an unusual
amino acid constituent of cyclosporine A, was achieved from aziri-
dine-(2R)-carboxaldehyde through seven chemical steps including
highly stereoselective addition of (E)-crotylboronate and N-methy-
lative aziridine-ring opening in 20% overall yield.

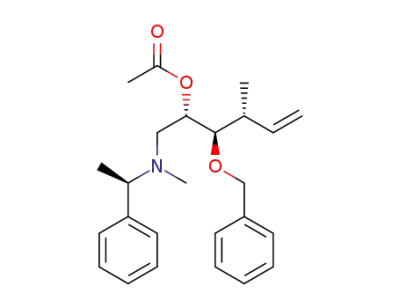

1-acetyloxy-2-(N-methyl) amino compound.
A regioselective
N-methylative ring opening reaction of the unactivated aziridine
proceeded with methyl trifluoromethansulfonate and an acetate
nucleophile. After the successful formation of N-methyl aziridnium
ion by N-methylation with methyl trifluoromethansulfonate we
tried (n-Bu)4NOAc as an acetate source with an advantage of good
solubility in organic solvent to yield two regioisomers of the ring-
opened products (5) and (6) with the ratio of 71:29 in 51% yield,
which were readily separable by silica gel chromatography
(Scheme 2). We tried to improve the regioselectivity and the reac-
tion yield by changing the sources of acetate nucleophiles includ-
ing NaOAc, CsOAc, and AgOAc. Eventually, we found that CsOAc
was the best to show the selectivity as 87:13 in favor of the ex-
pected product 5 in 69% yield.
Acknowledgments
This work was supported by National Research Foundation
(NRF) (Basic Science Research Program, 2010-0008424 and the
Center for Bioactive Molecular Hybrides to H.-J.H.) and the HUFS
Grant (2011). W.K.L. also acknowledges the financial support from
KRF-2010-0005538 and KRF-2009-0081956.
Supplementary data
The successful introduction of all three stereocenters with the N-
methyl group is followed by the extension of two more carbons
with (E)-olefin between C6 and C7 of backbone and the oxidation
of the primary alcohol to the corresponding carboxylic acid. Exten-
sion of the backbone chain by two more carbons from the ring-
opened product 5 was achieved by the olefination of the aldehyde
(8) which was acquired from hydration of the olefin to the primary
alcohol (7) followed by oxidation. To furnish 7 from 5 through hyd-
roboration and oxidation protocol, Wilkinson’ catalyst procedure
with catecholborane9 and oxidative workup was the best in a 78%
yield. The Swern oxidation of the resulting primary alcohol 7 with
dimethyl sulfoxide and oxalyl chloride afforded the aldehyde 8 in
Supplementary data associated with this article can be found, in
the online version, at doi:10.1016/j.tetlet.2011.08.048.
References and notes
1. (a) R.M. Wenger, Biomedical, in: D.J.G. White (Ed.), Cyclosporin A, Amsterdam,
1992.; (b) Dreyfuss, M. H.; Hofmann, H.; Kobel, H.; Pache, W.; Tscherter, H. Eur.
J. Appl. Microbiol. 1976, 3, 125.
2. Faulds, D.; Goa, K. L.; Benfiled, P. Drugs 1993, 45, 953.
3. (a) Das, I.; Pal, T. K.; Suresh, C. G.; Pathak, T. J. Org. Chem. 2007, 72, 5523; (b)
Raghavan, S.; Rasheed, M. A. Tetrahedron 2004, 60, 3059; (c) Cook, G. R.; Sathya
Shanker, P. J. Org. Chem. 2001, 66, 6818; (d) Katahira, T.; Ishizuka, T.;
Matsunaga, H.; Kunieda, T. Tetrahedron Lett. 2001, 42, 6319; (e) Matsunaga,
H.; Ohta, H.; Ishizuka, T.; Kunieda, T. Heterocycles 1998, 49, 34; Tuch, A.;

5920
Y. Kim et al. / Tetrahedron Letters 52 (2011) 5918–5920
Saniere, M.; Le Merrer, Y.; Depezay, J.-C. Tetrahedron: Asymmetry 1649, 1997, 8;
4. Kim, Y.; Ha, H.-J.; Yun, S. Y.; Lee, W. K. Chem. Commun. 2008, 4363.
5. Lee, W.-K.; Ha, H.-J. Aldrichimica Acta 2003, 36, 57.
6. (a) Choi, H. G.; Kwon, J. H.; Kim, J. C.; Lee, W. K.; Eum, H.; Ha, H.-J. Tetrahedron
Lett. 2010, 51, 3284; (b) Kim, M. S.; Kim, Y.-W.; Hahm, H. S.; Jang, J. W.; Lee, W.
K.; Ha, H.-J. Chem. Commun. 2005, 3062–3064; (c) Yun, J. M.; Sim, T. B.; Hahm,
H. S.; Lee, W. K.; Ha, H.-J. J. Org. Chem. 2003, 68, 7675.
7. Liang, X.; Andersch, J.; Bols, M. J. Chem. Soc., Perkin Trans. 1 2001, 2136.
8. Roush, W. R.; Ando, K.; Powers, D. B.; Palkowitz, A. D.; Halterman, R. L. J. Am.
Chem. Soc. 1990, 112, 6339.
9. (a) Burgess, K.; Ohlmeyer, M. J. Chem. Rev. 1991, 91, 1179; (b) Mannig, D.; Noth,
H. Angew. Chem., Int. Ed. 1985, 24, 878.
(g) Lee, S. G.; Kim, Y. K.; Kim, S. K.; Yoon, Y.-J.; Park, K. H. J. Korean. Chem. Soc.
1995, 39, 123; (h) Savignac, M.; Durand, J. O.; Genet, J.-P. Tetrahedron:
Asymmetry 1994, 5, 717; (i) Blaser, D.; Ko, S. Y.; Seebach, D. J. Org. Chem.
1991, 56, 6230; (j) Lubell, W. D.; Jamison, T. F.; Rapoport, H. J. Org. Chem. 1990,
55, 3511; (k) Rama Rao, A. V.; Yadav, J. S.; Chandrasekhar, S.; Srinivas Rao, C.
Tetrahedron Lett. 1989, 30, 6769; (l) Rich, D. H.; Sun, C.-Q.; Guillaume, D.;
Dunlap, B.; Evans, D. A.; Weber, A. E. J. Med. Chem. 1989, 32, 1982; (m) Rama
Rao, A. V.; Muralidhar, T. G.; Subhas Bose, D.; Chakraborty, T. K.; Gurjar, M. K.
Tetrahedron 1989, 45, 7361; (n) Togni, A.; Pastor, S. D.; Rihs, G. Helv. Chim. Acta
1989, 72, 1471; (o) Schmidt, U.; Siegel, W. Tetrahedron Lett. 1987, 28, 2849; (p)
Tung, R. D.; Rich, D. H. Tetrahedron Lett. 1987, 28(1139), 4; (q) Seebach, D.;
Juaristi, E.; Miller, D. D.; Schickli, C.; Weber, T. Helv. Chim. Acta 1987, 70, 237; (r)
Aebi, J. D.; Dhaon, M. K.; Rich, D. H. J. Org. Chem. 1987, 52, 2881; (s) Evans, D. A.;
Weber, A. E. J. Am. Chem. Soc. 1986, 108, 6757; (t) Wenger, R. M. Helv. Chim. Acta
1983, 66, 2308.
10. Blakemore, P. R.; Kocienski, P. J.; Morley, A.; Muir, K. J. Chem. Soc., Perkin Trans.
1 1999, 955.
