Substituent effect on the electronic properties of pyrazino[2,3-g] quinoxaline
molecules†
Teck Lip Tam,ab Feng Zhou,ab Hairong Li,ab Jane Chieh Yu Pang,ab Yeng Ming Lam,ab
ab
ab
Subodh G. Mhaisalkar,ab Haibin Su
*
*
and Andrew C. Grimsdale
Received 26th May 2011, Accepted 8th September 2011
DOI: 10.1039/c1jm12347e
We report the synthesis and characterization of pyrazino[2,3-g]quinoxaline derivatives with
a systematic change in the substituents at the 2, 3, 7 and 8 positions and with or without 2-thienyl at the
5 and 10 positions to study the substituent effect and quinoid character of such a system. We performed
density functional theory calculations using the B3LYP functional and 6-31G* basis set under the
geometry optimization condition, together with the resonance effect of a valence bond theory to
understand the electronic structures of these molecules. It was found that a combination of conjugation
and cross-conjugation effects is responsible for the observed trends in their electronic properties, thus
giving insights into designing molecules utilizing such effects.
a systematic change in the substituents at various positions.
Introduction
Together with computational modeling using density functional
theory (DFT)18 and valence bond theory (VBT), a study of
substituent effects on the electronic properties of these complex
systems was carried out.
To date, the donor–acceptor (D–A) approach utilizing intra-
molecular charge-transfer between donor and acceptor units,
and a planarization approach via quinoidization of a conjugated
system are the two main approaches to achieve low band gap
materials.1 The former is in molecular-orbital theory, a conse-
quence of hybridization of energy levels of donor and acceptor
moieties.2,3 The latter is a result of dearomatization of the
conjugated backbone via quinoid formation, by incorporation of
an aromatic system with higher resonance energy.1 The pyrazino
[2,3-g]quinoxaline (PQ) system is thus a good candidate acceptor
unit for low band gap materials due to its strong electron
accepting ability and high quinoid character at 5 and 10 posi-
tions.4–8 The strong p–p interactions between the PQ moieties
also make them highly crystalline in nature which is desirable for
promoting efficient exciton migration and high charge carrier
mobility.4,9–13 These intrinsic properties of PQ thus make it
a good candidate for the development of low band gap and high
mobility materials for1 organic photovoltaics (OPVs).4,8,11,14–16
Varying substituents at the different positions of PQ using
appropriate synthetic routes, allows the study of substituent
effects on the overall electronic properties. Here, we report the
synthesis and characterization of a series of PQ molecules with
Results and discussion
Synthesis
Synthesis of PQ units can be easily carried out by condensation
of 1,2-diketones with 1,2,4,5-tetraaminobenzene tetrahydro-
chloride (TAB). Using different substituted 1,2-diketones, the 2,
3, 7 and 8 positions (arm positions) of PQ can be functionalized
with various groups.9–11,15,19 For PQ substituted at the 5 and 10
positions (quinoidal positions), the required synthetic approach
is more complex. It requires reduction of 5,6-dinitro-2,1,3-ben-
zothiadiazole derivatives using zinc and acetic acid, followed by
addition of 1,2-diketones.14,16 In a previous paper, we have
demonstrated the use of 4,8-disubstituted benzobisthiadiazole
(BBT) as a synthetic equivalent to 4,7-disubstituted-5,6-dinitro-
2,1,3-benzothiadiazole for the synthesis of 5,10-disubstituted PQ
derivatives.17,20 In this paper, we expand this approach and
introduce four new PQ molecules with biphenyl and/or bithienyl
arms, with or without thienyl substitutions at the quinoidal
positions to perform a systematic study of the effects of substi-
tution at these positions (Fig. 1).
aSchool of Materials Science and Engineering, Nanyang Technological
University, 50 Nanyang Avenue, Singapore, 63979, Singapore. E-mail:
hbsu@ntu.edu.sg; Tel: +65 6790 4346
bEnergy Research Institute @NTU (ERI@N), Nanyang Technological
University, 50 Nanyang Drive, Singapore, 637553, Singapore. E-mail:
ACGrimsdale@ntu.edu.sg; Tel: +65 6790 6728
The synthesis of PQ-1A and PQ-3A involves the condensation
of TAB with 1,2-diketones in acetic acid under reflux conditions
(Scheme 1). It was found that addition of a catalytic amount of
2-iodoxybenzoic acid increases the yield for these otherwise low
yielding condensation reactions between TAB and 1,2-diketones.
Synthesis of 5 and 10 substituted PQ derivatives follows our
† Electronic
supplementary
information
(ESI)
available:
Characterization including NMR, MALDI-TOF, TGA and DSC.
Includes additional DFT information. See DOI: 10.1039/c1jm12347e
17798 | J. Mater. Chem., 2011, 21, 17798–17804
This journal is ª The Royal Society of Chemistry 2011

View Article Online
the molecules in series A. The subsequent addition of quinodal
thienyls reduces the band gap further. However, this reduction in
band gap from series A to B decreases from changing biphenyls
to bithienyls (PQ-1A / PQ-1B > PQ-2A / PQ-2B > PQ-3A
/ PQ-3B). We suspect that this decrease in reduction of the
band gap might be a consequence of cross-conjugation between
the arms and the quinoidal positions. To confirm this, the proton
shifts of the quinoidal hydrogens in series A were compared
(Table 2). The PQ with the strongest quinoid character will have
the most deshielded quinoidal hydrogens and thus these will
1
show up at the most down-field position in the H NMR spec-
trum.22 From the proton shift of series A, we can see that the
strength of the quinoid character is PQ-1A > PQ-2A > PQ-3A.
The progressive weakening of the quinoid character according to
the proton shift in the series can be attributed to a cross-conju-
gation effect caused by the addition of aromatic arms with
increasing electron donating nature. Scheme 2 shows the reso-
nance structures depicting conjugation and cross-conjugation
between the arm and quinodal positions within the PQ core.
Decreasing the quinoid character would mean that the proton
shift in series B would follow the trend: PQ-1B > PQ-2B > PQ-
3B, which is in agreement with the observed results.

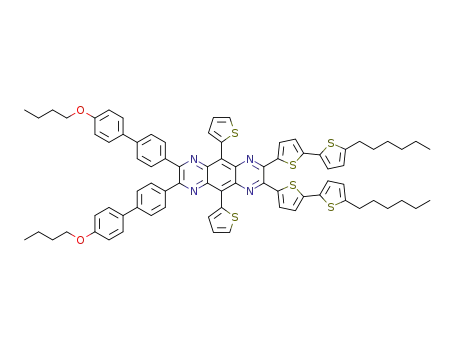

Fig. 1 Structure of PQ, its IUPAC numbering system and the deriva-
tives discussed in this paper. PQ-1B and PQ-3B were previously
synthesized by us.17
Computational modeling results are tabulated in Table 3. The
theoretical trends of the HOMO match those of the experimental
data. As expected, series A shows a major HOMO contribution
from the arm position while series B shows higher HOMO
electron density along the quinoidal positions and core due to the
high quinoid character at these positions.4–8 For series A, both
theoretical and experimental HOMO values increase due to the
stronger electron-donating nature of bithienyl as compared to
biphenyl. The HOMO (HOMO ꢀ 1) orbitals show two nodes
existing in the PQ core, in PQ-1A (PQ-1B) and PQ-3A (PQ-3B)
at the center carbons bearing the hydrogen and in PQ-2A (PQ-
2B) at the two nitrogens nearer to the biphenyl arms. Cross-
conjugation has been reported to produce destructive quantum
interference (node) in molecular electronics.23–25 In Table 4,
tetramethyl substituted molecules of series A (PQ-0A) and B
(PQ-0B) show the absence of nodes in their HOMO and
HOMO ꢀ 1. Thus the origin of these nodes in PQ-1A / PQ-3A
and PQ-1B / PQ-3B must be a result of cross-conjugation of
the aromatic arm substituents. With reference to the resonance
structure j in Scheme 2, it becomes intuitive that the contribution
from two arm substituents on the same side (quinoid positions as
reference line) will result in cross-conjugation with another two
on the other side.
Scheme 1 Synthesis of the PQ molecules.
From series A to B, the increase in both theoretical and
experimental HOMO levels can be thought of as the formation of
a new set of bonding orbitals from the addition of the thienyl
substitutions at the quinoidal positions, which is localized along
the quinoid–core–quinoid system. Within series B, both theo-
retical and experimental HOMO values are almost constant, with
a slight stabilization from PQ-1B to PQ-3B. This slight stabili-
zation can be thought as the HOMO being slightly more delo-
calized due to the contribution from bithienyls, a case of pseudo-
cross-conjugation as suggested by five resonance structures (d, e,
h, i and j in Scheme 2) that show conjugation between quinoidal
and arm positions.
previously reported methodology starting from 4,8-dibromo-
BBT.17,20 Reduction of the BBT precursor using zinc in acetic
acid, followed by addition of the diketone(s) yielded PQ-1B, PQ-
2B and PQ-3B. Synthesis of PQ-2A starts with reduction of
dinitroditosylaminobenzene 3, which is prepared according to
the literature,21 using tin(II) in 37% HCl, followed by condensa-
tion with the diketone 1. Subsequent deprotection of the tosyl
group via concentrated sulfuric acid, followed by condensation
with diketone 2 yielded PQ-2A.
Comparison of experimental and theoretical results
From Table 1, an increase in conjugation from biphenyl to
bithienyl with the PQ core results in the band gap reduction of
The theoretical trend of LUMO energy levels for series B
agrees nicely with the experimental data. However, the
This journal is ª The Royal Society of Chemistry 2011
J. Mater. Chem., 2011, 21, 17798–17804 | 17799
