Alkyne addition to a metal-stabilized thiyl radical: Carbon-sulfur bond formation between 1-octyne and [Ru(SP)3]+

Article abstract of DOI:10.1002/ejic.201101016

The metal-stabilized thiyl radical complex [Ru(SP)₃] ⁺, [Ru-1]⁺, {SP = 2-(diphenylphosphanyl)benzenethiolate} adds 1-octyne across the cis-sulfur sites to yield the S-alkylated dithiolene product [Ru-1·octyne]⁺. The product complex exists as a pair of inseparable geometric isomers, which were characterized by X-ray crystallography, ³¹P NMR spectroscopy, and cyclic voltammetry. By using electrochemical methods, the rate constant for 1-octyne addition was determined as 8.7 × 10³ M^-1 s^-1. Copyright

Full text of DOI:10.1002/ejic.201101016

SHORT COMMUNICATION
DOI: 10.1002/ejic.201101016
Alkyne Addition to a Metal-Stabilized Thiyl Radical: Carbon–Sulfur Bond
Formation between 1-Octyne and [Ru(SP)3]+
Kagna Ouch,[a] Mark S. Mashuta,[a] and Craig A. Grapperhaus*[a]
Keywords: Alkynes / C–S bond formation / Oxidation / Sulfur / Electrochemistry
The metal-stabilized thiyl radical complex [Ru(SP)3]+, [Ru-
1]+, {SP = 2-(diphenylphosphanyl)benzenethiolate} adds 1-
octyne across the cis-sulfur sites to yield the S-alkylated di-

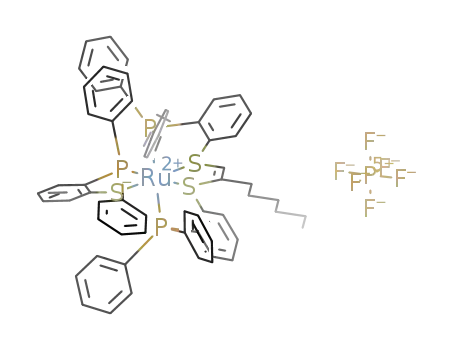

thiolene product [Ru-1·octyne]+. The product complex exists
as a pair of inseparable geometric isomers, which were char-
acterized by X-ray crystallography, 31P NMR spectroscopy,
and cyclic voltammetry. By using electrochemical methods,
the rate constant for 1-octyne addition was determined as
8.7ϫ103
M .
–1 s–1
ing regimes with equilibrium constants over 20 orders of
magnitude are accessible within a 240 mV potential win-
dow.[2]
Introduction
We have recently reported a series of studies on the ad-
dition of alkenes to the oxidized metal-thiolate complexes
[M(SP)3]+ {M = Ru, Re; SP = 2-(diphenylphosphanyl)-
benzenethiolate}.[1–4] Although formally in the +4 oxi-
dation state, the complexes are regarded as metal-stabilized
thiyl radicals because of the delocalization of spin density
over the metal and sulfur donors, Scheme 1.[4] Two of the
S ligands are optimally positioned for C–S bond forming
reactions with alkenes, which generate diamagnetic RuII-di-
thioether complexes. The reaction is initiated by electro-
chemical (Scheme 2 top) or chemical (Scheme 2 middle)
oxidation of [Ru-1]–. Similar alkene additions are reported
with other oxidized ruthenium thiolates[5] and oxidized
metal-dithiolenes.[6–9] For [Ru-1]+, the alkene addition rate
constant varies from 4.3ϫ107 m–1 s–1 to 2.9ϫ103 m–1 s–1,
and higher values are observed for “electron-rich” al-
kenes.[1] While alkene addition to [Ru-1]+ is irreversible,
equilibrium binding constants for ethylene to [Re-1]n+ (n =
0, 1, 2) depend on the complex charge. Three distinct bind-
Scheme 2. Reactivity of [Ru-1]+ with alkenes and alkynes.
Herein, we describe carbon–sulfur bond forming reac-
tions between [Ru-1]+ and 1-octyne (Scheme 2 bottom).
Alkyne addition across the thiolate donors of neighboring
SP chelates yields a new tetradentate, S-alkylated dithiolene
ligand. The intraligand addition of alkynes across sulfur do-
nors of Mo-tris(dithiolene)s was employed by the Fekl
group to selectively displace a single dithiolene donor.[10]
Similarly, Yan and co-workers detected a variety of metal-
free alkyne disulfuration and hydrosulfuration products fol-
lowing alkyne addition to a dinuclear Co-thiolate.[11] Dis-
Scheme 1. Metal-coordinated thiyl radical complex [Ru-1]+ with
calculated spin density values (italics).[4]
[a] Department of Chemistry, University of Louisville,
2320 South Brook Street, Louisville, KY 40292, USA
Fax: +1-502-852-8149
E-mail: grapperhaus@louisville.edu
Supporting information for this article is available on the
WWW under http://dx.doi.org/10.1002/ejic.201101016.
Eur. J. Inorg. Chem. 2012, 475–478
© 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
475

K. Ouch, M. S. Mashuta, C. A. Grapperhaus
SHORT COMMUNICATION
crete, isolable metal-coordinated alkyne addition products those observed in alkene addition products such as
were also reported by Yan by using related dinuclear Ru- [Ru-1·C2H4]+. The S2–C55–C56–S3 torsion angle, 8.3(8)°,
thiolates.[12,13] In that case, the formal oxidation states in approaches zero as expected for an S-alkylated dithiolene
the Ru precursor are +2 and +4, and alkyne addition occurs chelate; in contrast to the torsion angle of –47.3(3)° for the
at the more oxidized center.
dithioether fragment in [Ru-1·C2H4]+. The C55–C56 bond
length, 1.322(10) Å, matches the values of 1.312(9) and
1.394(10) Å reported by Yan in their alkyne addition prod-
ucts and is consistent with a C–C double bond.[12,13]
Results and Discussion
Oxidation of [Ru-1]– with ferrocenium hexafluorophos-
phate (2 equiv.) in the presence of 1-octyne yields the dia-
magnetic Ru(II) complex [Ru-1·octyne]PF6 as a dark
orange product. Recrystallization from THF/hexane gives
pure [Ru-1·octyne]PF6 as a yellow solid. The ESI-MS spec-
trum displays a parent peak at m/z = 1091.18, consistent
with the theoretical value, m/z = 1091.37, for the desired
complex, Figure S1.
Single crystals of [Ru-1·octyne]PF6 for X-ray diffraction
studies were obtained by evaporation of chlorobenzene/hex-
ane mixtures. The asymmetric unit consists of co-crys-
tallized mixtures of two geometric isomers (Scheme 2 bot-
tom). Unlike the related alkene addition product [Ru-1·p-
methylstyrene]PF6, the isomers of [Ru-1·octyne]PF6 could
not be separated by crystallization or other methods.[1]
Analyses of multiple crystals consistently reveal co-crys-
tallized products. The isomers differ based on the relative
position of the hexyl side chain, which can be located either
at the R1 (nearest S trans to S, major) or R2 (nearest S trans
to P, minor) position. An ORTEP[14] representation of the
major [Ru-1·octyne]+ isomer is provided in Figure 1.
Table 1. Selected bond lengths [Å] and angles [°] of [Ru-1·
octyne]+, [Ru-1·C2H4]+,[3] and [Ru-1]–.[15]
[Ru-1·octyne]+
[Ru-1·C2H4]+
[Ru-1]–
Ru–S1
Ru–S2
Ru–S3
Ru–P1
Ru–P2
Ru–P3
S2–C55
2.3890(14)
2.3663(15)
2.3106(15)
2.3294(14)
2.3422(14)
2.3823(14)
1.798(8)
2.3856(9)
2.3749(9)
2.3365(9)
2.3290(9)
2.3965(10)
2.3648(9)
1.836(4)
2.402(1)
2.445(1)
2.394(1)
2.295(1)
2.353(1)
2.340(1)
S3–C56
1.796(7)
1.843(4)
C55-C56
S2–Ru–S3
Ru–S2–C55
Ru–S3–C56
S2–C55–C56–S3
1.322(10)
86.22(6)
103.1(3)
105.2(3)
8.3(8)
1.510(5)
87.71(3)
104.52(12)
103.59(12)
–47.3(3)
89.77(2)
The 31P NMR of crystalline [Ru-1·octyne]+ displays a
pair of second-order spectra, Figure S2. The relative inten-
sities, chemical shifts, and coupling constants for the major
(60%) (δ1 = 57.2, δ2 = 42.8, δ3 = 35.8 ppm; J12 = J13 = 31
and J23 = 313 Hz) and minor (40%) isomers (δ1 = 57.2, δ2
= 43.0, δ3 = 36.2 ppm; J12 = J13 = 31 and J23 = 313 Hz)
are similar to values previously reported for the two isomers
of [Ru-1·p-methylstyrene]+.[1] In that study, the isomer with
the substituted carbon positioned nearest the S trans to S
was identified as the major alkene addition product. This is
consistent with the higher calculated spin densities[4] on the
S trans to P (0.31) as compared to the S trans to S (0.21)
and Tedder’s Rules for radical alkene addition.[16] Given
similar product ratios, we assign the major isomer of [Ru-
1·octyne]+ likewise.
The cyclic voltammogram of [Ru-1·octyne]+ reveals a
single, reversible redox event at +300 mV (vs. ferrocenium/
ferrocene) [Figure 2 (top)] assigned to the RuIII/II couple.
No other redox couples are observed, which indicates that
both isomers have the same potential. Further, the RuII/I
couple lies outside the solvent window, which precludes the
possibility of reduction promoted release of 1-octyne. As
shown in Table 2, the redox couple is shifted by +1130 mV
with respect to the RuIII/II couple in the thiolate precursor
Figure 1. ORTEP[14] representation of [Ru-1·octyne]+ showing a
single isomer with the hexyl side chain (C57–C62) extending from
C56. For clarity, the co-crystallized isomer with a hexyl side chain
originating from C55 is not shown (see Supporting Information).
The [Ru-1·octyne]+ complex contains a pseudo-octahe- [Ru-1]–.[17] Similar large shifts are observed for the related
dral Ru ion in a meridional P3S3 donor environment. The dithioether derivatives.[1,3,4,15]
Ru–S and Ru–P bond lengths range from 2.3106(15) to
The addition of 1-octyne to electrochemically generated
2.3890(14) Å and 2.3294(14) to 2.3823(14) Å, respectively, [Ru-1]+ was monitored by cyclic voltammetry. As shown
in accord with related structures, Table 1.[1,3,15] The alkynyl in Figure 2 (bottom), the cyclic voltammogram of [Ru-1]–
carbon atoms of 1-octyene provide a bridge, C55 and C56, recorded in the presence of 1-octyne displays anodic peaks
between the cis-sulfur donors, S2 and S3. The S2–C55 and associated with the oxidation of [Ru-1]– to [Ru-1] at
S3–C56 bond lengths of 1.798(8) and 1.796(7) Å, respec- –830 mV and of [Ru-1] to [Ru-1]+ at –60 mV. Following the
tively, confirm covalent attachment of 1-octyne to the second oxidation, 1-octyne rapidly adds to [Ru-1]+ to yield
metal-stabilized thiyl radical core with values similar to [Ru-1·octyne]+, as identified by its RuIII/II redox couple at
476
www.eurjic.org
© 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Inorg. Chem. 2012, 475–478

Alkyne Addition to a Metal-Stabilized Thiyl Radical
Conclusions
The previously reported addition reaction of alkenes to
the metal-stabilized thiyl radical [Ru-1]+ has been extended
to alkynes. By using similar chemical oxidation strategies, 1-
octyne is efficiently added to [Ru-1]+ to yield an S-alkylated
dithiolene ligand that remains coordinated to the metal cen-
ter. As with alkenes, the addition of alkyne to the Ru core
is irreversible, which is attributable to the stability of the
RuII oxidation state in a pseudo-octahedral environment.
The rate constant for 1-octyne addition was found to be
approximately 100 times lower than those of the corre-
sponding alkenes, in line with the electrophilic character of
our metal-stabilized thiyl radical. We are currently explor-
ing the addition of other alkynes and related unsaturated
compounds to establish the scope and limits of this reactiv-
ity.
Experimental Section
All reactions were performed under an inert nitrogen or argon at-
mosphere by using standard Schlenk techniques. Solvents were
purified, dried, and freshly distilled and degassed immediately prior
to use. The ruthenium thiolate precursors HNEt3[Ru-1][19] and
PPN[Ru-1][15] were prepared as described previously. All other
chemicals were purchased from Aldrich and used as received. Ele-
mental analyses were obtained from Midwest Microlab, LLC in
Indianapolis, Indiana. Electrochemical measurements were per-
formed with a PAR 273A potentiostat/galvanostat in dry, degassed
acetonitrile with 0.1 m tetrabutylammonium hexafluorophosphate
(TBAHFP) as supporting electrolyte. Additional details of the elec-
trochemical measurements are described in the Supporting Infor-
mation.
Figure 2. (top) Cyclic voltammogram of [Ru-1·octyne]+ (1.0 mm in
CH3CN with 0.1 m TBAHFP) at a scan rate of 200 mV/s. (bottom)
Cyclic voltammogram of [Ru-1]– (2.0 mm in CH3CN with 0.1 m
TBAHFP) in the presence of 1-octyne (200 mm) at a scan rate of
200 mV/s. Potentials are referenced vs. the ferrocenium/ferrocene
couple.
Table 2. Electrochemical comparison of [Ru-1]–, [Ru-1·octyne]+,
and [Ru-1·C2H4]+.
Redox couple
E1/2 (ΔE) /
Formal oxidation
states
Ref.
mV[a]
[17]
[Ru–1]0/–
–830 (95)
+300 (75)
+285 (80)
RuIII/II
RuIII/II
RuIII/II
[Ru-1·octyne]2+/+
[Ru-1·C2H4]2+/+
this work
Crystallographic Studies: Crystals of [Ru-1·octyne]PF6 adequate for
X-ray diffraction studies were grown from chlorobenzene/hexane.
[Ru(C62H55P3S3)]+[PF6]–: yellow prism, monoclinic, space group
P21/n, a = 12.0367(4), b = 24.2458(10) Å, c = 20.1572(9) Å, β =
98.291(3)°, V = 5821.2(7) Å3, rcalcd. = 1.409 g/cm3, Z = 4. Data
were collected on an Agilent Technologies/Oxford Diffraction
Gemini CCD diffractometer at 100 K by using Mo-Kα radiation.
For 8452 reflections, IϾ2σ(I) [R(int) 0.061], the final anisotropic
full-matrix least-squares refinement on F2 for 679 variables con-
verged at R1 = 0.078 and wR2 = 0.133 with a GOF of 1.06. Full
details of the data collection and structure refinement are provided
in the Supporting Information. CCDC-844993 contains the supple-
mentary crystallographic data for this paper. These data can be
obtained free of charge from The Cambridge Crystallographic
Data Centre via www.ccdc.cam.ac.uk/data_request/cif.
[3]
[a] Potentials vs. ferrocenium/ferrocene reference. ΔE = Epc – Epa
at a scan rate of 200 mV/s. Measurements were recorded in dry,
degassed acetonitrile with 0.1 m tetrabutylammonium hexafluoro-
phosphate as supporting electrolyte.
+300 mV. The rapid, irreversible binding of 1-octyne to
[Ru-1]+ is also evident by the decrease in cathodic current
for the [Ru-1]+/0 and [Ru-1]+/0 couples.
The rate constant for 1-octyne addition to [Ru-1]+ was
evaluated by using methods previously described for alkene
addition. A series of cyclic voltammograms were recorded
over a range of scan rates, 100–1000 mV/s, for solutions
containing [Ru-1]– and 1-octyne. The data were simulta-
[Ru-1·octyne]PF6: To a yellow solution of HNEt3[Ru-1] (100 mg,
neously fitted over all scan rates by using the Digisim soft- 0.0935 mmol) in dry acetonitrile (40 mL) was added 1-octyne
ware package[18] to determine a second-order rate constant
(1.38 mL, 9.35 mmol) by a syringe. The solution was cooled to 0 °C
of 8.7ϫ103 m–1 s–1 for the alkyne addition reaction. This
in an ice bath, and a blue solution of ferrocenium hexafluorophos-
phate (61.9 mg, 0.0187 mmol) in acetonitrile (30 mL) was slowly
value is two orders of magnitude lower than the corre-
added by a cannula. The resulting solution was stirred overnight,
sponding alkene addition rate constant for 1-hexene to [Ru-
during which time the solution gradually developed a dark orange
1]+, 7(2) ϫ105 m–1 s–1.[1] A 100–1000-fold decrease in rate
color. The solvent was removed by rotary evaporation to yield an
constant is typical for electrophilic substitutions of compar-
able alkynes and alkenes. This corroborates our previous
observation based on substituent effects of alkene addition
to [Ru-1]+ that our metal-stabilized thiyl radical complex is
electrophilic.
oily orange residue. The crude product was washed with an excess
of hot water (≈300 mL) and diethyl ether (100 mL). The crude
product was recrystallized from THF/hexane. Yield: 49 mg
(0.040 mmol, 43%). X-ray quality crystals were obtained by slow
evaporation of a 1:2 chlorobenzene/hexane mixture. E1/2 (RuIII
/
Eur. J. Inorg. Chem. 2012, 475–478
© 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.eurjic.org
477

K. Ouch, M. S. Mashuta, C. A. Grapperhaus
SHORT COMMUNICATION
RuII) = +356 mV. +ESI-MS: calcd. for C62H56P3S3Ru m/z (Z = 1)
= 1091.37; found: 1091.18. C62H56F6P4RuS3 (1236.26): calcd. C
60.23, H 4.57; found C 58.03, H 3.72. Electronic absorption: λmax
(ε [cm–1], m–1) = 305 (9527), 361 nm (shoulder). FTIR (KBr pellet):
[5]
R. Y. C. Shin, M. E. Teo, W. K. Leong, J. J. Vittal, J. H. K. Yip,
L. Y. Goh, R. D. Webster, Organometallics 2005, 24, 1483–
1494.
M. J. Kerr, D. J. Harrison, A. J. Lough, U. Fekl, Inorg. Chem.
2009, 48, 9043–9045.
D. J. Harrison, A. J. Lough, N. Nguyen, U. Fekl, Angew. Chem.
2007, 119, 7788; Angew. Chem. Int. Ed. 2007, 46, 7644–7647.
D. J. Harrison, N. Nguyen, A. J. Lough, U. Fekl, J. Am. Chem.
Soc. 2006, 128, 11026–11027.
K. Wang, E. I. Stiefel, Science 2001, 291, 106–109.
N. Nguyen, D. J. Harrison, A. J. Lough, A. G. De Crisci, U.
Fekl, Eur. J. Inorg. Chem. 2010, 3577–3585.
H. D. Ye, B. H. Xu, M. S. Xie, Y. Z. Li, H. Yan, Dalton Trans.
2011, 40, 6541–6546.
[6]
[7]
[8]
ν = 3052, 2929, 2852, 1434, 1086, 837, 559, 531 cm–1.
˜
Supporting Information (see footnote on the first page of this arti-
cle): Details of X-ray diffraction and electrochemical methods, ESI-
MS and 31P NMR spectra, and cyclic voltammograms are pre-
sented.
[9]
[10]
Acknowledgments
[11]
[12]
Acknowledgments is made to the National Science Foundation
(CHE-0749965). M. S. M. thanks the Department of Defense
(W81XWH) from the Telemedicine and Advanced Technology Re-
search Center of the US Army, the Department of Energy
(DEFG02-08CH11538), and the Kentucky Research Challenge
Trust Fund for the upgrade of our X-ray facilities.
D. Wu, Y. Li, L. Han, Y. Li, H. Yan, Inorg. Chem. 2008, 47,
6524–6531.
[13] D.-H. Wu, C. Ji, Y.-Z. Li, H. Yan, Organometallics 2007, 26,
1560–1562.
[14] L. J. Farrugia, J. Appl. Crystallogr. 1997, 30, 565.
[15] C. A. Grapperhaus, S. Poturovic, M. S. Mashuta, Inorg. Chem.
2002, 41, 4309–4311.
[16] J. M. Tedder, Angew. Chem. 1982, 94, 433; Angew. Chem. Int.
Ed. Engl. 1982, 21, 401–410.
[1] K. Ouch, M. S. Mashuta, C. A. Grapperhaus, Inorg. Chem.
2011, 50, 9904–9914.
[2] C. A. Grapperhaus, K. Ouch, M. S. Mashuta, J. Am. Chem.
Soc. 2009, 131, 64–65.
[3] C. A. Grapperhaus, K. B. Venna, M. S. Mashuta, Inorg. Chem.
2007, 46, 8044–8050.
[4] C. A. Grapperhaus, P. M. Kozlowski, D. Kumar, H. N. Frye,
K. B. Venna, S. Poturovic, Angew. Chem. 2007, 119, 4163; An-
gew. Chem. Int. Ed. 2007, 46, 4085–4088.
[17] C. A. Grapperhaus, S. Poturovic, Inorg. Chem. 2004, 43, 3292–
3298.
[18] DigiSim (3.03b), Bioanalytical Systems, Inc.: West Lafayette,
IN, 2004.
[19] J. Dilworth, Y. Zheng, S. Lu, Q. Wu, Transition Met. Chem.
1992, 17, 364–368.
Received: September 23, 2011
Published Online: Dezember 1, 2011
478
www.eurjic.org
© 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Inorg. Chem. 2012, 475–478
