K. S. T. Dias et al. / Bioorg. Med. Chem. 20 (2012) 2713–2720
2715
326 nm (3.35), 251 nm (3.41) and 223 nm (3.55). Addition of HCl
The UV spectrum displayed absorptions with kmáx (loge) at
produced absorptions at 328 nm (3.37), 252 (3.42) and 223 nm
(3.59). These shift changes observed in the UV spectra produced
by adding AlCl3 and HCl indicated the presence of chelatogenic hy-
droxyl group, confirming that the reaction does not occurred on the
hydroxyl group at C-4 position. According to the UV data, jointly
with NMR and MS analysis, compound LFQM-79 (2) was deduced
as 14-O-tert-butoxycarbonyl-guttiferone-A.
The reaction of 1 with acetic anhydride and triethylamine in
CH2Cl2 at room temperature gave compound LFQM-80 (3). The
molecular weight of compound 3 was determined by HRESI-MS to
be 709.3709 [M+Na]+, consistent with a molecular formula of
244 nm (4.21) for the pure compound. Addition of AlCl3 led to
absorptions at 468 nm (2.27) and 244 nm (4.18). Addition of HCl
produced absorptions at 468 nm (2.04) and 227 nm (4.12). Again,
these shift changes in the UV absorption produced by adding AlCl3
and HCl revealed that the chelatogenic hydroxyl group at C-4
position was preserved. According to these spectroscopic data,
compound LFQM-82 was confirmed as 13,14-di-chlorobenzoyl-
guttiferone-A (5).
Compound LFQM-113 (6) was obtained by reaction of com-
pound 1 with p-toluenesulfonyl chloride and triethylamine in
CH2Cl2. The molecular weight of compound 6 was determined by
HRESI-MS to be 933.3645 [M+Na]+, consistent with a molecular
formula of C52H62O10S2Na. The formation of tosyl ester was
evidenced in the IR spectrum by the absorption bands at
1749 cmÀ1 and 1246 cmÀ1 characteristic of axial deformations of
C@O of ester and C–O–C@O, respectively. The formation of the to-
syl-guttiferone derivative was also confirmed by 1H and 13C NMR.
In the lower field region of 13C NMR spectrum, it was observed
characteristic signals for tosyl subunit at d 130.42 (C-39), 128.57
(C-40), 129.84 (C-41), 144.05 (C-42), 129.84 (C-43), 128.57
(C-44), 127.87 (C-46), 128.57 (C-47), 129.84 (C-48), 145.77 (C-
49), 129.84 (C-50), 128.57 (C-51) and the methyl carbon attached
to aromatic ring 21.78 (C-45), 21.78 (C-52). The presence of aro-
matic hydrogen signals at d 7.65 (H-40, 44, 47, 51) and 7.29 (H-
41, 43, 48, 50), along with hydrogen signal of the methyl group
bound to the benzene ring at 2.45 (H-45 and 52). The UV spectrum
C42H54O8Na. As observed for all semisynthetic derivatives, most
signals in 1H and 13C NMR spectra of 3 were similar to compound
1, except for an extra signal at d 2.22 (6H, s) in the 1H NMR spectrum
related to the two methyl groups and the signals for two methylic
carbons at d 19.55 and 19.72, and two carbonyl carbons at d
166.45 and 166.75, observed in the 13C NMR spectrum, indicated
that two hydroxyl groups were converted to the correspondent ace-
tate ester groups. In the IR spectrum of compound 3, the absence of a
hydroxyl absorption band at 3267 cmÀ1 and the appearance of an
absorption band at 1778 cmÀ1, a typical stretch of C@O ester, sug-
gested completion of the substitution reaction. The UV spectrum
displayed absorptions with kmáx (loge) at 293 nm (3.84), 248 nm
(3.97) and 202 nm (4.23) for the pure compound. The addition of
AlCl3 produced a shift at 324 nm (3.86), 252 nm (3.97) and
222 nm (4.00). The addition of HCl does not restore the spectrum,
showing absorptions at 327 nm (3.88), 252 nm (3.97) and 223 nm
(4.03). On the basis of these spectroscopic data, compound LFQM-
80 was elucidated as 13,14-di-acetyl-guttiferone-A (3).
displayed absorptions with kmáx (loge) at 484 nm (2.10) and
227 nm (4.35), for the pure compound. Absorptions at 468 nm
(2.13), 312 nm (3.55) and 222 nm (4.36) were produced when
AlCl3 was added. The system could not be regenerated with the
addition of HCl, producing absorptions at 468 nm (1.89) and
313 nm (3.50) that was indicative of the presence of chelatogenic
hydroxyl group on ring B. On the basis of these spectroscopic data,
compound LFQM-113 was elucidated as 13,14-di-toluenesulpho-
nyl-guttiferone-A (6).
The reaction of compound 1 with benzoyl chloride and K2CO3 in
acetone gave compound LFQM-114 (7). The molecular weight of
compound 6 was determined by HRESI-MS to 833.4012 [M+Na]+,
consistent with a molecular formula of C52H58O8Na. The character-
istic monosubstituted aromatic ring signals observed in the 1H
NMR spectra at d 7.35, 7.45 and 8.02 ppm, and the carbon signals
in 13C NMR spectra at d 130.20, 128.49, 133.78 showed indicated
that the two phenolic hydroxyl groups of the substrate were con-
verted to the di-benzoyl ester derivative. Furthermore, this conver-
sion was also supported by the carbonyl peak at 1719 cmÀ1
observed in the IR spectrum.
Shifts in the UV spectrum produced by adding AlCl3 and HCl
indicated the presence of a chelatogenic hydroxyl group. The UV
spectrum displayed absorptions with kmáx (loge) at 339 nm
(1.88), 233 nm (3.76) and 206 nm (3.56), for the pure compound.
Adding AlCl3 produced absorptions at 333 nm (2.52), 232 nm
(3.84) and 207 nm (3.64). Addition of HCl produced absorptions
at 335 nm (2.44), 231 nm (3.87) and 206 nm (3.73) indicating that
the reaction did not occur at the hydroxyl group attached to C-4.
On the basis of these spectroscopic data compound LFQM-114
was identified as 13,14-di-benzoyl-guttiferone-A (7).

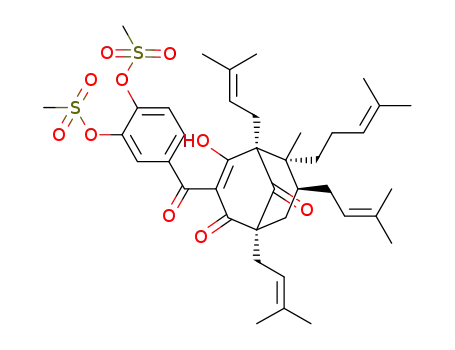

Reaction of compound 1 with methanesulfonyl chloride and tri-
ethylamine in CH2Cl2 resulted in compound LFQM-81 (4). The
molecular weight of compound 4 was determined by HRESI-MS
to be 781.3057 [M+Na]+, consistent with a molecular formula of
C
40H54O10S2Na. The 1H NMR signals at d 3.18 and 3.21 were as-
signed as H-39 and H-40, respectively, and the chemical shifts of
C-39 and C-40 at d 32.63, observed in the 13C NMR spectrum, sup-
ported the desired mesylation on positions 13 and 14 of guttifer-
one-A (1). Analysis of IR spectrum of derivative 4 showed two
characteristic bands at 1373 and 1371 cmÀ1, attributed to asym-
metric deformation of the S(@O)2 group, one band at 1180 cmÀ1
,
related to angular symmetric deformation of S(@O)2 and two
bands at 1103.28 and 738.74 cmÀ1 attributed to the axial strain
of the group SOC. The absence of the band related to phenolic hy-
droxyl groups at 3485 cmÀ1 suggested the replacement of two hy-
droxyl groups of the substrate 1. On the basis of these
spectroscopic data, compound LFQM-81 was identified as 13,14-
di-methanesulfonyl-guttiferone-A (4).
Compound LFQM-82 (5) was prepared by reaction of compound
1 with chlorobenzoyl chloride and K2CO3 in acetone. The molecular
weight of compound 5 was determined by HRESI-MS to be
901.3214 [M+Na]+, consistent with
a
molecular formula of
C52H56Cl2O8Na. The chlorobenzoylation of guttiferone-A was sup-
ported by the presence of additional signals of aromatic hydrogen
at d 7.96 (H-41, H-45, H-48 and H-52) and d 7.38 (H-42, H-44, H-49
and H-51), related to the chlorobenzoyl subunit. The presence of
chlorobenzoyl group was also confirmed in the 13C NMR spectrum,
by the signals at d 128.47 attributed to C-42, C-44, C-49 and C-51; d
129.87 attributed to C-41, C-45, C-48 and C-52, d 163.91 (C-39), d
133.77 (C-43), d 124.10 (C-47), d 163.47 (C-46), d 124.48 (C-40),
and d 133.47 (C-50). Based on the absence of bands for axial defor-
mation of OH group in the IR spectrum, it was presumed that all
phenolic hydroxyl groups were substituted. Characteristic bands
were observed at 1749 cmÀ1 and 1253 cmÀ1, corresponding to ax-
ial deformations of C@O and C–O–C@O of the ester group.
2.2. Evaluation of lipophilicity
The lipophilicity of compounds 1–7 were estimated by theoret-
ical calculation of partition coefficient octanol/water (cLogP oct/
wat). The values are shown in Table 1, and clearly indicate that
substituted sulfonyl groups, independent of their volume and size,
contributed to reduce cLogP (oct/wat).
