Journal of Natural Products
Article
residue, which was purified by HPLC (70% MeOH−H2O) to give
compound 12a or 14g (9 or 11 mg, 30.9% or 36.4%) as a white solid.
Alkylated Derivatives 14c, 14d, and 14e. A mixture of 14 (10
mg), 1-bromopentane (10 μL) or 1-bromopropane (4 μL), and K2CO3
(10 mg) in dry acetone (2.0 mL) was stirred at 30 °C overnight. The
solvent was evaporated in vacuo to give a residue, which was purified by
silica gel column chromatography (petroleum ether−EtOAc, v/v, 9:1 to
5:1) to give 14c (3.7 mg, 28.7%), 14d (8.6 mg, 54.1%), or 14e (4.9 mg,
42.2%).
Acylated Derivatives 14a, 14b, and 14f. To a solution of 14 (10
mg) in dry acetone (2.0 mL) were added Ac2O (9 μL) or BzCl (5 μL)
and K2CO3 (10 mg) at rt, and the reaction mixture was stirred for 2 h.
The solvent was evaporated in vacuo, and the residue was purified by
silica gel column chromatography (petroleum ether−EtOAc, v/v, 9:1 to
5:1) to give 14a (4.1 mg, 35.1%), 14b (6.9 mg, 51.1%), or 14f (4.9 mg,
34.2%).
1.8 Hz), 7.49 (2H, t, J = 7.2 Hz), 6.78 (1H, brs), 6.75 (1H, brs), 6.67
(1H, t, J = 1.2 Hz), 6.44 (1H, brs), 6.41 (1H, brs), 6.32, (1H, t, J = 1.2
Hz), 5.36 (1H, brs), 2.35 (3H, s), 2.26 (3H, s); 13C NMR (150 MHz,
CDCl3, δ, ppm) 165.3 (C), 157.8 (C), 156.7 (C), 151.6 (C), 141.1 (C),
140.8 (C), 133.8 (C), 133.7 (C), 130.3 (CH), 130.2 (CH), 129.4 (CH),
128.7 (CH), 128.6 (C), 117.3 (CH), 117.2 (CH), 112.2 (CH), 111.6
(CH), 109.8 (CH), 103.6 (CH), 21.5 (CH3), 21.5 (CH3); ESIMS m/z
335.1 [M + H]+, 357.0 [M + Na]+; HRESIMS m/z 357.1103 (calcd for
C21H18O4Na, 357.1097).
2,4,6,2′,4′,6′-Hexabromodiorcinol (14g): white powder; mp
204−205 °C; 1H NMR (600 MHz, CD3OD, δ, ppm) 2.58 (s, 6H); 13
C
NMR (150 MHz, CD3OD, δ, ppm) 154.4 (C × 2), 152.6 (C × 2), 139.4
(C × 2), 107.5 (C × 2), 105.5 (C × 2), 104.0 (C × 2), 23.0 (CH3 × 2);
ESIMS m/z 702.3 [M − H]−; HRESIMS m/z 702.5440 (calcd for
C14H779Br381Br3O3, 702.5429).
Antibacterial Assays. Eight bacterial strains, including Gram-
positive Bacillus cereus (ACCC 11077), Micrococcus tetragenus (ATCC
13623), Staphylococcus epidermidis (ATCC 12228), and S. aureus
(ATCC 27154) and Gram-negative Escherichia coli (ATCC 25922),
Vibrio anguillarum (ATCC 19019), V. parahemolyticus (ATCC 17802),
and Pseudomonas putida (ATCC 17848), were used for antibacterial
assay. The specific antibacterial assay was carried out as described
previously.21
2,6,2′,4′,6′-Pentabromo-4-methoxycarbonyldiorcinol (12a):
white powder; mp 180−181 °C; 1H NMR (600 MHz, CDCl3 δ, ppm)
11.77 (1H, s), 6.10 (1H, brs), 4.01 (3H, s), 2.68 (3H, s), 2.61 (3H, s);
13C NMR (150 MHz, CDCl3, δ, ppm) 170.4 (C), 158.3 (C), 152.8 (C),
148.8 (C), 148.6 (C), 140.1 (C), 137.5 (C), 110.3 (C), 110.3 (C), 108.3
(C), 107.1 (C), 100.6 (C), 100.0 (C), 52.4 (CH3), 24.1 (CH3), 22.8
(CH3); ESIMS m/z 682.6 [M − H]−; HRESIMS m/z 682.6375 (calcd
for C16H1079Br281Br3O5, 682.6378).
Cytotoxicity Assays. The cytotoxic activities against the K562 and
HL-60 cell lines were determined by the MTT method.23 Adriamycin
was used as a positive control.
1
3-O-Acetyldiorcinol (14a): colorless oil; H NMR (600 MHz,
CDCl3, δ, ppm, J/Hz) 6.70 (1H, brs), 6.64 (1H, brs), 6.54 (1H, t, J = 2.4
Hz), 6.42 (2H, brs), 6.30 (1H, t, J = 2.4 Hz), 5.00 (1H, brs), 2.32, (3H,
s), 2.27, (3H, s), 2.26, (3H, s); 13C NMR (150 MHz, CDCl3, δ, ppm)
168.7 (C), 156.8 (C), 155.8 (C), 150.3 (C), 140.2 (C), 139.8 (C), 116.2
(CH), 116.2 (CH), 111.3 (CH), 110.6 (CH), 108.6 (CH), 102.6 (CH),
20.5 (CH3), 20.5 (CH3), 20.2 (CH3); ESIMS m/z 295.0 [M + Na]+,
567.1 [2 M + Na]+; HRESIMS m/z 295.0941 (calcd for C16H16O4Na,
295.0941).
ASSOCIATED CONTENT
* Supporting Information
■
S
1H, 13C, HMQC, HMBC, and MS spectra of compounds 1, 2, 9,
10, and 13; NOESY spectra of 1 and 2; 1D NOE spectrum of 1;
1H, 13C, and MS spectra of compounds 12a and 14a−14g; CIF
file and X-ray crystallographic data for 3; specific rotations for
known compounds 3−8. These materials are available free of
3,3′-O-Diacetyldiorcinol (14b): colorless oil; 1H NMR (600 MHz,
CDCl3, δ, ppm, J/Hz) 6.71 (2H, brs), 6.67 (2H, brs), 6.55 (2H, t, J = 2.4
Hz), 2.32 (6H, s), 2.26 (6H, s); 13C NMR (150 MHz, CDCl3, δ, ppm)
168.7 (C × 2), 156.8 (C × 2), 150.8 (C × 2), 140.2 (C × 2), 116.8 (CH
× 2), 116.5 (CH × 2), 109.1 (CH × 2), 20.8 (CH3 × 2), 20.5 (CH3 × 2);
ESIMS m/z 337.1 [M + Na]+, 651.0 [2 M + Na]+; HRESIMS m/z
337.1051 (calcd for C18H18O5Na, 337.1046).
AUTHOR INFORMATION
Corresponding Author
■
1
3-O-Pentyldiorcinol (14c): colorless oil; H NMR (600 MHz,
*Tel/Fax: 86-532-82031536 (C.-Y.W.). Tel/Fax: 86-20-
CDCl3, δ, ppm, J/Hz) 6.48 (1H, brs), 6.40 (2H, brs), 6.38 (2H, brs),
6.29 (1H, d, J = 2.4 Hz), 4.87 (1H, brs), 3.89 (2H, t, J = 6.6 Hz), 2.28
(3H, s), 2.26 (3H, s), 1.76 (2H, m), 1.34−1.42 (4H, m), 0.92 (3H, t, J =
7.2 Hz); 13C NMR (150 MHz, CDCl3, δ, ppm) 159.7 (C), 157.9 (C),
157.2 (C), 155.9 (C), 140.3 (C), 139.9 (C), 111.5 (CH), 111.4 (CH),
110.3 (CH), 110.1 (CH), 102.6 (CH), 102.3 (CH), 67.5 (CH2), 28.4
(CH2), 27.6 (CH2), 21.9 (CH3), 21.1 (CH3), 20.8 (CH3), 13.4 (CH2);
ESIMS m/z 299.5 [M − H]−, 599.2 [2 M − H]−; HRESIMS m/z
299.1649 (calcd for C19H23O3, 299.1642).
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
This work was supported by the Key Program of National
Natural Science Foundation of China (No. 41130858), the
National Natural Science Foundation of China (Nos. 40976077;
30901879; 81172977; 41176121), the Natural Science Founda-
tion of Shandong Province (ZR2011DQ019), the Program for
New Century Excellent Talents in University, Ministry of
Education of China (No. NCET-11-0472), and the Research
Fund for the Doctoral Program of Higher Education, Ministry of
Education of China (No. 20090132110002).

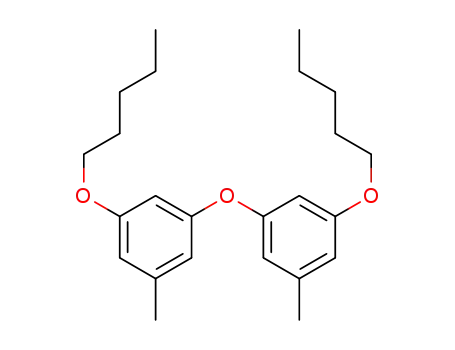

3,3′-O-Dipentyldiorcinol (14d): colorless oil; 1H NMR (600
MHz, CDCl3, δ, ppm, J/Hz) 6.46 (2H, brs), 6.39 (2H, brs), 6.36 (2H,
brs), 3.88 (4H, t, J = 6.6 Hz), 2.27 (6H, s), 1.74 (4H, dt, J = 13.8, 6.6 Hz),
1.34−1.43 (8H, m), 0.91 (6H, t, J = 6.6 Hz); 13C NMR (150 MHz,
CDCl3, δ, ppm) 159.6 (C × 2), 157.5 (C × 2), 139.8 (C × 2), 111.2 (CH
× 2), 109.8 (CH × 2), 101.9 (CH × 2), 67.4 (CH2 × 2), 28.3 (CH2 × 2),
27.6 (CH2 × 2), 21.8 (CH3 × 2), 21.0 (CH3 × 2), 13.4 (CH2 × 2);
ESIMS m/z 371.2 [M + H]+; HRESIMS m/z 371.2583 (calcd for
C24H35O3, 371.2581).
1
3-O-Propyldiorcinol (14e): colorless oil; H NMR (600 MHz,
REFERENCES
CDCl3, δ, ppm, J/Hz) 6.48 (1H, brs), 6.40 (2H, brs), 6.38 (2H, brs),
6.29 (1H, brs), 4.85 (1H, brs), 3.86 (2H, t, J = 6.6 Hz), 2.28 (3H, s), 2.26
(3H, s), 1.78 (2H, m), 1.01 (3H, t, J = 7.2 Hz); 13C NMR (150 MHz,
CDCl3, δ, ppm) 159.5 (C), 157.7 (C), 157.1 (C), 155.8 (C), 140.2 (C),
139.8 (C), 111.4 (CH), 111.2 (CH), 110.2 (CH), 109.9 (CH), 102.5
(CH), 102.1 (CH), 68.9 (CH2), 29.0 (CH2), 21.9 (CH3), 20.9 (CH3),
9.8(CH2); ESIMS m/z 273.1 [M + H]+; HRESIMS m/z 273.1486
(calcd for C17H21O3, 273.1485).
■
(1) Newman, D. J.; Cragg, G. M. J. Nat. Prod. 2012, 75, 311−335.
(2) Blunt, J. W.; Copp, B. R.; Keyzers, R. A.; Munro, M. H. G.; Prinsep,
M. R. Nat. Prod. Rep. 2012, 29, 144−222.
(3) Grubbs, A. W.; Artman, G. D., 3rd; Tsukamoto, S.; Williams, R. M.
Angew. Chem., Int. Ed. 2007, 46, 2257−2261.
(4) Greshock, T. J.; Grubbs, A. W.; Tsukamoto, S.; Williams, R. M.
Angew. Chem., Int. Ed. 2007, 46, 2262−2265.
1
3-O-Benzoyldiorcinol (14f): colorless oil; H NMR (600 MHz,
(5) Miller, K. A.; Tsukamoto, S.; Williams, R. M. Nat. Chem. 2009, 11,
63−69.
CDCl3, δ, ppm, J/Hz) 8.17 (2H, dd, J = 7.2, 1.8 Hz), 7.63 (1H, dt, J = 7.2,
F
dx.doi.org/10.1021/np300707x | J. Nat. Prod. XXXX, XXX, XXX−XXX
