Medicinal Chemistry Research
dissolved in 2-methyltetrahydrofuran at −78 °C, vinyl-
magnesium bromide (2.6 g, 20 mmol) was added, stirred for
1 h at −78 °C, and warmed to room temperature (rt) for 2 h.
It was then quenched with saturated ammonium chloride
solution, extracted with ethyl acetate, and purified by flash
column chromatography to obtain intermediate 3 (1.3 g,
58%). Thiourea (0.39 g, 5.5 mmol) and 1 M hydrochloric
acid (5.5 mL, 5.5 mmol) in acetic acid was added to a
solution of intermediate 3 (1.3 g, 5.1 mmol) in acetic acid at
rt and stirred at 45 °C for 16 h. The reaction mixture was
concentrated and re-crystallized from a mixture of methanol
and diethyl ether to obtain intermediate 4 (0.8 g, 50%).
Methanesulfonic acid (0.54 g, 5.6 mmol) was added drop-
wise to a solution of intermediate 4 (0.8 g, 2.6 mmol) in
trifluoroacetic acid at 0 °C and then stirred at rt for 1 h. The
reaction mixture was concentrated and dissolved in
dichloromethane, washed with aq. sodium bicarbonate
solution and purified by column chromatography to obtain

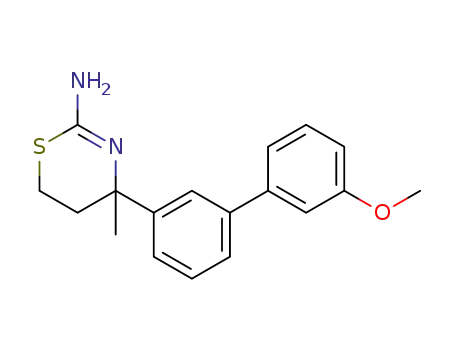

compound 5 as yellow solid (0.35 g, 44%). 1H-NMR
(400 MHz, DMSO-d6): δ 7.59 (s, 1H), 7.34–7.46 (m, 4H),
7.17 (d, J = 8.0 Hz, 1H), 7.12 (s, 1H), 6.92 (d, J = 8.0 Hz,
1H), 5.82(s, 2H), 3.8 (s, 3H), 2.88–2.90 (m, 1H), 2.54–2.56
(m, 1H), 2.05–2.08 (m, 1H), 1.71–1.71 (m, 1H), 1.44 (s,
3H). LC-MS calculated for C18H20N2OS [M]: 312.1; found
[M + H]+: 313.1. Boron tribromide (0.6 g, 2.4 mmol) was
added dropwise to a solution of compound 5 (0.25 g,
0.8 mmol) in dichloromethane at −78 °C, then stirred at
0 °C for 1 h. The reaction was quenched with water, pH
adjusted to 7 and the mixture was extracted with 5%
methanol in ethyl acetate. The organic layer was con-
centrated and purified by flash column chromatography to
cartridge, rinsing with water (5 mL), eluting with ethanol
(1 mL), and diluting with 0.9% saline (9 mL).
Rodent PET/CT acquisition and post processing
Male Sprague-Dawley rats (350 g, Charles River Labora-
tories, Inc, Wilmington, MA) were utilized in pairs, anes-
thetized with gaseous isoflurane at 3% in a carrier of 1.5 L/
min medical oxygen and maintained at 2% isoflurane for the
duration of the scan. The rats were arranged side-by-side in
a Triumph Trimodality PET/CT/SPECT scanner (Gamma
Medica, Northridge, CA). Rats were injected with [11C]5
(50–100 µCi per animal) after 5 min pretreatment of unla-
beled 5 (1 mg/kg) or vehicle via a lateral tail vein cathe-
terized at the start of PET acquisition. Dynamic PET
acquisition lasted for 60 min, and was followed by com-
puted tomography (CT) for anatomic co-registration and
PET attenuation correction. PET data were reconstructed
using a 3D-MLEM method resulting in a full width at half-
maximum resolution of 1 mm. Reconstructed images were
exported from the scanner in DICOM format along with an
anatomic CT for rodent studies. These files were imported
to PMOD (PMOD Technologies, Ltd.) and manually co-
registered using six degrees of freedom.
Rodent PET/CT image analysis
Volumes of interest (VOIs) were drawn manually as spheres
in brain regions guided by high-resolution CT structural
images and summed PET data, with a radius of no <1 mm to
minimize partial volume effects. Time-activity curves
(TACs) were exported as decay-corrected activity per unit
volume. The TACs were expressed as percent injected dose
per unit volume for analysis.
1
obtain compound 6 as white solid (45 mg, 19%). H-NMR
(400 MHz, DMSO-d6): δ9.46 (s, 1H), 7.59 (s, 1H),
7.42–7.46 (m, 2H), 7.32 (d, J = 7.2 Hz, 1H), 7.23–7.27 (m,
1H), 7.05 (d, J = 7.2 Hz, 1H), 7.0 (s, 1H), 6.76–6.78 (m,
1H), 3.0 (s, 1H), 2.61–2.66 (m, 1H), 2.50 (s, 1H), 1.90–1.93
(m, 1H), 1.57 (s, 3H). LC-MS calculated for C17H18N2OS
[M]: 298.1; found [M + H]+: 299.0.
Results and discussion
BACE1, a transmembrane aspartyl protease, has been
considered as a potentially powerful therapeutic target for
the diagnosis and treatment of AD for many years. One of
the major factors associated with AD is the accumulation of
amyloid plaques, the primary component of which is Aβ
which is excised from APP by the sequential action of
BACE1. As a result, inhibition of BACE1 is an exciting
therapeutic target for the treatment of AD.
However, information about the density and distribution
of BACE1 in the brain is limited due to the lack of effective
tools to quantify the expression of cerebral BACE1 in vivo.
Our goal was to develop a radiotracer targeting BACE1 for
PET imaging. The development of specific PET radiotracers
to measure BACE1 in the brain is challenging. A radiotracer
to be used for brain imaging must have high BBB
Radiosynthesis of [11C]5
[11C]methyl iodide was trapped in a TRACERlab FX-M
synthesizer reactor (General Electric) preloaded with a
solution of precursor (6) (1.0 mg) in dry dimethylformamide
(300 μl) with potassium hydroxide (15 mg). The solution
was stirred at 100 °C for 3 min, and water (0.7 ml) was
added. The reaction mixture was purified by reverse phase
semi-preparative HPLC (Agilent Eclipse XDB-18 column,
(250 mm × 9.4 mm × 5 μ), mobile phase: A: 0.1% TFA in
water/B: 0.1% TFA in acetonitrile, A:B = 70: 30; Flow rate:
5.0 mL/min), and the desired fraction was collected. The
final product was diluted with 20 mL water and reformu-
lated by loading onto a solid-phase exchange (SPE) C-18
