Abstract: We used iodoꢀBodipy derivatives that show strong absorption of visible light and
longꢀlived triplet excited states as organic catalysts for photoredox catalytic organic reactions.
Conventionally most of the photocatalysts are based on the offꢀtheꢀshelf compounds, usually
show weak absorption in visible region and short triplet excited state lifetime. Herein the organic
catalysts are used for two photocatalyzed reactions mediated by singlet oxygen (1O2), i.e. the
aerobic oxidative coupling of amines and the photooxidation of dihydroxylnaphthalenes, which
is coupled to the subsequent addition of amines to the naphthoquinones, via C−H
functionalization of 1,4ꢀnaphthoquinone, to produce Nꢀarylꢀ2ꢀaminoꢀ1,4ꢀnaphthoquinones (oneꢀ
pot reaction), which are antiꢀcancer and antibiotic reagents. The photoreactions were
substantially accelerated with these new iodoꢀBodipy organic photocatalysts compared to that
catalyzed with the conventional Ru(II)/Ir(III) complexes which show weak absorption in the
visible region and shortꢀlived triplet excited states. Our result will inspire the design and
application of new organic triplet photosensitizers which show strong absorption of visible light
and longꢀlived triplet excited state, and for the application of these catalysts in photoredox
catalytic organic reactions.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Keywords: aerobic oxidative coupling; bodipy; photochemistry; triplet photosensitizer; visible
light; photoredox catalysis
1. INTRODUCTION
Triplet photosensitizers promoted photoredox catalytic organic reactions have attracted much
attention,1ꢀ6 such as the azaꢀHenry reaction,7 the oxidative coupling of amine or the crossꢀ
dehydrogenative coupling reactions,8ꢀ10 and hydrogen (H2) production by photolysis of water.11ꢀ13
The photosensitizers used for these reactions are usually the offꢀtheꢀshelf compounds, such as the
Ru(bpy)3[PF6]2 (bpy = 2,2’ꢀbipyridine) or Ir(ppy)3 complex (ppy = 2ꢀphenylpyridine),14 or
2
ACS Paragon Plus Environment

Page 3 of 30
The Journal of Organic Chemistry
1
2
organic triplet photosensitizers, such as Eosin Y or benzophenone.9 Inorganic metarials, such as
polycrystalline cadmium sulfide, was also used for the photoredox catalytic organic
reactions.1e,1g Recently, Eosin Y was used for intermolecular αꢀalkylation of aldehydes and
direct C−H arylation of heteroarenes with aryl diazonium salts,15 dehydrogenative coupling
reactions of amines with nitroalkanes.16 Rose Bengal (RB) was also used for dehydrogenative
coupling reactions of amines with nitroalkanes.17 However, the πꢀconjugation framework of
these known organic photocatalysts is difficult to be modified, thus the absorption wavelength of
these catalysts cannot be readily shifted to the red end of the spectrum.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The common feature of these offꢀtheꢀshelf photosensitizers is weak or moderate absorption of
visible light, and the difficulty to modify the molecular structures of the photocatalysts to
optimize the catalytic property. For example, the molar absorption coefficient
ε of Ru(II)
complexes are usually less than 20000 Mꢀ1 cmꢀ1 at ca. 450 nm,1ꢀ13 and the absorption wavelength
of the typical Ru(II) and Ir(III) complexes are below 450 nm. Triplet photosensitizers with
absorption in longer wavelength region for photocatalysis were rarely reported. Furthermore, the
redox properties of these photosensitizers are not readily tunable. Therefore, it is highly desired
to develop new organic photosensitizers which show easily derivatizable molecular structures to
promote the photoreactions. To date very few organic triplet photosensitizers have been used for
photocatalytic reactions, such as oxidative coupling of amines.8b To the best of our knowledge,
no photocatalytic oranic reaction was carried out with organic photocatalyts that show strong
absorption in visible region and readily changeable molecular structures.2,8,18
The organic photosensitizers for photocatalysis should be with the following properties, (1)
strong absorption of visible light, preferably in green and red region of the spectrum; (2) with
triplet excited state be efficiently populated upon photoexcitation; (3) the lifetime of the triplet
3
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 4 of 30
1
2
3
4
5
6
7
8
9
excited state should be long so that the single electron transfer (SET, the most popular
mechanism for photocatalytic organic reactions) will be improved; (4) the molecular structure of
the triplet photosensitizers (photocatalysts) should be readily tunable, so that the photophysical
and electrochemical properties can be optimized.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In order to address the above challenges, herein we prepared a series of iodoꢀBodipy as triplet
photosensitizers which show the aforementioned desired photophysical properties (B-1 – B-4,
Scheme 1). We proved that these organic triplet photosensitizers can be used to promote different
type of photocatalytic reactions, such as the aerobic oxidative coupling of amines, and
photooxidation of dihydronaphthalenes.19 These photocatalytic reactions give a synthetically
important products, such as Schiff base by C−N bond formation,8 and naphthoquinones,19 and
thereafter the C−H functionalization of 1,4ꢀnaphthoquinone to produce Nꢀarylꢀ2ꢀaminoꢀ1,4ꢀ
naphthoquinones (oneꢀpot reaction), which are antiꢀcancer and antibiotic reagents.20 Previously
the above photoreactions were often carried out with the conventional Ru(II) or Ir(III) complexes
as photocatalysts. With the new iodoꢀBodipy based triplet photosensitizers, for which the
molecular structure is readily changeable, which is different from the known organic
photocatalysts such as Eosin Y, these different reactions are greatly accelerated, indicated the
significance of using organic triplet photosensitizer. Our approach will be very useful for the
development of photocatalytic reactions.
2.1. Design and synthesis of the photocatalysts. The design rationales of the photocatalysts
are (1) strong absorption of visible light; (2) high triplet state quantum yield; (3) longꢀlived
triplet excited states and (4) readily changeable molecular structures. Strong absorption of visible
light and efficient production of longꢀlived triplet excited states will ensure abundent
photocatalysts at the excited state, which are beneficial for the energy transfer or the electron
4
ACS Paragon Plus Environment

Page 5 of 30
The Journal of Organic Chemistry
1
2
transfer between the photocatalyst and the substrate molecules.1,2 To fufill these goals, Bodipy
was selected as the chromophore for preparation of the organic photocatalysts (Scheme 1), owing
to its ideal photophysical properties, such as strong absorption of visible light, good
photostability, and versatile derivatizing chemistry.21ꢀ24 In order to ensure efficient intersystem
crossing (ISC), by which the triplet excited state was produced, heavy atom iodine atoms were
attached on the πꢀcore of Bodipy chromophore, instead of the peripheral of the chromophore
(such as the meso phenyl moiety).25ꢀ27 The absorption wavelength of the Bodipy based triplet
photosensitizer can be readily redꢀshifted by attaching a styryl moiety to the Bodipy
chromophore (B-4). The compounds were obtained in satisfactory yields.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

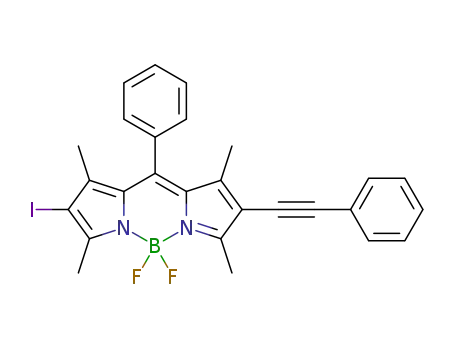

Scheme 1. Synthesis of B-3 and B-4. The known compounds B-1, B-2, TPP, Ru-1, Ir-
