Solid Phase Synthesis and Self-Assembly of Higher-Order siRNAs
and their Bioconjugates
Christopher N. Cultrara1, Sunil Shah1, Stephen D. Kozuch1, Mayurbhai R. Patel2 and David
Sabatino1,*
1Department of Chemistry and Biochemistry, Seton Hall University, South Orange, NJ 07079
2Nitto Denko Avecia Inc, 8560 Reading Road, Cincinnati, OH 45215
*Corresponding Author: David Sabatino: Email ID
:
david.sabatino@shu.edu
Tel
:
+1-973-313-6359
Abstract
New methods for the synthesis of higher-order siRNA motifs and their bioconjugates have
recently gained widespread attention in the development of new and improved gene therapeutics. Our
efforts aim to produce new chemical tools and protocols for the generation of modified siRNAs that
This article has been accepted for publication and undergone full peer review but has not
been through the copyediting, typesetting, pagination and proofreading process, which may
lead to differences between this version and the Version of Record. Please cite this article as
doi: 10.1111/cbdd.13448
This article is protected by copyright. All rights reserved.

screen for important oncogene targets as well as silence their activity for effective gene therapy in
cancer models. More specifically, we have developed an efficient solution-phase synthesis for the
production of a ribouridine branchpoint synthon that can be effectively incorporated by solid phase
synthesis within higher-order RNA structures, including those adopting V-, and Y- and >-< shape
RNA templates. Self-assembly of complementary RNA to the template strands produced higher-order
siRNA nanostructures that were characterized by a combination of PAGE, DLS and TEM techniques.
In an effort to extend the repertoire of functionally diverse siRNAs, we have also developed solid
phase bioconjugation strategies for incorporating bio-active probes such as fatty acid appendages and
fluorescent reporters. Taken together, these methods highlight the ability to generate higher-order
siRNAs and their bioconjugates for exploring the influence of modified siRNA structure on anti-
cancer activity.
INTRODUCTION
Among the many nucleic acids currently employed as gene therapy agents, short-interfering
RNAs (siRNAs) are widely used as potent regulators of gene expression and for mitigating the
progression of various diseases.1-3 Structurally, siRNAs are short double stranded RNA duplexes
composed of hybrid antisense (guide) and sense (passenger) strands which contain19-25 base pairs
with nucleotide overhangs on the 3’ ends.4-6 These molecules have the ability to activate the RNA
interference (RNAi) pathway, which is a naturally occurring regulatory mechanism of gene
translation. In this mechanism, long double stranded RNAs are cleaved into siRNAs by an RNAse III
dependent endonuclease referred to as “Dicer”. The siRNA are then incorporated into the RNA
Induced Silencing Complex (RISC), a multimeric protein complex with endonuclease activity
mediated by the Argonaute (Ago) protein which uses the guide strand to target and cleave
complementary mRNA, thus preventing protein translation.7-10
This article is protected by copyright. All rights reserved.

In spite of their therapeutic promise, siRNAs are still plagued by poor pharmacokinetic
properties,11 including poor metabolic stability, off-target gene silencing and immunostimulatory effects
which raises toxicity, limited cell permeability and duration of action which restricts their therapeutic
potential and raises the need for more potent constructs. One approach to improve siRNA potency is to
combine multiple siRNAs which target a single or multiple mRNA target sequences. However,
effectively delivering or expressing multiple siRNAs in a cell has proven to be difficult, with limited in
vivo applicability.12 Alternatively, chemically derived siRNAs can facilitate the incorporation of
modifications or functional probes which can enable self-assembly into higher-order structures for
improving RNAi activity.13-15
RNAi nanotechnology has led to the evolution of functional siRNA materials for a variety of
applications, including the development of nanomedicines and nanoparticle formulations for gene
therapy.14,15 siRNA nanostructures have been formulated for silencing single or multiple gene targets.
For example, a tripodal-interfering RNA (tiRNA) (Figure 1, a) and related supramolecular RNA
nanostructures with polyethyleneimine (PEI) and galactose-functionalized PEI were self-assembled to
promote silencing efficiency in-vivo.13 These combination approaches produced siRNA nanoparticle
formulations which improved siRNA stability, cell permeability and accumulation into the liver for a
more potent and long-lasting mRNA knockdown effect relative to the linear siRNA controls.
Furthermore, DNA-RNA and RNA-RNA nanocubes (Figure 1, b), the latter of which contained as many
as six double-stranded dsRNA Dicer substrates, promoted the release of multiple siRNAs in breast
cancer cells.16 The siRNAs resulted in enhanced green fluorescent protein, (eGFP) knockdown for up to
twelve (12) days. Moreover, in functional studies, the RNA nanocubes induced potent suppression of
the viral Gag proteins, p55 and p24, in HIV-1 pseudotyped with VSV-g 293T cells, which resulted in
potent antiviral activity. However, these constructs were also found to be immunogenic, thereby
limiting their therapeutic utility and raising toxicity concerns. In another proof-of-concept study, the
siRNA nanostructures composed of self-assembled three- and four-way junctions (Figure 1, c),
triggered potent knockdown of multiple luciferase gene targets for up to five (5) days in HeLa cells.17
This article is protected by copyright. All rights reserved.

These representative examples highlight the potential utility of siRNA nanostructures in therapeutic
RNAi applications.
Figure 1. Schematic representations of siRNA self-assembly and nanotechnology.
Building on this work, we have developed novel “branched” V- and Y-shape RNA scaffolds on
solid phase that respectively facilitated the self-assembly of two (2) and three (3) (Figure 1, d) siRNA
sequences silencing a single or multiple mRNA targets. Initially, the higher order V- and Y-shape
siRNAs targeted multiple mRNA sites belonging to GRP78, a master regulator of the unfolded protein
response (UPR) and endoplasmic reticulum (ER) stress pathways that are overexpressed in cancerous
tissues and related to cancer cell survival and tumor progression. The resultant V-shape (2 siRNAs) and
Y-shape (3 siRNAs) were found to be more active than a linear siRNA control which silenced a single
GRP78 mRNA site. The V- and Y-shape siRNAs led to notable gene knockdown (50-60%) and toxicity
(5-15%) in HepG2 liver cancer cells.18
In an attempt to further improve knockdown efficiency of multiple Glucose Regulated Proteins
(GRPs), the V- and Y-shape RNA templates were self-assembled with complementary RNA resulting in
the siRNA hybrids against the resident oncogenic GRPs (GRP78, GRP94 and GRP75). siRNA self-
assembly formed a wide variety of nanostructures (50-100 nm), of which a lead Y-shape siRNA
targeting GRP78, GRP94, and GRP75 elicited >80 % gene silencing for up to 72 hours. This synergistic
GRP knockdown effect translated into 50% cell death in an endometrial (AN3CA) cancer cell line. Its
activity was found to be comparable in other cancer cell lines related to the cervix (HeLa) and breast
(MDA-MB-231) that overexpressed GRP. However, when compared to a non-tumorigenic lung
(MRC5) cell line which displayed normal GRP levels, a reduced knockdown effect was observed within
this control cell line. This observation may relate to siRNA treatment specificity in cancer cell lines
which overexpress GRP activity. Moreover, the Y-shape siRNA nanostructure targeting all three (3)
This article is protected by copyright. All rights reserved.

oncogenic GRPs produced a 5-fold increase in cytotoxicity in cancer cells compared to the linear
siRNA control, underscoring its utility in oncogene therapy applications.19
siRNA bioconjugates have shown the potential to improve the physicochemical and
pharmacokinetic properties of siRNAs in preclinical and clinical studies.20-22 Among these
modifications, the incorporation of lipid appendages such as fatty acids, terpenes and steroids (Figure 2,
a) have been widely used for generating amphiphilic siRNA bioconjugates that have improved
metabolic stability, enhanced cell permeability and promoted longer duration of action when compared
to the control, unconjugated siRNAs.23-26 Moreover, the integration of therapy and diagnostics termed
“theranostics” has led to the development of new and improved gene therapeutics for the diagnosis and
treatment of cancers.27 Specifically, siRNA bioconjugates containing reporter probes such as
fluorophores, near-infrared (near IR) dyes and photosensitizers as well as those containing contrast
agents and radiolabels (Figure 2, b) have been extensively applied as theranostic agents in oncology.28,29
In spite of the many fruitful examples of siRNA bioconjugation and their applications in cancer gene
therapy, a major limitation is the restriction of a single functional moiety on either the 3’ or 5’ ends of
the oligonucleotide. In order to address this limitation, our methodology using the V- and Y-shape RNA
templates, facilitated the incorporation of multiple reporter, fluorescein isothiocyanate (FITC) or fatty
acid groups within a single siRNA scaffold belonging to either the linear, V-shape or Y-branch siRNA
motifs (Figure 2, c, d).30,31 Increasing FITC labeling improved fluorescent signaling and imaging within
prostate cancer (PC-3) cells while retaining GRP knockdown and cell death efficacy.30 Furthermore, the
multiple fatty acid groups enabled some PC-3 cells’ uptake of the siRNA in the absence of a
transfection reagent. The fatty acid conjugated siRNAs also improved serum stability which resulted in
notable GRP mRNA knockdown when compared to the native siRNA control.31
Figure 2. Representative examples of siRNA bioconjugates.
This article is protected by copyright. All rights reserved.

Taken together, these representative examples demonstrate the fruitful applications of our solid
phase RNA synthesis methodology. This method is useful for the incorporation of a unique branchpoint
synthon that can produce multiple higher-order V- and Y-shape RNA templates. These templates can
facilitate self-assembly with complementary RNA to generate higher-order siRNA nanostructures
(Figure 1, d) and bioconjugates (Figure 2, c, d) useful for potentiating RNAi activity in cancer cells.
The synthetic protocols associated with the preparation of these novel siRNA motifs are described.
RESULTS AND DISCUSSION
Higher-order siRNA Nanostructure Formulations
In the generation of newly modified siRNA structures, we initially developed a 4 step solution
phase synthesis procedure for the development of an orthogonally protected branchpoint ribouridine
phosphoramidite (Scheme 1).18 In our synthesis method, levulinic acid was initially converted into the
anhydride and used to esterify selectively the 5’-OH group of ribouridine following a
chemoenzymatic reaction using a support-bound lipase, Novozyme, as the catalytic component.18 The
reaction produced a single product as detected by TLC and isolated following sample filtration and
concentration in vacuo. The sample purity and identity of 5’-levulinyl ribouridine, 2, was confirmed
by a combination of 1H, 13C NMR and MS.18 The 5’-levulinyl ribouridine, 2, was then tritylated to the

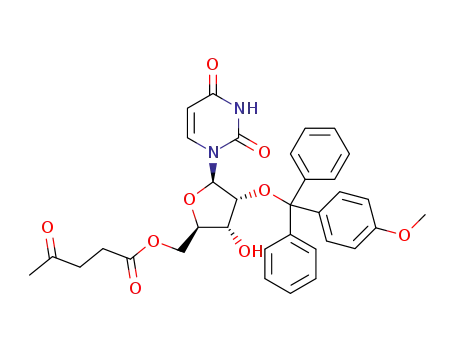

5’-levulinyl 2’ and 3’ –MMT ribouridine regiosisomers, 3 and 4, respectively, that were separable by
column chromatography and characterized by NMR and MS. NMR COSY crosspeaks were used to
identify the regioisomers by correlating the 2’H with the 2’OH for the 3’-MMT isomer, 4, and the 3’H
with the 3’OH for the 2’MMT isomer, 3. The isolated 5’-levulinyl 2’-MMT ribouridine, 3, was finally
phosphitylated to the 3’-phosphoramidite diastereomers, 5. The isolated diastereomers, 5, were
confirmed by 31P NMR and directly used as branchpoint synthon for the generation of V-, Y- and >-<
shape siRNA.18
This article is protected by copyright. All rights reserved.

Scheme 1. Solution-phase synthesis of the ribouridine branchpoint phosphoramidites, 5.
The synthesis strategy for constructing our 1st generation higher-order siRNA structures on
solid phase was initiated with linear RNA synthesis (1 mol) on a long chain alkyl amino (LCAA)
functionalized controlled pore glass (CPG) solid support. Following RNA synthesis, the incorporation
of the orthogonally protected branchpoint phosphoramidite, 5, was added at the 5’-end of the linear
RNA strand followed by an extended (15 min) coupling time using ethylthiotetrazole (ETT) as
activator and coupling reagent. Decyanoethylation was subsequently completed with 4:6 v/v
triethylamine in acetonitrile (NEt3:MeCN) for 90 minutes. Removal of the phosphorous cyanoethyl
protect groups was used to convert the reactive RNA phosphite triester into the more stable phosphite
diester to avoid isomerization and degradation during the acidic conditions (3% DCA:DCM for 3
min) used for MMT removal.18 Following detritylation and liberation of the branchpoint 2’OH group,
a second RNA synthesis was continued to generate the V-shape RNA on solid support (Scheme 2).
Capping of the 5’end with acetic anhydride (Ac2O) enabled selective delevulination (0.5M
NH2NH2.H2O in 3:2 v/v pyridine:acetic acid for 20 min) and extension of a third RNA segment from
the branchpoint 5’OH group produced the Y-shape RNA template (Scheme 2). Repeating this cycle
with the addition of a second branchpoint phosphoramidite afforded the >-< shape RNA template
(Scheme 2). Following solid phase synthesis, the RNA samples were cleaved and deprotected from
the solid support using 3:1 v/v ammonium hydroxide: ethanol, NH4OH:EtOH, and the 2’-OTBDMS
groups were desilylated using 1:1.2 v/v trimethylamine trihydrofluoride:dimethylsulfoxide, TEA-
3HF:DMSO, at 55 ºC for 2 h. The crude RNA samples were precipitated in n-butanol (1 mL) and 3 M
sodium acetate, NaOAc (25 µL), centrifuged and isolated as a solid white pellet. RNA sample
analyses and purifications were completed by Reverse Phase Ion Pairing High Performance Liquid
Chromatography (RP IP HPLC), whereby sample identity was confirmed by molecular weight
analyses using Electrospray Ionization Mass Spectrometry (ESI/MS) in negative mode. Pure RNA
templates were hybridized into their corresponding linear, V-shape (RNA 1-2), Y-branch (RNA 1-2)
and >-< (RNA 1-2 and RNA 4-5) siRNAs in annealing buffer (10 mM Tris, 50 mM NaCl, 1 mM
EDTA, pH 7.5–8.0, 13-15 μL) for structure-activity relationship studies.18
This article is protected by copyright. All rights reserved.

Scheme 2. Solid phase synthesis of linear, V-, Y- and >-< shape RNA.
Inspired from our previous work which produced linear, V and Y shape RNA templates, we
developed a self-assembly strategy for the generation of genetically encoded siRNA shapes (Figure
3). In our self-assembly approach, equimole (200 pmol) quantities of purified linear, V- and Y-shape
RNA templates along with their complementary RNA strands were used to form the siRNA hybrids in
annealing buffer (10 mM Tris, 50 mM NaCl, 1 mM EDTA, pH 7.5–8.0, 13-15 μL). For the higher-
ordered siRNA nanostructure formulations, each complementary RNA strand (linear, V or Y) was
added to their corresponding RNA templates in stoichiometric ratios that favored hybrid formation.
Self-assembly into siRNA nanostructures which mimicked the formation of circles, squares,
rectangles, pentagons, hexagons and porous spheres that may be potentially useful in host-guest
chemistry.33 To promote hybridization and self-assembly of the siRNA nanostructure formulations,
RNA templates (200 pmol) along with their complementary RNA strands (200 pmol) were heated at
90 °C (5-10 min) followed by slow cooling to room temperature (22 oC) for 1 h, and overnight storage
at 4 °C prior to analysis. siRNA hybridization was confirmed by a native, non-denaturing 16%
polyacrylamide gel electrophoresis (PAGE), followed by DLS studies and TEM imaging which
confirmed the sizes and shapes of the higher-ordered siRNA nanostructures.19 Briefly, native PAGE
analyses confirmed the formation of more retained, self-assembled higher-order siRNA hybrids,
whereas TEM and DLS provided additional structural information related to the varying geometric
shapes and sizes (10-150 nm) of the observed self-assembled siRNA nanostructures (Figure 3).
Figure 3. Design and self-assembly of siRNA nanostructures.
Solid phase RNA-fatty acid Bioconjugation
In this study, we have expanded the scope of lipidated siRNAs by incorporating various long
chain fatty acids onto the 5’ ends of the antisense and sense strands of the GRP-targeting linear, V- and
Y-shape RNA templates. The siRNA sequences were based on the target nucleotides for down-
regulating GRP-75, 78, and 94.18 Solid phase RNA synthesis of alkyl ((CH2)6) amino linker GRP78
This article is protected by copyright. All rights reserved.

antisense RNA (NH2-(CH2)6-5’-AUC AGA AUC UUC CAA CAC U-3’) and sense RNA (NH2-(CH2)6-
5’- AGU GUU GGA AGA UUC UGA U -3’) were performed on a 2000Å UnyLinker CPG support
(ChemGenes Inc.) using a 1 µmol scale automated synthesis cycle on a ABI 3400 synthesizer. A HCTU-
coupling strategy was developed on solid-phase for the ligation of shorter and longer chain (C12-C18)
fatty acids with saturated, unsaturated and polyunsaturated hydrocarbons onto the amino-linked linear
RNA templates bound to the CPG solid supports (Scheme 3).31
Scheme 3. Solid-phase bioconjugation of the amino-linked linear, V and Y-shaped RNA templates with
various fatty acids to afford the amide-linked fatty acid-RNA bioconjugates.
In our solid phase RNA bioconjugation approach, fatty acids were added to the resin bound
RNA (0.1µmol,) followed by the addition of a coupling reagent, O-(1H-6-chlorobenzotriazole-1-yl)-
1,1,3,3-tetramethyluronium hexafluorophosphate, HCTU. The mixture was suspended in minimum
DMF and a base, N,N’-diisopropylethylamine, DIEA, was added to initiate the reaction. Reactions were
conducted in screw-cap Eppendorf microcentrifuge tubes and left overnight (16 h) at room temperature
(22 oC) on a shaker. The CPG was subsequently washed three times with DMF/DCM/MeOH and dried
in vacuo. The fatty acid conjugated to the resin bound RNA was cleaved and the RNA protecting groups
removed using NH4OH: EtOH (3:1 v/v) for 16 h at 55 ºC. The crude RNA-fatty acid bioconjugates
were evaporated to dryness, extracted in autoclaved water (1 mL), concentrated to dryness and re-
suspended in a mixture of 1:1.5 v/v TEA-3HF:DMSO to complete the 2’-desilylation reaction at 65 °C
for 2 h. The crude fatty acid RNA bioconjugates (Scheme 3, samples 1-10) were precipitated from the
reaction mixture with 3 M NaOAc in n-BuOH at -80 °C (30 min) prior to centrifugation (~10,000 rpm,
~5 minutes) which left the crude samples as solid white pellets. The fatty acid RNA bioconjugates were
then extracted into autoclaved water (1 mL), quantitated by UV-Vis spectrophotometry, analyzed and
purified by RP IP HPLC on a Waters 2695 Alliance system.
This article is protected by copyright. All rights reserved.

An XTerra RP-C18 reverse phase column (4.6 x 250 mm, 5 µm particle size) was used with an
applied gradient elution method of 7-70% MeCN in 0.1M TEAA over 40 min. The conjugation
reactions were found to proceed smoothly (52-87%) in the cases in which the antisense (A) linear RNA
targeting GRP78 mRNA (Scheme 3, samples 1-5) was functionalized with saturated, unsaturated and
polyunsaturated fatty acids. Similar reaction conversions (52-76%) were also observed for the
palmitamide functionalized sense (S) linear RNA strands (Scheme 3, samples 6-8) targeting GRP75,
GRP78 and GRP94 mRNA. Subsequently, the V-shape RNA template, targeting GRP78 and GRP94
mRNA as well as the Y-shape RNA targeting GRP 75, 78 and 94 were subjected to the same
HCTU/DIEA coupling procedure for the incorporation of palmitic acid at the 5’-terminus (Scheme 3,
samples 9-10). The conjugation reactions produced good conversions for the V-shape RNA
bioconjugate (69 %) according to RP IP HPLC. However, little product (<5%) was detected with the Y-
shape RNA template. The latter can be attributed to difficulties associated with conjugation reactions
onto more complex and lengthier higher-order RNA templates.34 In order to circumvent this limitation,
an alternative strategy was developed in which palmitic acid was initially conjugated to the 5’-ends of
the linear, complementary sense strands targeting GRP 75, 78 and 94 mRNA (Scheme 3, samples 6-8),
followed by hybridization onto the RNA templates (Scheme 4). In this manner, linear, V- and Y-shape
GRP targeting siRNAs containing single (i), double (ii) and triple (iii) palmitamides were self-
assembled to directly improve transfection efficiency for more potent GRP knockdown and cell death in
cancer cells.31
Scheme 4. Self-assembly of i. V- and ii. Y-shape multi-palmitamide labeled siRNA constructs.
FITC labeling of siRNAs
In a related study, the linear, V- and Y-shaped RNA templates targeting GRP-75, 78, and 94
mRNA were once more synthesized by automated solid-phase RNA synthesis following our
previously reported procedure.18 Following RNA synthesis, a 5’-DMS(O)-MT-Amino C6 modifier (6-
(4,4'-
dimethoxy-4"-methylsulfonyl-tritylamino)hexyl-
(2-cyanoethyl)-(N,N-diisopropyl)-
This article is protected by copyright. All rights reserved.

phosphoramidite, Glen Research Inc.) was coupled to the 5’ end which, upon detritylation, produced a
free amino group for bioconjugation with the reporter fluorophore, fluorescein isothiocyanate (FITC)
following a previously reported procedure (Scheme 5).32
Scheme 5. Solid phase bioconjugation of linear, V- and Y- shape FL-RNA bioconjugates.
The covalent attachment of FITC onto the support-bound RNA templates was achieved by
reacting in the dark the fluorophore in 20% DMF in a 0.1 M carbonate-bicarbonate buffer (pH 8-8.5).
o
The reaction was agitated on a shaker at room temperature (22 C) for 48 h with the linear RNA
template, while the V-shaped RNA required 72 h reaction and no product was observed with the Y-
shape RNA template, even after a 3 day reaction period. The samples were subsequently handled in
the dark, washed with water, DMF and MeCN until no orange color from any unreacted FITC
remained visible in the supernatant. The support-bound fluorescein, FL-RNA samples were dried
under Ar(g) (5 min) and then transferred into autoclaved screw-cap microtubes and treated with a 1 mL
o
solution of 3:1 v/v NH4OH:EtOH at 55 C for 16 to 20 h to complete sample cleavage from the
support and deprotection of nucleobase and phosphate protecting groups. The supernatant was
transferred to another autoclaved screw-cap microtube, evaporated to dryness in a Speed Vac
concentrator and the CPG was washed twice with autoclaved distilled water (500 µL) to extract the
RNA samples. Samples were then evaporated in-vacuo and re-suspended in a mixture of 1:1.5 v/v
TEA-3HF:DMSO to complete the 2’-desilylation reaction at 65 °C for 2 h. The crude RNA samples
were subsequently precipitated from the reaction mixture using 3 M NaOAc in n-BuOH. Precipitation
was completed at low temperature (-80 °C) for 30 min prior to centrifugation (12,000 rpm) leaving the
crude FL-labeled RNA samples as a solid yellowish-white pellet. The FL-labeled RNA samples were
dried in a SpeedVac concentrator (Thermo Scientific) and dissolved in autoclaved water (1 mL) for
yield determination using UV absorbance measurements at 260 and 488 nm.
This article is protected by copyright. All rights reserved.

The unique structures of the V- and Y-shaped RNA templates allowed for the incorporation
of multiple fluorophores within the same molecular construct. This was achieved by labeling the
complementary sense strands of the RNA templates, as previously described, followed by
hybridization to the higher-order siRNAs with multiple fluorescent probes (Figure 4). The latter
approach overcame the limitations associated with the direct conjugation of FITC with the Y-shape
RNA template and provided the ability to generate GRP silencing siRNAs containing single (linear),
double (V-shape) and triple (Y-shape) fluorescent probes for improving siRNA detection in cancer
cells.30
Figure 4. Rational design of GRP silencing i. linear, ii. V-shape and iii. Y-shape FL-siRNA
bioconjugates.
The RNA templates were then purified by RP IP HPLC and their identities were confirmed by
ESI MS. Purified FL-RNA templates were then quantitated by UV-Vis spectroscopy at 260 nm (UV)
and the presence and quantity of fluorescein (and therefore the stoichiometry) was determined by
monitoring absorption in the range 460-490 nm (Vis). The purified FL-RNA templates were
subsequently hybridized with their complementary RNA strands, whereas, the unlabeled RNA
templates were hybridized with their complementary FL-RNA sense strands in the annealing Tris
buffer buffer (10 mM Tris, 50 mM NaCl, 1 mM EDTA, pH 7.5 – 8.0) for structure-activity
relationship studies.30
CONCLUSIONS
The solid phase synthesis and self-assembly of higher order siRNAs and their bioconjugates
provides an efficient method for improving siRNA activity in cells. Our work described an efficient
methodology for building on solid support linear, V- and Y-shape RNA templates that self-assemble
with their complementary RNA strands into higher-order siRNA motifs. These motifs have been shown
This article is protected by copyright. All rights reserved.

to adopt genetically encoded nanostructures, which also triggered potent RNAi activity in cancer cells.
Moreover, bioconjugation with fatty acids and fluorescein enabled live tracking of siRNA activity in
cancer cells without the need of an external transfection reagent. The latter provides the opportunity to
develop potent siRNA theranostics that can be useful in the detection and treatment of cancer in vitro
and in vivo. These applications are a current and long-term focus of our research objectives involving
the development of efficient protocols that may enable the generation of new and improved gene
therapeutics in the fight against cancer.
ACKNOWLEDGMENTS
The authors would like to thank the Department of Chemistry and Biochemistry at Seton Hall
University for continued support. This research was gratefully supported by the University Research
Council at Seton Hall University.
CONFLICT OF INTEREST
The authors have declared no conflicts of interest.
This article is protected by copyright. All rights reserved.

FIGURE LEGENDS
Figure 1. A) Design of a non-linear tripartite siRNA tripod based on the complementary base
pairing of three independent siRNA sequences. B) Structural assembly of RNA and RNA-
DNA “nanocubes” that could efficiently deliver up to six siRNA after Dicer cleavage.
Adapted with permission from ref. 16, Afonin, K.A.; Viard, M.; Kagiampakis, I.; Case, C.L.;
Dobrovolskaia, M.A.; Hofmann, J.; Vrzak, A.; Kireeva, M.; Kasprzak, W.K.; KewalRamani,
V.N.; Shapiro, B.A. ACS Nano 2015, 9(1), 251-259. Copyright 2015, American Chemical
Society. C) Sequence dependent assembly of 3- and 4- way siRNA junctions. D) Design of
V- and Y-shape siRNAs containing up to three siRNA sequences within the same molecular
scaffold.
Figure 2. Representative examples of siRNA bioconjugates. A) lipid-siRNA bioconjugates.
Figure adapted with permission from ref. 23, Kubo, T.; Yanaghara, K.; Sato, Y.; Nishimura,
Y.; Kondo, S.; Seyama, T. Bioconjugate Chem. 2013, 24(12), 2045-2057. Copyright 2013,
American Chemical Society. B) Fluorescent-siRNA conjugated polymers used to image live
cells. Figure adapted with permission from ref. 29, Liu, Y. Gunda, V.; Zhu, X.; Xu, X.; Wu,
J.; Askhatova, D.; Farokhzad, O.C.; Parangi, S.; Shi, J. Proc Natl Acad Sci U S A 2016,
113(28), 7750-7755. Copyright 2016, National Academy of Sciences. Higher order V and Y-
shape siRNA construct demonstrating the ability to incorporate multiple C) lipid
functionalities or D) fluorescent tags.
This article is protected by copyright. All rights reserved.

Scheme 1. Solution-phase synthesis of the ribouridine branchpoint phosphoramidites, 5.
Scheme 2. Solid phase synthesis of linear, V-, Y- and >-< shape RNA.
Figure 3. Design and self-assembly of siRNA nanostructures. The RNA templates, namely, linear, V-
and Y-shaped RNA were designed and synthesized according to our previously described
methodology.18 The V- and Y-shaped templates incorporated a branchpoint ribouridine (rU) which
allowed the incorporation of sense (S) and antisense (A) RNA. These templates preorganized the self-
assembly of siRNA nanostructures which resembled circles, triangles, squares, rectangles, pentagons,
hexagons and porous-type structures. These siRNA nanostructures targeted a single (1), double (1, 2)
and triple (1, 2, 3) sites of oncogenic GRP-75, 78 and 94 mRNA. Figure adapted with permission from
ref. 19, Patel, M.R.; Kozuch, S.D.; Cultrara, C.N.; Yadav,R.; Huang, S.; Samuni, U.; Koren, J., Chiosis,
G.; Sabatino, D. Nano Lett. 2016, 16(10), 6099–6108. Copyright 2016, American Chemical Society.
Scheme 3. Solid-phase bioconjugation of the amino-linked linear, V and Y-shaped RNA templates with
various fatty acids to afford the amide-linked fatty acid-RNA bioconjugates.
Scheme 4. Self-assembly of i. V- and ii. Y-shape multi-palmitamide labeled siRNA constructs.
Scheme 5. Solid phase bioconjugation of linear, V- and Y- shape FL-RNA bioconjugates.
Figure 4. Rational design of GRP silencing i. linear, ii. V-shape and iii. Y-shape FL-siRNA
bioconjugates.
GTOC. The solid phase synthesis and self-assembly of higher-order siRNA motifs such as the GRP
silencing linear, V-shape and Y-shape siRNAs and their bioconjugates have led to the development of
new and improved gene therapeutics. In this method, a branchpoint ribouridine is used for the self-
assembly of the multi-GRP silencing RNAs. Bioconjugation with bio-active probes (e.g. fatty acids and
This article is protected by copyright. All rights reserved.

fluorophores) enabled structure-function relationship studies in cancer cell models overexpressing GRP
activity.
REFERENCES
1.
Ryther, R.C.C.; Flynt, A.S.; Phillips, J.A.; Patton, J.G. siRNA therapeutics: big
potential from small RNAs. Gene Therapy 2005, 12(1), 5-11.
2.
Shankar, P.; Manjunath, N.; Lierberman, J. The prospect of silencing disease using
RNA interference J A M A 2005, 293(11), 1367-1373.
3.
Titze-de-Almeida, R.; David, C.; Titze-de-Almeida, S.S. The Race of 10 Synthetic
RNAi-Based Drugs to the Pharmaceutical Market. Pharm. Res. 2017, 34(7), 1339-1363.
4.
Chiu, Y.L.; Rana, T.M. RNAi in human cells: Basic structural and functional features
of small interfering RNA. Mol. Cell 2002, 10(3), 549-561.
5.
Elbashir, S.M.; Harboth, J.; Lendeckel, W.; Yalcin, A.; Weber, K.; Tushcl, T.
Duplexes of 21-nucleotide RNAs mediate RNA interference in cultured mammalian cells.
Nature 2001, 411(6836), 494-498.
6.
Kurreck, J. siRNA Efficiency: Structure or Sequence - That is the Question. J Biomed
Biotechnol 2006, 2006(4), 83757.
7.
MacRae, I.J.; Zhou, K.; Li, F.; Repic, A.; Brooks, A.N.; Cande, W.Z.; Adams, P.D.;
Doudna, J.A. Structural basis for double-stranded RNA processing by Dicer. Science 2006,
311(5758), 195-198.
8.
Zamore, P.D.; Tushcl, T.; Sharp, P.A.; Bartel, D.P. RNAi: Double-stranded RNA
directs the ATP-dependent cleavage of mRNA at 21 to 23 nucleotided intervals. Cell 2000,
101(1), 25-33.
9. Chiu, Y.L.; Rana, T.M. siRNA function in RNAi: A chemical modification analysis. RNA
2003, 9(9), 1034-1048.
10.
Lima, W.F.; Wu, H.; Nichols, J.G.; Sun, H.; Murray, H.M.; Crooke, S.T. Binding and
cleavage specificities of human Argonaute2. J Biol Chem. 2009, 284(38), 26017-26028
This article is protected by copyright. All rights reserved.

11.
Bumcrot, D.; Manoharan, M.; Koteliansky, V.; Sah, D. W. RNAi therapeutics: a
potential new class of pharmaceutical drugs. Nature Chem Bio. 2007, 2(12), 711-719.
12.
Wang, S.; Shi, Z.; Liu, W.; Jules, J.; Feng, X. Development and validation of vectors
containing multiple siRNA expression cassettes for maximizing the efficiency of gene
silencing. BMC Biotechnol. 2006, 6, 50.
13.
Sajeesh, S.; Lee, T.Y.; Kim, J.K.; Son, D.S.; Hong, S.W.; Kim, S.; Yun, W.S.; Kim,
S.; Chang, C.; Li, C.; Lee, D.K. Efficient intracellular delivery and multiple-target gene
silencing triggered by tripodal RNA based nanoparticles: a promising approach in liver-
specific RNAi delivery. J Control Release. 2014, 196, 28-36.
14.
Guo, P. The emerging field of RNA nanotechnology. Nat Nanotechnol 2010, 5(12),
833-842.
15.
Shukla, G.C.; Haque, F.; Tor, Y.; Wilhelmsson, L. M.; Toulmé, J.J.; Isambert, H.;
Guo, P.; Rossi, J.J.; Tenenbaum, S.A.; Shapiro, B.A. A boost for the emerging field of RNA
nanotechnology. ACS Nano 2011, 5(5), 3405-3418.
16.
Afonin, K.A.; Viard, M.; Kagiampakis, I.; Case, C.L.; Dobrovolskaia, M.A.;
Hofmann, J.; Vrzak, A.; Kireeva, M.; Kasprzak, W.K.; KewalRamani, V.N.; Shapiro, B.A.
Triggering of RNA interference with RNA-RNA, RNA-DNA, and DNA-RNA nanoparticles.
ACS Nano 2015, 9(1), 251-259.
17.
Nakashima, Y.; Abe, H.; Abe, N.; Aikawa, K.; Ito, Y.; Branched RNA nanostructures
for RNA interference. Chem Comm 2011, 47(29), 8367-8369.
18.
(a) Maina, A.; Blackman, B.A.; Parronchi, C.J.; Morozko, E.; Bender, M.E.; Blake,
A.D.; Sabatino, D. Solid-phase synthesis, characterization and RNAi activity of branch and
hyperbranch siRNAs. Bioorg Med Chem Lett. 2013, 23(19), 5270-5274., (b) Sabatino, D.
Expanding the Sizes and Shapes of Nucleic Acids: Studies on Branched and Heptose Based
Nucleic Acids. Ph.D. Thesis, McGill University, 2007, 264pp.
19.
Patel, M.R.; Kozuch, S.D.; Cultrara, C.N.; Yadav,R.; Huang, S.; Samuni, U.; Koren,
J., Chiosis, G.; Sabatino, D. RNAi Screening of the Glucose-Regulated Chaperones in Cancer
with Self-Assembled siRNA Nanostructures. Nano Lett. 2016, 16(10), 6099–6108.
This article is protected by copyright. All rights reserved.

20.
Zuckerman, J.E.; Gritl, I.; Tolcher, A.; Heidel, J.D.; Lim, D.; Morgan, R.;
Chmielowski, B.; Ribas, A.; Davis, M.E.; Yen, Y. Correlating animal and human phase Ia/Ib
clinical data with CALAA-01, a targeted, polymer-based nanoparticle containing siRNA.
Proc Natl Acad Sci U S A 2014, 111(31), 11449-11454.
21.
Patel, P.L.; Rana, N.K.; Patel, M.R.; Kozuch, S.D.; Sabatino, D. Nucleic Acid
Bioconjugates in Cancer Detection and Therapy. ChemMedChem 2016, 11(3), 252-269.
22.
Musacchio, T.; Vaze, O.; D'Souza, G.; Torchilin, V.P. Effective Stabilization and
Delivery of siRNA: Reversible siRNA−Phospholipid Conjugate in Nanosized Mixed
Polymeric Micelles. Bioconjugate Chem. 2010, 21(8), 1530-1536.
23.
Kubo, T.; Yanaghara, K.; Sato, Y.; Nishimura, Y.; Kondo, S.; Seyama, T. Gene-
Silencing Potency of Symmetric and Asymmetric Lipid-conjugated siRNAs and its
Correlation with Dicer Recognition. Bioconjugate Chem. 2013, 24(12), 2045-2057.
24.
Kubo, T.; Yanaghara., K.; Takei, Y.; Mihara, K.; Morita, Y.; Seyama, T. Palmitic
Acid-Conjugated 21-Nucleotide siRNA enhances Gene-Silencing Activity. Mol. Pharm.
2011, 8(6), 2193-2203.
25.
Kubo, T.; Takei, Y.; Mihara, K.; Yanagihara, K.; Seyama, T. Amino-Modified and
Lipid-Conjugated Dicer-Substrate siRNA enhances RNAi Efficacy. Bioconjugate Chem.
2012, 23(2), 164-173.
26.
Jeong, J.H.; Mok, H.; Oh, Y.K.; Park, T.G. siRNA conjugate delivery systems.
Bioconjugate Chem. 2009, 20(1), 5-14.
27.
Sumer, B.; Gao, J. Theranostic nanomedicine for cancer. Nanomedicine 2008, 3(2),
137-140.
28.
Zhao, J.; Mi, Y.; Feng, S.S. siRNA-based nanomedicine. Nanomedicine 2013, 8(6),
859-862.
29.
Liu, Y. Gunda, V.; Zhu, X.; Xu, X.; Wu, J.; Askhatova, D.; Farokhzad, O.C.; Parangi,
S.; Shi, J. Theranostic near-infrared fluorescent nanoplatform for imaging and systemic
siRNA delivery to metastatic anaplastic thyroid cancer. Proc Natl Acad Sci U S A 2016,
113(28), 7750-7755.
This article is protected by copyright. All rights reserved.

30.
Kozuch, S.; Cultrara, C.; Beck, A.; Heller, C.; Shah, S.; Patel, M.; Zilberberg, J.;
Sabatino, D. Enhanced cancer theranostics with self-assembled, multi-labeled siRNAs. ACS
Omega 2018, 3(10), 12975-12984.
31.
Shah, S.; Cultrara, C.; Kozuch, S.; Patel, M.; Ramos, J.; Samuni, U.; Zilberberg, J.;
Sabatino, D. Direct transfection of fatty acid conjugated siRNAs and the knockdown of the
glucose regulated chaperones in prostate cancer cells. Bioconjugate Chem. 2018, Article
ASAP, doi: 10.1021/acs.bioconjchem.8b00580.
32. Murakami, A; Nakaura, M; Nakatsuji, Y; Nagahara, S; Tran-Cong, Q; Makino, K. Fluorescent-
labeled oligonucleotide probes: detection of hybrid formation in solution by fluorescence polarization
spectroscopy. Nucleic Acids Res. 1991, 19(15), 4097-4102.
33. Liu, J.; Hennink, W.E.,; van Steenbergen, M.J.; Zhuo, R.; Jiang, X. Versatile
Supramolecular Gene Vector Based on Host-Guest Interaction. Bioconjug Chem. 2016, 27(4),
1143-1152.
34. Kurschat, W.C.; Müller, J.; Wombacher, R.; Helm, M. Optimizing splinted ligation of
highly structured small RNAs. RNA. 2005, 11(12), 1909-1914.
This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.
