Catalytic Activation of Unstrained, Nonactivated Ketones Mediated by Platinum(II): Multiple C-C Bond Cleavage and CO Extrusion

Article abstract of DOI:10.1021/acs.organomet.9b00650

The complexes [Pt(tolpy)Cl(L)] (tolpy = 2-(4-tolyl)pyridyl; L = dmso, dms, py, PPh₃, CO) are precursors for the catalytic cleavage of C-C bonds and extrusion of CO from a series of unactivated ketones such as cyclohexanone; deuterium labeling experiments demonstrate the involvement of a transfer hydrogen step in the mechanism.

Full text of DOI:10.1021/acs.organomet.9b00650

This is an open access article published under a Creative Commons Attribution (CC-BY)
License, which permits unrestricted use, distribution and reproduction in any medium,
provided the author and source are cited.
Communication
pubs.acs.org/Organometallics
Cite This: Organometallics XXXX, XXX, XXX−XXX
Catalytic Activation of Unstrained, Nonactivated Ketones Mediated
by Platinum(II): Multiple C−C Bond Cleavage and CO Extrusion
Julia P. Sarju,† Debashish Dey,† Javier Torroba,† Adrian C. Whitwood,† Kelly Redeker,‡
and Duncan W. Bruce*,†
†Department of Chemistry, University of York, Heslington, York YO10 5DD, U.K.
‡Department of Biology, University of York, Wentworth Way, York YO10 5DD, U.K.
S
* Supporting Information
ABSTRACT: The complexes [Pt(tolpy)Cl(L)] (tolpy = 2-
(4-tolyl)pyridyl; L = dmso, dms, py, PPh3, CO) are precursors
for the catalytic cleavage of C−C bonds and extrusion of CO
from a series of unactivated ketones such as cyclohexanone;
deuterium labeling experiments demonstrate the involvement
of a transfer hydrogen step in the mechanism.
Scheme 1. Examples of Metal-Mediated C−C Activation of
Ketonic Substrates with Strained10 or Tethered4,16,26
Substrates
atalytic decarbonylation reactions have the potential to be
Csynthetically useful, atom-economical transformations for
a commonly encountered functional group, potentially affording
compounds that might otherwise be difficult to access.1−6 Such
reactions are well-known and trivial with aldehydes, but ketones
present a significantly greater challenge.1 For example, Gozin et
al. and Ameen et al. highlighted the importance of transition-
metal-catalyzed C−C bond cleavage in petroleum refinement
and the processing of oxygen-rich bioderived fuels.7,8
Stoichiometric extrusion of a carbonyl fragment was first
reported in 1965 by Rusina and Vlcek when cyclohexanone was
heated with RhCl3 and PPh3, affording [RhCl(CO)(PPh3)2]
and unknown hydrocarbon products.9 Since then, most
examples of ketone decarbonylation have employed strained
substrates10−13 or those that allow tethering of the substrate to
the metal via a directing group (e.g., Scheme 1arylpyridine
example).14−19 These reactions, which are normally stoichio-
metric, are often mediated by coordinatively unsaturated
rhodium complexes,20,21 with forcing conditions, high temper-
atures, and long reaction times being required.22−24 However, in
2016 Lee et al. achieved ketone Cα−CCO bond activation of a
number of systems, including cyclohexanone, at room temper-
ature using a rhodium(II) porphyrin system generating Rh(II)-
acyl complexes. While this approach does not lead to
decarbonylation, the mild reaction conditions reflect a
significant improvement on the earlier results.25 More recently,
Dong and co-workers have developed an elegant catalytic
strategy for Cα−CCO bond activation in which the carbonyl is
activated by catalytic amounts of amine or carbene and the
thermodynamic driving force is provided by concomitant
formation of new C−C bonds.26
made that heating [Pt(tolpy)(Cl)(S-dmso)] (1; tolpy = 2-(4-
tolyl)pyridyl) in air with cyclohexanone afforded the known32
complex [Pt(tolpy)(Cl)(CO)] (2; Scheme 2), characterized by
νCO 2098 cm−1, δ(195Pt) −3947 ppm and by single-crystal X-ray
methods (see the Supporting Information for details). With 1
and cyclohexanone as the only reagents, the carbonyl ligand
evidently came from decarbonylation of cyclohexanone with
accompanying C−C bond cleavage. To the best of our
knowledge, this transformation has remained undeveloped
since the report of cyclohexanone decarbonylation by Rusina
and Vlcek.9 More than 50 years on from their report, our
As part of earlier studies on ortho-platinated 2,5-bis(4-
alkoxyphenyl)pyridines,27 PtIII dimers were formed unexpect-
edly via oxidation of the PtII complexes by free or bound dmso in
the presence of acid, consistent with related oxidations reported
previously by Kukushkin et al.28,29 and Alexandrova et al.30,31 In
further studies of this reaction, the surprising observation was
Received: October 1, 2019
© XXXX American Chemical Society
A
DOI: 10.1021/acs.organomet.9b00650
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Communication
with a neutral chelating ligand, were also evaluated and neither 9
nor 10 showed any evidence of decarbonylation. Complex 8 did,
however, show the formation of butane and the starting complex
was the only one that could be identified at the end of the
reaction. Palladium analogues of 1 and 7 were not active,
suffering extensive decomposition even at low reaction temper-
atures.
Scheme 2. Platinum-Catalyzed Activation of
Cyclohexanone
a
Returning to the organic products, the reaction stoichiometry
shows a significant imbalance in hydrogen content to the extent
of four hydrogen atoms:
a
The transformation involves the cleavage of the three C−C bonds
indicated. The X-ray single crystal structure of 2 is illustrated.
C6H10O (cyclohexanone)
observation provides an opportunity to study this trans-
formation in greater detail.
→ C4H10 + CH4 + CO (≡ C6H14O)
With no other reagents present, this hydrogen must arise from
the cyclohexanone substrate, suggesting the possibility of a
transfer hydrogenation process. While cyclohexanone is not
generally known for its utility in such chemistry, Izawa et al. did
show some precedent for such a reaction, reporting a palladium-
mediated oxidation/aromatization of cyclohexanone to phe-
nol.35
Therefore, to demonstrate a transfer hydrogenation step, the
reaction of cyclohexanone with complex 1 was repeated in the
presence of 1,3-cyclohexadiene, which is well-known as a
transfer hydrogenation donor.36 At the end of the reaction,
benzene (formed when cyclohexadiene acts as a transfer
hydrogenation substrate) was observed as a product by
electronic spectroscopy, strongly supporting the involvement
of transfer hydrogenation.
Further compelling evidence for the mediation of transfer
hydrogenation comes from the observation that, while acetone
does not react thermally with complex 1, when the reaction is
carried out in the presence of 1,3-cyclohexadiene, formation of 2
along with methane and CO is observed. Likewise it is found
that acetophenone will only react in the presence of the transfer
hydrogenation substrate. Furthermore, carrying out the reaction
with acetone-d6 led to the formation of CD3H, confirming that
1,3-cyclohexadiene is the source of the hydrogen atoms
incorporated in the product. This observation is significant, as
there is only a single previous report of the decarbonylation of
acetone.37
Thus, GC and GC-MS analysis of the headspace gas after
reaction of cyclohexanone with 1 confirmed the formation of
butane and methane, with trace amounts of other small
hydrocarbons (see Scheme 2), as detailed in the Supporting
Information. In fact, the reaction of cyclopentanone with 1
under the same conditions showed the formation of methane
and propane, thereby suggesting that both substrates are
activated via the same mechanism. Rusina and Vlcek9 did not
report an analysis of any organic products, and so their reaction
was repeated, revealing the formation of butane, cyclohexane,
cyclohexene, and benzene in the approximate ratio of 1:0.8:1:3,
implying a different mechanistic route in their case.
Given the known photochemical instability of cyclohexanone
and cyclopentanone in the gas phase,33 and reports of
photochemical C−C bond activations,34 control experiments
established that activation of cyclohexanone mediated by 1
proceeded in the absence of natural light to give the same
products. In addition, irradiation of a room-temperature
solution of 1 in cyclohexanone (λmax 254 nm) at room
temperature led to no observable reaction, confirming that the
decarbonylation is thermal in nature.
To investigate the reaction further, it was carried out in the
presence of the related complexes 2−6 (Figure 1) which, like 1,
have a neutral fourth ligand. Complex 6 was found to be inactive,
while 2−5 led to reactions, and important in these observations
is that 2 is active, showing that the process is catalytic. The
related dimer 7 was also active. The Pt complexes 8−10, each
An important observation, however, is that the activation of
these ketones by complex 1 is accompanied by the formation of
particulate Pt with average hydrodynamic radius 10−50 nm, as
determined by dynamic light scattering. Addition of mercury to
the reaction mixture38 led to a significant reduction in the
formation of butane, suggesting intervention by these platinum
nanoparticles. However, when the reaction is tracked by in situ
infrared spectroscopy, immediate formation of complex 2 is
observed, which would suggest that an early decarbonylation
step is homogeneous (a heterogeneous process would typically
require an induction period as the nanoparticles form). In
addition, it is observed that, when cyclohexanone is heated with
either 6 or 10, nanoparticles are formed but there is no
decarbonylation. This would also support the proposal of an
early, homogeneous decarbonylation step. Transfer hydro-
genation, however, may be mediated by the platinum nano-
particles.
Previous examples of C−C bond scission with coupled
decarbonylation (e.g., Scheme 1) have typically led to simple
extrusion of CO, and while no mechanistic detail was given, the
fact that the present reaction with cyclohexanone give a different
range of products would imply a different mechanism. Thus, it is
Figure 1. Complexes tested for the thermal decarbonylation of ketones.
B
DOI: 10.1021/acs.organomet.9b00650
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Communication
assumed that the ketone coordinates to Pt (either η1 through
oxygen or η2 through CO) following dissociation of the
neutral, monodentate ligand (L in Scheme 2), after which the
C−C bond α to the carbonyl is cleaved (analogy with the
formation of metal-acyl complexes in the RhII-porphyrin
systems).25 A second C−C cleavage β to CO would then
extrude an oxygenated C2 unit (which would readily fragment to
CO and methane) leaving a C4 moiety.
Support for these suggestions comes from deuterium cross-
labeling studies conducted using cyclohexanone-d10 with 1,3-
cyclohexadiene as the transfer hydrogen donor. Under these
conditions, the major C1 product was CD2H2 (64%), which
suggests a fairly selective reaction (consistent with a
homogeneous process), while butane was found as a mixture
of isotopomers, mainly C4D5H5 (32%), C4D6H4 (32%), and
C4D7H3 (28%), more consistent with a relatively unselective
heterogeneous process. Similarly, use of 2,2,6,6-tetradeuter-
iocyclohexanone and 1,3-cyclohexadiene gave 72% CD2H2
(again quite selective) and 89% C4H10. Some of the key
mechanistic observations are collected in Scheme 3.
Details of complex synthesis and of the different reactions
(PDF)
Accession Codes
CCDC 1956985 contains the supplementary crystallographic
data for this paper. These data can be obtained free of charge via
www.ccdc.cam.ac.uk/data_request/cif, or by emailing data_
request@ccdc.cam.ac.uk, or by contacting The Cambridge
Crystallographic Data Centre, 12 Union Road, Cambridge
CB2 1EZ, UK; fax: +44 1223 336033.
AUTHOR INFORMATION
■
Corresponding Author
*E-mail for D.W.B.: duncan.bruce@york.ac.uk.
ORCID
Julia P. Sarju: 0000-0002-7087-4382
Adrian C. Whitwood: 0000-0002-5132-5468
Duncan W. Bruce: 0000-0002-1365-2222
Author Contributions
The manuscript was written through contributions of all
authors.

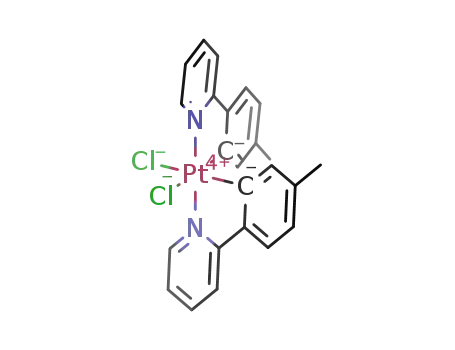

Scheme 3. Complexes Tested for the Thermal
Decarbonylation of Ketones
a
Funding
We thank the University of York (J.P.S.) and Comunidad
Auntonoma de La Rioja (Spain) (J.T.) for funding.
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
Iman Khazal is thanked for the preparation of platinum
complexes 8−10 used in this study, and Dr. Jason Lynam
(York) is thanked for very helpful discussions.
REFERENCES
■
(1) Jun, C.-H. Transition metal-catalyzed carbon-carbon bond
activation. Chem. Soc. Rev. 2004, 33, 610−618.
(2) Rybtchinski, B.; Milstein, D. Metal insertion into C−C Bonds in
solution. Angew. Chem., Int. Ed. 1999, 38, 870−883.
(3) Dermenci, A.; Dong, G. Decarbonylative C-C bond forming
reactions mediated by transition metals. Sci. China: Chem. 2013, 56,
685−701.
(4) Dermenci, A.; Whittaker, R. E.; Dong, G. Rh(I)-catalyzed
decarbonylations of diynone via C-C activation: orthogonal synthesis of
conjugated diynes. Org. Lett. 2013, 15, 2242−2245.
a
The percent refers to the proportion of that isotopomer as a
(5) Chen, F.; Wang, T.; Jiao, N. Recent advances in transition-metal-
catalyzed functionalization of unstrained carbon−carbon bonds. Chem.
Rev. 2014, 114, 8613−8661.
proportion of all isotopomers of that compound.
(6) Souillart, L.; Cramer, N. Catalytic C−C bond activations via
oxidative addition to transition metals. Chem. Rev. 2015, 115, 9410−
9464.
In summary, we have achieved the cleavage of C−C bonds in
unstrained and nonactivated ketones such as cyclopentanone
and cyclohexanone through the action of [Pt(tolpy)(Cl)(L)]
(1−5) in a thermal process. Decarbonylation occurs alongside a
transfer hydrogenation step, where evidence suggests mediation
by platinum nanoparticles. Suppression of nanoparticle activity
or formation does not prevent decarbonylation, leading to the
conclusion that this process is homogeneous, a proposal
supported by cross-labeling studies.
(7) Gozin, M.; Weisman, A.; Ben-David, Y.; Milstein, D. Activation of
a carbon−carbon bond in solution by transition-metal insertion. Nature
1993, 364, 699−701.
(8) Ameen, M.; Azizan, M. T.; Yusup, S.; Ramli, A.; Yasir, M. Catalytic
hydrodeoxygenation of triglycerides: An approach to clean diesel fuel
production. Renewable Sustainable Energy Rev. 2017, 80, 1072−1088.
(9) Rusina, A.; Vlcek, A. A. Formation of Rh(I)-carbonyl complex by
the reaction with some non-alcoholic, oxygen-containing solvents.
Nature 1965, 206, 295−296.
(10) Murakami, M.; Amii, H.; Ito, Y. Selective activation of carbon-
carbon bonds next to a carbonyl group. Nature 1994, 370, 540−541.
(11) Murakami, M.; Amii, H.; Shigeto, K.; Ito, Y. Breaking of the C−C
Bond of cyclobutanones by rhodium(I) and its extension to catalytic
synthetic reactions. J. Am. Chem. Soc. 1996, 118, 8285−8290.
ASSOCIATED CONTENT
■
S
* Supporting Information
The Supporting Information is available free of charge on the
ACS Publications website at DOI: 10.1021/acs.organo-
met.9b00650.
C
DOI: 10.1021/acs.organomet.9b00650
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Communication
(12) Xu, T.; Dong, G. Rhodium-catalyzed regioselective carboacyla-
tion of olefins: A C-C Bond activation approach for accessing fused-ring
systems. Angew. Chem., Int. Ed. 2012, 51, 7567−7571.
orthoplatination of aryl oximes by dichlorobis(sulfoxide or sulfide)-
platinum(II) complexes. Inorg. Chem. 2002, 41, 4286−4294.
(32) Mdleleni, M. M.; Bridgewater, J. S.; Watts, R. J.; Ford, P. C.
Synthesis, structure, and spectroscopic properties of ortho-metalated
platinum(II) complexes. Inorg. Chem. 1995, 34, 2334−2342.
(33) Blacet, F. E.; Miller, A. The photochemical decomposition of
cyclohexanone, cyclopentanone and cyclobutanone,. J. Am. Chem. Soc.
1957, 79, 4327−4329.
(13) Chen, P.; Xu, T.; Dong, G. Divergent syntheses of fused β-
naphthol and indene scaffolds by rhodium-catalyzed direct and
decarbonylative alkyne−benzocyclobutenone couplings. Angew.
Chem., Int. Ed. 2014, 53, 1674−1678.
(14) Muller, E.; Segnitz, A. Decarbonylierung durch komplexbildung
̈
(34) Lee, S. Y.; Fung, H. S.; Feng, S.; Chan, K. S. Visible light
photocatalysis of carbon−carbon σ-Bond anaerobic oxidation of
ketones with water by cobalt(II) porphyrins. Organometallics 2016,
35, 2480−2487.
̈
von α,α′-diathinylketonen mit tris(triphenylphosphin)rhodium(I)-
chlorid: Eine neue methode zur herstellung von konjugierten diinen.
Justus Liebigs Ann. Chem. 1973, 1973, 1583−1591.
(15) Chatani, N.; Ie, Y.; Kakiuchi, F.; Murai, S. Ru3(CO)12-catalyzed
decarbonylative cleavage of a C−C Bond of alkyl phenyl ketones. J. Am.
Chem. Soc. 1999, 121, 8645−8646.
(35) Izawa, Y.; Pun, D.; Stahl, S. S. Palladium-catalyzed aerobic
dehydrogenation of substituted cyclohexanones to phenols. Science
2011, 333, 209−213.
(16) Lei, Z. Q.; Li, H.; Li, Y.; Zhang, X. S.; Chen, K.; Wang, X.; Sun, J.;
Shi, Z. J. Extrusion of CO from aryl ketones: rhodium(I)-catalyzed C-C
Bond cleavage directed by a pyridine Group. Angew. Chem., Int. Ed.
2012, 51, 2690−2694.
(36) Brieger, G.; Nestrick, T. J. Catalytic transfer hydrogenation.
Chem. Rev. 1974, 74, 567−580.
(37) Çelenligil-Çetin, R.; Watson, L. A.; Guo, C.; Foxman, B. M.;
Ozerov, O. V. Decarbonylation of acetone and carbonate at a pincer-
ligated Ru center. Organometallics 2005, 24, 186−189.
(17) Whittaker, R. E.; Dong, G. Controlled Rh-catalyzed mono- and
double-decarbonylation of alkynyl α-diones to form conjugated ynones
and disubstituted alkynes. Org. Lett. 2015, 17, 5504−5507.
(18) Zeng, R.; Dong, G. Rh-catalyzed decarbonylative coupling with
alkynes via C−C activation of isatins. J. Am. Chem. Soc. 2015, 137,
1408−1411.
(38) Widegren, J. A.; Finke, R. G. A review of the problem of
distinguishing true homogeneous catalysis from soluble or other metal-
particle heterogeneous catalysis under reducing conditions. J. Mol.
Catal. A: Chem. 2003, 198, 317−341.
(19) Zeng, R.; Chen, P.-h.; Dong, G. Efficient benzimidazolidinone
synthesis via rhodium-catalyzed double-decarbonylative C−C activa-
tion/cycloaddition between Iisatins and isocyanates. ACS Catal. 2016,
6, 969−973.
NOTE ADDED AFTER ASAP PUBLICATION
■
This paper was published ASAP on November 18, 2019, with an
incorrect Supporting Information file. The corrected version was
reposted on November 18, 2019.
(20) Daugulis, O.; Brookhart, M. Decarbonylation of aryl ketones
mediated by bulky cyclopentadienylrhodium bis(ethylene) complexes.
Organometallics 2004, 23, 527−534.
(21) Kaneda, K.; Azuma, H.; Wayaku, M.; Tehanishi, S. Decarbon-
ylation of α- and β-diketones catalyzed by rhodium compounds. Chem.
Lett. 1974, 3, 215−216.
(22) Ruhland, K. Transition-metal-mediated cleavage and activation
of C-C single bonds. Eur. J. Org. Chem. 2012, 2012, 2683−2706.
(23) Somerville, R. J.; Martin, R. Forging C−C Bonds through
decarbonylation of aryl ketones. Angew. Chem., Int. Ed. 2017, 56, 6708−
6710.
(24) Morioka, T.; Nishizawa, A.; Furukawa, T.; Tobisu, M.; Chatani,
N. Nickel-mediated decarbonylation of simple unstrained ketones
through the cleavage of carbon−carbon bonds. J. Am. Chem. Soc. 2017,
139, 1416−1419.
(25) Lee, S. Y.; Feng, S.; Chan, K. S. Room temperature
carbon(CO)−carbon(α) bond activation of ketones by rhodium(II)
porphyrins with water. Dalton Trans. 2016, 45, 3522−3527.
(26) (a) Xia, Y.; Lu, G.; Liu, P.; Dong, G. Catalytic activation of
carbon−carbon bonds in cyclopentanones. Nature 2016, 539, 546−
550. (b) Xia, Y.; Wang, J.; Dong, G. Distal-Bond-Selective C@C
Activation of Ring-Fused Cyclopentanones: An Efficient Access to
Spiroindanones. Angew. Chem., Int. Ed. 2017, 56, 2376−2380.
(27) Santoro, A.; Wegrzyn, M.; Whitwood, A. C.; Donnio, B.; Bruce,
D. W. Oxidation of organoplatinum(II) by coordinated dimethylsulf-
oxide: metal−metal bonded, dinuclear, liquid-crystalline complexes of
platinum(III). J. Am. Chem. Soc. 2010, 132, 10689−10691.
(28) Kukushkin, Y. N.; Vyazmenskii, Y. E.; Zorina, I. L.; Pazukhina, Y.
I. Complexes of palladium and platinum with dimethyl sulfoxide. Zh.
Neorg. Khim. 1968, 13, 1595−1599.
(29) Kukushkin, V. Y. Metal-ion mediated deoxygenation of
sulfoxides. Coord. Chem. Rev. 1995, 139, 375−407.
(30) Alexandrova, L.; D’Yachenko, O. G.; Kazankov, G. M.; Polyakov,
V. A.; Samuleev, P. V.; Sansores, E.; Ryabov, A. D. Mechanism of
biologically relevant deoxygenation of dimethyl sulfoxide coupled with
Pt(II) to Pt(IV) oxidation of orthoplatinated oximes. Synthetic, kinetic,
electrochemical, X-ray structural, and density functional study. J. Am.
Chem. Soc. 2000, 122, 5189−5200.
(31) Ryabov, A. D.; Otto, S.; Samuleev, P. V.; Polyakov, V. A.;
Alexandrova, L.; Kazankov, G. M.; Shova, S.; Revenco, M.; Lipkowski,
J.; Johansson, M. H. Structural and mechanistic look at the
D
DOI: 10.1021/acs.organomet.9b00650
Organometallics XXXX, XXX, XXX−XXX
