Reactions of N-Allyl- and N-Propargyltriflimides with N,N′-Disubstituted Carbodiimides

Article abstract of DOI:10.1134/S1070428018070229

The alkylating activity of N-allyl- and N-propargyltriflimides toward N,N′-dicyclohexyl- and N,N′-diphenylcarbodiimides has been studied. Activation of the nitrogen atom by two electron-withdrawing trifluoromethanesulfonyl groups favors cleavage of the C–N bond in the absence of a catalyst with the formation of N-substituted unsaturated ureas.

Full text of DOI:10.1134/S1070428018070229

ISSN 1070-4280, Russian Journal of Organic Chemistry, 2018, Vol. 54, No. 7, pp. 1103–1105. © Pleiades Publishing, Ltd., 2018.
Original Russian Text © L.L. Tolstikova, Yu.S. Danilevich, B.A. Shainyan, 2018, published in Zhurnal Organicheskoi Khimii, 2018, Vol. 54, No. 7,
pp. 1095–1097.
SHORT
COMMUNICATIONS
Reactions of N-Allyl- and N-Propargyltriflimides
with N,N′-Disubstituted Carbodiimides
L. L. Tolstikovaa, Yu. S. Danilevicha, and B. A. Shainyana*
a Favorskii Irkutsk Institute of Chemistry, Siberian Branch, Russian Academy of Sciences,
ul. Favorskogo 1, Irkutsk, 664033 Russia
*e-mail: bagrat@irioch.irk.ru
Received February 21, 2018
Abstract—The alkylating activity of N-allyl- and N-propargyltriflimides toward N,N′-dicyclohexyl- and
N,N′-diphenylcarbodiimides has been studied. Activation of the nitrogen atom by two electron-withdrawing
trifluoromethanesulfonyl groups favors cleavage of the C–N bond in the absence of a catalyst with the forma-
tion of N-substituted unsaturated ureas.
DOI: 10.1134/S1070428018070229
Unsaturated triflimide derivatives of the general
formula Tf2NR (Tf = CF3SO2, R = CH=CHR′,
CH2CH=CH2, CH2C≡CH) are interesting compounds
from the viewpoints of both their synthetic potential
and probable tautomeric transformations. Their mole-
cules contain two strong electron-withdrawing tri-
fluoromethanesulfonyl groups on the nitrogen atom,
which could considerably extend synthetic potential
of unsaturated triflimide derivatives. Prior to our
studies in this field [1], only N-vinyltriflimides
(Tf2NCH=CHAlk) [2] and N-allyltriflimide
(Tf2NCH2CH=CH2) [3, 4] have been described.
N-Vinyltriflimides were formed as minor products in
the reactions of triflimide potassium salt with (E)-1-al-
kenyl-(4-trifluoromethylphenyl)-λ3-bromanes, the
major products being the corresponding O-vinyl
isomers TfN=S(O)(CF3)OCH=CHAlk [2]. Crude
N-allyltriflimide was isolated as a brown oily material
in the reaction of allylamine with trifluoromethanesul-
fonic anhydride [3, 4]; the pure compound obtained
after distillation was a colorless liquid [1].
conversion by carrying out the reaction in a solvent
(methylene chloride or chloroform), adding Y(OTf)3 as
catalyst, or heating to 50–60°C. NMR analysis of the
reaction mixture showed the presence of three com-
pounds. N,N′,N″-Tricyclohexylguanidinium bis(tri-
fluoromethanesulfonyl)imide (5) was identified by the
signal at δF –78.54 ppm in the 19F NMR spectrum of
the product mixture, which coincided with that of
a sample of 5 prepared by us previously [6]. By
column chromatography we also isolated N,N′-dicyclo-
hexyl-N-propargylurea 6 and N,N′-(1,3-dicyclohexyl-
1,3-diazetidine-2,4-diylidene)dimethanamine 8; the
ratio 5:6:8 was 3:1:5 (Scheme 1). Compound 8 is
a dimer of 3 which is likely to be formed under cata-
lysis by triflimide present in the reaction mixture, by
analogy with the dimerization of 3 catalyzed by tetra-
fluoroboric acid [7, 8].
The NMR spectral data and melting point of 8 coin-
cided with those reported for N,N′-dicyclohexylcarbo-
diimide dimer obtained by treatment of the solid
Scheme 1.
In continuation of our studies on unsaturated
triflimide derivatives [1, 5], herein we report the
reactions of N-propargyl- and N-allyltriflimides 1 and
2 with N,N′-dicyclohexyl- and N,N′-diphenylcarbodi-
imides 3 and 4.
Tf2NR
+
CyN
Cy
C
NCy
(CyNH)3C –NTf2
1, 2
3
5
Cy
N
Cy
NCy
H
N
N
+
+
R
N
In the reaction of pure compounds 1 and 3 at a ratio
of 1:1 at room temperature, the conversion was 20%
after 5 days; the conversion increased to 55% when
2 equiv of 3 was used. We failed to increase the
CyN
Cy
O
6, 7
8
1, 6, R = CH≡CCH2; 2, 7, CH2=CHCH2.
1103

TOLSTIKOVA et al.
1104
Scheme 2.
monomer with SO2 [9], as well as for the minor prod-
uct in the peptide synthesis with 1-hydroxybenzo-
triazole [10] or by-product in the esterification with
carbodiimide 3 as dehydrating agent [11].
Tf2NR
+
CyN
C
NCy
1, 2
3
Cy
H2O
The reaction of N-allyltriflimide 2 with carbodi-
imide 3 at a ratio of 1:2 at room temperature was
characterized by a conversion of higher than 95%, and
the products were N-allyl-N,N′-dicyclohexylurea 7 and
compounds 5 and 8 at a ratio of 1:1:1.
6, 7
CyN
C
N
NTf2
–Tf2NH
R
9, 10
Tf2NH
CyN
C
NCy
5
+ 8
The structure of the products was proved by IR and
1H, 13C, and 19F NMR spectra and elemental analyses.
The IR spectra of ureas 6 and 7 contained a carbonyl
stretching band at 1626 and 1622 cm–1, respectively,
which almost coincided with the νC=O band of N,N′-di-
cyclohexylurea (1626 cm–1). The IR spectrum of 6 also
contained νC≡C (2111 cm–1) and νC–H bands (3309 cm–1)
typical of terminal alkynes. The asymmetric structure
of 6 and 7 followed from the presence in their
1H NMR spectra of two NCH signals belonging to two
nonequivalent cyclohexyl groups; these signals ap-
peared ~0.5 and 0.7 ppm downfield relative to the
corresponding signal of initial carbodiimide 3. In the
spectrum of 6, the CH2 and ≡CH signals were located
in a stronger field (Δδ = ~0.8 and 0.3 ppm, respec-
tively) relative to those of N-propargyltriflimide. The
direction of the double bond polarization in 7 was the
same as in 2. The allyl protons in 7 resonated in
a stronger field (by ~0.95, 0.15, and 0.2 ppm for CH2,
CH=, and =CH2, respectively) relative to the corre-
sponding protons of N-allyltriflimide. In the 13C NMR
spectrum of 6, signals of carbon atoms of the propargyl
group were located at δC 34, 72, and 81 ppm, and the
allyl carbon nuclei in 7 gave rise to signals at δC 49,
116, and 136 ppm. The carbonyl carbon nucleus of
both compounds 6 and 7 resonated at δC 157 ppm.
Our results suggest a reaction mechanism involving
nucleophilic substitution of nucleofugal triflimide
residue in molecule 1 or 2 by the action of N,N′-di-
cyclohexylcarbodiimide with intermediate formation
of salt 9 or 10. Hydrolysis of the latter in the presence
of atmospheric moisture yields N-substituted N,N′-di-
cyclohexylurea 6 or 7 and triflimide molecule. Nucleo-
philic substitution in triflimides with saturated substit-
uents on the nitrogen atom has been reported [12–15].
Triflimide reacts with N,N′-dicyclohexylcarbodiimide
according to the mechanism proposed in [6] to give
salt 5 and, by analogy with [7, 8], catalyzes di-
merization of N,N′-dicyclohexylcarbodiimide with the
formation of compound 8 (Scheme 2).
1, 6, 9, R = CH≡CCH2; 2, 7, 10, CH2=CHCH2.
ditions. Compound 1 failed to react with N,N′-di-
phenylcarbodiimide (4). The low reactivity of N,N′-di-
arylcarbodiimides compared to their N,N′-dialkyl
analogs was noted in some publications; in particular,
this was observed in the reactions with triflamide
leading to guanidines, catalyzed by CuCl and under
mechanical activation (liquid-assisted grinding) [16].
The alkylation of N,N′-diphenylcarbodiimide (4) with
N-allyltriflimide (2) follows Scheme 1; however, we
failed to isolate analytically pure N-allyl-N,N′-di-
phenylurea (11), and it was characterized only by
1H NMR. Compound 11 underwent hydrolysis to
N,N′-diphenylurea and allyl alcohol during attempted
isolation by column chromatography. No diphenylcar-
bodiimide dimer was formed in this reaction.
Thus, the reaction of N-allyl- and N-propargyl-
triflimides with N,N′-dicyclohexyl- and N,N′-diphenyl-
carbodiimides provides a new method of synthesis of
unsaturated N-substituted ureas which can be subjected
to further modification through the multiple bonds.
Reactions of N,N′-dicyclohexylcarbodiimide
with N-propargyl- and N-allyltriflimides (general
procedure). A mixture of N,N′-dicyclohexylcarbodi-
imide and compound 1 or 2 at a ratio of 2 :1 was
stirred for 5 days at room temperature. Unreacted
N-substituted triflimide was removed under reduced
pressure (0.2 mm) at 40°C, and the residue (~0.5 g)
was dissolved in a small amount of chloroform.
Compound 8 and N-substituted urea 6 or 7 were
isolated by column chromatography on silica gel
(0.125–0.200 mm) using hexane–ethyl acetate (4:1 for
6 or 5:3 for 7) as eluent.
N,N′-(1,3-Dicyclohexyl-1,3-diazetidine-2,4-di-
ylidene)dimethanamine (8). Yield ~10%, colorless
crystals, mp 115–120°C; published data [9]: mp 115–
118°C.
Unsaturated triflimide derivatives 1 and 2 did not
react with N,N′-dicyclohexylurea under analogous con-

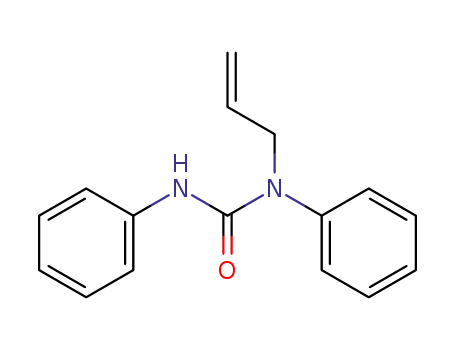

N,N′-Dicyclohexyl-N-(prop-2-yn-1-yl)urea (6).
Yield 55%, white crystals, mp 93°C. IR spectrum
RUSSIAN JOURNAL OF ORGANIC CHEMISTRY Vol. 54 No. 7 2018

REACTIONS OF N-ALLYL- AND N-PROPARGYLTRIFLIMIDES
1105
(film), ν, cm–1: 3309 (C≡CH), 3221, 2929, 2855, 2111
(C≡C), 1626, 1529, 1451, 1236. 1H NMR spectrum, δ,
ppm: 1.10–1.21 m (4H, CH2), 1.36 t (6H, CH2, J =
10.1 Hz), 1.63 s (2H, CH2), 1.67–1.71 m (2H, CH2),
1.78–1.80 m (4H, CH2), 1.93–1.96 m (2H, CH2), 2.26 t
(1H, CH, J = 2.4 Hz), 3.67–3.71 m (1H, NCH), 3.86 d
(2H, CH2, J = 2.2 Hz), 4.00–4.05 m (1H, NCH), 4.53 d
(1H, NH, J = 6.1 Hz). 13C NMR spectrum, δC, ppm:
24.83, 25.54, 25.69, 25.84, 31.08, 31.24, 33.74, 49.36,
54.27, 71.81 (≡CH), 80.92 (C≡), 156.85 (C=O).
Found, %: C 72.99; H 10.04; N 10.46. C16H26N2O.
Calculated, %: C 73.24; H 9.99; N 10.68.
The IR spectra were recorded on a Bruker Vertex
70 spectrometer. The NMR spectra were measured on
a Bruker DPX-400 instrument at 400 (1H), 100 (13C),
and 376 MHz (19F) using CDCl3 as solvent and
reference; the chemical shifts are given relative to
tetramethylsilane (1H, 13C) or CCl3F (19F). The prog-
ress of reactions was monitored by TLC on Silufol
UV-254 plates.
This study was performed under financial support
by the Russian Foundation for Basic Research (project
no. 17-03-00213) using the equipment of the Baikal
Joint Analytical Center (Siberian Branch, Russian
Academy of Sciences).
N,N′-Dicyclohexyl-N-(prop-2-en-1-yl)urea (7).
Yield 65%, white crystals, mp 69–70°C. IR spectrum
(film), ν, cm–1: 3349, 2928, 2854, 1622, 1527, 1233.
1H NMR spectrum, δ, ppm: 1.02–1.37 m (10H, CH2),
1.54–1.65 m (4H, CH2), 1.73 t (4H, CH2, J = 14.5 Hz),
1.86–1.90 m (2H, CH2), 3.61–3.64 m (1H, NCH),
3.68 d.d (2H, CH2, J = 4.5, 1.8 Hz), 4.17 t.t (1H, NCH,
J = 11.8, 3.4 Hz), 4.29 d (1H, NH, J = 6.7 Hz),
5.19 d.d (1H, =CH2, J = 10.4, 1.04 Hz), 5.24 d.d (1H,
=CH2, J = 17.5, 0.9 Hz), 5.79 d.d.t (1H, CH=, J = 11.9,
10.4, 5.3 Hz). 13C NMR spectrum, δC, ppm: 24.81,
25.63, 25.72, 25.88, 31.13, 33.76, 44.79, 49.07, 53.66,
116.08, 136.54, 157.58 (C=O). Found, %: C 72.26;
H 10.67; N 10.30. C16H28N2O. Calculated, %: C 72.68;
H 10.67; N 10.59.
REFERENCES
1. Shainyan, B.A. and Danilevich, Yu.S., Russ. J. Org.
Chem., 2017, vol. 53, p. 828.
2. Ochiai, M., Okubo, T., and Miyamoto, K., J. Am. Chem.
Soc., 2011, vol. 133, p. 3342.
3. Müller, P. and Phuong, N.T.M., Tetrahedron Lett., 1978,
vol. 19, no. 47, p. 4727.
4. Arvai, R., Toulgoat, F., Langlois, B.R., Sanchez, J.-Y.,
and Médebielle, M., Tetrahedron, 2009, vol. 65,
p. 5361.
5. Kuzmin, A.V. and Shainyan, B.A., Russ. J. Org. Chem.,
2017, vol. 53, p. 1505.
6. Shainyan, B.A. and Tolstikova, L.L., J. Fluorine Chem.,
N,N′-Diphenyl-N-(prop-2-en-1-yl)urea (11).
A mixture of N,N′-diphenylcarbodiimide (4) and
N-allyltriflimide (2) at a ratio of 2:1 was stirred for
5 days at room temperature. Unreacted compound 2
was removed under reduced pressure (0.2 mm) at
40°C, and the residue (~0.5 g) was analyzed by NMR.
1H NMR spectrum, δ, ppm: 4.34 d (2H, CH2, J =
6.2 Hz), 5.10 d (1H, =CH2, cis, J = 10.1 Hz), 5.13 d
(1H, =CH2, trans, J = 17.0 Hz), 6.06 d.d.t (1H, CH=,
J = 17.0, 10.3, 6.2 Hz), 6.60–7.10 m (10H, Ph). In the
13C NMR spectrum of 11 we identified only a singlet at
δC 56.8 ppm (CH2); aromatic and carbonyl carbon
signals were overlapped by signals of N,N′-diphenyl-
urea and other impurities. By column chromatography
(methylene chloride–hexane, 3:1) we isolated a frac-
tion containing mainly urea 11, whereas elution with
hexane–ethyl acetate (5:2) gave a fraction containing
mainly N,N′-diphenylurea. The latter was also present
in the first fraction (according to the TLC data).
Repeated chromatographic separation gave the same
result, i.e., compound 11 undergoes partial hydrolysis
during silica gel chromatography.
2014, vol. 168, p. 40.
7. Ulrich, H., Chemistry and Technology of Carbodi-
imides, Chichester: Wiley, 2007.
8. Hartke, K. and Rossbach, F., Angew. Chem., Int. Ed.
Engl., 1968, vol. 7, p. 72.
9. Kaupp, G., Luebben, D., and Sauerland, O.,
Phosphorus, Sulfur Silicon Relat. Elem., 1990, vol. 53,
p. 109.
10. Jakubke, H.-D. an Klessen, C., J. Prakt. Chem., 1977,
vol. 319, p. 159.
11. Goj, O., Haufe, G., and Fröhlich, R., Acta Crystallogr.,
Sect. C, 1996, vol. 52, p. 1554.
12. Glass, R.S. and Swedo, R.J., J. Org. Chem., 1978,
vol. 43, p. 2291.
13. Glass, R.S., Chem. Commun., 1971, p. 1546.
14. Zhang, J., Martin, G.R., and DesMarteau, D.D., Chem.
Commun., 2003, p. 2334.
15. Tolstikova, L.L., Bel’skikh, A.V., and Shainyan, B.A.,
Russ. J. Org. Chem., 2010, vol. 46, p. 383.
16. Tan, D., Mottillo, C., Katsenis, A.D., Štrukil, V., and
Friščić, T., Angew. Chem., Int. Ed., 2014, vol. 53,
p. 9321.
RUSSIAN JOURNAL OF ORGANIC CHEMISTRY Vol. 54 No. 7 2018
