1380
L. Soldi et al. / Tetrahedron Letters 55 (2014) 1379–1383
bearing hydrogen, alkyl, or aryl groups on the terminal carbon of
the double bond (R1 = H, alkyl, aryl) failed to react, on the contrary,
very good results were obtained for the first time with an alkoxy-
carbonyl moiety as an activating substituent (EWG). At first the
reaction of substrate 1a with CO2 was considered in order to find
out the appropriate conditions (Table 1). Only moderate yield of
2a was obtained in pure MeCN while even worse in pure MeOH.
Mixtures with different MeCN/MeOH vol/vol ratio were also tested
and, in particular, those with MeCN/MeOH in 1:1 (vol/vol) ratio led
to an excellent result (Table 1, entry 3). In addition, CO2 pressure
affects positively the yield of 2a until 40–50 bar, when a plateau
is reached (Table 1, entries 3 and 6–8).
The aprotic polar solvent MeCN, able to dissolve the carbamate
salt formed from secondary allylamines, carbon dioxide and the
same protonated amine, promotes its dissociation by stabilization
of the ammonium cation and simultaneously frees up its counter-
part (the carbamate anion) promoting the intramolecular nucleo-
philic attack of the double bond. On the other hand, the protic
polar solvent is able to dissolve a larger amount of CO2. The mix-
ture causes a beneficial effect on the process.
in para position, led to better yields of the corresponding oxazolid-
inone derivatives 2h and 2i (Table 2, entries 11 and 12).
The formation of carbamate anions through CO2 addition to a
secondary amine, taking place under widely different conditions
of temperature and CO2 pressure, is the first step of the process.
Its concentration and stability are determined by the nature of
both the counterion and the solvent.15 The tendency of the oxygen
of the carbamate anion to attack the C@C unsaturation leading to
an intramolecular cyclization, is favored by the electrophilic char-
acter of the double bond. Moreover, the substrate reactivity is
influenced by R2 substituents, in fact a more electron withdrawing
group (R2 = MeCHCO2Me, Table 2, entry 4) is less effective than
other alkyl substituents, probably because of the reduced nucleo-
philicity of the nitrogen atom.
At this point we considered the possibility to eliminate the or-
ganic solvent mixture, carrying out the reactions in supercritical
CO2 (scCO2) due to its tunable intrinsic properties such as polarity,
density, and environmental advantages.16 Its behavior can affect
the solubility of organic compounds and, as a consequence, the
reaction course. The dense CO2 medium can facilitate the forma-
tion of carbamic acid intermediates, leading to a marked improve-
ment of the cyclic urethane formation. The increased activity in
scCO2 is not unprecedented. Recently, efficient syntheses of ure-
thanes have been achieved by using scCO2 as reactant and reaction
medium.17 However, the CO2 chemical fixation under scCO2 condi-
tions often needs longer reaction times extending to several hours
the achievement of satisfactory results.16 Preliminary experiments,
carried out with scCO2 as both reagent and reaction medium,
showed that the best yields were obtained at 80–90 bar of CO2
pressure. The reaction of allylamines 1a–i (2.0 mmol) and 12 g of
liquid CO2 was performed into a stainless steel autoclave under
stirring (45 mL) at 110 °C for 48–72 h. The results collected in the
Table 3 show that in scCO2 substrates 1a, 1b, and 1d (Table 3, en-
tries 1, 2, 4 and 5) gave yields slightly better with respect to the
ones obtained in MeCN/MeOH mixtures, while with substrates
1c, 1f–i (Table 3, entries 3 and 7–10) a noticeable increase of the
yields was achieved. Improvement of the reaction performance
may lie in increasing the density of scCO2 and the solvation effect,
eventually leading to a liquid phase able to dissolve the reactants
and ammonium carbamate salts derived from CO2, where the neat
reaction might proceed. As previously reported, no product was
obtained with substrate 1e (Table 3, entry 6).
Allylamines with R1 and R2 of different nature were caused to
react under the previously optimized reaction conditions.14 The re-
sults, reported in Table 2, show that an EWG on the double bond is
crucial for the success of the reaction. Substrates bearing the CO2-
Me moiety on the double bond, such as 1a, 1b, and 1d, gave excel-
lent yields of the corresponding products 2a, 2b, and 2d (Table 2,
entries 1, 2, 5 and 6). A confirmation of the structure of compound
2b (5-(carbomethoxymethyl)-3-cyclohexyloxazolidin-2-one) was
obtained by the X-ray diffraction analysis on a single crystal
(Fig. 1).
The substrate 1c, in spite of the presence of the CO2Me group,
showed a lower reactivity (Table 2, entry 3) even at a higher tem-
perature (Table 2, entry 4) probably owing to the sterically encum-
bered NR2 moiety combined with its lower basicity. On the other
hand, it was proved that substrate 1e did not react under the re-
ported conditions, recovering the unconverted reagent (entry 7).
Only a strong EWG on the double bond was able to promote the
cyclization step and to this end an aryl bearing a nitro group in
ortho or in para position was employed as R1 substituent. The sub-

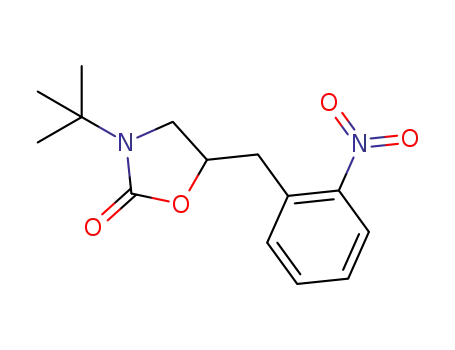

strate 1f (R1 = 2-nitrophenyl, R2 = tBu) was caused to react under
the same conditions leading to product 2f in low yield (entry 8).
Substrate 1g showed an analogous behavior (entry 9), even at
higher temperature (110 °C, entry 10). The nitro group in ortho po-
sition could interfere with the amine moiety preventing the carba-
mate formation and consequently the cyclization. Carboxylation
reactions carried out with 1h and 1i, bearing a nitro substituent
Substrates 1d, 1g, and 1i, containing a chiral ( ) center in R2
group, reacted with CO2 leading to two diastereoisomers of oxazo-
lidinone derivatives in 1:1 molar ratio (Table 2, entries 3, 5, 9, 10
and 12). The evidence for a diastereoselective control in the
Table 1
Optimization of reaction conditions for the synthesis of 2aa
tBu
Solvent
90 °C
N
MeO 2
C
NHtBu
+
CO2
O
O
MeO2C
2a
1a
Entry
MeCN (ml)
MeOH (ml)
CO2 (bar)
Conversionb of 1a (%)
Yieldb of 2a (%)
1
2
3
4
5
6
7
8
4
3
2
1
—
2
2
2
—
1
2
3
4
2
2
2
40
40
40
40
40
20
30
50
90
92
96
90
87
82
94
96
42
61
92
23c
6c
74
87
91
a
b
c
Reaction and conditions: 1a (2.0 mmol), MeOH/MeCN (4.0 mL, 1/1 vol/vol), CO2 (pressure measured at room temperature), 90 °C, 24 h.
Determined by 1H NMR.
Residual unknown oligomeric material was present in the crude reaction mixture.
