Synthesis, structure, and catalytic activity of a new zinc complex derived from a chiral hydroxyazetidine ligand

Article abstract of DOI:10.1016/j.inoche.2012.03.015

A new chiral tetrameric zinc complex [(1)ZnEt]₄ (2) has been readily prepared via alkane elimination between ZnEt₂ and a chiral azetidine derivative, (2R,3R)-1-[(1S)-1-(4-methoxyphenyl)ethyl]-2-phenyl-3- hydroxyazetidine (1H). Complex 2 has been characterized by various spectroscopic techniques, elemental analyses, and X-ray diffraction analysis. Complex 2 has a cubane-like Zn₄O₄ core structure, and is an active catalyst for the polymerization of rac-lactide, leading to the heterotactic-rich polylactides.

Full text of DOI:10.1016/j.inoche.2012.03.015

Inorganic Chemistry Communications 20 (2012) 234–237
Contents lists available at SciVerse ScienceDirect
Inorganic Chemistry Communications
journal homepage: www.elsevier.com/locate/inoche
Synthesis, structure, and catalytic activity of a new zinc complex derived from a chiral
hydroxyazetidine ligand
Zhanbin Zhang a, Ning Zhao a, Wenshan Ren a, Liang Chen a, Haibin Song b, Guofu Zi a,
⁎
a
Department of Chemistry, Beijing Normal University, Beijing 100875, China
b
State Key Laboratory of Elemento-Organic Chemistry, Nankai University, Tianjin 300071, China
a r t i c l e i n f o
a b s t r a c t
Article history:
A new chiral tetrameric zinc complex [(1)ZnEt]4 (2) has been readily prepared via alkane elimination between
ZnEt2 and a chiral azetidine derivative, (2R,3R)-1-[(1S)-1-(4-methoxyphenyl)ethyl]-2-phenyl-3-hydroxyazetidine
(1H). Complex 2 has been characterized by various spectroscopic techniques, elemental analyses, and X-ray diffrac-
tion analysis. Complex 2 has a cubane-like Zn4O4 core structure, and is an active catalyst for the polymerization of
rac-lactide, leading to the heterotactic-rich polylactides.
Received 14 February 2012
Accepted 8 March 2012
Available online 16 March 2012
Keywords:
Chiral azetidine ligand
Zinc complex
© 2012 Elsevier B.V. All rights reserved.
Synthesis
Structure
Polymerization of lactide
Chiral zinc complexes have been widely studied for the past decades.
One of the driving forces for this work is the growing interest in the de-
velopment of catalysts for lactide polymerization [1–9], because the poly-
lactide finds increasing use as a commodity polymer due to its
biodegradability and the possibility of deriving the monomer from re-
newable resources [10,11]. The physical and mechanical properties of
polylactides, as well as the rate of degradation, are intimately related to
the chain stereochemistry [12,13]. For example, a stereocomplex polymer
formed by an equivalent mixture of poly(L-lactide) and poly(D-lactide)
has many advantages such as higher melting temperature (230 °C) com-
paring with the enantiopure polylactide (180 °C) [14,15]. Thus, the
directing polymerization of rac-lactide via stereoselective catalysts offers
a significative challenge and opportunity for chemists. To date, the chiral
zinc catalysts have been shown to be promising for this transformation,
however, even within this class, successful catalysts affording signifi-
cant stereoselectivity are rare [1–9,16–19]. Thus, the preparation of
polylactide remains an open area of research. The development of
new zinc catalysts for polymerization of rac-lactide is still a desirable
and challenging goal. Ligand modification plays a key role in the devel-
oping new catalyst precursors for optimizing polymerization activity as
well as polymer properties such as stereoregularity, molecular weight,
bulky and polar comonomer incorporation, and microstructure. In recent
years, we have developed a series of chiral ligands, and their Ta(IV),
Ti(IV), Zr(IV), Zn(II) and lanthanide complexes are useful catalysts for a
range of transformations [20–31]. For example, the ligand (2R,3R)-1-
[(1S)-1-(4-methoxyphenyl)ethyl]-2-phenyl-3-hydroxyazetidine (1H) is
a useful auxiliary for the asymmetric diethylzinc addition to aldehydes,
in some cases, the enantioselectivity is as high as 97% ee [31]. Encouraged
by the attractive feature of this ligand, we have recently started exploring
the 1H in polymerization of rac-lactidine. Herein, we report on some ob-
servations concerning the chemistry of ligand 1H with ZnEt2, and the use
of the resulting complex as catalyst in the polymerization of rac-lactidine.
The chiral ligand, (2R,3R)-1-[(1S)-1-(4-methoxyphenyl)ethyl]-
2-phenyl-3-hydroxyazetidine (1H), can be easily prepared by a
three-step procedure (Scheme 1) [31]. Condensation of (S)-1-(4-
methoxyphenyl)ethylamine with the benzaldehyde in dichloro-
methane in the presence of anhydrous MgSO4 affords the corresponding
aldimine I. Subsequently, performing the Staudinger reaction of imine I
with acetoxyketene, derived from acetoxyacetyl chloride and Et3N, gives

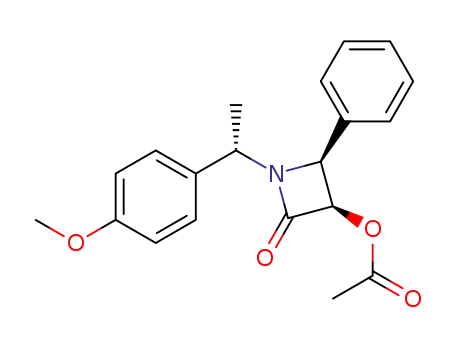

a crude mixture of cis-β-lactams IIa and IIb, which can be separated by re-
crystallization from an ethyl acetate solution. Reduction of cis-β-lactams
IIa by AlH2Cl, prepared from LiAlH4 and AlCl3 in ratio of 1:1 in dry THF,
gives the 3-hydroxyazetidine 1H after purification by recrystallization
from an n-hexane and ethyl acetate mixture (2:3). The configuration of
phenyl and hydroxyl groups in 1H is assigned as cis by its crystal structure
(Fig. 1). The hydroxyl group and electron lone pair on N atom are situated
on the same side of the azetidine backbone, indicating that a metal ion
would easily chelated/coordinate to both of them.
Organozinc complexes can be easily prepared by alkane elimina-
tion of dialkylzinc with protic reagents. For example, treatment of
1H with 1 equiv of ZnEt2 gives a desired chiral tetrameric zinc com-
plex [(1)ZnEt]4 (2) in 68% yield (Scheme 1) [32]. Complex 2 is stable
in dry nitrogen atmosphere, while it is very sensitive to moisture. It is
soluble in organic solvents such as THF, DME, pyridine, toluene, and
benzene. Complex 2 has been characterized by various spectroscopic
techniques, elemental analysis, and X-ray diffraction analysis [33].
⁎
Corresponding author. Tel.: +86 10 5880 6051; fax: +86 10 5880 2075.
E-mail address: gzi@bnu.edu.cn (G. Zi).
1387-7003/$ – see front matter © 2012 Elsevier B.V. All rights reserved.
doi:10.1016/j.inoche.2012.03.015

Z. Zhang et al. / Inorganic Chemistry Communications 20 (2012) 234–237
235
Zn1
01
05
Zn3
03
Zn4
Zn2
07
Fig. 2. Molecular structure of 2 (thermal ellipsoids drawn at the 35% probability level).
Selected bond lengths (Å) and bond angles (deg): Zn–C (av.) 1.974(4), Zn–O (av.)
2.099(3), Zn∙∙∙Zn (av.) 3.099(1), Zn–O–Zn (av.) 96.7(1), O–Zn–O (av.) 82.8(1).
which is topologically related to the structural fragments observed
in NaCl-like metal oxide ZnO [34]. Each zinc atom possesses highly dis-
torted tetrahedral coordination and lies at the corner of a tetrahedron. The
atom arrangement in 2 is very close to the structures observed for related
tetrameric alkylzinc alkoxides, such as [MeZnO(CMe3)]4 [35], and [Me3-
SiCH2Zn(O-1-Ad)]4 [36]. The entire molecule shows S4 quasi-symmetry
with a symmetry axis passing through the centers of two parallel cube
faces, Zn(1)-O(3)-Zn(2)-O(1) and Zn(3)-O(5)-Zn(4)-O(7). The distortion
of the Zn4O4 heterocubane (the average Zn–O–Zn and O–Zn–O angles are
96.7(1)° and 82.8(1)°, respectively) can be described in terms of outward
movements of zinc atoms along the S4 axis, indicating that the atomic or-
bitals of zinc used in forming bonds to oxygen are mostly p character. The
Zn∙∙∙Zn distances are in the range of 3.061(1) to 3.146(1) Å, with an aver-
age value of 3.099(1) Å. The Zn–O distances range from 1.992(3) to
2.276(2) Å, with an average value of 2.099(3) Å. The Zn–C distances are
equal within the experimental error and have an average value of
1.974(4) Å. These crystal data are comparable to those found in tetrameric
alkylzinc alkoxides [35,36].
The polymerization data show that 2 can initiate the ring opening
polymerization (ROP) of racemic-lactide [37] under mild conditions
(Table 1). For example, it allows the complete conversion of 250 equiv
Table 1
a
Polymerization of rac-lactide catalyzed by complex 2
.
Scheme 1. Synthesis of complex 2.
The solid-state structure of 2 shows that each substituted azeti-
dine group is far away from the metal center (Fig. 2). The main struc-
tural feature of 2 is the distorted Zn4O4 heterocubane central core
b
b
c
Entry
T (°C)
Solvent
Conv. (%)
Mn (kg/mol)
Mw/Mn
Pr (%)
1
2
3
4
5
6
25
70
25
10
10
40
40
40
40
THF
100
100
62
85
28
100
92
93
35.8
35.6
24.2
29.7
11.5
35.4
33.7
66.7
39.5
1.15
1.18
1.58
1.22
1.96
1.26
1.48
1.32
1.72
66
68
58
71
54
65
56
67
59
Toluene
CH2Cl2
THF
CH2Cl2
THF
CH2Cl2
THF
CH2Cl2
C11
C10
7
8d
9d
C3
N1
56
02
a
Conditions: [Zn]/LA (mol/mol)=1/250; polymerization time, 12 h; solvent, 5 mL;
[LA]=0.5 mol/L.
b
Measured by GPC (using polystyrene standards in THF).
Pr is the probability of racemic linkages between monomer units and is determined
C2
01
c
from the methine region of the homonuclear decoupled 1H NMR spectrum in CDCl3 at
25 °C [2,3].
d
Conditions: [Zn]/LA (mol/mol)=1/500; polymerization time, 12 h; solvent, 5 mL;
[LA]=1.0 mol/L.
Fig. 1. Molecular structure of 1 (thermal ellipsoids drawn at the 35% probability level).

236
Z. Zhang et al. / Inorganic Chemistry Communications 20 (2012) 234–237
trispyrazolyl- and trisindazolylborate ligands, J. Am. Chem. Soc. 122 (2000)
11845–11854.
[9] D. Chakraborty, E.Y.-X. Chen, Chiral amido aluminum and zinc alkyls: a synthetic,
structural, and polymerization study, Organometallics 22 (2003) 769–774.
[10] E. Chiellini, R. Solaro, Biodegradable polymeric materials, Adv. Mater. 8 (1996)
305–313.
of lactide within 12 h at room temperature in THF at [rac-LA]=0.5 -
mol L−1, and the molecular weight distribution is very narrow (1.15)
over the entire monomer-to-initiator ratio range (Table 1, entry 1), in
agreement with a single-site catalyst system [38]. It also can produce
a narrow molecular weight distribution polymer (1.18) in toluene at
70 °C (Table 1, entry 2). However, at room temperature in CH2Cl2 solu-
tion, the polymerization with this zinc initiator/catalyst proceeds much
more slowly with a much broader molecular weight distribution (1.58)
(Table 1, entry 3). This might be due to the coordination of CH2Cl2,
which changes the steric environment and the Lewis acidity of the cen-
tral metal. This difference between CH2Cl2 and THF solvent is more ob-
vious at lower temperature (Table 1, entries 4 and 5) than at higher
temperature (Table 1, entries 6 and 7). This difference is also observed
in high monomer/catalyst ratio system (Table 1, entries 8 and 9). The
resulting polylactides are all heterotactic rich under the conditions ex-
[11] R.E. Drumright, P.R. Gruber, D.E. Henton, Polylactic acid technology, Adv. Mater.
12 (2000) 1841–1846.
[12] M.S. Reeve, S.P. McCarthy, M.J. Downey, R.A. Gross, Polylactide stereochemistry:
effect on enzymic degradability, Macromolecules 27 (1994) 825–831.
[13] J.R. Sarasua, R.E. Prud'homme, M. Wisniewski, A. LeBorgne, N. Spassky, Crystalli-
zation and melting behavior of polylactides, Macromolecules 31 (1998)
3895–3905.
[14] Y. Ikada, K. Jamshidi, H. Tsuji, S.H. Hyon, Stereocomplex formation between enan-
tiomeric poly(lactides), Macromolecules 20 (1987) 904–906.
[15] H. Tsuji, Y. Ikada, Stereocomplex formation between enantiomeric poly(lactic
acid)s. XI. Mechanical properties and morphology of solution-cast films, Polymer
40 (1999) 6699–6708.
[16] B.M. Chamberlain, M. Cheng, D.R. Moore, T.M. Ovitt, E.B. Lobkovsky, G.W. Coates,
Polymerization of lactide with zinc and magnesium β-diiminate complexes:
stereocontrol and mechanism, J. Am. Chem. Soc. 123 (2001) 3229–3238.
[17] M. Cheng, A.B. Attygalle, E.B. Lobkovsky, G.W. Coates, Single-site catalysts for
ring-opening polymerization: synthesis of heterotactic poly(lactic acid) from
rac-lactide, J. Am. Chem. Soc. 121 (1999) 11583–11584.
[18] C.A. Wheaton, P.G. Hayes, B.J. Ireland, Complexes of Mg, Ca and Zn as homoge-
neous catalysts for lactide polymerization, Dalton Trans. (2009) 4832–4846.
[19] C.K. Williams, L.E. Breyfogle, S.K. Choi, W. Nam, V.G. Young Jr., M.A. Hillmyer, W.B.
Tolman, A highly active zinc catalyst for the controlled polymerization of lactide,
J. Am. Chem. Soc. 125 (2003) 11350–11359.
amined, and the molecular weights range from 11.5 to 66.7 kg mol−1
.
Our results show that the catalytic activity of 2 resemble that of zinc
complex [(S)-PhCH(Me)N(2-CH2-4,6-tBu2C6H2O)2]Zn2Et2 [2], while
the microstructure of the resulting polylactides is similar to those initi-
ated by [{(S)-PhCH(Me)(N=CMe)}2CH]Zn(OPri) [3].
In conclusion, a new chiral tetrameric zinc complex [(1)ZnEt]4 (2) has
been readily prepared via alkane elimination reaction between ZnEt2 and
[20] G. Zi, Asymmetric hydroamination/cyclization catalyzed by organolanthanide
complexes with chiral biaryl-based ligands, Dalton Trans. (2009) 9101–9109.
[21] G. Zi, Asymmetric hydroamination/cyclization catalyzed by group 4 metal complexes
with chiral biaryl-based ligands, J. Organomet. Chem. 696 (2011) 68–75.
[22] L. Xiang, Q. Wang, H. Song, G. Zi, Synthesis, structural characterization, and reac-
tivity of organolanthanides derived from a new chiral ligand, (R)-bis(pyrrol-2-
ylmethyleneamino)-1,1′-binaphthyl, Organometallics 26 (2007) 5323–5329.
[23] Q. Wang, L. Xiang, H. Song, G. Zi, Synthesis of amidolanthanides with new chiral biaryl-
based NNO ligands and their use as catalysts for enantioselective hydroamination/cycli-
zation, Inorg. Chem. 47 (2008) 4319–4328.
a
chiral azetidine derivative, (2R,3R)-1-[(1S)-1-(4-methoxyphenyl)
ethyl]-2-phenyl-3-hydroxyazetidine (1H). Complex 2 has a cubane-like
Zn4O4 core structure, and is an active catalyst for the polymerization of
rac-lactide, leading to the heterotactic-rich polylactides.
Acknowledgements
This work was supported by the National Natural Science Foundation
of China (Grant Nos. 20972018, 21074013 and 21172022), the Program
for New Century Excellent Talents in University (NCET-10-0253), and
the Fundamental Research Funds for the Central Universities.
[24] G. Zi, L. Xiang, H. Song, Enantioselective hydroamination/cyclization catalyzed by
organolanthanide amides derived from a new chiral ligand, (S)-2-(pyrrol-2-
ylmethyleneamino)-2′-(dimethylamino)-1,1′-binaphthyl, Organometallics 27
(2008) 1242–1246.
[25] Q. Wang, L. Xiang, H. Song, G. Zi, Lanthanide and group 4 metal complexes with
new chiral biaryl-based NNO-donor ligands, Dalton Trans. (2008) 5930–5944.
[26] L. Xiang, H. Song, G. Zi, Synthesis, structure, and catalytic activity of Ti(IV) and Zr(IV)
complexes derived from (R)-2,2′-diamino-1,1′-binaphthyl based N4-donor ligands,
Eur. J. Inorg. Chem. (2008) 1135–1140.
Appendix A. Supplementary data
[27] G. Zi, X. Liu, L. Xiang, H. Song, Synthesis of group 4 metal amides with new chiral
biaryldiamine-based ligands and their use as catalysts for asymmetric hydroamina-
tion/cyclization, Organometallics 28 (2009) 1127–1137.
[28] G. Zi, F. Zhang, L. Xiang, Y. Chen, W. Fang, H. Song, Synthesis and characterization of
group 4 metal amides with new C2-symmetric binaphthyldiamine-based ligands
and their use as catalysts for asymmetric hydroamination/cyclization, Dalton
Trans. 39 (2010) 4048–4061.
[29] G. Zi, F. Zhang, H. Song, Highly enantioselective hydroaminoalkylation of secondary
amines catalyzed by group 5 metal amides with chiral biarylamidate ligands, Chem.
Commun. 46 (2010) 6296–6298.
CCDC 865690 and 865691 contain the supplementary crystallo-
graphic data for 1H and 2. These data can be obtained free of charge
via http://www.ccdc.cam.ac.uk/conts/retrieving.html, or from the
Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge
CB2 1EZ, UK; fax: (+44) 1223-336-033; or e-mail: deposit@ccdc.
cam.ac.uk. Supplementary data with this article can be found, in the
online version, at doi: 10.1016/j.inoche.2012.03.015.
[30] F. Zhang, H. Song, G. Zi, Synthesis and catalytic activity of group 5 metal amides
with chiral biaryldiamine-based ligands, Dalton Trans. 40 (2011) 1547–1566.
[31] R. Liu, X. Bai, Z. Zhang, G. Zi, Efficient asymmetric addition of diethylzinc to alde-
hydes using 3-hydroxyazetidine derivatives as chiral ligands, Appl. Organomet.
Chem. 22 (2008) 671–675.
References
[1] H. Sun, J.S. Ritch, P.G. Hayes, Toward stereoselective lactide polymerization catalysts:
cationic zinc complexes supported by a chiral phosphinimine scaffold, Inorg. Chem.
50 (2011) 8063–8072.
[2] M.F. Pastor, T.J.J. Whitehorne, P.O. Oguadinma, F. Schaper, Zinc complexes of chiral
ligands obtained from methylbenzylamine, Inorg. Chem. Commun. 14 (2011)
1737–1741.
[3] F. Drouin, P.O. Oguadinma, T.J.J. Whitehorne, R.E. Prud'homme, F. Schaper, Lactide
polymerization with chiral β-diketiminate zinc complexes, Organometallics 29
(2010) 2139–2147.
[4] J. Boerner, U. Floerke, A. Doering, D. Kuckling, M.D. Jones, M. Steiner, M. Breuning,
S. Herres-Pawlis, Unexpected activity of novel 9-oxabispidine zinc complexes in
lactide polymerization, Inorg. Chem. Commun. 13 (2010) 369–371.
[5] D.J. Darensbourg, O. Karroonnirun, Ring-opening polymerization of lactides catalyzed
by natural amino-ccid based zinc catalysts, Inorg. Chem. 49 (2010) 2360–2371.
[6] R.H. Howard, C. Alonso-Moreno, L.M. Broomfield, D.L. Hughes, J.A. Wright, M.
Bochmann, Synthesis and structures of complexes with axially chiral isoquinolinyl-
naphtholate ligands, Dalton Trans. (2009) 8667–8682.
[32] Preparation of 2. In a glovebox, a toluene solution of ZnEt2 (0.49 g, 1.0 mmol, 25%
in toluene) was slowly added into a toluene solution (10 mL) of 1H (0.28 g,
1.0 mmol) with stirring at room temperature. After the solution was stirred at
room temperature for one day, the solution was filtered. The volume of the fil-
trate was reduced to 5 mL, and colorless crystals of 2 were isolated when this so-
lution was kept at −20 °C for one week. Yield: 0.25 g (68%). M.p.: 125–127 °C
(dec.). 1H NMR (C6D6): δ 7.68 (m, 2H, aryl), 7.26 (m, 3H, aryl), 6.93 (m, 4H,
aryl), 4.01 (m, 2H, CH), 3.35 (s, 3H, OMe), 3.27 (m, 1H, CH), 3.05 (m, 1H, CH),
2.93 (m, 1H, CH), 1.59 (m, 3H, ZnCH2CH3), 1.01 (d, J=6.3 Hz, 3H, Me), 0.65 (m,
2H, ZnCH2CH3). 13 C NMR (C6D6): δ 159.3, 138.6, 136.7, 129.0, 128.8, 127.9,
127.1, 113.9 (aryl C), 73.3 (CH), 70.2 (CH), 67.3 (CH), 61.4 (CH2), 54.6 (OCH3),
22.2 (CH3), 13.0 (ZnCH2CH3), 0.80 (ZnCH2CH3). IR (KBr, cm−1): ν 2964 (m),
1607 (m), 1508 (m), 1442 (m), 1376 (m), 1260 (s), 1091 (s), 1018 (s), 799 (s).
Anal. Calcd for C80H100N4O8Zn4: C, 63.75; H, 6.69; N, 3.72. Found: C, 63.68; H,
6.80; N, 3.92%.
[33] Crystal data for 1H: C18H21NO2, fw=283.36, monoclinic, P21, a=10.312(1) Å,
b=7.326(3) Å, c=10.558(1) Å, β=106.43(1)° V=765.0(1) Å3, Z=2, R1=0.030
for 8594 (I>2σ(I)), wR2=0.075 (all data). Crystal data for 2: C80H100N4O8Zn4,
fw=1507.12, monoclinic, P21, a=13.270(3) Å, b=20.929(4) Å, c=14.170(3) Å,
β=109.69(3)° V=3705.2(13) Å3, Z=2, R1=0.042 for 37105 (I>2σ(I)),
wR2=0.099 (all data).
[7] G. Labourdette, D.J. Lee, B.O. Patrick, M.B. Ezhova, P. Mehrkhodavandi, Unusually stable
chiral ethyl zinc complexes: reactivity and polymerization of lactide, Organometallics
28 (2009) 1309–1319.
[8] M.H. Chisholm, N.W. Eilerts, J.C. Huffman, S.S. Iyer, M. Pacold, K. Phomphrai, Mo-
lecular design of single-site metal alkoxide catalyst precursors for ring-opening
polymerization reactions leading to polyoxygenates. 1. Polylactide formation by
[34] C.H. Bates, W.B. White, New high-pressure polymorph of zinc oxide, Science 137
(1962) 993.
achiral and chiral magnesium and zinc alkoxides, (η3-L)MOR, where
L =

Z. Zhang et al. / Inorganic Chemistry Communications 20 (2012) 234–237
237
[35] W.A. Herrmann, S. Bogdanović, J. Behm, M. Denk, Mehrfachbindungen zwischen
Hauptgruppenelementen und Übergangsmetallen: CX. Methylierte Nitridomo-
lybdän(VI)-Komplexe, J. Organomet. Chem. 430 (1992) C33–C38.
[36] M.M. Olmstead, P.P. Power, S.C. Shoner, Synthesis and characterization of novel
quasiaromatic zinc-sulfur aggregates and related zinc-oxygen complexes, J. Am.
Chem. Soc. 113 (1991) 3379–3385.
quenched by the addition of acidified methanol. The resulting precipitated poly-
lactide was collected, washed with methanol several times, and dried in vacuum
at 50 °C overnight. The molecular weight and the molecular weight distribution
of the resulting polymer were determined by GPC. The tacticity of the polylactide
was calculated according to the methine region of the homonuclear decoupled
H NMR spectrum [2,3].
1
[37] General procedure for polymerization of rac-lactide. In a glovebox, a Schlenk flask
was charged with a solution of 2 (typically 0.025 mmol) in CH2Cl2 (0.2 mL),
THF (0.2 mL) or toluene (0.2 mL). To this solution was added rapidly a CH2Cl2,
THF or toluene solution (5.0 mL) of rac-lactide (2.5 mmol), and the reaction mix-
ture was vigorously stirred for 12 h at 10, 25, 40 or 70 °C. The polymerization was
[38] Z. Liu, W. Gao, J. Zhang, D. Cui, Q. Wu, Y. Mu, Bis(imino)aryl NCN pincer aluminum
and zinc complexes: synthesis, characterization, and catalysis on L-lactide poly-
merization, Organometallics 29 (2007) 5783–5790.
