54
WIRTH AND WHITMAN
behind a white and silvery powder composed of excess Na
and 2A. Dimethylsulfide‐34S (3A) was synthesized from
the resulting 2A as previously described.22 The vial con-
taining 2A was crimp sealed with a teflon‐coated butyl
rubber stopper, and its headspace was replaced with N2
and pressurized to 10 psi. The contents of the vial were
dissolved in 3 mL of an anaerobic stock solution of
1.5 M NaOH (aq), and the vial was incubated on ice for
5 minutes. A glass syringe was used to add ICH3
(470 μL, 1.0716 g, 7.550 mmol) to the vial, and the vial
was incubated at 4°C with vigorous stirring for 4 hours.
To stop the reaction, a syringe was used to add 2 mL of
3 M Na2S2O3 (aq), and the vial was incubated at 4°C with
vigorous stirring for 30 minutes. The vial was chilled to –
196°C in N2 (l) and connected to a receiving flask. The 3A
was distilled from the solution by cooling the receiving
flask in N2 (l) while warming the vial to 40°C for

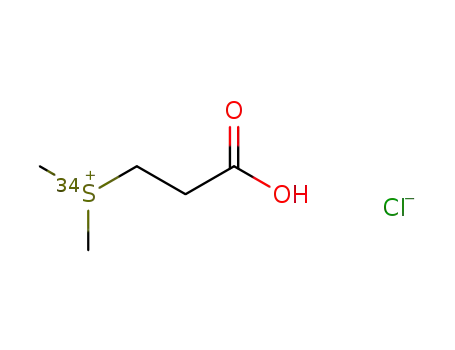

2.5 hours. (2‐Carboxyethyl)dimethylsulfonium‐34S (4A)
was synthesized as described previously.12 The receiving
flask containing distilled 3A was immediately charged
with –80°C CH2Cl2 (12 mL). The receiving flask was
removed from the N2 (l) and was immediately charged
with acrylic acid (260 μL, 0.2733 g, 3.792 mmol). Immedi-
ately afterwards, the solution was stirred vigorously at
room temperature for 30 minutes while bubbling in dry
HCl (g). The solution was dried at 50°C under a vacuum
for 2.5 hours. The resulting white solids were washed
with CH2Cl2 to yield white crystals composed of pure
4A (0.3551 g, 2.0578 mmol, 65.3%).
SCHEME 2 Published method for the synthesis of 4A.23
Reported efficiencies: reaction (I), 99%; reaction (II), 92%; reaction
(III), 87%; reaction (IV), 63%; reaction (V), 51%. Reagents: a, KCN
(aq); b, acetonitrile; c, tert‐butyl 3‐bromopropionate; d, H2O; e,
THF; f, SmI2; g, KOH in methanol; h, ICH3; i, nitromethane; j,
trimethyloxonium tetrafluoroborate; k, trifluoroacetic acid. The
products of reactions (II), (III), and (IV) were purified by thin layer
chromatography (TLC). The product of reaction (V) was purified
with ion‐exchange chromatography
utilized here, the loss of volatile intermediates, namely,
H2S (from aqueous 2, 2A, 2B) and DMS (3, 3A, 3B), was
minimized by using a combination gas‐tight reaction ves-
sels and careful control of the temperature and pH. Loss
of H2S was reduced by using concentrated sodium
hydroxide solutions.24 Loss of DMS was reduced with
low temperatures as it is a liquid below 38°C and a solid
below –98°C. By taking advantage of these facts, a new
method of producing 4A was developed (Schemes 1 and
3). However, because 34S8 (1A) is quite expensive, the pro-
tocol was first optimized using S8 (1), and the reactions
were repeated multiple times to ensure reproducibility.
1 was first reduced to 2 via a Birch reduction20,21 with
Na in NH3 (l). Subsequent evaporation of the NH3 yielded
a white powder primarily composed of anhydrous 2 with
an efficiency of 78.0 7.1%. The conversion of 2 to 3 was
accomplished by the nucleophilic attack of S2– on the
methyl group of ICH3 under anaerobic and basic
conditions, and the resulting 3 was subsequently purified
via distillation.22 Finally, 3 was converted to 4 via
Michael addition to acrylic acid in CH2Cl2 with an
efficiency of 106.2 13.7%.12 The efficiency of the synthe-
sis and purification of 3 was not determined because
measurements of the amount of 3 required large dilutions
of the headspace, which proved to be inaccurate (data not
shown). However, the efficiency of the conversion of 2 to
4 was 75.5 7.4%.
2.2 | (2‐Carboxyethyl)di(methyl‐13C)
sulfonium‐34S chloride
Na234S (2A) was synthesized from 34S8 (1A) (0.1005 g,
370 μmol) and freshly shaved, hexane‐washed Na
(0.1564 g, 6.803 mmol) using the methods described
above. Di(methyl‐13C)sulfide‐34S (3B) was synthesized
from the resulting 2A and I13CH3 (450 μL, 1.0305 g,
7.210 mmol) using the method described above.
(2‐Carboxyethyl)di(methyl‐13C)sulfonium‐34S (4B) was
synthesized from the resulting 3B and acrylic acid
(250 μL, 0.2628 g, 3.646 mmol) using the method
described above. This yielded white crystals composed
of pure 4B (0.3307 g, 1.895 mmol, 64.0%).
Because the boiling point of ICH3 (43°C) is very close
to that of DMS (38°C), there was a potential for unreacted
ICH3 to codistill, which would lower the purity of the
3 | RESULTS AND DISCUSSION
A previous study employed a strategy for the synthesis of
4A that avoided the production of volatile intermediates,
but this approach required five separate reactions with
purification of each intermediate and only produced an
overall yield of 26% (Scheme 2).23 In the approach
2–
final product. However, S2O3 is capable of converting
ICH3 to nonvolatile compounds.25 Thus, Na2S2O3 was
added in excess to ensure that all unreacted ICH3 was
consumed prior to distillation.
