DOI: 10.1002/asia.201500362
Communication
Cross-Coupling Reactions
Sequential SNAr Reaction/Suzuki–Miyaura Coupling/CÀH Direct
Arylations Approach for the Rapid Synthesis of Tetraaryl-
Substituted Pyrazoles
Taiki Morita,[a] Daisuke Kobayashi,[a] Keisuke Matsumura,[a] Kohei Johmoto,[b]
Hidehiro Uekusa,[b] Shinichiro Fuse,*[a] and Takashi Takahashi[c]
Sequential cross-coupling approaches that are based on
Abstract: A rapid synthesis of 1,3,4,5-tetraaryl-substituted
pyrazoles has been achieved through a sequence of SNAr
reaction/Suzuki–Miyaura coupling/Pd-catalyzed direct ary-
lations that used 3-iodo-1H-pyrazole as a scaffold. Pyra-
zoles with four different aryl groups were synthesized in
a straightforward manner with no extra synthetic steps,
such as protection/deprotection or the introduction of ac-
tivating/directing groups, using readily available sub-
strates and reagents. The developed synthetic approach
enabled the structurally diverse synthesis of multiaryl-sub-
stituted pyrazoles without using a glovebox technique.
a readily available heteroaromatic scaffold are powerful meth-
ods for the syntheses of multiaryl-substituted heteroaromatics.
Schmitt and co-workers demonstrated the synthesis of pen-
taaryl-substituted pyridines by five Suzuki–Miyaura cross-cou-
pling reactions starting from readily available 2-chloro-3-hy-
droxypyridine.[7] Knochel and co-workers reported the regiose-
lective functionalization of an oxazole scaffold to obtain triaryl-
substituted oxazoles using TMP bases complexed by LiCl
(TMP=2,2,6,6-tetramethylpiperidyl).[8] Itami and co-workers re-
ported the synthesis of tetraaryl-substituted thiophenes start-
ing from 3-methoxy thiophene through sequential CÀH direct
arylations and a subsequent Suzuki–Miyaura coupling.[9] The re-
search groups of Fagnou,[10] Itami,[11] and Murai[12] achieved the
sophisticated synthesis of fully aryl substituted thiazoles by se-
quential CÀH direct arylations.
Multiaryl-substituted pyrazoles are an important class of com-
pounds, because they are frequently used in pharmaceutical
drugs,[1] agricultural chemicals,[2] and as ligands for transition-
metal catalysts.[3] In addition, they are attractive elements for
fluorescent materials.[4] The most conventional approach[5] to
the synthesis of multiaryl-substituted pyrazoles—condensation
of 1,3-diketone or a,b-unsaturated carbonyl compounds with
substituted hydrazines—often suffers from insufficient regiose-
lectivity.[6] Although many synthetic approaches for multiaryl-
substituted pyrazoles have been reported, the development of
a more divergent, regioselective, protection/deprotection-free,
short synthetic route remains important.
With respect to multiaryl-substituted pyrazole synthesis,
McLaughlin et al. reported the construction of 3,4,5-triaryl pyra-
zoles through three Suzuki–Miyaura coupling reactions based
on the rearrangement of a THP protecting group (THP=tetra-
hydropyran).[13] Sames and co-workers demonstrated the syn-
thesis of 3,4,5-triaryl pyrazoles through a Suzuki–Miyaura cou-
pling and the following two C5 direct arylations using the
“SEM switch” method {SEM=2-(trimethylsilyl)ethoxymethyl}.[14]
To date, however, a synthesis of pyrazoles containing four dif-
ferent aryl groups by four sequential cross-couplings based on
a readily available pyrazole scaffold has not been demonstrat-
ed.
We have reported diversity-oriented syntheses for drug dis-
covery and materials development based on Pd-catalyzed
cross-coupling reactions.[15] Herein, we wish to report a regiose-
lective, protection/deprotection-free, sequential SNAr reaction/
Suzuki–Miyaura coupling/CÀH direct arylations approach to
the synthesis of 1,3,4,5-tetraaryl-substituted pyrazoles that uses
readily available, 3-iodo-1H-pyrazole as a scaffold.
[a] T. Morita, D. Kobayashi, K. Matsumura, Dr. S. Fuse+
Department of Applied Chemistry
Tokyo Institute of Technology
2-12-1, Ookayama, Meguro-ku, Tokyo 152-8552 (Japan)
[b] Dr. K. Johmoto, Dr. H. Uekusa
Department of Chemistry and Materials Science
Tokyo Institute of Technology
2-12-1, Ookayama, Meguro-ku, Tokyo 152-8551 (Japan)

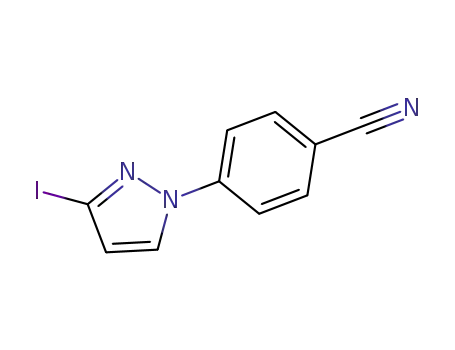

We planned to install four aryl groups, Ar1-Ar4, via a SNAr re-
action at the N1-position, Suzuki–Miyaura coupling[16] at the
C3-position, CÀH direct arylation at the C5-position,[14,17] and
CÀH direct arylation at the C4-position[18,19] using 3-iodo-1H-
pyrazole as the scaffold (Scheme 1). Sames and co-workers[14]
and Gorelsky[20] demonstrated a trend in the reactivity of three
CÀH bonds of pyrazole against CÀH direct arylation based on
a concerted metalation and deprotonation (CMD) mechanism
(C5>C4@C3). We theorized that the use of a Suzuki–Miyaura
[c] Prof. Dr. T. Takahashi
Yokohama College of Pharmacy
601, Matano-cho, Totsuka-ku, Yokohama, Kanagawa, 245-0066 (Japan)
[+] Present address:
Chemical Resources Laboratory
Tokyo Institute of Technology
4259, Nagatsuta-cho, Midori-ku, Yokohama 226-8503 (Japan)
E-mail: sfuse@res.titech.ac.jp
Supporting information for this article is available on the WWW under
Chem. Asian J. 2015, 10, 1626 – 1630
