Structural examination of halogen-bonded co-crystals of tritopic acceptors

Article abstract of DOI:10.3390/molecules23010163

A series of tritopic N-heterocyclic compounds containing electrostatically and geometrically equivalent binding sites were synthesized and subjected to systematic co-crystallizations with selected perfluoroiodoarenes in order to map out their structural landscapes. More than 70% of the attempted reactions produced a co-crystal as indicated by IR spectroscopy. Four new crystal structures are reported and in all of them, at least one potential binding site on the acceptor is left vacant. The absence of halogen bonds to all sites can be ascribed primarily due to deactivation of the σ-hole on the iodo-arene donors and partially due to steric hindrance. The tritopic acceptors containing 5,6-dimethylbenzimidazole derivatives yield discrete tetrameric aggregates in the solid state, whereas the pyrazole and imidazole analogues assemble into halogen-bonded 1-D chains.

Full text of DOI:10.3390/molecules23010163

molecules
Article
Structural Examination of Halogen-Bonded
Co-Crystals of Tritopic Acceptors
ID
Stefan N. L. Andree ID , Abhijeet S. Sinha and Christer B. Aakeröy *
Department of Chemistry, Kansas State University, Manhattan, KS 66506, USA; snlandree@ksu.edu (S.N.L.A.);
sinha@ksu.edu (A.S.S.)
* Correspondence: aakeroy@ksu.edu; Tel.: +1-785-532-6096
Received: 16 December 2017; Accepted: 10 January 2018; Published: 13 January 2018
Abstract: A series of tritopic N-heterocyclic compounds containing electrostatically and geometrically
equivalent binding sites were synthesized and subjected to systematic co-crystallizations with
selected perfluoroiodoarenes in order to map out their structural landscapes. More than 70% of the
attempted reactions produced a co-crystal as indicated by IR spectroscopy. Four new crystal structures
are reported and in all of them, at least one potential binding site on the acceptor is left vacant.
The absence of halogen bonds to all sites can be ascribed primarily due to deactivation of the σ-hole
on the iodo-arene donors and partially due to steric hindrance. The tritopic acceptors containing
5,6-dimethylbenzimidazole derivatives yield discrete tetrameric aggregates in the solid state, whereas
the pyrazole and imidazole analogues assemble into halogen-bonded 1-D chains.
Keywords: halogen bond; σ-hole; tritopic acceptor; co-crystals; crystal structures
1. Introduction
The anisotropic charge density around polarizable halogen atoms has produced considerable
interest in halogenated compounds in the context of noncovalent interactions [
bond (XB) has been thoroughly investigated in the crystalline solid-state by Resnati [
and others [ 10], and according to the 2013 official definition, a halogen bond “occurs when there
1–
5]. The halogen
6
,
7], Hanks [
8]
9,
is evidence of a net attractive interaction between an electrophilic region associated with a halogen
atom in a molecular entity and a nucleophilic region in another, or the same, molecular entity” [11].
Important features of the XB include directionality [12
–
14], strength [15
–18], polarizability [19],
tunability [ 20 21], hydrophobicity [22] and donor-atom dimension [9,
5
,
,
22]. The rapid growth of
successful applications of XB in fields such as drug development [23] and materials design [23
contributed to the popularity of this field.
,24] has
The ability of activated halogen atoms to interact with neutral or ionic Lewis bases (halogen-bond
acceptors) has received considerable attention in practical crystal engineering [25] but numerous
issues need to be resolved before halogen-bond-based synthetic strategies attain the reliability and
versatility that we associate with covalent synthetic transformations. It is not yet clear how we can
control chemical compositions and stoichiometries of targeted products when attempting to synthesize
co-crystals of reactants that carry multiple donor- and acceptor sites.
With this in mind, we opted to examine the structural landscape surrounding a series of tritopic
N-heterocyclic compounds capable of accepting three halogen bonds. The N-acceptor atoms reside
on an imidazole, pyrazole or benzimidazole site, respectively, Scheme 1. All the acceptors are
conformationally flexible with three geometrically and electrostatically equivalent binding sites.
Molecules 2018, 23, 163; doi:10.3390/molecules23010163
www.mdpi.com/journal/molecules

Molecules 2018, 23, 163
2 of 15

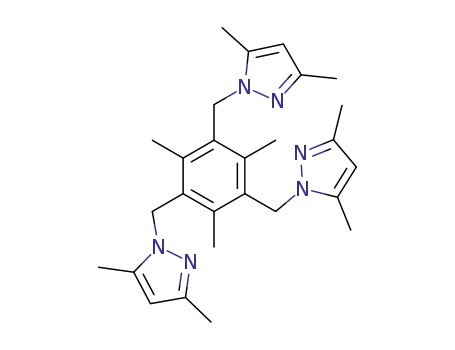

Scheme 1. Tritopic precursors and acceptors used in this study.
The four halogen-bond donors, 14XB, 12XB, 135XB, and 44XB, Scheme 2, contain geometrically
equivalent binding sites and are very rigid, unlike the tritopic acceptors. In terms of electrostatic
surface potentials, all sites are equivalent, prior to forming a halogen-bond, but as has been
recognized by van der Boom [26] and Formigue et al. [27], sequential deactivation may take place
at the remaining sites upon binding. Since the halogen atoms are substantially larger than their
hydrogen-bond donor counterparts [12], additional steric hindrance may prevent interactions from
taking place in the intended manner [22]. A study conducted by Schollhorn and co-workers [9] using
0
0
0
1,4-diiodotetrafluorobenzene (14XB) with 4,4 -,2,2 - and 2,4 -bipyridine shows that steric consideration
are responsible for switching the supramolecular networks from infinite 1-D chains to well-defined
ter-molecular complexes. In an attempt to determine enthalpy entropy compensation of DNA
−

Molecules 2018, 23, 163
3 of 15
Holliday junctions containing halogenated uracil bases [28], it was found that the most stable pairing
involved a bromine halogen-bond donor because the inherent polarizability advantage of the iodine
halogen-bond donor was compensated for by the steric disadvantage resulting from its greater size.
Scheme 2. Halogen bond donor molecules used in this study.
Herein we report the synthesis of four co-crystals containing rigid perfluoroiodoarenes and
flexible tritopic ligands using halogen-bond interactions as a vector for driving the co-crystal synthesis.
With the use of common concepts that define the nature of halogen bonding, we wanted to rationalize
the structural outcomes against a backdrop of geometric data from the experimental crystal structure
determinations and calculated molecular electrostatic potential surfaces (MEPs).
2. Results
Molecular electrostatic potential calculations were performed on the halogen bond donors as
means of ranking the expected capability of each donor site, Table 1. With an initial co-crystal screening;
Table 2, four crystals suitable for single crystal X-ray diffraction were obtained; 14XB:E, 135XB:E,
12XB:B, 135XB:A. A summary of the crystallographic data is included in Table 3, and halogen-bond
geometries are listed in Table 4.
Table 1. CSD-based summary of frequency of interactions to available halogen-bond donors and
MEPs values.
Halogen Bond Donor
135XB
12XB
14XB
MEP
No. Hits in the CSD
Coordination
Result
158 kJ/mol
30 hits
163 kJ/mol
19 hits
169 kJ/moL
100 hits
2 out of 3
3 out of 3
14
1 out of 2
2 out of 2
17
1 out of 2
2 out of 2
97
16
2
3
% outcome
53%
47%
10.5%
89.5%
3%
97%
Table 2. Grinding results.
Acceptors
%Success
0
0
0
0
0
A
A
B
B
C
C
D
D
E
E
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
135XB
12XB
14XB
100
80
60
√
√
√
√
√
√
√
√
√
-
-
√
Donors
-
-
-
-
-
√
√
√
44XB
-
-
-
-
50
%Success
50
75
100
75
75
50
50
75
100
75

Molecules 2018, 23, 163
4 of 15
Table 3. Crystallographic data.
Code
14XB:E
135XB:E
12XB:B
135XB:A
Formula moiety
Empirical formula
Molecular weight
Crystal system
Space group
a, Å
(C39H42N6), (C6F4I2)
C45H42N6F4I2
996.65
(C39H42N6), (C6F3I3), (C4H8O2)
(C21H24N6), (C6F4I2)
C27H24N6F4I2
762.32
(C21H24N6), (C6F3I3)
C49H50F3I3N6O2
1192.65
Triclinic
P ¯ı
C27H24F3I3N6
870.22
Orthorhombic
Pbca
7.931(2)
20.310(5)
37.342(10)
90
Monoclinic
P21/c
16.337(6)
16.340(5)
15.642(5)
90
102.862(13)
90
4071(2)
4
1.626
130
0.71073
1.604
Triclinic
P ¯ı
9.764(4)
11.594(4)
22.901(9)
101.90(2)
97.56(3)
99.98(2)
2460.4(16)
2
1.610
180
0.71073
1.961
9.255(3)
11.995(4)
13.507(5)
78.82(2)
84.15(2)
68.959(19)
1372.1(8)
2
1.845
200
0.71073
2.348
b, Å
c, Å
◦
α,
β,
γ,
◦
90
90
296(2)
8
1.922
296(2)
0.71073
3.164
◦
Volume, Å3
Z
Density, g/cm3
T,K
X-ray wavelength, Å
−1
µ, mm
R1 (observed)
wR2 (all)
0.0442
0.1198
0.0338
0.1100
0.0497
0.1773
0.0638
0.1740
Table 4. Halogen-bond geometries.
Compound
D–I· · · A
C(29)–I(35)u· · · N(9)v
d(I· · · A)
d(D· · · A)
<(D–I· · · A)
Symmetry Operation
12XB:B
Co-crystal
14XB:E
Co-crystal
135XB:E
Co-crystal
Solvate
2.934(7)
5.03(1)
177.0(2)
u = x,y,z; v = x,y,z
C(46)–I(52)u· · · N(10)v
2.922(4)
5.024(6)
171.3(2)
u = x,y,z; v = x,y,z
C(48)–I(54)u· · · N(23)v
C(50)–I(56)u· · · N(10)v
2.936(5)
2.864(4)
5.063(7)
4.991(6)
171.8(1)
175.7(1)
u = x,y,z; v = −x,1 − y,2 − z
u = x,y,z; v = −1 + x,1 + y,z
135XB:A
Co-crystal
C(32)–I(38)u· · · N(17)v
C(28)–I(34)u· · · N(17)v
C(30)–I(36)u· · · N(24)v
2.869(9)
3.206(9)
3.093(2)
4.95(1)
5.23(1)
5.15(2)
175.9(3)
162.7(3)
170.9(4)
u = x,y,z; v = 1 + x,y,z
u = x,y,z; v = −1/2 + x, 3/2 − y,1 − z
1
u = x,y,z; v = − x,−1/2 + y,z
2
2.1. Description of Solid State Architectures
The attempted co-crystallization of 12XB and
B resulted in the formation of a 1:1 binary solid,
Figure 1. The primary halogen bond in the structure of 12XB:B takes place between one of the iodine
atoms and N(pyz) forming a C—I· · · N conventional halogen bond and the second iodine atom engages
in a C—I· · · π (pyz) interaction with an adjacent pyrazole moiety. These two interactions result in 1D
infinite chains. Two remaining pyrazole acceptor sites do not form interactions via halogen bonds but
rather form identical two-point short contacts with a methyl C–H on the benzene scaffold of another
overlapping tritopic acceptor.
Figure 1. Main interactions in the crystal structure of 12XB:B.
The primary feature in the 1:1 co-crystal 14XB:E is a discrete tetramer built around
a centrosymmetric (central) (bzim)C–H· · · N/N· · · H–C(bzim) hydrogen bonded homo-synthon,

Molecules 2018, 23, 163
5 of 15
which is then extended via two symmetry-related C–I· · · N(bzim) halogen bonds, Figure 2. Only one
of the two iodine atoms in 14XB participates in a halogen bond. The remaining heterocyclic nitrogen
atom on the tritopic acceptor forms a short contact with an aromatic C–H moiety of a neighboring
benzimidazole group.
Figure 2. Tetramer in the structure of co-crystal 14XB:E.
The structure determination of the product resulting from the reaction between 135XB and
E
revealed that an ethyl acetate solvate had formed (the overall stoichiometry is 1:1:1), Figure 3.
The solvent does not participate in any noteworthy interactions, but rather is lodged within the
hydrophobic cavity created by the two benzimidazole arms. The three arms are on the same face of
the benzene scaffold. Two of the three halogen atoms on 135XB participate in C–I· · · N halogen bonds
leading to a centrosymmetric tetrameric aggregate. The shorter I· · · N bond takes place with the (N)
atom in a perpendicular benzimidazole site, whereas the longer I· · · N contact is formed with the
acceptor site pointing away from the central scaffold, rotated along the C–N axis.
(a)
(b)
Figure 3.
(a) Tetramer in the crystal structure of 135XB:E
(b) Ethyl acetate wedged between
benzimidazole arms.
Finally, in the 1:1 crystal structure of 135XB:A all three iodine atoms of the donor participate
in conventional C–I· · · N halogen bonds, Figure 4. The 1D chains propagate via C–I· · · N bifurcated
interactions and is also further extended into 3D molecular networks through a conventional C–I· · ·
interaction. The molecular network is further stabilized by bifurcated C–H· · · N interactions.
N
2.2. Aromatic Stacking
In the crystal structure of 12XB:B, a stacked dimer of donors is sandwiched between two symmetry
related arms of acceptor molecules, Figure 5.

Molecules 2018, 23, 163
6 of 15
Figure 4. Primary halogen bond interactions in the structure of 135XB:A.
(a)
) Stacking interactions between the two components in the structure of 12XB:B; (
filling representation of the packing showed in (a).
(b)
Figure 5.
(
a
b) Space
An off-set packing mode or rather a parallel-displaced geometry can be noted between donor
molecules 12XB and 135XB in co-crystals 12XB:B and 135XB:A, respectively, Figure 6. 14XB in the
crystal structure of 14XB:E display several C· · · F close contacts, which probably arise due to close
packing of the donor molecules, Figure 6.
(a)
Figure 6. Cont.

Molecules 2018, 23, 163
7 of 15
(b)
(c)
Figure 6.
(
a) Stacking of donors in 12XB:B
(
b) Stacking of donors in 135XB:A; (c) Close packing of
donor molecules in 14XB:E.
3. Discussion
There are no known halogen-bond-based crystal structures for these acceptor molecules although
two co-crystals containing a tris-pyridyl acceptor with 1:2 and 1:0.5 stoichiometries with 14XB
and 135XB, respectively, have been reported [29]. It has been noted on several occasions that it is
difficult to control the resulting stoichiometry in co-crystals involving multi-topic halogen-bond donors,
such as those employed in this study [26,29]. Therefore, it is not surprising that the intermolecular
outcomes in this study did not yield consistent results with regards to satisfying all available XB
donor sites. For both co-crystals 12XB:B and 14XB:E the targeted stoichiometry was 3:2, however,
the observed stoichiometry was 1:1 in both cases. For 135XB:E and 135XB:A, a 1:1 stoichiometry
was observed as expected, but with rather unexpected donor-acceptor sites. For co-crystal 135XB:E
,
only two out of the three halogen atoms form interactions and in co-crystal 135XB:A, a bifurcated
halogen bond and a conventional halogen bond interact with two imidazole sites of the tritopic
acceptor. These results clearly underscore the difficulty in controlling the delicate balance between
intermolecular interactions. In order to examine this challenge further, a systematic CSD study was
carried out in order to extract more structural information on the inability (or reluctance) of multi-topic
XB donors to simultaneously engage all donor sites in the solid state.
We gathered geometric data on C–I· · · N bond lengths and bond angles, as well as the extent of
halogen bonding, on all structures of 12XB, 14XB and 135XB involving potential acceptor molecules
with accessible sp2-hybridized nitrogen atoms. First of all, the results indicate that ditopic donors
are generally much more likely to engage all their sites in halogen bonding (17/19 for 12XB and
97/100 for 14XB, respectively, see Table 1), whereas for the tritopic donor, the success-rate for having
a full complement of halogen bonds has dropped to 47% (14/30). Part of the reason may be found
in the slightly higher electrostatic potentials which accompanies the ditopic donors (163 kJ/mol
for 12XB, 169 kJ/mol for 14XB, and 158 for 135XB, respectively), see Table 1, but the number of
available acceptor sites, possible steric considerations, and step-wise deactivation of the donor sites
upon binding, are more likely to be the main contributors.
There is obviously a difference between the probability that ditopic and tritopic donors will be able
to engage in a maximum number of halogen-bonds, which triggered the question as to whether there

Molecules 2018, 23, 163
8 of 15
are any notable differences in halogen-bond metrics between the two types of molecules. To address
this issue we constructed three separate graphs where the I· · · N bond length was plotted against
the C–I· · · N bond angle for all halogen bonds in crystal structures containing either of the three
donors, 12XB, 14XB, or 135XB, Figure 7. It is quite notable that the overall appearance of the graphs
for the ditopic acceptors is quite different to the way in which the analogous data for 135XB comes
out. First of all, the I· · · N bond-angles for tritopic structures cover a much broader range, and the
expected positive correlation between larger (more linear) angles and shorter I· · · N distances is also
readily apparent, Figure 7a. For the ditopic donors, the angular dependence has a much more narrow
distribution and the vast majority of C–I· · · N bond angles are greater than 160 ◦C. This underscores
that in order for 135XB to simultaneously form three halogen bonds, the molecule is often forced to
make a structural compromise (resulting in considerable deviations from linearity), whereas ditopic
halogen-bond donors are more likely to be able to find two suitable acceptors that are both oriented in
such a way that two near-linear bonds are produced.
(a)
(b)
(c)
Figure 7. Halogen-bond distances and angles extracted from a CSD search on crystal containing
sp2-hybridized nitrogen atoms as acceptors and (
a) 135XB; (b) 12XB and (c) 14XB, respectively.
ANG1 = <(C
−
I
· · · N)/◦, and DIST2 = d(I· · · N)/Å The colors indicate number of hits in each cell.
The “×” is correspond to data points from the current study.
Part of the reason for using flexible tritopic acceptor molecules was to maximize the opportunities
for formation of geometrically near-linear meaningful C–I· · · N halogen bonds to ditopic and tritopic
donors. The tritopic acceptors used in this study contain several rotatable bonds but the molecular

Molecules 2018, 23, 163
9 of 15
geometries can be simplified into one of two classes, a “crown” conformation with all three arms on the
same side of the aromatic core, or a “chair” conformation with two arms on one side and the third arm
on the opposite side of the aromatic core. As it turns out, both types of conformations were observed
in these crystal structures with the chair appearing in the structures of 14XB:E
the crown in the crystal structure of 135XB:E, Figure 8.
, 12XB:B, 135XB:A and
Figure 8. Molecular geometries of the tritopic acceptor molecules in the crystal structures of
14XB:E (top left), 12XB:B (bottom left), 135XB:A (top right), and 135XB:E (bottom right). The crown
conformation is only observed in the crystal structure of 135XB:E, whereas the chair is present in the
other three structures.
The fact that
E was found in both types of conformations also means that these molecules are not
strongly predisposed to one arrangement over another. Despite this flexibility, it was not possible to
realize a perfect match between donors and acceptors in these structures simply by controlling the
reaction stoichiometry. A key explanation for this behavior can, undoubtedly, be found by evoking
the sequential
as shown by Formigue [27] and van der Boom [26]. In the co-crystals presented herein, it is likely
-hole on the non-bonded
σ-hole deactivation that takes place in multi-topic halogen bond donors upon binding,
that when C–I· · · N binding interactions takes place, the magnitude of the
σ
halogen atom(s) diminish to a point where C–H hydrogen-bond donors suddenly become competitive,
resulting in C–H· · · N interactions (as observed in the crystal structure of 14XB:E, Figure 2).
Even though the halogen bond can deliver selectivity, strength and directionality, much more
work is still required before we can fully realize its potential as a reliable synthetic vector capable of
delivering supramolecular assemblies with desired chemical composition, stoichiometry, and topology.
4. Materials and Methods
All reagents, solvents, precursors and halogen-bond donors were purchased from commercial
sources and were used as received without further purification. A Fisher-Johns melting point apparatus
(Vernon Hills, IL, USA) was used to determine melting points. A Varian Unity Plus (400 MHz) NMR
spectrophotometer (Varian, Inc. Palo Alto, CA, USA) was used to record nuclear magnetic resonance
spectra using the residual solvent signal as a reference. Infrared spectroscopic analyses were performed
with a Nicolet 380 FT-IR instrument (Thermo Scientific, Madison, WI, USA).

Molecules 2018, 23, 163
10 of 15
4.1. Molecular Electrostatic Potential Calculations
To calculate the electrostatic potentials of the donor molecules, the geometries were optimized
using hybrid density functional B3LYP level of theory with 6–31G* basis set in vacuum. All molecules
were geometry optimized with the maxima and minima in the electrostatic potential surface
(0.002 e au−1 isosurface), determined using a positive point charge in the vacuum as a probe. These
numbers, in other words, surface potentials, are the coulombic interaction energies (in kJ )
mol−1
·
between the positive point probe and the surface of the molecule at that point. All calculations were
done using Spartan 10 software (Wavefunction Inc., Irvine, CA, USA, 2010).
4.2. CSD Search
A CSD search on the donor molecules 14XB
, 12XB and 135XB were performed using the following
constraints: “not disordered”, “no errors”, “not polymeric”, “no ions”, “no powder structures”,
“
3D coordinates determined” and “only organics”. The search for halogen bonds of the above mention
molecules was limited to acceptors with sp2-hybridized nitrogen atoms. All the CSD search queries
were run using ConQuest Version 1.19, CSD 5.38 November 2016 (CCDC, Cambridge, UK).
4.3. Synthesis of Tritopic Acceptors
4.3.1. Synthesis of 1,3,5-Tris(bromomethyl)-2,4,6-trimethylbenzene (α)
To a mixture of mesitylene (12.0 g; 0.10 mol), paraformaldehyde (10.26 g; 0.34 mol), and 75 mL of
glacial acetic acid,◦75 mL of a 33 wt% HBr/acetic acid solution was added rapidly. The mixture was
kept for 12 h at 95 C and then poured into 100 mL of water. The product was filtered off on a Buchner
funnel and dried. Flash column chromatography (hexane: ethyl acetate = 98.5:1.5) gave the desired
product as colorless needles. 90% yield. mp 186 ◦C (lit. [30] mp 183–186 ◦C); 1H-NMR (
δH; CDCl3,
400 MHz) δ 4.58 (s, 6H), 2.46 (s, 9H).
4.3.2. Synthesis of 1,3,5-Tris(imidazole-1-yl-methyl)-2,4,6-trimethylbenzene (A)
To a mixture of imidazole (874 mg, 12.8 mmol) in acetonitrile (50 mL), in a 100 mL round-bottomed
flask, NaOH (1.029 g, 25.72 mmol) was added and stirred at room temperature for two hours.
1,3,5-Tris(bromomethyl)-2,4,6-trimethylbenzene (1.416 g, 4.000 mmol) in acetonitrile (20 mL) was
added to the reaction mixture and refluxed for 24 h at 50–60 ◦C. The reaction mixture was monitored
with TLC and after completion, the solvent was removed by rotary evaporation, the residue was
dissolved in water (100 mL) and extracted with methylene chloride (30 mL
×
5). The organic layers
were combined, dried over anhydrous MgSO4, filtered and purified by flash column chromatography
(CH2Cl2/MeOH = 5/1) to give the desired product as a white solid. Recrystallization in ethyl acetate
produced clear block like crystals 64% yield. mp 214–215 ◦C (Lit value 226–227 ◦C) [31]; H-NMR
1
(δH; CDCl3, 400 MHz) δ 7.31 (s, 3H), 7.07 (s, 3H), 6.75 (s, 3H), 5.24 (s, 6H) 2.32 (s, 9H).
4.3.3. Synthesis of 1,3,5-Tris(pyrazole-1-yl-methyl)-2,4,6-trimethylbenzene (B)
To a mixture of pyrazole (874 mg, 12.8 mmol) in acetonitrile (50 mL), in a 100 mL round-bottomed
flask, 60% NaH (1.029 g, 25.72 mmol) was added and stirred at room temperature for two hours.
1,3,5-Tris(bromomethyl)-2,4,6-trimethylbenzene (1.416 g, 4.000 mmol) in acetonitrile (20 mL) was
added to the reaction mixture and refluxed for 24 h. The reaction mixture was monitored with TLC
and after completion, the solvent was removed by rotary evaporation, the residue was dissolved
in water (100 mL) and extracted with methylene chloride (30 mL
×
5). The organic layers were
combined, dried over anhydrous MgSO4, filtered and purified by flash column chromatograp◦hy
(CH2Cl2/MeOH = 10/1) to give the desired product as a white solid. 53% yield. mp 132–133 C
(Lit value 130–131 ◦C) [32]; 1H-NMR (
5.44 (s, 6H), 2.35 (s, 9H).
δH; CDCl3, 400 MHz) δ 7.53 (d, 3H), 7.06 (d, 3H), 6.21 (t, 3H),

Molecules 2018, 23, 163
11 of 15
4.3.4. Synthesis of 1,3,5-Tris(3,5-dimethylpyrazole-1-yl-methyl)-2,4,6-trimethylbenzene (C)
To a mixture of 3,5-dimethylpyrazole (1.230 g, 12.8 mmol) in acetonitrile (50 mL), in a 100 mL
round-bottomed flask, 60% NaH (1.029 g, 25.72 mmol) was added and stirred at room temperature
for two hours. 1,3,5-Tris(bromomethyl)-2,4,6-trimethylbenzene (1.416 g, 4.000 mmol) in acetonitrile
(
20 mL) was added to the reaction mixture and refluxed for 24 h. The reaction mixture was monitored
with TLC and after completion, the solvent was removed by rotary evaporation, the residue was
dissolved in water (100 mL) and extracted with methylene chloride (30 mL 5). The organic layers
×
were combined, dried over anhydrous MgSO4, filtered and purified by flash column chromatograp◦hy
(CH2Cl2/MeOH = 10/1) to give the desired product as a white solid. 61% yield. mp 245–247 C
(Lit value 248–250 ◦C) [32]; 1H-NMR (
2.13 (s, 9H), 2.11 (s, 9H).
δH; CDCl3, 400 MHz) δ 5.75 (s, 3H), 5.18 (s, 6H), 2.23 (s, 9H),
4.3.5. Synthesis of 1,3,5-Tris(benzimidazole-1-yl-methyl)-2,4,6-trimethylbenzene (D)
To a mixture of benzimidazole (1.512 g, 12.8 mmol) in THF (50 mL), in a 100 mL round-bottomed
flask, KOH (1.029 g, 25.72 mmol) was slowly added and stirred at room temperature under N2 gas.
After about 4 h, a solution of 1,3,5-Tris(bromomethyl)-2,4,6-trimethyl benzene (1.416 g, 4.000 mmol)
in 50 mL of THF was added dropwise, and the reaction mixture was stirred continuously overnight.
The solvent was subsequently removed under reduced pressure, and the residue was poured
into 100 mL of water and extracted 3 times with dichloromethane (3
organic extracts were washed with water, dried (MgSO4), and concentrated. The crude product
×
50 mL). The combined
◦
was purified by recrystallization from hot ethanol to produce colorless plates. 78% Yield. mp > 300 C
1
(
Lit value > 300 ◦C) [31]; H-NMR (
δH; CDCl3, 400 MHz)
δ
7.84 (m, 3H), 7.46 (s, 3H), 7.41 (m, 3H),
7.34 (m, 6H), 5.42 (s, 3H) 2.33 (s, 3H).
4.3.6. Synthesis of 1,3,5-Tris(5,6-dimethylbenziimidazole-1-yl-methyl)-2,4,6-trimethylbenzene (E)
To a mixture of 5,6-dimethylbenzimidazole (1.871 g, 12.8 mmol) in THF (50 mL), in a 100 mL
round-bottomed flask, KOH (1.029 g, 25.72 mmol) was slowly added and stirred at room temperature
under N2 gas. After about 4 h, a solution of 1,3,5-Tris(bromomethyl)-2,4,6-trimethyl benzene (1.416 g,
4.000 mmol) in 50 mL of THF was added dropwise, and the reaction mixture was stirred continuously
overnight. The solvent was subsequently removed under reduced pressure, and the residue was
poured into 100 mL of water and extracted 3 times with dichloromethane (3
×
50 mL). The combined
organic extracts were washed with water, dried (MgSO4), and concentrated. The crude product was
purified by recrystallization from hot ethanol which yielded pale yellowish-green pyramid-like crystals.
81% Yield. mp 285–290 ◦C (Lit value > 280 ◦C) [33]; 1H-NMR (
δH; CDCl3, 400 MHz) δ 7.58 (s, 3H),
7.33 (s, 3H), 7.20 (s, 3H) 5.33 (s, 6H), 2.42 (s, 9H), 2.39 (s, 9H), 2.30 (s, 9H).
4.3.7. Synthesis of 1,3,5-Tris(bromomethyl)benzene (β)
A mixture of mesitylene (2.8 mL, 20 mmol), N-bromosuccinimide (10.62 g, 60 mmol), and benzoyl
◦
peroxide (0.11 g) in CCl4 (30 mL) was stirred and heated under N2 for 14 h at 90 C. The reaction
mixture was monitored with TLC and after completion, the solution was cooled in an ice bath and the
succinimide was filtered off and washed with carbon tetrachloride. The filtrate was washed with water
and dried over anhydrous MgSO4. Upon concentration of the CCl4 solution, a pale-yellow solid was
obtained. Recrystallization in a 1:1 mixture of ethanol/hexane afforded colourless needle-like crystals.
◦
◦
1
81% Yield. mp 87–89 C (Lit value 86–87 C) [34]; H-NMR (
4.46 (s, 6H).
δH; CDCl3, 400 MHz) δ 7.36 (s, 3H),
The synthesis of A0
, , ,
B0 C0 D0 and E’ were carried out using the same experimental conditions as
employed for their analogues.

Molecules 2018, 23, 163
12 of 15
4.3.8. Synthesis of 1,3,5-Tris(imidazole-1-yl-methyl)benzene (A0)
◦
The desired product was obtained as a white solid. 54% yield. mp 173–175 C (Lit value
175–179 ◦C) [35]; 1H-NMR (δH; CDCl3, 400 MHz) δ 7.52 (s, 3H), 7.12 (s, 3H), 6.85 (m, 6H) 5.07 (s, 6H).
4.3.9. Synthesis of 1,3,5-Tris(pyrazole -1-yl-methyl)benzene (B0)
◦
The desired◦product was obtained as an off-white solid. 55% yield. mp 63–65 C (Lit value
◦
1
74–76 C, 60–61 C) [32]; H-NMR (δH; CDCl3, 400 MHz)
δ
7.52 (d, 3H), 7.34 (d, 3H), 6.91 (s, 6H)
6.27 (t, 6H), 5.24 (s, 6H).
4.3.10. Synthesis of 1,3,5-Tris(3,5-dimethylpyrazole -1-yl-methyl)benzene (C0)
◦
1
The desired product was obtained as an off-white solid. 58% yield. mp 94–96 C H-NMR
(δH; CDCl3, 400 MHz) δ 6.56 (s, 3H), 5.81 (s, 3H), 5.09 (s, 6H) 2.22 (s, 9H), 2.06 (s, 9H).
4.3.11. Synthesis of 1,3,5-Tris(benzimidazole -1-yl-methyl)benzene (D0)
The desired product was obtained◦upon recrystallization in ethyl acetate to produce colorless
◦
rod-like crystals. 71% yield. mp 102–104 C (Lit value 229–231 C) [36]; 1H-NMR (δH; CDCl3, 400 MHz)
δ 7.92 (s, 3H), 7.84 (d, 3H), 7.31 (t, 3H), 7.21 (t, 3H), 7.06 (d, 3H), 7.06 (d, 3H), 6.91 (s, 3H), 5.25 (s, 6H),
4.3.12. Synthesis of 1,3,5-Tris(5,6-dimethylbenziimidazole -1-yl-methyl)benzene (E0)
◦
1
The desired product was obtained as a white solid. 76% yield. mp 295–296 C H-NMR
δH; CDCl3, 400 MHz) 7.78 (s, 3H), 7.58 (s, 3H), 6.87 (s, 3H), 6.85 (s, 3H) 5.18 (s, 6H), 2.37 (s, 9H),
2.28 (s, 9H).
(
δ
4.4. Grinding Experiments
Screenings for co-crystals were performed using solvent-assisted grinding technique. In a typical
grinding experiment, the stoichiometric amounts (refer to supplementary information) of donor and
acceptor were mixed in a microwell with the aid of a pestle and a drop of solvent (methylene chloride).
The resulting solids from each reaction were subjected to IR analysis for characterization. A successful
interaction would be characterized by specific peak shifts observed in the ground mixture compared
to the starting compounds.
4.5. Synthesis of Co-Crystals
All co-crystal growth experiments were carried out from the resulting solid mixtures used in
the grinding experiments via slow evaporation of a 1:1 mixture of methylene chloride: ethyl acetate.
A model experiment would entail, transferring the ground mixture into a 2-dram glass vial, which
was then fully dissolved in a minimal amount of solvent mixture. The loosely capped vial was left
undisturbed at ambient conditions to allow the solvent to evaporate slowly. Out of 40 experiments,
four produced crystals suitable for single-crystal X-ray diffraction.
4.6. X-ray Crystallography
Upon preliminary IR and melting point analysis, crystals were subjected to single crystal X-ray
diffraction (CCDC 1587213-1587216). These data can be obtained free of charge via http://www.
ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK;
Fax: +44-1223-336033; E-mail: deposit@ccdc.cam.ac.uk). Experimental details are recorded in the ESI.
5. Conclusions
To learn more about the use of halogen bonds as a practical tool for predictable crystal engineering
and supramolecular synthetic chemistry, a series of ten tritopic N-heterocyclic compounds were

Molecules 2018, 23, 163
13 of 15
combined with four different multi-topic halogen-bond donors in attempted co-crystallizations. Initial
screening using IR spectroscopy for analyzing the outcome of each reaction showed that over 70%
of the 40 experiments produced halogen-bonded co-crystals. The crystal structures of four of them
were obtained.
The XB bonded co-crystal structures show two different architectures: discrete tetrameric
aggregates and 1D chains. A comparison with data from a systematic CSD analysis shows that
the halogen-bond distances and angles in the four structures presented herein are consistent with
commonly observed parameters. In addition, a variety of
π
-stacking and C–H· · · π interactions were
also seen in two co-crystals. Our results underscore the difficulty of controlling stoichiometries and
chemical compositions of targeted products when attempting to synthesize co-crystals with reactants
that carry multiple donor- and acceptor sites. Only two of the four co-crystals met the expected
stoichiometric ratios, even though they also displayed unexpected connectivities. A key factor that
contributes to the synthetic challenges is the fact that upon deactivation of σ-hole and halogen-bond
donor capability, other interactions, such as C–H hydrogen-bond donors become competitive, which
subsequently leads to a preference for C–H· · · N hydrogen bonds over C–I· · · N halogen bonds.
Supplementary Materials: NMR spectra, IR data, crystallographic information, and thermal data are available online.
Author Contributions: S.N.L.A. performed the experiments; S.N.L.A. and C.B.A. analyzed the data and wrote
the paper; A.S.S. performed the X-ray crystallography. All authors read and approved the manuscript.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
4.
5.
6.
7.
Auffinger, P.; Hays, F.A.; Westhof, E.; Ho, P.S. Halogen bonds in biological molecules. Proc. Natl. Acad.
Sci. USA 2004, 101, 16789–16794. [CrossRef] [PubMed]
Brinck, T.; Murray, J.S.; Politzer, P. Surface electrostatic potentials of halogenated methanes as indicators of
directional intermolecular interactions. Int. J. Quantum Chem. 1992, 44, 57–64. [CrossRef]
Kolárˇ, M.H.; Hobza, P. Computer modeling of halogen bonds and other
116, 5155–5187. [CrossRef] [PubMed]
σ-hole interactions. Chem. Rev. 2016,
Murray, J.S.; Paulsen, K.; Politzer, P. Molecular surface electrostatic potentials in the analysis of
non-hydrogen-bonding noncovalent interactions. Proc. Indian Acad. Sci. Chem. Sci. 1994, 106, 267–275.
Politzer, P.; Lane, P.; Concha, M.C.; Ma, Y.; Murray, J.S. An overview of halogen bonding. J. Mol. Model. 2007
13, 305–311. [CrossRef] [PubMed]
,
Metrangolo, P.; Resnati, G. Halogen bonding: A paradigm in supramolecular chemistry. Chem. Eur. J. 2001,
7, 2511–2519. [CrossRef]
Caronna, T.; Liantonio, R.; Logothetis, T.A.; Metrangolo, P.; Pilati, T.; Resnati, G. Halogen bonding and pi
center dot center dot center dot pi stacking control reactivity in the solid state. J. Am. Chem. Soc. 2004, 126,
4500–4501. [CrossRef] [PubMed]
8.
9.
Crihfield, A.; Hartwell, J.; Phelps, D.; Walsh, R.B.; Harris, J.L.; Payne, J.F.; Pennington, W.T.; Hanks, T.W.
Crystal engineering through halogen bonding. 2. Complexes of diacetylene-linked heterocycles with organic
iodides. Cryst. Growth Des. 2003, 3, 313–320. [CrossRef]
Syssa-Magale, J.L.; Boubekeur, K.; Palvadeau, P.; Meerschaut, A.; Schollhorn, B. The tailoring of
crystal structures via the self-assembly of organic coordination compounds by n center dot center
dot center dot i non-covalent halogen bonds: Co-crystals of sterically hindered n-heterocycles and
1,4-diiodo-tetrafluorobenzene. CrystEngComm 2005, 7, 302–308. [CrossRef]
10. Triguero, S.; Llusar, R.; Polo, V.; Fourmigué, M. Halogen bonding interactions ofsym-triiodotrifluorobenzene
with halide anions: A combined structural and theoretical study. Cryst. Growth Des. 2008, 8, 2241–2247.
[CrossRef]
11. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.;
Rissanen, K. Definition of the halogen bond (iupac recommendations 2013). Pure Appl. Chem. 2013, 85,
1711–1713. [CrossRef]

Molecules 2018, 23, 163
14 of 15
12. Kolárˇ, M.; Hostaš, J.; Hobza, P. The strength and directionality of a halogen bond are co-determined by the
magnitude and size of the σ-hole. Phys. Chem. Chem. Phys. 2014, 16, 9987–9996. [CrossRef] [PubMed]
13. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding: An electrostatically-driven highly directional
noncovalent interaction. PCCP 2010, 12, 7748–7757. [CrossRef] [PubMed]
14. Tsuzuki, S.; Wakisaka, A.; Ono, T.; Sonoda, T. Magnitude and origin of the attraction and directionality of
the halogen bonds of the complexes of c6f5x and c6h5x (x = i, br, cl and f) with pyridine. Chem. Eur. J. 2012
18, 951–960. [CrossRef] [PubMed]
,
15. Metrangolo, P.; Neukirch, H.; Pilati, T.; Resnati, G. Halogen bonding-based recognition processes: A world
parallel to hydrogen bonding. Acc. Chem. Res. 2005, 38, 386–395. [CrossRef] [PubMed]
16. Politzer, P.; Murray, J.S. Halogen bonding: An interim discussion. ChemPhysChem 2013, 14, 278–294.
[CrossRef] [PubMed]
17. Bauzá, A.; Quiñonero, D.; Frontera, A.; Deyà, P.M. Substituent effects in halogen bonding complexes between
aromatic donors and acceptors: A comprehensive ab initio study. PCCP 2011, 13, 20371–20379. [CrossRef]
[PubMed]
18. Alkorta, I.; Sánchez-Sanz, G.; Elguero, J. Linear free energy relationships in halogen bonds. CrystEngComm
2013, 15, 3178–3186. [CrossRef]
19. Duarte, D.J.R.; Sosa, G.L.; Peruchena, N.M.; Alkorta, I. Halogen bonding. The role of the polarizability of the
electron-pair donor. Physical Chem. Chem. Phys. 2016, 18, 7300–7309. [CrossRef] [PubMed]
ˇ
20. Riley, K.E.; Murray, J.S.; Fanfrlík, J.; Rezácˇ, J.; Solá, R.J.; Concha, M.C.; Ramos, F.M.; Politzer, P. Halogen bond
tunability i: The effects of aromatic fluorine substitution on the strengths of halogen-bonding interactions
involving chlorine, bromine, and iodine. J. Mol. Model. 2011, 17, 3309–3318. [CrossRef] [PubMed]
ˇ
21. Riley, K.E.; Murray, J.S.; Fanfrlík, J.; Rezácˇ, J.; Solá, R.J.; Concha, M.C.; Ramos, F.M.; Politzer, P. Halogen bond
tunability ii: The varying roles of electrostatic and dispersion contributions to attraction in halogen bonds.
J. Mol. Model. 2012, 19, 4651–4659. [CrossRef] [PubMed]
22. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The halogen bond.
Chem. Rev. 2016, 116, 2478–2601. [CrossRef] [PubMed]
23. Hirst, A.R.; Escuder, B.; Miravet, J.F.; Smith, D.K. High-tech applications of self-assembling supramolecular
nanostructured gel-phase materials: From regenerative medicine to electronic devices. Angew. Chem. Int. Ed.
2008, 47, 8002–8018. [CrossRef] [PubMed]
24. Piepenbrock, M.-O.M.; Lloyd, G.O.; Clarke, N.; Steed, J.W. Metal- and anion-binding supramolecular gels.
Chem. Rev. 2010, 110, 1960–2004. [CrossRef] [PubMed]
25. Gilday, L.C.; Robinson, S.W.; Barendt, T.A.; Langton, M.J.; Mullaney, B.R.; Beer, P.D. Halogen bonding in
supramolecular chemistry. Chem. Rev. 2015, 115, 7118–7195. [CrossRef] [PubMed]
26. Lucassen, A.C.B.; Karton, A.; Leitus, G.; Shimon, L.J.W.; Martin, J.M.L.; van der Boom, M.E. Co-crystallization
of sym-triiodo-trifluorobenzene with bipyridyl donors: Consistent formation of two instead of anticipated
three n· · · i halogen bonds. Cryst. Growth Des. 2007, 7, 386–392. [CrossRef]
27. Nicolas, I.; Barrière, F.; Jeannin, O.; Fourmigué, M. Sequential halogen bonding with ditopic donors:
evolutions upon halogen bond formation. Cryst. Growth Des. 2016, 16, 2963–2971. [CrossRef]
Σ-hole
28. Carter, M.; Voth, A.R.; Scholfield, M.R.; Rummel, B.; Sowers, L.C.; Ho, P.S. Enthalpy–entropy compensation
in biomolecular halogen bonds measured in DNA junctions. Biochemistry 2013, 52, 4891–4903. [CrossRef]
[PubMed]
29. Vartanian, M.; Lucassen, A.C.B.; Shimon, L.J.W.; van der Boom, M.E. Cocrystallization of a tripyridyl donor
with perfluorinated iodobenzene derivatives: Formation of different n· · · I halogen bonds determining
network vs plain packing crystals. Cryst. Growth Des. 2008, 8, 786–790. [CrossRef]
30. Van der Made, A.W.; Van der Made, R.H. A convenient procedure for bromomethylation of aromatic
compounds. Selective mono-, bis-, or trisbromomethylation. J. Org. Chem. 1993, 58, 1262–1263. [CrossRef]
31. Yuan, Y.; Jiang, Z.-L.; Yan, J.-M.; Gao, G.; Chan, A.S.C.; Xie, R.-G. A convenient and effective synthesis of
tris-bridged tricationic azolophanes. Synth. Commun. 2007, 30, 4555–4561. [CrossRef]
32. Hartshorn, C.M.; Steel, P.J. Poly(pyrazol-1-ylmethyl)benzenes: New multidentate ligands. Aust. J. Chem.
1995, 48, 1587–1599. [CrossRef]
33. Aakeröy, C.B.; Smith, M.; Desper, J. Finding a single-molecule receptor for citramalic acid through
supramolecular chelation. Can. J. Chem. 2015, 93, 822–825. [CrossRef]

Molecules 2018, 23, 163
15 of 15
34. Wang, B.; Fang, J.; Li, B.; You, H.; Ma, D.; Hong, Z.; Li, W.; Su, Z. Soluble dendrimers europium(iii)
β-diketonate complex for organic memory devices. Thin Solid Films 2008, 516, 3123–3127. [CrossRef]
35. D’Anna, F.; Nimal Gunaratne, H.Q.; Lazzara, G.; Noto, R.; Rizzo, C.; Seddon, K.R. Solution and thermal
behaviour of novel dicationic imidazolium ionic liquids. Org. Biomol. Chem. 2013, 11, 5836–5846. [CrossRef]
[PubMed]
36. Yuan, Y.; Xiao, R.; Gao, G.; Su, X.-Y.; Yu, H.; You, J.; Xie, R.-G. A direct synthetic approach to tripodal
imidazole compounds. J. Chem. Res. 2002, 2002, 267–269. [CrossRef]
Sample Availability: Not available.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
