5290 J . Org. Chem., Vol. 62, No. 16, 1997
Pearson and Fang
(dd, 1 H, J ) 7.0, 3.0 Hz), 3.90 (s, 4 H), 3.70 (m, 2 H), 3.45 (s,
3 H), 2.3-1.1 (m, 12 H), 1.54 (br, 3 H), 1.01 (s, 9 H), 0.78 (s, 3
H).
mmol) at rt under a nitrogen atmosphere. The mixture was
stirred at reflux for 3 h. After cooling, the mixture was diluted
with 20 mL of diethyl ether, washed with an aqueous sodium
thiosulfate solution (for removal of Hg(OAc)2), water, and
brine. The organics were dried over anhydrous sodium
carbonate, filtered through Celite, and concentrated in vacuo.
Column chromatography on basic alumina (this vinyl ether
underwent hydrolysis on silica gel) (EtOAc/hexane, 15/85)
provided 160 mg (85%) of allyl vinyl ether 25 as a viscous
liquid: Rf 0.78 (EtOAc/hexane, 25/75); 1H NMR (200 MHz,
CDCl3) δ 7.62-7.38 (m, 10 H), 6.23 (dd, 1 H, J ) 14.0, 6.5
Hz), 5.22 (s, br, 1 H), 4.26 (dd, 1 H, J ) 14.0, 1.4 Hz), 3.93 (dd,
1 H, J ) 6.5, 1.4 Hz), 3.90 (s, 4 H), 3.87-3.47 (m, 3 H), 2.15-
1.14 (m, 14 H), 1.54, (s, 3 H), 1.01 (s, 9 H), 0.81 (s, 3 H); HRMS
calcd for C36H50O4Si (M) 574.3478, found 574.3482.
4-[1-(2-((ter t-bu tyld ip h en ylsilyl)oxy)eth yl)-4,4-(eth yl-
en ed ioxy)cycloh exyl]-2,4-d i-m eth ylcycloh ex-2-en -1-on e
(22). To a solution of the dienyl methyl ether 21 (32.0 g, 57.1
mmol) in a mixture of THF (100 mL) and methanol (800 mL)
was added aqueous oxalic acid (18.1 g, 200 mmol, in 500 mL
of water). The resultant mixture was vigorously stirred via
overhead stirring at rt for 18 min and poured into water (1 L)
and immediately neutralized with aqueous sodium bicarbonate
solution. The mixture was extracted with diethyl ether. The
combined ethereal layers were dried over anhydrous MgSO4,
filtered through Celite, and evaporated. Purification of the
residual oil by column chromatography on silica gel (EtOAc/
Hexane, 25/75) afforded 21.2 g (68%) of the desired enone 22
as a foam: Rf 0.45 (EtOAc/hexane, 25/75); IR (CHCl3) 1667
cm-1; 1H NMR (300 MHz, CDCl3) δ 7.65-7.38 (m, 10 H), 6.50
(s, 1 H), 3.93 (br s, 4 H), 3.70 (t, 2 H, J ) 8.0 Hz), 2.38 (ddd,
1 H, J ) 17.0, 13.9, 5.4 Hz), 2.27 (ddd, 1 H, J ) 17.0, 5.2, 2.6
Hz), 1.86-1.25 (m, 12 H), 1.58 (s, 3 H), 1.04 (s, 9 H), 0.95 (s,
3 H); 13C NMR (75 MHz, CDCl3) δ 199.5, 152.3, 135.5, 133.7,
133.6, 132.7, 129.7, 127.7, 108.4, 64.2, 61.1, 41.7, 39.7, 34.3,
33.3, 30.9, 30.7, 29.3, 27.3, 26.9, 19.1, 19.0, 16.3; HRMS calcd
for C34H46O4Si (M) 546.3165, found 546.3160.
2,4-Dim eth yl-4-[1-(2-((ter t-bu tyldiph en ylsilyl)oxy)eth yl)-
4,4-(eth ylen ed ioxy)cycloh exyl]cycloh ex-2-en -1-ol (23). To
a stirred solution of enone 22 (190 mg, 0.347 mmol) in 6 mL
of 1:1 THF and methanol at 0 °C was added sodium borohy-
dride (20 mg, 0.529 mmol) in portions. After the solution was
stirred at 0 °C for 45 min, 5 mL of water was added, and the
resultant mixture was stirred for 5 min. The mixture was then
poured into 20 mL of ethyl acetate and washed with water
and brine. The aqueous layers were combined and extracted
with EtOAc. The combined organics were dried over anhy-
drous MgSO4, filtered, and evaporated to give a yellow oil.
Flash chromatography on silica gel (EtOAc/hexane, 25/75) and
subsequent recrystallization from chloroform provided 186 mg
(98%) of the desired allylic alcohol 23 as pale yellow rods: mp
152-153 °C; Rf 0.35 (EtOAc/hexane, 25/75); IR (CHCl3) 3609,
1663 cm-1; 1H NMR (300 MHz, CDCl3) δ 7.66-7.38 (m, 10 H),
5.17 (s, 1 H), 3.9 (br s, 4H), 3.84-3.60 (m, 3 H), 1.9-1.1 (m,
15 H), 1.56 (s, 3 H), 1.04 (s, 9 H), 0.83 (s, 3 H); 13C NMR (75
MHz, CDCl3) δ 135.4, 134.6, 133.9, 133.8, 131.1, 129.5, 127.6,
108.7, 69.6, 64.0, 61.4, 41.0, 39.7, 33.5, 30.8, 30.7, 30.2, 28.8,
27.1, 26.8, 22.1, 19.2, 19.0; HRMS calcd for C34H48O4Si (M)
548.3322, found 548.3318.

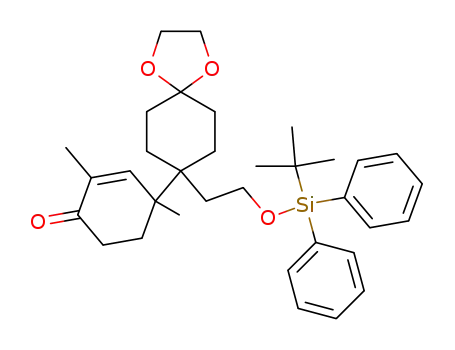

2,4-D im e t h y l-3-(2-o x o e t h y l)-4-[1-(2-((t er t -b u t y ld i-
p h en ylsilyl)oxy)eth yl)-4,4-eth ylen ed ioxy)cycloh exyl]cy-
cloh exen e (26). To a degassed solution of allyl vinyl ether
25 (710 mg, 1.24 mmol) in 10 mL of mesitylene was added
ammonium chloride (67 mg, 1.24 mmol). The reaction mixture
was refluxed at 164 °C with stirring under
a nitrogen
atmosphere for 17 h (or until the starting material was
completely consumed according to TLC). The solvent was then
removed from the mixture on a rotary evaporator at 85 °C
(bath), and the residual oil was diluted with diethyl ether (50
mL) and filtered through Celite. The filtrate was washed with
water (10 mL) and brine (10 mL), dried over magnesium
sulfate, filtered, and concentrated in vacuo. Flash chroma-
tography on silica gel (EtOAc/hexane, 15/85) afforded 230 mg
(32%) of the expected aldehyde product 26 as an oil: Rf 0.18
1
(EtOAc/hexane, 15/85); IR (CHCl3) 1722 cm-1; H NMR (300
MHz, CDCl3) δ 9.71 (s, 1 H), 7.67-7.37 (m, 10 H), 5.38 (s br,
1 H), 3.91 (s, 4 H), 3.78 (m, 2 H), 2.55 (dd, 1 H, J ) 16.9, 6.8
Hz), 2.35 (dd, 1 H, J ) 16.9, 8.4 Hz), 1.9-1.1 (m, 15 H), 1.55
(s, 3 H), 1.05 (s, 9 H), 0.64 (s, 3 H); 13C NMR (75 MHz, CDCl3)
δ 202.8, 136.4, 135.5, 133.9, 129.6, 127.6, 123.4, 108.5, 64.1,
61.6, 46.4, 41.7, 40.9, 38.0, 33.6, 31.1, 30.9, 28.5, 28.2, 26.9,
23.1, 22.7, 21.3, 19.1, 14.0; HRMS calcd for C36H50O4Si (M)
574.3478, found 574.3484.
2,4-Dim et h yl-3-(2-h yd r oxyet h yl)-4-[1-(2-((ter t-b u t yl-
d ip h en ylsilyl)oxy)eth yl)-4-eth ylen ed ioxy)cycloh exyl]cy-
cloh exen e (27). To a cold (0 °C), stirred solution of aldehyde
26 (5.00 g, 8.70 mmol) in 100 mL of ethanol was added sodium
borohydride (0.795 g, 21.0 mmol) in small portions. After the
addition, the ice bath was removed, and the reaction mixture
was stirred at ambient temperature under a nitrogen atmo-
sphere for 50 min and then quenched with water (30 mL).
After being stirred for 5 min, the mixture was extracted with
diethyl ether. The combined extracts were washed with brine,
1-(Be n zoyloxy)-2,4-d im e t h yl-4-[1-(2-((t er t -b u t yld i-
p h en ylsilyl)oxy)eth yl)-4,4-(eth ylen ed ioxy)cycloh exyl]-2-
cycloh exen e (24). To a stirred solution of allylic alcohol 23
(50 mg, 0.091 mmol) and pyridine (22.1 µL, 0.373 mmol) in
dichloromethane (2 mL) at 0 °C under nitrogen atmosphere
was added benzoyl chloride (16.0 µL, 0.137 mmol) via syringe.
The reaction solution was stirred at 0 °C for 15 min, and then
at rt for 5 h. The mixture was transferred into a separatory
funnel, diluted with 15 mL of diethyl ether, and washed
successively with aqueous sodium bisulfate (0.15 N, 5 mL x
2), water, and saturated sodium bicarbonate. The organics
were dried over anhydrous MgSO4, filtered, and evaporated.
The resulting crude product was purified by column chroma-
tography on silica gel (EtOAc/hexane, 15/85) to afford 58 mg
(98%) of benzoyl derivative 24 as an oil: Rf 0.50 (EtOAc/
dried over anhydrous MgSO4
, filtered, and evaporated in
vacuo. The residual liquid was purified by flash chromatog-
raphy (EtOAc/hexane, 28/72) to provide 3.90 g (78%) of alcohol
27 as a clear oil: Rf 0.21 (EtOAc/hexane, 28/72); IR (CHCl3)
1
3618 (OH) cm-1; H NMR (300 MHz, CDCl3) δ 7.67-7.39 (m,
10 H), 5.34 (br s, 1 H), 3.91 (br s, 4 H), 3.74 (t, 2 H, J ) 8.4
Hz), 3.49 (t, 2 H, J ) 7.1 Hz), 2.0-1.1 (m, 18 H), 1.62 (s, 3 H),
1.04 (s, 9 H), 0.73 (s, 3 H); 13C NMR (75 MHz, CDCl3) δ 138.4,
135.4, 133.8, 129.5, 127.6, 122.4, 108.6, 63.9, 62.6, 61.6, 41.4,
41.2, 40.1, 34.4, 33.9, 31.6, 31.1, 31.0, 28.7, 27.9, 26.8, 23.6,
23.1, 22.1, 19.0; HRMS calcd for C36H52O4Si (M) 576.3635,
found 576.3633.
2,4-Dim et h yl-3-(2-ch lor oet h yl)-4-[1-(2-((ter t-b u t yld i-
p h en ylsilyl)oxy)eth yl)-4,4-eth ylen ed ioxy)cycloh exyl]-1-
cycloh exen e (28). To a solution of alcohol 27 (2.55 g, 4.42
mmol) and triphenylphosphine (2.32 g, 8.84 mmol, 2.0 equiv)
in 20 mL of methylene chloride at rt under nitrogen atmo-
sphere was added freshly distilled carbon tetrachloride (3.42
mL, 35.4 mmol, 8.0 equiv) via syringe. The reaction mixture
was stirred at ambient temperature (19 °C) for 24 h. After
removal of the solvent on a rotary evaporator, the residue was
directly purified by flash chromatography on silica gel, eluting
with 5% and then 8% EtOAc in hexane, to afford 2.04 g (76%)
of chloride 28 as a colorless oil: Rf 0.49 (EtOAc/hexane, 15/
1
hexane, 25/75); H NMR (300 MHz, CDCl3) δ 8.17-7.35 (m,
15 H), 5.70 (dd, J ) 8.8, 2.8 Hz, 1 H), 5.33, (br s, 1 H), 3.92 (br
s, 4 H), 3.77-3.68 (m, 2 H), 1.98 -1.18 (m, 14 H), 1.56 (s, 3
H), 1.04 (s, 9 H), 0.87 (s, 3 H); 13C NMR (75 MHz, CDCl3) δ
166.3, 135.5, 134.5, 133.9, 133.2, 132.8, 130.5, 129.6, 128.9,
128.3, 127.7, 108.7, 72.9, 64.1, 61.5, 41.0, 39.7, 33.5, 30.9, 30.7,
29.7, 28.4, 27.3, 26.9, 26.3, 22.0, 19.4, 19.1; HRMS calcd for
C36H43O5Si (M - C4H9) 583.2880, found 583.2879. The mo-
lecular ion was not observed.
1-(Vin yloxy)-2,4-d im eth yl-4-[1-(2-((ter t-bu tyld ip h en yl-
silyl)oxy)eth yl)-4,4-(eth ylen ed ioxy)cycloh exyl]-2-cyclo-
h exen e (25). To a solution of allylic alcohol 23 (180 mg, 0.328
mmol) in 8 mL of n-butyl vinyl ether were added mercuric
acetate (210 mg, 0.656 mmol) and vinyl acetate (60.5 µL, 0.656
85); IR (CHCl3) 2959, 2933, 2890, 1589 cm-1 1H NMR (200
;
MHz, CDCl3) δ 7.65-7.36 (m, 10 H), 5.35 (t, br, 1 H, J ) 0.62
Hz), 3.89 (s, 4 H), 3.71 (t, br, 2 H, J ) 7.8 Hz), 3.33 (t, br, 2 H,
