Direct PCR amplification of various modified DNAs having amino acids: Convenient preparation of DNA libraries with high-potential activities for in vitro selection

Article abstract of DOI:10.1016/j.bmc.2005.11.030

We synthesized modified 2′-deoxyuridine triphosphates bearing amino acids at the C5 position and investigated their substrate properties for KOD Dash DNA polymerase during polymerase chain reaction (PCR). PCR using C5-modified dUTP having an amino acyl group (arginyl, histidyl, lysyl, phenylalanyl, tryptophanyl, leucyl, prolyl, glutaminyl, seryl, O-benzyl seryl or threonyl group) gave the corresponding full-length PCR products in good yield. Although dUTP analogues bearing aspartyl, glutamyl or cysteinyl were found to be poor substrates for PCR catalyzed by KOD Dash DNA polymerase, optimization of the reaction conditions resulted in substantial generation of full-length product. In the case of reaction using dUTP analogue having a cysteinyl group, addition of a reducing agent improved the reaction yield. Thus, PCRs using KOD Dash DNA polymerase together with amino acyl dUTP provide convenient and efficient preparation of various modified DNA libraries with potential protein-like activities.

Full text of DOI:10.1016/j.bmc.2005.11.030

Bioorganic & Medicinal Chemistry 14 (2006) 2518–2526
Direct PCR amplification of various modified DNAs having
amino acids: Convenient preparation of DNA libraries with
high-potential activities for in vitro selection
Masayasu Kuwahara,a,b Kazuo Hanawa,a Kazuomi Ohsawa,a Rina Kitagata,a
Hiroaki Ozakia and Hiroaki Sawaia,*
aDepartment of Applied Chemistry, Faculty of Engineering, Gunma University, Gunma 376-8515, Japan
bPRESTO, Japan Science and Technology Agency (JST), Saitama 332-0012, Japan
Received 9 October 2005; revised 12 November 2005; accepted 15 November 2005
Available online 15 December 2005
Abstract—We synthesized modified 20-deoxyuridine triphosphates bearing amino acids at the C5 position and investigated their sub-
strate properties for KOD Dash DNA polymerase during polymerase chain reaction (PCR). PCR using C5-modified dUTP having
an amino acyl group (arginyl, histidyl, lysyl, phenylalanyl, tryptophanyl, leucyl, prolyl, glutaminyl, seryl, O-benzyl seryl or threonyl
group) gave the corresponding full-length PCR products in good yield. Although dUTP analogues bearing aspartyl, glutamyl or
cysteinyl were found to be poor substrates for PCR catalyzed by KOD Dash DNA polymerase, optimization of the reaction con-
ditions resulted in substantial generation of full-length product. In the case of reaction using dUTP analogue having a cysteinyl
group, addition of a reducing agent improved the reaction yield. Thus, PCRs using KOD Dash DNA polymerase together with ami-
no acyl dUTP provide convenient and efficient preparation of various modified DNA libraries with potential protein-like activities.
ꢀ 2005 Elsevier Ltd. All rights reserved.
1. Introduction
engineered variant of T7 DNA polymerase (Sequenase)
and Moloney murine leukemia virus (M-MLV) reverse
transcriptase (SuperScript II), respectively. Thus, primer
extension16–18 or one-primer polymerase chain reaction
(PCR) is used widely instead of symmetric PCR, which
can amplify DNA exponentially, to prepare modified
DNA for in vitro selection. It is vital in symmetric
PCR that the modified nucleoside triphosphates act as
good substrates for thermostable DNA polymerase and
that the modified DNAs work as templates during the
amplification process. Therefore, the combinations of
modified nucleoside triphosphates and thermostable
DNA polymerases that result in efficient amplification
by PCR are limited.
In vitro selection techniques have been used to select
DNA catalysts and DNA aptamers that have activities
similar to those of protein–enzymes and antibodies.1–6
To date, various functionally modified nucleic acids have
been developed to enhance activity or to diversify func-
tion.7–15 In particular, Perrin et al.13,14 and Sidorov
et al.15 invented modified DNAzymes with two function-
alities, imidazolyl and a primary amino group, that can
catalyze RNA hydrolysis in the absence of divalent metal
ions. These examples demonstrated that a DNA mole-
cule modified with plural functionalities found in the ac-
tive sites of protein–enzymes can exhibit protein-like
activity. However, preparation of modified DNAs hav-
ing plural functionalities is difficult using polymerase
reactions. These modified DNA libraries were prepared
by primer extension reaction using C8- or C7-modified
dATP and C5-modified dUTP together with a genetically
Among commercially available thermostable DNA
polymerases, it is known that KOD Dash DNA poly-
merase from Pyrococcus kodakaraensis shows high poly-
merase activity and excellent fidelity.19–22 For instance,
polymerization reaction rate with KOD Dash DNA
polymerase is twofold faster than that with Taq DNA
polymerase and about sixfold faster than that with Pfu
DNA polymerase. Moreover, the fidelity of KOD Dash
DNA polymerase is about 3.4-fold higher than that
of Taq DNA polymerase. Thus, KOD Dash DNA
Keywords: Modified DNA; Modified thymidine triphosphate; Poly-
merase chain reaction; Amino acid.
*
Corresponding author. Tel.: +81 27 730 1220; fax: +81 27 730
1224; e-mail: sawai@chem.gunma-u.ac.jp
0968-0896/$ - see front matter ꢀ 2005 Elsevier Ltd. All rights reserved.
doi:10.1016/j.bmc.2005.11.030

M. Kuwahara et al. / Bioorg. Med. Chem. 14 (2006) 2518–2526
2519
polymerase is the one of the best catalysts for PCR. In a
previous study, KOD Dash DNA polymerase was found
to accept 5-(2-(6-aminohexylamino)-2-oxoethyl)-dUTP
(TC6) as an alternative to TTP during PCR, efficiently
yielding the corresponding modified DNA.23 We report
here the convenient and efficient preparation of modified
DNAs having two different functionalities (primary ami-
no group and a group such as imidazolyl, guanidinyl,
hydroxyl, etc.) by PCR using a series of C5-modified
dUTPs carrying amino acids.
We first investigated the effects of linker structure on
amplification efficiency of PCR. Under condition 3,
the analogue TC6 with a 2-(6-aminohexylamino)-2-oxo-
ethyl linker was found to be the best substrate for
PCR among several known C5-modified dUTPs used
in this study (Fig. 1, Table 1). The formation of the cor-
responding natural-type DNA from the natural sub-
strate TTP was 1.4 times larger compared with that
from TC6 under optimized conditions for the formation
of natural-type DNA, where the enzyme quantity was
reduced to suppress the non-specific amplification. With
regard to relative yields of PCR using KOD Dash DNA
polymerase, that of TC2 with 2-(2-aminoethylamino)-2-
oxoethyl linker four methylene units shorter than that
in TC6 decreased to 0.48. While use of TAL provided a
product in a relative yield of 0.77, use of TPR, which is
known to be a substrate for PCR using Taq DNA poly-
merase,32 did not provide any product. Moreover, use of
TDH was found to decrease the relative yield to 0.34,
which was lower than when TC2 or TAL was used. These
results indicated that the distance between amino groups
with positive charge and nucleobase, the chemical struc-
ture of the linker as well as a type of DNA polymerase
affects generation of the PCR product. Interestingly
however, these five modified dUTPs were found to be
good substrates for template-directed primer extension
reactions (see Supplementary material). Therefore, when
preparing modified DNAs by PCR, template activities
of the PCR product as well as substrate properties of
the modified nucleoside triphosphates for thermostable
DNA polymerases are important factors in amplifying
modified DNAs.
2. Results
All aminoacyl dUTPs, except for sulfur-containing ana-
0
logues, such as TC6C and TC6C , were synthesized from
amino acids with hydrogenation-sensitive protecting
groups such as benzyloxycarbonyl and benzyl groups
(Scheme 1). Reaction of the amino acid with N-hydroxy-
succinimide in the presence of N,N0-dicyclohexylcarbo-
diimide gave the corresponding N-succinimide ester.
Then, coupling of TC6 with the ester followed by
hydrogenation to remove the protecting groups gave
T
T
C6H, TC6K, TC6R, TC6F, TC6W, TC6L, TC6P, TC6Q
,
0
C6S, TC6S , TC6T, TC6D, and TC6E. The sulfur-contain-
0
ing analogues (TC6C and TC6C ) were synthesized from
N-a-(9-fluorenylmethoxycarbonyl)-S-tert-butylthio-L-
cysteine because sulfur inhibits catalysis of the Pd/C
used for the hydrogenation reaction. After the coupling
reaction, the Fmoc and S-t-butyl groups were success-
fully removed by treatment with diethylamine and
dithiothreitol (DTT), respectively.
CbzHN
NHCbz
CbzHN
NHCbz
NHCbz
N
O
O
N
A
H
N
N
N
O
CbzHN
N
H
NH
O
HOSu
TC6
CbzHN
O
O
P
O
P
O
P
O
N
DCC
DMF
1M NaHCO3 aq
DMF
HO
O
O
O
O
OH
OH
CbzHN
CbzHN
OH OH OH
O
O
O
NH
O
O
N
H
N
H2N
N
H
N
H
NH
O
H2, Pd/C
H2N
O
O
P
O
P
O
P
Water/MeOH (1/1)
HO
O
O
O
O
OH
OH OH OH
TC6R
O
O
H
B
tBuS
N
StBu
S
StBu
S
S
N
NH
H
O
HOSu
O
TC6
FmocHN
N
O
O
P
O
P
O
P
OH
O
FmocHN
FmocHN
N
DCC
DMF
1M NaHCO3 aq
DMF
HO
O
O
O
O
O
O
OH OH OH
O
OH
O
O
O
O
N
H
H
tBuS
N
N
S
N
NH
HS
N
H
NH
H
O
O
Diethylamine
DTT
H2N
H2N
O
N
O
O
O
P
O
P
O
P
O
O
P
HO
O
O
O
HO
P
O
P
O
O
O
O
OH OH OH
OH OH OH
OH
OH
TC6C'
TC6C

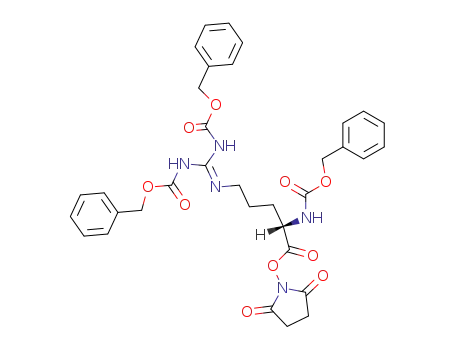

Scheme 1. Synthetic routes of modified dUTPs bearing (A) argininyl group and (B) cysteinyl group via 2-(6-aminohexylamino)-2-oxoethyl linker at
the C5 position of uracil, respectively.
