π-Allylic Rhodium Complex Catalyzed Living
Copolymerization of Arylallenes with Carbon
Monoxide To Give Structurally Regulated
Polyketones
Kohtaro Osakada,* Jun-chul Choi, and
Takakazu Yamamoto*
Research Laboratory of Resources Utilization
Tokyo Institute of Technology, 4259 Nagatsuta
Midori-ku, Yokohama 226, Japan
ReceiVed June 6, 1997

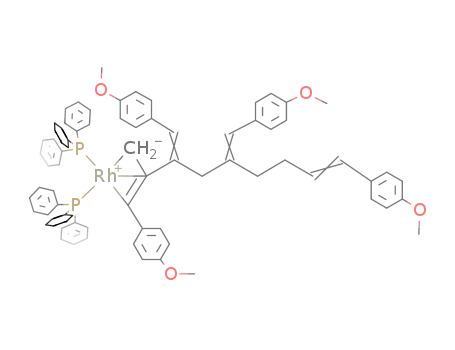

Figure 1. ORTEP drawing of Rh[η3-CH(Ar)C{C(dCHAr)-
CH2C(dCHAr) CH2CH2CHdCHAr}CH2](PPh3)2 (Ar ) C6H4OMe-p)
(1) with 30% thermal ellipsoidal levels. Hydrogens are omitted for
simplicity.
Palladium-catalyzed copolymerization of alkenes with carbon
monoxide attracts considerable attention arising from the
structure of the produced polymer with a high density of
carbonyl functions and from potential utility as photodegradable
materials.1 This reaction has been recently extended to copo-
lymerization of several dienes with carbon monoxide to give
the corresponding polyketones shown in Chart 1.2 A catalyst
based on Pd compounds and chelating diamine has been reported
to initiate copolymerization of 1,2-propadiene and CO to give
the corresponding polyketone, (CH2-C(dCH2))n.3 Control of
structure and molecular weights in preparation of the polymers
derived from 1,2-dienes and CO is of a significant interest since
it has a unique enone structure in the repeating unit and can be
converted into further functionalized derivatives. Here, we
report the use of a new π-allylic rhodium complex for the first
living copolymerization of 1,2-dienes with carbon monoxide
to give new polyketones with a highly regulated structure.
The polymerization catalyst, Rh[η3-CH(Ar)C{C(dCHAr)-
CH2C(dCHAr) CH2CH2CHdCHAr}CH2](PPh3)2 (Ar ) C6H4-
OMe-p) (1), is obtained from reactions of RhH(PPh3)4 with (4-
methoxyphenyl)allene in 1:4 and 1:5 molar ratios at room
temperature. Complex 1 is isolated in high yields (>80%)
Chart 1
starting complex.5 The NMR (1H, 13C, 31P, 1H-1H COSY, and
1H-13C COSY) spectra in solution are consistent with the
crystallographic structure of the molecule.
Copolymerization of phenylallene and of (4-methoxyphenyl)-
allene with CO in the presence of a catalytic amount of 1
converts the monomers into polyketones [-CO-CH2-C(dCHPh)-
]n (2) and [-CO-CH2-C(dCHC6H4OMe-p)-]n (3), respectively.6
The 1H NMR spectrum of 2 shows signals due to the repeating
among many possible complexes that could result from the
reaction of (4-methoxyphenyl)allene with RhH(PPh3)4.4 Figure
1 shows the molecular structure of 1 which possesses the
π-allylic ligand formed through consecutive insertion of four
(4-methoxyphenyl)allene molecules into the Rh-H bond of the
unit formed through completely alternating insertion of pheny-
lallene and carbon monoxide (Figure 2).7 Measurement using
ROESY technique has revealed a cis orientation of the Ar and
carbonyl groups in the repeating unit. The absence of structural
unit from 1,2-polymerization and narrow peak width of the
signals indicate highly regulated structure of the polymer chain.
Small peaks at δ 3.6-3.8 are assigned to OMe hydrogens of
the polymer end derived from 1. The peak area relative to those
of hydrogens in the repeating unit gives rise to Mn, which is
