Design, synthesis and insecticidal activity of biphenyl-diamide
derivatives
* *
Q1 Ye Liu, Chao Lei, Xiao-Yong Xu, Xu-Sheng Shao , Zhong Li
5
6
Shanghai Key Laboratory of Chemical Biology, School of Pharmacy, East China University of Science and Technology, Shanghai 200237, China
A R T I C L E I N F O
A B S T R A C T
Article history:
Diamides acting on insect ryanodine receptors are an intensive research area now. In order to search for
novel candidates, a series of diamides containing biphenyl substructure were designed and synthesized.
Their insecticidal activities against armyworms (Mythimna sepatara) and aphis (Aphis craccivora) were
screened. The compounds with 3,5-dichloro-4-(1,1,2,2-tetrafluoroethoxy)phenyl substituent were
found to be insecticidal to armyworms with the similar symptoms to poisoning by flubendiamide. In this
research, we presented a novel type of diamide insecticide as a lead compound for further optimization.
ß 2015 Chinese Chemical Society and Institute of Materia Medica, Chinese Academy of Medical Sciences.
Published by Elsevier B.V. All rights reserved.
Received 29 April 2015
Received in revised form 24 July 2015
Accepted 22 October 2015
Available online xxx
Keywords:
Diamide
Insecticide
Ryanodine insecticide
Biphenyl
7
8
1. Introduction
a 3-formamide substituent have been reported recently by 30
Syngenta [15,16], Bayer [17,18], Mitsui chemicals [19,20] etc 31
(Fig. 3). In these examples, the two amides groups were not 32
situated at adjacent positions as in the phthalic diamides or 33
9
Diamide insecticides are newly-developed agrochemicals for
pest control which are effective on lepidopterous insects
[1]. Compared to the naturally sourced alkaloid ryanodine from
Ryania speciosa [2,3], artificial insecticides are less toxic to fish and
mammals, because they selectively induce the release of Ca2+
through the insect ryanodine receptors (RyRs) [4,5], but have no
effect on mammalian RyRs [4,6]. The selectivity of diamide
insecticides may be the result of large species differences on the
RyRs binding sites [7]. With a new mode of action, the diamide
insecticides were favored for their safety to mammals, high
efficiency, and lack of cross-resistance to pyrethroids, benzoyl-
phenylureas, organophosphates, and carbamates [8,9].
Basically, there are two kinds of diamide insecticides classified
by chemical structures. One kind is the phthalic diamides,
represented by flubendiamide, discovered by Nihon Nohyaku
and jointly developed with Bayer CropScience [9]. The other kind is
the anthranilamides, including chlorantraniliprole and cyantrani-
liprole developed by Dupont [10] (Fig. 1). Based on the general
structure of phthalic diamide (Fig. 2), chemical modification of part
B and C gave several novel candidates as potential Ryanodine
insecticides [11–14]. From the variation of part A, benzamides with
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
anthranilamides, but still showed high insecticidal activity.
34
The biphenyl group occurs in pharmaceuticals and pesticides for 35
its bioactivity. For example, the commercialized bifenthrin, bifena- 36
zate, and recent patents use biphenyl substitute as a pesticidal 37
pharmacophore (Fig. 4) [21–24]. Encouraged by the above descrip- 38
tion, we used the biphenyl group as the replacement of part A to 39
discover more chemicals as insecticides. The two amides groups 40
were located at the ortho-position of each aromatic ring.
41
Herein, a series of biphenyl-diamides were synthesized and 42
screened to investigate their insecticidal activity as a function of 43
structure changes. Compound 1s containing 3,5-dichloro-4- 44
(2,2,4,4-tetrafluoro-ethoxy)aniline shows growth inhibition to 45
armyworms (Mythimna sepatara). It was found that Compound 46
3s substituted with formyl methylamine shows 100% mortality to 47
armyworms at 100 mg Lꢀ1 (Schemes 1 and 2).
Q248
2. Experimental
49
All melting points were obtained with a Bu¨chi Melting Point 50
B540 and are uncorrected. NMR spectra were recorded in DMSO-d6 51
(1H at 400 MHz and 13C at 100 MHz) using TMS as the internal 52
standard on a Bruker WP-400SY (400 MHz) spectrometer. Chemi- 53
*
Corresponding authors.
cal shifts are reported in
d (parts per million) values. High- 54
E-mail addresses: shaoxusheng@ecust.edu.cn (X.-S. Shao),
lizhong@ecust.edu.cn (Z. Li).
resolution mass spectra were recorded under electron impact 55
http://dx.doi.org/10.1016/j.cclet.2015.12.011
1001-8417/ß 2015 Chinese Chemical Society and Institute of Materia Medica, Chinese Academy of Medical Sciences. Published by Elsevier B.V. All rights reserved.
Please cite this article in press as: Y. Liu, et al., Design, synthesis and insecticidal activity of biphenyl-diamide derivatives, Chin. Chem.
Lett. (2015), http://dx.doi.org/10.1016/j.cclet.2015.12.011

G Model
CCLET 3504 1–5
2
Y. Liu et al. / Chinese Chemical Letters xxx (2015) xxx–xxx
molecular sieve overnight. All other solvents and reagents were
used as obtained from commercial sources without further
purification.
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
General procedure for compounds 1–8: The diphenic anhydride
was purchased from commercial source and recrystallized when
necessary. According to Ref. [25], A solution of 2,4,6-trimethylpyr-
idine (1.2 mmol) and aliphatic amine (1.2 mmol) in DMF (dimethyl
Formamide, 1 mL) was added dropwise to the diphenic anhydride
(1 mmol) in DMF (1 mL) at room temperature. After 2 h of stirring,
the solution was removed under reduced pressure. The residue
was dissolved in 10 mL EtOAc (ethyl acetate), then washed with
15% HCl and brine. The product was evaporated and crystallized in
EtOAc–petroleum ether.
Fig. 1. Commercialized diamide: flubendiamide, chlomathranilipole and
cyantraniliprole.
56
57
58
59
(70 eV) condition using a MicroMass GCT CA 055 instrument.
Analytical thin-layer chromatography (TLC) was carried out on
precoated plates (silica gel 60 F254), and spots were visualized with
General procedure for the target compounds except 1c: Under
argon condition [26], p-TsCl (p-toluenesulfonyl, 1.2 mmol) in 2 mL
dichloromethanewasinjectedtothe2 mLdichloromethanemixture
of Compounds 1–6 (1 mmol) and 4-dimethylaminopyridine
˚
ultraviolet (UV) light. Dichloromethane was treated with a 4 A
Fig. 2. General structure of phthatic amides and diphenic amides.
Fig. 3. Insecticidal molecules with diamides subunit.
O
O
N
N
O
O
Cl
O
NH
HF2C
N
O
CF3
N
O
N
N
N
Cl
Bifenthrin
WO 2013033244
WO2013167550
OH
O
F3C
O
S
H
N
Cl
H
N
N
O
N
H
Cl
O
O
O
Cl
Bifenazate
WO 201413095
WO2013144096
Fig. 4. Biphenyl-containing pesticides.
Please cite this article in press as: Y. Liu, et al., Design, synthesis and insecticidal activity of biphenyl-diamide derivatives, Chin. Chem.
Lett. (2015), http://dx.doi.org/10.1016/j.cclet.2015.12.011

G Model
CCLET 3504 1–5
Y. Liu et al. / Chinese Chemical Letters xxx (2015) xxx–xxx
3
Scheme 1. Synthesis route of diphenic amides.
77
78
79
80
(2.4 mmol) at reflux temperature. The aromatic amine or hetero-
aromatic amine (1.2 mmol) was injected to the reaction mixture 2 h
later. The mixturewasstirredforanother2 h. Afterremovingsolvent
in vacuo, the residue was quenched with EtOAc and water,
neutralized with sat. NaHCO3 solvent, the EtOAc layer was dried 81
over anhydrous Na2SO4 and concentrated. The residue was 82
chromatographed on silica gel (EtOAc–petroleum ether) to give 83
target compounds.
84
Please cite this article in press as: Y. Liu, et al., Design, synthesis and insecticidal activity of biphenyl-diamide derivatives, Chin. Chem.
Lett. (2015), http://dx.doi.org/10.1016/j.cclet.2015.12.011

G Model
CCLET 3504 1–5
4
Y. Liu et al. / Chinese Chemical Letters xxx (2015) xxx–xxx
Scheme 2. Insecticidal activity of target compounds to armyworms.
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
Procedure for the preparation of compound 1c: Compound 1c
was synthesized according to Ref. [27]. Diphenic anhydride
(2 mmol) and 4-nitroaniline (2.4 mmol) were heated to reflux in
chloroform for 3 h. After removing solvent in vacuo, the residue
was resolved in EtOAc, then washed with NaHCO3 and brine. The
intermediate was recrystallized in EtOAc–petroleum ether. The

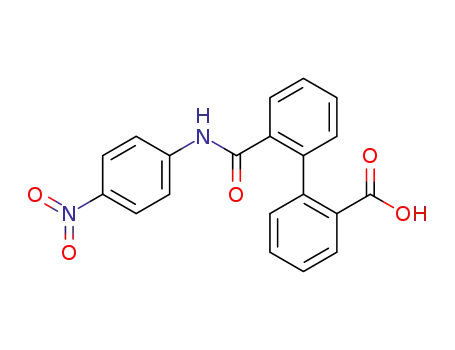

mixture of mono-acid intermediate 20-((4-nitrophenyl)carba-
moyl)-[1,10-biphenyl]-2-carboxylic acid (1.0 mmol) and 4-
dimethylaminopyridine (2.4 mmol) was heated (2.4 mmol) in
dichloromethane to reflux, then injected with p-TsCl (1.2 mmol)
and 2 mL dichloromethane for 2 h. Then, isopropylamine
(1.2 mmol) was added to the reaction flask, followed by stirring
for another 2 h. After removing the solvent in vacuo, the residue
was quenched with EtOAc and water. After this was neutralized
with sat. NaHCO3 solvent, the EtOAc layer was dried over
anhydrous Na2SO4 and concentrated. The residue was chromato-
graphed on silica gel (EtOAc–petroleum ether) to give target
compound.
synthesize sulfonyl-O-acryl mixed anhydrides as an alternative
routine. The mixed anhydrides reacted with amines to give the
final products. However, in preparing Compound 1c, treatment of
mixed anhydride with the p-nitroaniline could not give the
expected diamide. This might be caused by the low nucleophilicity
of the p-nitroaniline. Compound 1c was prepared under different
reaction conditions via amidation sequence. The p-nitroaniline was
introduced under refluxing chloroform with diphenic anhydride to
form the mono-amide intermediate 20-((4-nitrophenyl)carba-
moyl)-[1,10-biphenyl]-2-carboxylic acid. Then, this mono-amide
intermediate was treated with p-toluenesulfonyl, followed by
i-propylamine to give compound 1c.
115
116
117
118
119
120
121
122
123
124
125
126
3.2. Insecticidal activity
127
The insecticidal activities of the target compounds were
evaluated against armyworms (M. sepatara). Compounds 3s, 4s
and 9s containing 3,5-dichloro-4-(2,2,4,4-tetrafluoro-ethoxy)ani-
line group were insecticidal with mortality from 75% to 100% at
500 mg Lꢀ1. When R1 was i-propyl, the compound 1s showed
growth inhibition to armyworms at 500 mg Lꢀ1, while compound
8s with a larger aliphatic group is inactive. These differences
suggested that the smaller size of substituent R1 was favorable to
bioactivity. When R2 was some other aromatic amine or
heterocyclic ring, the compounds were inactive. This indicated
that the insecticidal activities of these compounds do not depend
on the electrical properties of the substituent. Compound 3s with
the shortest aliphatic chain showed LD50 value of 58.7 mg Lꢀ1 to
armyworm. Compound 3s showed the best water solubility of
compounds 3s, 4s, and 9s. A tentative inference was that the
different insecticidal activities of compound 3s, 4s, and 9s might be
related to their physiochemical property which could affect drug
absorption and delivery.
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
103
104
3. Results and discussion
3.1. Synthesis
105
106
107
108
109
110
111
112
113
114
The synthetic route of the designed structures was shown in
Fig. 2. Refluxing 2,2-biphenyldicarboxylic acid in acetic anhydride
gave the diphenic anhydride with a good yield. Using diphenic
anhydride as staring material, the Compounds 1–8 were synthe-
sized with yields from 55% to 90%, depending on the part of the
aliphatic amines. The second amine was much more difficult to
introduce into the core structure. The commonly-used amidation
methods, such as acylation or condensation, usually lead to the
formation of by-product 5H-dibenzo[c,e]azepine-5,7(6H)-dione.
Thus, we used the p-toluenesulfonyl and Compounds 1–8 to
Please cite this article in press as: Y. Liu, et al., Design, synthesis and insecticidal activity of biphenyl-diamide derivatives, Chin. Chem.
Lett. (2015), http://dx.doi.org/10.1016/j.cclet.2015.12.011

G Model
CCLET 3504 1–5
Y. Liu et al. / Chinese Chemical Letters xxx (2015) xxx–xxx
5
[8] R. Nauen, Insecticide mode of action: return of the ryanodine receptor, 181
Pest. Manage. Sci. 62 (2006) 690–692.
[9] M. Tohnishi, H. Nakao, T. Furuya, et al., Flubendiamide, a novel insecticide highly 183
active against lepidopterous insect pests, J. Pestic. Sci. 30 (2005) 354–360.
[10] G.P. Lahm, T.M. Stevenson, T.P. Selby, et al., RynaxypyrTM: a new insecticidal 185
anthranilic diamide that acts as potent and selective ryanodine receptor 186
activator, Bioorg. Med. Chem. Lett. 17 (2007) 6274–6279.
146
147
148
149
150
151
152
The symptoms of larvae poisoned by 3s were investigated. In
contrast to the commercial diamide insecticides, it takes effect in a
longer time. Larvae poisoned by 3s first showed growth inhibition
with smaller body size than the controlled group. Then, the
armyworms died of dehydration, and the body shriveled. The dead
worms left a small hard residue, which is similar to the symptoms
caused by flubendiamide.
182
184
a
187
[11] C. Gnamm, A. Jeanguenat, A.C. Dutton, et al., Novel diamide insecticides: sulfox- 188
imines, sulfonimidamides and other new sulfonimidoyl derivatives, Bioorg. Med. 189
Chem. Lett. 22 (2012) 3800–3806.
190
[12] T. Yan, S.J. Yu, P.F. Liu, et al., Design, Synthesis and biological activities of 191
novel benzoyl hydrazines containing pyrazole, Chin. J. Chem. 30 (2012) 192
153
4. Conclusion
919–923.
193
[13] M.L. Feng, Y.F. Li, H.J. Zhu, et al., Synthesis, insecticidal activity, and structure- 194
activity relationship of trifluoromethyl-containing phthalic acid diamide struc- 195
154
155
156
157
158
159
A series of novel diphenic diamides were designed and
synthesized. The insecticidal activities were assayed to give a
potential candidate 3s. It was suggested that the separation of
diamides to a diphenic scaffold could be feasible, while the most
suitable substituents could be changed. The insecticidal compound
3s could be used as a lead compound for further research.
tures, J. Agric. Food Chem. 58 (2010) 10999–11006.
196
[14] M. Liu, Y. Wang, W.Z. Wangyang, et al., Design, synthesis, and insecticidal 197
activities of phthalamides containing a hydrazone substructure, J. Agric. Food 198
Chem. 58 (2010) 6858–6863.
[15] P.J.M. Jung, P. Durieux, W. Lutz, et al., Insecticidal compounds, WO 2007128410 200
(2007).
[16] O.F. Hueter, P.J.M. Jung, T. Pitterna, H. Smits, A. Stoller, Insecticidal compounds, 202
WO 2014067838 (2014).
[17] A. Yanagi, Y. Watanabe, K. Wada, et al., Insecticidal 3-acylaminobenzanilides, WO 204
2007017075 (2007).
[18] A. Yanagi, Y. Watanabe, J. Mihara, et al., Insecticidal 2-acylaminothiazole-4- 206
carboxamides, WO 2007051560 (2007).
[19] K. Yoshida, T. Wakita, H. Katsuta, A. Kai, et al., Agricultural/horticultural insecti- 208
cide and method for using the same, EP 2324188 (2003).
[20] K. Yoshida, Y. Kobayashi, M. Nomura, et al., Amide derivative, pesticide containing 210
such compound and use thereof, WO 2006137395 (2006).
[21] L. Lu, J.Y. Cassayre, T. Luksch, et al., Dihydrobenzofuran derivatives as insecticidal 212
compounds, WO 2014135095 (2014).
[22] C. Dubost, P.Y. Coqueron, 5-Halogenopyrazole biphenylcarboxamides, WO 214
2013167550 (2013).
[23] A. Narine, J. Dickhaut, F. Kaiser, et al., Substituted mesoionic imine compounds for 216
combating animal pests, WO 2014033244 (2014).
199
201
203
205
207
209
211
213
215
217
160
Appendix A. Supplementary data
161
162
Supplementary data associated with this article can be found, in
the online version, at http://dx.doi.org/10.1016/j.cclet.2015.12.011.
163
References
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
[1] G.P. Lahm, D. Cordova, J.D. Barry, New and selective ryanodine receptor activators
for insect control, Bioorg. Med. Chem. 17 (2009) 4127–4133.
[2] E.F. Rogers, F.R. Koniuszy, J. Shaverl Jr., K. Folkers, Plant insecticides. I. Ryanodine, a
new alkaloid from Ryania speciosa vahl, J. Am. Chem. Soc. 70 (1948) 3086–3088.
[3] P.R. Jefferies, R.F. Toia, J.E. Casida, Ryanodyl 3-(pyridine-3-carboxylate): a novel
ryanoid from ryania insecticide, J. Nat. Prod. 54 (1991) 1147–1149.
[4] U. Ebbinghaus-Kintscher, P. Luemmen, N. Lobitz, et al., Phthalic acid diamides
activate ryanodine-sensitive Ca2+ release channels in insects, Cell Calcium 39
(2006) 21–33.
[5] D. Cordova, E.A. Benner, M.D. Sacher, et al., Anthranilic diamides: a new class of
insecticides with a novel mode of action, ryanodine receptor activation, Pest.
Biochem. Physiol. 84 (2006) 196–214.
[6] D.B. Sattelle, D. Cordova, T.R. Cheek, Insect ryanodine receptors: molecular targets
for novel pest control chemicals, Invert. Neurosci. 8 (2008) 107–119.
[7] S.Z. Qi, J.E. Casida, Species differences in chlorantraniliprole and flubendiamide
insecticide binding sites in the ryanodine receptor, Pest. Biochem. Physiol. 107
(2013) 321–326.
[24] C. Waldraff, S. Lehr, A. Angermann, et al., Herbicidally and insecticidally active 218
thiazolopyridinones, WO 2013144096 (2013).
[25] I.L. Karle, P. Venkateshwarlu, R. Nagaraj, et al., Diphenic acid as
219
a
general 220
conformational lock in the design of bihelical structures, Chem. Eur. J. 13 221
(2007) 4253–4263.
222
[26] R.P. Robinson, J.A. Bartlett, P. Bertinato, et al., Discovery of microsomal triglyc- 223
eride transfer protein (MTP) inhibitors with potential for decreased active 224
metabolite load compared to dirlotapide, Bioorg. Med. Chem. Lett. 21 (2011) 225
4150–4154.
226
[27] C.J. Perry, Z. Parveen, The cyclisation of substituted phthalanilic acids in acetic 227
acid solution: a kinetic study of substituted N-phenylphthalimide formation, 228
J. Chem. Soc. Perkin Trans. 2 (2001) 512–521.
229
Please cite this article in press as: Y. Liu, et al., Design, synthesis and insecticidal activity of biphenyl-diamide derivatives, Chin. Chem.
Lett. (2015), http://dx.doi.org/10.1016/j.cclet.2015.12.011
