Stability of antibacterial silver carboxylate complexes against staphylococcus epidermidis and their cytotoxic effects

Article abstract of DOI:10.3390/molecules23071629

The antibacterial effects against Staphylococcus epidermidis of five silver carboxylate complexes with anti-inflammatory ligands were studied in order to analyze and compare them in terms of stability (in solution and after exposure to UV light), and thei

Full text of DOI:10.3390/molecules23071629

molecules
Article
Stability of Antibacterial Silver Carboxylate
Complexes against Staphylococcus epidermidis and
Their Cytotoxic Effects
Maialen Aldabaldetrecu 1, Laura Tamayo 2 ID , Romina Alarcon 1, Mariana Walter 1,
Edison Salas-Huenuleo 3, Marcelo J. Kogan 3, Juan Guerrero 1 ID , Maritza Paez 1 and
Manuel I. Azócar 1,
*
ID
1
Faculty of Chemistry and Biology, University of Santiago de Chile, Av. Bernardo Ó Higgins 3363, Casilla 40,
Correo 33, Estación Central, 9170022 Santiago, Chile; maialen.aldabaldetrecu@usach.cl (M.A.);
romina.alarcon@usach.cl (R.A.); mariana.walter@usach.cl (M.W.); juan.guerrero@usach.cl (J.G.);
maritza.paez@usach.cl (M.P.)
2
3
Facultad de Ingeniería, Instituto de Ciencias Químicas Aplicadas, Polymers and Macromolecules Center,
Universidad Autónoma de Chile, El Llano Subercaseaux 2801, San Miguel, 9170022 Santiago, Chile;
lauratamayo26@gmail.com
Departamento de Química Farmacológica y Toxicológica, Facultad de Ciencias Químicas y Farmacéuticas,
Advanced Center for Chronic Diseases (ACCDiS), Universidad de Chile, 9170022 Santiago, Chile;
edison.salash@gmail.com (E.S.-H.); mkogan@ciq.uchile.cl (M.J.K.)
*
Correspondence: manuel.azocar@usach.cl; Tel.: +56-022-7183423
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 28 May 2018; Accepted: 30 June 2018; Published: 4 July 2018
Abstract: The antibacterial effects against Staphylococcus epidermidis of five silver carboxylate
complexes with anti-inflammatory ligands were studied in order to analyze and compare them
in terms of stability (in solution and after exposure to UV light), and their antibacterial and
morphological differences. Four effects of the Ag-complexes were evidenced by transmission
electronic microscopy (TEM) and scanning electronic microscopy (SEM): DNA condensation,
membrane disruption, shedding of cytoplasmic material and silver compound microcrystal
penetration of bacteria. 5-Chlorosalicylic acid (5Cl) and sodium 4-aminosalicylate (4A) were the
most effective ligands for synthesizing silver complexes with high levels of antibacterial activity.
However, Ag-5Cl was the most stable against exposure UV light (365 nm). Cytotoxic effects were
tested against two kinds of eukaryotic cells: murine fibroblast cells (T10 1/2) and human epithelial
ovarian cancer cells (A2780). The main objective was to identify changes in their antibacterial
properties associated with potential decomposition and the implications for clinical applications.
Keywords: silver antibacterial; Staphylococcus epidermidis; human ovarian cancer cell (A2780);
murine fibroblast
1. Introduction
The antibacterial applications of silver in medicine have been widely studied [
as an antimicrobial agent, the biological activity is associated with high effectiveness, low toxicity and
virtually no resistance of microorganisms to the presence of this metal [ ]. Ag(I)-complexes act by
various mechanisms against microorganisms, and their ligands play a role as metal carriers in biological
structures like membranes, DNA, enzymes, and others [ ]. However, antibacterial agents should have
other properties to be good candidates for future medical applications, such as being light-insensitive
1]. Besides applications
2
3
(including to UV light), having thermal stability and good solubility [4–6]. Unfortunately, few studies have
Molecules 2018, 23, 1629; doi:10.3390/molecules23071629
www.mdpi.com/journal/molecules

Molecules 2018, 23, 1629
2 of 13
addressed the problem of stability and antibacterial activity simultaneously, nor additional applications
for the ligands used in the preparation of the metal complexes [4,5,7].
In this paper, we present evidence of the stability of antibacterial Ag(I) carboxylate complexes in
solution, and the influence of the nature of the Ag–OOC bond, in order to demonstrate the importance
of ligands in these antibacterial complexes. Five silver complexes with anti-inflammatory ligands
were tested for 4 weeks against S. epidermidis, which was chosen because of its resistance to antibiotics,
including penicillin, amoxicillin, and methicillin, as well as its capacity to form biofilms on the plastic
surfaces [8] of medical devices (catheters and prostheses) [9]. These kinds of studies can provide
insights into understanding the biological activity of silver-based compounds as bacteria-inhibiting
materials, with low cytotoxicity effects and chemical stability over time.
Silver compounds with anti-inflammatory ligands have recently been synthesized and their
stability studied in the solid state with exposure to UV radiation. It has been found that the nature of
the ligands, as well as the coordination number and geometry, can influence the stability in the context
of exposure to light and temperature variations [5,7,10,11]. However, the stability of compounds
in solution has not been widely studied, nor has the relationship between chemical properties and
antibacterial activity over time. Moreover, these metal compounds may have lower toxicity and greater
pharmaceutical effects than other kinds of ligands [12].
Differences were found among the compounds in antibacterial activity against S. epidermidis, with
the level of antibacterial activity remaining stable in some compounds, at least for 21 days, while it
decreased in others. The effects of the compounds on cell viability were tested with the MTT assay
(a colorimetric assay for assessing metabolic cell activity) against two eukaryotic cell lines: T10 1/2
murine fibroblasts and A2780 human ovarian cancer cells.
2. Results
2.1. Stability of Silver Complexes
The silver(I) complexes (Ag-T, Ag-K, Ag-D, Ag-5Cl, and Ag-4A) were obtained in the form of
white powders, which are slightly soluble in water [10], soluble in DMSO and insoluble in organic
solvents. The structures feature silver ions coordinated with the ligand carboxylic acid groups [13
,14]
(see Figure 1).
Their stability with exposure to air and light varies, with the order of the most to the least stable
being Ag-T = Ag-5Cl > Ag-4A > Ag-D > Ag-K. Ag-T and Ag-5Cl are the most stable over time but
Ag-K decomposes with exposure to light and air, and at certain temperatures [10].
Before evaluating their antibacterial stability against S. epidermidis, the silver compounds were
studied in an aqueous solution (2% DMSO) and their photophysical stability was evaluated after
UV light irradiation. Other organic solvents were tested, but the silver compounds were insoluble
or only slightly soluble in those. The solutions were irradiated at 365 nm (7 watts) for 3 h and the
spectra analyzed every 30 min in a range of 350–700 nm to register color changes in the visible region.
Figure 2 shows the evolution of the visible spectra over time and the effects of exposure to UV light.
Ag-5Cl, Ag-T, Ag-K and AgNO3 did not show any changes in color over time, and remained colorless
in solution/suspension. Similarly, there were no evident changes when the samples were exposed to
sunlight for 4 weeks. In contrast, Ag-4A and, Ag-D turned from colorless to brown after one hour of
exposure to UV light (365 nm), or 3 days of exposure to sunlight.

Molecules 2018, 23, 1629
3 of 13

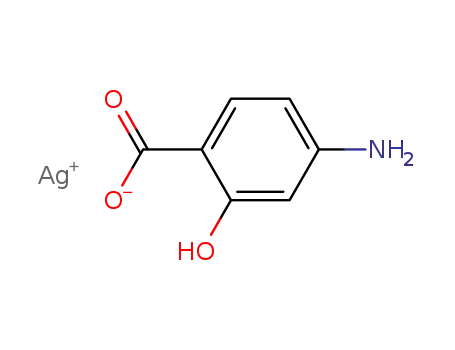

Figure 1. Anti-inflammatory ligands used in the synthesis of silver compounds: Ag-5Cl, Ag-K, Ag-4A,
Ag-T, Ag-D, tolfenamic acid (T), ketorolac tris salt (K), sodium diclofenac (D), 5-chlorosalicylic acid
(5Cl), and sodium 4-aminosalicylate (4A).
Figure 2. Absorption spectra of the silver solutions over time. Samples were irradiated at 365 nm
for 3 h.
When the pH of a solution rises to 8 or over, silver ions react in solution and precipitate as
AgOH and Ag2O [15]. The pH levels in all the solutions is in the range of 4 to 5, therefore, the
formation of new insoluble silver species can be ruled out, but when the anti-inflammatory ligands are
exposed to light, 4A and D (4-aminosalicylate and diclofenac) decompose to give a brown solution.
The characteristics of diclofenac decomposition in water with exposure to UVA, UVC and natural
sunlight have been described before [16]. Decomposition in the case of 4-aminosalicylate could be the
result of decarboxylation in an acidic medium. m-Aminophenol may be the main compound formed
in the solution because of the pH level of 5.0 when the Ag-4A is dissolved in water [17].

Molecules 2018, 23, 1629
4 of 13
2.2. Antibacterial Experiments
The antibacterial stability of the silver compounds against S. epidermidis was tested over four
weeks. Figure 3 shows the results. Ag-4A and Ag-5Cl were the most effective (although Ag-4A
decomposes with exposure to air and light) and maintains its MIC values (45 µM) for at least four
weeks. The antibacterial activity of Ag-K requires a higher dose. Inconveniently its effectiveness
decreases by the fourth week by more than 50%. In the case of ketorolac, studies have reported
decomposition by decarboxylation, followed by autoxidation and pH-dependent kinetics [18]. It has
also been determined that ketorolac rapidly decomposes in aqueous solutions and ethanol under UV
light owing to the production of four types of products and CO2 [19]. Given the characteristics of
ketorolac, the decomposition of this ligand could reduce the antibacterial effect of silver compounds in
the context of a pH from 4 to 5 and an extended period of exposure to sunlight.
Figure 3. Antibacterial activity of Ag-complexes and AgNO3 against S. epidermidis over 4 weeks.
Free ligand did not show antibacterial activity (MICs > 200 µg/mL).
MIC for Ag-D increased over time (62, 93 and 124
M), which may reflect activity over time, and finally an increase in toxicity caused by the
decomposition of the diclofenac ligand [16]. The most significant decrease in activity was with Ag-T,
from 101.4 to 271 M. The MIC of this compound against S. epidermidis increased by 250%, although it
was more stable than the other compounds. Free ligands did not show antibacterial activity even at
1000 M, therefore the antibacterial activity depends primarily on the silver ion. AgNO3 was used as
µM), although it decreased in the last week
(93
µ
µ
µ
a control and as a free Ag+ ion in water. In a slightly acidic solution, decomposition to silver oxide
and change in color were not observed, as was expected. Under the same conditions, Ag-4A and
Ag-5Cl showed a potential synergic effect in MIC values, demonstrating the effect of ligands on the
antibacterial activity of the silver compounds [3].
As our group has reported, Ag-5Cl shows a high degree of stability against high energy UV
light in the solid state. The tests in solution also show that AgCl is stable with exposure to UV light.
These characteristics are related to the phenolic ionization constant of AgCl (pKa: 13.34) and the
ionization constant of the carboxyl group (pKa: 4.85), which contribute greatly to the stability of the
metal compounds, as has been found for metals like iron and aluminum [20]. Salicylic acid and its
derivatives have been used to provide antibacterial properties to different types of materials. The results
have shown a remarkable antibacterial activity of 5-chlorosalicylic acid against Escherichia coli. [21
]
Therefore, this acid (ligand) could contribute to the antibacterial properties of silver complexes.

Molecules 2018, 23, 1629
5 of 13
Recently, a polymeric silver(I) complex with diclofenac [12] was tested against a wide range of
microorganisms, demonstrating a broad spectrum of antibacterial activity for this type of compound,
even with similar values 16–64 (µg/mL) to those obtained in this study. But as usual, trials were
performed with fresh solutions, or without considering antibacterial stability over time. However, this
information is important because of the high sensitivity of silver compounds to exposure to light, air,
and water [4,5,7,15].
Silver ions produce silver oxides as a precipitate in water, which change the solution from being
colorless to having brownish black color and react with protons (H+) to generating free Ag+ [22].
Because ligands stabilize the metallic center, the advantages of using them to obtain Ag compounds
include control over ion release and maintaining antibacterial efficacy [2–5,23].
2.3. Viability Test
The rate of release of Ag+ ions from carboxylic compounds may be key to explaining the
stability and cytotoxic effects of antibacterial activity. After in vivo studies of silver salts (I) and
silver sulfadiazine, Fox and Modak [23] concluded that compounds with more covalent bonds would
have slower and more sustained release of Ag ions. Viability assays correlated the antibacterial activity
of the compounds over time.
Figure 4 shows the results obtained with S. epidermidis after exposure to one of the five silver
compounds in a concentration 30 µg/mL. There was a 100% reduction in bacterial viability after 6 h of
exposure to Ag-4A and 8 h to Ag-D, Ag-5Cl, Ag-T, and Ag-K. Ag-4A may be more efficient over time
because of its higher silver content (41.46%). In contrast, Ag-5Cl, with similar silver content (38.60%),
required more time to eliminate the entire bacterial population, which could be because of a more
covalent bond between silver ion and the carboxylate group of the ligand [10], greater stability in
solution, and slower release of silver ions.
Ag-D, Ag-T, and Ag-K have similar silver ion contents and effectiveness over time, although the
characteristics of their ionic bonds are different. These differences may be associated with Ag+ ion
release or with the fact that these compounds act without ion dissociation, or they may be based on
mechanisms in the cells.
The effectiveness and antibacterial stability of silver complexes may be important factors for the
design of new materials such as medical implants, dental photopolymers, and catheters. For these
reasons, it is important to know their activity in time and stability as additives. When these results are
compared to those from other publications in which similar experimental conditions have been used,
it is evident that S. epidermidis is more resistant than Escherichia coli and Staphylococcus aureus, given
that more time is required in trials to reduce the population [12,22,23].
2.4. TEM
We employed TEM microscopy to understand the contribution of the silver compounds in the
antibacterial mechanism. This technique allows for studying the morphological and structural changes
caused by compounds in bacteria. The control sample (see Figure 5) shows the intra-, and extracellular
morphology of S. epidermidis, with 90% of the bacteria showing cell division and spherical morphology,
as well as well-defined cell membranes and walls. The interior of the bacteria is a homogeneous gray
color, which reflects a uniform cytoplasm density. For the assay, S. epidermidis was exposed to the
compounds for 3 h. The effects on the bacteria caused by the compounds are shown in Figure 6, in
which the micrographs show cross sections of the bacteria, this allowed for analyzing changes in walls
and interior of bacterial cells.

Molecules 2018, 23, 1629
6 of 13
Figure 4. Viability (percentage of CFU/mL) as a function of time (hours) for the five compounds
against the bacterium Staphylococcus epidermidis.
Figure 5. Cross sections of S. epidermidis (control sample) by TEM.
With Ag-D, we observed loss of bacterial lysis, wall thickness and cytoplasmic material
(Figure 6a–c). In addition, black spots appeared in the bacteria, which could be microcrystals of
the respective compounds. This would demonstrate the ability of compounds to penetrate cell walls.
In the upper right image (Figure 6c), contamination of E. coli was observed, which appears to be more
sensitive to wall rupture and condensation of cytoplasmic material than is S. epidermidis. This concurs
with the results of other viability studies [24–27], which have shown higher mortality rates for E. coli.
The percentage of bacteria in replication was lower with Ag-K than with the control, indicating
that Ag-K interferes with the mechanisms of DNA replication or condensation [28]. This effect can be
seen in the image on the right (Figure 6f), with condensed DNA strands that demonstrate antibacterial
action in the cell [29].

Molecules 2018, 23, 1629
7 of 13
Figure 6. Cross sections showing the effects on S. epidermidis of all the compounds (Ag-D, Ag-T, Ag-5Cl,
Ag-4A, and Ag-T) after 45 min of exposure.
Bacterial lysis was not observed with Ag-5Cl, but damage to the interior of the cell was. The image
on the left (Figure 6g) shows how the cell wall loses thickness and definition, as well as condensation of
cytoplasmic material, which disables or interrupts vital functions like enzymatic processes. The image
on the right (Figure 6i) shows several black spots that may be associated with the penetration of
microcrystals, which, to the best of our knowledge has not been evidenced to date for silver compounds,
although it has been observed with silver nanoparticles [26].

Molecules 2018, 23, 1629
8 of 13
The three main effects observed with Ag-4A (Figure 6j–l) are DNA condensation, loss in the
definition of the cytoplasmic wall and membrane lysis. Black spots (Figure 6k), representing
microcrystals of compound, appear again in the bacteria.
The bacterial population in the mitosis phase (Figure 6m) decreased after exposure to Ag-T,
which evidences the interaction of the compound with DNA. This interaction is shown in the image
(Figure 6n–o), in which the DNA is condensed into the form of strands. Again, lysis, loss of consistency
and definition of cell walls, and loss of cytoplasmic material is observed (Figure 6n–o). These results
show that the compounds interact with cell walls and membrane, proteins and eventually DNA.
Their effectiveness is associated with several mechanisms of simultaneous action.
A study of the role of Ag+ in destabilizing S. epidermidis adhesion to biofilms showed that silver
ions in ppb concentrations are ineffective against cells residing in biofilms. No significant changes in
viability were observed, even after increasing the contact time. Silver ions are probably trapped in the
biofilm matrix, making it ineffective to penetrate the deeper core of the biofilm matrix where the bulk
of the bacterial cells are usually present [30,31].
Silver ions also interact with molecules in the EPSs [32
,
33] and even with a large number of
35] to produce insoluble
halides and other ions, like Cl−, HCO3−, and CO3−2, and protein anions [34
,
silver salt, which causes silver ion inactivity. This also implies that low concentrations of silver ions
are unsuitable for the treatment of biofilm infections. Consequently, ligands can play a role as silver
ion carriers in bacteria and prevent interaction with other molecules in the external environment.
2.5. Scanning Electron Microscopy (SEM)
The black spots observed with transmission electron microscopy (TEM) were microanalyzed by
scanning electron microscopy and EDS to determine their composition. The results obtained for the
Ag-4A and Ag-K compounds are shown as an example in Figure 7.
Figure 7. Black spots observed in TEM and analyzed by EDS-SEM for composition.

Molecules 2018, 23, 1629
9 of 13
Figure 7 shows the composition and ion content of each point. The black spots in the bacteria are
silver, which was detected at every point that was analyzed. The largest amount was 1.04%, found at
point 2356, as shown in Table 1.
Table 1. SEM-EDS elemental composition of the elements present in the analyzed points.
Elements
Points
C
O
S
Cu
Ag
2356
2357
2358
2359
80.15 16.36 0.24
80.86 15.58 0.56
80.96 16.99 0.34
81.59 16.00 0.41
2.21
1.69
1.53
1.72
1.04
0.31
0.19
0.27
Ag-D, Ag-5Cl, and Ag-T also revealed the presence of up to 1.04% silver in all the objects analyzed.
This technique demonstrated the presence of silver in the bacteria in the form of particles or crystals of
the complexes.
2.6. Cell Viability Assay
Given the improved antibacterial activities of Ag coordination compounds and the differences
in MIC values, we sought to determine if silver compounds have potential medical applications.
We assayed the cytotoxic effects (Figure 8) of these compound on eukaryotic cells using mitochondrial
activity of metabolically active cells as a linear indicator of cell viability. The assays employed murine
fibroblast T10 1/2 cells and human epithelial cancer cells.
Figure 8. Evaluation of cellular viability in human cell lines. The viability of fibroblasts (
A) and
epithelial ovarian cancer cells ( ), were evaluated after 24 h exposure to Ag coordination compounds.
B
Results are presented as mean standard deviation of three independent experiments. For all treatment
at 5 and 50 µM no statistical significance was found compared with control. *** = p < 0.001.

Molecules 2018, 23, 1629
10 of 13
Cells of both cell lines died with all the compounds at concentrations of 500 and 250
viability was not affected at concentrations of 50 and 5
which reduced the viability of fibroblast cells by 50% at a concentration of 50
µ
M, but cell
µ
M, with the exception of the compound Ag-T,
µ
M. However, in comparison
with other tolfenamic metals (Cu, Co, and Zn), the silver compounds are less toxic [36]. These results
can be explained by reference to other investigations that have shown the cytotoxic effects of tolfenamic
acid [37] on the proliferation of nasopharyngeal cancer cell lines and a normal keratinocyte cell line.
In vitro assays using mammalian cell cultures have provided valuable information about the
toxicity of compounds. Determining the basal cytotoxicity of silver compounds is an important step in
toxicity studies. Another important step will be studying the decomposition of Ag compounds and
the implications in mammalian cells, but it is necessary to know the behaviors of these compounds in
initial states. In typical experiments, such as MTT assays, cultures of various types of human cells can
be used to estimate the toxicity of silver compounds and their potential applications.
In this context, using the compound Ag-T as an antibacterial agent implies employing a higher
dose (as evidenced by the MIC results), which could have undesired effects on cytotoxic activity and
disfavors its clinical use. In contrast, Ag-5Cl shows greater chemical stability and requires lower
doses over time. These doses remain sufficiently low with respect to the viability tests, which require
concentrations close to 250 uM to reduce 100% of cell viability.
3. Materials and Methods
3.1. Synthesis and Stability of Silver Complexes
Five silver(I) complexes with anti-inflammatory ligands (tolfenamic acid (T), ketorolac tris salt (K),
sodium diclofenac (D), 5-chlorosalicylic acid (5Cl) and sodium 4-aminosalicylate (4A)) had been synthesized
and characterized previously by our group, as reported. However, the biological properties had not been
studied [10,13,14]. Synthetic procedures for all complexes involved straightforward mixing of previously
treated ligands with NH3 at pH 8.0 in an ethanol/aqueous solution with AgNO3 in aqueous solution, Ag+:
ligand = 1:1 M ratio. The syntheses were carried out under constant stirring for 15 min at room temperature.
The insoluble products were filtered off, washed with cold water and ethanol, and dried in vacuo over
calcium chloride at room temperature. Purity was confirmed by elemental analysis and NMR spectra [10].
Due to the light sensitivity of the Ag(I) complexes, it was important to evaluate their behavior in solution.
The stability of the silver complexes was studied in aqueous solution (2% DMSO) and their
photophysical stability was evaluated after UV light irradiation for 3 h at 365 nm (7 watts).
The absorption spectra were recorded every 30 min in a range of 350–700 nm. The objective was to
record color changes associated with the decomposition of complexes.
3.2. Antibacterial Activity
The antimicrobial activity of the compounds was determined with the broth microdi-lution method,
as recommended by the National Committee for Clinical Laboratory Standards. Minimum inhibitory
concentrations (MICs) of the compounds were tested against S. epidermidis (ATCC 12228). Stock solutions
of the silver compounds in DMSO (2%) were diluted in broth (Muller-Hinton) to final concentrations of
3–200 µg/mL. Free ligands were also tested in quantities from 5 to 200 µg/mL. No antibacterial activity
was observed, even with the highest concentration. AgNO3 was also tested and used as a control.
Minimum inhibitory concentrations (MIC) were determined after 24 h of incubating 105 CFU/mL
of the respective compound concentrations at 37 ◦C. Samples of ◦300
µL were transferred (in sextuplet) to
96-well immunoplates (ELISA plates) and incubated for 24 h at 37 C, with continuous shaking. The growth
inhibiting effect was measured using optical density at 600 nm (Labsystem Multiskan GO, Thermos), and
recorded hourly for 24 h. The MIC was the lowest concentration at which bacterial growth was inhibited.
The stability of the antibacterial activity of the silver compounds over time was tested over 4 weeks. The stock
solutions of the silver compounds were kept at room temperature and exposed to sunlight throughout the
period. Samples were taken weekly and diluted to be evaluated against S. epidermidis, as described above.

Molecules 2018, 23, 1629
11 of 13
3.3. Morphological Changes by TEM/SEM Images
An aliquot of 3 mL of bacterial solution, standardized to 105 CFU/mL, was incubated for 45 min
with exposure to the silver compounds. Following incubation, the samples were washed with buffer
and centrifuged at 655 g for 12 min to obtain bacterial pellets.
The pellets were fixed by exposure to a glutaraldehyde solution at 2.5% in cacodylate buffer for
30 min, followed by dehydration of the bacteria using 50%, 60%, 70%, 90%, and 100% ethanol/cacodylate
◦
buffer solutions. The bacteria were finally embedded in epoxy resin and polymerized in an oven at 60 C
for 24 h. The samples were sectioned into 100-nm-thick slices, deposited on a copper grid (400 mesh)
and observed in by TEM using a Philips Tecnai 12 instrument [38]. S. epidermidis was also analyzed by
scanning electron microscopy (SEM) on a Teslan Vega 3 Quantax 400 model instrument equipped with
a Bruker probe to observe morphological changes and the presence of silver in the bacteria.
3.4. Cell Viability Assay
A tetrazolium salt reduction assay (CellTiter 96®) established a linear relationship between the
number of viable cells and the absorbance of the reaction product. The assay involved seeding a T10
1/2 murine fibroblast cell line and a human ovarian cancer cell line with Dulbecco’s Modified Eagle’s
Medium/Nutrient Mix F12 (DMEM/F12) on 96-well plates at a density of 5000 cells/well. The cells
were then treated with Ag coordination compounds (Ag-5Cl, Ag-4A, Ag-D, Ag-K, and Ag-T), and
AgNO3 as a control, and all dissolved in mili-Q water from a DMSO aliquot, at concentrations of 5,
50, 250 and 500 µM. Cell viability was measured in triplicate after 24 h of incubation at 37 C, with 5%
CO2. Absorbance was recorded at 490 nm on a Multiscan reader. The data was statistically analyzed
with a Kruskal-Wallis test and a Dunn’s post-test, with a statistical significance at p < 0.05, using the
GraphPad Prism 5.03 program (GraphPad software, Inc., San Diego, CA, USA).
4. Conclusions
Our results suggest the antibacterial activity and stability of silver compounds over time depend on the
nature of the ligands and their potential decomposition. Ag-5Cl is the best additive for medical applications
because it is the most stable in solution and with exposure to light, and as an antibacterial agent due to
the low required dose. Tolfenamic, ketorolac, diclofenac and 4-aminosalicylate decompose in aqueous
solutions and with exposure to light, with significant loss in some cases of their antibacterial activity.
S. epidermidis, which is associated with biofilms on plastic surfaces, was affected in different ways
by interaction with the five silver compounds, which indicate their antibacterial properties: membrane
disruption, shedding cytoplasmic material, penetration of microcrystals, and possible condensation of
DNA, which prevents DNA from replicating and cells from reproducing.
Silver compounds were not cytotoxic below concentrations of 50 M, with the exception of Ag-T,
which reduced the viability of fibroblast cells by 50%. The results indicate that silver compounds have
low toxicity, although it is necessary to study toxic effects associated with decomposition. In conclusion,
this study provides insights into understanding the biological activity of silver-based compounds as
bacteria-inhibiting materials, with low cytotoxic effects and chemical stability over time.
Author Contributions: M.I.A. and M.A. conceived of the presented idea, designed the study and supervised the
project. M.A., M.I.A., J.G., M.J.K., M.P., L.T. and E.S.-H. conceived and planned the experiments. M.A., M.I.A.,
L.T., E.S.-H., M.W. and R.A. carried out the experiments. All authors provided critical feedback and helped shape
the research, analysis and manuscript.
Funding: This research was funded by Conicyt grant number: 1140226 and ACT1412.
Acknowledgments: M.I.A., M.P. and L.T. are also grateful to VRID USACH, SMAT-C and Proyecto anillo ACT-1412.
L.T. acknowledges financial support from Fondecyt Iniciacion Grant 11160230. M.A. acknowledges financial
support from Beca America Latina. This work was supported by a Fondecyt Regular [grant number 1140226]. J.G.
acknowledges financial support from Fondecyt Regular Grant 1140193. M.J.K. acknowledges to Fondap 15130011.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2018, 23, 1629
12 of 13
References
1.
Serenella, M.; Massimiliano, P.; Guido, C.; Valeria, M.N.; Joanna, I.L.; Maurizio, R.; Maria, A.Z.; Zoroddu, A.M.;
Zoroddu, A.M. Silver coordination compounds: A new horizon in medicine. Coord. Chem. Rev. 2016
,
327–328, 349–359.
2.
3.
Azócar, M.I.; Gómez, G.; Levín, P.; Paez, M.; Muñoz, H.; Dinamarca, N. Review: Antibacterial behavior of
carboxylate silver(I) complexes. J. Coord. Chem. 2014, 67, 23–24. [CrossRef]
Nomiya, K.; Yoshizawa, A.; Tsukagoshi, K.; Kasuga, N.C.; Hirakawa, S.; Watanabe, J. Synthesis and structural
characterization of silver(I), aluminium(III) and cobalt(II) complexes with 4-isopropyltropolone (hinokitiol)
showing noteworthy biological activities. Action of silver(I)-oxygen bonding complexes on the antimicrobial
activities. J. Inorg. Biochem. 2004, 98, 46–60. [CrossRef] [PubMed]
4.
5.
6.
7.
Gerasimchuk, N. Synthesis, Properties, and Applications of Light-Insensitive Silver(I) Cyanoximates. Eur. J.
Inorg. Chem. 2014, 2014, 4518–4531. [CrossRef]
Gerasimchuk, N.; Gamian, A.; Glover, G.; Szponar, B. Light Insensitive Silver(I) Cyanoximates As
Antimicrobial Agents for Indwelling Medical Devices. Inorg. Chem. 2010, 49, 9863–9874. [CrossRef] [PubMed]
Soliman, S.M.; Elsilk, S.E. Synthesis, structural analyses and antimicrobial activity of the water soluble 1D
coordination polymer [Ag(3-aminopyridine)]ClO4. J. Mol. Struct. 2017, 1149, 58–68. [CrossRef]
Azocar, M.I.; Muñoz, H.; Levin, P.; Dinamarca, N.; Gomez, G.; Ibañez, A.; Garland, M.T.; Paez, M.A. Synthesis
and characterization of silver(I) complexes with ligands having anti-inflammatory properties. Commun. Inorg.
Synth. 2013, 1, 19–21.
8.
9.
Otto, M. Staphylococcus epidermidis pathogenesis. In Staphylococcus Epidermidis: Methods in Molecular
Biology (Methods and Protocols); Fey, P., Ed.; Springer: New York, NY, USA, 2014; Volume 1106, pp. 17–31.
Schaeffer, C.; Woods, K.M.; Longo, G.M.; Kiedrowski, M.R.; Paharik, A.E.; Büttner, H.; Christner, M.;
Boissy, R.J.; Horswill, A.R.; Rohde, H.; et al. Accumulation-associated protein enhances Staphylococcus
epidermidis biofilm formation under dynamic conditions and is required for infection in a rat catheter model.
Infect. Immun. 2015, 83, 211–226. [CrossRef] [PubMed]
10. Azócar, M.I.; Aldabaldetrecu, M.; Levin, P.; Tamayo, L.; Guerrero, J.; Páez, M.A. Correlating light and
thermal stability of silver carboxylate complexes by infrared and 13C NMR spectroscopy. J. Coord. Chem.
2016, 69, 3472–3479. [CrossRef]
11. Marchetti, F.; Palmucci, J.; Pettinari, C.; Pettinari, R.; Scuri, S.; Grappasonni, I.; Cocchioni, M.; Amati, M.;
Lelj, F.; Crispini, A. Linkage Isomerism in Silver Acylpyrazolonato Complexes and Correlation with Their
Antibacterial Activity. Inorg. Chem. 2016, 55, 5453–5466. [CrossRef] [PubMed]
12. Sevim, H.A.; Bahtiyar, S.; Sema, C.; Orhan, B. Synthesis, characterization, photoluminescent properties and
antimicrobial activities of two novel polymeric silver(I) complexes with diclofenac. J. Mol. Struct. 2017
1130, 156–164.
,
13. Braga, D.; Grepioni, F.; Andre, V.; Duarte, M.T. Drug-containing coordination and hydrogen bonding
networks obtained mechanochemically. CrystEngComm 2009, 11, 2618–2621. [CrossRef]
14. Wang, R.; Hong, M.; Zhao, Y.; Weng, J.; Cao, R. Synthesis and crystal structure of a novel two-dimensional
corrugated coordination polymer. Inorg. Chem. Commun. 2002, 5, 487–489. [CrossRef]
15. Glemser, O.; Sauer, H. Silver Oxide. In Handbook of Preparative Inorganic Chemistry; Brauer, G., Ed.;
Academic Press: Cambridge, MA, USA, 1963; p. 1037.
16. Antigoni, A.; Evroula, H.; Nikolaos, P.X.; Dionissios, M.; Despo, F.K. Factors affecting diclofenac
decomposition in water by UV-A/TiO2 photocatalysis. Chem. Eng. J. 2010, 161, 53–59.
17. Jivani, S.G.; Stella, V.J. Mechanism of Decarboxylation of p-Aminosalicylic Acid. J. Pharm. Sci. 1985, 74, 1274–1282.
[CrossRef] [PubMed]
18. Leo, G.; Hi-Shi, C.; Becker, A. Kinetics and mechanisms of the autoxidation of ketorolac tromethamine in
aqueous solution. Int. J. Pharm. 1988, 41, 95–104. [CrossRef]
19. Leo, G.; Hi-Shi, C.; Johnson, D. Light degradation of ketorolac tromethamine. Int. J. Pharm. 1988, 41, 105–113.
[CrossRef]
20. Foye, W.; Turcotte, J. Stability of metal complexes of nuclear-substituted salicylic acids: Correlation with
biological effects. J. Pharm. Sci. 1962, 51, 329–332. [CrossRef] [PubMed]
21. Kantouch, A.; El-Sayed, A.A.; Salama, M.; El-Kheir, A.A.; Mowafi, S. Salicylic acid and some of its derivatives
as antibacterial agents for viscose fabric. Int. J. Biol. Macromol. 2013, 62, 603–607. [CrossRef] [PubMed]

Molecules 2018, 23, 1629
13 of 13
22. Liu, J.; Hurt, R.H. Ion Release Kinetics and Particle Persistence in Aqueous Nano-Silver Colloids. Environ. Sci.
Technol. 2010, 44, 2169–2175. [CrossRef] [PubMed]
23. Fox, C.L.; Modak, S. Mechanism of Silver Sulfadiazine Action on Burn Wound Infections. Antimicrob. Agents
Chemother. 1974, 5, 582–588. [CrossRef] [PubMed]
24. Azocar, M.I.; Gómez, G.; Velasquez, C.; Abarca, R.; Kogan, M.J.; Paez, M. Antibacterial, kinetics and
bacteriolytic properties of silver(I) pyridinedicarboxylate compounds. Mater. Sci. Eng. C 2014, 37, 356–362.
[CrossRef] [PubMed]
25. Abarca, R.; Gómez, G.; Velásquez, C.; Páez, M.A.; Gulppi, M.; Arrieta, A.; Azócar, M.I. Antibacterial behavior
of Pyridinecarboxylatesilver(I) complexes. Chin. J. Chem. 2012, 30, 1631–1635. [CrossRef]
26. Abu-Youssef, M.A.M.; Soliman, S.M.; Langer, V.; Gohar, Y.M.; Hasanen, A.A.; Makhyoun, M.A.; Zaky, A.H.;
Öhrström, L.R. Synthesis, Crystal Structure, Quantum Chemical Calculations, DNA Interactions, and
Antimicrobial Activity of [Ag(2-amino-3-methylpyridine)2]NO3 and [Ag(pyridine-2-carboxaldoxime)NO3].
Inorg. Chem. 2010, 49, 9788–9797. [CrossRef] [PubMed]
27. Abu-Youssef, M.A.M.; Langer, V.; Ohrstrom, L. Synthesis, a case of isostructural packing, and antimicrobial
activity of silver(I)quinoxaline nitrate, silver(I)(2,5-dimethylpyrazine) nitrate and two related silver
aminopyridine compounds. Dalton Trans. 2006, 2542–2550. [CrossRef] [PubMed]
28. Li, G.Y.; Guan, R.L.; Ji, L.N.; Chao, H. DNA condensation induced by metal complexes. Coord. Chem. Rev.
2014, 281, 100–113. [CrossRef]
29. Azócar, M.I.A.; Tamayo, L.; Vejar, N.; Gomez, G.; Zhou, X.; Thompsom, G.; Cerda, E.; Kogan, M.J.; Salas, E.;
Paez, M.A. A systematic study of antibacterial silver nanoparticles: Efficiency, enhanced permeability, and
cytotoxic effects. J. Nanopart. Res. 2014, 16, 2465. [CrossRef]
30. Allison, D.G.; Maira-Litran, T.; Gilbert, P. Antimicrobial Resistance of Biofilms; Harwood Academic: Amsterdam,
The Netherlands, 2000; pp. 149–166.
31. Mah, T.F.; O’Toole, G.A. Mechanisms of biofilm resistance to antimicrobial agents. Trends Microbiol. 2001
9, 34–39. [CrossRef]
,
32. Chaw, K.C.; Manimaran, M.; Tay, F.E. Role of silver ions in destabilization of intermolecular adhesion forces
measured by atomic force microscopy in Staphylococcus epidermidis biofilms. Antimicrob. Agents Chemother.
2005, 49, 4853–4859. [CrossRef] [PubMed]
33. Lewis, K. Riddle of Biofilm Resistance. Antimicrob. Agents Chemother. 2001, 45, 999–1007. [CrossRef] [PubMed]
34. Klasen, H.J. A historical review of the use of silver in the treatment of burns. II. Renewed interest for silver.
Burns 2000, 26, 131–138. [PubMed]
35. Schierholz, J.M.; Beuth, J.; Pulverer, G. Role of Silver Ions in Destabilization of Intermolecular Adhesion
Forces Measured by Atomic Force Microscopy in Staphylococcus epidermidis Biofilms. J. Antimicrob. Chemother.
1999, 43, 2819–2821.
36. Mazumder, M.U.; Sukul, A.; Saha, S.K.; Chowdhury, A.A.; Mamun, Y. A comprehensive in vitro biological
investigation of metal complexes of tolfenamic acid. Alex. J. Med. 2017, 54, 23–26. [CrossRef]
37. Jittreetat, T.; Shin, Y.S.; Hwang, H.S.; Lee, B.S.; Kim, Y.S.; Sannikorn, P.; Kim, C.H. Tolfenamic Acid Inhibits
the Proliferation, Migration, and Invasion of Nasopharyngeal Carcinoma: Involvement of p38-Mediated
Down-Regulation of Slug. Yonsei Med. J. 2016, 57, 588–598. [CrossRef] [PubMed]
38. Tamayo, L.A.; Zapata, P.A.; Vejar, N.D.; Azócar, M.I.; Gulppi, M.A.; Zhou, X.; Thompson, G.E.;
Rabagliati, F.M.; Páez, M.A. Release of silver and copper nanoparticles from polyethylene nanocomposites
and their penetration into Listeria monocytogenes. Mater. Sci. Eng. C 2014, 40, 24–31. [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are available from the authors.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
