Synthesis and Photophysical Properties
of Electron-Rich
Perylenediimide-Fullerene Dyad
Yuki Shibano,† Tomokazu Umeyama,† Yoshihiro Matano,† Nikolai V. Tkachenko,*,‡
Helge Lemmetyinen,‡ and Hiroshi Imahori*,†,§
Department of Molecular Engineering, Graduate School of Engineering,
Kyoto UniVersity, Nishikyo-ku, Kyoto 615-8510, Japan, Fukui Institute for
Fundamental Chemistry, Kyoto UniVersity, 34-4, Takano-Nishihiraki-cho, Sakyo-ku,
Kyoto 606-8103, Japan, and Institute of Materials Chemistry, Tampere UniVersity of
Technology, P.O. Box 541, Korkeakoulunkatu 8, FIN-33101, Tampere, Finland
imahori@scl.kyoto-u.ac.jp; nikolai.tkachenko@tut.fi
Received June 20, 2006
ABSTRACT
An electron-rich perylenediimide-C60 dyad has been prepared to explore a new type of donor−acceptor system. Time-resolved absorption
measurements in benzonitrile revealed unambiguous evidence for the formation of a charge-separated state consisting of perylene diimide
radical cation and C60 radical anion via photoinduced electron transfer, showing a new class of artificial photosynthetic models in terms of
charge separation.
Recently, a wide variety of donor-acceptor linked molecules
have been prepared to develop artificial photosynthetic
systems toward the realization of highly efficient solar energy
conversion.1 The key points for the efficient conversion are
a high light-harvesting ability and fast charge separation (CS)
and slow charge recombination (CR), which allow the
systems to generate a long-lived charge-separated state in a
high quantum yield. Fullerenes are one of the most attractive
electron acceptors2 because they bear small reorganization
energies3 that accelerate CS and decelerate CR. A disad-
vantage of fullerenes is small molar absorption coefficients
in the visible region. Thus, porphyrins have been frequently
employed as a donor of such combinations owing to the
intense Soret band in the blue and moderate Q-bands in the
green regions, as well as relatively small reorganization
energies.4 Actually, porphyrin-fullerene linked systems have
successfully exhibited the efficient formation of a long-lived
charge-separated state.2,3,5 However, taking into account solar
energy distribution on the earth surface, the light-harvesting
properties of porphyrins are insufficient as a donor.
(2) (a) Imahori, H.; Sakata, Y. AdV. Mater. 1997, 9, 537. (b) Mart´ın, N.;
Sa´nchez, L.; Illescas, B.; Pe´rez, I. Chem. ReV. 1998, 98, 2527. (c) Diederich,
F.; Go´mez-Lo´pez, M. Chem. Soc. ReV. 1999, 28, 263. (d) Guldi, D. M.;
Prato, M. Acc. Chem. Res. 2000, 33, 695. (e) Nierengarten, N.-F. New J.
Chem. 2004, 28, 1177. (f) Armaroli, N. Photochem. Photobiol. Sci. 2003,
2, 73.
(3) (a) Imahori, H.; Hagiwara, K.; Akiyama, T.; Aoki, M.; Taniguchi,
S.; Okada, T.; Shirakawa, M.; Sakata, Y. Chem. Phys. Lett. 1996, 263,
545. (b) Imahori, H.; Yamada, H.; Guldi, D. M.; Endo, Y.; Shimomura,
A.; Kundu, S.; Yamada, K.; Okada, T.; Sakata, Y.; Fukuzumi, S. Angew.
Chem., Int. Ed. 2002, 41, 2344. (c) Fukuzumi, S.; Ohkubo, K.; Imahori,
H.; Guldi, D. M. Chem. Eur. J. 2003, 9, 1585.
† Kyoto University.
‡ Tampere University of Technology.
§ Fukui Institute for Fundamental Chemistry.
(1) (a) Wasielewski, M. R. Chem. ReV. 1992, 92, 435. (b) Gust, D.;
Moore, T. A.; Moore, A. L. Acc. Chem. Res. 1993, 26, 198. (c) Holten, D.;
Bocian, D. F.; Lindsey, J. S. Acc. Chem. Res. 2002, 35, 57. (d) Balzani,
V.; Venturi, M.; Credi, A. Molecular DeVices and Machines; Wiley-VCH:
Weinheim, 2003.
(4) The Porphyrin Handbook; Kadish, K. M., Smith, K., Guilard, R.,
Eds.; Academic Press: San Diego, CA, 2000.
10.1021/ol061506a CCC: $33.50
© 2006 American Chemical Society
Published on Web 08/29/2006

Scheme 1
Perylene diimides (PDI) are well-known as chemically,
substituents would shift the absorption bands due to the PDI
moiety to the longer wavelength regions, improving the light-
harvesting properties in the visible and near-infrared re-
gions.11 To increase the solubility, a swallow-tail secondary
alkyl group12 and long alkyl group were introduced into one
imide end of the PDI and the pyrrolidine ring on the C60,
respectively.
The synthetic scheme is shown in Scheme 1. According
to Wasielewski’s method,10a the bispyrrolidine-substituted

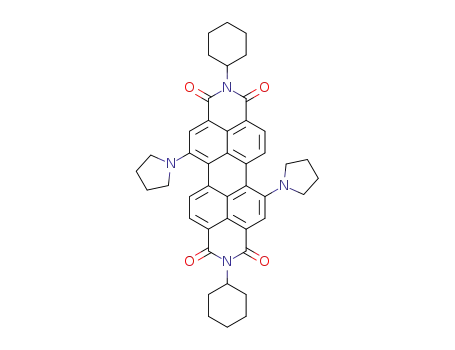

PDI 2 was synthesized by treating the N,N′-dicyclohexyl-
1,7-dibromoperylene-3,4:9,10-tetracarboxylic acid bisimide
1 with a large amount of pyrrolidine. Under our conditions,
2 was contaminated by monopyrrolidinated PDI. The desired
product was separated by alumina chromatography (CHCl3/
hexane ) 1:1) to give 2 in 52% yield. The saponification of
2 by using the reported procedure10b gave the 1,7-dipyrro-
lidinylperylene bisanhydride 3 in 83% yield. Cross-conden-
sation of 8-aminopentadecane, 3, and formyl-protected
aniline, followed by acid-catalyzed deprotection, afforded 4
in 17% yield. The perylenebisimide-C60 dyad PDI-C60 was
obtained in 56% yield by 1,3-dipolar cycloaddition using C60
and N-octadecylglycine in toluene.13 Compounds PDI-ref
and C60-ref14 (Figure 1) were also synthesized as references.
thermally, and photophysically stable and good light-harvest-
ing dyes. Owing to their outstanding properties, they have
been regarded as potential candidates for optical devices such
as organic light-emitting diodes,6 photovoltaic devices,7 and
optical switches.8 So far several perylenediimide-C60 linked
systems have been reported.9 However, energy transfer (EN)
to C60 is a main relaxation pathway of the excited singlet
state of PDI as a result of the poor electron-donating ability
of the perylenediimide. As such, no unambiguous evidence
for electron transfer (ET) from the excited singlet state of
PDI to C60 has been presented.
We report herein synthesis and photophysical properties
of a novel perylenediimide-C60 linked dyad PDI-C60. It is
known that the electronic structures of perylenediimides are
highly affected by introducing electron-donating or electron-
withdrawing groups at a perylene core.6-8 Bearing this in
mind, we introduced electron-donating amine substituents
into the perylene core.10 Such substitution is expected to
facilitate photoinduced ET from the excited singlet state of
the PDI to the C60 as a result of the low oxidation potential
of the PDI moiety. More importantly, the electron-donating
(5) (a) Gust, D.; Moore, T. A.; Moore, A. L. Acc. Chem. Res. 2001, 34,
40. (b) El-Khouly, M. E.; Ito, O.; Smith, P. M.; D’Souza, F. J. Photochem.
Photobiol. C. 2004, 5, 79. (c) Imahori, H. Org. Biomol. Chem. 2004, 2,
1425.
(6) (a) Ego, C.; Marsitzky, D.; Becker, S.; Zhang, J.; Grimsdale, A. C.;
Mu¨llen, H.; MacKenzie, J. D.; Silva, C.; Friend, R. H. J. Am. Chem. Soc.
2003, 125, 437. (b) Alibert-Fouet, S.; Dardel, S.; Bock, H.; Oukachmih,
M.; Archambeau, S.; Seguy, I.; Jolinat, P.; Destruel, P. ChemPhysChem
2003, 4, 983.
(7) (a) Liu, Y.; Li, Y.; Jiang, L.; Gan, H.; Liu, H.; Li, Y.; Zhuang, J.;
Lu, F.; Zhu, D. J. Org. Chem. 2004, 69, 9049. (b) Shin, W. S.; Jeong,
H.-H.; Kim, M.-K.; Jin, S.-H.; Kim, M.-R.; Lee, J.-K.; Lee, J. W.; Gal,
Y.-S. J. Mater. Chem. 2006, 16, 384.
(8) (a) O’Neil, M. P.; Niemczyk, M. P.; Svec, W. A.; Gosztola, D.;
Gaines, G. L., III; Wasielewski, M. R. Science 1992, 257, 63. (b) Zang, L.;
Liu, R.; Holman, M. W.; Nguyen, K. T.; Adams, D. M. J. Am. Chem. Soc.
2002, 124, 10640.
Figure 1. Reference compounds PDI-ref and C60-ref.
(9) (a) Hua, J.; Meng, F.; Ding, F.; Li, F.; Tian, H. J. Mater. Chem.
2004, 14, 1849. (b) Liu, Y.; Xiao, S.; Li, H.; Li, Y.; Liu, H.; Lu, F.; Zhuang,
J.; Zhu, D. J. Phys. Chem. B 2004, 108, 6256. (c) Go´mez, R.; Segura, J.
L.; Mart´ın, N. Org. Lett. 2005, 7, 717. (d) Wang, N.; Li, Y.; He, X.; Gan,
H.; Li, Y.; Huang, C.; Xu, X.; Xiao, J.; Wang, S.; Liu, H.; Zhu, D.
Tetrahedron 2006, 62, 1216.
(10) (a) Zhao, Y.; Wasielewski, M. R. Tetrahedron Lett. 1999, 40, 7047.
(b) Wu¨rthner, F.; Stepanenko, V.; Chen, Z.; Saha-Mo¨ller, C. R.; Kocher,
N.; Stalke, D. J. Org. Chem. 2004, 69, 7933.
1
The products were characterized on the basis of their H,
