Molecules 2012, 17, 11026-11045; doi:10.3390/molecules170911026
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis and Chromatography-Free Purification of PNA-PEO
Conjugates for the Functionalisation of Gold Sensors
Monica Dettin 1, Davide Silvestri 2, Roberta Danesin 1, Erica Cretaio 3, Gianluca Picariello 4,
Elisabetta Casarin 2, Agnese Sonato 5, Filippo Romanato 5 and Margherita Morpurgo 2,*
1
Department of Industrial Engineering, University of Padova, via Marzolo, 9, 35131 Padova, Italy;
E-Mails: monica.dettin@unipd.it (M.D.); roberta.danesin@unipd.it (R.D.)
2
Department of Pharmaceutical Chemistry and Pharmacology, University of Padova, via Marzolo, 5,
35131 Padova, Italy; E-Mails: davide.silvestri@studenti.unipd.it (D.S.);
elisabetta.casarin.1@unipd.it (E.C.)
3
Inter-University Consortium of Veneto for Nanotechnology (CIVEN), via delle Industrie, 5,
30174 Venezia, Italy; E-Mail: cretaio@civen.org
4
Institute of Food Sciences, CNR, via Roma, 64, 83100 Avellino, Italy; E-Mail: picariello@isa.cnr.it
5
Physics Department, University of Padova, via Marzolo, 8, 35131 Padova, Italy;
E-Mails: agnese.sonato@studenti.unipd.it (A.S.); filippo.romanato@unipd.it (F.R.)
* Author to whom correspondence should be addressed; E-Mail: margherita.morpurgo@unipd.it;
Tel.: +39-049-827-5330; Fax: +39-049-827-5366.
Received: 1 June 2012; in revised form: 30 August 2012 / Accepted: 31 August 2012 /
Published: 13 September 2012
Abstract: Peptide Nucleic Acids (PNAs) linked to high molecular weight (MW)
poly(ethylene oxide) (PEO) derivatives could be useful conjugates for the direct
functionalisation of gold surfaces dedicated to Surface Plasmon Resonance (SPR)-based
DNA sensing. However their use is hampered by the difficulty to obtain them through a
convenient and economical route. In this work we compared three synthetic strategies to
obtain PNA-high MW PEO conjugates composed of (a) a 15-mer PNA sequence as the
probe complementary to genomic DNA of Mycobacterium tuberculosis, (b) a PEO moiety
(2 or 5 KDa MW) and (c) a terminal trityl-protected thiol necessary (after acidic
deprotection) for grafting to gold surfaces. The 15-mer PNA was obtained by solid-phase
synthesis. Its amino terminal group was later condensed to bi-functional PEO derivatives
(2 and 5 KDa MW) carrying a Trt-cysteine at one end and a carboxyl group at the other
end. The reaction was carried out either in solution, using HATU or PyOxim as coupling
agents, or through the solid-phase approach, with 49.6%, 100% and 5.2% yield,

Molecules 2012, 17
11027
respectively. A differential solvent extraction strategy for product purification without the
need for chromatography is described. The ability of the 5 KDa PEO conjugate to function
as a probe for complementary DNA detection was demonstrated using a Grating-Coupling
Surface Plasmon Resonance (GC-SPR) system. The optimized PEO conjugation and
purification protocols are economical and simple enough to be reproduced also within
laboratories that are not highly equipped for chemical synthesis.
Keywords: PEG; PEO; PNA; PNA-conjugate; surface plasmon resonance
1. Introduction
The efficacy of any surface-based biosensor strongly depends on the quality of its surface chemistry [1],
which must ensure high affinity for the target analyte and prevent non-specific adsorption of
compounds that are co-present in the biological sample. The issue of non-specific adsorption is
particularly relevant in the case of label-free detection methods, as for example, those that rely on
Surface Plasmon Resonance (SPR). Surface Plasmons (SP) are electron waves generated at the
interface between a metal (most commonly gold) and a dielectric medium, upon interaction with light.
The resonance of SPs, being highly sensitive to the light incident angle, is affected by the refractive
index of the surface-localized dielectric medium. Any biorecognition event occurring in proximity of
the surface induces a change in the local dielectric medium and therefore, if the event occurs on a SP
generating surface, it can be transduced into a quantitative signal. This occurs without the need for
further labeling of the surface-captured analyte, as otherwise necessary in other biosensing technologies
(e.g., those relying on fluorescence or enzyme-linked color or chemiluminescent reactions). This
represents an important advantage but also a potential pitfall since the signal generated is associated to
the amount of material that becomes associated to the surface, independently of its nature. As a
consequence, if non-specific adsorptions are not efficiently shielded, their contribution to the signal
cannot be distinguished from that of the analyte. Therefore, the quality of a SPR sensing surface
strongly depends on its ability to resist to non-specific adsorptions. In addition, as in any surface based
sensor, two other elements are also fundamental: (a) the sensitivity and specificity of the sensing
probes tethered to the surface; (b) the chemistry for surface bonding, that should favor the probe
optimal orientation leaving its biorecognition ability unchanged.
With respect to the prevention of non-specific binding, it is widely accepted that a hydrophilic layer
must be inserted between the probe and the sensing surface. Several hydrophilic polymers are used,
among which cellulose [2], carboxymethyldextran [3,4], acrylamide [5] or poly(ethylene oxide)
(PEO) [6,7]. However, most polymers require the use of multi-step procedures to build the whole
sensing layer, in which the non fouling moiety is added first, followed by the probe which can be
linked to the first layer through different chemical approaches [6,8–15]. Unfortunately, multi-step
procedures share the common drawback of being tedious and not always reproducible, due to the
intrinsic variability in efficiency of most coupling reactions which are strongly affected by the
local environment (temperature, humidity, pH, local concentration of reagents) [16]. A single step
functionalisation strategy is therefore advisable [17], in which the coupling efficacy is not highly

Molecules 2012, 17
11028
influenced by the environment, thus allowing good reproducibility among functionalised surface
replicas. This is achievable by using PEO derivatives in which one end is transformed to become
reactive for surface tethering, the other one is linked to the biorecognizing moiety.
In the case of DNA sensing, it is possible to improve the efficacy of the DNA capturing probe by
using DNA analogues with superior properties than DNA itself. One example are the Peptide Nucleic
Acids (PNAs) [18–20], pseudopeptide nucleic acid structural mimics, consisting of a backbone of
repeating N-(2-aminoethyl)glycine units linked by peptide bonds and bearing nucleotide bases. When
compared to their DNA or RNA analogues, PNAs possess higher affinity for sequence-complementary
oligonucleotides, are chemically more stable and allow better discrimination between fully
complementary and single-base mismatched DNA sequences [11,21–24].
Custom synthesis of PEO conjugated PNA probes suitable for surface anchorage is indeed offered
by peptide and PNA manufacturers. However, the PEO derivatives inserted by these manufacturers are
low molecular weight (MW) ones, while PEO polymer lengths ≥ 2 KDa are considered the most
efficient ones in preventing non-specific binding [25,26]. PNA conjugates with low molecular weight
PEO are relatively easy to insert by the solid phase approach, whereas, larger MW PEOs conjugates
are hard to obtain by the same procedure due to steric hindrances. A high MW PEO-PNA conjugate
synthesis was described in the literature [27] but very few technical details on the synthesis and
purification and no information on reaction yields were given, so that obtaining this sort of compounds
remains challenging for most laboratories. As a consequence, high MW-PEO-PNA surface tethering
has so far been obtained through multi-step approaches only [6].
In this work we compare two solution and one solid-phase approaches to condense 15mer PNA
with high MW PEOs (2 and 5 KDa) derivatives in order to produce conjugates for one-step
functionalisation of gold surfaces dedicated to SPR DNA sensing. An amino-terminal free 15-mer
PNA was initially synthesized via the solid-phase approach and was later condensed via peptide bond
formation with an end-terminal PEO carboxyl group. The second end of the PEO was preventively

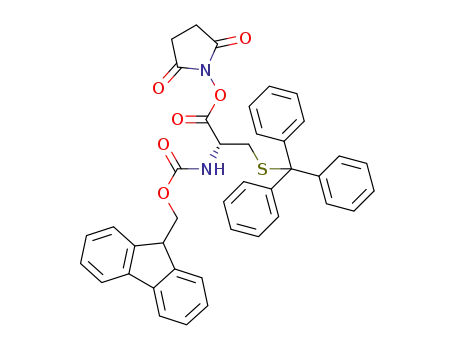

functionalised with Fmoc-Cys(Trt)-OH to allow, after Trt deprotection, conjugation of the PNA-PEO
molecule to a gold chip surface (Scheme 1).
Scheme 1. The designed PNA-PEO conjugate and the strategy for its binding to gold.
The procedures here used for solution bioconjugation have been selected so to be economical and to
be reproducible also within laboratories that are not highly equipped to perform chemical synthesis.
The 5 KDa PEO conjugate prepared according to this procedure was used as a probe for complementary
DNA detection using a Grating-Coupling Surface Plasmon Resonance (GC-SPR) system [28–30].

Molecules 2012, 17
11029
The 15-mer PNA used here is complementary to a target sequence in genomic DNA of
Mycobacterium tuberculosis. The development of a sensor for M. tuberculosis detection based on
Surface Plasmon Resonance could respond to the current need for a sensitive, specific, fast and
cost-effective method for detection of this pathogen that, causing tuberculosis, is the cause of death of
nearly three million people every year [31].
2. Results and Discussion
2.1. Probe Design
The structure of the designed probe is reported in Scheme 1. It is composed of three main elements,
namely a thiol function for gold attachment, the high MW PEO chain meant to prevent non-specific
interactions and a sequence for DNA recognition. Since thiols are highly sensitive to oxidation, a
chemical protection is generally recommended, which needs to be removed before gold anchorage. For
protection, we selected the trityl chemistry since it can be easily removed by 5 min acidic treatment
with TFA, and the leaving group (trityl cation) does not have affinity for gold, as opposed to the
thiolated protecting elements used in the asymmetric disulfide protection strategy. With respect to the
DNA binding element, a PNA analogue was selected on the basis of its ability to improve duplex
stability and base mismatch discrimination.
2.2. Selection of the PNA Sequence and Length
We selected a 15 bases long probe within an 81-bp fragment of the gene encoding the beta subunit
of RNA polymerase (RpoB) whose mutations are involved in rifampicin resistance [32]. The probe
(RPOB15wt) was analyzed by BLAST to avoid high homology with other genomes. We have selected
a 15 base length probe as a compromise between affinity and specificity for the target analyte. In fact,
oligomers of 12 to 17 bases are suitable for most applications whereas longer sequences (from 25 to
40 units) are rarely required to improve the stability of the hybridized duplex. In addition, for the
discrimination of single base mutations as those that generate drug resistance, the impact of a
mismatch is greater on a shorter sequence than a longer one. It is generally accepted that relatively
short sequences (less than 15 residues) can discriminate single base mismatch through hybridization at
room temperature with appropriate control of salt concentration [33]. On the other hand, if longer
probes are used, salt concentration modification may not be sufficient to destabilize unpaired duplex
for single mismatch discrimination and higher temperature or the addition of denaturants such as
formamide must be used, and both the use of high temperature or formamide may not be feasible
within common SPR experimental set-ups [11,33,34].
From the chemical point of view it has to be pointed out that purine-rich PNA oligomers display
a tendency to aggregate, with guanine-rich oligomers having the greatest tendency [35]. As a
consequence, the selected 15-mer (PNA-RPOB15wt) can be considered a “difficult” one to synthesize
because it includes more than three guanine (G) residues in a row and it also includes more than six
purines in any stretch of ten units. In addition, the sequence contains a palindrome trait (GCGC) that
could potentially give problems such as self-hybridization with consequent difficulties in purification
and characterization.

Molecules 2012, 17
11030
2.3. Synthesis and Characterization of PNA-RPOB15wt
Due to the predicted difficulties in the synthesis of the selected sequence, PNA elongation on the
solid support was carefully monitored with sampling of resin at different stages of the PNA chain
growth. In addition, special attention has been paid in the last six elongation steps: 10 eq. of PNA
monomer were used for the condensation of the 11th base and double couplings (with 5 eq. of PNA
monomer each) were carried out for the last four insertions. Mass data confirmed that, at each step, the
principal compound in the crude mixture was the target product. In the mass spectrum of 10-mer PNA,
a signal at 2717.06 Da revealed the presence of acetylated 9-mer PNA, suggesting to introduce a
double coupling to increase the reaction yield after the 9th oligomer insertion. (see Supplementary
Information).
Purification of the final product from the crude mixture was carried out by semipreparative reverse
phase column. In order to limit aggregation processes, a very dilute crude PNA solution (about 10 mg
crude PNA in 30 mL 0.05% TFA/MilliQ water) was prepared, which was slowly loaded onto the
reverse phase medium. The chromatogram of the purified product and the electrospray mass spectrum
data are reported in Figure 1. The final yield in purified product was 49.89%.
Figure 1. (A) RP-HPLC of purified PNA-RPOB15wt. Conditions used: Vydac analytic
C18 monomeric 238TP54 (5 μm, 300 Å, 4.6 × 250 mm); (B) Deconvoluted ESI-TOF mass
spectrum of the purified PNA-RPOB15wt. (experimental mass = 4292.7 Da; theoretical
mass = 4292.94 Da).
2.4. Solid-Phase Conjugation of Fmoc-Cys(Trt)-PEO5KDa-COOH to PNA
Solid phase modification of matrix-bound sequences is a convenient procedure in peptide or PNA
synthesis. It is easy to perform and it allows fast purification from the excess of coupling reagents.
However, when it comes to linking relatively large moieties, the efficiency of this method suffers from
steric limitations, namely a reduced accessibility for the bulky reactive carboxyl to the matrix-bound

Molecules 2012, 17
11031
peptide (or PNA) amines. Nevertheless, we still attempted solid phase PEO coupling, mainly to
compare its efficiency with that of the solution approaches. Condensation was carried out using 10 eq.
excess of Fmoc-Cys(Trt)-PEO5KDa-COOH with respect to PNA, that is the same conditions as those
adopted in peptide synthesis. Reaction yield was calculated from the absorbance generated by the
matrix tethered Fmoc group (after piperidine treatment). The yield was only 5.22%, confirming the
impracticability of this strategy, at least in the proposed experimental conditions (solvent, type of
reagents, type of resin, temperature, etc.).
2.5. Conjugation of Fmoc-Cys(Trt)-PEO5KDa-COOH to PNA in Solution
One of the drawbacks of both PNA and PEO technologies is the high cost of both classes of
compounds. Therefore, we paid particular attention to the reagents’ relative molar ratio, with the
general purpose to avoid large excess of any of them, thus minimizing waste and process costs.
Two synthetic strategies were attempted, using two known condensing agents, namely
O-(7-azabenzotriazol-1-yl)-N,N,N',N'-tetramethyluronium hexafluorophosphate (HATU) and [ethyl
cyano (hydroxyimino)acetate-O2] tri-1-pyrrolidinylphosphonium hexafluorophosphate (PyOxim).
HATU is the most common coupling agent used for amidation. PyOxim is a new coupling reagent
more efficient than HATU that mediates coupling with low racemisation or epimerisation and is ideal
for fragment condensation because it cannot cause guanidinylation [36].
The solubility of PNA-RPOB15wt (henceforth also called “PNA”) in different organic solvents was
measured in order to select the most suitable environment for the solution coupling reaction. Based on
the results obtained (Table S-1 supplementary information) dimethylsulfoxide (DMSO) was selected.
All reactions were carried out using purified PNA at about 5 mM concentration adding 2 eq. of
Fmoc-Cys(Trt)-PEO5KDa-COOH. Reactions were followed by measuring the decrease of primary
amines in solution using the sensitive and fast fluorescamine test [37]. Condensing agents were added
by multiple additions (Table 1) and free amines in solution were measured at scheduled times after
each addition, until no fluorescamine reading was reached.
Table 1. Equivalents of coupling reagents used for PNA-PEO solution coupling and degree
of amine conversion obtained.
Eq. ratio HATU/DMAP % of amine modification Eq. ratio PyOxim:TEA % of amine modification
1
0
10:2
10:10
10:20
20:20
40:30
0
10
30
36
44
33
90
52.1
72.3
100
100
Thirty-six equivalents of HATU/DMAP were necessary to achieve full amine conversion in 2 h.
The PyOxim catalyzed reaction was stopped after the addition of 40 and 30 equivalents of PyOxim and
TEA respectively, that lead to quantitative amine conversion.

Molecules 2012, 17
11032
2.6. Isolation of PNA-PEO from Crude Reaction Mixture and Chromatographic Characterization
The components of the two crude reaction mixtures were isolated by diethyl ether precipitation.
This procedure yields to the co-precipitation of all compounds in solution so that the powders obtained
are composed of the desired products together with the coupling reagents and the excess of PEO
derivative. Among all of these impurities, the excess of PEO reagent, that contains thiols capable to
react with gold and compete with the PNA-PEO conjugate, is the most important to remove.
The possibility to purify the PNA-PEO conjugate from the crude reaction mixture by means of a
differential solvent extraction protocol was investigated. The process adopted is summarized in Figure 2.
Rationale for designing this protocol was the known solubility of PNA and PEO in different organic
solvents: PEO is insoluble in cold ethyl acetate but soluble in the same after heating. It is also
extremely soluble in aqueous solutions. PNAs are not soluble in neither diethyl ether, ethyl acetate nor
aqueous buffer (Table 1). The process depicted in Figure 2 was conducted to verify if hot ethyl acetate
treatment could efficiently separate the starting PEO derivative from its PNA conjugated form.
Figure 2. The differential solvent extraction process adopted.
As a result of the process of Figure 2, we obtained three samples, named residues A, B and C. Since
the solubility properties of the desired conjugate were unknown, all three residues were dissolved in
water and were extensively analyzed, first by UV-Vis spectrometry, then if UV260nm positive
(indication of potential PNA presence), by gel permeation chromatography (GPC). Figure 3 shows the
size exclusion chromatograms of the crude mixture before diethyl ether precipitation together with
residues A and B (the only ones that were UV260nm positive). The GPC profiles of the two starting
reagents (PNA and PEO derivative) are also shown for reference.

Molecules 2012, 17
11033
Figure 3. Gel permeation chromatography of crude reaction mixtures (A) and residues A
and B (B) obtained with the HATU/DMAP and PyOxim/TEA coupling reagents. The
elution profiles of non modified PNA and the PEO reagent are also shown for reference.
The starting Fmoc-Cys(Trt)-PEO5KDa-COOH and native PNA derivative elute at 8.98 and 15.8 mL,
respectively. Interestingly, the native PNA retention volume is of the same order of that expected for
lower MW compounds and indicates the existence of a chemical interaction with the Superdex
peptide™ matrix This is not new for polysaccharide-based gel chromatography media [38,39] and,
in this case, we suppose it to be due to the columns dextran component only, since a pure agarose
medium (Superose™) did not show a similar deviation from size exclusion behavior (data not shown).
The reaction crudes (before ether precipitation) show a number of peaks that elute along the entire
column separating capability. The compounds eluting at the end of the run correspond to the low
molecular weight HATU and DMAP (20 mL) and DMSO (22 mL). These low molecular weigh
components were removed along the diethyl ether precipitation and ethyl acetate extraction.
The main crude components elute with a double peak centered at 8.28 and 8.98 mL, the first one
corresponding to the desired product and second one corresponding to excess of PEO reagent. The
latter was quantitatively extracted by ethyl acetate treatment, as demonstrated by the chromatograms of
residues A and B. In the case of PyOxim/TEA coupling, the desired conjugate (8.28 mL) appears as
the only conjugation product, as confirmed by RP-HPLC and by MALDI analyses (Figure 4).
MALDI analysis clearly shows the presence of the conjugate, event if the intensity of its peak is low
and is ‘masked’ by a number of other peaks at low m/z values. We believe that this pattern is not
related to the purity of the product, but most likely accounts for its low ionization efficiency,
particularly due the presence of the high MW PEO moiety that causes signal dispersion. Indeed, it has
to be pointed out that ionization of this kind of conjugates requires a laser power higher than the one
that is usually applied for the analysis of other species such as peptides or simple PNAs. The enhanced
laser power induces the formation of matrix clusters that create artefact peaks in the low m/z spectral
range. Most importantly, the occurrence of even trace amounts from prompt in-source fragmentation

Molecules 2012, 17
11034
induces strong ion suppression effects, resulting in hardly detectable MS signals of the
PEO-PNA conjugate.
Figure 4. (A) RP-HPLC and (B) MALDI analysis of residue A PNA-PEG5KDa conjugate
product obtained through PyOxim/TEA coupling (experimental mass = 9,175 Da;
theoretical mass = 9,430 Da).
In the case of HATU/DMAP coupling FPLC analysis revealed the presence of an additional broad
peak, centered at 14.5 mL, whose nature is unclear. Since no primary amines were left after coupling
(Table 1), we hypothesize that it is a side product deriving from an undesired side reaction between
PNA and the condensing agent HATU. Indeed, as reported in literature [40], the use of excess of
HATU with respect to the carboxylic group bearing reagent can favor a secondary reaction between
the amino bearing reagent and HATU itself with the consequent locking of amino functional group
(guanidinylation).
We explored the possibility to further purify the desired product from high retention volume
impurities by taking advantage of the hypothesized affinity of non-PEGylated PNA for the Superdex
peptide dextran component. In order to verify this hypothesis and try to further take advantage of it,
residue A was eluted through a pure dextran gel permeation medium, namely Sephadex G25, using a
gravity column (NAP5). In order to maximize the polar forces responsible for the affinity between
PNA and the column, the latter was equilibrated and initially eluted with dd-H2O, followed by the
higher ionic strength buffer PBS 2X. The main UV positive fractions eluted in H2O and buffer, were
collected and analyzed by FPLC and MALDI. Figure 5A shows the NAP5 elution profile and FPLC
chromatograms of the eluted peaks, proving the successful separation of the two residue A major
components. MALDI analysis (Figure 5B) confirmed the presence of the PEGylated conjugate in the
H2O eluted fraction only.

Molecules 2012, 17
11035
Figure 5. (A) NAP5 elution profile of Residue A of the HATU/DMAP reaction and FPLC
analysis the two NAP5 peaks; (B) MALDI spectrum of the Sephadex G25 (NAP5) fraction
eluted using H2O as eluent.
Reaction yields were calculated by the combination of UV-Vis spectrophotometry and
chromatography data. The amount of PNA recovered after ethyl acetate treatment was 90%–94.6% of
the starting PNA. The degree of PNA conversion into the PEGylated derivative was 49.6% and 100%
for the DMAP/HATU and PyOxim/TEA couplings respectively.
2.7. Conjugation of Fmoc-Cys(Trt)-PEO2KDa-COOH to PNA
Conjugation with the 2 KDa PEO derivative was carried out on a smaller scale (1 mg of PNA) using
the DMAP/HATU coupling reagents only, obtaining similar results as those with the 5 KDa PEO
(see Supplementary Information).
2.8. Application of the PNA-PEO Conjugate to SPR Detection
In order the evaluate the efficacy of the synthesized bioconjugates to work as probes for DNA
sensing, we performed SPR Grating-Coupling Surface Plasmon Resonance (GC-SPR) measurements.
These measurements are carried out using a device that has a geometry alternative to the classic
Kretschmann-Raether one, which permits bypassing the use of the prism [28–30]. This is achieved by
substituting the flat sensing surface with a nanopatterned sinusoidal one. In this type of SPR device,
successful formation of a dielectric layer, such as that generated upon PEO-PNA deposition and, later,
DNA/PNA hybridization, causes a shift in the SP resonance angle, due to a variation of the dielectric
surrounding medium refractive index (which is related to the amount of material grafted to the
surface). Reflectivity shift measurements were therefore carried out on the gold substrate as such, after
functionalisation with the PNA-PEO5KDa conjugate and after DNA hybridization. Figure 6 shows the
reflectivity dips obtained for the bare grating, after Fmoc-Cys-PEO5KDa PNA functionalisation and
after complementary DNA hybridization. The SPR angle shifts were 2.01 ± 0.05° and 0.94 ± 0.04° for

Molecules 2012, 17
11036
the first and second step respectively, demonstrating the ability of the synthetic probe to both tether the
gold surface and to recognize its target. Experiments on sensitivity and selectivity of the sensing
strategy adopted are currently underway.
Figure 6. Reflectivity curves obtained on the bare grating as such, after PNA-PEO5KDa
grafting and complementary DNA hybridization.
3. Experimental
3.1. Materials
Tentagel Sieber Amide resin was purchased from Rapp Polymer (Tuebingen, Germany). Fmoc-Ala-OH
was from Novabiochem Merck (Darmstadt, Germany), whereas Fmoc protected PNA monomers
were purchased from Polyorg (Leominster, MA, USA); α-amino-ω-carboxy-poly(ethylene glycol)
(H2N-PEO-COOH, 2 KDa and 5 KDa) was purchased from Laysan Bio (Huntsville, AL, USA), or
IRIS Biotech Gmbh (Marktredwitz, Germany), 2-(1H-7-azabenzotriazol-1-yl)-1,1,3,3-tetramethyl
uronium hexafluorophosphate (HATU) and N-hydroxybenzotriazole (HOBt) were purchased from
Advanced Biotech Italia (Milan, Italy). N-hydroxysuccinimide (NHS) and diciclohexylcarbodiimide
(DCC) were purchased from ABCR (Karlsruhe, Germany). N,N-dimethylformamide (DMF),
N-methylpyrrolidone (NMP), 2,2,2-trifluoroacetic acid (TFA) and N,N-diisopropylethylamine
(DIPEA) were purchased by Biosolve (Valkenswaard, The Netherlands). Diethyl ether,
dichloromethane (DCM), ethyl acetate, acetonitrile (CH3CN), 2,6-lutidine, acetic anhydride (Ac2O),
methanol (MeOH), 4-dimethylaminopyridine (DMAP), triethanolamine (TEA), PyOxim (PyO) and all
other chemicals were from Sigma-Aldrich (St. Louis, MO, USA). Water was of MilliQ (Millipore,
Billerica, MA, USA) or double distilled (dd-H2O) grade. Amino-containing compounds were detected
using ninhydrin [41,42] and/or quantified in solution either by the trinitrobenzenesulfonic acid assay
(TNBS) [43,44] or with fluorescamine [37]. PEO in solution was detected and quantified by the iodine
reagent [44,45]. Thiols in solution were titrated using the 5,5'-dithio-bis-(2-nitrobenzoic acid) (DTNB)
reagent [46]. Solid-phase synthesis was carried out using an automated peptide synthesizer, Syro I

Molecules 2012, 17
11037
(MultiSynTech GmbH, Witten, Germany). NMR analyses were carried out on a Bruker (Madison, WI,
USA) AMX 300 MHz instrument; UV spectra were recorded on a Cary 50 UV-Vis spectrophotometer
(Varian-Agilent, Santa Clara, CA, USA). Fluorescence was determined using a JASCO (Great
Dunmow, Essex, UK) FP-6200 spectro-fluorimeter. Fast Permeation Liquid Chromatography (FPLC)
analyses were performed using an AKTA purifier 10 (GE Healthcare, Uppsala, Sweden) integrated
with a UV-Vis detector and refractive index analyzer (Waters Corporation, Milford, MA, USA).
RP-HPLC (reverse-phase-HPLC) was performed using a Waters 600E System Controller equipped
with a UV/Vis detector Mod. 2487. Mass analyses were carried out using an ESI-TOF Applied
Biosystems Mariner System 5220 (Perkin-Elmer, Waltham, MA, USA) or a MALDI-TOF Voyager
DE-Pro (Perseptive Biosystem, Framingham, MA, USA) instrument, utilizing 2,5-dihydroxybenzoic
acid (DHB), dissolved in 10 mg/mL in 50% acetonitrile (v/v), containing 0.1% TFA, as the matrix.
Thiolene resin (NOA 61) was purchased from Norland Optical Adhesives (Cranbury, NJ, USA).
Complementary DNA (5'-CCCCAGCGCCGACAG-3') was purchased from the Sigma Aldrich custom
synthesis service.
3.2. Synthesis of Fmoc-Cys(Trt)-PEO2KDa-COOH and Fmoc-Cys(Trt)-PEO5KDa-COOH
The same protocol was used to synthesize both 2 and 5 KDa derivatives (Scheme 2).
Fmoc-Cys(Trt)-OH (1) (500 mg, 0.85 mmol) was activated with NHS (104 mg, 1.0 eq.) and DCC
(175 mg, 1.0 eq.) in dry NMP (15 mL). The reaction was followed by thin layer chromatography
(TLC, CHCl3–MeOH = 40:10). After 2 h, the solution containing the activated product 2 was Gooch-
filtered and 5.3 mL (0.3 mmol of 2) were immediately added dropwise to 0.2 mmol of NH2-PEO-COOH
HCl dissolved in anhydrous NMP (50 mL).
Scheme 2. Synthesis of Fmoc-Cys(Trt)-PEO5KDa-COOH (3).
Reaction completion was verified through the ninhydrin test. The product 3 was precipitated with
dry diethyl ether and isolated by Gooch filtration. Purification from excess of 1 and reaction
side-products was achieved by re-dissolving the powder product in NMP and precipitation in dry
diethyl ether. The degree of PEO amine modification was measured by the TNBS assay [43,44]. The
yield of α-amino conversion was 95% for both PEO derivatives. Products were also analyzed by gel
permeation chromatography and MALDI mass spectrometry (see Supplementary Information). Gel

Molecules 2012, 17
11038
permeation analysis was also carried out using a Superdex peptide 10/300 GL column; loop 100 μL,
T = room temperature, eluent: PBS buffer, flow rate: 0.5 mL/min, detector: readings at 260 nm. Yield:
560 mg (56%) for PEO5KDa and 340 mg (85%) for PEO2KDa
.
3.3. PNA Synthesis
The PNA RPOB15wt (5'-CTGTCGGCGCTGGGG-Ala-Ala-NH2) was synthesized by adaptation of
solid-phase peptide synthesis protocols. The synthesis was carried out using 0.020 mmol Tentagel
Sieber Amide resin (0.2 mmol/g) and 5 eq. of Fmoc amino acids or Fmoc-PNA monomers (0.1 mmol)
for each condensation. The following PNA monomers were used: N-(N-Fmoc-2-aminoethyl)-N-[(N-4-
Bhoc-1-cytosyl)acetyl]-glycine, N-(N-Fmoc-2-aminoethyl)-N-[(N-6-Bhoc-9-guanyl)acetyl]-glycine,
N-(N-Fmoc-2-aminoethyl)-N-[(1-thyminyl)acetyl]-glycine.
3.3.1. Condensation of Amino Acids
Fmoc deprotection of the resin or the amino acids was obtained by two treatments: the first one
consisting in 40% piperidine in DMF for 3 minutes (min), and the second one consisting in 20%
piperidine in DMF for 12 min. Loading of the first two amino acids was carried out with double
couplings. Each coupling was carried out by activating 0.1 mmol of Fmoc-Ala-OH (5 eq.) in DMF
(500 μL) with 0.2 M HATU/HOBt (5 eq.) in DMF (500 μL) and 0.4 M DIPEA (5 eq.) in NMP (500 μL)
for 45 min. After the second insertion reaction, the yield was determined by measuring the absorbance
of N-(9-fluorenylmethyl)piperidine at 301 nm and resulted 97.62%.
3.3.2. Condensation of PNA Monomers
Removal of the Fmoc group was obtained by two treatments, of 30 s each, with 20% piperidine in
DMF; couplings were carried out activating 0.1 mmol of Fmoc-protected PNA monomers (5 eq.) in
NMP (500 μL) with 0.2 M HATU/HOBt in DMF (500 μL) and 0.2 M DIPEA/0.3 M lutidine (5 eq./7.5 eq.)
in DMF (500 μL). Reaction time was 45 min for single couplings and 90 min (2 × 45) for double
couplings. Finally a capping reaction was performed adding 1 mL of 5% Ac2O/6% lutidine in DMF for
3 min.
The first ten PNA monomers were introduced with single couplings, using 5 eq. of Fmoc-protected
PNA monomer; the 11th monomer was introduced by single coupling using 10 eq. of activated
monomer, whereas the remaining four insertions were done by double couplings (each using 5 eq.). At
the end of the synthesis, the N-terminal Fmoc protecting group was removed; the resin was washed
6 times with DMF and 3 times with DCM and then dried under vacuum for 1 h. Finally, PNA cleavage
from the resin and protecting groups de-blocking was obtained using TFA-MilliQ water-triethylsilane
(TES) = 90:5:5 for 10 min under slow manual stirring. The solution was concentrated to small volume
and crude PNA was precipitated with cold diethyl ether under magnetic stirring, isolated by
centrifugation and then dried under vacuum for 20 min.
We monitored the synthesis of PNA RPOB15wt by controlling the partial products obtained after
the introduction of single monomers starting from the 10th insertion. To this end, small aliquots of
each intermediate product (10-mer or 11-mer, 12-mer, 13-mer, 14-mer and 15-mer) was detached from

Molecules 2012, 17
11039
the resin and the protecting groups were removed as previously described; crude products were
characterized by mass spectrometry and by RP-HPLC using a Vydac analytic C18 monomeric
238TP54 column (5 μm, 300 Å, 4.6 × 250 mm, Grace, Columbia, MD, USA). All partial product
identity was confirmed by mass spectrometry using ESI-TOF system: 10-mer (theoretical value:
2966.70 Da; experimental value: 2966.16 Da); 11-mer (theor.: 3217.93 Da; exp.: 3217.42 Da); 12-mer
(theor.: 3484.19 Da; exp.: 3484.36 Da); 13-mer (theor.: 3775.45 Da; exp.: 3775.42 Da); 14-mer
(theor.: 4041.71 Da; exp.: 4041.70 Da); 15-mer (theor.: 4292.94 Da; exp.: 4292.70 Da). All HPLC
chromatograms and mass spectra are reported in the Supplementary Information section.
Purification of the final product from crude was performed by RP-HPLC using a Delta Pack C18
semipreparative column (6 μm, 60 Å, 7.8 × 300 mm, Waters Corporation); T = 55.5 °C; eluent A,
0.05% TFA/MilliQ water; eluent B, 0.05% TFA/CH3CN; gradient, 10 min at 8% of B and from 8% to
35% of B over 27 min; detector, 214 nm and 260 nm; flow rate, 4 mL/min. The purity of the collected
final product was verified by RP-HPLC using the Vydac analytic C18 monomeric 238TP54 column
(5 μm, 300 Å, 4.6 × 250 mm); T = 55.5 °C; eluent A, 0.05% TFA/MilliQ water; eluent B, 0.05%
TFA/CH3CN; gradient, from 5% to 55% of B over 25 min; detector, 260 nm (purity grade = 98.96%);
flow rate, 1 mL/min.
3.4. Solid-Phase Conjugation of Fmoc-Cys(Trt)-PEO5KDa-COOH to PNA
Fmoc-deprotected PNA RPOB15wt (46.60 mg, 4.03 μmol, henceforth referred to as PNA) on resin
were swelled in DMF (1 mL) for 1 h. After DMF drain, the PNA-resin was added with Fmoc-Cys(Trt)-
PEO5KDa-COOH (3, 20 μmol), dissolved in DMF (500 μL), 20 μmoles of 0.3 M DIPEA/0.2 M lutidine
in DMF (100 μL), 20 μmol HATU/HOBt 0.2 M in DMF (100 μL). After 23 h at room temperature, the
mixture was separated by filtration and the resin was washed three times with DMF, and three times
with DCM and then dried under vacuum for 1 h. The solution was concentrated to small volume and
the unreacted Fmoc-Cys(Trt)-PEO5KDa-COOH was recovered by cold diethyl ether precipitation
followed by filtration. Reaction yield was determined by treating a small aliquot of the resin with
piperidine and measuring Fmoc-piperidine adduct at 301 nm.
Detachment of the PEO-PNA conjugate from the resin together with removal of the side
chain protecting groups was carried out adding a TFA-MilliQ water-TES-1,2-ethanedithiol (EDT)
(94:2.5:2.5:1) solution and m-cresol (m-cresol:TFA = 1:4) to the PEO-PNA-resin for 30 min under
slow manual stirring. The solution was concentrated to small volume and the product was precipitated
with cold diethyl ether under magnetic stirring, isolated by centrifugation and then dried under vacuum
for 1 h. It was then analyzed by gel permeation chromatography using an AKTA purifier Fast
Permeation Liquid Chromatography (FPLC) system integrated with an UV-Vis and a refractive index
detectors. Analyses were performed using a Superdex peptide 10/300 GL (Superdex peptide) column.
3.5. Solution Conjugation of Fmoc-Cys(Trt)-PEO-COOH to PNA
3.5.1. HATU/DMAP as Coupling Reagents
This reaction was carried out using both 2 and 5 KDa PEO derivatives. Reaction with
Fmoc-Cys(Trt)-PEO5KDa-COOH was carried out on 15 mg of PNA, whereas the reaction with

Molecules 2012, 17
11040
Fmoc-Cys(Trt)-PEO2KDa-COOH was carried out on a smaller scale (1 mg). Coupling was carried out
in dry DMSO. Stock solutions containing both PNA and Fmoc-Cys(Trt)-PEO5KDa-COOH (or
Fmoc-Cys(Trt)-PEO2KDa-COOH) in dry DMSO were prepared at 5 mM and 10 mM concentration,
respectively. One M stock solutions of DMAP and HATU in DMSO were prepared separately and
later added in equal volumes to the PNA/PEO until the final PNA:HATU:DMAP ratio was reached.
Mixtures were gently stirred at room temperature and small aliquots (10 μL) were removed at scheduled
times for primary amine determination by the fluoresamine assay [37]. Analyses were carried out 2 h
after each addition. The reaction was stopped by cold diethyl ether precipitation (20 volumes with
respect to the reaction mixture) when the reaction solution was negative to the fluoresamine test.
3.5.2. PyO/TEA as Coupling Reagents
This reaction was carried out using the 5 KDa PEO derivative only, using 3 mg of PNA. The initial
PNA and Fmoc-Cys(Trt)-PEO5KDa-COOH mixture in dry DMSO was prepared as above at 5 and
10 mM concentration respectively. One M TEA and PyO stock solutions in dry DMSO were prepared
and added, separately, in small portions to the PNA/PEO mix. After each addition, aliquots of the
reaction mixture (10 μL) were removed for primary amine determination by the fluorescamine assay [37].
Analyses were carried out 1 h after each addition. The reaction was stopped as described above.
3.6. PNA-PEO Purification from Crude Mixture
The diethyl ether solid white precipitates were isolated by centrifugation at 4 °C (16,600 g, 5 min).
They were then added of ethyl acetate (same volume as that of diethyl ether) and heated at 60 °C for
2 min, then centrifuged at 25 °C (16,600 g, 37 °C, 5 min). The solid was isolated (residue A) and the
clear ethyl acetate solution was cooled overnight at –21 °C. Upon ethyl acetate cooling, a second white
precipitate was obtained (residue B), which was isolated by centrifugation (16,600 g, 5 min, 4 °C). The
clear ethyl acetate solution was finally evaporated to dryness leading to residue C.
Residues A, B and C were dissolved in H2O and analyzed by UV-Vis. The 260 nm UV positive
samples were analyzed by MALDI mass spectrometry and gel permeation chromatography.
Chromatography analysis was performed using the AKTA purifier chromatography system and a
Superdex peptide 10/300 GL column. In some cases, for peak identification, the eluting solutions were
fraction-collected and the individual fractions (0.5 mL) were analyzed by UV-Vis spectrophotometry
and by the iodine assay to measure PEO concentration [45].
Residue A from the HATU/DMAP reaction was further purified by gel exclusion chromatography
using a dextran (Sephadex) gravity column (NAP5, GE, Amersham Pharmacia Biotech, Uppsla,
Sweden). The sample was dissolved and eluted in dd-H2O, first, followed by 20 mM sodium
phosphate, 300 mM NaCl, pH 7.4 (PBS 2X). Fractions (250–500 μL) were collected and analyzed by
UV-Vis spectrometry and gel permeation chromatography.
3.7. SPR Measurements
SPR reflectivity measurements were performed on a J. A. Woollam Co. VASE ellipsometer with
angular and wavelength spectroscopic resolution of 0.005° and 0.3 nm respectively. The azimuthally

Molecules 2012, 17
11041
rotated (φ = 45° and α = 140°) detection configuration was adopted performing an angular scan from
20° to 80° at the incident wavelength of 625 nm.
SPR substrate (period of 500 nm and amplitude of 40 nm) was obtained by the replica of a grating
fabricated through Laser Interference Lithography [28] onto a thiolene resin (NOA 61) film. The
surface was then coated with a bi-metallic Cr (5 nm)/Au (40 nm) layer. The substrate was cleaned (10 min
in a 5:1:1 dd-H2O, NH4OH and H2O2 solution) immediately prior to functionalisation.
Probe grafting was achieved after removal of the Trt-protective group by dissolving the PNA-
PEG5KDa powder in the minimum amount of TFA for 20 min at room temperature, then diluted in
dd-H2O volume at final 1mM concentration. The insoluble Trt residue was removed by centrifugation
(10,000 g, 4 °C, 10 min). The substrate was immersed overnight into the clear supernatant solution at
30 °C, then rinsed dd-H2O to remove physisorbed molecules, and dried under vacuum for 30 min.
DNA hybridization was achieved by incubating the probe functionalized substrate with the
complementary sequence 0.1 µM in 150 mM NaCl, 15 mM Na citrate, pH 7 (SCC) buffer, for 2 h at 30 °C.
Before SPR measurement, the substrate was rinsed in SSC and dried under nitrogen flux. The exact dip
resonance angle at each point was determined by fitting the reflectivity curves with a Lorentzian
function and using the centroid value as reference.
4. Conclusions
The PNA-PEO coupling reaction proved to be sterically hindered as demonstrated by the large
excess of condensing agents necessary to achieve quantitative PNA derivatization. The use of HATU
lead to only 49.6% and 5.2% conversion yields, in solution and solid phase respectively, and to the
formation of a non-PEGylated amino-modified PNA as side product. Coupling with PyOxim was
much more efficient, leading to 100% conversion into the desired conjugate, without generating
undesired side products. Only two equivalents of bi-functional PEOs were used in all couplings and
the excess was successfully removed by a convenient chromatography-free solvent extraction
procedure. Purification from the latter is fundamental for application since this molecule would
compete with the PNA conjugate for surface functionalisation.
The combination of the PyOxim-based solution coupling and the purification process here
optimized is convenient and economical, and provides the product in a mixture that can be used as
such for surface functionalisation. The Sephadex gravity purification step, necessary after the
HATU/DMAP coupling procedure only, is also convenient and economical.
The 5 KDa conjugate was successfully anchored to gold and was capable to act as a probe for
complementary DNA recognition, demonstrating the ability of the synthetic probe to both tether a gold
surface and to recognize its target. Experiments on sensitivity and selectivity of the SPR sensing
strategy adopted are currently underway.
As a final statement, we would like to underline that the PEO coupling strategy here devised is
applicable to any amino-PNA and is also reproducible in laboratories that are not highly equipped for
chemical synthesis. We hope this will permit expanding the use of this kind of bioconjugates for
biosensing and/or other biomedical application.

Molecules 2012, 17
11042
Acknowledgments
This work was funded by the University of Padova PLATFORMS 2008 Strategic Project.
Supplementary Information
In this section, we report the RP-chromatrograms (Figure S-1) and mass spectra (Figures S-2 to S-7)
of the intermediate crude products of PNA: 10-mer, 11-mer, 12-mer, 13-mer, 14-mer and 15-mer. The
solubility of the 15mer PNA in different solvents is reported in Table S-1. The MALDI spectra of
Fmoc-Cys(Trt)-PEO2KDa-COOH and of Fmoc-Cys(Trt)-PEO5KDa-COOH are reported in Figure S-8.
The gel permeation profiles in superdex peptide column of the above products are shown in Figure S-9.
The results of the coupling using the 2 KDa PEO derivative are summarized in Figure S-10.
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/17/9/11026/s1.
References
1. Baldrich, E.; Laczka, O.; Del Campo, F.J.; Munoz, F.X. Gold immuno-functionalisation via
self-assembled monolayers: Study of critical parameters and comparative performance for protein
and bacteria detection. J. Immunol. Methods 2008, 336, 203–212.
2. Laib, S.; Krieg, A.; Rankl, M.; Seeger, S. Supercritical angle fluorescence biosensor for the
detection of molecular interactions on cellulose-modified glass surfaces. Appl. Surf. Sci. 2006,
252, 7788–7793.
3. Johnsson, B.; Lofas, S.; Lindquist, G. Immobilization of Proteins to a Carboxymethyldextran-
Modified Gold Surface for Biospecific Interaction Analysis in Surface-Plasmon Resonance
Sensors. Anal. Biochem. 1991, 198, 268–277.
4. Wood, S.J. DNA-DNA Hybridization in Real-Time Using Biacore. Microchem. J. 1993, 47, 330–337.
5. Vikholm-Lundin, I.; Piskonen, R.; Albers, W.M. Hybridisation of surface-immobilised single-
stranded oligonucleotides and polymer monitored by surface plasmon resonance. Biosens. Bioelectron.
2007, 22, 1323–1329.
6. Cattani-Scholz, A.; Pedone, D.; Blobner, F.; Abstreiter, G.; Schwartz, J.; Tornow, M.; Andruzzi, L.
PNA-PEG modified silicon platforms as functional bio-interfaces for applications in DNA
microarrays and biosensors. Biomacromolecules 2009, 10, 489–496.
7. Schlapak, R.; Pammer, P.; Armitage, D.; Zhu, R.; Hinterdorfer, P.; Vaupel, M.; Fruhwirth, T.;
Howorka, S. Glass surfaces grafted with high-density poly(ethylene glycol) as substrates for DNA
oligonucleotide microarrays. Langmuir 2006, 22, 277–285.
8. Chrisey, L.A.; Lee, G.U.; O’Ferrall, C.E. Covalent attachment of synthetic DNA to self-assembled
monolayer films. Nucleic Acids Res. 1996, 24, 3031–3039.
9. Gong, P.; Lee, C.Y.; Gamble, L.J.; Castner, D.G.; Grainger, D.W. Hybridization behavior of
mixed DNA/alkylthiol monolayers on gold: characterization by surface plasmon resonance and
32P radiometric assay. Anal. Chem. 2006, 78, 3326–3334.
10. Ito, M.; Nakamura, F.; Baba, A.; Tamada, K.; Ushijima, H.; Lau, K.H.A.; Manna, A.; Knoll, W.
Enhancement of surface plasmon resonance signals by gold nanoparticles on high-density DNA
microarrays. J. Phys. Chem. C Nanomater Interfaces 2007, 111, 11653–11662.

Molecules 2012, 17
11043
11. Lao, A.I.K.; Su, X.D.; Aung, K.M.M. SPR study of DNA hybridization with DNA and PNA
probes under stringent conditions. Biosens. Bioelectron. 2009, 24, 1717–1722.
12. Lee, C.Y.; Gong, P.; Harbers, G.M.; Grainger, D.W.; Castner, D.G.; Gamble, L.J. Surface
coverage and structure of mixed DNA/alkylthiol monolayers on gold: characterization by XPS,
NEXAFS, and fluorescence intensity measurements. Anal. Chem. 2006, 78, 3316–3325.
13. Liebermann, T.; Knoll, W.; Sluka, P.; Herrmann, R. Complement hybridization from solution to
surface-attached probe-oligonucleotides observed by surface-plasmon-field-eahanced fluorescence
spectroscopy. Colloid. Surface A 2000, 169, 337–350.
14. Oh, S.J.; Cho, S.J.; Kim, C.O.; Park, J.W. Characteristics of DNA microarrays fabricated on
various aminosilane layers. Langmuir 2002, 18, 1764–1769.
15. Wang, Y.; Prokein, T.; Hinz, M.; Seliger, H.; Goedel, W.A. Immobilization and hybridization of
oligonucleotides on maleimido-terminated self-assembled monolayers. Anal. Biochem. 2005, 344,
216–223.
16. Metzger, S.W.; Natesan, M.; Yanavich, C.; Schneider, J.; Lee, G.U. Development and
characterization of surface chemistries for microfabricated biosensors. J. Vac. Sci. Technol. A
1999, 17, 2623–2628.
17. Buxboim, A.; Bar-Dagan, M.; Frydman, V.; Zbaida, D.; Morpurgo, M.; Bar-Ziv, R. A single-step
photolithographic interface for cell-free gene expression and active biochips. Small 2007, 3, 500–510.
18. Egholm, M.; Buchardt, O.; Nielsen, P.E.; Berg, R.H. Peptide Nucleic Acids (PNA). Oligonucleotide
Analogs with an Achiral Peptide Backbone. J. Am. Chem. Soc. 1992, 114, 1895–1897.
19. Nielsen, P.E. Peptide Nucleic Acids (PNA) in Chemical Biology and Drug Discovery.
Chem. Biodivers. 2010, 7, 786–804.
20. Nielsen, P.E.; Egholm, M.; Berg, R.H.; Buchardt, O. Sequence-Selective Recognition of DNA by
Strand Displacement with a Thymine-Substituted Polyamide. Science 1991, 254, 1497–1500.
21. Ananthanawat, C.; Vilaivan, T.; Mekboonsonglarp, W.; Hoven, V.P. Thiolated pyrrolidinyl
peptide nucleic acids for the detection of DNA hybridization using surface plasmon resonance.
Biosens. Bioelectron. 2009, 24, 3544–3549.
22. Arlinghaus, H.F.; Schroder, M.; Feldner, J.C.; Brandt, O.; Hoheisel, J.D.; Lipinsky, D.
Development of PNA microarrays for gene diagnostics with TOF-SIMS. Appl. Surf. Sci. 2004,
231, 392–396.
23. Hyrup, B.; Nielsen, P.E. Peptide nucleic acids (PNA): Synthesis, properties and potential
applications. Bioorg. Med. Chem. 1996, 4, 5–23.
24. Kerman, K.; Matsubara, Y.; Morita, Y.; Takamura, Y.; Tamiya, E. Peptide nucleic acid modified
magnetic beads for intercalator based electrochemical detection of DNA hybridization.
Sci. Technol. Adv. Mat. 2004, 5, 351–357.
25. Jeon, S.I.; Andrade, J.D. Protein Surface Interactions in the Presence of Polyethylene Oxide. II.
Effect of Protein Size. J. Colloid Interface Sci. 1991, 142, 159–166.
26. Jeon, S.I.; Lee, J.H.; Andrade, J.D.; Degennes, P.G. Protein Surface Interactions in the Presence
of Polyethylene Oxide. I. Simplified Theory. J. Colloid Interface Sci. 1991, 142, 149–158.
27. Bonora, G.M.; Ivanova, E.; Zarytova, V.; Burcovich, B.; Veronese, F.M. Synthesis and
characterization of high-molecular mass polyethylene glycol-conjugated oligonucleotides.
Bioconjug. Chem. 1997, 8, 793–797.

Molecules 2012, 17
11044
28. Zacco, G.; Romanato, F.; Sonato, A.; Sammito, D.; Ruffato, G.; Morpurgo, M.; Silvestri, D.;
Carli, M.; Schiavuta, P.; Brusatin, G. Sinusoidal plasmonic crystals for bio-detection sensors.
Microelectron. Eng. 2011, 88, 1898–1901.
29. Romanato, F.; Pilot, R.; Massari, M.; Ongarello, T.; Pirruccio, G.; Zilio, P.; Ruffato, G.; Carli, M.;
Sammito, D.; Giorgis, V.; et al. Design, fabrication and characterization of plasmonic gratings for
SERS. Microelectron. Eng. 2011, 88, 2717–2720.
30. Romanato, F.; Lee, K.H.; Kang, H.K.; Ruffato, G.; Wong, C.C. Sensitivity enhancement in grating
coupled surface plasmon resonance by azimuthal control. Opt. Express 2009, 17, 12145–12154.
31. Prabhakar, N.; Arora, K.; Arya, S.K.; Solanki, P.R.; Iwamoto, M.; Singh, H.; Malhotra, B.D.
Nucleic acid sensor for M-tuberculosis detection based on surface plasmon resonance. Analyst
2008, 133, 1587–1592.
32. McCammon, M.T.; Gillette, J.S.; Thomas, D.P.; Ramaswamy, S.V.; Graviss, E.A.; Kreiswirth, B.N.;
Vijg, J.; Quitugua, T.N. Detection of rpoB mutations associated with rifampin resistance in
Mycobacterium tuberculosis using denaturing gradient gel electrophoresis. Antimicrob. Agents
Chemother. 2005, 49, 2200–2209.
33. Stuart, D.A.; Haes, A.J.; Yonzon, C.R.; Hicks, E.M.; va Duyne, R.P. Biological applications of
localised surface plasmonic phenomenae. IEEE Proc. Nanobiotechnol. 2005, 152, 13–32.
34. Fiche, J.B.; Buhot, A.; Calemczuk, R.; Livache, T. Temperature effects on DNA chip experiments
from surface plasmon resonance imaging: Isotherms and melting curves. Biophys. J. 2007, 92,
935–946.
35. Neidle, S. The structures of quadruplex nucleic acids and their drug complexes. Curr. Opin.
Struct. Biol. 2009, 19, 239–250.
36. Subiros-Funosas, R.; El-Faham, A.; Albericio, F. PyOxP and PyOxB: The Oxyma-based novel
family of phosphonium salts. Org. Biomol. Chem. 2010, 8, 3665–3673.
37. Udenfriend, S.; Stein, S.; Böhlen, P.; Dairman, W.; Leimgruber, W.; Weigele, M. Fluorescamine:
A Reagent for Assay of Amino Acids, Peptides, Proteins, and Primary Amines in the Picomole
Range. Science 1972, 178, 871–872.
38. Golovchenko, N.P.; Kataeva, I.A.; Akimenko, V.K. Analysis of Ph-Dependent Protein Interactions
with Gel-Filtration Medium. J. Chromatogr. 1992, 591, 121–128.
39. Ziegler, A.; Zaia, J. Size-exclusion chromatography of heparin oligosaccharides at high and low
pressure. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2006, 837, 76–86.
40. Albericio, F.; Bofill, J.M.; El-Faham, A.; Kates, S.A. Use of onium salt-based coupling reagents
in peptide synthesis. J. Org. Chem. 1998, 63, 9678–9683.
41. Harding, V.; Warneford, F. The ninhidrin reaction with amino-acids and amonium salts. J. Biol.
Chem. 1916, 25, 319–335.
42. Kayser, O.; Lemke, A.; Hernandez-Trejo, N. The impact of nanobiotechnology on the
development of new drug delivery systems. Curr. Pharm. Biotechnol. 2005, 6, 3–5.
43. Habeeb, A. Determination of free amino groups in proteins by trinitrobenzensulphonic acid.
Anal. Biochem. 1966, 14, 328–336.
44. Morpurgo, M.; Veronese, F.M. Conjugates of peptides and proteins to polyethylene glycols.
Methods Mol. Biol. 2004, 283, 45–70.

Molecules 2012, 17
11045
45. Sims, G.E.; Snape, T.J. A method for the estimation of polyethylene glycol in plasma protein
fractions. Anal. Biochem. 1980, 107, 60–63.
46. Riddles, P.W.; Blakeley, R.L.; Zerner, B. Reassessment of Ellman’s reagent. Meth. Enzymol.
1983, 91, 49–60.
Sample Availability: Samples of both 5 and 2 KDa PEO conjugates are available from the authors for
experiments in collaboration.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
