The Controlled Introduction of Multiple Negative Charge at
Single Amino Acid Sites in Subtilisin Bacillus lentus
Benjamin G. Davis, a Xiao Shang, a Grace DeSantis, a Richard R. Bott b and
J. Bryan Jones a,*
aDepartment of Chemistry, University of Toronto, 80 St. George Street, Toronto, ON, Canada, M5S 3H6
bGenencor International, Inc., 925 Page Mill Rd., Palo Alto, CA 94304-1013, USA
Received 25 February 1999; accepted 6 April 1999
AbstractÐThe use of methanethiosulfonates as thiol-speci®c modifying reagents in the strategy of combined site-directed muta-
genesis and chemical modi®cation allows virtually unlimited opportunities for creating new protein surface environments. As a
consequence of our interest in electrostatic manipulation as a means of tailoring enzyme activity and speci®city, we have adopted
this approach for the controlled incorporation of multiple negative charges at single sites in the representative serine protease,
subtilisin Bacillus lentus (SBL). A series of mono-, di- and triacidic acid methanethiosulfonates were synthesized and used to modify
0
cysteine mutants of SBL at positions 62 in the S2 site, 156 and 166 in the S1 site and 217 in the S1 site. Kinetic parameters for these
chemically modi®ed mutant (CMM) enzymes were determined at pH 8.6 under conditions which ensured complete ionization of the
0
unnatural amino acid side-chains introduced. The presence of up to three negative charges in the S1, S1 and S2 subsites of SBL
resulted in up to 11-fold lowered activity, possibly due to interference with oxyanion stabilization of the transition state of the
hydrolytic reactions catalyzed. Each unit increase in negative charge resulted in a raising of KM and a reduction of kcat. However,
no upper limit was observed for increases in KM, whereas decreases in kcat reached a limiting value. Comparison with sterically
similar but uncharged CMMs revealed that electrostatic e€ects of negative charges at positions 62, 156 and 217 are detrimental, but
are bene®cial at position 166. These results indicate that the ground-state binding of SBL to the standard substrate, Suc-AAPF-
pNA, to SBL is reduced, but without drastic attenuation of catalytic eciency, and show that SBL tolerates high levels of charge at
single sites. # 1999 Elsevier Science Ltd. All rights reserved.
Introduction
Introductions of charge by protein engineering have
typically been limited to naturally occurring amino
acids such as negatively charged aspartate4,6,9,11±16 or
positively charged arginine4,7,9 or lysine.4,5,9,12 Chemical
modi®cation allows a greater variety of charged groups
to be introduced, but the reactions used for their intro-
duction are often non-speci®c in nature.19 For example,
the reaction of cyclic anhydrides with trypsin caused
indiscriminate modi®cation of lysine residues, the e€ects
of which could only be interpreted in general terms.17
Furthermore, although ingenious molecular biological
techniques have been developed for the introduction of
non-natural charged amino acids into proteins,20±22 they
are not yet suitable for large-scale synthesis or routine
application. In addition, the use of charged amino acids
in such techniques can result in poor levels of incor-
poration.20,21
The introduction of charge into wild-type (WT)
enzymes, through random1±3 or site-directed4±16 muta-
genesis or chemical modi®cation,17,18 can be used to
broaden substrate speci®city or to enhance catalytic
activity. The successful tailoring of speci®city towards
charged substrates has con®rmed the validity of
exploiting the electrostatic attraction between com-
plementary ions as a viable strategy for improving
binding. For example, the introduction of negative
charge into the active sites of subtilisin BPN0,4 aspartate
aminotransferase6 and l-lactate dehydrogenase11 has
expanded their structural speci®cities towards substrates
with positively charged side chains.
The use of site-directed mutagenesis combined with
chemical modi®cation23±28 of single sites o€ers a poten-
tial solution to these problems. In this technique
cysteine is introduced at preselected positions and its
Key words: Mutagenesis; electrostatic e€ects; enzymes and enzyme
reactions; kinetics.
* Corresponding author. Tel.: +1-416-978-3589; fax: +1-416-978-
1553; e-mail: jbjones@alchemy.chem.utoronto.ca
0968-0896/99/$ - see front matter # 1999 Elsevier Science Ltd. All rights reserved.
PII: S0968-0896(99)00167-4

2294
B. G. Davis et al. / Bioorg. Med. Chem. 7 (1999) 2293±2301
Results and Discussion
Synthesis of carboxyalkyl methanethiosulfonates 1b±e
Previous work29,31 has demonstrated that, of the meth-
ods available,36±41 direct nucleophilic displacement of a
primary alkyl bromide by methanethiosulfonate ion
provides the most ecient method for the preparation
of alkyl methanethiosulfonates. This general method
was therefore adopted as the basis for the preparation
of all of 1b±e. The aliphatic monocarboxylate MTS 1b42
was prepared from 5-bromopentanoic acid and NaS-
SO2CH3 in 80% yield.
Scheme 1.
The aromatic dicarboxylate MTS 1c was prepared from
toluene-3,5-dicarboxylic acid (2) via
a precursor
thiol residue is then reacted with methanethiosulfonate
(MTS) reagents (Scheme 1). Methanethiosulfonate
reagents react speci®cally and quantitatively with
thiols.29,30 Recently, using the serine protease subtilisin
Bacillus lentus (SBL) as our model, we have used this
technique to improve enzyme activity31 and alter speci-
®city.32,33 SBL is a near-ideal enzyme for evaluating the
validity of this strategy since its does not contain a nat-
ural cysteine. In the current work we describe the use of
this method to introduce locally high charge density
into SBL through the incorporation of single residues
bearing multiple charges.

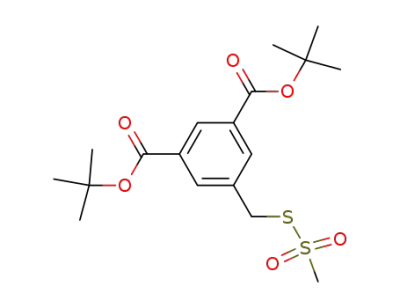

benzylic bromide 3 as shown in Scheme 2. Treatment of
3 with NaSSO2CH3 gave the protected aromatic MTS 4
in 60% yield. Hydrolysis of 4 with TFA gave 1c as a
white solid (91% yield, 44% overall yield from 2).
The aliphatic di- and tricarboxylates 1d,e were prepared
from Meldrum's acid (5a) using 1,2-dibromoethane to
introduce a brominated linker group as shown in
Scheme 3. The low pKa of 5a43,44 allowed the use of
mildly basic conditions compatible with this choice of
linker. For the sake of simplicity, we chose methyl
Meldrum's acid (5b) as a starting material for 1d in
which one alkylation site is blocked as a methyl group.45
The synthesis of 1e utilized this position to introduce a
third carboxylate moiety.
Using the X-ray structure of SBL34 (Fig. 1) as our guide,
four sites were chosen for mutation because of their
seminal positions in the active site. Two of these, N62
(subtilisin BPN0 numbering) and L217, occupy positions
that are equidistant from S221 of the catalytic triad, in
Alkylation of 5b with 1,2-dibromoethane a€orded bro-
mide 6b in 71% yield. Treatment of 6b with NaS-
SO2CH3 in DMF at 50ꢀC led to the displacement of the
remaining bromide and resulted in the formation of
protected dicarboxylate MTS 7b. Hydrolysis of 7b using
acidic ion exchange resin allowed the successful forma-
tion of the aliphatic diacidic MTS 1d (79% yield, 37%
overall yield from 5b).
the S2 and S10 pockets, respectively. The other two
35
sites, S156 and S166, are located at the base of the S1
pocket and their side chains are directed towards SBL's
surface and catalytic triad, respectively. The MTS
reagents 1a±e were selected to modify these positions.
The synthesis of the triacidic reagent 1e required the
construction of a protected tricarboxylate 5c before
Figure 1. The active site of SBL showing the residues of the catalytic
triad, Ser221 (orange), His64 (blue) and Asp32 (red). The irreversible
phenylmethylsulfonyl inhibitor (pink) forms a bond to the Og atom of
Ser221 and its phenyl ring occupies the S1 binding site. The residues
chosen for mutation, Asn62 in the S2 site, Ser156 and Ser166 in the S1
Scheme 2. (a) (i) Im2CO, DMF, 40ꢀC then DBU, t-BuOH, 84%, (ii)
NBS, azobis(cyclohexanecarbonitrile), CCl4, Á, 96%; (b) NaS-
SO2CH3, DMF, 50ꢀC, 60%; (c) CF3COOH, CH2Cl2, 91%.
0
site and Leu217 in the S1 ' site are highlighted in yellow.34

B. G. Davis et al. / Bioorg. Med. Chem. 7 (1999) 2293±2301
2295
steps. Complete deprotection of 7c using CF3COOD in
1
D2O was followed by H NMR, and resulted in the for-
mation of target 1e (70% yield, 23% overall yield from 5a).
Preparation of chemically modi®ed mutants (CMMs)
MTS reagents 1a±e were used to modify the chosen SBL
cysteine mutants, N62C, S156C, S166C and L217C
under conditions described previously.31±33 These reac-
tions proceeded rapidly and quantitatively, as judged by
the monitoring of changes in speci®c activity and by
titration of residual free thiols with Ellman's reagent,46
respectively. The structure of the charged CMMs was
con®rmed by ES±MS. Non-reducing native PAGE was
used to determine the purity of all the enzymes, which
appeared as single bands. Consistent with the introduc-
tion of negative charge, each of the CMMs showed
retarded mobility in the direction of the cathode relative
to WT. The active enzyme concentration of the resulting
CMM solutions was determined by active site titration
with a-toluenesulfonyl ¯uoride (PMSF) using a ¯uoride
ion-sensitive electrode.47
Scheme 3. (a) K2CO3, DMF then BrCH2COOBut, 59%; (b) K2CO3,
DMF then Br(CH2)2Br, 71% for 6b, 66% for 6c; (c) NaSSO2CH3,
DMF, 50ꢀC, 83% for 7b, 86% for 7c; (d) Dowex 50W(H+), p-diox-
ane, H2O, 79%; (e) CF3COOD, D2O, 50ꢀC, 70%.
Kinetic e€ects of site speci®c modi®cation
The e€ects of modi®cation upon SBL were assessed by
the determination of kcat and KM for the hydrolysis of
succinyl-AAPF-p-nitroanilide (Suc-AAPF-pNA). Our
usual assay pH of 8.6 ensured complete ionization of
the unnatural amino acid side-chains introduced. The
kinetic parameters of the 20 CMMs generated are com-
pared with those of WT and unmodi®ed mutants in
Table 1 and Figure 2.
elaboration. Alkylation of Meldrum's acid (5a) with
tert-butyl bromoacetate allowed the formation of 5c
with moderate selectivity in 59% yield. Elaboration of
tricarboxylate 5c was carried out using 1,2-dibro-
moethane and then NaSSO2CH3 in an analogous man-
ner to that used for the synthesis of 1d and gave
protected tricarboxylate MTS 7c in 57% yield over 2
Table 1. Kinetic parametersa for modi®ed enzymes
