C O M M U N I C A T I O N S
Figure 3. Cell attachment to array-patterned spots corresponding to
photomasks inserted at the location of the field diaphragm of a fluorescence
microscope. (a and c) Fluorescence images of glass coverslips painted with
a fluorescent pen, which were irradiated using corresponding photomasks.
(b and d) Phase-contrast images of HEK293 and COS7 attached on the
substrates 18 and 2.5 h after seeding, respectively.
the affinity of BSA to the surface because the protein was
presumably attached onto the surface via hydrophobic interaction.
To form more complex cell patterns, we inserted a photomask
at the field diaphragm of the fluorescence microscope. In this
configuration, light from the mercury lamp was projected to the
sample in the same pattern as that of the inserted photomask (Figure
3a,c). The sizes of the irradiated regions were proportional to the
sizes of the spots on the photomasks and were inversely proportional
to the magnification of the objective lenses. On the basis of this
relationship, a cell array of 120-µm-square spots was formed by
using a photomask of an array pattern of 400-µm-square spots
(Figure 3b). A photomask of 100-µm-square spots gave 30-µm-
cell-adhesive spots, which is comparable to the size of single COS7
cells (Figure 3d). These results demonstrate that the present strategy
offers a simple method for forming cell-adhesive spots, and their
sizes can be reduced to the single cell level.
Figure 4. UV-directed positioning of single cells in proximity to cells
attached in advance. (a and b) Phase-contrast and fluorescence images of
substrates before and after seeding of fluorescent HEK293 cells where
unstained HEK293 cells (a) or COS7 cells (b) were attached in advance.
Second cells were stained with CellTracker Green CMFDA (Molecular
Probes). Yellow squares represent the irradiated regions. A fluorescence
image (red) is merged with the corresponding phase-contrast image (green).
Research Center Project from the Ministry of Education, Culture,
Sports, Science, and Technology of Japan. J.N. acknowledges the
Special Postdoctoral Researcher Program of RIKEN.
The most important point is that the present strategy allows
formation of new cell-adhesive regions during cell cultivation. After
culturing unstained single HEK293 cells for 1 day, other regions
with a size comparable to that of single cells were irradiated in
proximity to the cells attached in advance (Figure 4a). The medium
was replaced with that containing fibronectin, and fluorescent
HEK293 cells were seeded. The fluorescent single cells selectively
attached to the irradiated regions (Figure 4a). To our knowledge,
this is the first demonstration of positioning of single cells in
proximity to cultivating single cells.
Moreover, two single cells of different types can be positioned
in a similar way. In Figure 4b, a single fluorescent HEK293 cell
was placed in proximity to a cultivating COS7 cell. Such positioning
of two single cells of different types is physiologically interesting
and will be useful for studying cell-cell interactions at the single
cell level.
In summary, we have developed a simple method for spatiotem-

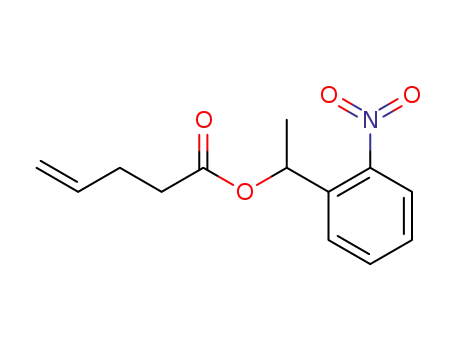

poral control of cell adhesion on a substrate modified with a
photochemically active compound, whereon a protein preventing
cell adhesion is replaced with one promoting cell adhesion in
response to light. The present method makes it possible to form
various cell patterns using standard fluorescence microscopes.
Positioning of single cells in proximity to other single cells attached
in advance is also achieved. The sizes, shapes, and locations of the
cell-adhesive regions can be designed during the observation of
cultivating cells, and thus the substrate will be a useful dynamic
scaffold for studying cell-cell interactions.
Supporting Information Available: Experimental detail, contact
angle measurement, immunofluorescence study (PDF). This material
References
(1) Nandkumar, M. A.; Yamato, M.; Kushida, A.; Konno, C.; Hirose, M.;
Kikuchi, A.; Okano, T. Biomaterials 2002, 23, 1121-1130.
(2) Nishida, K.; Yamato, M.; Hayashida, Y.; Watanabe, K.; Maeda, N.;
Watanabe, H.; Yamamoto, K.; Nagai, S.; Kikuchi, A.; Tano, Y.; Okano,
T. Transplantation 2004, 77, 379-385.
(3) Mrksich, M. Curr. Opin. Chem. Biol. 2002, 6, 794-797.
(4) Kato, M.; Mrksich, M. Biochemistry 2004, 43, 2699-2707.
(5) Takayama, S.; Ostuni, E.; LeDuc, P.; Naruse, K.; Ingber, D. E.; Whitesides,
G. M. Chem. Biol. 2003, 10, 123-130.
(6) Yamada, N.; Okano, T.; Sakai, H.; Karikusa, F.; Sawasaki, Y.; Sakurai,
Y. Makromol. Chem., Rapid Commun. 1990, 11, 571-576.
(7) Yousaf, M. N.; Houseman, B. T.; Mrksich, M. Proc. Natl. Acad. Sci.
U.S.A. 2001, 98, 5992-5996.
(8) Jiang, X. Y.; Ferrigno, R.; Mrksich, M.; Whitesides, G. M. J. Am. Chem.
Soc. 2003, 125, 2366-2367.
(9) Yeo, W. S.; Yousaf, M. N.; Mrksich, M. J. Am. Chem. Soc. 2003, 125,
14994-14995.
(10) Kaji, H.; Kanada, M.; Oyamatsu, D.; Matsue, T.; Nishizawa, M. Langmuir
2004, 20, 16-19.
(11) Hern, D. L.; Hubbell, J. A. J. Biomed. Mater. Res. 1998, 39, 266-276.
(12) Elbert, D. L.; Hubbell, J. A. Biomacromolecules 2001, 2, 430-441.
(13) Nakayama, Y.; Furumoto, A.; Kidoaki, S.; Matsuda, T. Photochem.
Photobiol. 2003, 77, 480-486.
(14) Schense, J. C.; Bloch, J.; Aebischer, P.; Hubbell, J. A. Nat. Biotechnol.
2000, 18, 415-419.
(15) Yamaguchi, K.; Kitabatake, T.; Izawa, M.; Fujiwara, T.; Nishimura, H.;
Futami, T. Chem. Lett. 2000, 29, 228-229.
(16) Matsuda, T.; Sugawara, T. Langmuir 1995, 11, 2267-2271.
(17) Zhao, B.; Moore, J. S.; Beebe, D. J. Science 2001, 291, 1023-1026.
(18) Luo, Y.; Shoichet, M. S. Nat. Mater. 2004, 3, 249-253.
(19) Adams, S. R.; Tsien, R. Y. Annu. ReV. Physiol. 1993, 55, 755-784.
Acknowledgment. This work was supported, in part, by a
Grant-in-Aid for Young Scientists (B) (to J.N.), and the High-Tech
JA044684C
9
J. AM. CHEM. SOC. VOL. 126, NO. 50, 2004 16315
