An unusual route to a quinoline 1-oxide via intramolecular addition of an enolate to an aromatic nitro group

Article abstract of DOI:10.1515/HC.2011.043

A mixture of ethyl 4-(2-nitrophenyl)butenoates undergoes an unusual intramolecular cyclisation in the presence of a catalytic amount of potassium tert-butoxide. 2011 · Copyright by Walter de Gruyter.

Full text of DOI:10.1515/HC.2011.043

Heterocycl. Commun., Vol. 17(5-6), pp. 203–205, 2011 • Copyright © by Walter de Gruyter • Berlin • Boston. DOI 10.1515/HC.2011.043
An unusual route to a quinoline 1-oxide via intramolecular
addition of an enolate to an aromatic nitro group
corresponding to each isomer in the 1H NMR spectrum. The
1H NMR signals of 4 were identified by comparison with the
literature values (Lee et al., 2001), which allowed for deduc-
tive inference of the signals corresponding to 5. A small por-
tion of this substance was left under inert atmosphere for
5 days at room temperature and the sample was reanalysed by
1H NMR, displaying a different distribution of isomers, with
a ratio of 1:2.6 in favour of 5. This suggests that double bond
isomerisation gives 5 as the thermodynamic isomer.
Nayara Da Rocha F. Moreira1, Tânia T. de Oliveira2,
Tanus J. Nagem1 and Jason G. Taylor1,*
1 Departamento de Química, ICEB, Universidade Federal
de Ouro Preto, Campus Universitário Morro do Cruzeiro,
35400–000, Ouro Preto-MG, Brazil
2 Departamento de Bioquímica e Biologia Celular,
Universidade Federal de Viçosa, Av. P.H. Rolfs, s/n,
36571–000, Viçosa-MG, Brazil
*Corresponding author
e-mail: jason@iceb.ufop.br
To confirm unequivocally the presence of the two isomeric
products, hydrogenation of the mixture to one single com-
pound was attempted (Scheme 3).
The expected saturated aliphatic ester was not observed.
Instead, a substituted indole 6 was isolated in good yield. The
spectral data for 6 were identical with those reported for the
compound that was obtained by using a different synthetic
route (Guerrero and Miranda, 2006). Evidently, the nitro
group is reduced faster than the alkene function resulting in
formation of a substituted aniline from 4, which then under-
goes an intramolecular Michael addition reaction to give a
cyclic precursor to 6. The cyclisation of the isomer 5 requires
a double bond migration in 5 to give 4. Numerous similar
isomerisations are known (Urones et al., 1999). The for-
mation of indole 6 from the intermediate indoline requires
a Pd-catalysed dehydrogenation reaction to take place. The
highly efficient Pd-catalysed aromatisation of indolines is
known (Bader et al., 1961).
By contrast, treatment of the mixture 4/5 with a catalytic
amount of potassium tert-butoxide in ethanol (Scheme 4)
gave a quinoline N-oxide 7, which was readily identified
by the downfield resonances characteristic of the quinoline
N-oxide structure (Yin et al., 2007) and comparison with an
authentic sample (Barczynski et al., 1974).
Currently, we are studying the scope, limitations and mech-
anism of this novel transformation that apparently involves an
intramolecular addition reaction of an ester enolate to a nitro
group. The results will be reported in due course.
Abstract

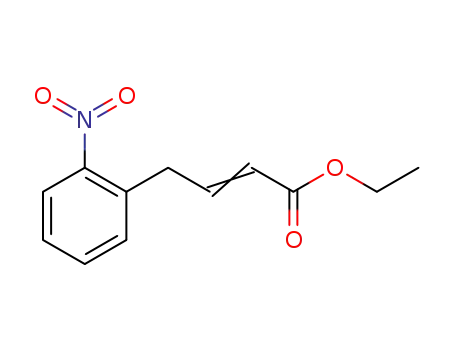

A mixture of ethyl 4-(2-nitrophenyl)butenoates undergoes an
unusual intramolecular cyclisation in the presence of a cata-
lytic amount of potassium tert-butoxide.
Keywords: cyclisation; enolate; intramolecular; nitro;
oxide; quinoline.
Introduction
The quinoline N-oxide core structure can be encountered
in a range of medicinal products exhibiting a diverse array
of biological activity (Albrecht et al., 1980; Werbel et al.,
1993; Mouaddib et al., 2000; Capraro et al., 2005; Andreev
et al., 2006). We were prompted to disclose our preliminary
results due to a recent publication (Okuma et al., 2010) in
which an α, β-unsaturated carbonyl system similar to the sub-
strate we are investigating (see 4/5 below) was cyclised under
Lewis acidic conditions. Herein, we report a complementary
approach utilising a base-induced intramolecular cyclisation
of the transient: an enolate with an aryl nitro group to provide
a 2-(ethoxycarbonyl)quinoline 1-oxide (7) in good yield.
Results and discussion
Experimental
For the synthesis of the precursor leading to the quinoline
1-oxide, we were initially guided by literature procedures
(Molina et al., 1996; Kambe et al., 2001), which described
the preparation of an aldehyde by employing a Wittig reac-
tion. Thus, compounds 1 and 2 were synthesised as shown in
Scheme 1.
Compounds 1 (Muchowski, 1971), 2 (Noland and Sellstedt, 1966)
and 3 (Kasim and Manfred, 2001; Spencer et al., 2007; Ngwendson
et al., 2008) were prepared as reported previously. Compound 7 has
been obtained previously by using an independent route (Barczynski
et al., 1974).
The subsequent Wittig reaction of 2 with phosphonium
ylide 3 yielded a mixture of inseparable isomers 4 and 5
with an initial ratio of 4.5: 1 in favour of 4 (Scheme 2). The
ratio was determined by integration of the methylene protons
Mixture of compounds 4 and 5
A solution of 2 (0.34 g, 1.3 mmol) in dichloromethane (15 mL) was
treated dropwise over 1 h at -10°C under a nitrogen atmosphere
Brought to you by | University of California - San Diego
Authenticated | 132.239.1.231
Download Date | 4/16/13 10:08 AM

204 N.D.R.F. Moreira et al.
O
H
H
NO2
NO2
NO2
KOH
H
PCC
DCM, rt, 3 h
(2.5 equiv)
DMSO, rt, 5 h
OH
O
1
2
23% Yield
74% Yield
Scheme 1 Synthesis of 2-nitro-benzeneacetaldehyde.
NO2
OEt
OEt
NO2
Ph3P
H
77% Total yield
Intial 4/5 = 4.5:1
5 days 4/5 = 1:2.6
4
5
O
O
3
O
NO2
O
DCM, 0 oC, 2 h, N2
OEt
2
Scheme 2 Synthesis of isomers 4 and 5 by a Wittig reaction.
H
with a solution of 4 and 5 (310 mg, 1.3 mmol) in absolute ethanol
(20 mL). To the solution Pd/C (10%, 100 mg) was added and the
mixture was exposed to hydrogen using a balloon. The mixture was
vigorously stirred overnight and then filtered through a plug of celite.
The celite was rinsed with additional ethanol. The filtrate was con-
centrated on a rotary evaporator yielding indole 194 mg (73%) of
the indole 6 as pale yellow oil; Rf =0.5 (silica gel, hexanes/EtOAc,
7:3). Spectroscopic data are virtually identical with reported values
(Guerrero and Miranda, 2006).
N
OEt
10% Pd/C,H2
EtOH, rt, 24 h
4+5
O
6
73% Yield
Scheme 3 Domino nitro group reduction-conjugate addition-
Pd-catalysed dehydrogenation reaction.
O
N
O
2-(Ethoxycarbonyl)quinoline 1-oxide (7) A50-mLround-bottom
flask equipped with a magnetic stir bar was charged with a 1:2.6 mix-
ture of 4 and 5 (100 mg, 0.43 mmol). Absolute ethanol (15 mL) was
added, followed by potassium tert-butoxide (5 mg, 0.044 mmol) and
the mixture was stirred at room temperature for 2 h. Concentration
of the mixture under reduced pressure followed by silica gel chroma-
tography (hexanes/EtOAc, 5:1) of the oily residue gave 76 mg (83%)
tBuOK
EtOH, rt, 2 h
83% Yield
10 mol%
OEt
4+5
7
Scheme 4 Synthesis of a quinoline N-oxide.
1
of 7 as a pale yellow oil; Rf =0.3 (hexanes/EtOAc, 4:1); H NMR
with a solution of 3 (0.69 g, 1.95 mmol) in dichloromethane (15
mL). The mixture was then stirred for 2 h at 25°C and concentrated
under reduced pressure. The solid residue was dissolved in hexanes
(50 mL) and the mixture was stirred at 25°C for 0.5 h. The precipi-
tate of Ph3PO was filtered off and the filtrate was concentrated under
reduced pressure. The oily residue was purified by silica gel chroma-
tography eluting with hexanes/EtOAc (5:1) to afford a 4.5:1 ratio of
4:5. The ratio changed to 1:2.6 in favour of 5 after 5 days. Compound
4 is known and its spectroscopic data are virtually identical with the
reported literature values (Lee et al., 2001).
(400 MHz, CDCl3): δH 8.82 (1H, d, J=8 Hz), 7.91 (1H, d, J=8 Hz),
7.84 (1H, t, J=8 Hz), 7.70–7.76 (2H, m), 7.61 (1H, d, J=8 Hz), 4.59
(2H, q, J=7 Hz), 1.65 (3H, t, J=7 Hz); 13C NMR (100 MHz, CDCl3):
δC 162.4, 142.5, 137.8, 130.9, 130.6, 129.7, 128.2, 124.7, 121.1,
120.3, 62.6, 14.2; CI-MS: m/z 218 ([M+H]+, 100%), 202 (20%).
Acknowledgements
The authors thank the Conselho Nacional de Desenvolvimento
Científico e Tecnológico (CNPq), the Fundação Coordenação
de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) and
the Fundação de Amparo à Pesquisa do Estado de Minas Gerais
(FAPEMIG) for financial support. We thank Dr. Robson J. de Cássia
FrancoAfonso and Dr. Maurício Xavier Coutrim for providing excel-
lent mass spectrometry service.
New compound 5 Pale yellow oil; Rf = 0.3 (silica gel, hexanes/
EtOAc, 4:1); IR (neat): υmax 2983, 1721, 1639, 1529, 1347, 1292,
1
1347, 1292, 1183, 1035, 976, 858, 787, 742, 664 cm-1; H NMR
(400 MHz, CDCl3): δH 7.95 (1H, d, J=7 Hz), 7.67 (1H, t, J=7 Hz),
7.36–7.45 (2H, m), 7.03 (1H, d, J=15 Hz), 6.39 (1H, dt, J=7 and 15
Hz), 4.24 (2H, q, J=7 Hz), 3.34 (2H, d, J=7 Hz), 1.31 (3H, t, J=7
Hz); 13C NMR (100 MHz, CDCl3): δC 166.1, 144.9, 133.5, 132.5,
128.8, 128.2, 127.5, 124.5, 123.3, 60.9, 35.6, 14.2; EI-MS: m/z 235
(M+, 5%), 190 (25%), 172 (25%), 162 (50%), 120 (100%), 116
(90%), 92 (45%), 77 (35%).
References
Albrecht, T.; Spleelman, D. J.; Sadagopa Ramanujam, V. M.; Lund,
H. W.; Legator, M. S.; Trieff, N. M. Correlation of the chemical
structure of 4-nitroquinolines inactivating human cytomegalovi-
rus and established in vivo carcinogenicity tests. Terat. Carcin.
Mut. 1980, 1, 161–169.
Ethyl (indol-2-yl)acetate (6) A 50-mL round-bottom flask,
equipped with magnetic stir bar and rubber septum, was charged
Brought to you by | University of California - San Diego
Authenticated | 132.239.1.231
Download Date | 4/16/13 10:08 AM

An unusual route to a quinoline 1-oxide 205
Andreev, V. P.; Korvacheva, E. G.; Nizhnik, Y. P. Effect of pyridine
and quinoline N-oxides on microsomal Na,K-ATPase activity.
Pharm. Chem. J. 2006, 40, 347–348.
Mouaddib, A.; Joseph, B.; Hasnaoui, A.; Mérour, J.-Y. Synthesis of
indolo[3,2-c]quinoline and pyrido [3′,2′:4,5] [3,2-c] quinoline
derivatives. Synthesis 2000, 4, 549–556.
Bader, A. R.; Bridgwater, R. J.; Freeman, P. R. Indoles. II.1a,1b.
The acid-catalyzed rearrangement of N-2-alkenylanilines. J. Am.
Chem. Soc., 1961, 83, 3319–3323.
Barczynski, P.; Brzezinski, B.; Szafran, M. Esterification of
some α-carboxy N-oxides. Roczniki Chem. 1974, 48, 903–
905.
Capraro, H.-G.; Furet, P.; Garcia-Echeverria, C.; Stauffer, F.
1H-Imidaz [4,5-C] quinoline dervivatives in the treatment
of protein kinase dependent disease. WO2005054238, 2005,
p. 138.
Muchowski, J. M. Benzodiazocines. II. The synthesis of some hexa-
hydro-1,4-benzodiazocines. Can. J. Chem. 1971, 49, 2023–2028.
Ngwendson, J. N.; Schultze, C. M.; Bollinger, J. W.; Banerjee, A.
Effect of base on alkyltriphenylphosphonium salts in polar apro-
tic solvents. Can. J. Chem. 2008, 86, 668–675.
Noland, W. E.; Sellstedt, J. H. A new synthesis of o-nitrophenylacet-
aldehyde. J. Org. Chem. 1966, 31, 345–346.
Okuma, K.; Seto, J. I.; Nagahora, N.; Shioji, K. Chemoselective syn-
thesis of quinoline N-oxides from 3-(2-nitrophenyl)-3-hydroxy-
propanones. J. Heterocycl. Chem. 2010, 47, 1372.
Guerrero, M. A.; Miranda, L. D. Et3B-Mediated radical alkylation
of pyrroles and indoles. Tetrahedron Lett. 2006, 47, 2517–
2520.
Kambe, M.; Arai, E.; Suzuki, M.; Tokuyama, H.; Fukuyama, T.
Intramolecular 1,3-dipolar cycloaddition strategy for enantiose-
lective synthesis of FR-900482 analogues. Org. Lett. 2001, 3,
2575–2578.
Kasim, P.; Manfred, H. Syntheses of the macrocyclic spermine alka-
loids ( )-budmunchiamine A–C. Helv. Chim. Acta 2001, 84,
180–186.
Spencer, E. C.; Mariyatra, M. B.; Howard, J. A.; Kenwright, A. M.;
Panchanatheswaran, K. The synthesis and structural characteri-
sation of the mercury (II) halide complexes of the phosphorus
ylide carbethoxymethylenetriphenylphosphorane. J. Organomet.
Chem. 2007, 692, 1081–1086.
Urones, J. G.; Garrido, N. M.; Diez, D.; Dominguez, S. H.; Davies,
S. G. Conjugate addition to (α, β)(α′, β′)-diendioate esters
by lithium (α-methylbenzyl)benzylamide: tandem addition-
cyclisation vs. double addition. Tetrahedron: Asymmetry 1999,
10, 1637–1641.
Lee, J. G.; Choi, K. I.; Koh, H. Y.; Kim, Y.; Kang, Y.; Cho, Y. S.
Indium mediated reduction of nitro and azide groups in the pres-
ence of HCl in aqueous media. Synthesis 2001, 1, 81–84.
Molina, P.; Alajarin, M.; Sanchez-Andrada, P.; Carrio, J. S.;
Martinez-Ripoll, M.; Anderson, J. E.; Jimeno, M. L.; Elguero,
J. New models for the study of the racemization mechanism of
carbodiimides. Synthesis and structure X-ray crystallography
Werbel, L. M.; Kersten, S. J.; Turner, W. R. Structure-activity
relationships of antimalarial indolo [3,2-c]quinolines [1, 2]. Eur.
J. Med. Chem. 1993, 28, 837–852.
Yin, J.; Xiang, B.; Huffman, M. A.; Raab, C. E.; Davies, I. W. A
General and efficient 2-amination of pyridines and quinolines.
J. Org. Chem. 2007, 72, 4554–4557.
1
and H NMR of cyclic carbodiimides. J. Org. Chem. 1996, 61,
4289–4299.
Received September 2, 2011; accepted November 4, 2011
Brought to you by | University of California - San Diego
Authenticated | 132.239.1.231
Download Date | 4/16/13 10:08 AM
