A New Set of Analogues of TQX-173
J ournal of Medicinal Chemistry, 2001, Vol. 44, No. 19 3163
1H, pyrrole H-2), 8.24 (s, 1H, ar), 9.82 (s, 1H, CHO), 12.7 (br
s, 1H, NH); IR 3300, 1750, 1670.
a tes 22 a n d 23. Compound 20 or 21 (1.13 mmol) was dropwise
added to a refluxing solution of ethyloxalyl chloride (2.26
mmol) in anhydrous toluene (70 mL). The resulting yellow
solution was refluxed until the disappearance of the starting
material (TLC monitoring). Upon cooling compound 23 pre-
cipitated as a yellow solid and was collected and washed with
diethyl ether. Compound 22, which does not precipitate, was
isolated after evaporation of the solvent, treatment with
diethyl ether, and filtration. Compound 22 displayed the
following spectral data: 1H NMR (DMSO-d6) 1.23 (t, 3H, CH3),
1.32 (t, 3H, CH3), 4.25 (q, 2H, CH2), 4.36 (q, 2H, CH2), 6.64
(dd, 1H, pyrazole H-4, J ) 1.47, 2.56 Hz), 7.90 (d, 1H, pyrazole
H-3, J ) 1.47 Hz), 7.98 (s, 1H, ar), 8.43 (d, 1H, pyrazole H-5,
J ) 2.56 Hz), 8.44 (s, 1H, ar), 10.9 (br s, 1H, NH), 13.0 (br s,
1H, NH); IR 3300, 1730, 1715.
Dieth yl 1-[4-Ch lor o-5-(im id a zol-1-yl)-2-n itr op h en yl]-
1,2,4-t r ia zolo-3,5-d ica r boxyla t e 24.16 Compound 19 (1.13
mmol) was portionwise added to a boiling solution of ethylox-
alyl chloride (2.26 mmol) in anhydrous toluene (50 mL). The
resulting yellow solution was heated at reflux for 5 h. Elimina-
tion at reduced pressure of the solvent yielded a solid, which
was dissolved in ethyl acetate (100 mL). The organic solution
was washed with a solution of NaOH (0.5%, 40 mL × 2) and
then with H2O (40 mL). The dried (Na2SO4) organic layer was
evaporated to afford a solid, which was treated with diethyl
ether and collected: 1H NMR (DMSO-d6) 1.20 (t, 3H, CH3),
1.33 (t, 3H, CH3), 4.28 (q, 2H, CH2), 4.40 (q, 2H, CH2), 7.18 (d,
1H, imidazole H-4, J ) 1.22 Hz), 7.64 (d, 1H, imidazole H-5,
J ) 1,22 Hz), 8.13 (s, 1H, imidazole H-2), 8.30 (s, 1H, ar), 8.80
(s, 1H, ar); IR 1750.
Gen er a l P r oced u r e To P r ep a r e Dieth yl 1-[4-Ch lor o-
5-h eter oa r yl-2-n itr op h en yl]-1,2,4-tr ia zolo-3,5-d ica r boxyl-
a tes 25 a n d 26. Concentrated H2SO4 (4 mL) was dropwise
added to finely powdered 22 and 23 (0.88 mmol) under stirring.
The solution was stirred at room temperature for 12 h, poured
onto ice (200 g), and finally extracted with ethyl acetate (2 ×
100 mL). The organic layers were washed with a solution of
NaHCO3 (1%, 2 × 100 mL) and then with H2O (100 mL).
Evaporation of the dried (Na2SO4) solvent yielded a solid.
Compound 25 displayed the following spectral data: 1H NMR
(DMSO-d6) 1.19 (t, 3H, CH3), 1.33 (t, 3H, CH3), 4.28 (q, 2H,
CH2), 4.45 (q, 2H, CH2), 6.67 (dd, 1H, pyrazole H-4, J ) 1.47,
2.56 Hz), 7.92 (d, 1H, pyrazole H-3, J ) 1.47 Hz), 8.33 (s, 1H,
ar), 8.49 (d, 1H, pyrazole H-5, J ) 2.56 Hz), 8.77 (s, 1H, ar);
IR 1750, 1715.
Gen er a l P r oced u r e To P r ep a r e Eth yl 7-Ch lor o-4,5-
d ih yd r o-8-h eter oa r yl-4-oxo-1,2,4-tr ia zolo[1,5-a ]qu in oxa -
lin e-2-ca r boxyla tes 2a 16, 7a , a n d 8a . The title compounds
were obtained by reducing 24-26 (0.69 mmol) with iron
powder (0.69 g) and AcOH (6 mL) following the procedure
described above for the synthesis of 11a and 12a . Compound
2a displayed the following spectral data: 1H NMR (DMSO-
d6) 1.35 (t, 3H, CH3), 4.44 (q, 2H, CH2), 7.15 (d, 1H, imidazole
H-4, J ) 1.22 Hz), 7.54 (d, 1H, imidazole H-5, J ) 1.22 Hz),
7.67 (s, 1H, ar), 8.0 (s, 1H, imidazole H-2), 8.20 (s, 1H, ar),
12.7 (br s, 1H, NH); IR 1750, 1715.
Eth yl 4,5-Dih yd r o-4-oxo-7-(1,2,4-tr ia zol-4-yl)-1,2,4-tr ia -
zolo[1,5-a ]qu in oxa lin e-2-ca r boxyla tes 6a . The title com-
pound was prepared by reacting ethyl 7-amino-4,5-dihydro-4-
oxo-1,2,4-triazolo[1,5-a]quinoxaline-2-carboxylate 15 (0.91 mmol)
with diformylhydrazine (2.74 mmol), trimethylsilyl chloride
(13.6 mmol), and triethylamine (6.2 mmol), as described above
for the preparation of 1a and 3a :1H NMR (DMSO-d6) 1.37 (t,
3H, CH3), 4.45 (q, 2H, CH2), 7.60 (d, 1H, ar, J ) 2.48 Hz),
7.71 (dd, 1H, ar, J ) 8.8, 2.48 Hz), 8.30 (d, 1H, ar, J ) 8.8
Hz), 9.18 (s, 2H, triazole protons), 12.7 (br s, 1H, NH); IR 3500,
3300, 1750, 1730.
4-Ch lor o-5-(im id a zol-1-yl)-2-n itr oa n ilin e 13.16,20 An ex-
cess of imidazole (38.4 mmol) and KOH (14.4 mmol) were
added to a solution of 4,5-dichloro-2-nitroaniline (9.6 mmol)
in anhydrous dimethylformamide (DMF) (20 mL). The mixture
was heated at 80 °C for 1 h and then poured onto ice/water
(50 mL). Extraction with ethyl acetate (200 mL × 2), anhy-
drification of the organic layers, and evaporation at reduced
pressure of the solvent yielded a solid, which was treated with
diethyl ether and collected: 1H NMR (DMSO-d6) 7.14 (d, 2H,
ar + imidazole H-2), 7.49 (d, 1H, imidazole H-4, J ) 1.22 Hz),
7.7 (br s, 2H, NH2), 7.98 (d, 1H, imidazole H-5, J ) 1.22 Hz),
8.22 (s, 1H, ar); IR 3400, 3300, 3150.

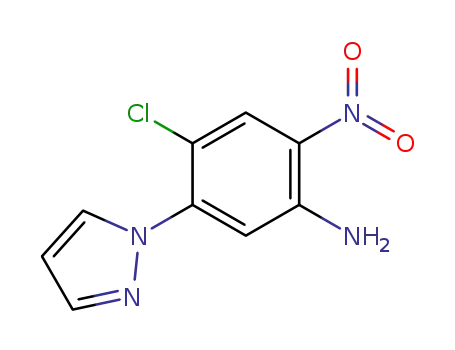

Gen er a l P r oced u r e To P r ep a r e 4-Ch lor o-5-h eter oa r yl-
2-n itr oa n ilin es 14 a n d 15. An excess of the suitable hetero-
cycle (38.4 mmol) and KOH (14.4 mmol) were added to a
solution of 4,5-dichloro-2-nitroaniline (9.6 mmol) in anhydrous
DMF (20 mL). The mixture was heated at 100 °C for 6 h and
then set aside at room temperature for 12 h. The resulting
solid was collected and washed with a few drops of DMF.
Compound 14 displayed the following spectral data: 1H NMR
(DMSO-d6) 6.58 (dd, 1H, pyrazole H-4, J ) 1.46, 2.56 Hz), 7.31
(s, 1H, ar), 7.7 (br s, 2H, NH2), 7.82 (d, 1H, pyrazole H-3, J )
1.46 Hz), 8.19 (s, 1H, ar), 8.25 (d, 1H, pyrazole H-5, J ) 2.56
Hz); IR 3450, 3350.
Gen er a l P r oced u r e To P r ep a r e Eth yl N1-[4-ch lor o-5-
h et er oa r yl-2-n it r op h en yl]id r a zon o-N2-ch lor oa cet a t es
1616-18. Concentrated H2SO4 (7 mL) was added dropwise to
a suspension of 13-15 (4.19 mmol) in H2O (10 mL). A solution
of NaNO2 (5%, 6 mL) was added to the cooled (0 °C) mixture,
which was then stirred for 15 min to yield a solid that was
quickly filtered off. A solution of NaBF4 (17%, 4 mL) was added
to the cold (0-5 °C) solution, which was allowed to stand in
ice/water for 30 min. Methanol (25 mL) and ethyl 2-chloro-3-
oxobutanoate (4.19 mmol) was added to the mixture, which
was then stirred at room temperature for 3 h. Compounds 17
and 18 were obtained as solid and were collected and washed
with H2O. The reaction mixture containing compound 16 was
instead diluted with H2O (70 mL) and extracted with chloro-
form (60 mL × 3). Evaporation at reduced pressure of the dried
(Na2SO4) organic solvent yielded a solid, which was treated
with diethyl ether and collected. Compound 16 displayed the
following spectral data: 1H NMR (DMSO-d6) 1.28 (t, 3H, CH3),
4.33 (q, 2H, CH2), 7.19 (d, 1H, imidazole H-4, J ) 1.22 Hz),
7.62 (d, 1H, imidazole H-5, J ) 1.22 Hz), 7.71 (s, 1H, ar), 8.10
(s, 1H, imidazole H-2), 8.53 (s, 1H, ar), 11.01 (s, 1H, NH); IR
3300, 1700.
Gen er a l P r oced u r e To P r ep a r e 4,5-Dih yd r o-4-oxo-
1,2,4-tr ia zolo[1,5-a ]qu in oxa lin e-2-ca r boxylic Acid s 1b16
,
3b-8b, 9b, a n d 10b15. A solution of NaOH (0.8 N, 25 mL)
was added to a suspension of 1a , 3a -10a (0.97 mmol) in EtOH
(25 mL). The mixture was stirred at room temperature for 3
h. Acidification of the clear solution with HCl (6 N) yielded a
solid, which was collected and washed with H2O. Compound
1b displayed the following spectral data: 1H NMR (DMSO-
d6) 7.73 (s, 1H, ar), 8.44 (s, 1H, ar), 8.95 (s, 2H, triazole H-3
and H-5), 12.8 (br s, 1H, NH), 13.9 (br s, 1H, COOH); IR 3140,
3060, 1715.
Gen er a l P r oced u r e To P r ep a r e Eth yl N1-[4-ch lor o-5-
h eter oa r yl-2-n itr op h en yl]-N2-oxa m id r a zon a tes 1916-21.
Ammonia was bubbled until saturation into a stirred solution
of 16-18 (0.81 mmol) in anhydrous dioxane (12 mL). The
mixture was stirred at room temperature until the disappear-
ance of the starting material (TLC monitoring). The mixture
was then diluted with H2O (50 mL) to yield a red solid, which
was collected and washed with H2O. Compound 19 displayed
the following spectral data: 1H NMR (DMSO-d6) 1.24 (t, 3H,
CH3), 4.24 (q, 2H, CH2), 6.9 (br s, 2H, NH2), 7.15 (d, 1H,
imidazole H-4, J ) 1.22 Hz), 7.55 (d, 1H, imidazole H-5, J )
1.22 Hz), 7.69 (s, 1H, ar), 8.03 (s, 1H, imidazole H-2), 8.35 (s,
1H, ar), 10.04 (s, 1H, NH); IR 3480, 3360, 3300, 1760.
7-Ch lor o-4,5-d ih yd r o-8-(im id a zol-1-yl)-4-oxo-1,2,4-tr ia -
zolo[1,5-a ]qu in oxa lin e-2-ca r boxylic Acid 2b.16 A solution
of NaOH (0.8 N, 15 mL) was added to a suspension of 2a (0.59
mmol) in EtOH (15 mL). The mixture was stirred at room
temperature for 1 h. The resulting solid was collected and
dissolved in a small volume of H2O. The solution was acidified
with AcOH to afford a suspension that was stirred for 30 min.
Gen er a l P r oced u r e To P r ep a r e Eth yl N1-(4-ch lor o-5-
h eter oa r yl-2-n itr op h en yl)-N3-eth oxa lyl-N2-oxa m id r a zon -
