Synthesis and sar study of diarylpentanoid analogues as new anti-inflammatory agents

Article abstract of DOI:10.3390/molecules191016058

A series of ninety-seven diarylpentanoid derivatives were synthesized and evaluated for their anti-inflammatory activity through NO suppression assay using interferone gamma (IFN-γ)/lipopolysaccharide (LPS)-stimulated RAW264.7 macrophages. Twelve compounds (9, 25, 28, 43, 63, 64, 81, 83, 84, 86, 88 and 97) exhibited greater or similar NO inhibitory activity in comparison with curcumin (14.7 ± 0.2 μM), notably compounds 88 and 97, which demonstrated the most significant NO suppression activity with IC50 values of 4.9 ± 0.3 μM and 9.6 ± 0.5 μM, respectively. A structure-activity relationship (SAR) study revealed that the presence of a hydroxyl group in both aromatic rings is critical for bioactivity of these molecules. With the exception of the polyphenolic derivatives, low electron density in ring-A and high electron density in ring-B are important for enhancing NO inhibition. Meanwhile, pharmacophore mapping showed that hydroxyl substituents at both meta- and para-positions of ring-B could be the marker for highly active diarylpentanoid derivatives.

Full text of DOI:10.3390/molecules191016058

Molecules 2014, 19, 16058-16081; doi:10.3390/molecules191016058
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis and Sar Study of Diarylpentanoid Analogues as New
Anti-Inflammatory Agents
Sze Wei Leong 1, Siti Munirah Mohd Faudzi 1, Faridah Abas 1,2,*,
Mohd Fadhlizil Fasihi Mohd Aluwi 3, Kamal Rullah 3, Lam Kok Wai 3, Mohd Nazri Abdul Bahari 4,
Syahida Ahmad 4, Chau Ling Tham 5, Khozirah Shaari 1,6 and Nordin H. Lajis 7,*
1
Laboratory of Natural Products, Institute of Bioscience, Universiti Putra Malaysia, 43400 Serdang,
Selangor, Malaysia; E-Mails: frederick_leong@hotmail.com (S.W.L.);
munifaudzi@gmail.com (S.M.M.F.)
2
Department of Food Science, Faculty of Food Science and Technology, Universiti Putra Malaysia,
43400 Serdang, Selangor, Malaysia
3
Drug and Herbal Research Centre Faculty of Pharmacy, Universiti Kebangsaan Malaysia,
Jalan Raja Muda Abd. Aziz, 50300 Kuala Lumpur, Malaysia;
E-Mails: fadhfasihi@yahoo.com (M.F.F.M.A.); kamalrullah@yahoo.co.id (K.R.);
david_lam_98@yahoo.com (L.K.W.)
4
Department of Biochemistry, Faculty of Biotechnology and Biomolecular Sciences,
Universiti Putra Malaysia, 43400 Serdang, Selangor, Malaysia;
E-Mails: nazribahari89@gmail.com (M.N.A.B.); syahida@upm.edu.my (S.A.)
5
Department of Biomedical Science, Faculty of Medicine and Health Sciences,
Universiti Putra Malaysia, 43400 Serdang, Selangor, Malaysia; E-Mail: chauling@upm.edu.my
6
Department of Chemistry, Faculty of Science, Universiti Putra Malaysia, 43400 Serdang, Selangor,
Malaysia; E-Mail: khozirah@upm.edu.my
7
Al-Moalim BinLaden Chair for Scientific Miracles of Prophetic Medicine, Scientific Chairs Unit,
Taibah University, P.O. Box 30001, Madinah al Munawarah 41311, Saudi Arabia
* Authors to whom correspondence should be addressed; E-Mails: faridah_abas@upm.edu.my (F.A.);
nordinlajis@gmail.com (N.H.L.); Tel.: +603-89471491 (F.A.); Fax: +603-89423552 (F.A.).
External Editor: Derek J. McPhee
Received: 8 August 2014; in revised form: 15 September 2014 / Accepted: 18 September 2014/
Published: 9 October 2014
Abstract: A series of ninety-seven diarylpentanoid derivatives were synthesized and evaluated
for their anti-inflammatory activity through NO suppression assay using interferone gamma

Molecules 2014, 19
16059
(IFN-γ)/lipopolysaccharide (LPS)-stimulated RAW264.7 macrophages. Twelve compounds
(9, 25, 28, 43, 63, 64, 81, 83, 84, 86, 88 and 97) exhibited greater or similar NO inhibitory
activity in comparison with curcumin (14.7 ± 0.2 µM), notably compounds 88 and 97, which
demonstrated the most significant NO suppression activity with IC50 values of 4.9 ± 0.3 µM
and 9.6 ± 0.5 µM, respectively. A structure–activity relationship (SAR) study revealed
that the presence of a hydroxyl group in both aromatic rings is critical for bioactivity of
these molecules. With the exception of the polyphenolic derivatives, low electron density in
ring-A and high electron density in ring-B are important for enhancing NO inhibition.
Meanwhile, pharmacophore mapping showed that hydroxyl substituents at both meta- and
para-positions of ring-B could be the marker for highly active diarylpentanoid derivatives.
Keywords: anti-inflammatory; diarylpentanoid; RAW 264.7; curcumin; SAR; pharmacophore
1. Introduction
Diarylpentanoids may be considered as analogues of curcumin, the major constituent of Curcuma
domestica, differing structurally by the replacement of the heptane bridge with a shorter, pentane bridge.
They may also be considered as analogues of zerumbone, a natural sesquiterpenoid isolated from
Zingiber zerumbet, based on the common feature of a dienone moiety. Naturally occurring
diarylpentanoids have been reported as minor constituents from Curcuma domestica and found to exhibit
strong antioxidant activity [1]. Diarylpentanoids and zerumbone have gained increasing attention for
their excellent pharmacological activities and better bioavailability compared to curcumin. A great
number of evidence has supported the significant anti-inflammatory property of diarylpentanoids and
zerumbone through their remarkable inhibition of various proinflammatory cytokines and mediators
such as nitric oxide (NO), tumor necrosis factor-alpha (TNF-α), interleukin-6 (IL-6), IL-10 and
monocyte chemoattractant protein-1 (MCP-1) [2–4]. We have previously shown that 2,6-bis-(4-
hydroxy-3-methoxybenzylidene)cyclohexanone (BHMC), a diarylpentanoid synthesized by our group,
is a potent anti-inflammatory agent in preventing lethality of cecal ligation and puncture (CLP)-induced
sepsis [5]. The compound was further shown to exhibit anti-nociceptive activity in a mouse model [6].
In addition, diarylpentanoids were also proven to have great potential as anti-cancer agents based on
their excellent anti-proliferative and anti-angiogenetic properties [7,8]. Surprisingly, some of the
diarylpentanoid derivatives were shown to possess significant anti-melanogenic activity on B16
melanoma cells although they do not inhibit mushroom tyrosinase, indicating them to be potential
candidates for further development into skin-whitening agents in cosmetic products [2,9]. The general
structures of some diarylpentanoid systems which have been studied by our group and other researches for
their anti-oxidant [2,3], anti-inflammatory [2,3,7,10,11], anti-proliferation [7], and anti-tyrosinase [2]
properties are presented in Figure 1.
The inflammatory process is an early immune response to threats, which constitutes processes of
communication between cells/tissues/organs. It involves mediators (families of protein and lipid
molecules) which helps relay new information, based on which the body’s immune system will
respond and decide on how to interact with the invading pathogen or stimuli. Orchestration of

Molecules 2014, 19
16060
immune/inflammatory responses depends upon communication by soluble molecules including
inflammatory cytokines and mediators such as nitric oxide (NO) [12], interleukin (IL-6) [13],
prostaglandins (PGs) [14], and tumor necrosis factor (TNF-α) [15] released by various activated
phagocytes and lymphocytes such as polymorphonuclear neutrophils, mast cells, dendritic cells,
macrophages, endothelial cells, hepatocytes, and natural killer (NK) cells in response to pathogenic
invasion and tissue injury [16]. Appropriate levels of the released proinflammatory cytokines and
inflammatory mediators are responsible for the immune system’s defense against the invading stimuli.
Excessive production can cause oxidative damage of cellular components, eventually leading to healthy
tissue damage [17]. Therefore, inflammation is a double-edged sword, which must be regulated at
optimal levels in disease treatment and prevention.
Figure 1. General structures of diarylpentanoid derivatives.
Nitric oxide is a key molecular signaling constituent involved in the inflammatory process. It is
biosynthesized endogenously from L-arginine, oxygen, and NADPH, and catalyzed by various nitric
oxide synthase (NOS) enzymes. In chronic inflammation, the presence of lipopolysaccharide (LPS) or
other proinflammatory cytokines activates macrophages and induces high levels of NO production
through inducible-NOS (iNOS) induction. An elevated level of NO production is one of the most
important factors which contributes to various chronic degenerative diseases including cancer [18],
cardiovascular disorder [19], asthma [20], arthritis, neurodegenerative diseases [21], multiple sclerosis [22],
ulcerative colitis, and Crohn’s disease [23]. Hence, pharmacological intervention of NO production is a
promising strategy in developing potent drugs for such diseases.
Previously, our studies on diarylpentanoids were restricted to those with a mono carbonyl moiety. In
our continuing search for new anti-inflammatory agents, we have now synthesized a series of novel
diarylpentanoid derivatives in which we have preserved the potent β-diketone moiety, with the
anticipation that it will provide additional hydrogen-bond donors or acceptors, leading to enhanced
bioactivity. The general structure of the targeted compound is shown in Figure 2.
Figure 2. General structure of target compound.

Molecules 2014, 19
16061
2. Results and Discussion
2.1. Chemistry
Synthesis of ninety-seven (1–97) analogues of 1,5-diphenyl-1,3-pentenedione was carried out through
a series of reactions which included Knoevenagel reaction, phenolic esterification, Baker-Venkataraman
rearrangements, and demethylation (Scheme 1). Eighty-seven of the synthesized compounds are new.
The new and known compounds are differentiated by the presence of a reference melting point as
presented in Table S1 in Supplementary Data. The respective commercially available aromatic

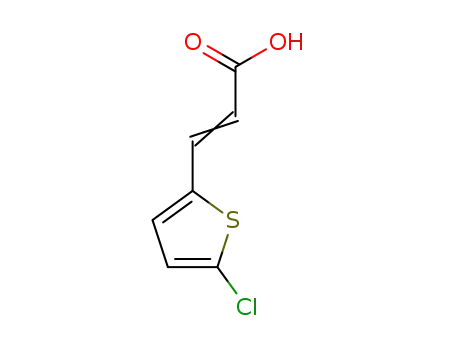

aldehydes were reacted with malonic acid in the presence of a catalytic amount of piperidine in pyridine,
under reflux to afford the respective acrylic acids I [24]. Aqueous workup of the crude products afforded
the desired compounds without any further purification. All benzaldehydes and naphthaldehydes were
successfully converted into the respective acrylic acids with greater than 85% conversion. The presence
of an electron withdrawing group in the aromatic rings improved the yield by up to 96%, regardless of
their substitution pattern. However, the product yields for the five-membered heterocyclic aldehydes
were found to be relatively low (33%–65%) compared with the benzaldehydes and naphthaldehydes.
This may be due to the electron-rich character of heterocyclic rings.
Scheme 1. General synthetic steps for compounds 1–97 1.
Notes: 1 Reagents and conditions: (a) malonic acid, pyridine, reflux (4 h); (b) POCl3, pyridine, RT (overnight);
(c) KOH, pyridine, RT (overnight); (d) BBr3, CH2Cl2, 0 °C (8 h).
The resulting acrylic acid intermediates were then reacted with the selected 2'-hydroxyacetophenones
at room temperature to provide the phenolic esters (II), by employing phosphoryl chloride as in situ
chlorinating reagent of the cinnamic acid [25]. Pyridine was chosen as the reaction medium due to its
ability to remove the hydrochloric acid produced from the reaction. The desired phenolic esters were
obtained in high yields (>90%) regardless of their ring substituents.
The phenolic ester intermediates were subjected to Baker-Venkataraman rearrangements by stirring
with potassium hydroxide in pyridine at ambient temperature to produce the desired respective Products
III (1–78). The product yields obtained were in the range of 11% to 82%. In general, higher yields were
obtained when an electron-deficient aromatic ring was present. Surprisingly, intermediates with a thiofuran
moiety, an electron-rich heterocyclic ring, gave better yields (greater than 70%) of the expected products.
Methoxy-containing diarylpentanoids were further demethylated using boron tribromide in
dichloromethane at 0 °C to produce polyhydroxylated diarylpentenedione Analogues IV (79–97) [26].

Molecules 2014, 19
16062
The yields obtained (15% to 46%) were inversely proportional to the number of methoxy groups present.
1
All the purified diarylpentenediones were characterized by H-NMR, 13C-NMR, (Figure S1 in
Supplementary Data) and mass spectrometry. The spectrometric data is presented in the Table S1 in
1
Supplementary Data. The H-NMR spectra of all diarylpentenediones exhibited an intense and sharp
singlet at 14–15 ppm, indicative of the chelated hydroxyl groups. It is thus concluded that these
compounds are more stable in the keto-enol rather than in their diketo forms. In addition, the large
coupling constant (J) values of the double bond signals (15–16 Hz) indicated that all the compounds
existed as the trans isomer. All purified compounds used for bioassay were of 95% to 99% purity based
on their respective high performance liquid chromatography (HPLC) profiles.
2.2. NO Suppression in IFN-γ/LPS-Stimulated Macrophages
The synthesized compounds were screened for NO suppression activity in IFN-γ/LPS-stimulated RAW
264.7 macrophages at a 50 µM test concentration. Fifty-seven compounds were found to significantly
inhibit NO production, suggesting that the diarylpentenedione system possesses anti-inflammatory
properties and is an interesting candidate for further investigations. The IC50 values of the fifty-seven
bioactive compounds were determined and compared to that of the positive control, curcumin. An MTT
assay was also carried out to confirm that NO inhibition was not due to cytotoxicity. Compounds
exhibiting significant bioactivities are listed in Tables 1–4, grouped according to their functional or
structural features. The complete bioassay results of all the compounds are provided as Table S2 in
Supplementary Data.
Table 1. Nitric oxide (NO) suppression activity and cytotoxicity of active compounds in
diarylpentenedione series on RAW 264.7 cells.
NO Inhibition at
50 µM (%) ± S.E.M IC50 (µM) ± S.E.M
NO Inhibition
Cytotoxicity IC50
(µM) ± S.E.M
28.8 ± 0.8
56.2 ± 1.1
>100
Compounds
Ar (Ring B)
Curcumin
-
99.3 ± 0.2
94.7 ± 1.2
91.0 ± 2.9
93.0 ± 3.4
88.4 ± 3.2
91.8 ± 1.5
81.6 ± 4.0
94.7 ± 1.7
96.6 ± 1.4
82.0 ± 3.2
92.9 ± 0.2
79.1 ± 4.6
63.8 ± 2.6
58.9 ± 5.8
85.8 ± 3.9
14.7 ± 0.2
22.6 ± 0.5
27.3 ± 0.2
26.7 ± 0.7
29.4 ± 0.7
25.7 ± 0.6
31.6 ± 0.6
24.6 ± 0.7
16.6 ± 1.1
49.0 ± 1.0
28.4 ± 0.4
42.6 ± 0.1
36.4 ± 1.8
39.6 ± 4.1
23.0 ± 1.7
1
2
3
4
5
6
8
9
12
14
16
17
18
19
phenyl
2-chlorophenyl
3-chlorophenyl
3-bromophenyl
2-methoxyphenyl
3-methoxyphenyl
3,4-dimethoxyphenyl
3,4,5-trimethoxyphenyl
furan-2-yl
2,5-dimethoxyphenyl
thiophen-2-yl
5-chlorothiophen-2-yl
5-methylthiophen-2-yl
naphthalen-1-yl
>100
>100
>100
>100
>100
>100
>100
>100
>100
67.9 ± 2.9
>100
>100

Molecules 2014, 19
16063
Table 2. NO suppression activity and cytotoxicity of active compounds in halogenated
diarylpentenedione series on RAW 264.7 cells.
OH
O
OH
Ar
A
R1
R1
(Ring A)
Cl
NO inhibition at
50 µM (%) ± S.E.M
85.3 ± 6.8
NO inhibition IC50 Cytotoxicity IC50
Compounds
Ar (Ring B)
(µM) ± S.E.M
47.6 ± 1.1
30.0 ± 2.1
36.2 ± 0.9
36.0 ± 0.5
17.4 ± 0.4
13.6 ± 0.5
32.2 ± 0.2
25.3 ± 1.7
62.4 ± 2.3
25.5 ± 1.0
20.8 ± 0.5
19.8 ± 0.9
(µM) ± S.E.M
>100
21
22
23
24
25
28
35
36
37
38
41
43
Phenyl
Cl
2-chlorophenyl
3-chlorophenyl
82.5 ± 4.3
>100
Cl
66.6 ± 4.1
68.4 ± 2.2
>100
Cl
2-methoxyphenyl
3-methoxyphenyl
3,4,5-trimethoxyphenyl
thiophen-2-yl
70.4 ± 1.3
Cl
76.3 ± 6.5
>100
Cl
89.5 ± 5.9
>100
Cl
68.8 ± 4.2
>100
Cl
5-chlorothiophen-2-yl
5-methylthiophen-2-yl
5-methylfuran-2-yl
Phenyl
71.6 ± 3.2
>100
Cl
56.0 ± 2.6
>100
Cl
73.8 ± 1.1
>100
Br
79.9 ± 8.7
>100
Br
3-chlorophenyl
81.2 ± 5.2
>100
Table 3. NO suppression activity and cytotoxicity of active compounds in methoxylated
diarylpentenedione series on RAW 264.7 cells.
R1
NO inhibition at
50 µM (%) ± S.E.M
87.9 ± 5.1
NO inhibition IC50 Cytotoxicity IC50
Compounds
Ar (Ring B)
(Ring A)
4-OMe
4-OMe
4-OMe
4-OMe
4-OMe
4-OMe
5-OMe
5-OMe
5-OMe
5-OMe
5-OMe
5-OMe
5-OMe
5-OMe
5-OMe
(µM) ± S.E.M
29.5 ± 0.5
58.5 ± 2.5
39.0 ± 1.2
45.8 ± 0.8
21.7 ± 0.5
29.3 ± 0.3
25.9 ± 0.3
35.7 ± 0.8
27.4 ± 0.2
35.1 ± 0.2
19.8 ± 0.4
18.4 ± 0.2
71.5 ± 2.5
33.4 ± 0.7
35.6 ± 0.6
(µM) ± S.E.M
>100
45
46
48
49
51
52
58
59
61
62
63
64
67
68
71
phenyl
2-chlorophenyl
76.2 ± 4.6
>100
2-methoxyphenyl
3-methoxyphenyl
3,4-dimethoxyphenyl
3,4,5-trimethoxyphenyl
phenyl
66.3 ± 6.8
88.6 ± 2.5
>100
57.5 ± 6.5
58.9 ± 2.8
>100
96.4 ± 0.4
>100
92.8 ± 1.8
>100
3-chlorophenyl
89.1 ± 3.6
>100
2-methoxyphenyl
3-methoxyphenyl
3,4-dimethoxyphenyl
3,4,5-trimethoxyphenyl
furan-2-yl
65.8 ± 2.4
>100
92.6 ± 1.2
>100
92.2 ± 0.8
>100
95.2 ± 1.1
>100
72.1 ± 3.1
>100
2,4-dimethoxyphenyl
thiophen-2-yl
79.5 ± 4.7
>100
85.0 ± 2.7
>100

Molecules 2014, 19
16064
Table 4. NO suppression activity and cytotoxicity of active polyphenolic diarylpentenedione
analogues on RAW 264.7 cells.
R1
NO inhibition at
50 µM (%) ± S.E.M
95.5 ± 0.6
NO inhibition IC50 Cytotoxicity IC50
Compounds
Ar (Ring B)
(Ring A)
H
(µM) ± S.E.M
28.9 ± 1.5
30.8 ± 0.7
19.1 ± 0.6
16.7 ± 0.6
15.9 ± 0.9
26.9 ± 0.8
18.7 ± 0.8
32.3 ± 0.9
4.9 ± 0.3
(µM) ± S.E.M
56.4 ± 1.2
67.3 ± 0.6
>100
79
80
81
83
84
85
86
87
88
89
90
91
93
94
95
97
2-hydroxyphenyl
3-hydroxyphenyl
4-hydroxyphenyl
2,5-dihydroxyphenyl
2-hydroxyphenyl
3-hydroxyphenyl
4-hydroxyphenyl
2,5-dihydroxyphenyl
3,4-dihydroxyphenyl
2-hydroxyphenyl
3-hydroxyphenyl
furan-2-yl
H
97.2 ± 0.7
H
91.5 ± 3.9
H
94.3 ± 1.8
>100
5-Cl
5-Cl
5-Cl
5-Cl
5-Cl
5-OH
5-OH
5-OH
4-OH
4-OH
4-OH
H
95.2 ± 0.9
53.1 ± 1.0
89.1 ± 1.1
66.0 ± 1.2
49.5 ± 1.7
40.9 ± 1.6
72.6 ± 2.6
85.0 ± 1.4
94.1 ±0.9
59.5 ± 0.5
70.1 ± 1.8
>100
95.9 ± 0.5
90.3 ± 2.7
96.5 ± 1.4
99.7 ± 1.2
83.6 ± 2.0
31.0 ± 2.0
35.7 ± 0. 9
75.0 ± 4.9
29.9 ± 0.4
24.8 ± 0.4
44.8 ± 1.6
9.6 ± 0.5
90.9 ± 2.0
83.6 ± 2.8
phenyl
94.7 ± 2.3
3-hydroxyphenyl
thiophen-2-yl
95.4 ± 1.5
60.4 ± 2.0
3,4-dihydroxyphenyl
98.9 ± 1.6
>100
Two compounds (88 and 97) were found to exhibit the most potent anti-inflammatory activity, giving
IC50 values of 4.9 μM and 9.6 μM, respectively. Meanwhile ten other compounds (9, 25, 28, 43, 63, 64,
81, 83, 84, and 86) exhibited comparable NO inhibitory activity to curcumin, with IC50 values of less
than 20 µM. Based on these results, it appears that polyphenolic and poly(methoxyphenyl) moieties
are important for NO suppression activity. The presence of a catechol moiety, as represented by
compounds 88 and 97, appeared to be an important contributing factor since it resulted in a two- to
four-fold improvement in bioactivity.
This observation is consistent with previous reports in which it was shown that the presence of a
catechol moiety in flavonoids [27], curcuminoids [28], and aurones [29] enhanced the NO inhibition
activity significantly. Furthermore, it has also been reported that catechol moiety containing compounds
are frequently bioactive against various inflammatory enzymes, such as COX-2 and iNOS, through
inhibition of NF-κB activation [30]. Notably, the unexpected synergistic effect of catechol and
α,β-unsaturated carbonyl moieties on NF-κB inactivation was presented by Chiang and co-workers [31].
On this account, compounds 88 and 97, the catechol and α,β-unsaturated carbonyl moieties containing
diarylpentenediones, may represent new candidates for further investigation of their effects towards
inflammatory mediators including the NF-κB (LPS-induced pathway) and Jak-STAT (IFN-γ-induced
pathway) inactivation analysis and direct modulation of iNOS.
Comparisons between compounds within the same and between different groups were conducted to
identify correlations between the structural features with NO suppression activity. For the diarylpentenedione

Molecules 2014, 19
16065
series (Table 1), the trimethoxylated compound 9, exhibited highest NO suppression which suggests that
high electron density in ring-B is an important factor in improving NO inhibition. A similar trend was
also observed for the halogenated and methoxylated diarylpentenedione series listed in Table 2 and 3,
respectively. In the respective groups, the trimethoxylated compounds 28 and 64 exhibited the highest
NO suppression. In contrast, analogues with low electron density ring-B, as in the dihalogenated diaryl
analogues (15, 37 and 70), further supported our conclusion.
Further structure-activity comparison between all the series of analogues showed that low electron
density of ring-A was important in enhancing the NO inhibition activity. This was clearly demonstrated
by compounds 6, 25, 49, and 62, in which the presence of an electron donating group (methoxy) in
ring-A was accompanied by reduced NO suppression, while the presence of an electron withdrawing
group (chloro) enhanced the bioactivity. The same conclusion could also be drawn based on the
bioactivity displayed by the Analogues 9, 28, 52 and 64, where the diarylpentenedione analogue with
halogenated ring-A (28) exhibited the highest activity. In contrast, the methoxylated compounds 49 and
52 exhibited the weakest activity. Further comparison between the Analogues 23, 25, 59 and 62 further
supported the electron density-related effect.
Demethylation of methoxylated diarylpentenediones to form the hydroxylated analogues increased
the bioactivity significantly. Comparison of compounds 7 (See Table S2 in Supplementary Data), 14
and 27 with their respective demethylated analogues (compounds 81, 83 and 88) showed that NO
inhibition improved very significantly consistent with the decrease in the electron density of ring-B. This
could be rationalized by the higher affinity for hydrogen bonding by the hydroxyl groups as compared
to methoxyl. This observation suggested that hydrogen bonding is an additional contributing factor for
the bioactivity enhancement along with electron density. Thus, the polyphenolic analogues, with their
higher hydrogen bonding capacity, are the more potent group in this class of compounds.
Apart from this, it has also been found that the substitution position of functionalities at ring-B plays
a pivotal role in influencing the NO inhibitory activity. The comparison of compounds 79, 80, 81, 82,
83 and 97 shows that the substitution of hydroxyl groups at both meta- and para-positions is essential
for bioactive molecules as compound 97, a meta- and para-hydroxylated analogue has displayed much
better activity than any other mono- or di-hydroxylated derivative. The suggested trend was further
supported by similar observations made in the comparisons of compounds 84, 85, 86, 87 and 88 of which
compound 88 with di-substitution at both meta- and para-positions possessed the highest activity.
Interestingly, the same conclusion can also been drawn from the comparisons of poly(methoxyphenyl)
containing analogues. Compounds with a meta- and para-dimethoxylated phenyl ring (8, 9, 28, 51, 52,
63 and 64) exhibited significantly better activity than those with other substitution patterns. Thus, it is
confirmed that the substitution at both meta- and para-positions contributes to NO inhibitory activity.
In contrast, replacing the aryl ring-B with heterocyclic aromatic rings such as thiophene and furan (see
compounds 16 and 31) was found to be undesirable. Although higher in electron density, it dramatically
decreased NO suppression activity.
2.3. Quantitative Structure Activity Relationship (QSAR) Analysis
Quantitative structure activity relationship (QSAR) analysis is a statistical approach commonly used
to explore, explain, and rationalize the significant correlation between the experimental biological

Molecules 2014, 19
16066
activity or chemical reactivity of a series of drugs with their molecular geometry and physicochemical
properties. Currently, there are six types of QSAR models including 1D, 2D, 3D, 4D, 5D, and 6D QSAR
with 2D and 3D QSAR being the most commonly used models. In the present study, 2D and 3D QSAR
analyses were employed to understand the physicochemical properties and molecular descriptors or
features, which could contribute to the NO suppression activity.
2.3.1. 2D-QSAR
Genetic function approximation (GFA) analysis is one of the most common algorithms used in QSAR
models. Sivakumar and co-workers reported that GFA analysis had been successfully applied to
study the anti-tuberculosis properties of selected chalcones and flavonoids with excellent predictive
models [32]. The r2 (conventional correlation coefficient) and q2 (cross-validation correlation
coefficient) values achieved by the group were between 0.85 to 0.97 and, between 0.79 to 0.94,
respectively. These values imply that GFA analysis is very accurate in predicting the bioactivity of small
molecules. Thus, in this study, GFA was selected as the analytical method to establish a 2D QSAR model
for the anti-inflammatory activity of diarylpentenedione system as a family of small molecules.
GFA analysis was carried out by using Discovery Studio 3.1 based on thermodynamic, constitutional,
and topological descriptors including ALogP (lipophilicity), EPFP_6 (fingerprint), number of hydrogen
donors and molecular fractional polar surface area (MFPSA) where pIC50 (−log IC50) is the dependent
variable. GFA equation represented the best equation generated by GFA analysis and it was further
evaluated with randomization test to ensure its reliability as presented in Table 5.
GFA equation:
pIC50 = 4.2787 − 0.12059 * Count (EPFP_6: −66437561) + 0.27918 * Count (EPFP_6:
−1317016190) + 0.29619 * Num_H_Donors − 1.3738 * Molecular_Fractional
Polar Surface Area − 0.67967 (3.324 − Alog P)
(1)
Parameter values generated: n = 57; r2 = 0.8639; r2 (adj) = 0.8432; r2 (pred) = 0.8152; q2 = 0.558;
RMS Residual Error = 0.07841; Friedman L.O.F. = 0.01223
where: n = number of compounds involve in analysis; r2 = coefficient of determination;
r2 (adj) = r2 adjusted = the number of terms in the model; r2 (pred) = prediction (PRESS) r2, and
equivalent to q2 from a leave-1-out cross-validation; q2 = cross-validation correlation coefficient;
RMS = root mean square residual error; Friedman L.O.F. = Friedman lack-of-fit score.
Table 5. Randomization test of genetic function approximation (GFA) equation.
Eq. No.
r2 from nonrandom model
Confidence level
(1)
0.8639
95%
19
90%
9
0
0.105
±0.070
98%
49
0
0.138
±0.131
Total trials
Nonrandom r2 < random r2
Mean value of r2 from random trials
Standard deviation
0
0.129
±0.121
Analysis based on this equation found the r2 value to be 0.8639 with low Friedman L.O.F value of
0.01223, thus indicating that the model is acceptable. The Friedman L.O.F value is a measurement that

Molecules 2014, 19
16067
estimates the most appropriate number of features, resists overfitting, and allows control over the
smoothness of fit. The lower the value of Friedman L.O.F, the less likely it is that the GFA model is
overfitting the data, thus the more reliable is the model. Further randomization test at 90%, 95%, and
98% confidence level were performed to confirm the equation’s reliability. The randomization was done
by repeatedly permuting the activity values of the training set to obtain subsequent GFA scores. If the
score of the original GFA model is better than those from the permuted data sets, the model is considered
statistically significant. All equations using the scrambled data notably displayed lower r2 values (Table 5)
compared to the non-random model, which increased the significance and confidence in the training
compounds and suggested that the descriptors used were highly selective.
As stated in the GFA equation, two important molecular fragments (as shown in Figure 3) were
determined by this model. Molecular fragment B (EPFP_6: −1317016190) is important for activity of
compounds while molecular fragment A (EPFP_6: −66437561) tend to reduce it.
Figure 3. Molecular fragments generated by GFA analysis.
(A)
(B)
The positive effects of fragment B may be explained by comparing the structures and bioactivities of
compounds 7–9, which indicated that a higher number of methoxyl groups in the ring increases the NO
suppression activity of the diarylpentenedione system. This trend is also observed for the Analogues 62,
63 and 64 where bioactivity for the 3,4,5-trimethoxylated compound 64 was the most active. The
significant role of fragment B was also revealed when by the bioactivities of Analogues 83 and 87 were
compared to those of 88 and 97. The ortho-dihydroxylated compounds 88 and 97 were seven- and
two-fold better inhibitors of NO production than their para-hydroxylated counterparts 87 and 83,
respectively, which indicated that the presence of the group was much more important than non-adjacent
dihydroxylated analogues.
The decrease in NO inhibition due to the presence of molecular fragment A may be represented
by the analogues containing a single methoxyl group, especially that with p-methoxylated phenyl ring.
This trend is clearly demonstrated by compounds 5–7, of which compound 7 with p-methoxy group in
ring-B exhibited the weakest activity. A similar trend is also detected in compounds 45–56, where the
NO inhibition of these p-methoxylated ring-A containing analogues are generally weaker.
The number of H-donors present in the molecule is also an important factor influencing the activity.
GFA analysis suggested that a higher number of H-donors present in the diarylpentenedione system
increases the bioactivity of the compounds. This correlation was clearly demonstrated by comparing the

Molecules 2014, 19
16068
bioactivities of Analogues 21, 86 and 88, which showed that the increase in the number of hydrogen
donors led to higher NO inhibition. The same trend was also shown by the analogue Series 1, 80 and 97.
Apart from number of H-donors, AlogP and MFPSA are two other important factors influencing
bioactivity of the analogues. AlogP represents lipophilicity of the respective compound while MFPSA
represents the fraction of polar surface to total areas. Based on the GFA equation (1), higher lipophilicity
and lower MFPSA are preferable for potency of the compounds. Thus, the analogues containing a
heterocyclic aromatic ring were found to gradually decrease in bioactivity due to their lower lipophilicity
and higher MFPSA characteristics. All of the calculated parameters are listed in Table 6.
Table 6. IC50, pIC50, ALogP, number of hydrogen donors and molecular fractional polar
surface area (MFPSA) values of selected active compounds.
Number of
Compounds
IC50
pIC50
ALogP
MFPSA
Hydrogen Donors
1
22.6 ± 0.5
27.3 ± 0.2
26.7 ± 0.7
29.4 ± 0.7
25.7 ± 0.6
31.6 ± 0.6
24.6 ± 0.7
16.6 ± 1.1
49.0 ± 1.0
28.4 ± 0.4
42.6 ± 0.1
36.4 ± 1.8
39.6 ± 4.1
23.0 ± 1.7
47.6 ± 1.1
30.0 ± 2.1
36.2 ± 0.9
36.0 ± 0.5
17.4 ± 0.4
13.6 ± 0.5
32.2 ± 0.2
25.3 ± 1.7
62.4 ± 2.3
25.5 ± 1.0
20.8 ± 0.5
19.8 ± 0.9
29.5 ± 0.5
58.5 ± 2.4
39.0 ± 1.2
45.8 ± 0.8
21.7 ± 0.5
29.3 ± 0.3
4.65
4.56
4.57
4.53
4.59
4.5
3.4
4.1
4.1
4.1
3.4
3.4
3.4
3.3
2.8
3.4
3.3
3.8
3.5
4.3
4.1
4.7
4.7
4.0
4.0
4.0
4.0
4.5
4.2
3.6
4.1
4.8
3.4
4.0
3.4
3.4
3.3
3.3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.3
0.2
0.3
0.3
0.3
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.3
0.3
0.3
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
2
3
4
5
6
8
4.61
4.78
4.31
4.55
4.37
4.44
4.4
9
12
14
16
17
18
19
21
22
23
24
25
28
35
36
37
38
41
43
45
46
48
49
51
52
4.64
4.32
4.52
4.44
4.44
4.76
4.87
4.49
4.6
4.2
4.59
4.68
4.7
4.53
4.23
4.41
4.34
4.66
4.53

Molecules 2014, 19
16069
Table 6. Cont.
Number of
Compounds
IC50
pIC50
ALogP
MFPSA
Hydrogen Donors
58
59
61
62
63
64
67
68
71
79
80
81
83
84
85
86
87
88
89
90
91
93
94
95
97
25.9 ± 0.3
35.7 ± 0.8
27.4 ± 0.2
35.1 ± 0.2
19.8 ± 0.4
18.4 ± 0.2
71.5 ± 2.5
33.4 ± 0.7
35.6 ± 0.6
28.9 ± 1.5
30.8 ± 0.7
19.1 ± 0.6
16.7 ± 0.6
15.9 ± 0.9
26.9 ± 0.8
18.7 ± 0.8
32.3 ± 0.9
4.9 ± 0.3
4.59
4.45
4.56
4.46
4.7
3.4
4.0
3.4
3.4
3.3
3.3
2.8
3.3
3.3
3.1
3.1
3.1
2.9
3.8
3.8
3.8
3.6
3.6
2.9
2.9
2.5
3.1
2.9
3.1
2.9
2
2
2
2
2
2
2
2
2
3
3
3
4
3
3
3
4
4
4
4
3
3
4
3
4
0.2
0.2
0.2
0.2
0.2
0.2
0.3
0.2
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.4
0.3
4.74
4.15
4.48
4.45
4.54
4.51
4.72
4.78
4.8
4.57
4.73
4.49
5.31
4.51
4.45
4.13
4.52
4.61
4.35
5.02
35.7 ± 0.9
31.0 ± 2.0
75.0 ± 4.9
29.9 ± 0.4
24.8 ± 0.4
44.8 ± 1.6
9.6 ± 0.5
2.3.2. 3D-QSAR
Comparative molecular field analysis (CoMFA) was employed to investigate the correlation between
NO suppression activity of the diarylpentenedione analogues to their 3D structures, as well as to their
electrostatic and steric grid map. Based on their pIC50 values, fifty-seven of the analogues were selected
as model data set. Structural alignment is critical in determining the accuracy of results and reliability in
CoMFA analysis so that the best compound could be selected as template molecule. Compound 88 was
chosen due to its highest potency in inhibiting NO production. The alignment of the selected analogues
at the common α,β-unsaturated β-diketone fragment with compound 88 is shown in Figure 4.
CoMFA analysis is considered valid if and only if the r2 and q2 values are greater than 0.8 and 0.5,
respectively. The r2 and q2 values of our CoMFA model were found to be 0.981 and 0.562, respectively,
which implied that the generated correlations were acceptable. A plot depicting the experimental versus
predicted pIC50 values for training and test set compounds are shown in Figure 5. The CoMFA contour
maps generated were presented together with the most potent compound (88) in Figure 6A,B
representing the van der Waals and electrostatic contour maps, respectively.

Molecules 2014, 19
16070
Figure 4. Structural alignment of the derivatives by template-based method according to the
core of compound 88.
Figure 5. The experimental pIC50 versus predicted activity plot of training set and test
set compounds.
5.6
5.4
y = 0.9913x + 0.0409
R² = 0.9811
5.2
5
4.8
Training set
4.6
4.4
4.2
4
Test set
4
4.5
5
5.5
Experimental pIC50
The yellow regions in Figure 6A indicate where a sterically bulkier moiety is unfavorable while the
green regions indicate where a sterically bulkier moiety is preferable in enhancing the bioactivity. For
the electrostatic contour maps, the red regions represent the space where a hydrogen acceptor is preferable,
while the blue regions represent the space where a hydrogen donor is preferable in improving potency.
Based on the contour map in Figure 6A, bulkier groups were more preferred at the C-2' and C-5'
position of ring-A while they were undesirable at the para position of ring-A. This explaines why
compound 88, possessing these features, is a potent NO inhibitor while the m-methoxylated ring-A
analogues are relatively poor NO inhibitors. These 3D-QSAR predictions further support the conclusion
that the presence of p-methoxylation of the phenyl ring will lead to a reduction of potency. On the other
hand, bulkier moieties are more favorable at the meta- and para-positions of ring-B which explaines the
higher bioactivity exhibited by compound 9 in comparison with compounds 7 and 8. Interestingly, the
yellow regions are also observed at the meta- and para-positions of ring-B, which seems to contradict

Molecules 2014, 19
16071
our real experimental results where demethylation of the methoxyl groups leads to enhancement of
potency (84 and 86 vs. 24 and 26). As we have mentioned in the earlier section, this phenomenon could
be rationalized by the increase in hydrogen bonding capacity after converting the methoxyl groups to
hydroxyl. A hydroxyl group can act as both hydrogen bond donor and acceptor while a methoxyl group
can only act as hydrogen bond acceptor.
Figure 6. (A) Van der Waals contour maps generated by 3D-Quantitative structure activity
relationship (QSAR) modeling. Green contours indicate the regions where bulky groups are
favorable in enhancing activity, whereas yellow contours indicate regions where bulky
groups are disfavorable and reduce activity. (B) Electrostatic contour maps generated by
3D-QSAR modeling. Blue contours indicate regions where electronegative groups are
favorable in increasing activity, whereas red contours indicate regions where electropositive
groups are favorable in improving activity. The most potent candidate, compound 88 was
chosen as reference molecule.
(A)
(B)
The electrostatic contour maps (Figure 6B) shows that H-donors are preferable on both the phenyl
rings. Therefore, presence of multiple hydrogen donors is important in preparing more bioactive
molecules. This observation is in agreement with the 2D-QSAR results, which indicates that the number
of hydrogen donors is directly proportional to the potency of compounds. Comparison of the bioactivities
of compounds 21, 86 and 88 revealed the importance of H-donor in bioactivity enhancement. Conversely,
multiple hydrogen acceptors are only preferable at meta- and para-positions of ring-B. Thus, analogues
with o,m-methoxylatedor, o,para-methoxylated ring-B (68 and 69) gave low NO inhibition, while those
with m, p-methoxylated ring-B (63 and 64) showed stronger NO inhibition.
2.4. Pharmacophore Mapping
Pharmacophore mapping is an abstract concept to illustrate common interaction patterns of a series
of active ligands with a biological receptor. It can also be defined as the common features which are
responsible for pharmacological activities or chemical reactivity, possessed by a series of bioactive
compounds [33]. Pharmacophore mapping has been widely used in drug discovery programs due to its
ability to provide important information in designing highly active lead compounds. Recent studies have
integrated pharmacophore structures with molecular docking, which further strengthen the hypothesis

Molecules 2014, 19
16072
on the pharmacophore [34,35]. Another study by Dong and coworkers has proven the rationale and
feasibility of pharmacophore utilization in drug development [36].
In the present study, pharmacophore mapping was performed using Discovery Studio 3.1, based on
selected chemical features, such as hydrophobicity (HYP), hydrophobic aromatic ring (HA), hydrogen
bond acceptor (HBA), and hydrogen bond donor (HBD), based on NO suppression activities and
common features of ten selected analogues (9, 12, 28, 37, 46, 67, 84, 88, 91 and 97). The pharmacophore
map generated from this exercise is shown in Figure 7, where cyan, blue, and red represent aromatic
hydrophobic, hydrophobic, and hydrogen-bond donor regions, respectively. As shown in Figure 7,
important features of the diarylpentanoids, which were responsible for bioactivity, included the
hydrogen-bond donor at meta- and para-positions of ring-B and ortho position of ring-A, the
hydrophobic region at 5'-position of ring-A and the aromatic hydrophobic regions on both phenyl rings.
Figure 7. Pharmacophore mapping of compound 88. Features are color-coded as follows:
hydrophobic aromatic (HA), blue; hydrophobic (HYP), cyan; hydrogen-bond donor
(HBD), pink.
2.5. ADMET Analysis
ADMET analysis refers to the absorption, distribution, metabolism, excretion, and toxicity prediction
of a molecule within an organism based on its molecular structure. It is one of the crucial steps in
computer-aided drug design (CADD) due to its ability to filter out low bioavailability and toxic
candidates, thus improving the efficiency and reduce the cost of research and development.
ADMET analysis was performed using Discovery Studio 3.1, based on aqueous solubility (AS),
human intestinal absorption (HIA), blood brain barrier (BBB), cytochrome P450 2D6 (CYP2D6),
plasma protein binding (PPB), and hepatotoxicity (HT) descriptors of ten selected compounds.
A summary of the results from this experiment is presented in Table 7.
The poor bioavailability of oral drugs is related to their low solubility and low permeability.
Therefore, sufficient levels of aqueous solubility and human intestinal absorption are important in
improving drug delivery in the human body. From the data presented in this analysis, the Analogues 9,
64, 81, 83, 84, 86, 88 and 97 showed good aqueous solubility and intestinal absorption, indicating that
they could be good candidates for oral drugs. Meanwhile, despite offering good human intestinal
absorption property, the Analogues 25 and 28 have low aqueous solubility.

Molecules 2014, 19
16073
Table 7. Results of absorption, distribution, metabolism, excretion, and toxicity (ADMET)
predictions on six important parameters.
Compounds
AS
HIA
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
BBB
Medium
High
CYP2D6
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
Non-inhibit
PPB
HT
9
Good
Low
Bound
Bound
Bound
Bound
Bound
Bound
Bound
Bound
Bound
Bound
Hepatotoxin
Hepatotoxin
Hepatotoxin
Hepatotoxin
Non-hepatotoxin
Hepatotoxin
Hepatotoxin
Hepatotoxin
Hepatotoxin
Non-hepatotoxin
25
28
64
81
83
84
86
88
97
Low
Medium
Low
Good
Good
Good
Good
Good
Good
Good
Low
Low
Medium
Medium
Undefined
Low
Notes: AS = Aqueous Solubility; HIA = Human Intestinal Absorption; BBB = Blood Brain Barrier;
CYP2D6 = cytochrome P450 2D6; PPB = Plasma Protein Binding; HT = Hepatotoxicity.
The blood brain barrier (BBB) descriptor relates to the ability of a compound to cross the blood brain
barrier. High BBB penetration is a much sought-after property for central nervous system (CNS) targeted
drugs, but for CNS unrelated diseases, it is undesirable. Therefore, the BBB descriptor can acts as a filter
to improve efficiency of drug developments for CNS related diseases. As shown in Table 7, the
Analogues 9, 25, 28, 84 and 86 could be potential candidates for use against CNS inflammatory disorders
due to their moderate to high BBB penetration, while 64, 81, 83, 88 and 97 could be more suitable for
CNS unrelated diseases due to their low BBB penetration.
Cytochrome P450 2D6 (CYP2D6) encompasses a class of enzymes, which catalyze the oxidative
metabolism of drugs in the liver. It can either metabolize a drug from its active form into its inactive
metabolites or convert an inactive drug into its active metabolites. Therefore, CYP2D6 inhibitory factors
should be considered in reducing toxicity caused by the inactive metabolites for the former case but it
should be avoided to preserve drug efficiency for the latter. The ADMET analysis conducted on our
diarylpentenedione analogues indicates that all the selected compounds are non-CYP2D6 inhibitors on
account of their inactive behavior towards CYP2D6. On the other hand, plasma protein binding is an
important factor that determines the drug efficiency since only the unbound fraction is responsible for
pharmacological effects. As presented in Table 7, all selected compounds were expected to be highly
bound to protein plasma, thus implying that a high dosage might be required to achieve therapeutic
concentration in treatments.
Lastly, the hepatotoxicity descriptor was used to predict potential organ toxicity caused by the
compounds. As displayed in Table 7, only two compounds (81 and 97) were non-hepatotoxic while the
rest were calculated as hepatotoxin. On account of these, more studies must be carried out to investigate
the hepatotoxic effect of the Analogues 9, 25, 28, 64, 83, 84, 86 and 88 in addition to their optimal
therapeutic dosage.
2.6. TOPKAT Analysis
Toxicity Prediction by Komputer Assisted Technology (TOPKAT) is a common method used to
predict the ecotoxicity, toxicity, mutagenicity, and reproductive or developmental toxicity of selected

Molecules 2014, 19
16074
candidates. At the early research stage, the utilization of TOPKAT predictions may be useful in
prioritizing promising compounds for further development and investigation. Besides, it can also act as
a factor to accelerate optimization of lead compounds in terms of their therapeutic ratios in both animal
and human models.
In this study, the ten selected analogues from ADMET analysis were further screened for toxicity
prediction including aerobic biodegradability, mutagenicity, rodent carcinogenicity, ocular irritancy,
skin irritancy, and skin sensitization parameters. From the results, it may be generalized that all
compounds were non-mutagenic, non-carcinogen and non-skin irritant. Analogues 9 and 64 were
predicted as biodegradable while 28, 84, 86 and 88 were found to be ocular irritants. Compound 84 is
the only candidate expected to be a non-skin sensitizer. Integration of both ADMET and TOPKAT
analyses revealed that the Analogues 81 and 97 could be good candidates for further investigation based
on their low toxicity and good aqueous solubility and intestinal absorption. Of the two, 97 appeared to
be the most potent candidate as it exhibited two-fold better properties than 81. However, extensive
toxicity studies should be carried out on 88 since it exhibited the strongest activity among the
diarylpentenedione analogues. The results from this prediction exercise are presented in Table 8.
Table 8. Results of toxicity predictive test on six important parameters.
Compounds
AB
AM
RC
OI
SI
SS
9
Biodegradable
Non-mutagen Non-carcinogen Non-irritant Non-irritant
Sensitizer
Sensitizer
Sensitizer
Sensitizer
Sensitizer
Sensitizer
25
28
64
81
83
84
86
88
97
Non-biodegradable Non-mutagen Non-carcinogen Non-irritant Non-irritant
Non-biodegradable Non-mutagen Non-carcinogen Irritant Non-irritant
Biodegradable Non-mutagen Non-carcinogen Non-irritant Non-irritant
Non-biodegradable Non-mutagen Non-carcinogen Non-irritant Non-irritant
Non-biodegradable Non-mutagen Non-carcinogen Non-irritant Non-irritant
Non-biodegradable Non-mutagen Non-carcinogen
Non-biodegradable Non-mutagen Non-carcinogen
Non-biodegradable Non-mutagen Non-carcinogen
Irritant
Irritant
Irritant
Non-irritant Non-sensitizer
Non-irritant
Non-irritant
Sensitizer
Sensitizer
Sensitizer
Non-biodegradable Non-mutagen Non-carcinogen Non-irritant Non-irritant
Notes: AB = Aerobic biodegradability; AM = Ames mutagenicity; RC = Rodent carcinogenicity; OI = Ocular
irritancy; SI = Skin irritancy; SS = Skin sensitization.
2.7. Chemical Stability Test
Poor chemical stability of curcumin has been proven as one of the important factors, which cause its
low bioavailability. Therefore, in the present study, we further tested the two best compounds
(88 and 97) for their chemical stability at physiological pH and compared it to that of curcumin used as
reference. The test was carried out by observing the ultraviolet spectral changes of the targeted
compounds for 30 minutes with 5-minutes intervals in phosphate buffer (pH 7.4). Figures 8–10 depict
the ultraviolet changes of curcumin, compound 88 and compound 97, respectively. As shown in Figure 8,
the maximal absorption peaks of curcumin gradually decreased over time. However, no significant
changes were observed in the case of two best compounds, which indicated that our targeted compounds
were chemically more stable than curcumin in vitro.

Molecules 2014, 19
16075
Figure 8. Ultraviolet-visible absorption spectra of curcumin.
Figure 9. Ultraviolet-visible absorption spectra of compound 88.
Figure 10. Ultraviolet-visible absorption spectra of compound 97.
3. Experimental Section
3.1. Chemistry
All chemicals and reagents were purchased from Sigma-Aldrich and Merck. All solvents were dried
and distilled before use. Reaction mixtures were extracted with organic solvents and dried over

Molecules 2014, 19
16076
anhydrous magnesium sulfate followed by solvent evaporation with a rotary evaporator under reduced
pressure. Analytical thin-layer chromatography (TLC) was routinely performed on 0.20 mm Merck
silica gel 60 F254 TLC plate in every reaction step. Purification procedures were conducted using open
column chromatography on Merck silica gel 60 (mesh 70–230). Melting points were determined using
Fisher-Johns melting point apparatus and were uncorrected. Mass spectra were measured on a gas
chromatography-mass spectrometry (GCMS)-QP5050A (Shimadzu, Kyoto, Japan) Mass Spectrometer.
High-resolution electron ionization-mass spectrometry (HREI-MS) was determined using a DFS high
resolution GC/MS (Thermo Scientific, San Jose, CA, USA). Nuclear Magnetic Resonance (NMR)
spectra were recorded on a Varian 500 MHz NMR Spectrometer. For the bioassay, the purity of
compounds was routinely checked based on a ThermoFinnigan Surveyor HPLC, utilizing Waters
Xbridge C18 column (5 µm, 150 mm × 4.6 mm).
3.2. General Procedure for the Synthesis of I
A mixture of benzaldehyde (30 mmol), malonic acid (120 mmol), and piperidine (2 mL) in pyridine
was refluxed in a 250 mL single neck round bottomed flask (SNRB) for 6 h. Upon completion, the
reaction mixture was poured into a 1 L Erlenmeyer flask (EF) containing cold, dilute HCl (200 mL) and
stirred for 10 min. The resulting precipitate was filtered and washed with cold water to afford I.
3.3. General Procedure for the Synthesis of II
Phosphoryl chloride (POCl3; 20 mmol) was added slowly to a 100 mL SNRB flask containing a
mixture of I (5.5 mmol) and the appropriate 2'-hydroxyacetophenone (5 mmol) in pyridine (30 mL).
The flask was placed in an ice bath and the reaction mixture was left overnight, with constant stirring at
room temperature. The reaction mixture was then poured into 100 mL cold, dilute HCl in a 250 mL EF,
followed by extraction with ethyl acetate (EA). The organic layer was dried over anhydrous
magnesium sulfate and concentrated in vacuo. The crude product obtained was further purified by open
column chromatography.
3.4. General Procedure for the Synthesis of III
Ground potassium hydroxide pellets (20 mmol) were added to a 100 mL SNRB flask containing a
solution of II (4 mmol) in 30 mL pyridine. The reaction mixture was left overnight with constant stirring
at room temperature. Upon completion, the reaction mixture was poured into 150 mL cold, diluted HCl
in a 250 mL EF and stirred for 10 min. The solution was extracted with EA and dried over anhydrous
magnesium sulfate, followed by solvent removal with rotatory evaporator under vacuo. The resulting
crude product was further purified by open column chromatography.
3.5. General Procedure for Synthesis of IV
Boron tribromide (BBr3; 1.5 mL) was added to a 100 mL SNRB flask containing a solution of
the methoxylated diarylpentanoid (0.3 mmol) in dry dichloromethane (30 mL) at 0 °C. The reaction
mixture was stirred for 8 h at room temperature and then poured into 150 mL of cold water contained in
a 250 mL EF. The solution was then extracted with EA and dried over anhydrous magnesium sulfate.

Molecules 2014, 19
16077
The resulting organic layer was taken to dryness by rotary evaporation in vacuo and the product was
further purified through open column chromatography.
3.6. Cell Culture
RAW 264.7 murine macrophages cells obtained from American Type Culture Collection (ATCC,
Rockville, MD, USA) were grown in Dulbecco’s Modified Eagle’s Medium (DMEM) containing 10%
fetal bovine serum (FBS) and 1% penicillin/streptomycin in a 95% air and 5% CO2 atmosphere at 37 °C.
3.7. Nitrite Determination
RAW 264.7 cells at 90%–95% confluency were detached and seeded (50,000 cells/well) into a
96-well culture plate with 50 μL of DMEM and incubated for 24 h. The cells were then stimulated in
5 mg/mL of LPS (Escherichia coli, serotype 0111:B4) and 1 ng/ml of interferon-gamma (IFN-γ) in the
presence or absence of test compounds for 17 h. Nitrite concentration was then determined by Griess
assay by reacting 50 μL of cell culture supernatant with 50 μL of Griess reagent (1% sulfanilamide and
0.1% N-(1-naphthyl)ethylenediamine dihydrochloride in 2.5% phosphoric acid) at room temperature.
The optical density was measured at 550 nm after 5 min of incubation at room temperature with a
microplate reader.
3.8. Cell Cytotoxicity Determination (MTT Assay)
Supernatant in each well was removed followed by addition of 100 µL DMEM. Subsequently,
20 µL of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT, 5 mg/mL) was then
added and the plate was incubated in a 95% air and 5% CO2 atmosphere at 37 °C for 4 h. The mixture
of culture media and MTT in all wells were removed and the purplish formazan crystals formed were
dissolved in dimethyl sulfoxide (DMSO) and further incubated for 15 min at room temperature. The
color intensity was then measured at 570 nm at room temperature.
3.9. 2D-QSAR
The genetic function approximation (GFA) technique was employed in 2D-QSAR analysis to study
the correlation between structural features and their biological activities based on experimental pIC50
(−log IC50). Descriptors including the ALogP, number of the hydrogen bond donor, fingerprint EPFP_6,
and molecular fractional polar surface area were used as the structural features. The equation generated
was subjected to a randomization test if and only if its correlation coefficient, r2 was greater than eight
and its cross-validation, q2, was greater than 0.5.
3.10. 3D-QSAR
Comparative molecular field analysis (CoMFA) was carried out to study the correlation between
bioactive compounds and their 3D mapping, the electrostatic and van der Waals interactions. A total of
fifty-seven compounds were selected and aligned at their common feature, the pentenedione fragment
with compound 88 as template molecule. Then, the training set (42 compounds) and test set
(15 compounds) were randomly generated after the minimization of ligands through a CHARMm force

Molecules 2014, 19
16078
field. The electrostatic and van der Waals grid maps were created in a CHARMm force field with 2.0
grid spacing and five-fold cross validation.
3.11. Pharmacophore Mapping
Pharmacophore mapping was generated based on the activity of compounds and their common
features through Discovery Studio 3.1. Five active and five inactive compounds were selected to inspect
the validity of generated pharmacophore mapping.
3.12. ADMET and TOPKAT Analysis
The ten best compounds were selected for Discovery Studio 3.1 ADMET and TOPKAT analyses
based on their pIC50. The ADMET analysis performed was on the aqueous solubility (AS), human
intestinal absorption (HIA), blood brain barrier (BBB), cytochrome P450 2D6 (CYP2D6), plasma
protein binding (PPB), and hepatotoxicity (HT) descriptors. Toxicity prediction was performed using
TOPKAT analysis on the aspects of aerobic biodegradability, mutagenicity, rodent carcinogenicity,
ocular irritancy, skin irritancy, and skin sensitization descriptors.
3.13. Chemical Stability Test
Absorbance readings were taken from 300–600 nm using a SpectraMax Plus 384 (Molecular Devices
LLC, Sunnyvale, CA, USA). A stock solution of 50 mM curcumin or active compounds 88 and 97 were
prepared and diluted by phosphate buffer (pH 7.4), containing 1% dimethyl sulfoxide (DMSO), to a final
concentration of 20 μM. The ultraviolet absorption spectra were collected for over 30 min at 5-min
intervals at 25 °C. All spectral measurements were carried out in a 1 cm path-length quartz cuvette.
4. Conclusions
In summary, most of the synthesized diarylpentenedione analogues were active in inhibiting NO
production in IFN-γ/LPS-stimulated RAW 264.7 macrophages. This result supports our hypothesis that
the diarylpentanoid structure with preserved ethylene and β-diketone moieties is an important lead
template and should be investigated further towards finding new anti-inflammatory agents. The
Analogues 88 and 97 with IC50 values of 4.9 and 9.6 µM, respectively, are the candidates with the most
potential as they possess the highest activity and excellent chemical stability. The combination of
computational exercises such as 2D-QSAR, 3D-QSAR, and pharmacophore mapping has provided
better insights into the structure-activity relationship of the diarylpentenedione system. Further
computational analysis such as ADMET and TOPKAT analyses also provided us with important
information about drug efficiency and possible toxicity of the compounds. Phenolic diarylpentenediones
are recommended for further investigation, while the presence of a 3,4-dihydroxyl moiety is suggested
to be the most important functional group contributing to NO inhibition.
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/19/10/16058/s1.

Molecules 2014, 19
16079
Acknowledgments
The authors thank the Ministry of Education (MOE) of Malaysia and Universiti Putra Malaysia for
financial support under the project ERGS/1/11/STG/UPM/01/24. NHL also thanks the Scientific Chair
Unit, Taibah University for its support. The first author acknowledges the support from the Malaysian
Ministry of Science, Technology and Innovation (MOSTI) for a scholarship under the National Science
Foundation (NSF).
Author Contributions
N.H.L. and F.A. designed research; S.W.L., M.F.F.M.A, K.R. and S.M.M.F. performed research and
analysed data; C.L.T., S.A. and M.N.A.B. contributed ideas/bioassay; S.W.L., F.A., N.H.L., K.S. and
L.K.W. wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Masuda, T.; Jitoe, A.; Isobe, J.; Nakatani, N.; Yonemoria, S. Anti-oxidative and anti-inflammatory
curcumin-related phenolics from rhizomes of Curcuma domestica. Phytochemistry 1993, 32,
1157–1160.
2. Lee, K.H.; Ab Aziz, F.H.; Syahida, A.; Abas, F.; Shaari, K.; Israf, D.A.; Lajis, N.H. Synthesis and
biological evaluation of curcumin-like diarylpentanoid analogues for anti-inflammatory, antioxidant
and anti-tyrosinase activities. Eur. J. Med. Chem. 2009, 44, 3195–3200.
3. Lam, K.W.; Tham, C.L.; Liew, C.Y.; Syahida, A.; Rahman, M.B.A.; Israf, D.A.; Lajis, N.H. Synthesis
and evaluation of DPPH and anti-inflammatory activities of 2,6-bisbenzylidenecyclohexanone and
pyrazoline derivatives. Med. Chem. Res. 2012, 21, 333–344.
4. Tham, C.L.; Liew, C.Y.; Lam, K.W.; Mohamad, A.S.; Kim, M.K.; Cheah, Y.K.; Zakaria, Z.A.;
Sulaiman, M.R.; Lajis, N.H.; Israf, D. A synthetic curcuminoid derivative inhibits nitric oxide and
proinflammatory cytokine synthesis. Eur. J. Pharmacol. 2010, 628, 247–254.
5. Tham, C.L.; Lam, K.W.; Rajajendram, R.; Cheah, Y.K.; Sulaiman, M.R.; Lajis, N.H.; Kim, M.K.;
Israf, D.A. The effects of a synthetic curcuminoid analogue, 2,6-bis-(4-hydroxyl-3-
methoxybenzylidine)cyclohexanone on proinflammatory signaling pathways and CLP-induced
lethal sepsis in mice. Eur. J. Pharmacol. 2011, 652, 136–144.
6. Ming-Tatt, L.; Khalivulla, S.I.; Akhtar, M.N.; Mohamad, A.S.; Perimal, E.K.; Khalid, M.H.;
Akira, A.; Lajis, N.; Israf, D.A.; Sulaiman, M.R. Antinociceptive activity of a synthetic curcuminoid
analogue, 2,6-bis-(4-hydroxy-3-methoxybenzylidene)cyclohexanone, on nociception-induced models
in mice. Basic Clin. Pharmacol. Toxicol. 2012, 110, 275–282.
7. Katsori, A.M.; Chatzopoulou, M.; Dimas, K.; Kontogiorgis, C.; Patsilinakos, A.; Trangas, T.;
Hadjipavlou-Litina, D. Curcumin analogues as possible anti-proliferative & anti-inflammatory
agents. Eur. J. Med. Chem. 2011, 46, 2722–2735.

Molecules 2014, 19
16080
8. Adams, B.K.; Ferstl, E.M.; Davis, M.C.; Herold, M.; Kurtkaya, S.; Camalier, R.F.; Hollingshead, M.G.;
Kaur, G.; Sausville, E.A.; Rickles, F.R.; et al. Synthesis and biological evaluation of novel curcumin
analogs as anti-cancer and anti-angiogenesis agents. Bioorg. Med. Chem. 2004, 12, 3871–3883.
9. Hosoya, T.; Nakata, A.; Yamasaki, F.; Abas, F.; Shaari, K.; Lajis, N.H.; Morita, H. Curcumin-like
diarylpentanoid analogues as melanogenesis inhibitors. J. Nat. Med. 2012, 66, 166–176.
10. Lee, K.H.; Abas, F.; Alitheen, N.B.; Shaari, K.; Lajis, N.H.; Ahmad, S. A curcumin derivative,
2,6-bis(2,5-dimethoxybenzylidene)-cyclohexanone (BDMC33) attenuates prostaglandin E2 synthesis
via selective suppression of cyclooxygenase-2 in IFN-gamma/LPS-stimulated macrophages.
Molecules 2011, 16, 9728–9738.
11. Lee, Y.Z.; Ming-Tatt, L.; Lajis, N.H.; Sulaiman, M.R.; Israf, D.A.; Tham, C.L. Development and
validation of
a
bioanalytical method for quantification of 2,6-bis-(4-hydroxy-3-
methoxybenzylidene)-cyclohexanone (BHMC) in rat plasma. Molecules 2012, 17, 14555–14564.
12. Korhonen, R.; Lahti, A.; Kankaanranta, H.; Moilanen, E. Nitric oxide production and signaling in
inflammation. Curr. Drug Targets Inflamm. Allergy 2005, 4, 471–479.
13. Scheller, J.; Chalaris, A.; Schmidt-Arras, D.; Rose-John, S. The pro- and anti-inflammatory
properties of the cytokine interleukin-6. Biochim. Biophys. Acta 2011, 1813, 878–888.
14. Miller, S.B. Prostaglandins in health and disease: An overview. Semin. Arthritis Rheum. 2006, 36,
37–49.
15. Rouhani, F.N.; Meitin, C.A.; Kaler, M.; Miskinis-Hilligoss, D.; Stylianou, M.; Levine, S.J.
Effect of tumor necrosis factor antagonism on allergen-mediated asthmatic airway inflammation.
Respir. Med. 2005, 99, 1175–1182.
16. Galley, H.F.; Webster, N.R. The immuno-inflammatory cascade. Br. J. Anaesth. 1996, 77, 11–16.
17. Birkedal-Hansen, H. Role of cytokines and inflammatory mediators in tissue destruction.
J. Periodontal Res. 1993, 28, 500–510.
18. Ridnour, L.A.; Thomas, D.D.; Switzer, C.; Flores-Santana, W.; Isenberg, J.S.; Ambs, S.;
Roberts, D.D.; Wink, D.A. Molecular mechanisms for discrete nitric oxide levels in cancer.
Nitric Oxide 2008, 19, 73–76.
19. Naseem, K.M. The role of nitric oxide in cardiovascular diseases. Mol. Asp. Med. 2005, 26, 33–65.
20. Fitzpatrick, A.M.; Brown, L.A.; Holguin, F.; Teague, W.G. Levels of nitric oxide oxidation
products are increased in the epithelial lining fluid of children with persistent asthma. J. Allergy
Clin. Immun. 2009, 124, 990–996.
21. Hensley, K.; Tabatabaie, T.; Stewart, C.A.; Pye, Q.; Floyd, R.A. Nitric oxide and derived species as
toxic agents in stroke, AIDS dementia, and chronic neurodegenerative disorders. Chem. Res. Toxicol.
1997, 10, 527–532.
22. Sellebjerg, F.; Giovannoni, G.; Hand, A.; Madsen, H.O.; Jensen, C.V.; Garred, P. Cerebrospinal
fluid levels of nitric oxide metabolites predict response to methylprednisolone treatment in multiple
sclerosis and optic neuritis. J. Neuroimmunol. 2002, 125, 198–203.
23. Marnett, L.J. Inflammation and cancer: Chemical approaches to mechanisms, imaging and treatment.
J. Org. Chem. 2012, 77, 5224–5238.
24. Simpson, C.J.; Fitzhenry, M.J.; Stamford, N.P.J. Preparation of vinylphenols from 2- and
4-hydroxybenzaldehydes. Tetrahedron Lett. 2005, 46, 6893–6896.

Molecules 2014, 19
16081
25. Gomes, A.; Neuwirth, O.; Freitas, M.; Couto, D.; Ribeiro, D.; Figueiredo, A.G.; Silva, A.M.;
Seixas, R.S.; Pinto, D.C.; Tome, A.C.; et al. Synthesis and antioxidant properties of new chromone
derivatives. Bioorg. Med. Chem. 2009, 17, 7218–7226.
26. Khatib, S.; Nerya, O.; Musa, R.; Shmuel, M.; Tamir, S.; Vaya, J. Chalcones as potent tyrosinase
inhibitors: The importance of a 2,4-substituted resorcinol moiety. Bioorg. Med. Chem. 2005, 13,
433–441.
27. Wu, J.H.; Tung, Y.T.; Chien, S.C.; Wang, S.Y.; Kuo, Y.H.; Shyur, L.F.; Chang, S.T. Effect of
phytocompounds from the heartwood of Acacia confusa on inflammatory mediator production.
J. Agric. Food Chem. 2008, 56, 1567–1573.
28. Li, J.; Liao, C.R.; Wei, J.Q.; Chen, L.X.; Zhao, F.; Qiu, F. Diarylheptanoids from Curcuma
kwangsiensis and their inhibitory activity on nitric oxide production in lipopolysaccharide-activated
macrophages. Bioorg. Med. Chem. Lett. 2011, 21, 5363–5369.
29. Shin, S.Y.; Shin, M.C.; Shin, J.S.; Lee, K.T.; Lee, Y.S. Synthesis of aurones and their inhibitory
effects on nitric oxide and PGE2 productions in LPS-induced RAW 264.7 cells. Bioorg. Med.
Chem. Lett. 2011, 21, 4520–4523.
30. Wang, L.; Tu, Y.C.; Lian, T.W.; Hung, J.T.; Yen, J.H.; Wu, M.J. Distinctive antioxidant and
antiinflammatory effects of flavonols. J. Agric. Food Chem. 2006, 54, 9798–9804.
31. Chiang, Y.M.; Lo, C.P.; Chen, Y.P.; Wang, S.Y.; Yang, N.S.; Kuo, Y.H.; Shyur, L.F. Ethyl caffeate
suppresses NF-kappaB activation and its downstream inflammatory mediators, iNOS, COX-2 and
PGE2 in vitro or in mouse skin. Br. J. Pharmacol. 2005, 146, 352–363.
32. Sivakumar, P.M.; Geetha Babu, S.K.; Mukesh, D. QSAR studies on chalcones and flavonoids as
anti-tuberculosis agents using genetic function approximation (GFA) method. Chem. Pharm. Bull.
2007, 55, 44–49.
33. Wallach, I. Pharmacophore inference and its application to computational drug discovery.
Drug Dev. Res. 2011, 72, 17–25.
34. Zhu, Y.; Li, H.F.; Lu, S.; Zheng, Y.X.; Wu, Z.; Tang, W.F.; Zhou, X.; Lu, T. Investigation on the
isoform selectivity of histone deacetylase inhibitors using chemical feature based pharmacophore
and docking approaches. Eur. J. Med. Chem. 2010, 45, 1777–1791.
35. Vyas, V.K.; Ghate, M.; Goel, A. Pharmacophore modeling, virtual screening, docking and in silico
ADMET analysis of protein kinase B (PKB beta) inhibitors. J. Mol. Graph. Model. 2013, 42, 17–25.
36. Dong, X.; Zhou, X.; Jing, H.; Chen, J.; Liu, T.; Yang, B.; He, Q.; Hu, Y. Pharmacophore
identification, virtual screening and biological evaluation of prenylated flavonoids derivatives as
PKB/Akt1 inhibitors. Eur. J. Med. Chem. 2011, 46, 5949–5458.
Sample Availability: Samples of the compounds are available from the authors.
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
