Reaction of vinyl chloride with group 4 metal olefin polymerization catalysts

Article abstract of DOI:10.1021/ja028530d

The reactions of three types of group 4 metal olefin polymerization catalysts, (C₅R₅)₂ZrX₂/activator, (C₅Me₅)TiX₃/MAO (MAO = methylalumoxane), and (C₅Me₄SiMe₂N^tBu) MX₂/activator (M = Ti, Zr), with vinyl chloride (VC) and VC/propylene mixtures have been investigated. Two general pathways are observed: (i) radical polymerization of VC initiated by radicals derived from the catalyst and (ii) net 1,2 VC insertion into L_nMR⁺ species followed by β-Cl elimination, rac-(EBI)ZrMe(μ-Me)B(C₆F₅)₃. (EBI = 1,2-ethylenebis-(indenyl)) reacts with 2 equiv of VC to yield oligopropylene, rac-(EBI)ZrCl₂, and B(C₆F₅)₃. This reaction proceeds by net 1,2 VC insertion into rac-(EBI)ZrMe⁺ followed by fast β-Cl elimination to yield [rac-(EBI)- ZrCl][MeB(C₆F₅)₃] and propylene. Methylation of rac-(EBI)ZrCl⁺ by MeB(C₆F₅)₃- enables a second VC insertion/β-Cl elimination to occur. The evolved propylene is oligomerized by rac-(EBI)ZrR⁺ as it is formed. At high Al/Zr ratios, rac-(EBI)ZrMe₂/MAO catalytically converts VC to oligopropylene by 1,2 VC insertion into rac-(EBI)ZrMe⁺, β-Cl elimination, and realkylation of rac-(EBI)ZrCl⁺ by MAO; this process is stoichiometric in Al-Me groups. The evolved propylene is oligomerized by rac-(EBI)ZrR⁺. Oligopropylene end group analysis shows that the predominant chain transfer mechanism is VC insertion/β-Cl elimination/realkylation. In the presence of trace levels of O₂, rac-(EBI)ZrMe₂/MAO polymerizes VC to poly(vinyl chloride) (PVC) by a radical mechanism initiated by radicals generated by autoxidation of Zr-R and/or Al-R species. Cp*TiX₃/MAO (Cp* = C₅Me₅; X = OMe, Cl) initiates radical polymerization of VC in CH₂Cl₂ solvent at low Al/Ti ratios under anaerobic conditions; in this case, the source of initiating radicals is unknown. Radical VC polymerization can be identified by the presence of terminal and internal allylic chloride units and other radical defects in the PVC which arise from the characteristic chemistry of PCH₂CHCl^? macroradicals. However, this test must be used with caution, since the defect units can be consumed by postpolymerization reactions with MAO. (C₅Me₄SiMe₂N^tBu) MMe₂/[Ph₃C]][B(C₆F₅)₄] catalysts (M = Ti, Zr) react with VC by net 1,2 insertion/β-Cl elimination, yielding [(C₅Me₄SiMe₂N^tBu) MCl][B(C₆F₅)₄] species which can be trapped as (C₅Me₄SiMe₂N^tBu)MCI₂ by addition of a chloride source. The reaction of rac-(EBI)ZrMe₂/MAO or [(C₅Me₄- SiMe₂N^tBu)ZrMe][B(C₆ F₅)₄] with propylene/VC mixtures yields polypropylene containing both allylic and vinylidene unsaturated chain ends rather than strictly vinylidene chain ends, as observed in propylene homopolymerization. These results show that the VC insertion of L_nM(CH₂CHMe)_nR⁺ species is also followed by β-Cl elimination, which terminates chain growth and precludes propylene/VC copolymerization. Termination of chain growth by β-Cl elimination is the most significant obstacle to metal-catalyzed insertion polymerization/copolymerization of VC.

Full text of DOI:10.1021/ja028530d

Published on Web 12/19/2002
Reaction of Vinyl Chloride with Group 4 Metal Olefin
Polymerization Catalysts
Robert A. Stockland, Jr., Stephen R. Foley, and Richard F. Jordan*
Contribution from the Department of Chemistry, The UniVersity of Chicago,
5735 South Ellis AVenue, Chicago, Illinois 60637
Received September 12, 2002 ; E-mail: rfjordan@uchicago.edu
Abstract: The reactions of three types of group 4 metal olefin polymerization catalysts, (C5R5)2ZrX2/activator,
(C5Me5)TiX3/MAO (MAO ) methylalumoxane), and (C5Me4SiMe2NtBu)MX2/activator (M ) Ti, Zr), with vinyl
chloride (VC) and VC/propylene mixtures have been investigated. Two general pathways are observed:
(i) radical polymerization of VC initiated by radicals derived from the catalyst and (ii) net 1,2 VC insertion
into LnMR+ species followed by â-Cl elimination. rac-(EBI)ZrMe(µ-Me)B(C6F5)3 (EBI ) 1,2-ethylenebis-
(indenyl)) reacts with 2 equiv of VC to yield oligopropylene, rac-(EBI)ZrCl2, and B(C6F5)3. This reaction
proceeds by net 1,2 VC insertion into rac-(EBI)ZrMe+ followed by fast â-Cl elimination to yield [rac-(EBI)-
ZrCl][MeB(C6F5)3] and propylene. Methylation of rac-(EBI)ZrCl+ by MeB(C6F5)3 enables a second VC
-
insertion/â-Cl elimination to occur. The evolved propylene is oligomerized by rac-(EBI)ZrR+ as it is formed.
At high Al/Zr ratios, rac-(EBI)ZrMe2/MAO catalytically converts VC to oligopropylene by 1,2 VC insertion
into rac-(EBI)ZrMe+, â-Cl elimination, and realkylation of rac-(EBI)ZrCl+ by MAO; this process is
stoichiometric in Al-Me groups. The evolved propylene is oligomerized by rac-(EBI)ZrR+. Oligopropylene
end group analysis shows that the predominant chain transfer mechanism is VC insertion/â-Cl elimination/
realkylation. In the presence of trace levels of O2, rac-(EBI)ZrMe2/MAO polymerizes VC to poly(vinyl chloride)
(PVC) by a radical mechanism initiated by radicals generated by autoxidation of Zr-R and/or Al-R species.
Cp*TiX3/MAO (Cp* ) C5Me5; X ) OMe, Cl) initiates radical polymerization of VC in CH2Cl2 solvent at low
Al/Ti ratios under anaerobic conditions; in this case, the source of initiating radicals is unknown. Radical
VC polymerization can be identified by the presence of terminal and internal allylic chloride units and other
“radical defects” in the PVC which arise from the characteristic chemistry of PCH2CHCl• macroradicals.
However, this test must be used with caution, since the defect units can be consumed by postpolymerization
reactions with MAO. (C5Me4SiMe2NtBu)MMe2/[Ph3C]][B(C6F5)4] catalysts (M ) Ti, Zr) react with VC by net

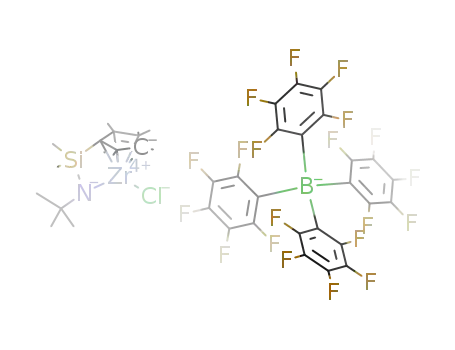

1,2 insertion/â-Cl elimination, yielding [(C5Me4SiMe2NtBu)MCl][B(C6F5)4] species which can be trapped as
(C5Me4SiMe2NtBu)MCl2 by addition of a chloride source. The reaction of rac-(EBI)ZrMe2/MAO or [(C5Me4-
SiMe2NtBu)ZrMe][B(C6F5)4] with propylene/VC mixtures yields polypropylene containing both allylic and
vinylidene unsaturated chain ends rather than strictly vinylidene chain ends, as observed in propylene
homopolymerization. These results show that the VC insertion of LnM(CH2CHMe)nR+ species is also followed
by â-Cl elimination, which terminates chain growth and precludes propylene/VC copolymerization.
Termination of chain growth by â-Cl elimination is the most significant obstacle to metal-catalyzed insertion
polymerization/copolymerization of VC.
Introduction
lymerization of acrylates and vinyl ketones with ethylene and
propylene, a general solution to this problem remains elusive.3
Here, we report studies directed to the long-term goal of
developing metal catalysts for the insertion polymerization/
copolymerization of vinyl chloride (VC).
Poly(vinyl chloride) (PVC) and related copolymers are pre-
pared commercially by radical polymerization of VC and can
also be prepared using RLi or R2Mg initiators.4-6 PVC is an
important commercial material because of its low cost, useful
properties (e.g., good chemical resistance, good resistance to
The polymerization of olefins by insertion chemistry using
Ziegler-Natta, Cr-based or, more recently, single-site metal
catalysts provides a powerful approach to the synthesis of
polyolefins with a high degree of control of polymer composi-
tion and structure.1 A current challenge in this area is to develop
catalysts capable of polymerizing or copolymerizing polar
olefins, particularly CH2dCHX monomers with functional
groups directly bonded to the olefin unit, by insertion mecha-
nisms.2 While some success has been achieved in the copo-
(1) (a) Boor, J. Ziegler-Natta Catalysts and Polymerizations; Academic
Press: New York, 1979. (b) McDaniel, M. P. AdV. Catal. 1985, 33, 48.
(c) Brintzinger, H. H.; Fischer, D.; Mu¨lhaupt, R.; Rieger, B.; Waymouth,
R. M. Angew. Chem., Int. Ed. Engl. 1995, 34, 1143. (d) Kaminsky, W.;
Arndt, M. AdV. Polym. Sci. 1997, 127, 143. (e) Britovsek, G. J. P.; Gibson,
V. C.; Wass, D. F. Angew. Chem., Int. Ed. 1999, 38, 428.
(2) Boffa, L. S.; Novak, B. M. Chem. ReV. 2000, 110, 3728.
(3) (a) Mecking, S.; Johnson, L. K.; Wang, L.; Brookhart, M. J. Am. Chem.
Soc. 1998, 120, 888. (b) Johnson, L. K.; Mecking, S. F.; Brookhart, M. J.
Am. Chem. Soc. 1996, 118, 267. (c) Stibrany, R. T.; Schulz, D. N.; Kacker,
S.; Patil, A. O.; Baugh, L. S.; Rucker, S. P.; Zushma, S.; Berluche, E.;
Sissano, J. A. Polym. Mater. Sci. Eng. 2002, 86, 325.
9
796
J. AM. CHEM. SOC. 2003, 125, 796-809
10.1021/ja028530d CCC: $25.00 © 2003 American Chemical Society

Metal-Catalyzed Insertion Polymerization of Vinyl Chloride
A R T I C L E S
Scheme 1
involves H atom abstraction from a backbone methylene group
by the propagating radical and subsequent Cl transfer to the
monomer. Tertiary chloride units are formed from backbone
-CHCl- units by intramolecular (back-biting) or intermolecular
H atom abstraction by propagating radicals, followed by
monomer addition. PVC undergoes thermal degradation above
∼100 °C via autocatalytic dehydrochlorination and concomitant
formation of polyene units, necessitating the use of stabilizers
for processing and end use.4,7 The internal allylic and tertiary
chloride groups are the initiating sites for HCl loss. It has been
shown that the chemical derivatization of the defect sites by
alkylation with AlMe3 or other reactions provides PVCs with
enhanced thermal stability.9,10 Metal-catalyzed insertion polym-
erization of VC may provide a direct approach to “low defect”
PVC. It should also be noted that the defect sites, which can be
identified by NMR,6,8 are diagnostic for the free radical
polymerization mechanism.
As for most free radical polymers, manipulation of PVC
composition and microstructure is limited because it is difficult
to modify the reactivity of the propagating macroradicals.11 The
development of insertion polymerization routes to PVC and VC
copolymers may enable the control of tacticity, molecular
weight, branching, end group structures, and other polymer prop-
erties through the tailoring of catalyst structure, as in conven-
tional olefin polymerization. Target polymers of interest include
stereoregular PVCs,12 PVCs with tailored molecular weight
distributions,13 and linear copolymers of VC with ethylene or
styrene prepared by direct synthesis.
burning), compatibility with a wide range of modifiers, and vers-
atility in many applications. PVC homopolymer is an amor-
phous, rigid thermoplastic, and flexible PVCs can be prepared
by plasticization, typically using phthalates. Important VC
copolymers include VC-vinyl acetate, VC-acrylonitrile, and
vinylidene chloride-VC copolymers, which are prepared com-
mercially by radical copolymerization, and chlorinated poly-
ethylene, which is prepared by the chlorination of polyethylene.
Interest in developing nonradical syntheses of PVC materials
is driven by practical as well as fundamental reasons. A key
practical issue is the control of PVC “defect sites”.7 Chain
growth in radical VC polymerization occurs by the head-to-tail
addition of active macroradicals to the monomer. However,
several side reactions compete with chain growth and lead to
the formation of the branch and “defect” structures illustrated
in Scheme 1.8 As summarized by Starnes et al.,6,7 the head-to-
head addition of VC to the growing chain leads to the formation
of chloromethyl and 1,2-dichloroethyl branches. Allylic chloride
end groups are formed by head-to-head addition followed by a
1,2-Cl shift and Cl transfer to the monomer. Internal allylic
chloride units are generated by chain transfer to polymer, which
Two modes of insertion polymerization or copolymerization
of VC can be envisioned: 1,2 insertion or 2,1 insertion (Scheme
2). However, inspection of these reactions reveals several poten-
tial problems. A 1,2 insertion of VC into an LnMR active species
would generate an MCH2CH2ClR complex, which is anticipated
to be prone to â-Cl elimination.14 In fact, transition metal alkyls
containing â-halogens are extremely rare, being limited to a
few octahedral d6 complexes, such as PtCl5(CH2CH2Cl)2- 15
,
Pt(2,9-Me2-phen)Cl3(CH2CH2Cl),16 and Ir(PMe2Ph)2(CO)-
Br2(CH2CH2Br),17 several more highly halogenated complexes,18
