Coupling a Natural Receptor Protein with an Artificial
Receptor to Afford a Semisynthetic Fluorescent Biosensor
Eiji Nakata,† Tsuyoshi Nagase,† Seiji Shinkai,† and Itaru Hamachi*,†,‡,§
Contribution from PRESTO (Organization and Function, JST), Institute for Materials Chemistry
and Engineering (IMCE), and Department of Chemistry and Biochemistry, Graduate School of
Engineering, Kyushu UniVersity, Fukuoka 812-8581 Japan
Received April 14, 2003; E-mail: itarutcm@mbox.nc.kyushu-u.ac.jp
Abstract: An artificial receptor and a signal transducer have been engineered on a lectin (saccharide-
binding protein) surface by a post-photoaffinity labeling modification method. Saccharide binding can be
directly and selectively read out by the fluorescence changes of the fluorophore via photoinduced electron
transfer (PET) mode. Fluorescence titration with various saccharides reveals that molecular recognition by
the artificial receptor is successfully coupled to the native binding site of the lectin, producing a novel
fluorescent saccharide biosensor showing modulated specificity and enhanced affinity. Designed cooper-
ativity between artificial and native molecular recognition modules was quantitatively demonstrated by the
comparison of the binding affinities, and it represents a new strategy in molecular recognition. By using
appropriate artificial receptors and various native lectins, this approach may provide many new semisynthetic
biosensors for saccharide derivatives such as glycolipids and glycopeptides/proteins. An extended library
of lectin-based biosensors is envisioned to be useful for glycome research, a newly emerging field of the
post-genomic era.
Introduction
biosensors. In this report, we show that the introduction of an
artificial sugar-binding site into a native lectin greatly enhances
The monitoring of chemical substances of biological impor-
tance is required in many fields of biological science and in
medical diagnosis.1-5 In glycome research, which seeks to
elucidate the complicated biological functions of saccharides
in the post-genomic era, it is essential to sense many saccharides
in a high-throughput manner.6-8 Although native lectins, a
family of saccharide-binding proteins, have been used to
qualitatively analyze carbohydrates, their low selectivity prevents
the accurate high-throughput quantitation and assay of saccha-
rides. Synthetic chemosensors may overcome these limitations,
but they have not yet been successfully applied to the detection
of complicated oligosaccharides. Advanced mass spectroscopic
methods may be useful for the structural analysis of complex
oligosaccharides,9 but these are not so suitable to rapid and
convenient sensing of saccharides in a high-throughput manner.
We propose that the rational hybridization of naturally occurring
receptor proteins with artificial receptor molecules represents a
practical, new approach for the construction of sophisticated
the binding affinity of the lectin toward specific saccharides
having interaction moieties to both the lectin and the artificial
receptor. As a result, one can engineer a fluorescent semisyn-
thetic lectin with modulated saccharide selectivity.
Results and Discussion
Molecular Design of Phenylboronic Acid-Appended Co-
nA.10 We recently developed a new method (post-photoaffinity
labeling modification: P-PALM) to incorporate a unique
benzylthiol group proximal to the sugar-binding pocket of a
natural lectin11 (Concanavalin A (ConA), an R-mannoside or
R-glucoside binding protein, was used in this study12). The
benzylthiol was utilized as a reactive tag for fluorescent probes
(Scheme 1). Using environmentally sensitive fluorophores (such
as the Dansyl derivative, IAEDANS) as a signal transducer,
we could sense R-mannoside or R-glucoside derivatives by a
(10) (a) Hamachi, I.; Tajiri, Y.; Shinkai, S. J. Am. Chem. Soc. 1994, 116, 7437.
(b) Hamachi, I.; Tajiri, Y.; Nagase, T.; Shinkai, S. Chem.-Eur. J. 1997,
3, 1025.
† Department of Chemistry and Biochemistry.
‡ PRESTO (Organization and Function, JST).
(11) (a) Hamachi, I.; Nagase, T.; Shinkai, S. J. Am. Chem. Soc. 2000, 122, 12065.
(b) Nagase, T.; Shinkai, S.; Hamachi, I. Chem. Commun. 2001, 229. (c)
The conventional peptide digestion, HPLC separation, and tandem mass
spectroscopy indicate that the photolabeling site can be assigned to Y100,
a proximal amino acid in the saccharide-binding pocket. It is clear that the
photoaffinity labeling process of the present P-PALM method is remarkably
site-selective on a protein surface. Nagase, T.; Nakata, E.; Shinkai, S.;
Hamachi, I. Chem.-Eur. J. 2003, 9, 3660.
(12) The crystal data of ConA complexed with Man-tri showed the extended
interaction between Man-tri and the ConA surface using all the OH groups
of Man-tri and several amino acid residues of the ConA surface. The
lessened flexibility of the branched Man units of Man-tri due to such an
extended interaction may be a factor for no sensing to Man-tri. Lis, H.;
Sharon, N. Chem. ReV. 1998, 98, 637.
§ Institute for Materials Chemistry and Engineering.
(1) Lavigne, J. J.; Anslyn, E. V. Angew. Chem., Int. Ed. 2001, 40, 3118.
(2) Gu, L.; Braha, O.; Conlan, S.; Cheley, S.; Bayley, H. Nature 1999, 398,
686.
(3) Bayley, H.; Cremer, P. S. Nature 2001, 413, 226.
(4) Benson, D. E.; Conrad, D. W.; de Lorimier, R. M.; Trammell, S. A.;
Hellinga, H. W. Science 2001, 293, 1641.
(5) Giuliano, K. A.; Taylor, D. L. Trends Biotechnol. 1998, 16, 135.
(6) Bertozzi, C. R.; Kiessling, L. L. Science 2001, 291, 2357.
(7) Roseman, S. J. Biol. Chem. 2001, 276, 41527.
(8) Dwek, R. A. Chem. ReV. 1996, 96, 683.
(9) Harvey, J. D. Mass Spectrom. ReV. 1999, 18, 349.
9
490
J. AM. CHEM. SOC. 2004, 126, 490-495
10.1021/ja035631i CCC: $27.50 © 2004 American Chemical Society

Coupling a Natural Receptor with an Artificial Receptor
A R T I C L E S
Scheme 1. Molecular Structure of a P-PALM Reagent, IAEDANS, and APET (a) and P-PALM Scheme for Semisynthesis of the
Fluorescent Biosensor Discussed in This Study (b)
decrease in fluorescence intensity. This was ascribed to the
DANS moiety being ejected upon saccharide binding, causing
the fluorophore to move from the hydrophobic binding pocket
to the bulk water. The slight red-shift of the fluorescence and
decrease in the fluorescence anisotropy upon saccharide com-
plexation reasonably supported such a mechanism. Importantly,
the sugar selectivity and binding affinity of the IAEDANS-ConA
evaluated by the fluorescence titration are almost identical to
those of native ConA determined by isothermal calorimetry.13
In addition to the simple fluorescent probe, an artificial
receptor can be newly introduced to the proximity of the sugar-
binding pocket using the benzylthiol tag attached by P-PALM.
Phenylboronic acid (PBA) is capable of binding to 1,2- or 1,3-
diol derivatives. According to previous reports by us and
others,14 we equipped PBA with a fluorescent transducer motif,
in which a photoinduced electron transfer (PET)-type of readout
mode can operate upon complexation with a corresponding diol

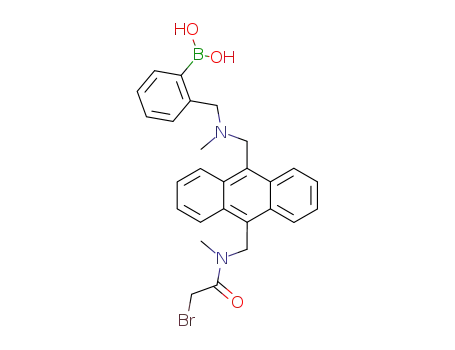

(Figure 1a). As shown in Scheme 2, bromoacetyl group was
introduced to the receptor molecule (APET-Br) as a reactive
site to ConA. 9,10-Bis-N-methyaminomethyl-anthracene was
monoalkylated with o-bromomethyl-PBA, and the remaining
methylamino site was acylated with bromoacetyl bromide to
yield APET-Br. The resultant APET-Br was incubated with SH-
ConA to afford APET-ConA via a nucleophilic substitution
reaction on the ConA surface (Scheme 1b). APET-ConA was
purified through gel chromatography (TOYO PEARL), and the
purity was confirmed by analytical reversed-phase HPLC, in
which a single ConA band having both UV absorbance and
fluorescent emission was detected. In UV-visible spectroscopy
of the purified APET-ConA, a strong absorbance at 257 nm
and three peaks at 357, 375, and 397 nm are characteristic of
the anthracene moiety (Figure 1b). The emission at 407, 432,
and 454 nm and excitation spectra at 357, 375, and 397 nm of
APET-ConA indicate a clear mirror image (Figure 1c), and the
excitation spectrum agrees well with the absorption spectrum.
These results reveal the successful attachment of the APET
moiety to ConA.
Fluorescence Sensing and Saccharide Selectivity of APET-
ConA. Prior to saccharide sensing, we conducted the fluores-
cence pH titration of APET-ConA with and without a saccharide
(Figure 2a). The emission due to the anthracene moiety lessened
in the basic pH region. This is ascribed to the emission
quenching by the deprotonated tertiary amine group of APET.
It is clear that addition of saccharide induces a basic pKa shift
of the tertiary amine, which results in retaining the fluorescence
intensity at neutral pH. Consequently, the fluorescence of the
anthracene moiety in APET-ConA increases following saccha-
ride addition (Figure 2b). This is in sharp contrast to the
decreased fluorescence of IAEDANS-ConA induced by sac-
charide binding (Figure 2c). Fluorescence intensification by
sugars is direct evidence that the PBA site binds to a diol unit
of an appropriate sugar and that the PET mechanism works well
on a ConA surface. Table 1 summarizes the association
constants of engineered ConA for various saccharides compared
to native ConA. Figure 3 shows among monosaccharides, it was
