SYNTHETIC COMMUNICATIONS
Vol. 32, No. 24, pp. 3763–3766, 2002
SYNTHESIS OF NEW CRYPTANDS
STARTING FROM TRANS (DIPROTECTED
AND DISUBSTITUTED) 1,4,7,10-
TETRAAZACYCLODODECANE
H. Mouaziz, V. Montembault, J.-C. Soutif,
and J.-C. Brosse
LCOM–Chimie des Polymeres, UCO2M, UMR CNRS
nꢀ6011, Universite du Maine, Avenue O. Messiaen,
72085 Le Mans cedex 9 - France
ABSTRACT
New cryptands are synthesised by aminolysis between 1,7-
di(ethylacetate)-4,10-di(tosyl)-1,4,7,10-tetraazacyclododecane
and various diamines.
The design and synthesis of new cross-bridged ligands containing a
1,4,7,10-tetraazacyclododecane backbone is of growing interest justified by
their remarkable complexing properties with transition elements and heavy
metal ions.[1–3] Only a few reports of cryptands based on 1,4,7,10-tetra-
azacyclododecane (cyclen) have appeared.[4–8] In search of new compounds
for applications in magnetic resonance imaging, in purification of water or
in molecular recognition, we developed a strategy which can be applied to
the preparation of many other cryptands.
The synthesis of the aimed cryptands involves the use of a trans (dipro-
tected and disubstituted) 1,4,7,10-tetraazacyclododecane. First of all,
3763
DOI: 10.1081/SCC-120015394
Copyright & 2002 by Marcel Dekker, Inc.
0039-7911 (Print); 1532-2432 (Online)
www.dekker.com

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2002 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
3764
MOUAZIZ ET AL.
Scheme 1.
Table 1.
Compound
Yield (%)
2
3
4
x ¼ 2
x ¼ 6
x ¼ 12
29
8
4
selective ‘‘trans’’ protection of cyclen has been carried out by reaction of
cyclen with p-toluenesulfonylchloride in pyridine leading exclusively to the
1,7-isomer with agood yield. [9] Then, difunctionalization has been realized by
reaction between 1,7-di(tosyl)-1,4,7,10-tetraazacyclododecane with ethyl
bromoacetate in presence of sodium carbonate in acetonitrile. The mixture

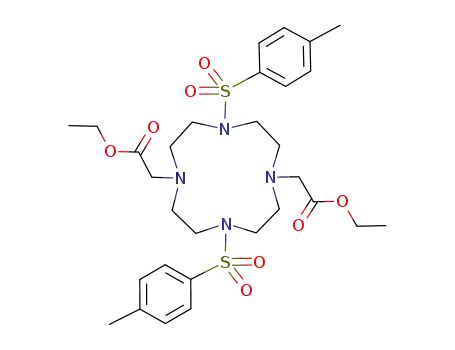

was refluxed during a few hours and then solvent was evaporated. 1,7-di(ethy-
lacetate)-4,10-di(tosyl)-1,4,7,10-tetraazacyclododecane 1 was isolated and
purified by liquid chromatography (CH3OH/H2O, 80/20) with 63% yield.
This strategy has previously been described for the synthesis of the diester
derivative of dioxocyclen.[10] Our route to synthesis of the cryptands is shown
in Sch. 1 and yields are reported in Table 1. It proceeds from 1 and various
diamines (ethylenediamine, hexamethylenediamine and dodecanediamine) in
methanol at T ¼ 100ꢀC. A control of the cryptands formation carried out by
1H NMR spectroscopy in deuterated methanol has shown the necessity of a
reaction time of seven days to obtain a complete conversion whatever the
diamine used. After evaporation of the solvent, the resulting cryptands were
analysed by liquid chromatography (CH3CN/H2O, 70/30) coupled mass
spectrometry (APCI). The analyses showed up formation of linear and
macrocyclic oligomers. Among them the cryptands 2, 3, a nd4 were isolated
in 29, 8 and 4% yields respectively after chromatography.

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2002 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
SYNTHESIS OF NEW CRYPTANDS
3765
The introduction of a bridge containing two amide functions
allow further functionalization. Moreover, deprotection of tosyl groups
could permit a double difunctionalization. On the other hand, different
bridges containing other functional groups could be linked to the
trans(diprotected and difunctionalized) 1,4,7,10-tetraazacyclododecane
using this strategy.
EXPERIMENTAL
1
1: m/z ¼ 653 (Mþ); H NMR (400.13 MHz, CDCl3) ꢀ: 1.27 (6H, t, J
7 Hz, CH3(Et)), 2.42 (6H, s, CH3(Ts)), 3 (8H, t, J 4.7 Hz, CH2N), 3.22 (8H,
t, J 4.7 Hz, CH2NTs), 3.43 (4H, s, CH2COOEt), 4.14 (4H, q, J 7 Hz,
CH2(Et)), 7.28 (4H, d, J 8 Hz, CH ar.), 7.64 (4H, d, J 8 Hz, CH ar.).
1
2: m/z ¼ 624 (Mþ); H NMR (400.13 MHz, CDCl3) ꢀ: [7.29 (1H, d, J
8.4 Hz); 7.35 (3H, d, J 8.4 Hz); 7.64 (4H, d, J 8.4 Hz), CH ar.]; [2.41 (1H, s);
2.46 (5H, s), CH3(Ts)]; [3.08–3.21 (m), CH2NTs]; [2.80–3.02 (m), CH2N];
[3.28 (2H, s); 3.43 (2H, s), CH2CONH]; [3.55 (4H, s), CH2NHCO].
1
3: m/z ¼ 680 (Mþ); H NMR (400.13 MHz, CDCl3) ꢀ: [7.30 (2H, d, J
8 Hz); 7.33 (2H, d, J 8 Hz); 7.63–7.66 (m), CH ar.]; [2.42 (5H, s); 2.44 (1H, s),
CH3(Ts)]; [3.14 (4H, m); 3.20 (4H, m), CH2NTs]; [3.04 (8H, m),
CH2N]; [3.25–3.31 (8H, m), CH2CONH, CH2NHCO]; [1.58 (4H, m),
CH2CH2NHCO]; [1.37–1.44 (4H, m), CH2CH2CH2NHCO].
1
4: m/z ¼ 764 (Mþ); H NMR (400.13 MHz, CDCl3) ꢀ: [7.30 (4H, d, J
8 Hz); 7.61 (4H, d, J 8 Hz), CH ar.]; [2.34 (6H, s), CH3(Ts)]; [2.7, 2.76, 2.9
(8H, m), CH2N]; [3.1–3.3 (16H, m), CH2NTs, CH2CONH, CH2NHCO];
[1.19–1.39 (20H, m), (CH2)10CH2NHCO].
N. B. The obtained results in mass spectrometry show higher values
than those expected, because of deuterium exchange between deuterated
methanol and cryptands during aminolysis reaction.
REFERENCES
1. Poon, C.K.; Che, C.M. Inorg. Chem. 1981, 20, 1640.
2. Parker, D. Chem. Soc. Rev. 1990, 19, 271.
3. Izatt, R.M.; Pawlak, K.; Bradshaw, J.S. Chem. Rev. 1995, 95, 2529.
4. Bencini, A.; Bianchi, A.; Borselli, A.; Ciampolini, M.; Garcia-Espana,
E.; Dapporto, P.; Micheloni, M.; Paoli, P.; Ramirez, J.; Valtancoli, B.
Inorg. Chem. 1989, 28, 4279.
5. Ciampolini, M.; Nardi, N.; Valtancoli, B. Coord. Chem. Rev. 1992,
120, 223.

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2002 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
3766
MOUAZIZ ET AL.
6. Bencini, A.; Bianchi, A.; Bazzicalupi, C.; Ciampolini, M.; Fusi, V.;
Micheloni, M.; Nardi, N.; Paoli, P.; Valtancoli, B. Supramolecular
Chem. 1994, 3, 141.
7. Jacques, V.; Mesbani, M.; Boskovic, V.; Desreux, J.F. Synthesis 1995,
1019.
8. Brandes, S.; Denat, F.; Lacour, S.; Rabiet, F.; Barbette, F.; Pullumbi,
P.; Guilard, R. Eur. J. Org. Chem. 1998, 2349.
9. Dumont, A.; Jacques, V.; Qixiu, P.; Desreux, J.F. Tetrahedron Lett.
1994, 22, 3707.
10. Montembault, V.; Mouaziz, H.; Blondeau, V.; Touchard, R.; Soutif,
J.-C.; Brosse, J.-C. Synth. Commun. 1999, 29(23), 4279.
Received in the Netherlands November 26, 2001
