New fluorescent and colorimetric chemosensors based on the rhodamine detection of Hg2+ and Al3+ and application of imaging in living cells

Article abstract of DOI:10.1016/j.dyepig.2013.02.002

Employing the "OffeOn" switching of the spirocyclic moiety in Rhodamine B derivatives, three sensors were designed and characterized as new fluorescent probes for detecting Hg²⁺ and Al³⁺ in the environment, respectively. The first probe exhibited chromogenic and fluorogenic selectivity to detection of Hg²⁺ in methanol-H₂O (4:6, v/v, HEPES, pH 7.0). The first and second probes displayed fluorescence intensity enhancement following Hg²⁺ coordination with limits of detection for Hg²⁺ at the ppb level. The limit of detection based on 3 blank/k was calculated to be 2.5 × 10^-8 M and 4.2 × 10^-8 M, respectively. The third probe contained a benzyl group which resulted in better selectivity for Al³⁺. Job's plot clearly suggested the formation of 1:1 complexation behavior between the three probes and Hg ²⁺ or Al³⁺. The three probes can be used as a fluorescent probe for monitoring Hg²⁺ or Al³⁺ in living cells with satisfying results, which demonstrates the value of the probes in practical applications in environmental and biological systems.

Full text of DOI:10.1016/j.dyepig.2013.02.002

Dyes and Pigments 98 (2013) 42e50
Contents lists available at SciVerse ScienceDirect
Dyes and Pigments
journal homepage: www.elsevier.com/locate/dyepig
New fluorescent and colorimetric chemosensors based on the
rhodamine detection of Hg2þ and Al3þ and application of imaging in
living cells
,
a
a
a
a
a,
Fanyong Yan a , Meng Wang , Donglei Cao , Ning Yang , Yang Fu , Li Chen
*
*
,
Ligong Chen b
a State Key Laboratory of Hollow Fiber Membrane Materials and Processes, Key Lab of Fiber Modification & Functional Fiber of Tianjin, Tianjin Polytechnic
University, Tianjin 300387, China
b School of Chemical Engineering, Tianjin University, Tianjin 300072, China
a r t i c l e i n f o
a b s t r a c t
Article history:
Employing the “OffeOn” switching of the spirocyclic moiety in Rhodamine B derivatives, three sensors
were designed and characterized as new fluorescent probes for detecting Hg2þ and Al3þ in the envi-
ronment, respectively. The first probe exhibited chromogenic and fluorogenic selectivity to detection of
Hg2þ in methanol-H2O (4:6, v/v, HEPES, pH 7.0). The first and second probes displayed fluorescence
intensity enhancement following Hg2þ coordination with limits of detection for Hg2þ at the ppb level.
The limit of detection based on 3 blank/k was calculated to be 2.5 ꢀ 10ꢁ8 M and 4.2 ꢀ 10ꢁ8 M,
respectively. The third probe contained a benzyl group which resulted in better selectivity for Al3þ. Job’s
plot clearly suggested the formation of 1:1 complexation behavior between the three probes and Hg2þ or
Al3þ. The three probes can be used as a fluorescent probe for monitoring Hg2þ or Al3þ in living cells with
satisfying results, which demonstrates the value of the probes in practical applications in environmental
and biological systems.
Received 7 December 2012
Received in revised form
31 January 2013
Accepted 1 February 2013
Available online 16 February 2013
Keywords:
Fluorescent sensor
Mercury
Aluminum
Rhodamine
Phthalimido acids
Cellular imaging
Ó 2013 Elsevier Ltd. All rights reserved.
1. Introduction
Many detection methods for the quantitative analysis of Hg2þ in
water samples include atomic absorption spectroscopy, cold vapor
The design of chemosensors for the detection of heavy and
transition metal ions are particularly attractive, because these ions
play important roles in living systems and have an extremely toxic
impact on the environment [1e4]. Among transition-metal ions,
mercury is considered as one of the most dangerous cations for the
environment. Mercury can accumulate in the human body, its high
affinity for thiol groups in proteins and enzymes lead to the
dysfunction of cells and consequently causing health problems,
such as prenatal brain damage, serious cognitive and minamata
disease [5e7]. Al3þ widely exists within the environment due to
acidic rain and human activities. The increase of Al3þ concentration
in the environment is not only detrimental to growing plants but
also damages many biological functions. Excessive exposure of the
human body to Al3þ leads to a wide range of diseases, such as
Alzheimer’s disease, Parkinson’s disease, etc. [8e10].
atomic fluorescence spectrometry, and gas chromatography, which
usually require complicated, multistep sample preparation and
sophisticated instrumentation [11e14]. Fluorescence analysis offers
significant advantages over other methods for metal ion detection
and measurement due to its simplicity, high sensitivity, low cost
and instantaneous response [15].
In recent years, progress in the area of chemosensors has
contributed significantly to the development of a variety of Al3þ
sensors based on triazole, Schiff’s base and coumarin Refs. [16e18].
Unfortunately, some of the Al3þ sensors have disadvantages such as
poor water-solubility or UV light excitation [8,19,20]. So few Al3þ
sensors have been reported up to now. Mercury-selective fluores-
cent sensors have been reported in the past where in most cases the
presence of mercury can cause fluorescence quenching of the fluo-
rophores via the spin orbit coupling effect or complicated synthesis
methods [21e23]. Therefore, overcoming these disadvantages in the
development of excellent sensors for the sensitive and selective
determination of Hg2þ and Al3þ is a challenging task.
In the form of proteins, amino acids comprise the second largest
componentotherthanwaterofhumanmuscles,cellsandothertissues.
* Corresponding authors. Tel.: þ86 22 83955766; fax: þ86 22 83955016.
E-mail addresses: yfytju@yahoo.com (F. Yan), chenlis11@yahoo.com.cn (L. Chen).
0143-7208/$ e see front matter Ó 2013 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.dyepig.2013.02.002

F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
43
As amino acids have both a primary amine group and a primary
carboxyl group, these chemicals can undergo most of the reactions
associated with these functional groups [24]. These include amide
bond formation and decarboxylation for the carboxylic acid group. The
combination of these functional groups allowed amino acids to be
effective ligands for metal-amino acid chelates. Because of their bio-
logical significance, amino acids are also used to chelate metal cations
in order to improve the ability of a probe to detect metals [25e30].
Due to the structure and behavior of rhodamine and related
derivatives [31e33], rhodamine can make an ideal model to use in
constructing chelation-enhanced fluorescence “OffeOn” switch
sensors for metal ions. Without cations, these rhodamine-based
chemosensors exist in a spirocyclic form which is colorless and
non-fluorescent. The addition of a specific metal ion leads to spi-
rocycle opening via a reversible coordination or an irreversible
chemical reaction [34e39], resulting in intense fluorescence
emission and development of pink color. However, the rhodamine-
based derivatives may lead to self-quenching and fluorescence
detection errors because of excitation back-scattering effects [40].
Thus, it is important to have sensors with improved properties. In
our previous work, we have reported an excellent rhodamine-based
fluorescent sensor for Hg2þ in aqueous solution [41]. Compared with
the fluorescent probe RheC which had been reported by our group,
RW1 exhibited much better fluorescence selectivity toward Hg2þ
and bio-compatibility, and much lower detection limit
(2.5 ꢀ 10ꢁ8 M). Herein, we synthesized the rhodamine chemo-
sensors based spirolactam derivatives RW1-3, which incorporate
two kinds of phthlandione derivatives and two kinds of amino acids.
They would be suitable for introducing O atom. However, O atom
will provide even more binding sites that might be a choice to be
parts of a selective receptor for the selective recognition of Hg2þ
[42e44]. At the same time, we envisaged different phthlandione
derivatives and amino acids can affect the fluorescence intensity of
probes and the metal ion-selective recognition.
was utilized to measure the pH values of aqueous solutions. IR data
were taken in KBr disks on TENSOR37 Fourier-Transform Infrared
Spectrometer. 1H NMR and 13C NMR measurements were per-
formed with a Varian Inova-400 MHz spectrometer with TMS as an
internal standard and CDCl3 as solvent. ESI-MS measurements were
carried out on Waters QT of-Micro instrument.
2.2. Reagents
All reagents used were purchased from commercial suppliers
and used without further purification. The solutions of metal ions
were performed from their nitrate and chloride salts. Double-
distilled water was used throughout the experiments. HEPES
buffer solutions (10 mM, pH 7.0) were prepared in water.
2.3. Synthesis procedure
Synthesis of RW1 (Scheme 1): Rhodamine ethylenediamine was
synthesized as reported method [45]. Phthalic anhydride (0.59 g,
4 mmol) and alanine (0.35 g, 4 mmol) were dissolved in dry toluene
(20 mL), and the mixture were heated under reflux for 4 h; after
removal of the toluene, the residue was dissolved in thionyl chlo-
ride (10 mL) and refluxed for 3 h. Rhodamine ethylenediamine
(1.73 g, 4 mmol) was dissolved in dichloromethane (20 mL) in a
100 mL flask. An excess of triethylamine was added and dichloro-

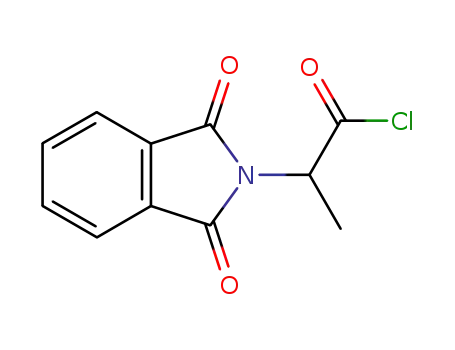

methane (15 mL) solutions of 2-methylphthalimido acetyl chloride
was added to this solution. The reaction mixture was stirred 2 h at
0e5 ꢂC, after drying under reduced pressure, and pale yellow solid
was observed. The target material was further purified by column
chromatography with CH3OH/CH2Cl2 (1:5 v/v) to give 1.5 g of 1 in
52% yield. 1H NMR (CDCl3, 400 MHz)
d
¼ 7.95 (s, 1H), 7.90 (m, 2H),
7.79 (m, 2H), 7.29-7.40 (m, 3H), 7.05 (d, J ¼ 7.2 Hz, 1H), 6.46 (d,
J ¼ 8.8 Hz, 1H), 6.32-6.38 (m, 4H), 6.27 (d, J ¼ 8.4 Hz, 1H), 4.91(q,
J ¼ 7.2 Hz, 1H), 3.34 (m, 10H), 2.96 (m, 2H), 1.74 (t, J ¼ 7.2 Hz, 3H),
1.17 (t, J ¼ 6.8 Hz, 12H). 13C NMR (CDCl3, 100 MHz)
d
¼ 168.93,
2. Experimental
167.69, 154.12, 153.24, 153.07, 149.00, 148.93, 134.21, 132.70, 129.88,
128.49, 128.23, 128.06, 128.03, 123.39, 122.39, 108.31, 97.12, 64.72,
2.1. Instruments
48.09, 43.68, 40.20, 38.35,13.76,11.59. IR (KBr, n
/cmꢁ1): 3425, 3003,
2856, 1673, 1612, 1460, 1224, 1118, 976. ESI-MS (M þ Hþ): m/
z ¼ 686.33. Anal. Calcd for C41H43N5O5: H, 6.32; C, 71.80; N, 10.21.
Found: H, 6.25; C, 70.77; N, 10.16.
Fluorescence spectra were measured on a Hitachi F-4500
spectrofluorimeter with quartz cuvette (path length ¼ 1 cm). The
absorption spectra measurements were observed by a Purkinje
General TU-1901 UV/Vis spectrometer. A pH-10C digital pH meter
RW2 and RW3 were prepared with the similar synthetic method
to RW1. Compound RW2: yield: 43%. 1H NMR (CDCl3, 400 MHz)
Scheme 1. Synthesis of RW1-3.

44
F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
d
¼ 8.05 (s,1H), 7.29e7.45 (m, 3H), 7.06 (d, J ¼ 7.6 Hz,1H), 6.26e6.45
(m, 6H), 4.91 (q, J ¼ 7.2 Hz, 1H), 3.74 (q, J ¼ 6.8 Hz, 1H), 3.36 (q,
J ¼ 7.2 Hz, 8H), 3.25 (m, 2H), 2.97 (d, J ¼ 7.6 Hz, 1H), 1.73 (d,
J ¼ 7.2 Hz, 3H), 1.17 (t, J ¼ 6.8 Hz, 12H). 13C NMR (CDCl3, 100 MHz)
d
¼ 167.76, 153.98, 153.23, 152.99, 149.07, 148.90, 137.71, 132.83,
129.80, 129.17, 128.84, 128.01, 123.39, 122.51, 108.35, 104.52, 97.53,
65.17, 54.80, 44.14, 40.96, 38.48, 33.81, 12.14. IR (KBr, n
/cmꢁ1): 3426,
3004, 2858, 1673, 1615, 1457, 1220, 1112, 979. ESI-MS (M þ Hþ): m/
z ¼ 824.17. Anal. Calcd for C41H39Cl4N5O5: H, 4.77; C, 59.79; N, 8.50.
Found: H, 4.54; C, 58.89; N, 8.19.
Compound RW3: yield: 47%. 1H NMR (CDCl3, 400 MHz)
d
¼ 7.95
(s, 1H), 7.89 (m, 4H), 7.79 (m, 4H), 7.28e7.42 (m, 4H),7.05 (d,
J ¼ 7.6 Hz, 1H), 6.27-6.46 (m, 6H), 4.92 (q, J ¼ 7.6 Hz, 1H), 3.34 (m,
10H), 2.96 (t, J ¼ 7.2 Hz, 2H), 1.74 (t, J ¼ 6.8 Hz, 2H), 1.17 (q,
J ¼ 6.8 Hz, 12H). 13C NMR (CDCl3, 100 MHz)
d
¼ 170.44, 167.41,
163.11, 153.84, 153.27, 153.04, 148.99, 139.84, 137.17, 132.90, 129.57,
128.72, 128.63, 128.47, 128.18, 128.03, 127.80, 126.74, 123.89,
122.18, 108.35, 104.23, 97.65, 65.88, 55.47, 44.35, 39.07, 33.73,
12.58. IR (KBr,
n
/cmꢁ1): 3422, 3001, 2852, 1672, 1616, 1459,
1228, 1112, 974. ESI-MS (M þ Hþ): m/z ¼ 762.36. Anal. Calcd
for C47H47N5O5: H, 6.22; C, 74.09; N, 9.19. Found: H, 6.14; C, 72.93;
N, 9.02.
Fig. 1. (a) UVevis absorption of RW1, RW2 and RW3 (10
m
M) in 4:6 CH3OH/HEPES
M Hg2þ or Al3þ. (b) RW1 (10
M) as a selective
M) in in 4:6 CH3OH/HEPES buffer (v/v, 10 mM,
buffer (v/v, 10 mM, pH 7.0) with 10
m
m
naked-eye chemosensor for Hg2þ (10
pH 7.0).
m
2.4. Cell incubating imaging
Images of the human hepatocyte cell line (HL-7702 cells) were
cultured in (Invitrogen) supplemented with 10% Fetal Bovine
Serum (FBS, Invitrogen) in an atmosphere of 5% CO2 at 37 ꢂC. One
day before imaging, cells were placed in 6-well flat-bottomed
plates. Immediately, before the experiments, the HL-7702 cells
were exposed to the probe RW1 (2.5 ꢀ 10ꢁ5 mol Lꢁ1) for 30 min at
room temperature to allow the probe to permeate into the cells and
supplementing cells with 2.5 ꢀ 10ꢁ5 mol Lꢁ1 Hg(ClO4)2 in PBS at
37 ꢂC under 5% CO2 for another 30 min. The cells were washed with
PBS three times and then imaged. The fluorescence imaging of
intracellular was observed under an Olympus IX71 inverted fluo-
rescence microscopy with 40 ꢀ objective lens (excited with green
pH 7.0) solution. Upon the gradual addition of Al3þ up to 1 equiv., a
new absorption band centered at 556 nm appeared with increasing
intensity, accompanied by a clear color change from colorless to
pink.
In addition, the selectivity profiles of RW1, RW2 and RW3 for
metal cations were investigated by fluorimetric experiments. The
fluorescence spectra were obtained by excitation of the rhoda-
mine fluorophore at 525 nm. Both a red color and the fluores-
cence characteristics of rhodamine B appear when upon the
addition of Hg2þ to a colorless solution of RW1 and RW2 (Fig. 2a).
In the presence of other metal ions, such as alkali and alkaline
earth metal ions (Kþ, Naþ, Mg2þ, Ca2þ) and other transition metal
light). The HL-7702 cells only incubated with 10
at 37 ꢂC under 5% CO2 was as a control.
mM RW1 for 30 min
ions (Mn2þ, Ni2þ, Co2þ, Cu2þ, Zn2þ, Cd2þ, Agþ, Pb2þ, Al3þ, Fe3þ
,
Auþ, Au3þ), there were no evident fluorescence intensity
enhancement (Fig. 2b). Apparently, due to Hg2þ-induced signifi-
cant fluorescence enhancement, Hg2þ could be distinguished
from other metal ions. RW3 showed only a very weak fluores-
cence in the absence of metal ions. The addition of Al3þ resulted
in remarkably enhanced fluorescence intensity. Under the same
3. Results and discussion
We take advantage was made of phthalic anhydride as an
amino-protecting group, appropriate to introduce oxygen atoms,
which are involved in the binding of metal ions. Then, due to the
phthalimido acid chlorides possessing high reactivity, nucleo-
philic substitution can be prone to occur with rhodamine
ethylenediamine.
condition, additions of other metal ions including Kþ, Naþ, Mg2þ
Ca2þ, Mn2þ, Ni2þ, Co2þ, Cu2þ, Zn2þ, Cd2þ, Agþ, Pb2þ, Al3þ, Fe3þ
,
,
Auþ and Au3þ did not cause any discernible changes. Since the Ce
C
p bonds of the benzene ring disappear due to the presence of
3.1. Spectral characteristics
Al3þ. Each of the resulting singly occupied carbon p-orbitals in-
teracts with two of the three empty 3p-orbitals of aluminum (the
The binding behavior of RW1, RW2 and RW3 toward different
ones parallel to the aromatic ring plane). Each s CeC bond also
cations, such as Agþ, Ca2þ, Cd2þ, Co2þ, Al3þ, Cu2þ, Hg2þ, Kþ, Pb2þ
,
interacts with the Al3þ empty 3s-orbital, and the remaining 3p-
orbital [46]. The bonding orbitals formed by the 5d orbitals of
Hg2þ are completely filled, resulting in a closed-shell electronic
configuration. So the benzene rings of RW3 have better selectivity
of electron-deficient Al3þ (3s0 3p0) than completely fill 5d orbitals
Hg2þ (5d10 6s0).
Mg2þ, Mn2þ, Naþ, Ni2þ, Fe3þ, Auþ, Au3þ and Zn2þ ions were
investigated by UVevis and fluorescence spectroscopy. Among the
various metal ions examined (10 equiv.), RW1 and RW2 showed
highly selective “OffeOn” absorption enhancement only with Hg2þ
at methanol-H2O (4:6, v/v, HEPES, pH 7.0) solution (Fig. 1). As
shown, almost all the metal cations including the free RW1 and
RW2 exhibit very little absorbance at 556 nm. However, Hg2þ
resulted in a prominent change, which can be ascribed to the spi-
rolactam bond cleavage followed by the formation of a delocalized
xanthene moiety of the rhodamine group. Interestingly, Al3þ also
yielded a significant absorption (Fig. 1a) enhancement with RW3
which contains the benzyl group at methanol-H2O (4:6, v/v, HEPES,
Achieving high selectivity toward the sensors over the other
competitive species coexisting in the sample is a very important
feature to evaluate the performance of a fluorescence chemosensor.
In certain environmental samples, such as river and seawater, the
concentrations of some prevalent toxic metal ions are significantly
higher, therefore competition experiments with high concentra-
tions of the above-mentioned metal ions (10 equiv.) were carried

F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
45
Fig. 3. Fluorescent intensity of RW1 (bule bars), RW2 (yellow bars) and RW3 (red bars)
(10 M) to various cations in 4:6 CH3OH/HEPES buffer (v/v, 10 mM, pH 7.0). The front
m
3 bars represent the emission intensities of RW1, RW2 and RW3 in the presence of
other cations (10 equiv.), respectively. The back 3 bars represent the emission in-
tensities that occur upon the subsequent addition of 10 m
M of Hg2þ or Al3þ to the
above solution, respectively. (lex ¼ 525 nm, lem ¼ 581 nm). (For interpretation of the
references to colour in this figure legend, the reader is referred to the web version of
this article.)
RW3] of 20
ions from 0 to 1 (Fig. 4, inset). From the Job’s plot, the absorbance
m
M and changing the mole fraction of Hg2þ/Al3þ
of RW1-2/RW3 approached
a maximum when the molar
fraction of Hg2þ/Al3þ was 0.5, indicating a 1:1 stoichiometry
was most possible for the binding mode of the RW1-2/RW3 and
Hg2þ/Al3þ
.
The complexation of Hg2þ by RW1 and RW2 were also investi-
gated by means of fluorescence titration in methanol-H2O (4:6, v/v,
HEPES, pH 7.0) solution. Addition of increasing concentrations of
Hg2þ ions to the solutions of RW1 (Fig. 5a) and RW2 (Fig. 5b)
resulted in the gradual increase of the fluorescence intensity with
emission peak at 581 nm, reaching saturation at addition of 1.5
equiv. Hg2þ. Nonlinear least-squares fitting of the titration profiles
based on the 1:1 binding model strongly support the 1:1 stoichi-
Fig. 2. (a) Fluorescent spectra of RW1, RW2 and RW3 (10
buffer (v/v, 10 mM, pH 7.0) with 10
M Hg2þ or Al3þ. (b) Fluorescence responses of
RW1, RW2 and RW3 (10 M) to various cations (25 mM) at 581 nm in 4:6 CH3OH/
mM) in 4:6 CH3OH/HEPES
m
ometry of RW1 (Fig. 5a, inset) and RW2 (Fig. 5b, inset) with Hg2þ
,
m
and the binding constant was calculated to be 2.1 ꢀ 107 and
HEPES buffer (v/v, 10 mM, pH 7.0). Inset: Pictures of RW1, RW2 and RW3 as a selective
4.4 ꢀ 105, Respectively [47]. The equation used was:
naked-eye chemosensors (bottom) and the visual fluorescence emissions by using a
UV lamp (365 nm) (top) for Hg2þ or Al3þ
.
ꢀ
Ylim ꢁ Y0
CM
CL KSCL
1
Y ¼ Y0 þ
1 þ
þ
out. The competition experiments revealed that the Hg2þ/Al3þ
-
2
ꢁꢂ
ꢃ
ꢄ
ꢅ
induced fluorescence response was unaffected in by 10 equiv. of
environmentally relevant alkali or alkaline-earth metals, such as
Naþ, Kþ, Mg2þ and Ca2þ. In addition, the other transition metal ions
(Mn2þ, Ni2þ, Co2þ, Cu2þ, Zn2þ, Cd2þ, Agþ, Pb2þ, Al3þ, Fe3þ, Auþ,
Au3þ) did not interfere with the Hg2þ/Al3þ-induced fluorescence
(Fig. 3). Obviously, all of these results confirmed that our proposed
chemosensor RW1-2/RW3 has remarkably high selectivity toward
Hg2þ/Al3þ ions over other competitive cations in the water
medium.
2
1=2
CM
1
CM
CL
ꢁ
1 þ
þ
ꢁ 4
;
CL KSCL
where Y is the recorded fluorescent intensity, Y0 is the start value
without addition of ions, Ylim is the limiting value, CM is the ions
concentration, and CL is the sensor concentration.
The above results indicate that the sensor RW1 exhibited a su-
perior binding capability toward the Hg2þ ions relative to the
sensor RW2, which can be attributed to additional chloride atoms
in the case of RW2. This observation along with lower binding
constant of RW2 suggests that the chloride atom plays an impor-
tant role in the extent of the binding with Hg2þ. The chlorine atom
led to the heavy atom effect and the electrophilic effect which can
lead to a decrease in fluorescence intensity [48].
To gain more insight into the properties and mechanism of RW3
toward Al3þ, fluorescence titration with Al3þ was recorded. As seen
from Fig. 5c, upon sequential addition of Al3þ, an emission band
peaked at 581 nm significantly increased in fluorescence intensity,
possibly because of the rhodamine ring-opening process, and the
fluorescence intensity increased up to 1.3 equiv. and then no
changes were observed up to 2.0 equiv. Based on 1:1 stoichiometric
relationship, a binding constant of 3.9 ꢀ 105 Mꢁ1 was obtained from
Figs. 4 and 5 explain the fluorescent and absorption titrations of
RW1 and RW2 with Hg2þ in methanol-H2O (4:6, v/v, 10 mM, HEPES,
pH 7.0) solution. On addition of Hg2þ ions (1e20
mM), the solution
of RW1 and RW2 turned from colorless to pink, and the absorbance
was significantly enhanced with a new peak appearing at around
556 nm (Fig. 4), clearly suggesting the formation of the ring-opened
form of RW1 and RW2 as a result of Hg2þ binding. Compared to
RW1, the enhancement in the UV absorption (lmax ¼ 556 nm) of
RW2 from 180 fold under to 60 fold.
To understand the recognition abilities of RW1-2/RW3 toward
Hg2þ/Al3þ ions, the Job’s plot analysis for the absorbance was
conducted to determine the binding stoichiometry of the RW1-2/
RW3 and Hg2þ/Al3þ ions complex, by according to the continuous
variations with a total concentration of [Hg2þ/Al3þ] þ [RW1-2/

46
F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
Fig. 5. Fluorescence spectra of RW1 (a), RW2 (b) and RW3 (c) (10 mM) in 4:6 CH3OH/
HEPES buffer (v/v, 10 mM, pH 7.0) upon addition of different amounts of Hg2þ and Al3þ
ions (0e2 equiv.). lex ¼ 525 nm. Inset: Top: Fluorescence at 581 nm as a function of
Hg2þ and Al3þ concentration, indicating a 1:1 metal-ligand ratio; bottom: Fluorescence
intensity at 581 nm for RW1, RW2, and RW3 as a function of the concentration of Hg2þ
ion.
Fig. 4. Absorption spectra of RW1 (a), RW2 (b) and RW3 (c) (10 mM) in 4:6 CH3OH/
HEPES buffer (v/v, 10 mM, pH 7.0) upon addition of different amounts of Hg2þ and Al3þ
ions (0e2 equiv.). Inset: Job’s plots at 556 nm (RW1, RW2 and RW3).
a nonlinear least-squares fit according to a 1:1 binding stoichiom-
etry (Fig. 5c, inset).
Hg2þ/Al3þ ions with different concentrations ranged from 0 to
10
recorded to generate a calibration curve. When Hg2þ concentra-
tion added was from 0.5 to 10 M, an almost perfect linearity
was found between fluorescence intensity of RW1-2/RW3 and
mM, the fluorescence intensity of RW1-2/RW3 at 581 nm was
The high sensitivity of RW1-2/RW3 for Hg2þ/Al3þ ions
might be used to generate a calibration curve for quantitative
measurement of Hg2þ/Al3þ ions in aqueous solution. By adding
m

F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
47
Hg2þ/Al3þ concentration (Supporting data, Figs. S1eS3). The limit
of detection (LOD) was attained of 2.5 ꢀ 10ꢁ8 M, 4.2 ꢀ 10ꢁ8 M and
2.9 ꢀ 10ꢁ8 M, respectively, based on 3 ꢀ dblank/k (where dblank is
the standard deviation of the blank solution and k is the slope of
the calibration plot). The results indicated that the RW1-2/RW3
chemosensor could sensitively detect environmentally relevant
levels of Hg2þ/Al3þ
.
3.2. pH investigation
To apply the probe in complex environments, the stabilities of
the two probes were tested in the absence and presence of Hg2þ
at different pH values. Fig. 6 shows that for free RW1 in the pH
range of 3.0e4.0, the emission increased as the pH decreased the
ring-opening of the rhodamine framework took place due to the
strong protonation. When pH > 4.0, It can be seen that the
fluorescence was of very low intensity and indicating no signif-
icant ring-opening. However, after the addition of Hg2þ, the
emission increased substantially between pH 4.0 and 8.0. Thus,
RW1 can detect Hg2þ ions with a wide pH range (4.0e8.0)
because in this region RW1 with Hg2þ induces a remarkable
fluorescence “OffeOn”, whereas RW1 without Hg2þ does not
lead to such change. Under identical condition, RW2 and RW3
show similar behavior. In the pH range from 5.0 to 8.0, RW1-2/
RW3 can respond to Hg2þ/Al3þ without any interference by
protons.
3.3. Theoretical mechanism
Thus, in accordance with the 1:1 stoichiometry, the sensors are
the most likely to be chelated with metal ions via its O atoms
(Fig. 7, inset) [49,50]. On the other hand, reversibility of target ion
binding is an important quality in a probe. Consequently, we also
investigated the reversibility of the RW1 and RW2-Hg2þ binding
by a simple titration methodology with Na2S. Na2S was intro-
duced because of its sulfide ion has a strong binding ability toward
thiophilic Hg2þ. Addition of Na2S to the RW1 and RW2-Hg2þ
complex led to an expected decrease of fluorescence intensity
(Fig. 7). The solution returned to its original colorless state, which
reveals that the reversibility due to the chelation-induced ring
opening of rhodamine spirolactam, rather than other possible
reactions.
Fig. 7. Reversible investigation of RW1 and RW2 for Hg2þ with addition of S2ꢁ
.
IR titration results clearly supported the proposed ring-
opening mechanism. As demonstrated in Fig. S4 (Supporting
data), the carbonyl absorption of RW1 at 1670 cmꢁ1 shifted to
a lower frequency at 1633 cmꢁ1 upon the addition of Hg2þ
,
indicating that the carbonyl oxygen coordinated with Hg2þ
resulting in the spirocycle ring opening. A similar behavior was
observed for RW2 and RW3, as shown in Fig. S4 (Supporting
data).
The 13C NMR spectra of RW1-3 recorded in the absence or
presence Hg2þ/Al3þ ions clearly show the involvement of carbonyl
oxygen of RW1-3 in complex formation. The reduction in the 13C-
resonance at near 65 ppm confirms the opening of spirolactam ring
upon complex formation with Hg2þ/Al3þ ions [51] (Supporting
data, Figs. S5eS10).
3.4. Preliminary analytical application
In view of the above-mentioned advantages of the sensor
RW1, bioimaging applications of RW1 for monitoring of Hg2þ
ions in living cells were then carried out. After HL-7702 cells
were incubated with RW1 (10 mM) in culture medium for 30 min
at 37 ꢂC, and no fluorescence of RW1 inside the living HL-7702
cells was observed (Fig. 8b). After three times washing with
Fig. 6. Fluorescence intensity (581 nm) of RW1 RW2 and RW3 (10
CH3OH/HEPES buffer (v/v, 10 mM, pH 7.0) of different pH in the absence and presence
of Hg2þ or Al3þ (10 mol Lꢁ1).
m
mol Lꢁ1) in 4:6
PBS buffer, The cells were then supplemented with 10
mM
m
Hg(NO3)2 in the growth medium for another 30 min at 37 ꢂC, a

48
F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
Fig. 8. Fluorescence images of Hg2þ in HL-7702 cells with 10
m
M solution of RW1 in ethanol-PBS (1:99, v/v) buffer for 30 min at 37 ꢂC, bright-field transmission image (a and c) and
fluorescence image (b and d) of HL-7702 cells incubated with 0 mM, 10 m
M of Hg2þ for 30 min, respectively.
bright fluorescence was observed from within the cell (Fig. 8d).
A bright-field transmission image of cells treated with RW1 and
Hg2þ confirmed that the cells were viable throughout the im-
aging experiments (Fig. 8a, c). It is proven that RW1 is
cell-permeable and primarily little toxic to the cell culture. These
results demonstrated that RW1 may be used for detecting Hg2þ
in biological samples. The fluorescence imaging experiments of
RW2 and RW3 are shown in the supporting information
(Figs. S11eS12) [50,52e66].
shows a number of attractive characteristics such as good selec-
tivity, high sensitivity and wide applicability. RW1 can be used for
rapid analysis of trace level Hg2þ in living cells with satisfactory
results.
To evaluate cytotoxicity of RW1 was taken as an example to
perform a assay on HL-7702 cells with dye concentrations from 0 to
10
mM. A cytotoxicity screen (Fig. 9) was conducted for four dye
concentrations: 0
m
M, 0.1 M, 1 M, 10 M. The cellular viability
m
m
m
estimated was ca. 97% in 24 h after treatment with 10
exhibiting low toxicity to HL-7702 cells.
mM of RW1,
3.5. Method performance comparison
Table 1 summarizes the performance of typical Hg2þ fluorescent
chemosensors and highlights their applications. Most of the probes
present coordination mode was 1:1 with Hg2þ [67,68,70,72e77].
Although all the probes have good selectivity for Hg2þ, a few of
probes possess a wide quantitative range [68,70,72,74,75,78], even
down to nM LOD [72,74,75]. However some of the probes require
more rigorous testing media [68,69,71], and the reproductivity
[68e70,72,73,75e77] as well as the applicability in living cells
[67,68,72e74,76e78], are investigated. RW1 based on rhodamine
Fig. 9. Cell viability values (%) estimated by MTT proliferation test versus incubation
concentrations of RW1. HL-7702 cells were cultured in the presence of 0e10 mM RW1
at 37 ꢂC.

F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
49
Table 1
Performances comparison of various “OffeOn” probes for Hg2þ
.
Reagents
Linear
range,
LOD,nM
Coordination
mode
(probe:ion)
Testing media
Applications
Reproducibility
NA
Ref.
[67]
m
M
Rhodamine derivative
NAa
NA
1:1
Water/CH3CN(1:1,
Rat Schwann
cells
Hela cells
NA
v/v pH ¼ 7 NaAceHAc)
Rhodamine derivative
Rhodamine derivative
Rhodamine derivative
0e25
NA
0.08e10
80
500
40
1:1
1:2
1:1
100% CH3CN
Reversible
Reversible
Reversible
[68]
[69]
[70]
100% THF
Water/ethanol
NA
(1:1, v/v pH ¼ 7.24 TriseHCl)
BINOL derivative
Rhodamine derivative
NA
0e0.35
NA
8.25
1:2
1:1
100% CH3CN
NA
NA
Reversible
[71]
[72]
MethanoleHEPES buffer
(30:70, v/v, 20 mM HEPES, pH 7.0)
CH3CNeH2O (4:1, v/v;
HL-7702 cells
Rhodamine derivative
NA
NA
1:1
HeLa cells
Reversible
[73]
10
m
M tris HCl buffer; pH ¼ 7.0)
Rhodamine derivative
1,8-anthrancene
1e28
0.2e2
1.41
0.79
1:1
1:1
1:99 ethanol/H2O (v/v, pH 7.0)
K 562 cells
NA
NA
Reversible
[74]
[75]
Water containing 2% (v/v) of DMSO
disulfonamide
Rhodamine derivative
NA
NA
NA
NA
1:1
1:1
20 mM, MeCNewater solution,
95:5,v/v, pH ¼ 7.2)
HeLa cells
A549 cells
Reversible
Reversible
[76]
[77]
Rhodamine derivative
1 ꢀ 10ꢁ2 mol Lꢁ1 HEPES,
1 ꢀ 10ꢁ1 M NaClO4, pH ¼ 7.4,
50% ethanol, v/v)
Rhodamine derivative
Rhodamine derivative
0.1e1
0.1e3
100
25
2:1
1:1
WatereDMF solution
Rat Schwann
cells
Reversible
Reversible
[78]
(1/1, v/v, pH ¼ 7.0 NaAceHAc)
CH3OH/HEPES buffer
This work
of RW1
(4:6, v/v, 10 mM, pH 7.0)
a
Na: Not available.
[5] Cheng HF, Hu YA. China needs to control mercury emissions from municipal
solid waste (MSW) incineration. Environ Sci Technol 2010;44:7994e5.
[6] Fan J, Guo K, Peng XJ, Du JJ, Wang JY, Sun SG, et al. A Hg2þ fluorescent che-
mosensor without interference from anions and Hg2þ-imaging in living cells.
Sens Actuators B 2009;142:191e6.
[7] Cheng HF, Hu YA. Understanding the paradox of mercury pollution in China:
high concentrations in environmental matrix yet low levels in fish on the
market. Environ Sci Technol 2012;46:4695e6.
4. Conclusion
In conclusion, rhodamine derivatives RW1-2/RW3 were syn-
thesized by the one-step condensation between Rhodamine ethyl-
enediamine with phthalimido acid chlorides and behave as
selective fluorescent and colorimetric sensors for Hg2þ/Al3þ in
aqueous solution. Complexation of the Hg2þ/Al3þ ions open the
spirolactam ring of rhodamine moieties to give specific color change
as well as fluorescence enhancement at 581 nm. Most importantly,
due to the presence of chlorine atoms, RW2 has a lower binding
constant than RW1 for the Hg2þ. In addition, Moreover, the benzyl
group can make RW3 better identify Al3þ. The living cell imaging
experiments further demonstrate the value of RW1-3 in the prac-
tical applications in biological systems.
[8] Liu YW, Chen CH, Wu AT. A turn-on and reversible fluorescence sensor for
Al3þ ion. Analyst 2012;137:5201e3.
[9] Weller DG, Gutierrez AJ, Rubio C, Revert C, Hardisson A. Dietary intake of
aluminum in a Spanish population (Canary islands). J Agr Food Chem 2010;58:
10452e7.
[10] Ruan JJ, Xu ZM. Approaches to improve separation efficiency of eddy current
separation for recovering aluminum from waste toner cartridges. Environ Sci
Technol 2012;46:6214e21.
[11] Dockery CR, Blew MJ, Goode SR. Visualizing the solute vaporization interfer-
ence in flame atomic absorption spectroscopy. J Chem Educ 2008;85:854.
[12] Almeida ILS, Coelho NMM. Direct determination of inorganic mercury in
ethanol fuel by cold vapor atomic absorption spectrometry. Energ Fuels 2012;
26:6003e7.
[13] Gonzalez PR, Epov VN, Bridou R, Tessier E, Guyoneaud R, Monperrus M, et al.
Species-specific stable isotope fractionation of mercury during Hg(II)
methylation by an anaerobic bacteria (Desulfobulbus propionicus) under dark
conditions. Environ Sci Technol 2009;43:9183e8.
Acknowledgments
The authors thank the financial supports from the National
Natural Science Foundation of China (50973084), Science and
Technical Development Foundation of Colleges and Universities,
Tianjin, China (20071214).
[14] Roy V, Amyot M, Carignan R. Beaver ponds increase methylmercury concen-
trations in Canadian shield streams along vegetation and pond-age gradients.
Environ Sci Technol 2009;43:5605e11.
[15] Chen XQ, Baek KH, Kim Y, Kim SJ, Shin I, Yoon J. A selenolactone-based
fluorescent chemodosimeter to monitor mecury/methylmercury species
in vitro and in vivo. Tetrahedron 2010;66:4016e21.
Appendix A. Supplementary data
[16] Lohani CR, Kim JM, Chung SY, Yoon JY, Lee KH. Colorimetric and fluorescent
sensing of pyrophosphate in 100% aqueous solution by a system comprised of
rhodamine B compound and Al3þ complex. Analyst 2010;135:2079e84.
[17] Maity DR, Daraju TG. Conformationally constrained (Coumarin-Triazolyl-
Bipyridyl) click fluoroionophore as a selective Al3þ sensor. Inorg Chem 2010;
49:7229e31.
[18] Kang J, Zhang YM, Huang ZX, Han L. Directly oxidized chemiluminescence of
2-Substituted-4,5-di(2-Furyl)-1H-imidazole by acidic potassium permanga-
nate and its analytical application for determination of albumin. J Fluoresc
2011;21:1607e15.
Supplementary data related to this article can be found at
http://dx.doi.org/10.1016/j.dyepig.2013.02.002.
References
[1] Cai GB, Zhao GX, Wang XK, Yu SH. Synthesis of polyacrylic acid stabilized
amorphous calcium carbonate nanoparticles and their application for removal
of toxic heavy metal ions in water. J Phys Chem C 2010;114:12948e54.
[2] Thirumavalavan M, Lai YL, Lin LC, Lee JF. Cellulose-based native and surface
modified fruit peels for the adsorption of heavy metal ions from aqueous
solution: langmuir adsorption isotherms. J Chem Eng Data 2010;55:1186e92.
[3] Zhuang Y, Yang Y, Xiang GL, Wang X. Magnesium silicate hollow nano-
structures as highly efficient absorbents for toxic metal ions. J Phys Chem C
2009;113:10441e5.
[19] Jung JY, Han SJ, Chun J, Lee C, Yoon J. New thiazolothiazole derivatives as
fluorescent chemosensors for Cr3þ and Al3þ. Dyes Pigm 2012;94:423e6.
[20] Sun X, Wang YW, Peng Y. A selective and ratiometric bifunctional fluorescent
probe for Al3þ ion and proton. Org Lett 2012;14:3420e3.
[21] Zhou Y, You XY, Fang Y, Li JY, Liu K, Yao C. A thiophen-thiooxorhodamine
conjugate fluorescent probe for detecting mercury in aqueous media and
living cells. Org Biomol Chem 2010;8:4819e22.
[4] Tavakoli O, Yoshida H. Effective recovery of harmful metal ions from squid
wastes using subcritical and supercritical water treatments. Environ Sci
Technol 2005;39:2357e63.
[22] Huang JH, Xu YF, Qian XH. A rhodamine-based Hg2þ sensor with high selec-
tivity and sensitivity in aqueous solution: a NS2-containing receptor. J Org
Chem 2009;74:2167e70.

50
F. Yan et al. / Dyes and Pigments 98 (2013) 42e50
[23] Liu K, Zhou Y, Yao C. A highly sensitive and selective ratiometric and colori-
metric sensor for Hg2þ based on a rhodamineenitrobenzoxadiazole conju-
gate. Inorg Chem Commun 2011;14:1798e801.
[50] Das P, Ghosh A, Bhatt H, Das A. A highly selective and dual responsive test
paper sensor of Hg2þ/Cr3þ for naked eye detection in neutral water. RSC Adv
2012;2:3714e21.
[24] Drummond MJ, Fry CS, Glynn EL, Timmerman KL, Dickinson JM, Walker DK,
et al. Skeletal muscle amino acid transporter expression is increased in
young and older adults following resistance exercise. J Appl Physiol 2010;
111:135e42.
[51] Chereddy NR, Suman K, Korrapati PS, Thennarasu S, Mandal AB. Design and
synthesis of rhodamine based chemosensors for the detection of Fe3þ ions.
Dyes Pigm 2012;95:606e13.
[52] Kim HN, Lee MH, Kim HJ, Kim JS, Yoon JY. A new trend in rhodamine-based
chemosensors: application of spirolactam ring-opening to sensing ions.
Chem Soc Rev 2008;37:1465e72.
[25] Melone M, Varoqui H, Erickson JD, Conti F. Localization of the Naþ-coupled
neutral amino acid transporter 2 in the cerebral cortex. Neuroscience 2006;
140:281e92.
[53] Mariana B, Carlos AMA, Jose MGM. Synthesis and applications of rhodamine
derivatives as fluorescent probes. Chem Soc Rev 2009;38:2410e33.
[54] Ahamed BN, Ghosh P. An integrated system of pyrene and rhodamine-6G for
selective colorimetric and fluorometric sensing of mercury (II). Inorg Chim
Acta 2011;372:100e7.
[26] Yang HM, Park CW, Ahn T, Jung B, Seo BK, Park JH, et al. A direct surface
modification of iron oxide nanoparticles with various poly(amino acid)s for
use as magnetic resonance probes. J Colloid Interf Sci 2012;391:158e67.
[27] Vesely T, Trakal L, Neuberg M, Szakova J, Drabek O, Tejnecky V, et al. Removal
of Al, Fe and Mn by Pistia stratiotes L. and its stress response. Cent Eur J Biol
2012;7:1037e45.
[55] Suresh M, Mishra SK, Mishra S, Das A. The detection of Hg2þ by cyanobacteria
in aqueous media. Chem Commun 2009:2496e8.
[28] Liu XH, Li JS, Dong JS, Hu C, Gong WM, Wang JY. Genetic incorporation of a
metal-chelating amino acid as a probe for protein electron transfer. Angew
Chem Int Edit 2012;51:10261e5.
[29] Park N, Ryu J, Jang S, Lee HS. Metal ion affinity purification of proteins by
genetically incorporating metal-chelating amino acids. Tetrahedron 2012;68:
4649e54.
[56] Saha S, Chhatbar MU, Mahato P, Praveen L, Siddhanta AK, Das A. Rhodaminee
alginate conjugate as self indicating gel beads for efficient detection and scav-
enging of Hg2þ and Cr3þ in aqueous media. Chem Commun 2012;48:1659e61.
[57] Saha S, Mahato P, Baidya M, Ghosh SK, Das A. An interrupted PET coupled
TBET process for the design of a specific receptor for Hg2þ and its intracellular
detection in MCF7 cells. Chem Commun 2012;48:9293e5.
[30] Kwon SK, Kim HN, Rho JH, Swamy KMK, Shanthakumar SM, Yoon J. Rhoda-
mine derivative bearing histidine binding site as a fluorescent chemosensor
for Hg2þ. Bull Korean Chem Soc 2009;30:719e21.
[31] Xiang Y, Tong AJ, Jin PY, Ju Y. New fluorescent rhodamine hydrazone che-
mosensor for Cu (II) with high selectivity and sensitivity. Org Lett 2006;8:
2863e6.
[32] Huang W, Song C, He C, Lv G, Hu X, Zhu X, et al. Recognition preference of
rhodamine-thio spirolactams for mercury (II) in aqueous solution. Inorg Chem
2009;48:5061e72.
[58] Nolan EM, Lippard SJ. Tools and tactics for the optical detection of mercuric
ion. Chem Rev 2008;108:3443e80.
[59] Quang DT, Kim JS. Fluoro- and chromogenic chemodosimeters for heavy metal
ion detection in solution and biospecimens. Chem Rev 2010;110:6280e301.
[60] Mahato P, Saha S, Suresh E, Liddo RD, Parnigotto PP, Conconi MT, et al.
Ratiometric detection of Cr3þ and Hg2þ by a naphthalimide-rhodamine based
fluorescent probe. Inorg Chem 2012;51:1769e77.
[61] Mahato P, Ghosh A, Saha S, Mishra S, Mishra SK, Das A. Recognition of Hg2þ using
diametrically disubstituted cyclam unit. Inorg Chem 2010;49:11485e92.
[62] Saha S, Mahato P, Upendar RG, Suresh E, Chakrabarty A, Baidya M, et al.
Recognition of Hg2þ and Cr3þ in physiological conditions by a rhodamine
derivative and its application as a reagent for cell-imaging studies. Inorg
Chem 2012;51:336e45.
[33] Kwon JY, Jang YJ, Lee YJ, Kim KM, Yoon J. A highly selective fluorescent che-
mosensor for Pb2þ. J Am Chem Soc 2005;127:10107e11.
[34] Yu CW, Chen LX, Zhang J, Li JH, Liu P, Wang WH, et al. “OffeOn” based fluo-
rescent chemosensor for Cu2þ in aqueous media and living cells. Talanta
2011;85:1627e33.
[35] Huang L, Wang X, Xie GQ, Xi PX, Li ZP, Xu M, et al. A new rhodamine-based
chemosensor for Cu2þ and the study of its behavior in living cells. Dalton
Trans 2010;39:7894e6.
[36] Dong L, Wu C, Zeng X, Mu L, Xue SF, Tao Z, et al. The synthesis of a rhodamine
B schiff-base chemosensor and recognition properties for Fe3þ in neutral
ethanol aqueous solution. Sens Actuators B 2010;145:433e7.
[37] Tang LJ, Li FF, Liu MH, Nandhakumar R. Single sensor for two metal ions:
colorimetric recognition of Cu2þ and fluorescent recognition of Hg2þ. Spec-
trochim Acta A 2011;78:1168e72.
[38] Kim HN, Ren WX, Kim JS, Yoon J. Fluorescent and colorimetric sensors for
detection of lead, cadmium, and mercury ions. Chem Soc Rev 2012;41:3210e44.
[39] Chen XQ, Pradhan T, Wang F, Kim JS, Yoon J. Fluorescent chemosensors based
on spiroring-opening of xanthenes and related derivatives. Chem Rev 2012;
112:1910e56.
[40] Ding JH, Yuan LD, Gao L, Chen JW. Fluorescence quenching of a rhodamine
derivative: selectively sensing Cu2þ in acidic aqueous media. J Lumin 2012;
132:1987e93.
[41] Yan FY, Cao DL, Wang M, Yang N, Yu QH, Dai LF, et al. A new rhodamine-based
“OffeOn” fluorescent chemosensor for Hg (II) ion and its application in im-
aging Hg (II) in living cells. J Fluoresc 2012;22:1249e56.
[42] Chen XQ, Jou MJ, Lee H, Kou S, Lim J, Nam SW, et al. New fluorescent and
colorimetric chemosensors bearing rhodamine and binaphthyl groups for the
detection of Cu2þ. Sens Actuators B 2009;137:597e602.
[43] Zheng XY, Zhang WJ, Mu L, Zeng X, Xue SF, Tao Z, et al. A novel rhodamine-
based thiacalix[4]arene fluorescent sensor for Fe3þ and Cr3þ. J Incl Phenom
Macro 2010;68:139e46.
[63] Suresh M, Mandal AK, Saha S, Suresh E, Mandoli A, Liddo RD, et al. Azine-
based receptor for recognition of Hg2þ ion: crystallographic evidence and
imaging application in live cells. Org Lett 2010;12:5406e9.
[64] Suresh M, Shrivastav A, Mishra S, Suresh E, Das A. A rhodamine-based che-
mosensor that works in the biological system. Org Lett 2008;10:3013e6.
[65] Suresh M, Mishra S, Mishra SK, Suresh E, Mandal AK, Shrivastav A, et al.
Resonance energy transfer approach and a new ratiometric probe for Hg2þ in
aqueous media and living organism. Org Lett 2009;11:2740e3.
[66] Mandal AK, Suresh M, Das P, Suresh E, Baidya M, Ghosh SK, et al. Recognition
of Hg2þ ion through restricted imine isomerization: crystallographic evidence
and imaging in live cells. Org Lett 2012;14:2980e3.
[67] Wang YH, Huang YQ, Li B. A cell compatible fluorescent chemosensor for Hg2þ
based on a novel rhodamine derivative that works as a molecular keypad lock.
RSC Adv 2011;1:1294e300.
[68] Zhao Y, Zheng BZ, Du J, Xiao D, Yang L. A fluorescent “turn-on” probe for the
dual-channel detection of Hg(II) and Mg(II) and its application of imaging in
living cells. Talanta 2011;85:2194e201.
[69] Bhalla V, Tejpal R, Kumar M. Rhodamine appended terphenyl: a reversible
“offeon” fluorescent chemosensor for mercury ions. Sens Actuators B 2010;
151:180e5.
[70] Ma QJ, Zhang XB, Zhao XH. A highly selective fluorescent probe for Hg2þ based
on a rhodamine-coumarinconjugate. Anal Chim Acta 2010;663:85e90.
[71] Ma TH, Zhang AJ, Dong M. A simply and highly selective ‘‘turn-on’’ type
fluorescent chemosensor for Hg2þ based on chiral BINOL-Schiff’s base ligand.
J Lumin 2010;130:888e92.
[72] Yan FY, Cao DL, Yang N, Yu QH, Wang M, Chen L. A selective turn-on fluo-
rescent chemosensor based on rhodamine for Hg2þ and its application in live
cell imaging. Sens Actuators B 2012;162:313e20.
[73] Ghosh K, Sarkar T, Samadder A. A rhodamine appended tripodal receptor as a
ratiometric probe for Hg2þ ions. Org Biomol Chem 2012;10:3236e43.
[74] Wang LN, Yan JX, Qin WW, Liu WS, Wang R. A new rhodamine-based single
molecule multianalyte (Cu2þ, Hg2þ) sensor and its application in the biological
system. Dyes Pigm 2012;92:1083e90.
[75] Hu ZQ, Yang XD, Cui CL. 1, 8-Anthrancene disulfonamide: a simple but highly
sensitive and selective fluorescent chemosensor for Hg2þ in aqueous media.
Sens Actuators B 2010;145:61e5.
[76] Zhao Y, Sun Y, Lv X, Liu YL, Chen ML, Guo W. Rhodamine-based chemosensor
for Hg2þ in aqueous solution with a broad pH range and its application in live
cell imaging. Org Biomol Chem 2010;8:4143e7.
[44] Soh JH, Swamy KMK, Kim SK, Kim S, Lee SH, Yoon J. Rhodamine urea de-
rivatives as fluorescent chemosensors for Hg2þ. Tetrahedron Lett 2007;48:
5966e9.
[45] Zhang X, Shiraishi Y, Hirai T. Cu (II) selective green fluorescence of
rhodamine-diacetic acid conjugate. Org Lett 2007;9:5039e42.
a
[46] Mercero JM, Matxain JM, Lopez X, Fowler JE, Ugalde JM. Aluminum (III) in-
teractions with the side chains of aromatic aminoacids. Int J Quantum Chem
2002;90:859e81.
[47] Tang LJ, Li Y, Nandhakumar R, Qian JH. An unprecedented rhodamine-based
fluorescent and colorimetric chemosensor for Fe3þ in aqueous media. Mon-
atsh Chem 2010;141:615e20.
[48] Romanova Zinaida S, Deshayes Kurt, Piotrowiak Piotr. Remote intermolecular
“Heavy-atom effect”: spin-orbit coupling across the wall of a hemicarcerand.
J Am Chem Soc 2001;123:2444e5.
[77] Wang HH, Xue L, Yu CL, Qian YY, Jiang H. Rhodamine-based fluorescent sensor
for mercury in buffer solution and living cells. Dyes Pigm 2011;91:350e5.
[78] Wang HG, Li YP, Xu SF. Rhodamine-based highly sensitive colorimetric off-on
fluorescent chemosensor for Hg2þ in aqueous solution and for live cell im-
aging. Org Biomol Chem 2011;9:2850e5.
[49] Das P, Ghosh A, Das A. Unusual specificity of a receptor for Nd3þ among other
lanthanide ions for selective colorimetric recognition. Inorg Chem 2010;49:
6909e16.
