Meta Selective C-H Borylation of Sterically Biased and Unbiased Substrates Directed by Electrostatic Interaction

Article abstract of DOI:10.1021/jacs.1c01770

An electrostatically directed meta borylation of sterically biased and unbiased substrates is described. The borylation follows an electrostatic interaction between the partially positive and negative charges between the ligand and substrate. With this strategy, it has been demonstrated that a wide number of challenging substrates, especially 4-substituted substrates, can selectively be borylated at the meta position. Moreover, unsubstituted substrates also displayed excellent meta selectivity. The reaction employs a bench-stable ligand and proceeds at a milder temperature, precluding the need to synthesize a bulky and sophisticated ligand/template.

Full text of DOI:10.1021/jacs.1c01770

pubs.acs.org/JACS
Communication
Meta Selective C−H Borylation of Sterically Biased and Unbiased
Substrates Directed by Electrostatic Interaction
Jagriti Chaturvedi, Chabush Haldar, Ranjana Bisht, Gajanan Pandey, and Buddhadeb Chattopadhyay*
Cite This: J. Am. Chem. Soc. 2021, 143, 7604−7611
Read Online
sı
*
Metrics & More
Article Recommendations
Supporting Information
ACCESS
ABSTRACT: An electrostatically directed meta borylation of sterically biased and unbiased substrates is described. The borylation
follows an electrostatic interaction between the partially positive and negative charges between the ligand and substrate. With this
strategy, it has been demonstrated that a wide number of challenging substrates, especially 4-substituted substrates, can selectively be
borylated at the meta position. Moreover, unsubstituted substrates also displayed excellent meta selectivity. The reaction employs a
bench-stable ligand and proceeds at a milder temperature, precluding the need to synthesize a bulky and sophisticated ligand/
template.
ver time, transition-metal-catalyzed C−H bond func-
possible for 4-substituted substrates. The reason behind this
is solely the steric effects that hamper the noncovalent
interaction next to the borylation site. Second, the require-
ment of customized ligands or catalysts bestows a barrier to
those looking to use “standard reagents” for a practical
application.28 Herein we report a concept based on the
electrostatic interaction for the meta borylation of arenes
bearing −SO2CF3, −SO2CH3, −COCF3, −COCH3, and
−COtBu at mild reaction conditions. Moreover, we
demonstrate that, with the developed concept, meta
borylation can be possible with those arenes featuring a
substitution at the para position with a high meta selectivity.
The inspiration of this meta borylation concept is based on
the recently developed electrostatically directed ortho
borylation of phenols developed by Smith, Maleczka, and
Singleton (Chart 1B, TS-1).44 Thus, with this inspiring
concept, we questioned if this strategy could be further
extended toward the meta borylation of arenes.
The working hypothesis of this present work is based on
the following key considerations: (i) generation of the
tris(boryl)(Ir) complex from Ir-precatalyst and diborane
reagent, (ii) examination of commercially available bidentate
nitrogen ligands instead of the customized ligands for the in
situ formation of the pentacoordinated Ir complex that would
likely be the partially positive charge in nature, (iii) use of
such type of functionalities attached with arenes, which by
virtue of resonance could develop a partial negative charge at
any given heteroatom, and (iv) an appropriate electrostatic
interaction between the ligand and substrate (Chart 1B, TS-
2).
O
tionalization1−5 has been recognized as one of the most
important methods to construct carbon−carbon and carbon−
heteroatom bonds for the synthesis of a complex molecular
architecture. But, the key challenge lies in a site-selective6−10
functionalization owing to the presence of multiple C−H
bonds in organic molecules. In this context, while the last few
decades have seen numerous developments in ortho selective
functionalization,11−14 the developments of meta and para
functionalization15,16 are much less compared to the ortho
functionalization. Achieving the remote meta and para
selectivity in an arene C−H functionalization by overcoming
the steric demands is a major challenge. Consequently, the
functionalization of a remote C−H bond often necessitates
the attachment and detachment of a bulky directing template,
which limits the practicability of this method.
In this context, among various C−H bond functionaliza-
tions, an iridium-catalyzed borylation17−20 has been demon-
strated as one of the most important synthetic tools due to
the versatility of the C−B bonds.21−24 While there are many
useful methods that are now available for the ortho selective
C−H borylation including the directed ortho metalations
(DoM),25,26 meta and para selective C−H borylations are still
difficult to realize. Earlier only one type of meta borylation
was possible via iridium catalysis from 1,3-disubstituted
arenesa seminal contribution by Smith, Maleczka, and
Hartwig.27−30 Apart from other directed meta boryla-
tions,31,32 recently, one new paradigm of meta selective
borylation has been developed by means of various
noncovalent interactions33−39 (Chart 1A). Moreover, the
use of a noncovalent interaction and Lewis acid−base
interaction has also been seen for para C−H borylations.40−43
However, despite the ingenuity of the noncovalent
interaction in C−H borylation, several aspects limit its wide
application. First, because of the weak nature of this
interaction, a big competition is encountered for those
substrates having a substituent next to the C−H borylation
site. For example, the meta C−H borylation is still not
Received: February 15, 2021
Published: May 14, 2021
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611
© 2021 American Chemical Society
7604

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
Chart 1. Noncovalent Catalysis for Meta Borylation: Previous and Present Work
We began our studies using arene (1a) bearing an (Et)N−
SO2CF3 group with the commercially available ligands (Chart
2). As per our hypothesis for an electrostatic interaction, the
borylation was performed in cyclohexane using bipyridine
(L1) at 40 °C with 1.0 equiv of bis(pinacolato)diboron
(B2pin2) (entry 1). We observed that, while the borylation
gave promising meta selectivity, it also produced significant
diborylated products. Thus, to minimize the diborylation,
subsequent optimizations were conducted with 0.5 equiv of
the boron source (i.e., B2pin2). The selectivity is based on a
gas chromatography/mass spectrometry (GC/MS) analysis of
the reaction.
Accordingly, when the borylations were performed with
bipyridine ligands (L1, L2, & L3) with the reduced amount
of B2pin2 a clear trend in the enhancement of the meta
selectivity was observed as the bipyridine ligands were made
electron-deficient. For example, whereas bipyridine ligand
(L1) and electron-rich bipyridine ligand (L2) resulted in 5.6/
01 (entry 2) and 4.8/01 (entry 3) meta-to-para selectivities,
respectively, an electron-deficient bipyridine ligand (L3)
produced a much higher proportion of meta selectively
(10.1/01), although with poor conversion (entry 4). From
this selectivity pattern with electronically different bipyridine
ligands, it may be stated that the electron-withdrawing bis-
CF3 groups attached with the bipyridine ligand (L3) pull the
electron from the ligand system, making it more electro-
positive after coordination with the iridium that interacts well
with the partial negatively charged oxygen atom of the
functional group of the arene via an electrostatic interaction.
Next, we considered electronically different 1,10-phenanthro-
line ligands that are not much explored in C−H
borylations.45,46 The 1,10-phenanthroline is a rigid, planar,
electron-poor heteroaromatic chelating ligand. Moreover, the
two N-donor atoms point inward and are juxtaposed to each
other in contrast to the bipyridine ligand. The inward
inclination of N donor atoms can be disrupted by a free
rotation along the single bond. Another distinctive property
of the phenanthroline ligand is its π-electron deficiency,
which makes it a suitable π-acceptor.47 Thus, considering
these important special properties of the phenanthroline
framework, we conducted a reaction using ligand (L4) (entry
5). To our delight, a high meta selectivity was achieved
(meta/para = 32/01) with 91% isolated borylated product
(2a). Modification of the 1,10-phenanthroline ligand by
introducing an electron-withdrawing group (L5) also
appeared to be comparable (entry 6), although the
conversion was sacrificed largely. Notably, the use of an
electron-donating 3,4,7,8-tetramethylphenanthroline ligand
(L8) and 5-amino phenanthroline ligand (L7) exhibited
poor meta selectivity (entries 9 and 8). Moreover, we found
that, while the ligand (L6) showed moderate meta selectivity
(entry 7), the ligand (L9) failed completely for the borylation
7605
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
Chart 2. Reaction Optimization
Chart 3. Meta Borylation of Monosubstituted Arenes
borylated product. The substrate (3c-V) bearing a benzyl
group instead of an alkyl group also selectively underwent
meta borylation without disturbing the C−H bonds of the
benzyl group. Importantly, conducting the borylation under
the same conditions with the (3aa) and (3bb) that do not
have any noncovalent interacting sites failed to undergo
borylations, which demonstrates the necessity of the above-
mentioned functional groups for the successful electrostati-
cally directed meta borylation.
(entry 10). For this failure, we reasoned that the bulky
phenyl substitution at the C6 position of the ligand (L9)
creates steric crowding that inhibited the borylation.
At this point, we were curious whether benzylamines
(3cc−3ff) would be suitable substrates or not considering the
greater distance compared to the anilines. Accordingly,
borylation was performed with these substrates, and we
found that, while unsubstituted substrate (3cc) and 4-fluoro
substrate (3ee) gave good meta selectivity, 2-chloro (3dd)
and 4-methoxy (3ff) provided moderate meta selectivity. This
indicates that the electrostatic interaction is not strong
enough for benzylamine substrates to give a high meta
selectivity especially for those benzylamines bearing a
substituent at the ortho or para position. For further
elaboration, we attempted meta borylations with arenes
bearing other functionalities. We observed that, while an
arene with sulfonamide (3gg) exhibited good meta selectivity
(m/p = 72/28), benzamide (3hh) and phosphonate ester
(3ii) failed to undergo borylationindicating the lack of an
appropriate electrostatic interaction. To see the effect of
other ligands (L1 and L2) borylation was performed with a
4-substituted arene (3a-II) using (L1 & L2). We found that,
while (L4) gave a quantitative conversion, ligands (L1) and
(L2) also afforded meta borylation, although with a poor
conversion (49% and 53%, respectively), which suggests a
significant substrate effect with the ligand (L4) affording
With these promising results, we then intended to test if
the electrostatic interaction will be validated for other
functionalities, such as Et(N)−SO2CF3, Et(N)−SO2CH3,
Et(N)−COCF3, and Et(N)−COCH3. We found that all
these functionalities exhibited a high meta selectivity (Chart
3, 2a−2d). Thus, borylations were conducted with several
alkyl groups containing substrates,48 for example, methyl (1a-
I), propyl (1a-II), isopropyl (1a-III), butyl (1a-IV), pentyl
(1a-V), hexyl (1a-VI), heptyl (1a-VII), and found that an
increase in chain length does not hamper the meta selectivity.
Next, we examined the scope of the meta borylation of
those substrates featuring a substituent at the para position
(Chart 4). To our delight, testing numerous 4-substituted
substrates with five different functional groups, we found that
almost all the substrates produced meta borylation products
exclusively. For example, the functional groups like R(N)−
SO2CF3, R(N)−SO2Me, R(N)−COCF3, R(N)−COMe, and
R(N)−COtBu with electronically and sterically different
substituents smoothly underwent meta borylations. The
bulky tert-butyl group at the 4-position also afforded the
meta borylation (meta/para = 90/10) (entry 4c-IV), but it
was isolated via cross-coupling due to a stability issue of the
7606
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
Chart 4. Substrate Scope for 4-Substituted Arenes
higher efficiency. This may be attributed to the unique
properties47 of the phenanthroline ligand (L4).
(6a-VI). Notably, while the 4-F and 4-CN substrates (Chart
4) afforded a complete meta borylation (which usually gives
borylation next to the F and CN group), 3-F and 3-CN
substrates (Chart 5) did not give borylation completely next
to these groups but, instead, resulted in a meta borylated
product as the major product. This result is a further
indication of an electrostatic interaction as per the proposed
The scope of the developed method was then evaluated for
the substrates bearing substitution at the different positions of
the arene (Chart 5). In all cases, a high meta selectivity was
obtained with high isolated yields of the borylated products

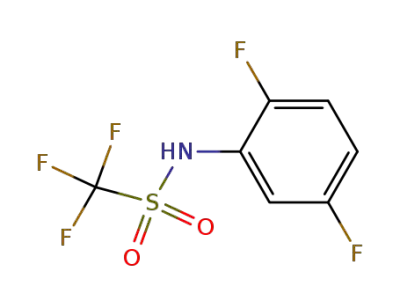

(entries 6a-I to 6a-VIII) including the 2,5-difluoro substrate
7607
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
a
Chart 5. Substrate Scope for Substituted Arenes
Chart 6. Synthetic Transformations
a
Conditions: (i) 1.2 equiv of oxone, (3/1) acetone/water, 0 °C to rt,
2 h. (ii) 1.0 mol % [Ir(cyclooctadiene)OMe]2, (4/1) (tetrahydrofur-
an/D2O), 80 °C, 12 h. (iii) 2.5 mol % Pd(PPh3)4. 2.0 equiv of K2CO3,
1.1 equiv of 5-bromo-m-xylene, (1/1) dimethoxyethane/H2O, 100
°C, 12 h. (iv) 10 mol % Cu(OAc)2, 1.5 equiv of NaN3, MeOH, 55 °C,
under air, 24 h. (v) 1.2 equiv of phenylacetylene, 3.0 mol % sodium
ascorbate, H2 O, MeOH, rt, 24 h. (vi) 1.0 mol
%
Pd2(dibenzylideneacetone)3.CHCl3, 4.0 mol % PPh3, 4.0 equiv of
K2CO3, 1.2 equiv of BnBr, (10/1) tetrahydrofuran/H2O, 100 °C, 24
h. (vii) 4.0 equiv of TFA, 2.0 equiv of Cu(OTf)2, CH3CN, 60 °C, 20
h. (viii) 3.0 equiv of CuCl2, (1/1) MeOH/H2O, 80 °C, 12 h. (ix) 3.0
equiv of CuBr2, (1/1) MeOH/H2O, 80 °C, 12 h.
hypothesis. Interestingly, we also found that the heterocyclic
substrate (5a-IX) proceeded with the C−H borylation
affording a high meta borylation.
To demonstrate the synthetic utility, we showed that the
borylated compound (2a) can be transformed to many useful
synthons employing known transformations, such as hydrox-
ylation,17 fluorination,49 chlorination,50 bromination,50 deut-
eration,51 arylation,21 benzylation,52 and azidation followed
by cycloaddition53 (Chart 6).
The standard reaction mechanism of the C−H borylation
of arene was reported54 earlier, and the present meta
borylation possibly follows the same mechanism. But, to get
an understanding of the proposed electrostatic model (Chart
7A, TS-2), we first analyzed the electronic effects of ligands.
Earlier it has been demonstrated that, for electrostatically
directed ortho borylation (TS-1),44 an electronic alteration of
the ligand framework affects the ortho selectivity.
Analyzing the electronic effects of the various 1,10-
phenanthroline ligands,47 we observed that the meta
borylation follows the same trend (Chart 7B) that is
consistent with the previous electrostatic model. For a
further understanding, several control experiments were
performed. As per our hypothesis, the lone-pair electrons of
the nitrogen atom will be delocalized through the
trifluoromethanesulfonyl group rather than the arene ring
(Chart 7A) due to its strong electron-withdrawing nature,
and thus the substrate (1) will develop a partial negative
charge at the oxygen atom (1A) instead of the arene ring
(1B), which would interact with the partial positive charge of
the ligand. We envision that, if this hypothesis is correct, then
a functional group alteration of the nitrogen atom should
affect the meta selectivity. Following this hypothesis, we
performed a borylation with substrates bearing several
functional groups (Chart 7C) and found that substrates
without suitable functional groups (9, 10, & 11) resulted in
either no reaction or a nonselective borylation. Next,
borylation was performed with the substrates (12a, R =
triflate (Tf)) having a free NH unit, and it was found that the
conversion was poor indicating that protection is necessary to
augment the electron delocalization into the −SO2CF3 group
by restricting the chelation with the catalyst. Moreover, when
the R group is altered from Tf to either acetyl (Ac) (12b) or
trifluoroacetic acid (TFA) (12c), almost the same trend is
observed. Moreover, protection of both the H atoms of
aniline (13) with the −SO2CF3 group afforded a regioiso-
meric mixture of the meta and para borylation products in
statistical ratios with a moderate conversion. Thus, this
finding indicates the necessity of an alkyl group as the lone
pairs of N atom are delocalized over two −SO2CF3 groups
and diminish the negative charge density on the carbonyl O
atom. Collectively, all these control experiments are
suggestive of an electrostatic model for the meta borylation.55
In conclusion, we have developed a method for the meta
borylation of arenes via an electrostatic model. The method
shows a broad substrate scope, especially for those substrates
bearing a substituent adjacent to the borylation site, which
was an utmost challenge. While the most iridium-catalyzed
remote C−H borylations require minimum 1.0 equiv of
diborane (B2pin2), our method requires only half of the
B2pin2 (0.5 equiv), demonstrating the practicality of the
7608
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
Babasaheb Bhimrao Ambedkar University, Lucknow
226025, Uttar Pradesh, India
Chart 7. Validation of Proposed Electrostatic Model
Chabush Haldar − Division of Molecular Synthesis & Drug
Discovery, Center of Biomedical Research, Lucknow 226014,
Uttar Pradesh, India
Ranjana Bisht − Division of Molecular Synthesis & Drug
Discovery, Center of Biomedical Research, Lucknow 226014,
Uttar Pradesh, India
Gajanan Pandey − Department of Applied Chemistry,
Babasaheb Bhimrao Ambedkar University, Lucknow
226025, Uttar Pradesh, India
Complete contact information is available at:
https://pubs.acs.org/10.1021/jacs.1c01770
Notes
The authors declare the following competing financial
interest(s): We have filed a patent based on this work.
ACKNOWLEDGMENTS
■
This work was supported by SERB-STAR AWARD grant
(STR/2019/000045), SERB-CRG grant (CRG/2018/
000133), and SERB-SUPRA grant (SPR/2019/000158).
J.C. thanks UGC for SRF, C.H. thanks CSIR for SRF, and
R.B. thanks SERB-SUPRA for RA fellowship. B.C. thanks the
SERB for the Science and Technology Award for Research.
We also thank CBMR for research facilities.
REFERENCES
■
(1) Lyons, T. W.; Sanford, M. S. Palladium-Catalyzed Ligand-
Directed C-H Functionalization Reactions. Chem. Rev. 2010, 110,
1147−1169.
(2) Daugulis, O.; Do, H.-Q.; Shabashov, D. Palladium- and
Copper-Catalyzed Arylation of Carbon-Hydrogen Bonds. Acc. Chem.
Res. 2009, 42, 1074−1086.
(3) Engle, K. M.; Mei, T.-S.; Wasa, M.; Yu, J.-Q. Weak
Coordination as a Powerful Means for Developing Broadly Useful
C-H Functionalization Reactions. Acc. Chem. Res. 2012, 45, 788−
802.
(4) Gensch, T.; Hopkinson, M. N.; Glorius, F.; Wencel-Delord, J.
Mild metal catalyzed C-H activation: examples and concepts. Chem.
Soc. Rev. 2016, 45, 2900−2936.
(5) Sambiagio, C.; Schönbauer, D.; Blieck, R.; Dao-Huy, T.;
Pototschnig, G.; Schaaf, P.; Wiesinger, T.; Zia, M. F.; Wencel-
developed method.56 We anticipate that the method should
find wide application in the context of boron-bearing small
molecules for the drug discovery, natural product synthesis,
and pharmaceutical industries.
ASSOCIATED CONTENT
* Supporting Information
The Supporting Information is available free of charge at
https://pubs.acs.org/doi/10.1021/jacs.1c01770.
̈
Delord, J.; Besset, T.; Maes, B. U. W.; Schnurch, M. A
comprehensive overview of directing groups applied in metal
catalysed C-H functionalisation chemistry. Chem. Soc. Rev. 2018,
47, 6603−6743.
■
sı
(6) Hartwig, J. F. Catalyst-Controlled Site-Selective Bond
Activation. Acc. Chem. Res. 2017, 50, 549−555.
Full characterization, copies of all spectral data,
experimental procedures (PDF)
(7) Dimakos, V.; Taylor, M. S. Site-Selective Functionalization of
Hydroxyl Groups in Carbohydrate Derivatives. Chem. Rev. 2018,
118, 11457−11517.
AUTHOR INFORMATION
Corresponding Author
Buddhadeb Chattopadhyay − Division of Molecular
Synthesis & Drug Discovery, Center of Biomedical Research,
Lucknow 226014, Uttar Pradesh, India; orcid.org/0000-
0001-8473-2695; Email: buddhadeb.c@cbmr.res.in,
buddhachem12@gmail.com
■
(8) Xia, Y.; Wang, L.; Studer, A. Site-selective Radical Remote C-H
Functionalization of Unactivated C-H Bonds in Amides with Sulfone
Reagents. Angew. Chem. 2018, 130, 13122−13126.
(9) Kim, I.; Kang, G.; Lee, K.; Park, B.; Kang, D.; Jung, H.; He, Y.
T.; Baik, M. H.; Hong, S. Site-Selective Functionalization of
Pyridinium Derivatives via Visible-Light-Driven Photocatalysis with
Quinolinone. J. Am. Chem. Soc. 2019, 141, 9239−9248.
(10) Ye, F.; Berger, F.; Jia, H.; Ford, J.; Wortman, A.; Börgel, J.;
Genicot, C.; Ritter, T. Aryl Sulfonium Salts for Site-Selective Late-
Stage Trifluoromethylation. Angew. Chem. 2019, 131, 14757−14761.
(11) Zheng, Q.; Liu, C.-F.; Chen, J.; Rao, G.-W. Functionalization
of Aromatic Amides. Adv. Synth. Catal. 2020, 362, 1406−1446.
Authors
Jagriti Chaturvedi − Division of Molecular Synthesis & Drug
Discovery, Center of Biomedical Research, Lucknow 226014,
Uttar Pradesh, India; Department of Applied Chemistry,
7609
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
(12) Ping, L.; Chung, D. S.; Bouffard, J.; Lee, S. Transition metal-
catalyzed site- and regio-divergent C-H bond functionalization.
Chem. Soc. Rev. 2017, 46, 4299−4328.
(13) Huang, Z.; Lim, H. N.; Mo, F.; Young, M. C.; Dong, G.
Transition metal-catalyzed ketone-directed or mediated C-H
functionalization. Chem. Soc. Rev. 2015, 44, 7764−7786.
(14) Hoque, M. E.; Hassan, M. M. M.; Chattopadhyay, B.
Remarkably Efficient Iridium Catalysts for Directed C(sp2)-H and
C(sp3)-H Borylation of Diverse Classes of Substrates. J. Am. Chem.
Soc. 2021, 143, 5022−5037.
(15) Yang, Y. F.; Hong, X.; Yu, J. Q.; Houk, K. N. Experimental-
computational synergy for selective Pd(II)-catalyzed C-H activation
of aryl and alkyl groups. Acc. Chem. Res. 2017, 50, 2853−2860.
(16) Davies, H. M. L.; Morton, D. Recent advances in C-H
functionalization. J. Org. Chem. 2016, 81, 343−350.
(17) Mkhalid, I. A. I.; Barnard, J. H.; Marder, T. B.; Murphy, J. M.;
Hartwig, J. F. C-H Activation for the Construction of C-B Bonds.
Chem. Rev. 2010, 110, 890−931.
(18) Hartwig, J. F. Regioselectivity of the borylation of alkanes and
arenes. Chem. Soc. Rev. 2011, 40, 1992−2002.
(19) Ros, A.; Fernandez, R.; Lassaletta, J. M. Functional group
directed C-H borylation. Chem. Soc. Rev. 2014, 43, 3229−3243.
(20) Xu, L.; Wang, G.; Zhang, S.; Wang, H.; Wang, L.; Liu, L.;
Jiao, J.; Li, P. Recent advances in catalytic C-H borylation reactions.
Tetrahedron 2017, 73, 7123−7157.
(21) Suzuki, A. Cross-Coupling Reactions Of Organoboranes: An
Easy Way To Construct C-C Bonds (Nobel Lecture). Angew. Chem.,
Int. Ed. 2011, 50, 6722−6737.
(22) Hall, D. G. Boronic Acids: Preparation and Applications in
Organic Synthesis and Medicine; Wiley-VCH: Weinheim, Germany,
2005. DOI: 10.1002/3527606548.
(23) Neeve, E. C.; Geier, S. J.; Mkhalid, I. A. I.; Westcott, S. A.;
Marder, T. B. Diboron (4) Compounds: From Structural Curiosity
to Synthetic Workhorse. Chem. Rev. 2016, 116, 9091−9161.
(24) Nakamura, H.; Yasui, K.; Kanda, Y.; Baran, P. S. 11- Step
Total Synthesis of Teleocidins B-1-B-4. J. Am. Chem. Soc. 2019, 141,
1494−1497.
(25) Whisler, M. C.; MacNeil, S.; Snieckus, V.; Beak, P. Beyond
Thermodynamic Acidity: A Perspective on the Complex-Induced
Proximity Effect (CIPE) in Deprotonation Reactions. Angew. Chem.,
Int. Ed. 2004, 43, 2206−2225.
(26) Hurst, T. E.; Macklin, T. K.; Becker, M.; Hartmann, E.;
Kugel, W.; Parisienne-La Salle, J. C.; Batsanov, A. S.; Marder, T. B.;
̈
(34) Davis, H. J.; Mihai, M. T.; Phipps, R. J. Ion Pair-Directed
Regiocontrol in Transition Metal Catalysis: A Meta-Selective C-H
Borylation of Aromatic Quaternary Ammonium Salts. J. Am. Chem.
Soc. 2016, 138, 12759−12762.
(35) Davis, H. J.; Genov, G. R.; Phipps, R. J. meta Selective C-H
Borylation of Benzylamine-, Phenethylamine- and Phenylpropyl-
amine-Derived Amides Enabled by a Single Anionic Ligand. Angew.
Chem., Int. Ed. 2017, 56, 13351−13355.
(36) Genov, G. R.; Douthwaite, J. L.; Lahdenperä, A. S. K.;
Gibson, D. C.; Phipps, R. J. Enantioselective remote C-H activation
directed by a chiral cation. Science 2020, 367, 1246−1251.
(37) Bisht, R.; Hoque, Md. E.; Chattopadhyay, B. Amide Effect in
C-H Activation: Noncovalent Interactions with L-Shaped Ligand for
meta Borylation of Aromatic Amides. Angew. Chem., Int. Ed. 2018,
57, 15762−15766.
(38) Mihai, M. T.; Davis, H. J.; Genov, G. R.; Phipps, R. J. Ion
Pair-Directed C-H Activation on Flexible Ammonium Salts: meta-
Selective Borylation of Quaternized Phenethylamines and Phenyl-
propylamines. ACS Catal. 2018, 8, 3764−3769.
(39) Lee, B.; Mihai, M. T.; Stojalnikova, V.; Phipps, R. J. Ion Pair-
Directed Borylation of Aromatic Phosphonium Salts. J. Org. Chem.
2019, 84, 13124−13134.
(40) Hoque, M. E.; Bisht, R.; Haldar, C.; Chattopadhyay, B.
Noncovalent Interactions in Ir-Catalyzed C-H Activation: L-Shaped
Ligand for Para-Selective Borylation of Aromatic Esters. J. Am.
Chem. Soc. 2017, 139, 7745−7748.
(41) Yang, L.; Semba, K.; Nakao, Y. para-Selective C-H Borylation
of (Hetero)Arenes by Cooperative Iridium/Aluminum Catalysis.
Angew. Chem., Int. Ed. 2017, 56, 4853−4857.
(42) Mihai, M. T.; Williams, B. D.; Phipps, R. J. Para-Selective CH
Borylation of Common Arene Building Blocks Enabled by Ion
Pairing with a Bulky Counter cation. J. Am. Chem. Soc. 2019, 141,
15477−15482.
(43) Montero Bastidas, J. R.; Oleskey, T. J.; Miller, S. L.; Smith,
M. R.; Maleczka, R. E. Para-Selective, Iridium-Catalyzed C-H
Borylations of Sulfated Phenols, Benzyl Alcohols, and Anilines
Directed by Ion-Pair Electrostatic Interactions. J. Am. Chem. Soc.
2019, 141, 15483−15487.
(44) Chattopadhyay, B.; Dannatt, J. E.; Andujar-De Sanctis, I. L.;
Gore, K. A.; Maleczka, R. E.; Singleton, D. A.; Smith, M. R. Ir-
Catalyzed Ortho Borylation of Phenols Directed by Substrate-Ligand
Electrostatic Interactions: A Combined Experimental/in Silico
Strategy for Optimizing Weak Interactions. J. Am. Chem. Soc.
2017, 139, 7864−7871.
(45) Seechurn, C. C. C. J.; Sivakumar, V.; Satoskar, D.; Colacot, T.
J. Iridium-Catalyzed C-H Borylation of Heterocycles Using an
Overlooked 1,10-Phenanthroline Ligand: Reinventing the Catalytic
Activity by Understanding the Solvent-Assisted Neutral to Cationic
Switch. Organometallics 2014, 33, 3514−3522.
Snieckus, V. Iridium-Catalyzed C-H Activation versus Directed
ortho Metalation: Complementary Borylation of Aromatics and
Heteroaromatics. Chem. - Eur. J. 2010, 16, 8155−8161.
(27) Cho, J. Y.; Iverson, C. N.; Smith, M. R., III Steric and Chelate
Directing Effects in Aromatic Borylation. J. Am. Chem. Soc. 2000,
122, 12868−12869.
(28) Ishiyama, T.; Takagi, J.; Ishida, K.; Miyaura, N.; Anastasi, N.
R.; Hartwig, J. F. Mild Iridium-Catalyzed Borylation of Arenes. High
Turnover Numbers, Room Temperature Reactions, and Isolation of
a Potential Intermediate. J. Am. Chem. Soc. 2002, 124, 390−391.
(29) Maleczka, R. E., Jr; Shi, F.; Holmes, D.; Smith, M. R., III C-H
Activation/Borylation/Oxidation: A One-Pot Unified Route to
Meta-Substituted Phenols Bearing Ortho-/Para-Directing Groups.
J. Am. Chem. Soc. 2003, 125, 7792−7793.
(46) Slack, E. D.; Colacot, T. J. Understanding the Activation of
Air-Stable Ir(COD)(Phen)Cl Precatalyst for C-H Borylation of
Aromatics and Heteroaromatics. Org. Lett. 2021, 23, 1561−1565.
(47) Bencini, A.; Lippolis, V. 1,10-Phenanthroline: A versatile
building block for the construction of ligands for various purposes.
Coord. Chem. Rev. 2010, 254, 2096−2180.
(48) Notably, in case of the substrates (2a−2d and 2a-I to 2a-III)
we observed a minor amount of m,m-diborylated products under the
reaction conditions. However, during the column chromatography
isolation, the diborylated products perhaps decomposed and became
only monoborylated products, which were isolated, and the yields
are reported accordingly.
(30) Murphy, J. M.; Liao, X.; Hartwig, J. F. Meta Halogenation of
1,3-Disubstituted Arenes via Iridium-Catalyzed Arene Borylation. J.
Am. Chem. Soc. 2007, 129, 15434−15435.
(31) Bisht, R.; Chattopadhyay, B. Formal Ir-Catalyzed Ligand-
Enabled Ortho and Meta Borylation of Aromatic Aldehydes via in
Situ-Generated Imines. J. Am. Chem. Soc. 2016, 138, 84−87.
(32) Yang, L.; Uemura, N.; Nakao, Y. meta-Selective C-H
Borylation of Benzamides and Pyridines by an Iridium-Lewis Acid
Bifunctional Catalyst. J. Am. Chem. Soc. 2019, 141, 7972−7979.
(33) Kuninobu, Y.; Ida, H.; Nishi, M.; Kanai, M. A. meta selective
C-H borylation directed by a secondary interaction between ligand
and substrate. Nat. Chem. 2015, 7, 712−717.
(49) Ye, Y.; Schimler, S. D.; Hanley, P. S.; Sanford, M. S.
Cu(OTf)2-Mediated Fluorination of Aryltrifluoroborates with
Potassium Fluoride. J. Am. Chem. Soc. 2013, 135, 16292−16295.
(50) Thompson, A.; Kabalka, G.; Akula, M.; Huffman, J. The
Conversion of Phenols to the Corresponding Aryl Halides Under
Mild Conditions. Synthesis 2005, 2005, 547−550.
(51) Kallepalli, V. A.; Gore, K. A.; Shi, F.; Sanchez, L.; Chotana, G.
A.; Miller, S. L.; Maleczka, R. E., Jr; Smith, M. R., III Harnessing C-
7610
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611

Journal of the American Chemical Society
pubs.acs.org/JACS
Communication
H Borylation/Deborylation for Selective Deuteration, Synthesis of
Boronate Esters, and Late-Stage Functionalization. J. Org. Chem.
2015, 80, 8341−8353.
(52) Robbins, D. W.; Hartwig, J. F. Sterically Controlled Alkylation
of Arenes through Iridium-Catalyzed C-H Borylation. Angew. Chem.,
Int. Ed. 2013, 52, 933−937.
(53) Dai, P. F.; Ning, X. S.; Wang, H.; Cui, X. C.; Liu, J.; Qu, J.
P.; Kang, Y. B. Cleavage of C(aryl)-CH3 Bonds in the Absence of
Directing Groups under Transition Metal Free Conditions. Angew.
Chem., Int. Ed. 2019, 58, 5392−5395.
(54) Boller, T. M.; Murphy, J. M.; Hapke, M.; Ishiyama, T.;
Miyaura, N.; Hartwig, J. F. Mechanism of the Mild Functionalization
of Arenes by Diboron Reagents Catalyzed by Iridium Complexes.
Intermediacy and Chemistry of Bipyridine-Ligated Iridium Trisboryl
Complexes. J. Am. Chem. Soc. 2005, 127, 14263−14278.
(55) However, we can not completely exclude the possibility of an
intrinsic electronic directing effect of the sulphonamide group for
the origin of the meta selectivity, which is a matter for future
studies. Moreover, literature reports have revealed that the NH-R
group might be considered as an activating group and that +M effect
groups are found to be meta activating. For details, see: Tajuddin,
H.; Harrisson, P.; Bitterlich, B.; Collings, J. C.; Sim, N.; Batsanov, A.
S.; Cheung, M. S.; Kawamorita, S.; Maxwell, A. C.; Shukla, L.;
Morris, J.; Lin, Z.; Marder, T. B.; Steel, P. G. Iridium-catalyzed C-H
borylation of quinolines and unsymmetrical 1,2- disubstituted
benzenes: insights into steric and electronic effects on selectivity.
Chem. Sci. 2012, 3, 3505−3515.
(56) For B2pin2 0.5 mmol see: Jones, M. R.; Fast, C. D.; Schley, N.
D. Iridium-Catalyzed sp3 C-H Borylation in Hydrocarbon Solvent
Enabled by 2,2′-Dipyridylarylmethane Ligands. J. Am. Chem. Soc.
2020, 142, 6488−6492.
7611
https://doi.org/10.1021/jacs.1c01770
J. Am. Chem. Soc. 2021, 143, 7604−7611
